Desi OP600 - Dehumidifier Eldom - Free user manual and instructions

Product Type	Dehumidifier
Brand	Eldom
Model	Desi OP600
Dehumidification Capacity	500 ml/day (at 30°C, 80% RH)
Rated Voltage	230 V ~ 50 Hz
Power Consumption	65 W
Rated Current	0.5 A
Water Tank Capacity	2.5 L
UV Lamp	Yes
Ionizer	Yes
Noise Level	≤ 30 dB(A)
Net Weight	2.5 kg
Dimensions (W x D x H)	240 x 135 x 363 mm
Operating Temperature Range	5°C to 50°C
Timer	1-24 hours (auto on/off)
Display	Current humidity or timer setting
Tank Full Indicator	Red LED and audible alarm
Defrost Function	Automatic at low temperatures
Safety Features	Child safety (supervision for children under 8)
Maintenance	Unplug before cleaning; clean housing with soft damp cloth
Storage	Empty tank, store in cool dry place

Frequently Asked Questions - Desi OP600 Eldom

How do I empty the water tank?

Pull the tank gently from the back of the device, slide it out, and pour water through the opening in the lid. If dirty, clean with water. Do not use acrid cleaning agents or chemical solvents. Ensure the float is properly positioned to avoid overflow.

What does the E1 error code mean?

The E1 error indicates a failure of the temperature and humidity sensor. Contact the manufacturer's customer service for assistance.

How do I set the timer?

Press the TIMER button repeatedly until the display shows the desired value from 1 to 24 hours. For auto-off, set when device is on; for auto-on, set when off. To cancel, set to '00'. The backlight confirms activation.

What is the noise level of the dehumidifier?

The noise level is ≤ 30 dB(A), making it very quiet for indoor use.

Can I use an extension cord?

It is not recommended unless the extension cord has been checked and tested by a qualified electrician. The cord length is selected to minimize hazard.

How do I clean the dehumidifier?

Always unplug the unit before cleaning. Use a soft, damp cloth to wipe the housing. Do not use chemical solvents like benzene, alcohol, or gasoline, as they may damage the surface.

What is the dehumidification capacity?

The dehumidification capacity is 500 ml per day at 30°C and 80% relative humidity.

What are the dimensions and weight?

The dimensions are 240 x 135 x 363 mm (width x depth x height) and the net weight is 2.5 kg.

Why is the tank full indicator lit even after emptying?

The float may be stuck, filled with water, or not properly positioned. Also check if the magnetic detector is correctly aligned. Empty and reposition the float to solve the issue.

How should I store the dehumidifier when not in use?

Unplug the power cord and empty the water tank completely. Store the dehumidifier in a cool, dry place away from direct sunlight, high temperatures, and excessive dust.

USER MANUAL Desi OP600 Eldom

Exterior view of a white electric air conditioner unit with digital display and control buttons (no text or symbols visible)

/EN/ Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

Przód

Tyl

Close-up of a mechanical component with a circular feature and an arrow pointing to it (no text or symbols visible)

Diagram of a device with a black top and gray side, showing internal components and an arrow indicating a location (no text or symbols present)

Close-up of a mechanical component with a downward arrow indicating a feature (no text or symbols visible)

Side view of a black and white hairbrush tool (no text or symbols visible)

Please read all these instructions carefully before using this appliance.

1. Only use this appliance for domestic purposes and in the way indicated in these instructions. Never use for any other purposes.

2. Do not use the appliance outside and always place it in a dry environment.

3. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are theresponsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

4. From time to time, check the cord. Never use the cord, the plug or the appliance when they show any sign of damage. The cord length of this product has been selected to reduce the possibility of being injured. Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrician or electrical supplier.

5. Keep the appliance away from hot sources and direct sunlight.

6. Always switch off the appliance before unplugging it.

7. Unplug the appliance before cleaning or changing any parts of the appliance or when it's not in use.

8. Clean the appliance accord to manual.

9. Make sure that the voltage rating on the type plate corresponds to your main voltage. Any error in connecting the appliance invalidates the guarantee.

10. Prevent your children from this danger.

11. Never leave the appliance unsupervised when in use. Switch off the appliance if you have to go away for even a short time.

12. Never pull the cord to unplug or move the appliance.

13. Never immerse the appliance in water or any other liquid for any reason.

14. Keep the appliance away from water or oil splashes.
15. Respect the instructions for cleaning.
16. Do not insert sharp metallic objects or fingers in the air swinging fins of the appliance.
17. Never repair the appliance yourself. All interventions made by a non-qualified person can be dangerous. As well any changing of the cord must be done by a qualified electrician.
18. Never use accessories non-delivered by the supplier. This could be dangerous and could damage the appliance.

Special recommendations:

• Ambient temperature range for the device is 5^ - 50^
• Install the portable dehumidifier on a flat location with a large space, without obstacles. Leave a 50 cm minimum space between the unit and the wall.
• The device must be installed in accordance with national installation regulations.
• The plug shall be always accessible after its installation.
  • Always place the appliance in a vertical position
• Do not tilt the device in any direction as spilled water can damage the device.
• Do not use the appliance near gas or other inflammable liquids.
• Do not block the air outlet and inlet ventilation. Do not place heavy objects on the device.
• Do not use spray (insecticides, painting) or any other inflammable products near the appliance as the plastic case may be deformed. The unit may sustain electrical damage.

Power sources

• The plug has to be well fixed and should not be damaged.
• Do not plug in the appliance with an adaptor.
• Plug into the wall socket before switching on the appliance then press on the ON/OFF button.

GENERAL DESCRIPTION

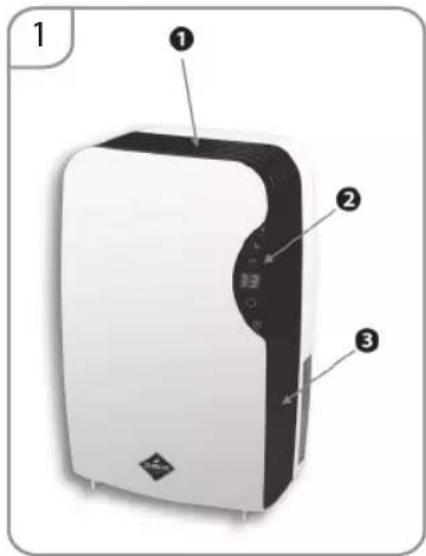

Front

1. Air outlet
2. Control Panel
3. Housing

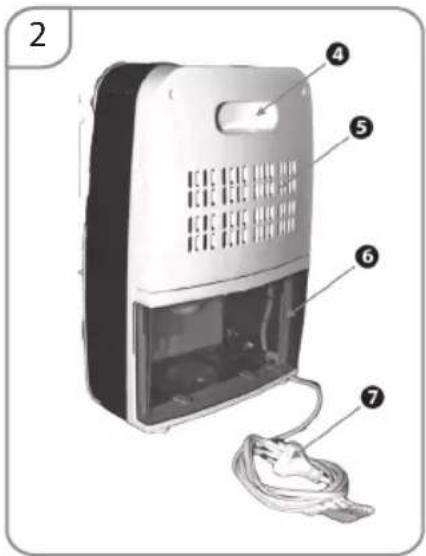

Rear

1. Handle
2. Air inlet
3. Water tank
4. Power supply wire

TECHNICAL DATA

MODEL OP600
Dehumidification capacity 500ml/day (30°C RH80%)
Rated voltage 230 V ~ 50HZ
Power consumption 65W
Rated current 0,5A
Water container 2,5 l
UV lamp Yes
Jonizator Yes
Noise level ≤30dB(A)
Net weight 2,5 kg
Dimensions 240*135*363 mm

Any changes in settings are signalled by a sound.

The device must be placed vertically on a flat surface, in a dry and spacious location. The room should be ventilated. At least 50 cm of clearance should be left around the device.

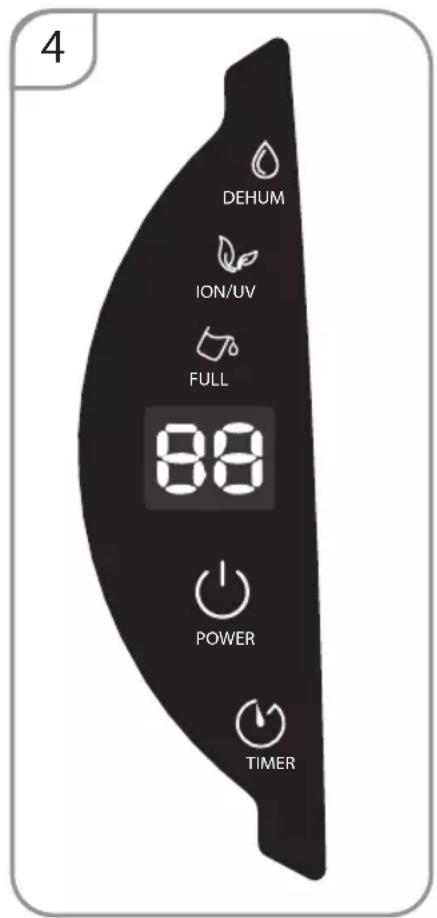

CONTROL PANEL

• The button - ⏻ used to turn the device on / off. Do not remove the power supply cord plug directly to force the device to stop immediately.
• The display - 85 indicator has 2 functions:
• when the device is on, it displays the current humidity in the room,
• when setting the "TIMER" function, it displays values within the range "00-24",
• Dehumidification indicator – diode lights up automatically when the device is started.

• Cleaning indicator – the diode lights up automatically when the device is started.

• Tank filling indicator (6). The indicator will turn red when the tank is filled. The device will signal it additionally by sound and then switch off. Empty the water tank and put it back in the correct position.

• The TIMER button ⏻ – is used to turn the device on and off automatically. To set the time, press the button, until the display shows the correct value within the range “1-24”. In order to switch off the function, set the value “00” using the button when the device is turned off using the button time setting is cleared. Activation of the function is signalled by the backlight. Pressing and holding the “TIMER” button will display the room temperature on the display.

EMPTYING THE TANK

ATTENTION

Water collected in the dehumidifier tank is not suitable for drinking and must not be allowed to come into contact with food.

Do not put the floater out of water; otherwise the device will not stop working when the water tank fills up. Then, water will overflow, which may cause damage to the floor.

Close-up of a mechanical component with a circular feature and an arrow pointing to it (no text or symbols visible)

Diagram of a device with a black top and gray side, showing internal components and an arrow indicating a location (no text or symbols present)

3D mechanical component with a downward arrow indicating a feature (no text or symbols visible)

Side view of a hairbrush with black and white body, no visible text or symbols

• Pull the tank gently at the back of the device; the tank will slide out (fig. 6).
• Pour the water out of the tank through the opening in the lid (fig. 7).
• If the water tank is dirty, clean it with water. Do not use any acrid cleaning agents. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed. Do not sprinkle water
• Place the tank in the right position in the device (fig 8). Otherwise, the full tank indicator will still light up red and the device will not be able to work.

MAINTENANCE

Note:

Turn off the unit and unplug it before any maintenance or repair begins to avoid electric shock.

CLEANING

Unplug the unit before any cleaning. Clean the housing with a soft moisture cloth. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed. Do not sprinkle water on the unit.

STORING THE DEVICE

If the dehumidifier is not used for a longer period of time:

• Unplug the power cord from the socket and roll it.
• Empty the tank entirely of water and make sure that there is no water inside.
• Store the dehumidifier in a cool, dry place, inaccessible to sun rays, high temperature or excessive dust.

TROUBLE SHOOTING

Before contacting the service centre, you should compare the symptoms given by the device with those listed below. The list includes normal situations which are not caused by a manufacturing defect or defective material.

Problem Possible cause	Solution
The tank fill indicator lights up in red.	The tank is full. Empty the tank.
	The float is filled with water. Empty the float.
	There is no float in the tank. Position the float properly.
	The detector (magnetic element) in the float is not positioned properly.	Position the detector properly.
Insufficient air drying	The air flow is prevented. Leave 50 cm around the device.
	The air inlet and outlet are blocked. Restore patency of the inlet and outlet.
	The ambient temperature is very low. Change the ambient temperature.
The LED display indicates “E1”	Failure of the temperature and humidity sensor.	Contact the manufacturer's customer service.
The power supply button is flashing.	The machine defrosts at low temperature.	Normal condition.Wait until the defrosting is completed.

Vorne

Hinten

Close-up of a mechanical component with a small circular feature and an arrow pointing to it (no text or symbols visible)

Diagram of a device with a black top and gray side, showing internal components and an arrow indicating a specific section (no text or symbols present)

3D mechanical component with a downward arrow indicating direction (no text or symbols)

Side view of a black and gray cylindrical object with a small protrusion, no visible text or symbols

Передняя часть

Задняя часть

Close-up of a mechanical component with a circular feature and a pointer arrow (no text or symbols visible)

Diagram of a device with a side panel and internal components, no visible text or symbols

3D mechanical component with a downward arrow indicating a feature (no text or symbols visible)

Side view of a hairbrush with black and white body, no visible text or symbols

Frente

1. Salida de aire
2. Panel de mando
3. Caja

Atrás

Close-up of a mechanical component with a circular feature and an arrow pointing to it (no text or symbols visible)

Diagram of a device with a black top and white side, showing internal components and an arrow indicating a specific section (no text or symbols present)

3D mechanical component with a downward arrow indicating a feature (no text or symbols visible)

Side view of a black and white hairbrush tool (no text or symbols visible)
