Product Type	Freestanding Dishwasher
Model Number	AJ13600EX
Brand	ASPES
Capacity	13 Place Settings

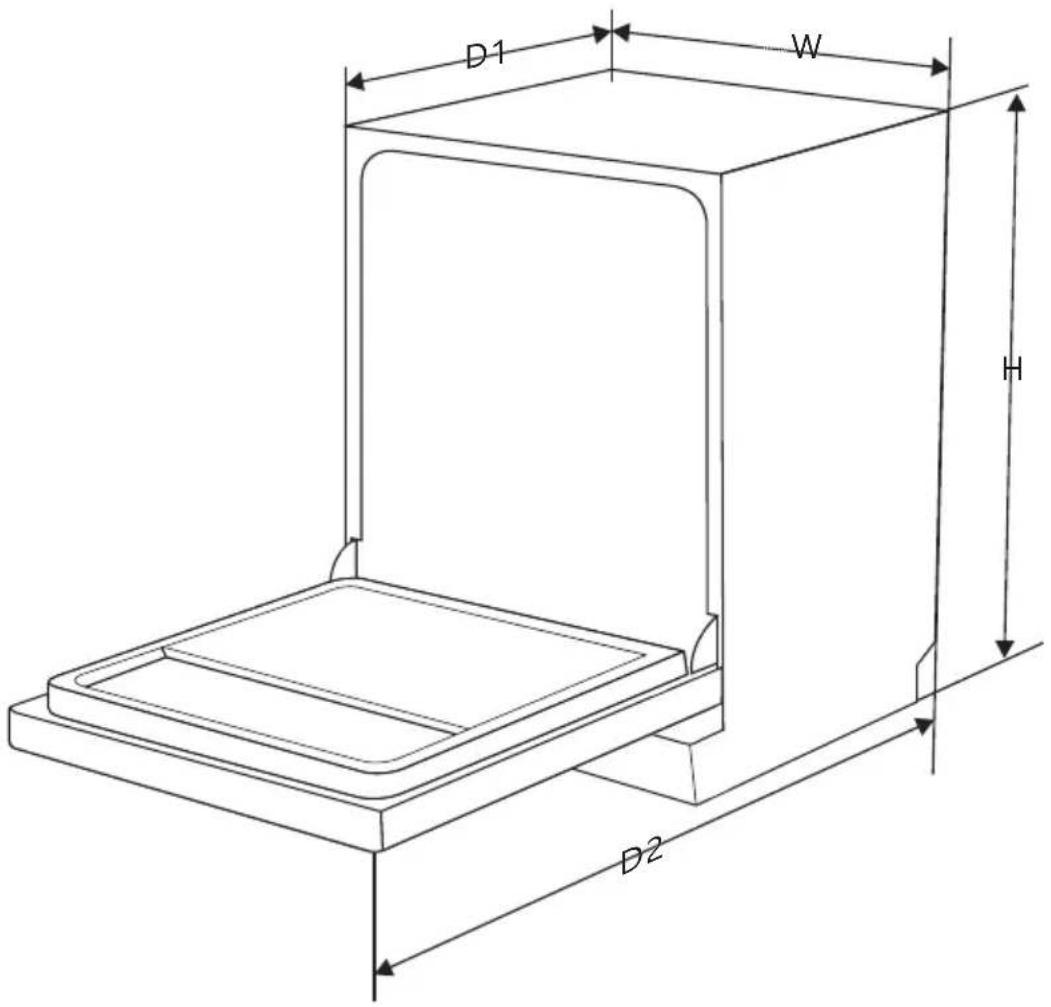

Dimensions (H x W x D)	845 x 598 x 600 mm (with door closed); 1175 mm depth with door open 90°
Energy Efficiency Class	E
Energy Consumption (ECO program)	0.937 kWh per cycle
Water Consumption (ECO program)	11.0 L per cycle
Program Duration (ECO program)	3:50 h:min
Noise Level	49 dB(A) - Class C
Power Supply	220-240 V, 50 Hz, 10/13/16 A fuse
Wash Programs	Intensive, Universal, ECO, 90 min, Glass, Rapid, Soak
Special Functions	Half-Load, Extra Drying, Delay Start (3/6/9h), Child Lock
Water Softener	Adjustable salt consumption (H1-H6)

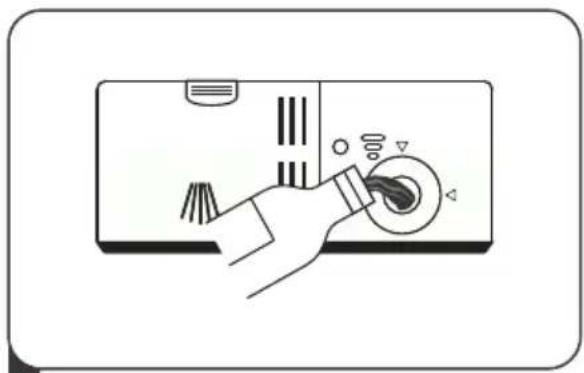

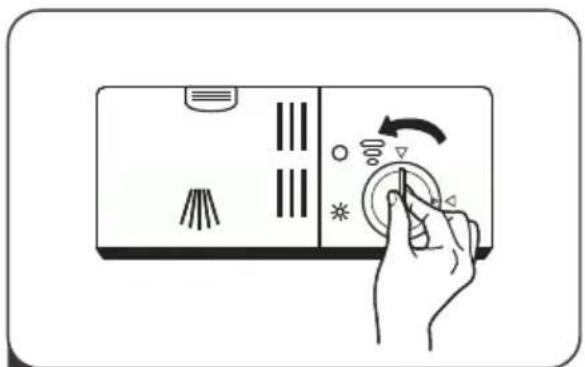

Rinse Aid Dispenser	Adjustable setting (1-6)
Filter System	3-part filter (coarse, main, fine)

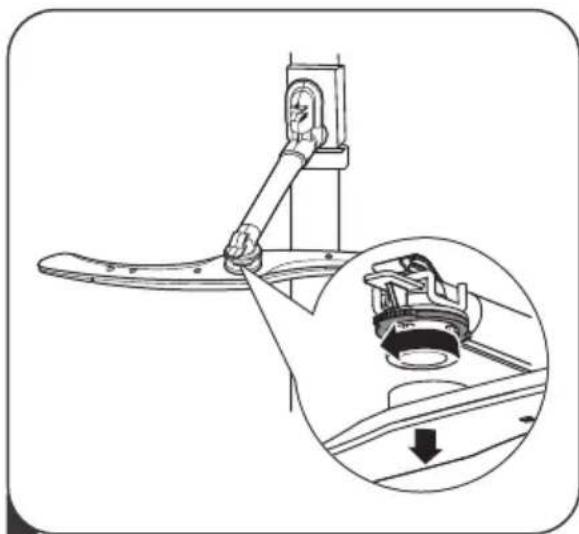

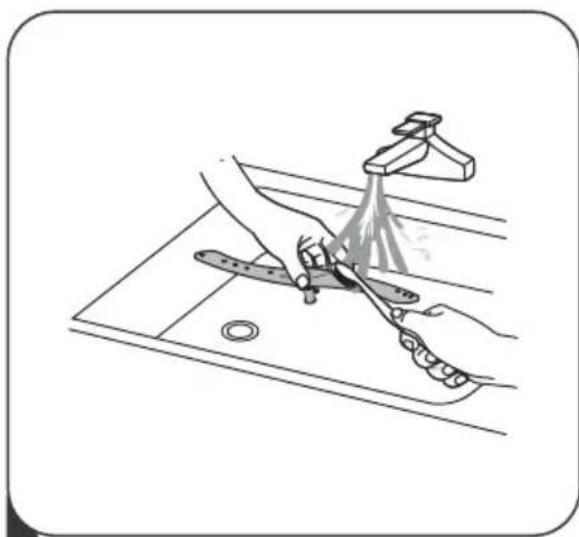

Spray Arms	Upper and lower, removable for cleaning
Basket Features	Adjustable upper basket height, foldable cup shelves, foldable lower rack spikes
Installation Type	Freestanding or built-in under worktop (remove top)
Water Connection	Cold water, 3/4" threaded, max 1 MPa, min 0.04 MPa

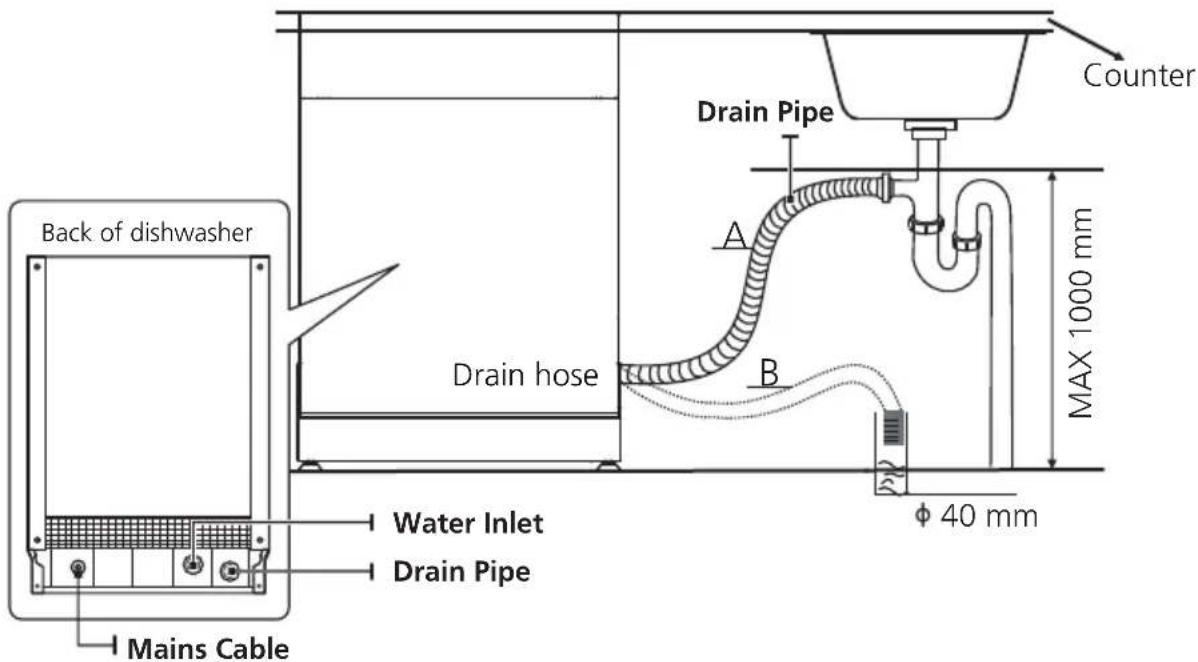

Drain Hose Length	Max 4 m extension, drain height ≤ 1000 mm
Safety Features	Child lock, earth connection, anti-flood safety hose
Spare Parts Availability	Up to 7 years for electronic/mechanical parts, up to 10 years for door seals, spray arms, filters, baskets

Frequently Asked Questions - AJ13600EX ASPES

How do I adjust the water softener setting?

Within 60 seconds of switching on the appliance, press and hold the Soak button for more than 5 seconds to enter setting mode. Then press Soak repeatedly to cycle through H1-H6 and select your water hardness level. Press Power to save.

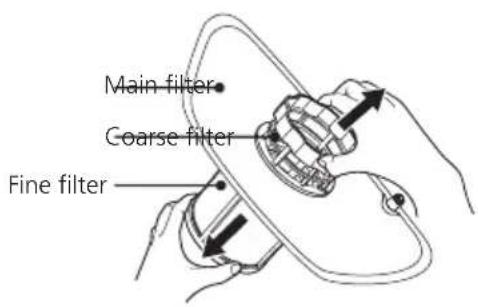

How often should I clean the filters?

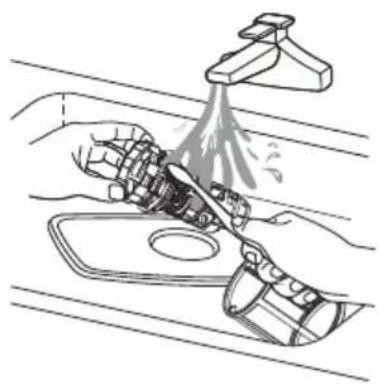

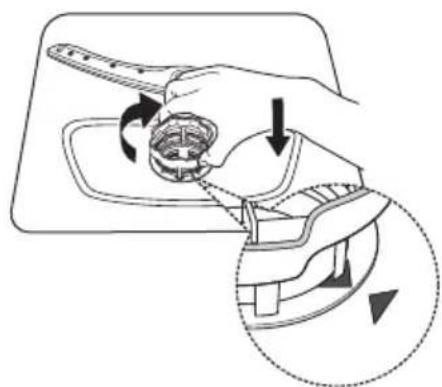

Check and clean the filters regularly. To clean, rotate the coarse filter anticlockwise to unlock, lift out, and rinse under running water. Use a soft brush for a thorough clean. Reassemble in reverse order and rotate clockwise to lock.

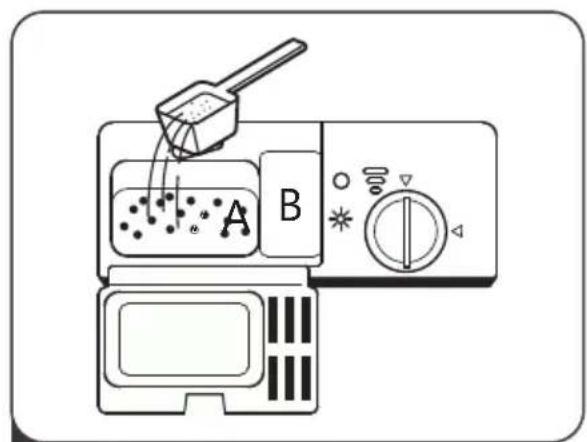

What type of detergent should I use?

Only use detergent specifically designed for automatic dishwashers. Never use soap, laundry detergent, or hand washing detergent. Use fresh, dry detergent and follow the manufacturer's dosage recommendations.

How do I load the baskets for best cleaning results?

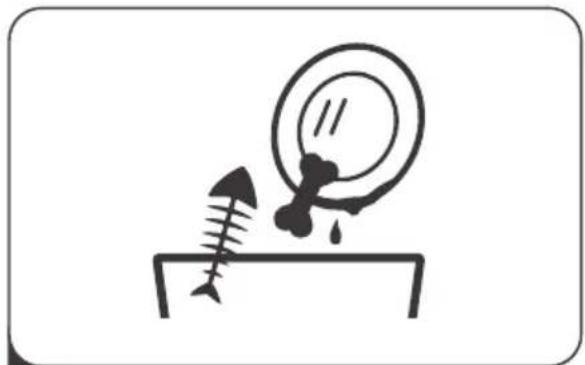

Scrape off large food residues without pre-rinsing. Load hollow items (cups, glasses) upside down. Place sharp knives with points down. Do not overload; ensure spray arms rotate freely. Upper basket: delicate items. Lower basket: pots, pans, dirty dishes. Cutlery basket: separate items.

Why are my dishes not drying properly?

Possible causes: wrong program selected (use a program with drying), dishes removed too soon, low-quality coating on cutlery, or rinse aid level too low. Ensure rinse aid dispenser is filled and adjust setting to a higher number if spotted.

What do the error codes mean?

- Rapid light flickers fast: longer inlet time (check faucet/water pressure). - 90 min & Rapid flicker: not reaching temperature (heating element issue). - Glass flicker: overflow (leak). - ECO, Glass, Rapid flicker: communication failure. Refer to manual for full list.

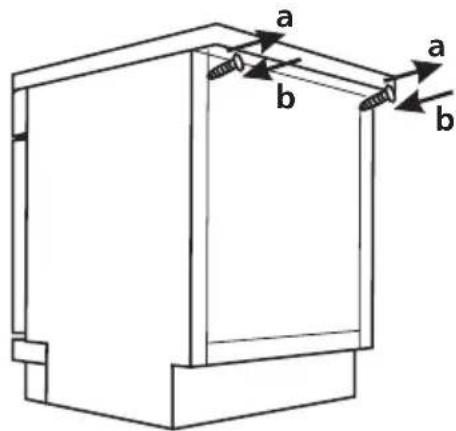

Can the dishwasher be built-in under a worktop?

Yes, it can be installed under a worktop by removing the top panel. Unscrew the screws under the rear edge of the top, remove the top, then re-screw the screws. The height reduces to 820 mm approximately.

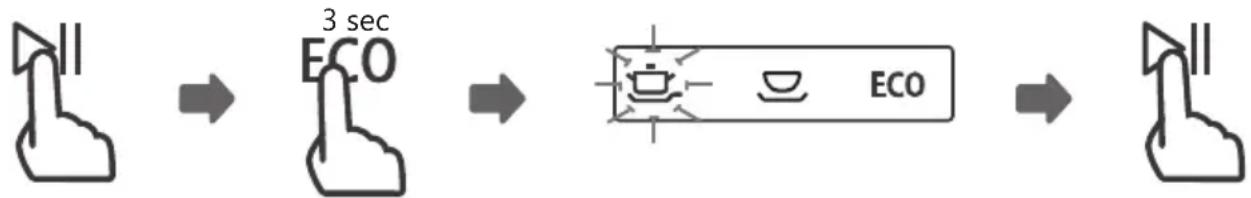

How do I change a program after it has started?

Press Start/Pause to pause. If only a short time has passed (detergent not yet released), press any program button for more than 3 seconds to enter program selection mode, then choose a new program. If detergent has been released, reset the dishwasher and refill detergent.

How do I enable the child lock?

Press and hold the Delay and Half-load buttons simultaneously for 3 seconds. The child lock indicator will light up, locking all buttons except Power. Repeat to unlock.

What is the ECO program?

The ECO program is the standard program for normally soiled tableware. It is the most efficient in terms of combined energy and water consumption, meeting EU ecodesign standards. It runs for 3 hours 50 minutes and uses 0.937 kWh and 11.0 L of water.

USER MANUAL AJ13600EX ASPES

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2

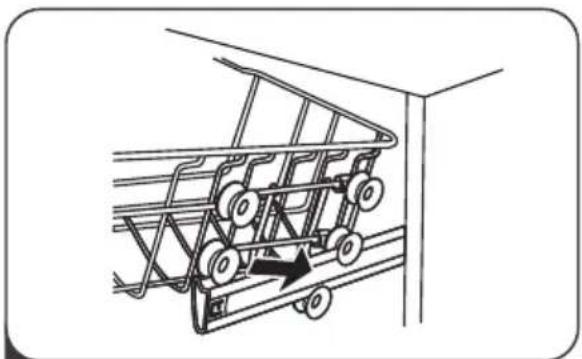

Retire la canasta superior.

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly or housing with no visible text or symbols

Mechanical assembly diagram showing a hand operating a tracked vehicle with two circular components, one highlighted by an arrow (no text or symbols present)

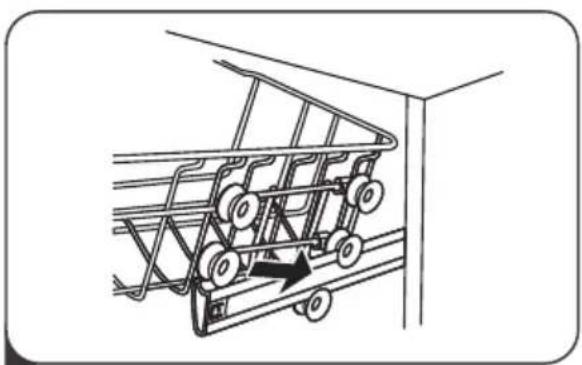

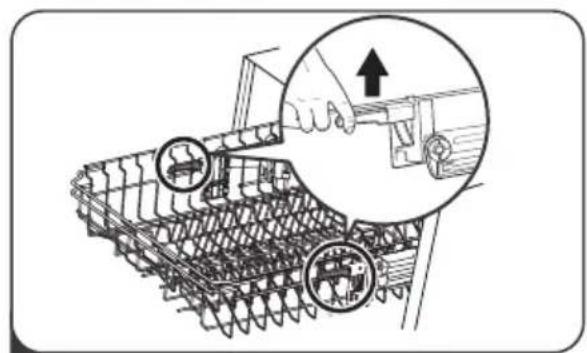

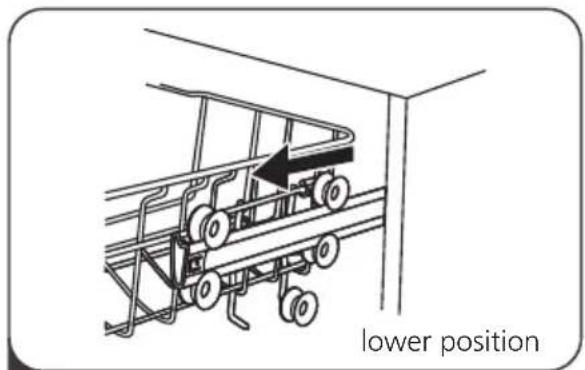

2 To lower the rack, push down on the handle and release.

Diagram showing two stages of a mechanical or structural assembly with curved elements and directional arrows (no text or symbols)

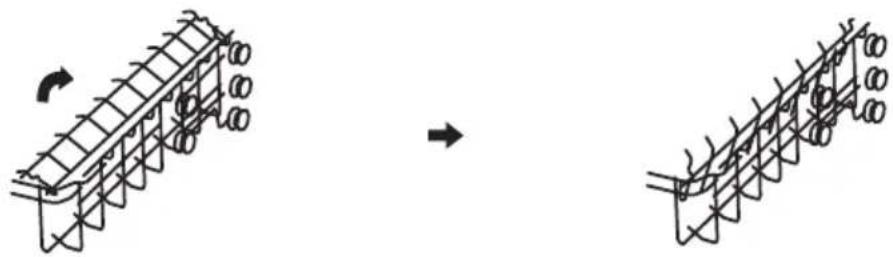

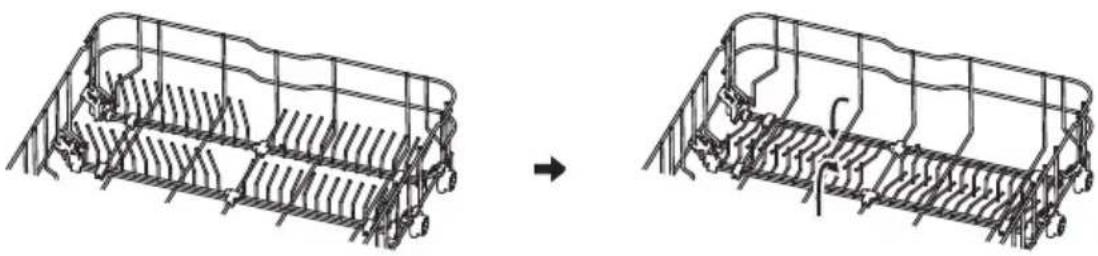

Plegar los estantes

Diagram showing a structural change before and after assembly, with no visible text or symbols

MANTENIMIENTO Y LIMPIEZA

Cuidado externo

Illustration of a hand holding a small object inside a container with arrows indicating motion (no text or symbols)

Illustration of a hand cleaning a kitchen sink with a spray bottle (no text or symbols)

Illustration of a hand using a tool to adjust a small object, with no visible text or symbols.

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Illustration of a hand using a tool to clean or wash air from a kitchen sink (no text or symbols)

Symbolic illustration of a hand with lightning bolts and a curved line, representing electrical hazard or electrical hazard (no text present)

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

Line drawing of a faucet with a valve and handle (no text or symbols)

Diagram showing a hand holding a pen or tool, with an inset close-up of the pen tip (no text or symbols present)

NOTA:

Solo aplica al lavavajillas independiente.

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Simple line drawing of a fish on a surface with a magnifying glass above it, no text or symbols present.

Illustration of a hand pouring liquid from a container into a microwave oven using a tool (no text or symbols)

Simple line drawing of a refrigerator with sound waves (no text or symbols)

Technical line drawing of a mechanical component with gears and shafts (no text or symbols)

Pure diagram of vertical panels arranged in a grid pattern without any text, numbers, or symbols

Circular diagram with grid lines and a crossed X symbol (no text or labels)

Illustration of a hand pressing down on a control panel with icons and arrows (no text or symbols)

Illustration of a hand pressing down on a device panel with icons and arrows (no text or symbols)

Illustration of a hand operating a device with a knob and control knob (no text or symbols)

Hand interacting with a touchscreen device displaying a circular button and icons (no text or symbols)

Illustration of a hand pressing down on a kitchen control panel with directional arrows (no text or symbols)

Simple line drawing of a box with a lid and handle (no text or symbols)

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Dishwasher Instruction Manual

PART I : Generic Version

AJ13600E

AJ13600EX

. aspes

Please read this manual carefully before using the dishwasher and Keep this manual for future reference.

CONTENTS

01
02
03
04
05
06
07
3 SAFETY INFORMATION
8 PRODUCT OVERVIEW
9 USING YOUR DISHWASHER
9 Loading The Salt Into The Softener

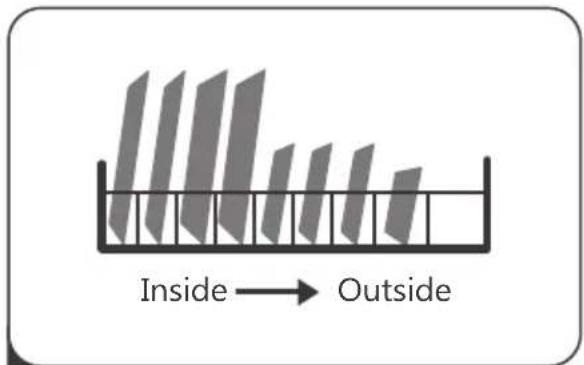

11 Basket Loading Tips
13 MAINTENANCE AND CLEANING
13 External Care
13 Internal Care
16 Caring For The Dishwasher
17 INSTALLATION INSTRUCTION
17 Power Connection
18 Water Supply And Drain
19 Connection Of Drain Hoses

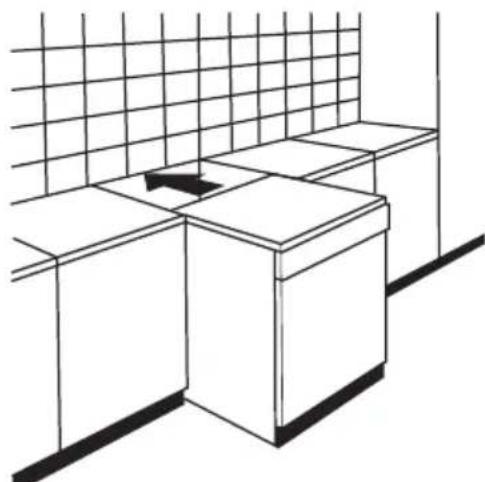

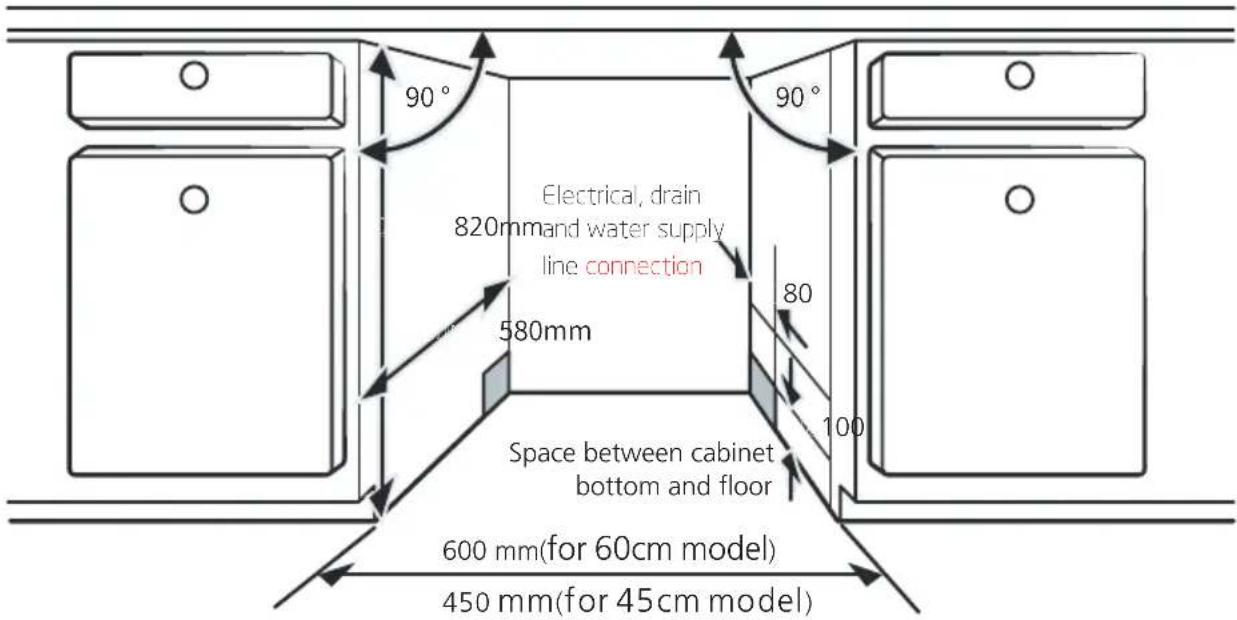

20 Positioning The Appliance
20 Free Standing Installation
22 TROUBLESHOOTING TIPS
25 Availability Of Spare Parts

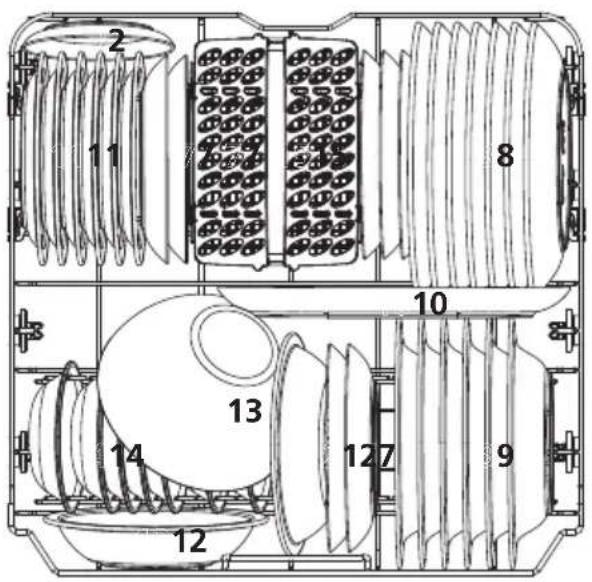

26 LOADING THE BASKETS

NOTE:

• Reviewing the section on Will help you're some common problems by yourself.
• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

SAFETY INFORMATION

WARNING

When using your dishwasher, follow the precautions listed below:

• Installation and repair can only be carried out by a qualified technician
- This appliance is intended to be used in household and similar applications.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1)
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1)

• Packaging material could be dangerous for children!
  • Children should be supervised to ensure that they do not play with the appliance.
• This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Do not modify the plug provided with the appliance if it does not fit the outlet.

• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

- When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.

- Check that there are no detergent residues after completion of the wash cycle.

- Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.

• For unmarked plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.
• To save energy, in stand by mode, the appliance will switch of automatically after 15 minutes without any user interaction.
• The maximum number of place settings to be washed is 13.
• The maximum permissible inlet water pressure is 1MPa.
• The minimum permissible inlet water pressure is 0.04MPa.

Disposal

- For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

• Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

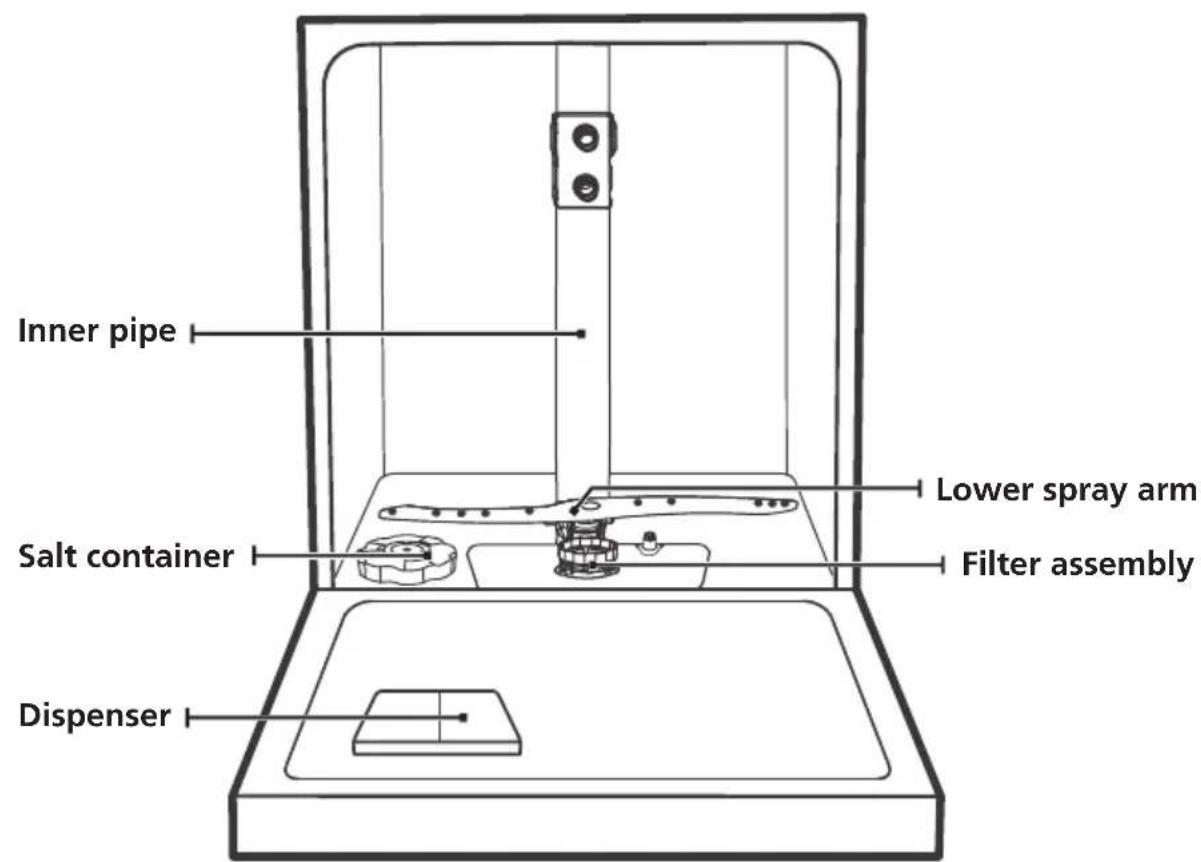

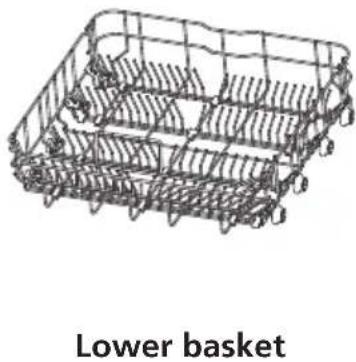

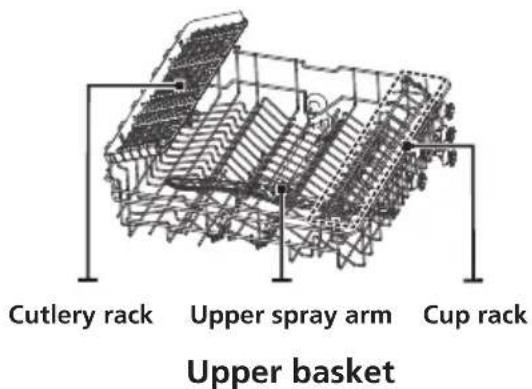

PRODUCT OVERVIEW

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Line drawing of a traditional-style handbag with a handle and internal compartments (no text or symbols)

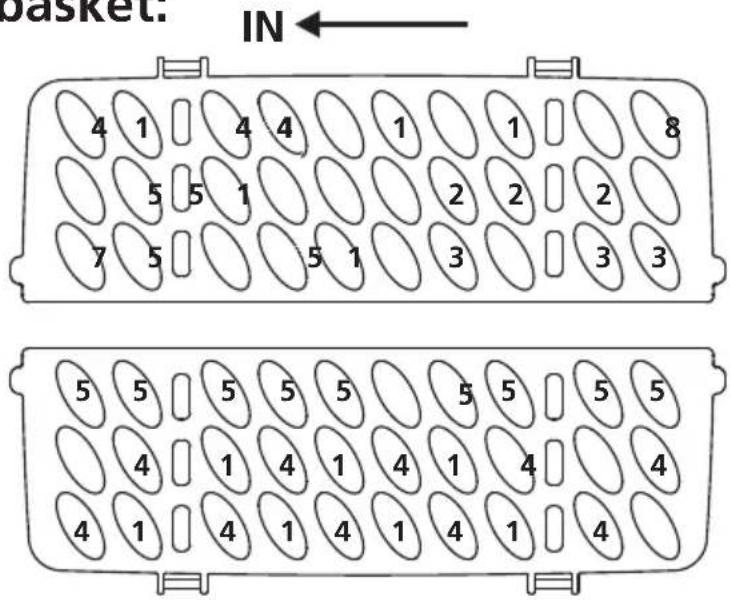

Cutlery basket

Line drawing of a basket structure with no text or symbols on the diagram itself

NOTE:

Pictures are only for reference, different models may be different.

USING YOUR DISHWASHER

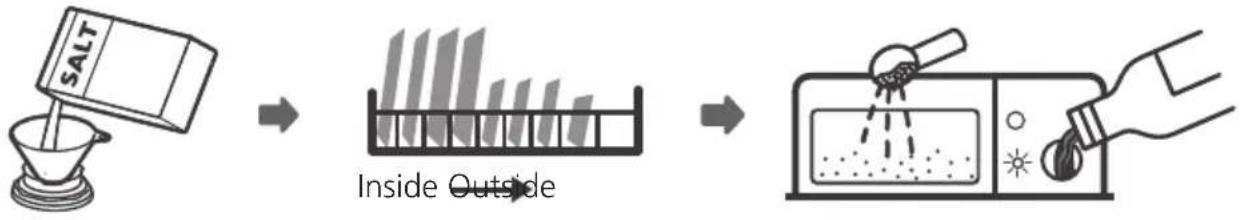

Before using your dishwasher :

1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket
4. Fill the dispenserdetergent

Please check the section 1 "Water Softener" of PART II: Special Version, If you need to set the water softener.

Loading The Salt Into The Softener

NOTE:

If your model does not have any water softener, you may skip this section. Always use salt intended for dishwasher use.

The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING

• Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
• Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

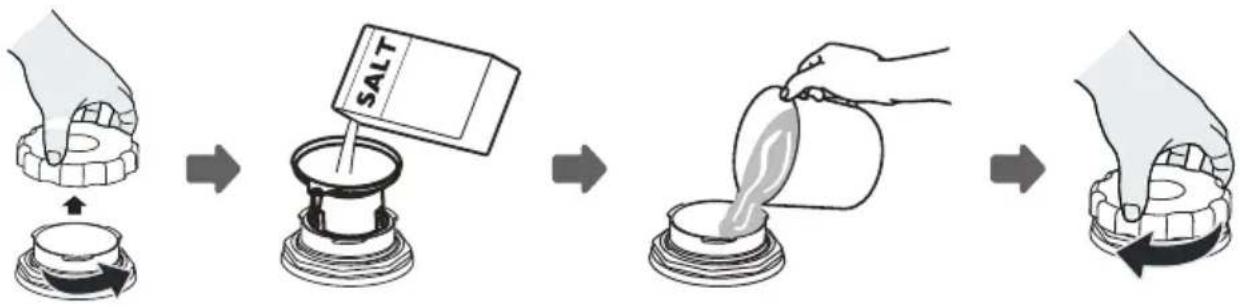

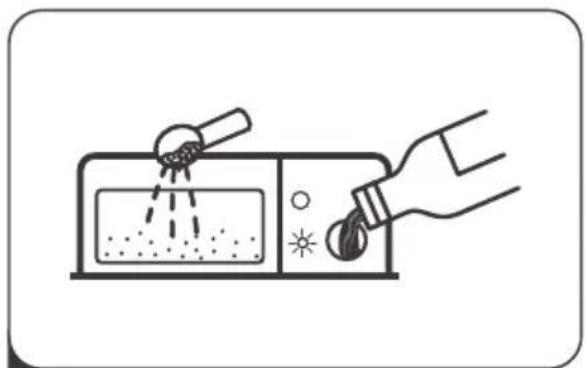

Please follow the steps below for adding dishwasher salt:

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of dishwasher salt.

3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will tuate off the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

- The salt container must only be refilled when the salt warning light ( ≈ ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some model) can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

• If salt has spilled, run a soak or quick program to remove it.

Basket TipsLoading

Adjusting the upper basket

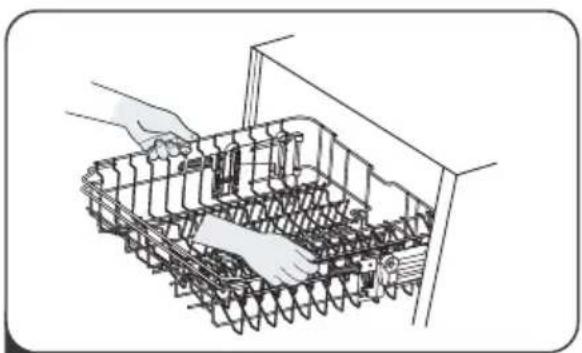

Type 1:

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket.

To adjust the height of the upper rack, follow these steps:

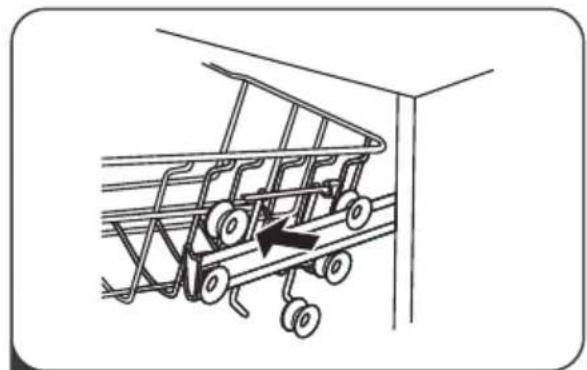

1 Pull out the upper basket.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2 Remove the upper basket.

Diagram of a mechanical cart with wheels and an arrow indicating motion (no text or symbols)

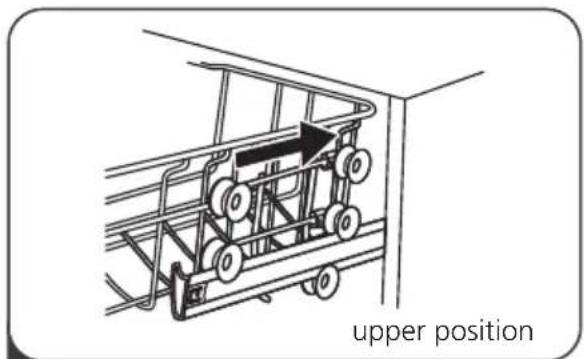

3 Re-attach the upper basket to upper or lower rollers.

4 Push in the upper basket.

Type 2:

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

1 To raise the upper basket just lift, the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle.

2 To lower the upper basket, adjust handles on each side to release the basket and lower it to the lower position.

Folding back the cup shelves

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it.

Diagram showing two mechanical assembly stages with rotating components and directional arrows (no text or symbols)

Folding back the rack shelves

The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items.

raise upwards fold backwards

Diagram showing a structural change before and after assembly, with no visible text or symbols

MAINTENANCE AND CLEANING

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits.

When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

WARNING

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter.

NOTE:

Pictures are only for reference, different models of the filtering system and spray arms may be different.

Illustration of a hand holding a tool with an arrow indicating rotation or movement (no text or symbols)

1 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

2 The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Illustration of hands using a tool to clean or wash a surface, no text or symbols present

3 Larger food remnants can be cleaned by rinsing the filter under running water.

For a more thorough clean, use a soft cleaning brush.

Illustration of a hand holding a small object with arrows indicating rotation or movement (no text or symbols)

4 Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

Mechanical assembly diagram showing a lever mechanism with a magnified inset highlighting a component detail (no text or symbols)

1 To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

Illustration of a hand using a tool to lift a small cylindrical component into a basin (no text or symbols)

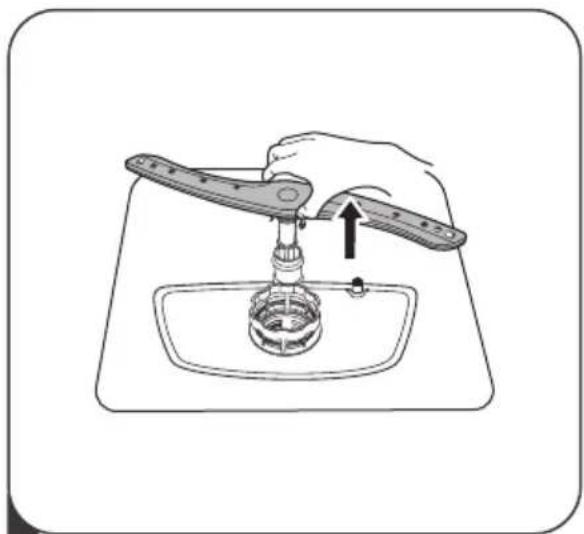

2 To remove the lower spray arm, pull out the spray arm upward.

Line drawing of a kitchen sink with a hand cleaning the surface and a spray bottle pouring liquid (no text or symbols)

3 Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside. for a while

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

INSTALLATION INSTRUCTION

WARNING

Symbolic illustration of a hand with a lightning bolt and smoke trail (no text or symbols)

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

• About Power Connection

WARNING

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

Water Supply And Drain

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Line drawing of a hand holding a wrench, no text or symbols present

ordinary supply hose

Line drawing of a faucet with a handle and valve (no text or symbols)

safety supply hose

About the safety supply hose

The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

WARNING

A hose that attaches to a ton burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to connect the safety supply hose

1. Pull tlsafety supply hoses out from storage compartment located at rear of dishwasher.
2. Tightscrews of the safety supply hose to the faucet with thread 3/4inch.
3. Turn the water fully on before starting the dishwasher.

How to disconnect the safety supply hose

1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.

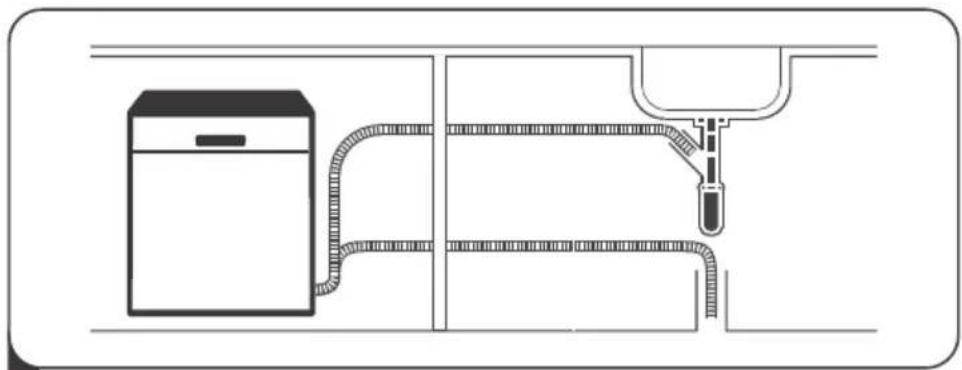

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B

How to drain excess water from hoses

If the connection to the drain pipe is positioned higher than 1000 ~mm , excess water may remain in the drain hose. the hose It will be necessary to drain excess water from into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced.

Syphon connection

The waste connection must be at a height less than 1000mm) from the bottom of the dishwasher

Position The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

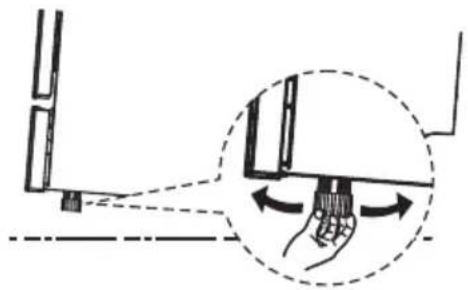

Levelling the appliance

Once the appliance is positioned for levelling, the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2^ .

Diagram showing a hand holding a device with an arrow indicating rotation, no text or symbols present

Free Standing Installation

Type 1: Fitting between existing carbinets

The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached.

The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof.

Line drawing of a kitchen sink with a grid-patterned wall and an arrow indicating a component (no text or symbols)

Type 2: Underneath existing work top

(When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).

Attention

After removing the work top, the screws must be screwed again under the rear edge of the top (b).

Selecting the best location for the dishwasher

The installation position of the dishwasher should be near the existing inlet and drain hose and power .

Illustrations of cabinet dimensions and installation position of the dishwasher.

1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

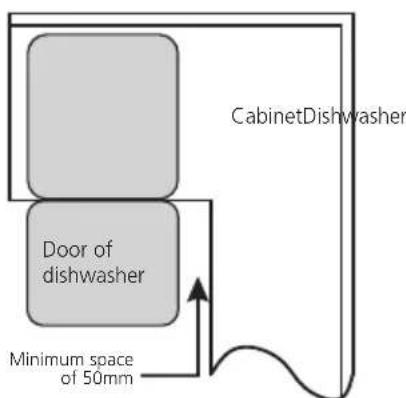

1. If dishwasher is in at the corner of the cabinet, there should be some space when the door is opened.

NOTE:

Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.

TROUBLESHOOTING TIPS

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit break tripped.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
Water not pumped form dishwasher	Twisted or trapped drain hose.	Check the drain hose.
	Filter clogged.	Check .the filter system
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers.
Foam in the tub Wrong detergent.		Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 lit of cold water to the bottom of the dishwasher.Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared.Repeat if necessary.

Problem Possible Causes What To Do

	Spilled .rinse aid Always wipe up spills rinse aid immediately.
Stained tub interior Detergent with colourant may have been used.		Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals. To clean the interior, use the damp soft cloth with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt.
	The lid of the softer is loose.	Check the softener lid is secure.
Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the program and rearrange the items which are obstructing the spray arm.
Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher.	Interrupt the program and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.	See PART II “Preparing And Loading Dishes”.
	The program was not powerful enough.	Select a more intensive program.
Problem Possible Causes What To Do
The dishes are not clean.	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the movement of the spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
White spots appear on dishes and glasses.	Hard water area can cause limescale deposits.	Check water softener settings or fill status of salt container.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser	Dishes block detergent dispenser	Re-loading the dishes properly.
The dishes aren't drying	Improper loading	Use gloves if detergent residue can be found on dishes to avoid skin irritations.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
Problem	Possible Causes What To Do
The dishes aren't drying	Wrong program has been selected.	With a short program, the washing temperature is lower, decreasing cleaning performance.Choose a program with a long washing time.
	Use of cutlery with a low-quality coating.	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

WARNING

Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.

• Availability Of Spare Parts

- Seven years after placing the last unit of the model on the market:

Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software.

- Ten years after placing the last unit of the model on the market:

Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

LOADING THE BASKETS ACCORDING TO EN60436:

Loading the dishwasher to its full capacity will contribute to energy and water savings.

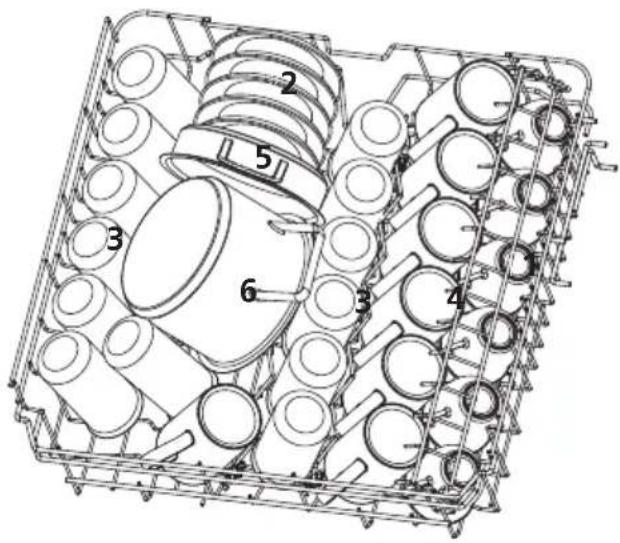

1. Upper basket:

Number	Item
1	Cups
2	Saucers
3	Glasses
4	Mugs
5	Oven pot
6	Small pot

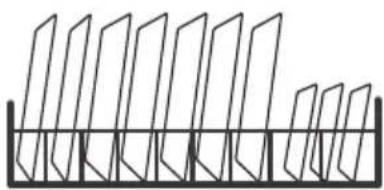

2. Lower basket:

Number	Item
7	Dessert plates
8	Dinner plates
9	Soup plates
10	Oval platter
11	Melamine dessert plates
12	Melamine bowls
13	Glass bowl
14	Dessert bowls
15	Cutlery basket

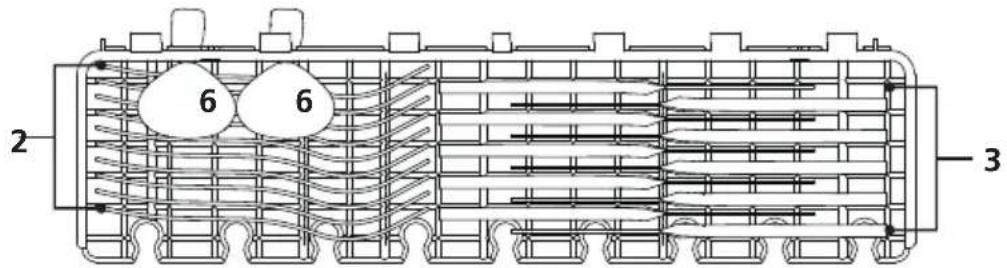

3.Cutlery rack:

NOTE:

Please place the light flat wares on the shelf.

is 1.5kg. The m

4.Cutlery basket:

Information for comparability

tests in accordance with EN60436

Capacity: 13 place settings

Position of the upper basket: lower position

Program: ECO

Rinse aid setting: Max

Softener setting: H3

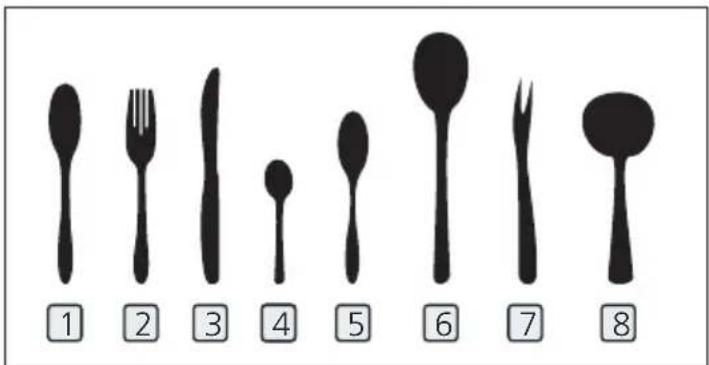

Number	Item
1	Soup spoons
2	Forks
3	Knives
4	Tea spoons
5	Dessert spoons
6	Serving spoons
7	Serving fork
8	Gravy ladle

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Dishwasher Instruction Manual

PART II: Special Version

AJ13600E

AJ13600EX

. aspes

Please read this manual carefully before using the dishwasher and Keep this manual for future reference.

CONTENTS

01

4 USING YOUR DISHWASHER
4 Control Panel
6 Water Softener
Preparing And Loading Dishes
Function Of The Rinse Aid And Detergent
12 Filling The Rinse Aid Reservoir
Filling The Detergent Dispenser
13 PROGRAMMING THE DISHWASHER
13 Wash Cycle Table
14 Save Energy
14 Starting A Cycle Wash
14 Changing The Program Mid-cycle
Forget To Add A Dish?
ERROR CODES
TECHNICAL INFORMATION

02

16

03

04

NOTE:

• If you cannot solve the problems by yourself, please ask for help from a professional technician.
  The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
  If lost or out-of-date, you can receive a new user manual from the

QUICK USER GUIDE

Please read the corresponding content on the instruction manual for detailed operating method.

Pure technical diagram of a piping system with a cabinet and valve (no text or symbols)

1 Install the dishwasher

(Please check the section 5 "INSTALLATION INSTRUCTION "

of PART I : Generic Version.)

Simple line drawing of a fish and a bowl on a surface, no text or symbols present

2 Remove larger residue from dishes.

Avoid pre-rinsing

3 Load the baskets

Illustration of a hand using a power tool to clean or spray liquid from a microwave oven (no text or symbols)

4 Fill the dispenser with detergent and rinse aid

Simple line drawing of a refrigerator with sound waves (no text or symbols)

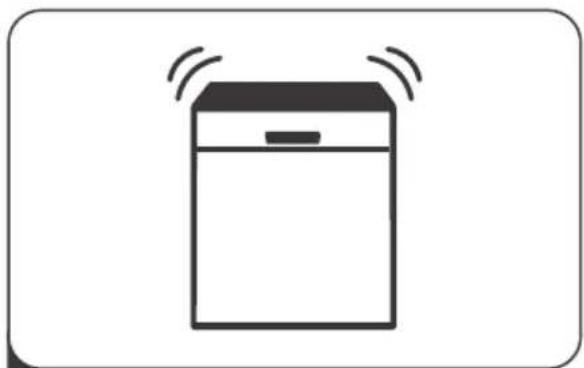

5 Select a suitable programme and start the dishwasher

USING YOUR DISHWASHER

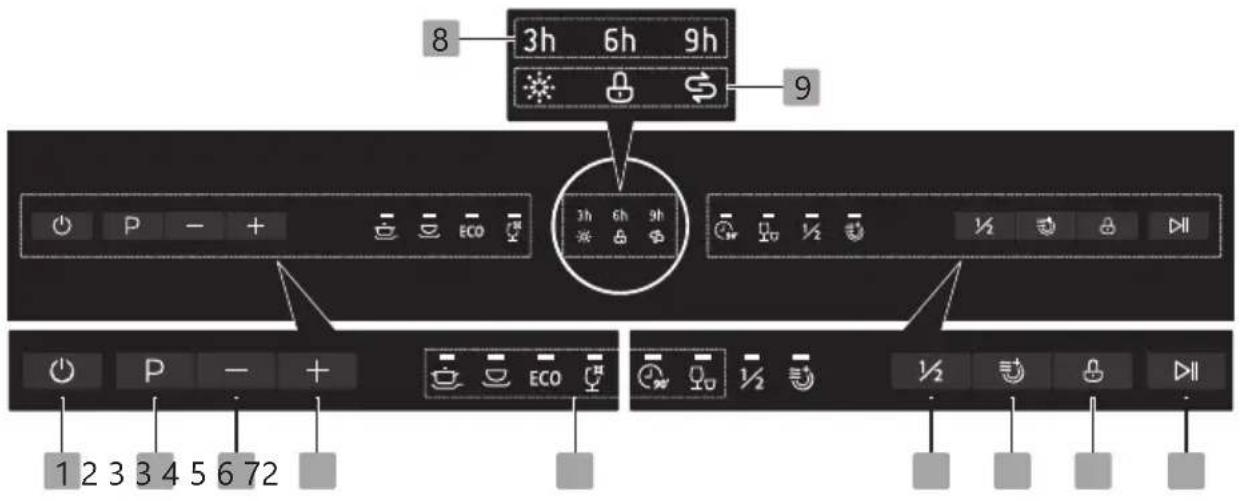

Control Panel

Operation (Button)

1 Power	Press this button to turn on your dishwasher.
	Press the buttons to select the appropriate washing program,the corresponding program indicator will be lit. IntensiveFor heaviest soiled crockery, and normally soiled pots,pans, dishes etc. With dried-on food.[SAYG] UniversalFor normally soiled loads, such as pots, plates, glasses and lightly soiled pans.ECO ECOThis is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.[S738] GlassFor lightly soiled crockery and glass. 90 minFor normally soiled loads that need quick wash.
Program2	RapidA shorter wash for lightly soiled loads that do not need drying.
3 Delay -/+	Press the "+"button to add the delay time or press the "-"button to decrease the delay time, 3H/6H and 9H delay can be defined.
4 Half-load	When you have about or less than half of full place settings dishware to wash, you can choose this function to save energy and water.(It can only be used with Intensive, Universal, ECO, 90 min
5 Extra Drying	This function can make the drying effect better. (It can only be used with Intensive, Universal, ECO, 90 min and Glass.)
6 Child lock	This option allows you to lock the buttons on the control panel - except the Power button - so children cannot accidentally start the dishwasher by pressing the buttons on the panel.To lock or unlock the buttons on the control panel, press and hold the Delay button + Half-load button for 3 seconds
Start/Pause7	To start the selected washing program or pause it when the dishwasher is working.

Display

8 Delay time	To show the delay time (3h/6h/9h).
9 Warning indicator	Rinse AidIf the “ *” indicator is lit, it means the dishwasher is low[BGCH] SaltIf the “ ⇌ ” indicator is lit, it means the dishwasher is low Child lockIf the “ 🎥 ” indicator is lit, it means the child lock is on.

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The more minerals there are, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Close the door, switch on the appliance;

2. Within 60 seconds after the appliance was switched on press the Soak button for more than 5 seconds to enter the water softener setting mode.

3. Press the Soak button again to select the proper set according to your local environment, the setting will change in the following sequence:

$$ \mathrm{H} 3 - > \mathrm{H} 4 - > \mathrm{H} 5 - > \mathrm{H} 6 - > \mathrm{H} 1 - > \mathrm{H} 2 - > \mathrm{H} 3; $$

1. Press the Power button to end the setting mode.

WATER HARDNESS				Water softnerMmol/l ^level	Regeneration occurs every X program sequence 1)	Salt consumption (gram/cycle)
German *dH	French *fH	British *Clarke	Mmol/l
0 - 5	0 - 9	0 - 6	0 - 0.94	H1->Rapid Light bright	No regeneration	0
6 - 11	10 - 20	7 - 14	1.0 - 2.0	H2->90min Light bright	10	9
12 - 17	21 - 30	15 - 21	2.1 - 3.0	H3->90min,Rapid Light bright	5	12
18 - 22	31 - 40	22 - 28	3.1 - 4.0	H4->Glass Light bright	3	20
23 - 34	41 - 60	29 - 42	4.1 - 6.0	H5->Glass,Rapid Light bright	2	30
35 - 55	61 - 98	43 - 69	6.1 - 9.8	H6->Glass, 90 min Light bright	1	60

1^ = 1.25 Clarke = 1.78fH = 0.178mmol / l

The setting: H3factory

1) Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extents

Please check the section 3 "Loading The Salt Into The Softener" of PART I: Generic Version, If your dishwasher lacks salt.

NOTE:

If your model does not have any water softener, you may skip this section.

Water Softener

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container

Preparing And Loading Dishes

• Consider buying utensils which are identified as dishwasher-proof.
  • For particular items, select a program with the lowest possible temperature.
  To prevent damage, do not take glass and cutlery out of the dishwasher

For washing the following cutlery/dishes

Are not suitable

• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes

- Pewter or cooper items

- Crystal glass

• Steel items subject to rusting

- Wooden platters

Ares of limited suitability fibres

• Some types of glasses can become dull after a large number of washes
• Silver and aluminum parts have a tendency to discolor during washing
• Glazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

• Items such as cups, glasses, pots/pans, etc. fasted downwards.
• Curved items, or ones with recesses, should be loaded aslant so that water can run off.
  • All utensils are stacked securely and can not tip over.
  All utensils are placed in the way that the spray arms can rotate freely during
• washing.
  Load hollow items such as cups, glasses, pans etc. With the opening facing
  • downwards so that water cannot collect in the container or a deep base.
  • Dishes and items of cutlery must not lie inside one another, or cover each other.
  To avoid damage, glasses should not touch one another.
• The upper basket is designed to hold more delicate and lighter dishware such as
  • glasses, coffee and tea cups.
  Long bladed knives stored in an upright position are a potential hazard!
• Long and / or sharp items of cutlery such as carving knives must be positioned

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket.

WARNING

Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the upper basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not

Technical line drawing of a mechanical component with rollers and housing (no text or symbols)

Loading the lower basket

We suggest that you place large and difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

The maximum diameter advised for plates in front of

Pure geometric diagram of vertical planes intersecting a horizontal line, no text or symbols present

Loading the cutlery basket

Cutlery should be placed in the cutlery basket separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning

WARNING

Circular diagram with grid lines and a crossed X symbol (no text or labels)

Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down!

For the best washing effect, please load the baskets refer to standard loading options on last section of PART I: Generic Version

Function Of The Rinse Aid And Detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid

WARNING

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid

When to refill the rinse aid dispenser

Unless the rinse-aid warning light (※) on the control panel is on, you can always estimate the amount from the color of the optical level indicator located next to the cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator

Full

3/4 full 1/2 full 1/4 full

○ Empty

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

• Proper Use of Detergent

Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry.

Do not fill detergent into the dispenser until you are ready to start the

Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

Filling The Rinse Aid Reservoir

Illustration of a hand pressing down on a control panel with icons and arrows (no text or symbols)

1 Remove the rinse aid reservoir cap by rotating it counterclockwise.

Illustration of a hand pressing down on a device panel with buttons and a circular dial (no text or symbols)

2 Carefully pour in the rim to aid the dispenser, whilst avoiding it to overflow.

Illustration of a hand pressing down on a device panel with icons for buttons and indicators (no text or symbols)

3 Close the rinse aid reservoir cap by rotating it clockwise.

NOTE:

Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next

Adjusting the rinse aid reservoir

Hand holding a finger pressing a button on a tablet device (no text or symbols visible)

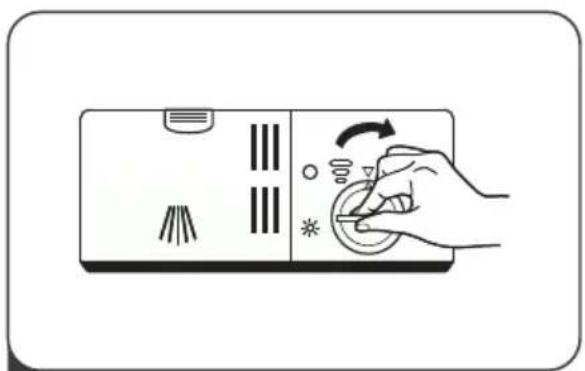

Remove the rinse aid reservoir cap. Turn the rinse aid indicator dial to a number. The higher the number, the more rinse aid the dishwasher uses.

If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. Reduce it if there are sticky whitish stains on your dishes or a

Filling The Detergent Dispenser

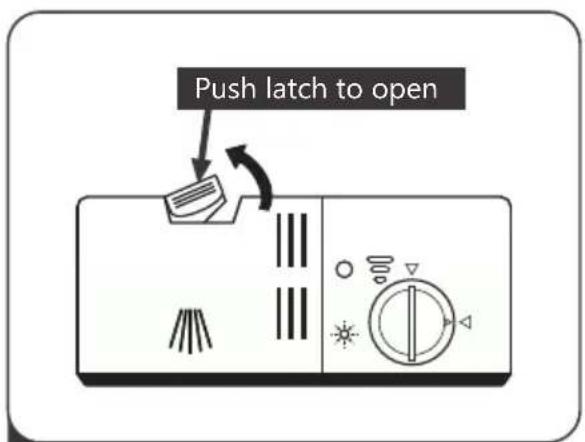

1 Press the release latch the detergent dispenser to open the cover.

2 Add detergent into the larger cavity (A) for more heavy soiled wash loads, also add some detergent into the smaller cavity (B) for release during pre-wash

Illustration of a hand pressing down on a kitchen control panel with directional arrows (no text or symbols)

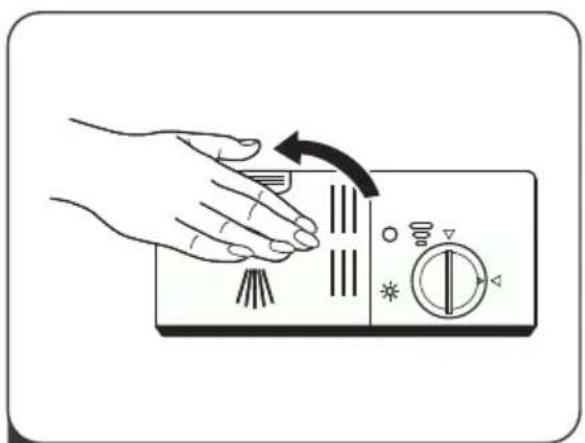

3 Close the cover and press on it until it locks into place.

NOTE:

• Please observe the manufacturer's recommendations on the detergent packaging.
  •

Wash Cycle Table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Consumption values and programme duration are only indicative except for ECO programme.

indicates that the programme uses rinse aid in the last rinse.()

Program	Description Of Cycle	Detergent Pre/Main wash	Running Time(min)	Energy (kWh)	Water (L)	Rinse Aid
Intensive	Pre-wash(50°C)Wash(65°C)RinseRinseRinse(65°C)Drying	4/17g(1 or 2 tabs)	205	1.621	17.8	●
Universal	Pre-wash(45°C)Wash(55°C)RinseRinse(65°C)Drying	4/17g(1 or 2 tabs)	175 1.302		14.2	●
ECO(*EN60436)	Pre-washWash(45°C)Rinse(60°C)Drying	4/17g(1 or 2 tabs)	230	0.937	11.0	●
90 min	Wash(60°C)RinseRinse(65°C)Drying	21g(1 tab)	90 1.350 11.5			●
Glass	Pre-washWash(50°C)RinseRinse(65°C)Drying	4/17g(1 or 2 tabs)	120	1.100	14.2	●
Rapid	Wash(50°C)RinseRinse(45°C)	20g(1 or 2 tabs)	30 0.751		11.2	○
Soak	Pre-wash	/	15	0.020 4.0		○

NOTE:

ECO : The ECO program is suitable to clean normally soiled tableware, that for (*EN60436) this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation.

Saving Energy

1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.
2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.

Starting A program

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page "Product fiche". Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button.
5. Choose a program, the response light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle.

Changing The Program Mid-cycle

A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Press any program button more than three seconds the machine will be in program selection mode
3. You can change the program to the desired cycle setting.

Forget To Add A Dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. After the spray arms working, you can open the door completely.stopped
3. Add the forgotten dishes.
4. Close the door.

WARNING

Simple line drawing of a box with a lid and handle (no text or symbols)

It is dangerous to open the door mid-cycle, as hot steam may scald you.

ERROR CODES

If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes.

Codes	Meanings	Possible Causes
The Rapid light flicker fleetly	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
The 90 min and Rapid lights flicker fleetly	Not reaching required temperature.	Malfunction of heating element.
The Glass light flicker fleetly	Overflow.	Some element of dishwasher leaks.
The ECO, Glass and Rapid lights flicker fleetly	Failure of communication between main PCB with display PCB.	Open circuit or break wiring for the communication.

WARNING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
• If there is an error code that cannot be solved, please request professional assistance.

TECHNICAL INFORMATION

Height (H)	845mm
Width (W)	598mm
Depth (D1)	600mm (with the door closed)
Depth (D2)	1175mm (with the door opened 90° )

Product information sheet (EN60436)

Supplier's name or trade mark: ASPES

Supplier's address ( ) ^b SVAN TRADING S.L.C/ Ciudad de Cartagena, 20.Paterna (46988). SPAIN.

Model identifier: AJ13600E AJ13600EX

General product parameters:

Parameter Value Parameter Value
Rated capacity (a) (ps)	13	Dimensions in cm	Height	85
			Width	60
			Depth	60
EEI (a)	55.9	Energy efficiency class (a)	E (c)
Cleaning performance index (a)	1.125	Drying performance index (a)	1.065
Energy consumption in kWh [per cycle], based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.	0.937	Water consumption in litres [per cycle], based on the eco program. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	11.0
Program duration (a) (h:min)	3:50	Type	Free standing
Airborne acoustical noise emissions (a) (dB(A) re 1 pW)	49	Airborne acoustical noise emission class (a)	C(9)
Off-mode (W)	0.49	Standby mode (W)	N/A
Delay start (W) (if applicable)	1.00	Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier (b): 36 months

Additional information:

Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 (1)( ) is found: https://eprel.ec.europa.eu

(a) for the eco program.
(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(c) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

(1) Commission Regulation (EU) 2019/2022 of 1 October 2019 laying down eco design requirements for household dishwashers pursuant to Directive 2009/125/EC of the European Parliament and of the Council amending Commission Regulation (EC) No 1275/2008 and repealing Commission Regulation (EU) No 1016/2010 (see page 267 of this Official Journal).

www.aspes.es

[e-mail]; 902 99 69 01 / 944 04 14 08
