Product Type	Oil-filled radiator
Brand	PRIME3
Model	SOR51
Power Supply	220-240 V ~ 50 Hz
Nominal Heat Output	2500 W
Minimum Heat Output	1000 W
Maximum Continuous Heat Output	2500 W
Number of Fins	7
Power Settings	3 levels (low, medium, high)
Thermostat Control	Mechanical, adjustable
Safety Features	Overturning protection, overheating protection
Minimum Room Size	6 m²
Safe Distance from Objects	50 cm from sides, 1 m from front
Operating Position	Vertical only
Assembly Required	Yes (castors included)
Cleaning Method	Damp lint-free cloth, no solvents
Standby Power Consumption	0 W
Certification	CE
Intended Use	Domestic, well-insulated spaces

Frequently Asked Questions - SOR51 PRIME3

What should I do if the heater emits a burning smell during first use?

This is normal during the first few minutes as the oil and components heat up. Ensure proper ventilation and do not cover the heater. The smell will disappear quickly.

How do I install the castors?

Turn the heater upside down. Fit the flat castor-holding components, insert the U-shaped metal parts through the radiator and into the flat components, then secure with the wing nuts. Ensure the heater is placed on a level, stable, heat-resistant surface.

How does the thermostat work?

Turn the thermostat knob clockwise to increase temperature. When the desired temperature is reached, slowly turn it counter-clockwise until the status lamp goes out. The heater will maintain the set temperature by switching on and off automatically.

What does the overturning protection do?

If the heater tips over or is tilted excessively, the safety switch automatically turns it off. Once placed back in an upright position, the heater resumes normal operation. This prevents accidents.

My heater turned off suddenly and won't turn on. What should I do?

This may be due to overheating protection. Disconnect from mains and let it cool down for about 30 minutes. Check for any obstructions blocking air flow. If it still doesn't work, inspect the cable and plug for damage. If the problem persists, contact customer service.

What is the minimum room size for using this heater?

The room should be at least 6 m². Do not use in very small, enclosed spaces.

Can I use this heater in the bathroom?

No, this heater is not suitable for humid areas like bathrooms, showers, or swimming pools. It must be used in dry environments only.

How close can the heater be to furniture or curtains?

Maintain a distance of at least 50 cm from sides and 1 m from the front hot air outlet. Keep textiles and flammable materials away to reduce fire risk.

How should I clean the heater?

Always disconnect from power and allow to cool. Clean the exterior with a damp, lint-free cloth. Do not use strong detergents or solvents. Use a vacuum cleaner to remove dust from slots.

What should I do if there is an oil leak?

Oil leaks require professional repair. Contact the manufacturer or an authorized service agent. Do not attempt to open the oil tank yourself.

USER MANUAL SOR51 PRIME3

White PRIME³ air conditioner unit with cooling wheels and control knobs (no visible text or symbols on body)

IMPORTANT INFORMATION

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

This device is for domestic use only. Do not use for any other purposes.

• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.
• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
• Before maintenance work always disconnect the unit from the power supply.
• When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids. The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

• This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc. Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorized repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

Prohibition sign with a diagonal line crossing over a document icon, no text present

Notice: Do not cover the device or obstruct air inlets or outlets of the heater.

Do not use in rooms below 6m^2 .

Do not use in areas with increased humidity, bathrooms, showers etc.

Remember to maintain a 50 cm distance from furniture, curtains or other objects when using the heater.

Heater can operate only in vertical position.

Always turn the thermostat controller to minimum and switch the heater off before unplugging the device.

This product is only suitable for well-insulated spaces or occasional use.

Do not use this heater if it has been dropped.

Do not use if there are visible signs of damage to the heater.

Place the heater on a horizontal and stable surface or, if available, fasten it to the wall.

WARNING: To reduce the risk of fire, keep textiles, curtains or other flammable materials at least 1 m away from the hot air outlet.

The heater must not be placed directly under an electrical outlet.

Do not use the heater in the immediate vicinity of a bath, shower or swimming pool.

CE Conformity Hereby, 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.prime3.eu. Responsible party: 2N-Everpol Sp.z o.o., Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail].

When this crossed-out bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

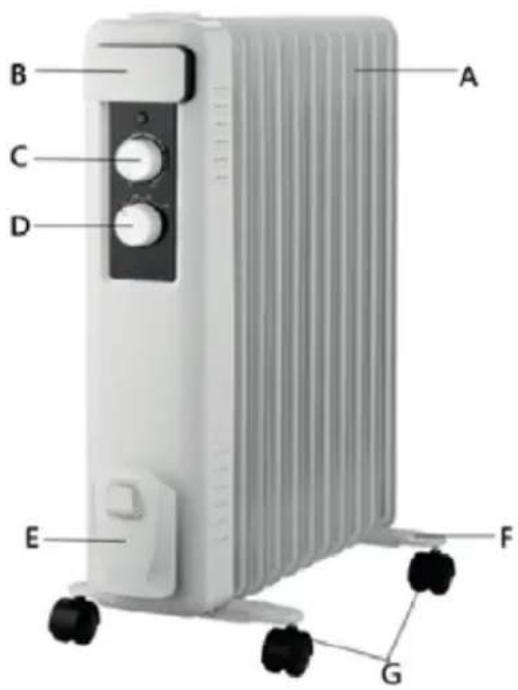

A. Radiator fins.
B. Handle.
C. Thermostat knob.
D. Power-switch knob.
E. Cable reel.
F. Flat castor-fixing components.
G. Castors.

1. This radiator is filled with a specific amount of special oil. Repairs requiring the opening of the oil tank may only be performed by the manufacturer or its service agent. Please contact the agent in the event of an oil leak.
2. Do not place the radiator directly under the power socket.
3. When discarding the radiator, observe the regulations for oil disposal. Do not dispose of the radiator with household waste. Comply with the local regulations concerning the disposal of electrical equipment and oil.
4. During the first use, a smell of burning might emerge within the first few minutes. This is a normal occurrence, and should quickly disappear.

TECHNICAL DATA

Model/parameter: SOR51

Power supply: 220-240 V \~50 Hz

Power: 2500W

Diagram showing a hand pressing down a curved arrow on a surface with parallel lines (no text or symbols)

Diagram showing a mechanical assembly with rollers and a row of cylindrical components, no text or symbols present

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Diagram of a mechanical assembly with multiple cylindrical components and downward arrows indicating motion or force (no text or symbols)

BEFORE THE FIRST USE

Fix the castors to the bottom part of the radiator according to the diagram in the Figure.

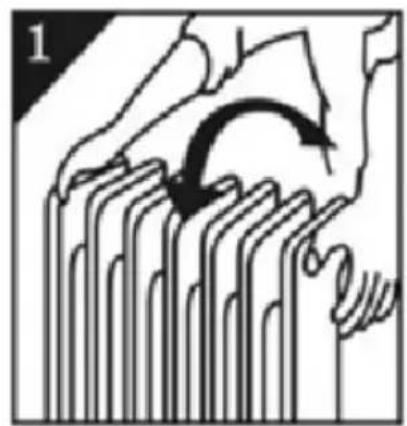

1. Turn the radiator upside down.

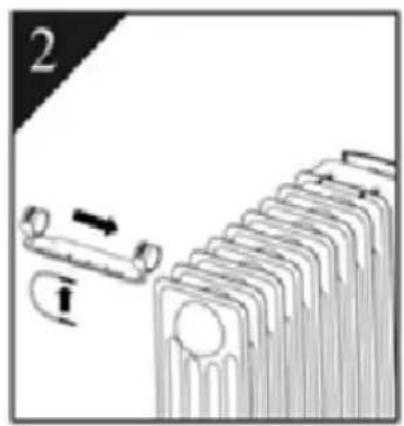

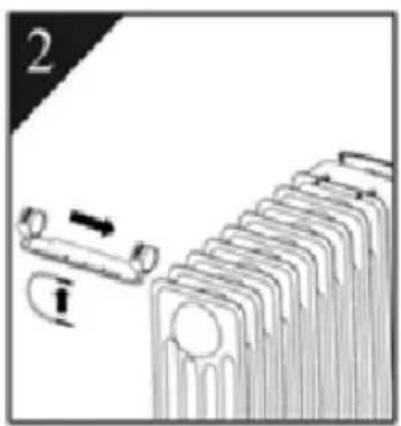

2. Fit the flat components holding the castors

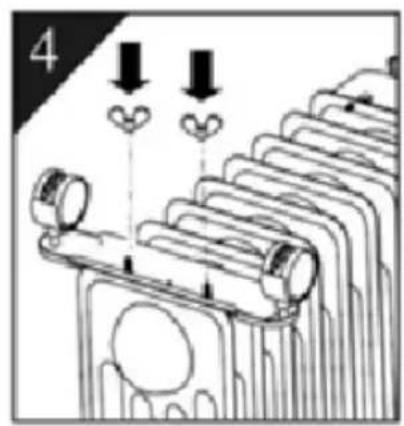

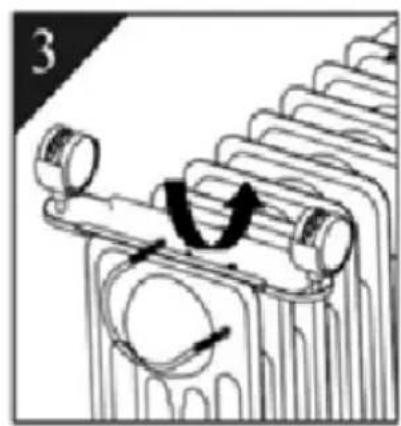

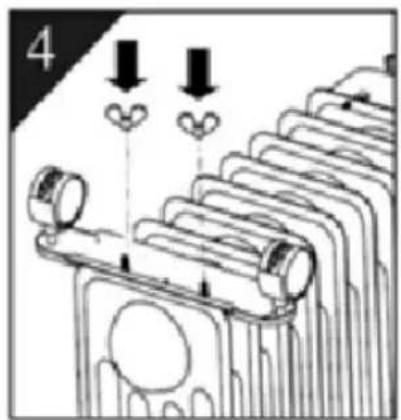

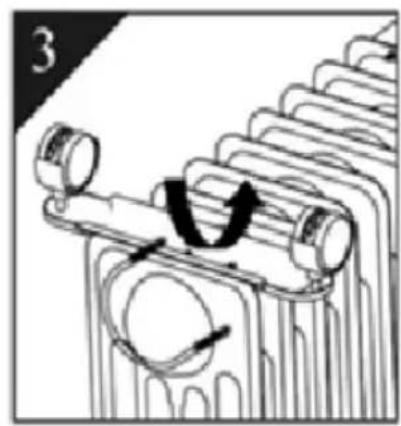

3. Put the "U"-shaped metal part through the radiator and insert its ends into the flat component. Screw down with the wing nuts.
4. Place the radiator on a level, stable, and heat-resistant surface.

USING THE APPLIANCE

1. Make sure that the appliance's power switch is set to the "0" position, and the thermostat is set to the minimum value. Connect the plug to the power source.

2. Set the switch from the "0" position to "●" (minimum heating power), "●●" (medium heating power), or "●●●" (maximum heating power).

3. Turn the thermostat knob clockwise to the maximum position. When the room temperature rises to a comfortable level, slowly rotate the thermostat counter-clockwise until the status lamp goes out. Turn the thermostat knob clockwise to increase the required temperature. In order to decrease the temperature, turn the knob counter-clockwise. The radiator will try to maintain the set room temperature by switching on and off.

4. To switch off the radiator, set the power switch to the "0" position and the thermostat knob to the minimum position. Disconnect the product from the mains.

Overturning protection

The radiator is protected by a safety switch, which automatically switches off the appliance if the heater overturns, or is at too acute an angle to the horizontal. This helps prevent accidents, and the radiator will resume its operation when it is put back on.

Overheating protection

The radiator is protected with overheating protection which automatically switches off the appliance if it intensely overheats. In that event, disconnect the appliance from the mains, wait approx. 30 minutes for the radiator to cool down, and rectify any possible cause of the overheating, e.g., something covering the radiator. Check the appliance, cable, and plug for damage. If no damage is observed, reconnect the appliance and switch it on, according to the manual. If the radiator does not switch on, contact the customer service for assistance.

CLEANING AND MAINTENANCE

During use, clean the appliance regularly according to the following instructions.

1. Disconnect the appliance from the power source, and let it cool down before cleaning.
2. Gently clean the appliance's external surface and control panel with a damp and lint-free cloth.
3. If there is dust in the appliance's slots, it is recommended to blow it out with a vacuum cleaner or blower.
4. Do not use strong detergents, chemical cleaners, or solvents.

Model identifier(s): SOR51
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2.5	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	1.0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	2.5	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	singlestage heat outputand no room temperature control	No
In standby mode	eISB	0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic roomtemperature control plus daytimer	No
				electronic roomtemperature control plus week timer	No
				Other control options(multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Refer to Applicant Name / Address

WICHTIGE HINWEISE

Diagram showing a hand pressing down a curved arrow on a multi-layered structure (no text or symbols)

Diagram showing a mechanical assembly with a cylindrical component and a row of circular components, no text or symbols present.

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Diagram of a mechanical assembly with multiple cylindrical components and downward arrows indicating motion or force (no text or symbols)

VOR DEM ERSTEN GEBRAUCH
