USER MANUAL DNX9960 KENWOOD

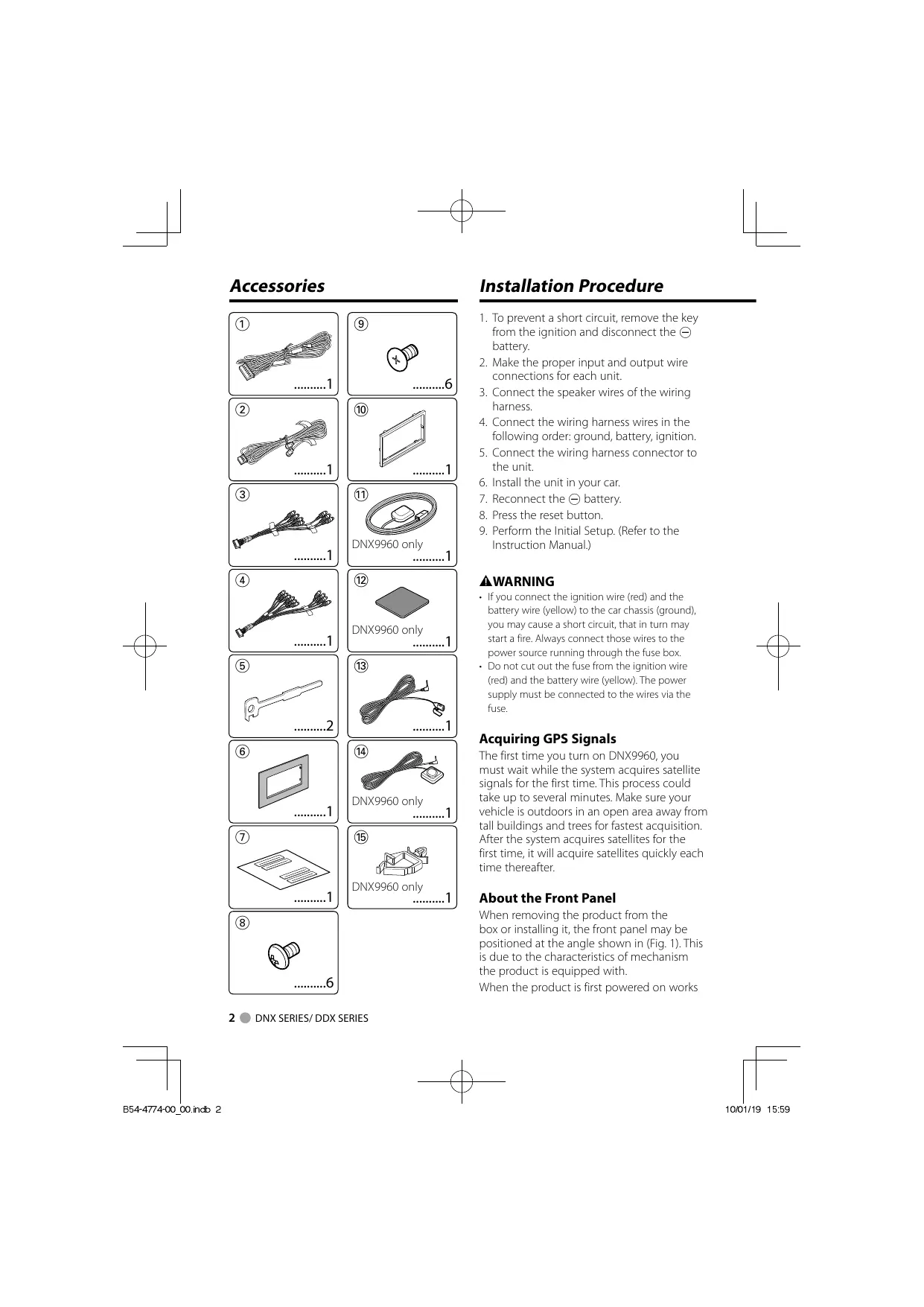

1. To prevent a short circuit, remove the key

from the ignition and disconnect the battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the speaker wires of the wiring

4. Connect the wiring harness wires in the

following order: ground, battery, ignition.

5. Connect the wiring harness connector to

6. Install the unit in your car.

7. Reconnect the - battery.

8. Press the reset button.

9. Perform the Initial Setup. (Refer to the

Instruction Manual.)

Acquiring GPS Signals The first time you turn on DNX9960, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle is outdoors in an open area away from tall buildings and trees for fastest acquisition. After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter. DNX9960 only

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

About the Front Panel When removing the product from the box or installing it, the front panel may be positioned at the angle shown in (Fig. 1). This is due to the characteristics of mechanism the product is equipped with. When the product is first powered on works

DNX SERIES/ DDX SERIES

properly, the front panel will automatically move into the position (initial setting angle) shown in (Fig. 2). (Fig. 1) (Fig. 2) After the Installation After the installation, perform the Initial Setup by referring to the instruction manual.

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If the power is not turned ON (“PROTECT” is displayed), the speaker wire may have a shortcircuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the + connector of the left speaker to a front output terminal, do not connect the - connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less.
• This unit has the cooling fan (page 5) to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit are blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.
• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.
• Reception may drop if there are metal objects near the Bluetooth antenna. ¤ CAUTION Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. English

Connection connect the ignition wire (red) and the battery wire (yellow) ¤ Iftoyou the car chassis (ground), you may cause a short circuit, that in Ignition key switch turn may start a fire. Always connect those wires to the power source running through the fuse box. ACC Ignition wire (Red) Battery wire (Yellow) Car fuse box (Main fuse) Car fuse box

Ground wire (Black) (To car chassis)

Battery to the vehicle's parking brake ⁄ Connect detection switch harness. Parking sensor wire (Light Green) PRK SW For best safety, be sure to connect the parking sensor. Connect to vehicle's reverse lamp harness when using the optional rear view camera.

To steering remote To use the steering wheel remote control feature, you need to an exclusive remote adapter (not supplied) matched to your car is required. To car light control switch Connect to the terminal that is grounded when either the telephone rings or during conversation.

To connect the Kenwood navigation system, consult your navigation manual. Depending on what antenna you are using, connect either to the control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna. When using the optional power amplifier, connect to its power control terminal.

If no connections are made, do not let the cable come out from the tab.

DNX SERIES/ DDX SERIES

Bluetooth Microphone (Accessory #) (see page 8) Voice Control Switch(Accessory $) (DNX9960 only) (see page 8) Cooling fan GPS Antenna (Accessory !) (DNX9960 only) (see page 8) FUSE (15A ) Reverse sensor wire (Purple/White) REVERSE Accessory 1 To front left speaker White/Black White

Steering remote control input (Light Blue/Yellow) REMOTE CONT STEERING WHEEL REMOTE INPUT Dimmer control wire (Orange/White) To front right speaker Gray/Black Gray

ILLUMI Mute control wire (Brown) MUTE To rear left speaker Green/Black

Green Motorized antenna control wire (Blue) ANT. CONT Power control wire (Blue/White) P.CONT To rear right speaker Purple/Black Purple

System Connection iPod (commercially available) USB terminal iPod Accessory % (DNX9960 only)

To Camera control terminal Audio/Visual Output

• Visual output (Yellow)
• Audio left output (White)
• Audio right output (Red) AV IN1 Accessory 2 AV OUT Accessory 4 AV IN 2 Accessory 3 When connecting the TMC Tuner GTM10 (optional accessory), put the cable clamper (accessory %) to the back of this unit first, and then wire the cable through the clamper. Rear View Camera Input
• Visual input (Yellow) Front Preout
• Audio left output (White)
• Audio right output (Red) Rear Preout
• Audio left output (White)
• Audio right output (Red) Subwoofer Preout
• Audio left output (White)
• Audio right output (Red) Center Preout

DNX SERIES/ DDX SERIES

Optional Accessory Connection iPod (commercially available) KCA-iP301V (Optional Accessory) Visual Output (Yellow) Audio Output (Black) DDX896/DDX8046BT only iPod USB terminal USB terminal USB device (commercially available) To SIRIUS Satellite Radio tuner/ XM Satellite Radio tuner/ HD Radio tuner (Optional Accessory)

Conversion adapter (optional accessory) may be necessary for connection of optional accessory. Contact your Kenwood dealer for details. TV Tuner (Optional Accessory) Navigation System (Optional Accessory) (DDX896/DDX8046BT only) Connection cable (Included in the Navigation System)

TV ANTENNA INPUT

TO MONITOR UNIT

Connection cable (Included in the TV tuner) units that can be connected to this unit. ⁄ Navigation (As of December, 2009):

• KNA-G630 For latest information, access the www.kenwood.com/cs/ce/. English

Installing the GPS Antenna (DNX9960 only) Installing the Talk Switch (DNX9960 only) and the Microphone Unit GPS antenna is installed inside of the car. It should be installed as horizontally as possible to allow easy reception of the GPS satellite signals. To mount the GPS antenna inside your vehicle:

1. Clean your dashboard or other surface.

2. Peel the backing off of the adhesive on the

bottom of the metal plate (accessory @).

3. Press the metal plate (accessory @)

down firmly on your dashboard or other mounting surface. You can bend the metal plate (accessory @) to conform to a curved surface, if necessary.

4. Place the GPS antenna (accessory !) on

top of the metal plate (accessory @).

1. Check the installation position of the

microphone (accessory #) and the Talk switch (accessory $).

2. Remove oil and other dirt from the

installation surface.

3. Install the microphone.

4. Wire the microphone cable up to the unit

with it secured at several positions using tape or the like. Accessory # Accessory $ Accessory ! Accessory @ Fix a cable with a commercial item of tape.

• Depending on the type of car, reception of the GPS satellite signals might not be possible with an inside installation.
• The GPS antenna should be installed at a position that is spaced at least 12 inch (30 cm) from cellular phone or other transmitting antennas. Signals from the GPS satellite may be interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint may cause a drop in performance. Peel the release coated paper of double-face adhesive tape to fix on the place shown above. Adjust the direction of the microphone to the driver.

Install the microphone as far as possible from the cell-phone.

DNX SERIES/ DDX SERIES

Installing the Escutcheon For General Motors For Toyota/Scion

1. Cut out accessory 6 to meet the shape of

the opening of the center console.

2. Attach accessory 6 to the unit.

1. Cut out accessory 6 as illustrated.

Cutting line Cut out to meet the shape of the opening in the vehicle. Accessory 6 Accessory 6 For Volkswagen

1. Attach accessory 0 to the unit.

2. Fold double-sided adhesive (accessory 7)

along the slit and attach it to accessory 6 cut-out against the center rib as illustrated. Use 2 pieces of accessory 7 for 1 accessory 6 cut-out.

3. Attach accessory 6 cut-out to the unit.

Accessory 7 Accessory 0 English

Installation for Monitor/Player Unit Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place.

Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). Installation on Toyota, Nissan or Mitsubishi Car using Brackets Accessory 8 (M5x6mm) or Accessory 9 (M5x7mm) Car Bracket Accessory 8 (M5x6mm) or Accessory 9 (M5x7mm)

DNX SERIES/ DDX SERIES

Removing Monitor/Player Unit Removing the Hard Rubber Frame (escutcheon)

1. Engage the catch pins on the removal tool

5 and remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Removing the Unit

1. Remove the hard rubber frame by referring

to the removal procedure in the section <Removing the Hard Rubber Frame>.

2. Insert the two removal tools 5 deeply into

the slots on each side, as shown. Accessory 5 Accessory 5 Catch Lock

3. Lower the removal tool toward the

bottom, and pull out the unit halfway while pressing towards the inside.

• The frame can be removed from the top side in the same manner.

2. When the lower level is removed, remove

the upper two locations.

• Be careful to avoid injury from the catch pins on the removal tool.

4. Pull the unit all the way out with your

hands, being careful not to drop it. English
