| Product Type | Rotary dimmer LED with rotary on/off |
| Mounting | In appliance box according to DIN 49073 |
| Rated Voltage | AC 230 V~ |
| Mains Frequency | 50 Hz |
| Standby Power | Approx. 0.2 W |
| Power Loss | Approx. 3.7 W |
| Ambient Temperature | -5 ... +45 °C |
| Connected Load (Incandescent / HV Halogen) | 20 ... 200 W |
| Connected Load (HV-LED) | Typ. 3 ... 40 W |
| Mixed Load (Ohmic and HV LED) | Typ. 3 ... 40 W |
| Dimming Principle | Leading edge phase control |
| Short-Circuit Protection | Fine-wire fuse T 800 mA H 250 |
| Power Reduction (surface mounting) | -5% |
| Power Reduction (per 5°C above 25°C) | -10% |
| Power Reduction (wooden/dry walls) | -15% |
| Power Reduction (multiple combinations) | -20% |
| Safety | Disconnect mains before work; not suitable for disconnection; load not isolated when off |
| Accessories | Compensation module LED Art. no. KMLED230U |
| Warranty | Statutory via specialist trade |
Frequently Asked Questions - CD5544.03V JUNG
User questions about CD5544.03V JUNG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Dimmer in PDF format for free! Find your manual CD5544.03V - JUNG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CD5544.03V by JUNG.
USER MANUAL CD5544.03V JUNG
Rotary dimmer LED with rotary on/off
Art. no.: ..5544.03..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or load. In so doing, take all the circuit breakers into account, which support dangerous voltages to the device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage. The load is not electrically isolated from the mains even when the device is switched off.
These instructions are an integral part of the product, and must remain with the end customer.

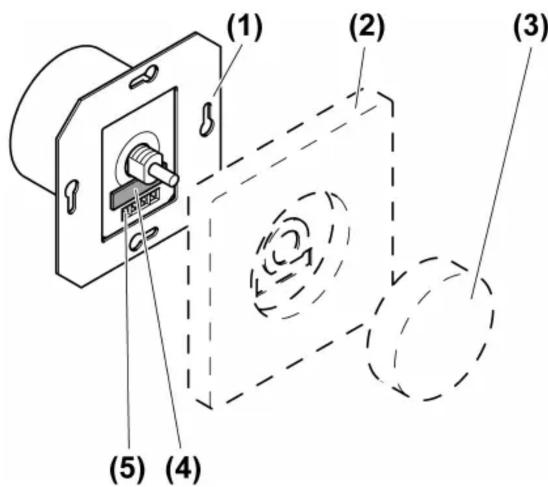

2 Device components
Figure 1: Device components
(1) Dimmer
(2) Cover
(3) Control button
(4) Fuse holder
(5) Screw terminals
3 Function
Intended use
- Switching and dimming incandescent lamps, HV halogen lamps and dimmable leading edge phase control HV-LED lamps
– Mounting in appliance box according to DIN 49073
- Operation with suitable cover
i No operation with changeover switch possible.
i No operation with transformers possible.
Product characteristics
– Leading edge phase control dimming principle
– Short-circuit protection through fine-wire fuse
i Flickering of the connected lamps due to undershoot of the specified minimum load or through centralised pulses from the power stations and soft humming of the device due to the radio interference suppressor. These are not device faults.
4 Operation
i Switching and dimming are performed by turning the control button.
Switching the light on and increasing the brightness
■ Turn control button to the right.
Switching the light off
■ Turn control button all the way to the left.
5 Information for electrically skilled persons
DANGER!
Mortal danger of electric shock.
Disconnect the device. Cover up live parts.
Connecting and mounting the dimmer
Connect max. 300 W LED lamps per 16 A circuit breaker.
Our dimmers take into account the different electronic characteristics of most LED lamps found on the market. However, it cannot be guaranteed that in individual cases the desired results may not be achieved.

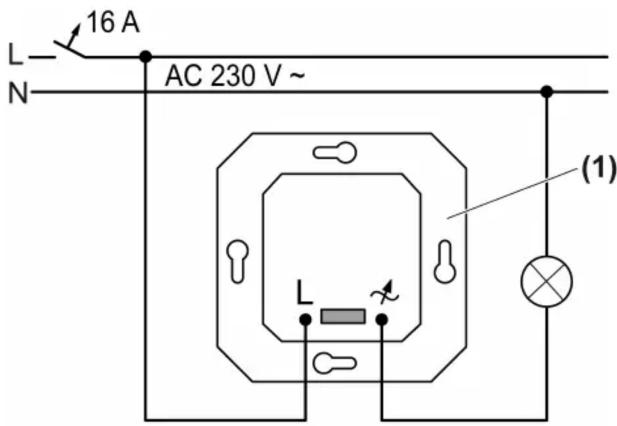

Figure 2: Connection diagram
■ Connect the dimmer (1) according to the connection diagram (Figure 2).
1 × 0,5 2,5 ~mm^2
1 × 0,5 2,5 ~mm^2
1 × 0,5 2,5 mm^2
Figure 3: Clampable conductor cross-section
■ Mount the dimmer in the appliance box. Terminals must be at the bottom.
■ Mount the cover (2).
■ Attach the control button (3).
■ Switch on mains voltage.
6 Technical data
Rated voltage AC 230 V\~
Mains frequency 50 Hz
Standby power approx. 0.2 W
Power loss approx. 3.7 W
Ambient temperature -5 ... +45 °C
Connected load at 25 °C
Incandescent lamps 20 ... 200 W
HV halogen lamps 20 ... 200 W
HV-LED lamps typ. 3 ... 40 W
Mixed load
Ohmic and HV LED typ. 3 ... 40 W
Power reduction
when surface mounting -5%
per 5°C in excess of 25°C -10%
when installed in wooden or dry construction walls -15%
when installed in multiple combinations -20%
Fine-wire fuse T 800 mA H 250
7 Troubleshooting
The device cannot be switched on. Or: The device switches the load off and cannot be switched on again.
Check fine-wire fuse and replace if necessary. Use only original fuses.
Connected HV-LED lamps flicker
Cause: The lamps are not dimmable or dimming principle and lamps do not optimally match.
Check manufacturer's instructions. Exchange lamps for another type.
Connected HV-LED lamps switch off in the lowest dimming position or flicker
Cause: Brightness is set too low for the lamps.
Adjust the brightness and set it brighter.
LED lamp is dimly lit when dimmer is switched off
Cause: LED lamp is not suitable for this dimmer.
Use a compensation module, see accessories.
Use another type of LED lamp or an LED lamp of another manufacturer.
8 Accessories
Compensation module LED Art. no. KMLED230U
9 Warranty
The warranty is provided in accordance with statutory requirements via the specialist trade.
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
kundencenter@jung.de
www.jung.de
