You can update the system by connecting a USB device containing an update file For updating the system, visit <http:/www2.jvckenwood.com/cs/ce/>.
LVT2548-001B_14DNX_QSG_E_En.ndd 1 14/01/08 11:1

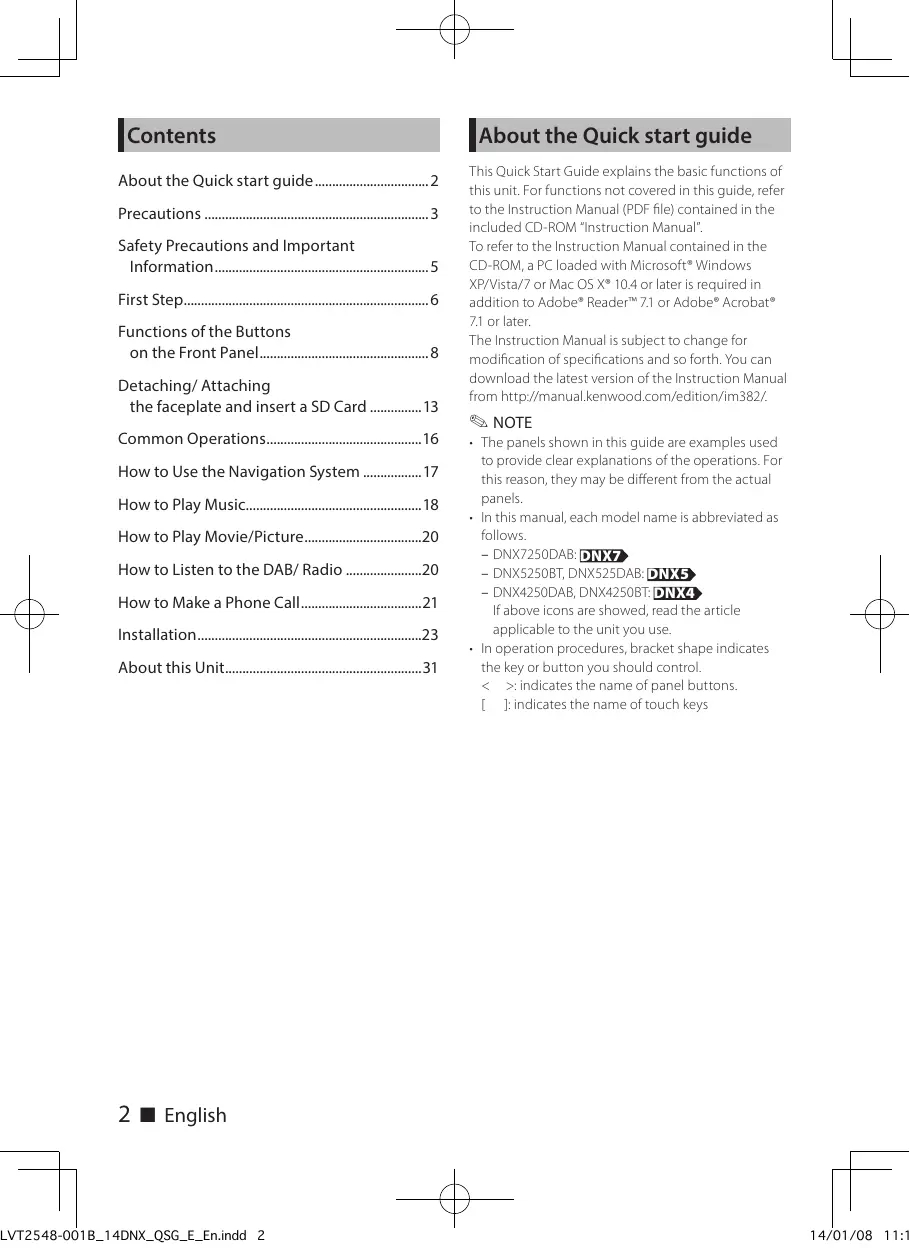

About the Quick start guide:
Safety Precautions and Important
Functions ofthe Buttons on the Front Panel.
Detaching/ Attaching the faceplate and insert a SD Card
How to Use the Navigation System
How to Play Movie/Pictur
How to Listen to the DAB/ Radio
How to Make a Phone Call.
Jabout the Quick start guide
This Quick Start Guide explains the basic functions of this unit. For functions not covered in this guide, refer ta the Instruction Manual (PDF file) contained in the included CD-ROM “instruction Manual"
To refer ta the Instruction Manual contained in the CD-ROM, a PC loaded with Microsoft® Windows XP/Vista/7 or Mac OS X° 104 or later is required in addition to Adobe? Reader 71 or Adobe® Acrobat® 71 orlater.
The Instruction Manual is subject to change for modification of specifications and 50 forth. You can download the latest version of the Instruction Manual from http://manual kenwood.com/edition/im382/
#3 NOTE + The panels shown in this guide are examples used to provide clear explanations ofthe operations. For this reason, they may be different from the actual panels + Inthis manual, each model name is abbreviated as follows. - DNX7250DA8. — DNX52508T, DNX525DA8: CREER — DNX4250DAB, DNX42508T QRETR above icons are showed, read the article applicable to the unit you use In operation procedures, bracket shape indicates the key or button you should control <__ >:indicates the name of panel buttons L_J'indicates the name oftouch keys
[a To prevent injury or fire, take the following precautions:
+ To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.
Do not watch or fx your eyes on the unit's display when you are driving for any extended period.
Ifyou experience problems during installation, consult your Kenwood dealer.
[m Precautions on using this unit + When you purchase optional accessories, check
with your Kenwood dealer to make sure that they
work with your model and in your area.
You can select language to display menus, audio
The Radio Data System or Radio Broadcast Data
System feature won't work where the service is
not supported by any broadcasting station.
The unit may not function property ifthe
connectors between the unit and front panel
are dirty. Detach the front panel and clean the
connector with a cotton swab gently, being
careful not to damage the connector.
[m Precautions on battery + Put the remote control in a place where it will not move during braking or other operations. A dangerous situation could result, ifthe remote control falls down and gets wedged under the
pedals while driving.
Do not leave the battery near fire or under direct
sunlight. A fire, explosion or excessive heat
generation may result.
+ Do not recharge, short, break up or heat the battery or place it in an apen fire. Such actions may cause the battery to leak fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.
+ Place the battery out of reach of children. In the unlikely event that a child swallows the battery, immediately consult a physician.
[m Protecting the monitor + Put the remote control in a place where it will
LVT2548-001B_14DNX_QSG_E_Enndd 3
not move during braking or other operations. À dangerous situation could result ifthe remote control falls down and gets wedged underthe pedals while driving
Protecting the monitor Put the remote control in a place where it will not move during braking or other operations. A dangerous situation could result, ifthe remote control falls down and gets wedged under the pedals while driving.
Lens fogging When you turn on the car heater in cold weather, dew or condensation may form on the lens in the disc player of the unit. Called lens fogging, this condensation on the lens may not allow discs to play. In such a situation, remove the disc and wait for the condensation to evaporate. Ifthe unit still does not operate normallÿ after a while, consult your Kenwood dealer.
Precautions on handling discs + Do not touch the recording surface of the disc. + Do not stick tape etc. on the disc, or use a disc with tape stuck on it. Do not use disc type accessories. + Clean from the center of the disc and move outward. When removing discs from this unit, pull them out horizontally. Ifthe disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc. Dises that are not round cannot be used.
8-cm (3 inch) discs cannot be used Discs with coloring on the recording surface or dises that are dirty cannot be used.
This unit can only play the CDs with
This unit may not correct play dises which do not have the mark
You cannot play a disc that has not been finalized. (For the finalization process see your writing software, and your recorder instruction manual)
Acquiring GPS signal I How to reset your unit
The first time you turn on this unit, you must wait Ithe unit fails to operate properly, press the Reset while the system acquires satellite signals for the button. The unit returns to the factory settings. firsttime. This process could take up to several re
minutes. Make sure your vehicle is autdoors in an open area away from tal buildings and trees for fastest acquisition
Afterthe system acquires satellites for the first time, it will acquire satellites quickly each time thereafter.
1m About the front panel When removing the product from the box or installing it, the front panel may be positioned atthe angle shown in (Fig. 1). This is due to the characteristics of mechanism the product is equipped with. When the product is first pourered an works: proper, the front panel will automatically move into the position (initial setting angle) shown in Œig.2).
1m Cleaning the Unit Ifthe front panel of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. Ifthe front panels stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth
+ Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the front panel with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.
+ Disconnect the USB device before pressing the <Reset> button. Pressing the <Reset> button with the USB device connected can damage the data stored in the USB device. For how to disconnect the USB device, see How to Play Music (P.18)
+ When the unit is turned on after resetting, the Initial SETUP screen appears. See First Step (P.6).
LVT2548-001B_14DNX_QSG_E_Enindd 4 14/01/08 11:1
Read this information carefully before starting to operate the Kenwood Car Navigation System and followthe instructions in this manual. Neither Kenwood nor Garmin shall be liable for problems or accidents resulting from failure to observe the instructions in this manual.
A WARNING Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury.
When navigating, carefully compare information displayed on the navigation system to all available navigation sources, including information from street signs, visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation.
Always operate the vehicle in a safe manner
Do not become distracted by the navigation system while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the screen ofthe navigation system while driving, and use voice prompts when possible.
Do not enter destinations, change settings, or access any functions requiring prolonged use ofthe navigation system controls while driving. Stop your vehicle in a safe and legal manner before attempting such operations
Keep the system volume at a low enough level to be able to hear outside noises while driving. fyou can no longer hear outside noises, you may be unable to react adequately to the traffic situation. This may cause accidents.
The navigation system will not display the correct current position of the vehicle the first time it is
used after purchase, or fthe vehicle battery is disconnected. GPS satellite signals will soon be received, however, and the correct position will be displayed.
Be careful of the ambient temperature. Using the navigation system at extreme temperatures can lead to malfunction or damage. Also note that the unit can be damaged by strong vibration, by metal objects, or by water getting inside the unit.
LVT2548-001B_14DNX_QSG_E_Enindd 5
ACAUTION Failure to avoid the following potentially hazardous situations may result in injury or property damage.
The navigation system is designed to provide you with route suggestions. t does not reflect road closures or road conditions, weather conditions, or other factors that may affect safety or timing while drivingl
Use the navigation system only as a navigational aid Do not attempt to use the navigation system for any purpose requiring precise measurement of direction, distance, location, or tapography.
The Global Positioning System (GPS) is operated
by the United States government, which is solely responsible for its accuracy and maintenance. The government system is subject to changes that
could affect the accuracy and performance of all GPS equipment, including the navigation system. Although the navigation system is a precision navigation device, any navigation device can be misused or misinterpreted and, therefore, become unsafe
IMPORTANT INFORMATION Im Vehicle Battery Preservation This navigation system can be used when the ignition key is turned to ON or ACC. To preserve the battery, however, it should be used with the engine running whenever possible. Using the navigation system for a long time with the engine switched off can cause the battery to run down.
Map Data Information One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages displayed to the consumer. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive.
D Camera [First Step Sett th mera. (Instructio Various setup screens appear automatically before Manual P92} setting, touch [#1 using Initial setup 3 Touch [Finish].
When you first turn on the unit, the screen ofthe
configuration setting will appear. n the unit is res
1 Turn the ignition key of your car to ACC.
e unit is turned Initial SETUP screen
2 Touch the corresponding key and set the value.
ion system. the distance unit, and the gasoline
After setting, touch [Enter] Language Select the langua
iPod/iPhone connection setup When you first select iPod as a source, the setting screen ofthe iPod/iPhone connection will appear.
1 Touch [Menu] on any screen.
Menu screen appears.
2 Touch [iPod] in the Top Menu screen. iPod
way ofiP refer to "IP (P56 in the Instructioi
Forthe onnection setup
When you first select Apps as a source, the setting screen for the connection with the device installed the apps will appear.
2 Touch [Apps] in the Top Menu screen. Application link setup
ion” (P.32) and ‘A English M 7
[functions of the Buttons on the Front Panel
= = we Le pe] | J ] ù à à EH] © 917 No. Name/Motion No. Name/Motion 1 v(Reset) 8 TEL + Ifthe unit ar the connected unit fails ta + Displays the Hands Free screen (Instruction aperate properly, the unit returns to factory Manual P75) settings when this button is pressed + Pressing for 1 second displays the Voice a {instruction Manual P115). Recognition screen. (Instruction Manual à y + Ifthe Security Indicator (S) function is P78) turned on, this indicator flashes when the 7 2 panel is detached (Instruction Manual + Ejectsthe disc P86). + When the panel is opened, pressing closes 2 a,v the panel and pressing far 1 second ejects + Adjusts volume: the disc forcibly. 3 NV + When the panel is closed, pressing for
second fully opens the panel ta the location
+ Displays the navigation screen. ofthe SD card sl
+ Pressing for 1 second switches AV out sources. 8] Discinsert slot “& au + Aslot ta insert a dise media + Displays Graphic Equalizer screen 9] SD card slot {instruction Manual P100)* + Aslot to insert an SD card. The card is used Pressing for 1 second turns the screen off for upgrading the map. For how to upgrade 51 MENU the map, refer to the instruction manual of + Displays the Top Menu screen (Instruction the navigation system Manual P22) Also, you can play audio/visual file in the card
+ Pressing for 1 second turns the power off
+ When the power off turns the power on. See Detaching/Attaching the faceplate
andinsert a SD Card (P.13)
* The display may not switch to the Graphic Equalizer screen in some conditions.
+ Ejects the disc. Pressing for 1 second displays the Voice
. Pressing for 1 second ejects the disc forcibiy. Recognition screen. (Instruction Manual
3] v(Reset) —__"® + Ifthe unit or the connected unit fails to 5] Input jack operate properly, the unit returns to factory _____: An inputjack for external device.
settings when this button is pressed iù_ microSD card slot {instruction Manual PT15) + Aslotto insert an microSD card. The card + Ifthe Security Indicator (SD function is S used for upgrading the map. For how to tumed on, this indicator flashes when the upgrade the map, refer to the instruction panels detached (Instruction Manual manual of the navigation system: P86) Also, you can play audio/visual fie in the EE card.
+ Detaches the part of front panel. See Detaching/Attaching the faceplate and insert a SD Card (P.13).
+ Displays the Top Menu screen (Instruction Manual P22)
+ Pressing for 1 second turns the power off
:_ When the power off turs the power on.
See Detaching/Attaching the faceplate andinsert a SD Card (P.13).
6) NAV + Displays the navigation screen. + Pressing for 1 second switches AV out sources.
DNX525DAB EU No. Name/Motion
1] A Eject) + Ejectsthe disc. - Pressing for 1 second ejec
2] MENU + Displays the Top Menu screen (Instruction
3) NAV + Displays the navigation screen. + Pressing for 1 second switches AV out sources.
a) TEL + Displays the Hands Free screen (Instruction Manual P75) + Pressing for 1 second displays the Voice Recognition screen. (Instruction Manual P78) 5] AUDIO + Displays Graphic Equalizer screen {instruction Manual P100)* : Pressing for 1 second turns the screen off
LVT2548-001B_14DNX_QSG_E_Enindd 10
7] Reset + Ifthe unit or the connected unit fails to operate proper, the unit returns to factory settings when this button is pressed {instruction Manual P115)
roSD card slot + Aslot to insert an microSD card. The card
s used for upgrading the map. For how to upgrade the map, refer to the instruction manual ofthe navigation system. Also, you can play audiofvisual file in the card See Detaching/Attaching the faceplate andinsert a SD Card (P.13)
itches to the Apps sources
1 USB + Switches to the USB or iPod sources. {instruction Manual P.8:
itches to the disc media sources.
itches to the DAB sources.
13 Release key + Detaches the part of front panel See Detaching/Attaching the faceplate andinsert a SD Card (P.13)
sert slot + A slot to insert a dise media.
À \ No. Name/Motion Ifthe Security Indicator (5) function is tumed on, this indicator flashes when the panel is detached (Instruction Manual P86) + The display may not switch to the Graphic D Equalizer screen in some conditions. \ NP English I 11 h 7
LVT2548-001B_14DNX_QSG_E_Enndd 11 14/01/08 11:1
DNX4250DAB/ DNX4250BT
2] A(Eject) + Ejectsthe disc. Pressing for 1 second ejectsthe disc forcibly.
+ Ifthe unit or the connected unit fails to operate properiy, the unit returns to factory settings when this button is pressed {instruction Manual P115)
+ Ifthe Security Indicator (5) function is tured on, this indicator flashes when the vehicle ignition is off (Instruction Manual PS6)
+ Displays the Top Menu screen (Instruction Manual P22)
+ Pressing for 1 second turns the power off
+ Pressing for 1 second switches AV out sources.
+ Pressing switches attenuation ofthe volume
+ Pressing for 1 second displays Graphic Equalizer screen (Instruction Manual Paon*
+ Pressing for 1 second display the Voice Recognition screen. {Instruction Manual P78)
8] microSD card slot
+ AmicroSD card slot for upgrading the map. For how to upgrade the map, refer to the instruction manual ofthe navigation system.
See Detaching/Attaching the faceplate andinsert a SD Card (P.13).
* The display may not switch to the Graphic Equalizer screen in some conditions.
Detaching/ Attaching the faceplate and insert a SD Card
+ Detaching the faceplate 1) Press <> button for 1 second The panel fully opens
‘3 NOTE + The attaching plate closes automatically in about
10 seconds after the front panel is released. Remove the panel before this happens.
LVT2548-001B_14DNX_QSG_E_Enndd 13
+ Insert a SD Card 1) Press <> button for 1 second. The panel fully opens. 2) Hold the SD card with the label facing up, and insert it into the slot until it clicks. Labelled side Ps
+ Attaching the faceplate 1) Hold the front panel securely so as not to drop it accidentally. Fit the panel onto the ching plate until it is firmly locked
NX5250BT above. fit is detached upward, the front panel
+ Detaching the faceplate will be broken. 1} Slide the Release key upward to detach the + To prevent deterioration, do not touch the part ofthe front panel terminals of the unit and front panel with your fingers.
+ Ifthe terminals on the unit or front panel get dirty, wipe them with a clean soft dry cloth. Remove the panel before this happens.
+ Insert a microSD Card 1) Slide the Release key upward to detach the part ofthe front panel 2) Hold the microSD card with the label side facing left and the notched section up, and insert it into the slot until it clicks.
+ Attaching the faceplate
) Hold the panel securely so as not to drop
it accidentally and fi it onto the attaching plate until it is firmly locked
‘3 NOTE + When detaching a part of the front panel, detach ittoward the front side as shown in the diagram
LVT2548-001B_14DNX_QSG_E_Enindd 14 14/01/08 11:1
NX525DAB + Attaching the faceplate
+ Detaching the faceplate 1) Hold the panel securely so as not to drop 1) Slide the Release key rightward to detach the it accidentally and fit it onto the attaching part ofthe front panel plate until is firmly locked
DNX4250DAB/ DNX4250BT + Insert a microSD Card 1) Open the card slot cover. 2) Holdthe microSD card with the label facing upand the notched section right, and insert it into the slot until it clicks.
+ Insert a microSD Card 1) Open the card slot cover. 2) Hold the microSD card with the label side facing right and the notched section down, and insert it into the slot until it clicks.
Eject a SD Card/ microSD Card 1) Push the card until i clicks and then remove your finger from the card 2) The card pops up so that you can pullit out with your fingers.
LVT2548-001B_14DNX_QSG_E_Enindd 15 14/01/08 11:1
[common Operations LB «.. Touch keys with va
ous functions are displaye
[à General There are some functions which can be operated from most screens.
d keys differ depending on the current statu: ee List screen (P.24) in the
Flick scrolling You can scroll the list screen by flicking the screen up/down or right/left
II (RETURN) Returns to previous
ES (common menu key)
an T7 Touch to di ofthe EX Listes the SETUP Menu screen E Displays the A ntrol Menu screen Menu [TT RAETEEE) trol screen Icon feature differs depending on the sour
fm List screen There are some common function keys in the list screens of most sources.
How to Use the Navigation System
T Press the <NAV> button to display the navigation screen.
2 operate the desired function from the Main Menu screen.
No. Name/Motion 1] GPS satellite strength
4] Uses the Apps such as ecoRo
5] Adjusts the setting
‘3 NOTE + You can get additional information about using the navigation system from Help. To display Help, touch
Apps] and then touch [Help]. L Smarphone Link ecoRoute”
ls 5 Q FD] _répPanner were rveBeen ions Cock
+ For more information about your navigation system, download the latest version of the Owner's Manual from http://manual. kenwood.com/edition/im382/
3 Enter your destination and start the guidance.
+ Finding points of interest 1) Touch [Where To?].
LVT2548-001B_14DNX_QSG_E_Enindd 17
2) Select a category and a subcategory. 3) Select a destination. 4) Touch [Go] #3 NOTE + To enter letters contained in the name, touch the Search bar and enter the letters.
4 Follow your route to the destination.
+ The speed limit icon feature is for information only and does not replace the drivers responsibility to) abide by all posted speed limit signs and to use safe driving judgment at all times. Garmin and JVC KENWOOD will not be responsible for any traffic fines or citations that you may receive for failing to follow all applicable traffic laws and signs.
Your route is marked with a magenta line. As you travel, your navigation system guides you to your destination with voice prompts, arrows on the map, and directions atthe top ofthe map. you depart from the original route, your navigation system recalculates the route.
No. Name/Motion 1]. Views the Next Turn page or the junction view page, when available.
2] Views the Turn List page.
3] Views the Where Am |? page.
4] Stops the currents route.
5]. Displays traffic information on the route. © [EL Retumstothe Main menu © [7] Displays a different data field Î TE] Views the Trip Computer. ©] Displays more options. English I 17
<à NOTE + Touch and drag the map to vieu a different area of the map - Aspeed limit icon could appear as you travel on major roadwraÿs. + Adding a stop 1) While navigating a route, touch [Îpa} then touch [Where To? 2) Search for the extra stop. 3) Touch [Gol] 4) Touch [Add to Active Route] to add this stop before your final destination: + Taking a detour D While navigating a route, touch [
I Other Features + Manually avoiding traffic on your route 1) From the map, touch the traffic icon. 2} Touch [Traffic On Route]. 3) Ifnecessary, touch the arrow to view other traffic delays on your route. 4 Touch (A > void + Viewing the traffic map 1) The traffic map shows color-coded traffic flow and delays on nearby. + About traffic < NOTICE + Traffic service is not available in some areas or countries Garmin and JVC KENWOOD are not responsible for the accuracy or timeliness of the trafic information: With an FM traffic receiver, the navigation system can receive and use traffic information. When a traffic message is received, you can see the event on the map and change your route to avoid the incident. The FM TMC subscription activates automatically after your navigation system acquires satellite signals while receiving traffic signals from the service provider, Ga to www.garmin.com/kenwood for more information: Updating the software To update the navigation system software, you must have a USB mass storage device and an internet connection.
1) Go to www.garmin.com/Kenwood. 2) Find your model and select [Software
LVT2548-001B_14DNX_QSG_E_Enindd 18
Updates] > [Download]
3) Read and accept the terms of the Software License Agreement.
4) Follow the instructions on the Web site to complete the installation of the software update.
You can purchase updated map data from
Garmin or ask your Kenwood dealer or
Kenwood service center for details.
You can play audio files from music CD, disc media, USB storage device, SD Card, and iPod.
“3 NOTE - For details on playable file format, media format, iPod model, etc, refer to the Instruction Manual
1 Connect the media you want to play as shown below.
> button to open the front
2) Insertthe disc into the slot
The panel closes automatically and playback
1) Press the <A> button
[DNXS JDNX48 1) Insert the disc into the slot: Playback starts.
iPod/iPhone 1) Connect the iPod/iPhone.
+ For the details ofthe necessary cable and adapter to connect with iPod/Phone, refer to “iPod/Phone connection” (P32)
+ To disconnect the iPod/iPhone connected with the cable: 1) Touch HR] on the screen and then touch
Discannect the iPod/ iPhone from the cable.
USB device 1) Connect the USB device with the USB cable.
+ To disconnect the USB device:
device from the cable.
SD card/ microSD card ERE&> CEE 1) Insert the SD card/ microSD card 2) Replace the front panel. Playback start NOTE To insert SD card or microSD card, refer to
“Detaching/ Attaching the faceplate and insert a SD Card” (P13)
2 Control the music you are listening to on the source control screen.
The following symbols indicate the keys on the
LVT2548-001B_14DNX_QSG_E_Enindd 19
) Touch [A ] on the screen and disconnect the
screen. The functions ofthe keys are the same despite the difference of the source you are listening to.
Disconnects the device
PL Searches the previous/next content. <<»> or move the cursor in the center à bar
Fast forwards or Fast backwards (Disc media, CD, USB device only) Le] Repeats current content. De Plays all contents in random order. #3 NOTE + For other opei
tions, refer to the Instruction Manual. esired key is not displayed in the multi-function bar, touch the [RQ] to switch the menu
3 Search the track/file you want to listen to. + List search 1) Touch The conte is displayed. IFthe information of the current track only
s displayed, touch Ex switch the list display.
1g operations, refer to Search Operation (P.45) in the Instruction Manual
You can play DVD video, Video CD (VCD), movie files from disc media, iPod and picture files from SD Card USB storage device.
+ For details on playable file format, device format, etc. refer to the Instruction Manual.
1 Connect the media you want to play.
For the method of connecting, Music (P.18).
2 Control the movie/picture by touching the screen.
Each area on the screen has a separate function
DVD Disc Menu Operation (P.31) in the
How to Listen to the DAB/ Radio
The unit switches to the r
À \ 3 operate on the source control screen. [How Hire: + Station search for DAB 1) Touch Uri You can use your Bluetooth cell-phone when paired Sub function menu appe to this unit NOTE + You cannot register the Bluetooth unit when you are using the following sources: iPod, Bluetooth Audio, APPS, aha 1 Register your cell-phone to the unit. Follow as the procedures shown below. For detalled operation, see Registering the Bluetooth 2) Touch [DE] to select the band Unit (P.73) in the Instruction Manual, 31 Touch [4 bei, [cc or Boo] to 1) Touch [Menu] on any screen tune in the desired ensemble, service, or rop Menu scree
component 2) Touch [SETUPI Station search for Radio SETUP Menu screen appears 1) Touch (al: 3) Touch [Bluetooth]
Bluetooth SETUP screen appears.
Sub function menu appears
21 Touch [AM] or [FMI to select the band 3] Touch [#4] or [we] to tune in the desired station. * Auto memory (Radio only) D Touch (MF
your cell-phane from the displayed list arched Device List screen.
Sub function menu appears 2) Touch [AM] or [FMI to select the band 3) Touch [K@1 4) Touch AM 5) Touch [4] or (wæ] in the sub function menu
Auto memory starts. * Recalling the preset station
1) Touch [P#] You can also di
lay the preset list by
touching the frequency display in the center.
2 Connect your cell-phone to the unit.
3 NOTE + For other ns, see Radio Basic Operation D Touch the device name you want to connect (P.60) Digital Radio Basic Operation (P.62) in n the Bluetooth SETUP screen, the Instruction Manual 2) Touch [ON] of [TEL(HFP] in the BT Connection Settings screen. English I 21 H 7
LVT2548-001B_14DNX_QSG_E_Enndd 21 14/01/08 11:1
NE The selected device is connected to the unit.
ren registration of your cell-phone is completed, automatically downloaded to this unit
3 Make or receive a phone call.
See the table below for each operation method
Call by entering a phone number
1) Enter a phone number with number keys 2) Touch [Î
Call using call records
1) Touch {M} (ncoming calls), [M] (missed calls), or [R} (outaoing calls)
lect the phone number from the list.
Call using the phonebook
lect the name from the list.
El number from the list.
Call usingthe presetnumber
1) Touch [Preset #] to start callng the corresponding phone number.
LVT2548-001B_14DNX_QSG_E_Enindd 22
e phone book of the cell-phone is
À Ü You can make a voice call using the voice recognition function of the cell-phone. } Touch ([] 2} Pronounce the name registered in the cell phone. NOTE + For detailed operation, see Using Hands-Free Unit (P.75) in the Instruction Manual. an :
Before Installation Before installation of this unit please note the following precautions.
+ Hfyou connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
+ Do not eut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.
ACAUTION Install this unit in the console of your vehicle
Do not touch the metal part ofthis unit during and shortiy after the use ofthe unit. Metal part such as the heat sink and enclosure become hot.
‘NOTE Mounting and wiring this product requires skills and
experience. For best safety leave the mounting and
wiring work to professionals.
+ Make sure to ground the unit to a negative 12V DC power supply.
+ Do not install the unit in a spot exposed to direct
sunlight ar excessive heat or humidity. Also avoid
places with 100 much dust or the possibility of water
Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
Ifthe power is not turned ON ('PROTECT" is displayech),
the speaker wire may have à short-circuit or touched
the chassis ofthe vehicle and the protection function
may have been activated. Therefore, the speaker wire
I your car ignition does not have an ACC position,
connect the ignition wires to a power source that
can be turned on and off with the ignition key. you
connect the ignition wire to à power source with à
constant voltage supply, such as with battery wires,
the battery may be drained
Ifthe console has a id, make sure to install the unit so)
that the front panel wil not hit the lid when closing
Ifthe use blows, first make sure the wires aren't
touching to cause à short circuit, then replace the old
fuse with one with the same rating
LVT2548-001B_14DNX_QSG_E_Enndd 23
+ Insulate unconnected wires with vinyl tape or other Similar material To prevent a short circuit, do not remove the caps on the ends ofthe unconnected wires or the terminals.
Connect the speaker wires correctly to the terminals to véhich they correspond. The unit may be damaged or fail to work if you share the © wires or ground them to any metal part in the car.
When only two speakers are being connected to
the system, connect the connectors either to both
the front output terminals or to both the rear output terminals (do not mix front and rear. For example.
if you connect the @ connector of the left speaker
to a front output terminal, do not connect the © connector to à rear output terminal.
Afterthe unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properh.
+ Mount the unit so that the mounting angle is 30° or less.
This unit has the cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan ofthe unit are blocked. Blocking
these openings will inhibit the cooling ofthe internal temperature and result in malfunction.
+ Do not press hard on the panel surface when installing the unit tothe vehicle. Otherwise scars, damage, or failure may result
- Reception may drop ifthere are metal objects near the Bluetooth antenna
DNX5250BT DNS DNX525DAB Enr
upplied accessories + DNX7250DAB, DNX5250BT, First of all, make sure that all accessories are DNX4250DAB, DNX4250BT supplied with the unit.
Bendthetabs ofthe mounting sleeve with 2 screwdriver or similar Utensil and attach it
{2 Except DNX525DAB Screws (included in genuine audio unit)
1) To prevent a short circuit, remove the key from the ignition and disconnect the © terminal of the battery. 8 NOTE 2) Make the proper input and output wire + Make sure that the unit is installed securely in
creer place. Ifthe unit is unstable, it may malfunction 3) Connect the wire on the wiring harness. eg, the sound may skip).
4) Take Connector B on the wiring harness and ‘ connect it to the speaker connector in your Trim plate (DNX7250DAB, DNX5250BT,
vehicle. DNX4250DAB, DNX4250BT)
5) Take Connector À on the wiring harness and 1) Attach accessory © to the unit. connect it to the external power connector on your vehicle.
6) Connect the wiring harness connector ta the unit
7) Installthe unit in your car
8) Reconnect the © battery.
9) Press the <Reset> button. (P.4)
10)Perform the Initial Setup. See First Step (P.6)
GPS antenna Microphone unit
GPS antenna is installed inside ofthe car. It should 1) Checkthe installation position ofthe
be installed as horizontally as possible to allow easy microphone (accessory ®).
reception ofthe GPS satellite signals. 2) Clean the installation surface.
To mount the GPS antenna inside your vehicle: 3) Remove the separator of the microphone
{accessory ®}, and stick the microphone to the place shown below. 4) Wire the microphone cable up to the unit with it down firmiy secured at several positions using tape or other desired method.
1) Clean your dashboard or other surface.
2) Remove the separator ofthe metal plate accessory ®).
3) Press the metal plate (accessory on your dashboard or other mounting surface. You can bend the metal plate (accessory 2) to conform to a curved surface, if necessary.
4) Remove the separator of the GPS antenna {accessory @), and stick the antenna to the metal plate (accessory @)
5) Adjust the direction of the microphone {accessory ®) to the driver.
Fix cable with a commercial item of tape.
+ Depending on the type of car, reception ofthe GPS satellite signals might not be possible with an inside installation
+ The GPS antenna should be installed at a position
that is spaced at least 12 inch (30 cm) from
cellular phone or other transmitting antennas.
Signals from the GPS satellite may be interfered
with by these types of communication.
Painting the GPS antenna with (metallic) paint
may cause a drop in performance
LVT2548-001B_14DNX_QSG_E_Enndd 25 14/01/08 11:1
emoving the trim plate (DNX7250DAB,
DNX5250BT, DNX4250DAB, DNX4250BT)
1) Engage the catch pins on the extraction key {accessory®) and remove the two locks on the
Lower the trim plate (accessary®) and pul it
forward as shown in the figure.
Removing the unit (DNX7250DAB, DNX5250BT, DNX4250DAB, DNX4250BT) 1) Remove the trim plate by referring to step 1 in “Removing the trim plate”. 2) Insert the two extraction key (accessory@)) deeply inta the slots an each side, as shown.
3) Lowerthe extraction key toward the bottom, and pull out the unit halfway while pressing towards the inside.
‘NOTE + The trim plate can be removed from the top side in the same manner.
2) When the lower level is removed, remove the upper two locations
+ Be careful to avoid injury from the catch pins on
| the extraction key.
4) Pull the unit all the way out with your hands, being careful not to drop it.
1m System connection
For best safety be sure to the parking sensor
PurpleAWhite (Reverse ser
n amer control terminal (evene : \ LP = < k
LVT2548-001B_14DNX_QSG_E_Enindd 28 14/01/08 11:1
Connecting wires to terminals
DAB antenna CX-DAB1 (Optional accessory) {DNX7250DAB, DNXS25DAB, DNX4250DAB only)
(maimum) UF Connect either ta the power control terminal when using the optional
power amplifier or to he power terminal for he flm-type ar short pole type antenna.
Connect ta the terminal that is greunded when either the telephone
FiNgS or during conversat
To use the steering wheel remote control feature, an exclusive remote
adapter (not supplied that matches your car is
Accessory (D) A: Black (Ground wire) B:Yellow (Battery wire) C:Red (ignition wire)
Ino connections are made, do nor let the wire come out from the tab.
Light Blue Vellow (Sterng remote control wire
connection: the ISO connector pins are set às dé cable as shown (2) below to install hi
{1}: Default setting
bed in (2) rit to the
to the constant power supp.
À WARNING for Connecting the ISO Connector The pin arrangement fo the ISO connectors depends on the type ofvehicie you dive. Make sure to make the proper © prevent damage ta the uni, The default connection for the
The red (A7 pin ofthe vehicles 150 connector is inked with the ignition, and the yellow (A-4 pin) is connected
ring harness is described in {1} below. F the
make the connection as lustrated. Please be sure to recent Volkswagen vehicles etc
The red {A7 pir) of the vehicles ISO connectoris connected ta the constant pouver supph, and the yellow (A4 pin) is inked ta the igniion.
Red lignition cable) Red(A-7 pin) Red (gnition cable) Red (A7 pin) À un Venice Unit Vehicle + =; Yellow (Battery cable) Yellow (Ac pin) Yellow (Battery able) Yellow (AA pin) English I 29
ptional accessory connection
When you connect iPod/iPhone with HDMI cable, the necessary cable differs depended on the type ofthe connec: connection! (P.32) for the necessary cable.
+ The setting is necessary to meet the connected iPod/
Phone or Android device.
+ Itis also possible to connect with iPod/iPhone or Android
device via Bluetooth. Refer ta “iPod/iPhone connection" (232) or "Android connection’ (P32).
LVT2548-001B_14DNX_QSG_E_Enindd 30
r like Lightning or 30-pin. Refer to “iPod/iPhone
[5] "ren vou connectihe cable to HDMI/MHL terminal, remove the fixture. After connecting the cable, put the fixture again. HDM/ MHL connector
Copyrights + The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
The "AAC" logo is a trademark of Dolby Laboratories. + “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specificall to iPod or iPhone, respectively, and has been certiied by the developer to meet Apple performance standards
Apple is not responsible for the operation of
this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc, registered in the US. and other countries.
iTunes is a trademark of Apple Inc.
ightning is a trademark of Apple Inc.
a trademark of DVD Format/Logo Fcensing Corporation registered in the US, Japan and other countries.
This item incorparates copy protection technology that is protected by US. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Android is a trademark of Google Inc.
+ Adobe, Acrobat and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries
SDHC and mieroSDHC Logos are trademarks of SD-3C LLC.
ABOUT DIVX VIDEO: DivX is a digital video
format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
LVT2548-001B_14DNX_QSG_E_Enndd 31
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified” device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod divxcom for mare information on how to complete Your registration.
DivX, DivX Certified? and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registed trademarks of HDMI Licensing LLC in the United States and other countries.
MHL and the MHL logo are a trademark or registered trademark of MHL, LLC.
- Incorporates MHL 2
+ bFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2 007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistrbutions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/ or other materials provided with the distribution.
Neitherthe name ofthe Xiph.org Foundation northe names ofits contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT. HOLDERS AND ONTRIBUTORS AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR À PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES {NCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA, OR PROFITS, OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, ORTORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
LVT2548-001B_14DNX_QSG_E_Enindd 32
Android connection To connect the Android device with this unit the cable (sold separately) and the profile wi your Android device supports are necessary as follows:
+ To listen to music and watch video of APPS source — MHL device —_ KCA-MH100 (Optional Accessorÿ) — Bluetooth profile: SPP + To listen to music of APPS source — Bluetooth profile: A2DP — Bluetooth profile: SPP + To listen to music of Bluetooth Audio source — Bluetooth profile: A2DP — Bluetooth profile: AVRCP
iPod/iPhone connection To connect the iPod/iPhone this unit, the cable, adapter (both sold separately), and the profile which your iPod/iPhone supports are necessary as follows:
+ To listen music and watch video with
Lightning connector device
—_ Lightning Digital AV Adapter
— Lightning to USB Cable (accessory ofthe iPod/iPhone)
— Bluetooth profile: SPP To listen music with Lightning connector
— Lightning to USB Cable (accessory ofthe iPod/iPhone)
To listen music and watch video with 30-
connector device (1)
— Apple 30-pin Digital AV Adapter
— Bluetooth profile: SPP To listen music and watch video with 30-
connector device (2)
To listen music with 30-pin connector device
To listen to music via Bluetooth
— Bluetooth profile: A2DP
— Bluetooth profile: SPP
‘3 NOTE + When connecting with Lightning Digital AV Adapter or Apple 30-pin Digital AV Adapter some
applications can be controlled from this unit. The operable functions depend on the application Refer to "Apps Operation (P.54) in the Instruction Manual
Do not leave the cable orthe adapter made by other makers inside the car. It might lead the malfunction caused by heat.
[m Connectable iPod/iPhone
The following models can be connected to this unit. Made for
- iPod touch (4th generation)
Requirements for listening to Aha” are as follows:
iPhone or iPod touch
+ Use an Apple iPhone or iPod touch running IOS4 or later.
+ Search for ‘Aha” in the Apple iTunes App Store to find and install the most current version of the Aha” application on your device.
+ Use Android OS 2.2 or later.
+ Download the Aha" application to your smartphone from the Android Marketplace.
+ Inthe application on your device, log in and create a free account with Aha.
+ Internet connection by 3G, EDGE, or WiFi.
+ Because Aha"is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable
+ Some Aha" functionality cannot be operated from this unit
+ aha, the Aha logo, and the Aha trade dress are trademarks or registered trademarks of HARMAN International Industries, used with permission
Information on Disposal of Old Electrical and Electronic Equipment and Batteries @pplicable for EU countries that have adopted separate waste collection systems) Products and batteries
iththe symbol (crossed-out wheeled bin) cannot be disposed as household waste Old electrical and electronic equipment and batteries: should be recycled at a facility capable of handling these items and their waste byproducts.
Contact your local authority for details in locating a recycle facility nearest to you
Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment
Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.
The marking of products using lasers
LASER PRODUCT The label is attached tothe chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit
ManualGo.com
