Product Type	Electric Fan Heater
Brand	Kunft
Model	KWH3605
Power (Watt)	2000 W
Voltage	220-240 V ~ 50/60 Hz
Heating Elements	PTC ceramic
Heat Settings	2 power levels + fan only
Thermostat	Adjustable thermostat
Fan Speeds	2 speeds (low/high)
Oscillation	Yes, wide-angle oscillation
Timer	Up to 12 hours
Overheat Protection	Yes, automatic shut-off
Tip-Over Switch	Yes, safety cut-off
Dimensions (W x D x H)	200 x 150 x 250 mm
Weight	1.5 kg
Power Cord Length	1.8 m
Noise Level	≤ 45 dB
Color	White / Black
Maintenance	Wipe with dry cloth; do not immerse
Spare Parts Availability	Contact Kunft for service

Frequently Asked Questions - KWH3605 Kunft

How do I clean the Kunft KWH3605 heater?

Always unplug the heater and let it cool completely. Wipe the exterior with a soft, dry cloth. Do not use water, chemicals, or abrasive cleaners. Never immerse the unit in water.

What safety features does the heater have?

The heater includes overheat protection and a tip-over switch that automatically cuts off power if the unit is accidentally knocked over.

Can I use the heater in a bathroom?

The KWH3605 is not designed for bathroom use unless it is placed in a location where it cannot be splashed. It should be kept away from water and moisture. For bathroom use, ensure the heater is at least 1 meter away from water sources.

How much does the heater cost to run per hour?

At maximum power (2000W), it consumes 2 kWh per hour. Your electricity cost depends on local rates. For example, at $0.12/kWh, it costs about $0.24 per hour.

Is the heater noisy?

The noise level is approximately ≤45 dB, which is similar to a quiet conversation. It may be slightly louder on the high fan setting.

How do I set the timer?

Press the timer button repeatedly to set the desired operation time from 1 to 12 hours. The heater will automatically turn off after the selected time.

What does the oscillation feature do?

Oscillation allows the heater to rotate left and right, distributing warm air over a wider area. Press the oscillation button to enable or disable this function.

Can I leave the heater on overnight?

Yes, if you use the timer and ensure the heater is placed on a stable, flat surface away from flammable materials. Never cover the heater or block the air intake/outlet.

What should I do if the heater stops working?

First, check if the power cord is plugged in and the outlet is working. If the heater overheated, it may have shut off automatically. Let it cool down and try again. If problems persist, contact Kunft support.

How do I adjust the thermostat?

Turn the thermostat dial to your desired temperature. Once the room reaches that temperature, the heater will cycle on and off to maintain it. Set it to a higher number for warmer air.

USER MANUAL KWH3605 Kunft

Front view of a Kuwait air conditioner unit (no visible text or symbols on body)

wall mounted heater

is perfectly enough

KWH3605

kunft.®

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

2

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. UTILIZATION AND FUNCTIONING 8

2.1. Features 8
2.2. Operation 8
2.3. Installation 9

1. TECHNICAL SPECIFICATIONS ...... 9

2. POST-SALE SERVICE 10

3. ENVIRONMENTAL PROTECTION .... 10

kunft.®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft.®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

kunft.®

2. UTILIZATION AND FUNCTIONING

2.1. Features

• High quality plastic shell and long using life.
- PTC ceramic heater elements, high efficiency heating, quick heating, noiseless, odor-free, non-polluting, no flame and will not kill the oxygen.
- Two heating levels setting, you can set the temperature as your preference.
- There is temperature fuse due to the danger of overheating and a motor overheat protection. It automatically turns off when the air outlet is blocked and turns on again when the blockages are cleared away.
- Remote control function, 7.5 hours timer. Select natural/hot air. You could close the heat element in the summer; the heater could blow cool air.
- Safety thermostat for overheat protection.

2.2. Operation

• Remove the heater from all packaging and place it in desired location.
• Please open the fan to max.
• Please operate the machine according the control keys on the control panel or the remote control (you can see the control panel and remote control in this manual).

① After connecting the power, the first red pilot lamp in the control panel lights.

② If you press ⏻ in the control panel or remote control, the "Fan" pilot lamp in the control panel will light and the machine starts blowing cool air.

③ When you use the button in the control panel or remote control, to press "MODE" button in the control panel or "1000W" button on the remote control, the "I" pilot lamp in the control panel lights. If you need to improve the thermal efficiency, press "MODE" again or "2000W" on the remote control and the "2000W" pilot lamp lights. At that time the heater will run under full capacity.

④ Press “timer” button when the machine is running smoothly, select the appropriate time you need, then the correlative pilot lamp will light, and the machine will be closed automatically at the appointed time.

For example: press "timer" button once, it means half an hour; press it twice means one hour by the same token. It will go half an hour by half an hour.

⑤ If you want to stop the appliance, press the ⏻ switch, the "Fan" pilot in the control panel will blink, then the machine will keep the fan working 30 seconds until it blows out the cool air, then the machine will stop working.

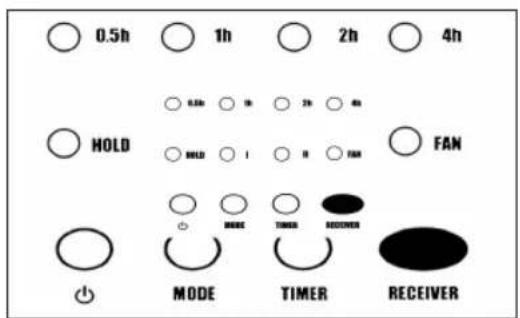

Panel

Remote Control

2.3. Installation

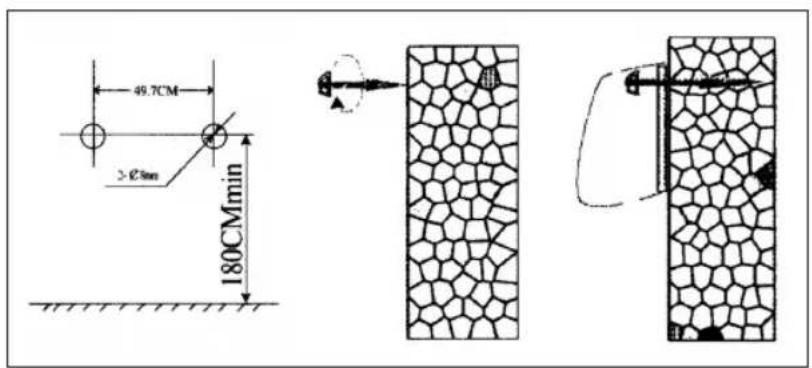

Drill tow holes on the wall with a distance of more than 1.8m from the ground. The diameter of the hole must be wide enough to contain the inflated plastic pipe, which has a diameter of 6mm. After tucking in the inflated plastic pipe, fix the hook on the pipe with screw. Make sure the hook is fully inserted. See the following picture for a better understanding.

3. TECHNICAL SPECIFICATIONS

220-240V\~50Hz

2000W

kunft.®

4. PoSt-SalE SErvlcE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENvlroNmENtal ProtEctIoN

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

calefactor de pared ceramico

KWH3605

ES

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

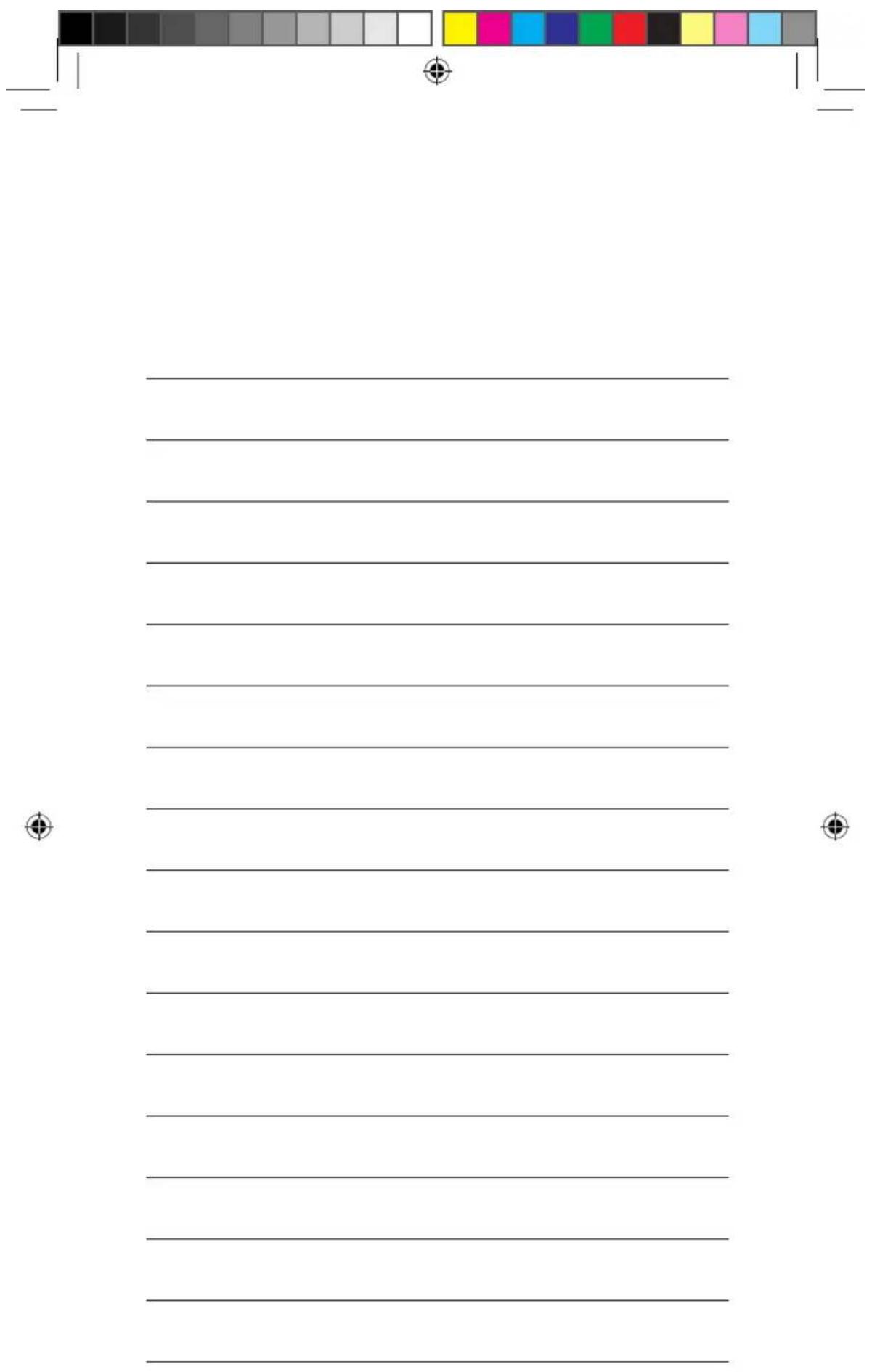

NOTES / NOTAS
