Product Type	Hand blender
Brand	Zelmer
Model	ZHB4640
Power	700 W
Voltage	220-240 V
Frequency	50/60 Hz
Speed Settings	Variable speed with turbo boost
Blade Material	Stainless steel
Shaft Material	Stainless steel
Immersion Depth	20 cm
Weight	0.85 kg
Dimensions (H x W x D)	40 x 7 x 7 cm
Cord Length	1.2 m
Dishwasher Safe Parts	Blending shaft, beaker
Safety Features	Safety lock, overload protection
Accessories Included	Blending shaft, whisk, chopper
Warranty	2 years

Frequently Asked Questions - ZHB4640 Zelmer

How do I clean the hand blender?

Unplug the device. The blending shaft and beaker are dishwasher safe. Wipe the motor unit with a damp cloth. Never immerse the motor unit in water.

Can I blend hot liquids?

Yes, but allow liquids to cool to below 60°C before blending. Do not fill the beaker more than halfway with hot liquids to avoid splashing.

What is the maximum operating time?

The blender is designed for intermittent use. Do not operate continuously for more than 1 minute. Let it cool for at least 2 minutes between cycles.

How do I change the speed?

Use the speed control dial on the handle. Slide it to the desired setting. For maximum power, press the turbo button.

The blender stopped working suddenly. What should I do?

The device has overload protection. Unplug it and let it cool for 15 minutes. If it still does not work, check the fuse or contact customer service.

Can I use the blender in a metal pot?

Avoid using the blender in metal containers as it may scratch the surface and damage the blade. Use the provided beaker or a non-stick pot.

How do I attach the whisk?

Insert the whisk attachment into the gearbox until it clicks. Ensure the blender body is locked before use. Never use the whisk without the gearbox.

Is the blender suitable for crushing ice?

This model is not designed for ice crushing. Use only soft fruits and vegetables. Hard ingredients may damage the blades.

What does the safety lock do?

The safety lock prevents accidental activation. You must press the unlock button before pressing the power switch. Release the power switch to stop.

Where can I find spare parts?

Visit the official Zelmer website or authorized dealers. Use only genuine parts to ensure safety and performance.

USER MANUAL ZHB4640 Zelmer

White and silver robotic brush with a digital display (no visible text or symbols)

Technical line drawing of a two-stage motor tool with a rotating shaft and base, showing no text or symbols.

FIG. 2

FIG. 3

Line drawing of a laboratory brush with a beaker and graduated cylinder (no text or symbols)

FIG. 4

OSTRZEŻENIE

PRZED UŻYCIEM PRODUKTU NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ UŻYTKOWANIA. PRZECHOWUJ JĄ W BEZPIECZNYM MIEJSCU DO WYKORZYSTANIA W PRZYSZŁOŚCI

OPIS

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE

DESCRIPTION

1. Speed control knob
2. Low speed button / speed adjustable
3. Turbo high speed button
4. Main unit
5. Blending blade
6. Beaker

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Respect the operating times of the accessories indicated in their specific sections of the manual.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Warning: potential injury from misuse!

Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without load.

Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

Only for indoor use.

Product has a thermal safety component that operates in case of abnormal higher temperatures. In case of operation of this component, it is needed to unplug the product from mains and let cool for at least 15min.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

BLENDING WITH SPEED KNOB

This accessory is special suitable for processing dip, sauce, soup, mayonnaise, baby or aged people food and mixed drinks, milk shake, etc.

- Connect the rod to the body of the motor and turn it in the direction indicated by the arrow (Fig. 1)

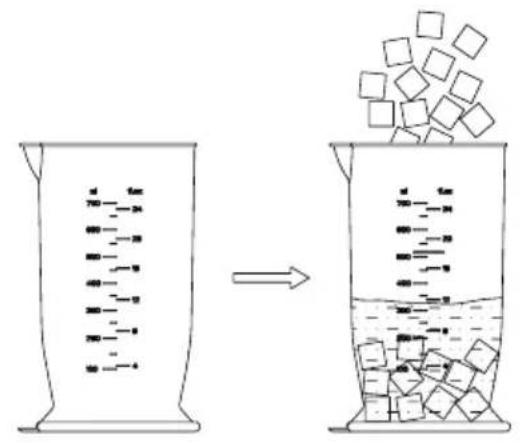

Cutting the food into cubic block that no more than 15 mm, then put them into beaker and add some cold boiled water, or drinking water, milk, water, etc. (Fig. 2)

Add food and water into beaker - plug the power cord into power socket Put the blending blade into beaker (Fig. 3)

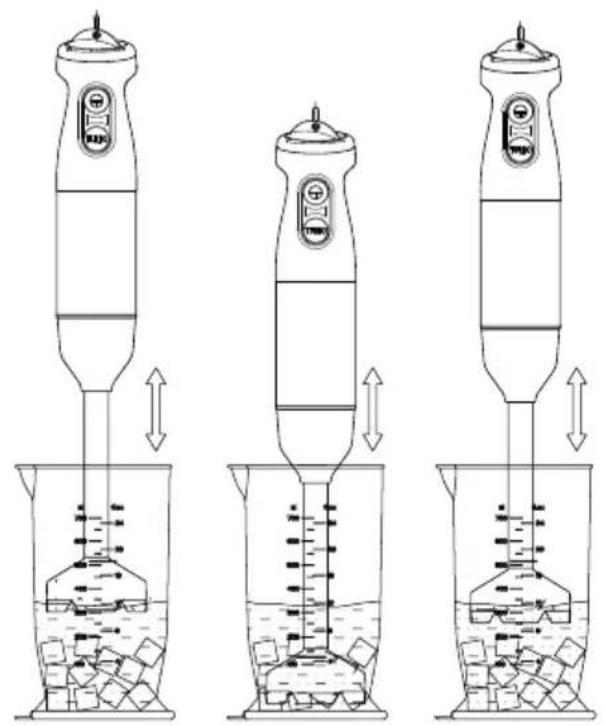

The product will continue to work by pressing on high or low speed button. In order to blend the food well and quickly, please use your one hand to hold the beaker, the other hand to hold the main unit to do up and down reciprocating movement. If you want to stop this product, just release pressure on the speed button. (Fig. 4)

Pull the plug out of the power socket after working.

Attention: In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without immersing into liquids.

MAINTENANCE AND CLEANING

You should unplug the power cord plug before cleaning. Do not touch the sharp blade.

Please use dry dishcloth to wipe the product body. And it is strictly prohibited to let the main unit rinse with water or immerse to the water.

Please do not use metal brush, nylon brush, household cleanser, diluent and other similar cleaning supplies to clean this product, as they may damage the product surface structure.

Please use soft dry cloth to wipe the dirt on the power cord

The cleaning requirements of each functional accessories

Accessories & Cleaning	Scrubbing Rins	ing Immersion	cleaning	Dishwasher Remark
Blending blade	Yes Yes NO Yes at	updown		position only	Do not immerse into water. Diswasher only at up down position
Beaker Yes Yes	Yes Yes

Table of recipes

Load Time Speed Accessory
Soaked carrot: 240g - Water: 360g	10” MAX Blender

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

DANKE FÜR IHRE WAHL DER MARKE ZELMER. WIR WÜNSCHEN IHNEN GENUSS, DAS GERÄT ZU BENUTZEN

WARNUNG

ELIMINAREA PRODUSULUI

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
