Brand	Icy Box
Model	IB-869a
Product Type	USB 3.0 Multi Card Reader
Housing Material	High-grade aluminium
Host Interface	USB 3.0 Type-A (up to 5 Gbit/s)
Device Connector	USB micro-B
Memory Card Support	Up to 60 memory cards
Status LED	Orange LED for power and access
Operating Systems	Windows, macOS, ChromeOS
Plug & Play	Yes
Power Source	USB bus power
Safety - Electrical Shock	Warning: risk of death. Use only with specified power unit, avoid humidity.
Safety - Heat	Ensure ventilation, do not cover
Safety - Small Parts	Keep away from children, suffocation risk
Data Loss Prevention	Always back up data before use, follow instructions
Cleaning	Use dry, anti-static cloth; disconnect first
Disposal	WEEE compliant, do not dispose with household waste
Included Accessories	1x IB-869a, 1x USB cable, 1x manual
System Requirements	Free USB 3.0 port
Compliance	CE, FCC

Frequently Asked Questions - IB-869a Icy Box

How do I install the IB-869a card reader?

Plug the USB micro-B connector into the IB-869a and the USB Type-A connector into a free USB 3.0 port on your computer. The orange LED lights up when powered. The device is automatically recognized (Plug & Play). Insert memory cards into the corresponding slots.

What memory cards are supported?

The IB-869a supports up to 60 different memory cards. Common formats include SD, microSD, CF, and others. Check the slot labels on the device for specific compatibility.

Is the IB-869a plug and play?

Yes, the IB-869a is Plug & Play. It is automatically recognized by the operating system without needing additional drivers. Compatible with Windows, macOS, and ChromeOS.

What should I do if my memory card is not recognized?

First, ensure the USB driver is installed (usually automatic). Then check if the memory card is initialized, partitioned, and formatted. Use disk management tools on your OS to format the card if needed.

How can I avoid data loss when using the card reader?

Always await the end of write/read operations before disconnecting the card reader. Back up your data before connecting new hardware. Use the included accessories and follow the manual.

How do I clean the IB-869a?

Disconnect the device from power before cleaning. Use a dry, anti-static cloth. Avoid aggressive cleaning agents or solvents to prevent scratches, discolouration, or damage.

What safety precautions should I take?

Read the manual before use. Avoid contact with electrical parts, do not use in humid environments, keep away from children due to small parts, ensure ventilation, and do not modify the device.

Which operating systems are compatible?

The IB-869a is compatible with Windows, macOS, and ChromeOS. No additional drivers are required.

What does the LED indicator mean?

The orange LED lights up when the device is powered and indicates access activity during read/write operations. It remains on when idle.

How do I dispose of the IB-869a?

Do not dispose of it with household waste. Follow the WEEE directive: return it to a retailer or local recycling point. Remove any batteries if present and insulate terminals with tape.

USER MANUAL IB-869a Icy Box

USB 3.0 multi card reader

Handbuch IB-869a

USB 3.0 Multi-Kartenleser

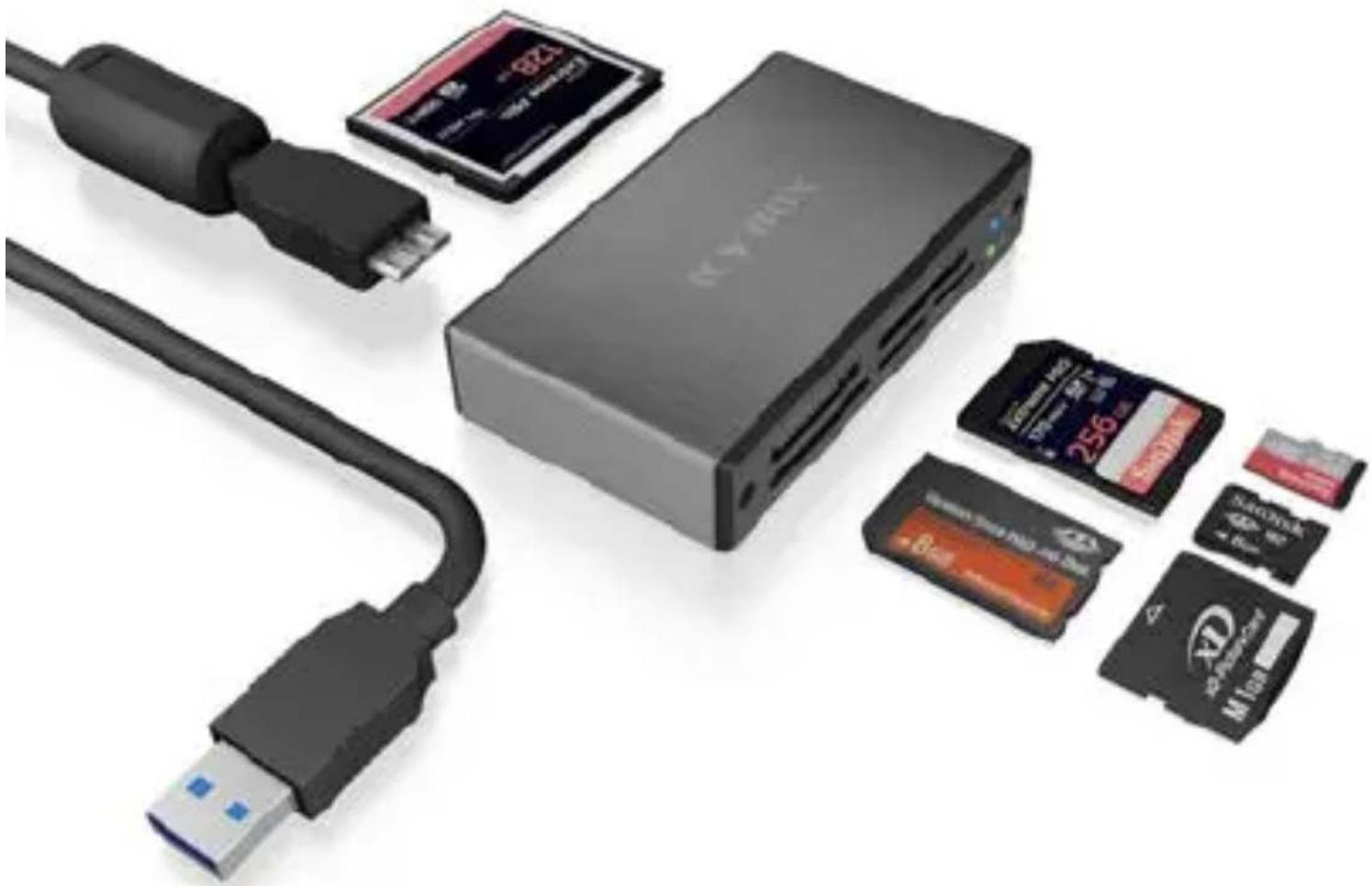

Close-up of a USB cable connected to a black hard drive unit with multiple S246 and 100 microSD cards (no visible text or symbols on components)

Safety information IB-869a

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

Warns of a directly hazardous situation causing death or serious injury.

Warns of a potentially hazardous situation that may cause death or serious injury.

Warns of a potentially hazardous situation that may cause minor injury.

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
  • Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

Safety information IB-869a

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

- Read the operating instructions prior to assembly

• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
  • Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data loss during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Use the product only wonce the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

Safety information IB-869a

6. Cleaning the device

IMPORTANT

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

7. Disposing of the device

IMPORTANT

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

The included batteries must be completely discharged before return.

Take precaution to protect the batteries from short circuits (e.g. by insulating the contact poles with adhesive tape)

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.icybox.de.

Simple line drawing of a trash bin with no text or symbols

• Multi card reader for up to 60 memory cards
• Housing made of high-grade aluminium
• USB 3.0 Type-A with up to 5 Gbit/s to host computer
• Status LED for power and access
- Plug & Play
- Windows®, macOS® and ChromeOS® compatible

Installation

1. Plug the USB micro-B connector of the USB cable into the IB-869a and the USB Type-A connector of the USB cable into a free USB 3.0 Type-A port on your host computer. Hint: As soon as the IB-869a is plugged in, the orange status LED lights up. The IB-869a is automatically recognised by the operating system and is immediately ready to use.

2. Now insert the desired memory cards into the corresponding memory card slots of the IB-869a

Manual IB-869a

Usage

ATTENTION! Please await the end of write and read operations before disconnecting the card reader from the computer to avoid data loss.

• A new memory card must first be initialized, partitioned and formatted by the operating system before it can be displayed by the system.
• If the memory card is not immediately recognised by the system please check:
• whether the driver software is installed (USB)
• whether the memory card is initialized, partitioned and formatted

Handbuch IB-869a

Verpackungsinhalt

1x IB-869a

1x USB Kabel

1x Handbuch

Systemanforderungen

© Copyright 2021 by RaidSonic Technology GmbH. All Rights Reserved.

The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above-mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have.
