Product Type	Vacuum Cleaner
Brand	Kunft
Model	KVC2845 B
Power Rating	700W
Voltage	220-240V ~50/60Hz
Dust Bag Type	Replaceable dust bag
Dust Full Indicator	Yes (red indicator)
Cord Rewind	Yes, with pedal
On/Off Control	Pedal switch
Accessories Included	Hose, 2-piece plastic tube, floor brush, combination brush & nozzle
Floor Brush	Adjustable for carpets and hard floors
Motor Protection Filter	Yes, washable/replaceable
Outlet Filter	Replaceable
Warranty	2 years for manufacturing defects
Usage	Household only
Maintenance	Empty/replace dust bag when full; clean/replace filters

Frequently Asked Questions - KVC2845 B Kunft

How do I turn on the Kunft KVC2845 B vacuum cleaner?

Connect the plug to a compatible power socket (220-240V ~50/60Hz) and press the on/off switch pedal to start the unit.

How do I change the dust bag?

When the dust full indicator turns red, open the front cover by releasing the latch. Remove the full dust bag and replace with a new one. Ensure it is properly installed before use.

How do I clean or replace the filters?

The outlet filter can be replaced by clipping down and removing the outlet cover. The motor protection filter should be cleaned or replaced when dirty. Always unplug the appliance before maintenance.

What materials should I avoid vacuuming?

Do not vacuum water, inflammable materials, burning material, or ashes. These can damage the vacuum and pose a fire hazard.

What should I do if suction power decreases?

Check if the dust bag is full and replace if needed. Also check for blockages in the ground brush, hose, or tubes. Remove any blockages to restore suction.

How do I rewind the power cord?

Unplug the cord from the wall, then press the cord rewind pedal. The power cord will retract automatically.

What accessories are included with the KVC2845 B?

A set of hose accessories, a 2-piece plastic tube, a floor brush, and an integrated combination brush & nozzle for various cleaning tasks.

How should I maintain the vacuum cleaner?

Regularly check and replace the dust bag when full, clean or replace the filters, and remove any blockages. Always unplug before maintenance. Do not use without a motor protection filter.

What is the warranty period?

Kunft provides a 2-year warranty for manufacturing defects from the date of purchase. Contact the store of purchase for assistance.

What should I do if the vacuum cleaner malfunctions?

If abnormal noise, smell, smoke, or failure occurs, turn off the switch, unplug the appliance, and contact a service centre. Do not attempt to repair yourself.

USER MANUAL KVC2845 B Kunft

White Kuwait-branded vacuum cleaner with black buttons and ventilation slots (no visible text or symbols)

Abstract line drawing of a stylized bird or creature with curved and straight lines (no text or symbols)

vacuum cleaner

is perfectly enough

KVC2845 B

kunft.®

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

vacuum cleaner KVC2845 B

EN

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 6
1.3. Humidity and Water ...... 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. Operating Instructions 9

2.1. Product Description....9
2.2. Using the Product 9
2.3. Maintenance 10

1. TeCHNICAL SPECIFICATIONS .....11
2. POST-SALE SERVICE ....11
3. ENVIRONMENTAL Protection ....11

kunft.®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

vacuum cleaner

KVC2845 B

EN

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft.®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

vacuum cleaner

KVC2845 B

EN

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- Before the first operation, make sure the dust cup or the dust bag is properly installed.

- Ensure that the mains supply voltage is 220-240V\~50/60Hz

- Do not vacuum water and inflammable materials.

- Do not vacuum burning material and ashes.

- Do not use the unit without a motor protection filter in place.

- Please change the dust bag immediately when it is damaged.

- Do not store or use the unit close to high temperatures.

- Do not let children use the unit in case of danger.

- If abnormal noise, smell, smoke or any other failure or breakage is found during

kunft.®

the operation, turn off the switch, unplug the appliance, and contact your service centre for repair. Do not attempt to repair it yourself.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- Unplug the appliance from the mains supply before any maintenance or replacement.

- Unplug the appliance from the mains supply before carrying out any maintenance or replacement.

- If the power cord is damaged, it must be replaced by the manufacturer or its service centre or a similarly qualified person.

vacuum cleaner

KVC2845 B

EN

2. OPERATING INSTRUCTIONS

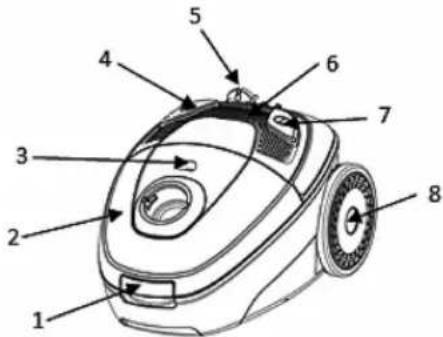

2.1. Product Description

1. Front cover release latch

2. Front cover

3. Dust full indicator

4. Cord rewind pedal

5. Power cord

6. BACK COVER

7. ON/OFF switch pedal

8. Back wheel

2.2. Using the Product

Accessories

A set of hose accessories, 2-pc plastic tube, one floor brush, one integrated brush

Operation methods

1. Connect the hose accessories: insert the hose end into the hose socket at the front cover and lock it into place. (Fig. 1) Remove the hose accessories: press the adaptors on both sides of the hose end and pull the hose accessories. (Fig. 2)

2. Connect the plastic tube to the curves end of the hose. (Fig. 3)

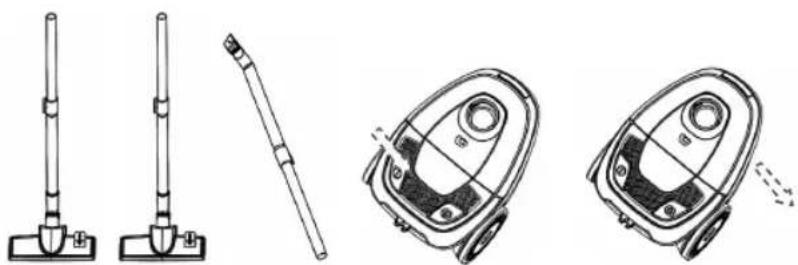

3. Connect different nozzle tools to the tube for different cleaning purposes: floor brush (adjust to the type of floor) for carpets or floors (Fig. 4, 5); combine brush & nozzle for sofas, wall surfaces, curtains, corners or spaces between furniture, etc. (Fig. 6)

4. Turning on the unit: connect the plug into the power socket, whose voltage is the same as the one indicated on the rating plate of the appliance, and press the on/off switch pedal, the unit will start working (Fig. 7).

5. Rewinding the cord: unplug the cord; press the cord rewinding pedal and the power cord will return automatically. (Fig. 8)

123

9

kunft.®

45678

Loss of suction

Less suction power of the cleaner

1. The cleaner can be used to remove the dust out of the full dust cup or the dust bag.
2. If a blockage is found in the ground brush, hose or tubes, the unit can be re-operated only after the blockage is removed.

2.3. Maintenance

1. Changing the dust bag: when the full dust bag indicator turns red, it should be emptied or replaced with a new bag. (Fig. 1)
   Open the front cover by releasing the latch. (Fig. 2)
   Remove the full dust bag. (Fig. 3)

2. Replacing the outlet filter: clip down and remove the outlet cover by hand to replace the filter. (Fig. 4, 5)

3. The motor protection filter should be cleaned or replaced when it is dirty. (Fig. 6, 7)

123

4567

↑

vacuum cleaner

KVC2845 B

EN

3. TECHNICAL SPECIFICATIONS

Model: BVC2845

Voltage: 220-240V 50/60Hz

Power rating: 700W

4. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.
