KGS4503 - Cooker Kunft - Free user manual and instructions

Product Type	Freestanding Gas Cooker
Brand	Kunft
Model	KGS4503
Outer Dimensions (WxDxH)	500 x 600 x 850 mm
Inner Oven Dimensions (WxDxH)	395 x 405 x 330 mm
Power Supply	220-240 V ~ 50/60 Hz (for ignition and oven light)
Gas Types Supported	LPG (G30) and Natural Gas (G20/G25)
Burner Configuration	Rapid, Semi-rapid, Auxiliary (hob) + Oven burner
Rapid Burner Power	Up to 2.66 kW (depending on gas type)
Semi-rapid Burner Power	Up to 1.89 kW
Auxiliary Burner Power	Up to 1.00 kW
Oven Burner Power	Up to 2.66 kW
Oven Thermostat Range	140 - 240 °C
Oven Capacity	Approx. 52 liters (calculated)
Safety Features	Flame failure safety device on burners, child lock (supervision required), anti-tilt chain
Cleaning	Hand wash with mild soap; avoid abrasives; oven door removable for cleaning
Gas Connection	Flexible hose (min 40 cm, max 125 cm); suitable for LPG or NG
Spare Parts / Repairability	Nozzle sets for gas conversion; authorized service only
Warranty	2 years against manufacturing defects (from purchase date)
General Information	For domestic use only; must be installed in well-ventilated room; complies with safety regulations

Frequently Asked Questions - KGS4503 Kunft

How do I light the gas burners?

Push the corresponding knob and turn it counter-clockwise to the maximum flame symbol. For models with gas safety system, press and hold the knob for 5-10 seconds after ignition. Always ensure the burner caps are correctly positioned.

What size pans can I use on the hob?

Use cookware with diameters within the recommended ranges: Rapid burner: 22-26 cm; Semi-rapid: 18-22 cm; Auxiliary: 12-18 cm.

Can I convert the cooker from LPG to natural gas?

Yes, the cooker can be converted. You will need to change the nozzles according to the gas type and adjust the reduced flame settings. Refer to the manual for specific nozzle sizes and adjustment turns.

How do I clean the oven?

Clean with a soft cloth and mild soapy water. Do not use abrasive cleaners, sharp scrapers, or steam cleaners. The oven door can be removed for easier cleaning. After cleaning, rinse and dry thoroughly.

Why won't the gas burner ignite?

Check that the main gas valve is on, the gas bottle is not empty (for LPG), the hose is not bent, and the burner injectors are not clogged. Also ensure the spark ignition is working and the electrical supply is on.

Is the cooker safe to use with children around?

The cooker becomes hot during use. Children under 8 years old should be kept away unless continuously supervised. Use oven mitts and do not leave children unattended. The appliance has a flame failure device for safety.

How do I secure the cooker to prevent tipping?

Use the supplied anti-tilt chain and hooked screw. Screw the hook into the wall at the appropriate height and attach the chain to the back of the cooker. This prevents the cooker from tipping over.

What does the flame failure safety device do?

If the flame goes out accidentally, the safety device automatically cuts off the gas supply to prevent gas leakage. This is a standard safety feature on modern gas cookers.

Can I use the cooker for room heating?

No, the cooker is intended for cooking purposes only. Using it to heat a room is dangerous and may cause fire or carbon monoxide poisoning. Ensure the kitchen is well ventilated.

What maintenance is required?

Regular cleaning of burners and oven. Check gas connections periodically for leaks (use soapy water). If you suspect a fault, contact an authorized service center. Do not attempt repairs yourself.

USER MANUAL KGS4503 Kunft

Exterior view of two electric cookers with black and white panels, one open and one closed (no visible text or symbols)

free standing gas

kunft.®

free standing gas

KGS4503

KGS4504

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS....4

1.1. Power Supply ....5
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS....11

2.1. Product Description....11
2.2. Product usage....12
2.4. Troubleshooting 19

1. TECHNICAL SPECIFICATIONS....20
2. POST-SALE SERVICE....21
3. ENVIRONMENTAL PROTECTION ..... 21

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope,

free standing gas

KGS4503

KGS4504

EN

any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

kunft®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the ins-

free standing gas

KGS4503

KGS4504

EN

tructions for future reference.

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Pieces of packaging (plastic bags, polystyrene etc.) must not be left within reach of children, as they are potentially dangerous. Please dispose of packaging thoughtfully by the appropriate means.
• Please find all required information regarding your stove's power and ratings on the rating label located behind the appliance.
• Usage of your appliance creates moisture and heat in the room; make sure your kitchen is well ventilated.
• Prolonged intensive use of the appliance may call for additional ventilation, for example increasing the level of mechanical ventilation where present.
• When the stove is hot, never touch the stove glass with bare hands.

kunft®

• This appliance is for cooking purposes only. It must not be used for other purposes like heating a room. All our appliances are only for domestic use, not for commercial use.
• Before using your appliance, keep curtains, paper or flammable items away from it. Do not keep combustible or flammable things in or near the appliance.
• Use oven mitts. Do not touch hot surfaces.
• Do not transport the stove holding it by its door handle.
• Do not use the stove in any potentially explosive atmosphere.
• If the current rate of the fuse in your installation is less than 16 Amp, have a qualified electrician fit a16 Amp fuse.
• If the current rate of the fuse in your installation is less than 32 Amp, have a qualified electrician fit a 32 Amp fuse (for rapid Hotplate models 40 A.)
• When the oven is being used, some parts may become hot; children should be kept away and supervised at all times.
• Do not splash cool water onto an oven tray or inside the oven when the oven surface is still hot. Rising steam may cause burns and a sudden temperature exchange may cause damages on the surface of the stove.

free standing gas

KGS4503

KGS4504

EN

• WARNING: accessible parts may become hot during use. Young children should be kept away.
• WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children under the age of 8 should be kept away unless continuously supervised.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass given they can scratch the surface which may result in the glass shattering.
• This appliance is produced in accordance with the safety regulations. Incorrect use will harm people and damage the stove.
• The stove must be supplied via a suitable double pole isolating switch, with a minimum contact separation of 3 mm in all poles placed in a readily accessible position adjacent to the stove.
• Children should be supervised to ensure they do not play with the stove. Never let them play with the stove.
• The stove may be located in a kitchen, a kitchen/diner or bed/sitting room but not in a room containing a bath or shower.
• Caution: glass lids may shatter when heated. Turn off all burners before shutting the lid. Any spillage should be removed from the lid before opening.

kunft.

• Do not put flammable, combustible, explosive liquid able or deformable by heat any material in the oven against possible risk of danger even if your appliance is not in use.
• Bread may catch fire if the toasting time is too long. Close supervision is necessary during toasting.
• WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: danger of fire: do not store items on the cooking surfaces.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

free standing gas

KGS4503

KGS4504

EN

2. OPERATING INSTRUCTIONS

2.1. Product Description

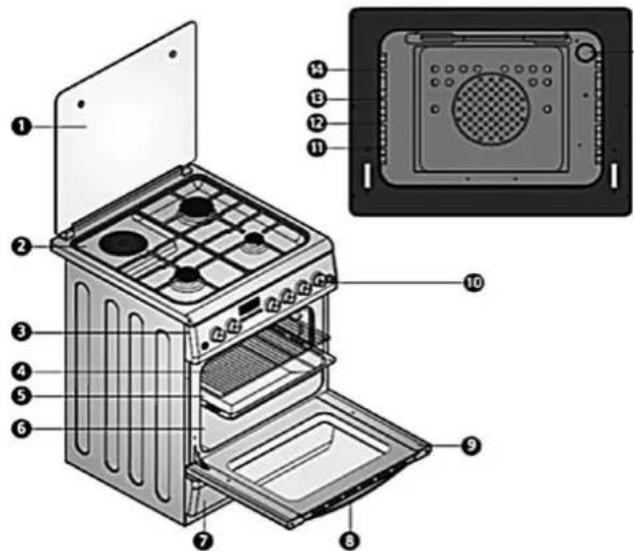

Appliance symbols:

1. Top lid 8. Door handle

2. Cooktop 9. Oven door

3. Command panel 10. Command knobs

4. Wire grid 11. Bottom shelve

5. Tray 12. Middle down shelve

6. Cavity 13. Middle top shelfve

7. Bottom cover 14. Top shelve

kunft.

2.2. Product usage

This user manual is prepared for more than one model. Some of the features specified in the Manual may not be available in your appliance.

Warning: all our stoves are only for domestic use, not for commercial use.

THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS IN FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE

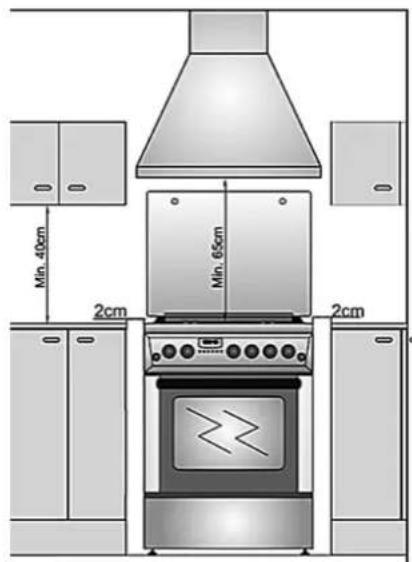

INSTALLATION

GAS CONNECTION

CAUTION: THE STOVE MUST ONLY BE INSTALLED IN A PERMANENTLY VENTILATED ROOM IN COMPLIANCE WITH THE APPLICABLE REGULATIONS.

This stove is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention must be paid to the relevant requirements regarding ventilation.

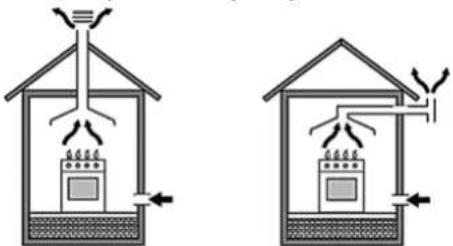

Two identical diagrams showing a roof structure with steam rising from the chimney to a stove inside, and a second diagram of a house with steam rising from the chimney to a stove inside (no text or symbols present)

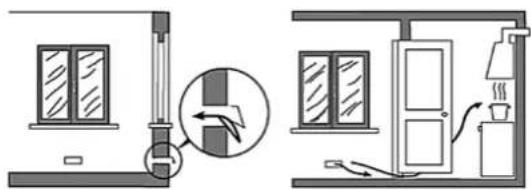

The use of a gas stove produces heat and moisture in the room in which the appliance is installed. Ensure that the kitchen is well ventilated: keep naturel ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

Prolonged intensive use of the stove may call for additional ventilation, for example opening of a window, or more effective ventilation, like increasing the level of mechanical ventilation where present.

free standing gas

KGS4503

KGS4504

EN

Connection and Security:

1. Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the stove specifications are compatible.

2. The stove specifications are stated on the label (or data plate).

3. This stove is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention must be paid to the relevant requirements regarding ventilation.

4. Fit the clamp to the hose. Push one of the hose until it goes to the end of the pipe.

5. For the sealing control, ensure the control buttons in the control panel are closed, but the gas cylinder is open. Apply some soap bubbles to the connection - if there is any gas leakage, soap bubbles will form.

6. The stove should be placed in a well ventilated place and should be installed on flat ground surface.

7. Re-inspect the gas connection.

8. When placing your stove on its location, ensure that it is at the counter level. Bring it to the counter level by adjusting the feet if necessary.

9. Do not pass your stove's gas hose and electrical cable through heated areas, especially behind the stove. Do not move the gas connected stove. Given that any force applied shall loosen the hose, gas leakage may occur.

10. Please use a flexible hose for the gas connection.

11. Connect your stove to an LPG in the shortest way possible and without any leakage. The min. length is 40 cm and max. is 125 cm.

12. When checking for gas leakages, never use a flame like a lighter, matches, cigarettes or similar.

Do not close the stovetop lid when the gas burner is on

Caution: glass lids may shatter when heated. Turn off all burners before shutting the lid.

kunft®

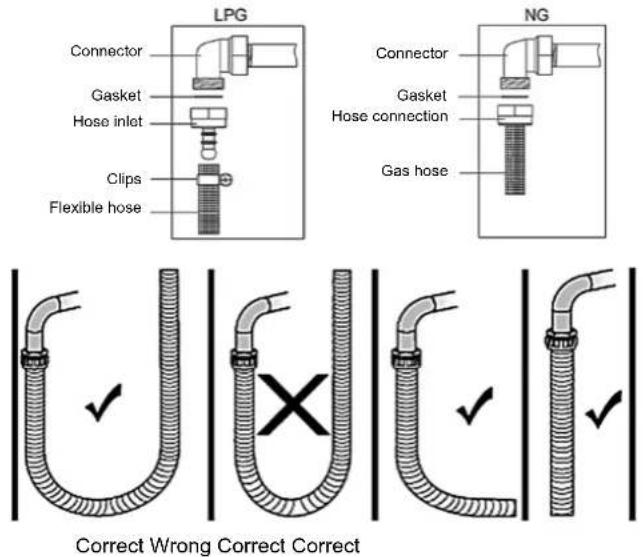

Connection scheme for LPG Connection scheme for NG

WALL FIXING

(\*) Optional

Before using the stove, in order to ensure its safe use, fix it to the wall using the chain and hooked screw supplied. Ensure the hook is screwed into the wall securely

WARNING!

In order to prevent the stove from tipping over, you will need to secure the stove according to the instructions for installation.

free standing gas

KGS4503

KGS4504

EN

USAGE

Before using the stove, remove all flammable tapes, Styrofoam or any other packaging materials. Also remove the user manual and other flammable materials from inside of stove.

Using the stove's gas burners:

1. The knob frame or the command panel use a flame symbol to indicate which burner corresponds with which knob.

Push forward and turn the corresponding knob in a counter-clockwise direction to the max. (+) symbol. To turn off the burner, turn the corresponding knobs clockwise until it stops.

Shown on the knob are different symbols for off as ● maximum flame as and minimum flame as

1. If your stove is equipped with gas burners, an appropriate knob should be used in order to ignite the burners.
2. In models with a Gas Security System, when the stove flame is extinguished, a control valve cuts off the gas automatically. To operate the gas burners with a gas security system, press the knob and turn it counter-clockwise. After ignition, wait nearly 5-10 second for gas security systems to activate. If the burner is extinguished for any reason, close the gas control valve and wait a minimum of one minute before trying again.

kunft®

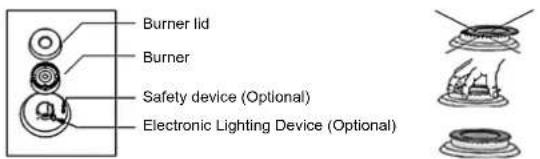

Before operating your hob please make sure that the burner caps are well positioned. The right placement of the burner caps are shown below.

USABLE SOUCEPAN DIAMETER

Rapid Burner ∅ 22 - 26 cm

Semi-rapid Burner ∅ 18 - 22 cm

Auxiliary Burner ∅ 12 - 18 cm

Gas oven:

The knob frame or the command panel use a flame symbol to indicate which burner corresponds with which knob.

Control for oven burner: Push forward and turn the corresponding knob in a counter-clockwise direction to the max. (+) symbol. To turn off the burner, turn the corresponding knobs clockwise until it stops.

Shown on the knob are different symbols for off as ● maximum flame as and minimum flame

Notes:

• When you start to operate oven burners, please do not close the oven door and wait 3 minutes with it open.
• If your stove has a thermostat, the mentioned control knob should be positioned to the desired temperature value (optional).

Nozzle change operation for stovetop gas burners:

1. Start by closing all gas supply to the stove. Use a driver with a special head to remove and install the nozzle.

1. Remove the nozzle from burner with a special nozzle driver and install the new nozzle

1. Close the nozzle by hand, open the gas valve and check for gas leakage using soap.

free standing gas

KGS4503

KGS4504

EN

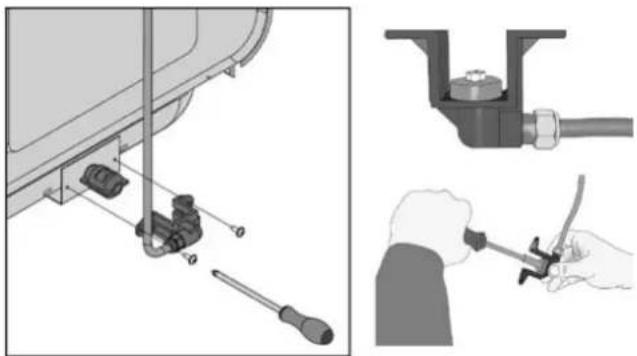

Nozzle change operation for oven burners:

Remove the stove's back cover and remove the nozzle fixing body from the burner. Then, remove the nozzle from the injector body with a special nozzle driver used to change nozzles. After changing it, close the nozzle hole by hand, open gas valve and check for gas leakage using soap on the nozzle-body connection surface. Then, re-install the nozzle body on the burner using screws.

Technical illustration showing mechanical assembly steps: tool, pipe fitting, and hand holding tool (no text or symbols)

Reduced Flame Adjustment:

In order to adjust your stove to the gas type, carefully adjust for a reduced flame by turning the middle screw or the one near the gas valve, as well as nozzle changes, using a small screwdriver.

	From LPG to Natural gas	From Natural gas to LPG
Rapid Burner	3 turns counter-clockwise	3 turns clockwise
Semi-rapid Burner	2.5 turns counter-clockwise	2.5 turns clockwise
Auxiliary Burner	2 turns counter-clockwise	2 turns clockwise
Oven Burner	4.5 turns counter-clockwise	4.5 turns clockwise

kunft.

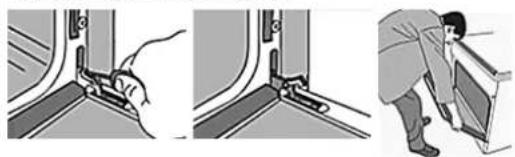

2.3. Maintenance

1. While the oven is operating or shortly after it starts operating, it will be extremely hot. Avoid touching its heating elements.
2. Never clean its interior, panel, lid, trays and all other oven parts using tools like hard brushes, a cleaning mesh or a knife. Do not use abrasive, scratching agents and detergents.
3. After cleaning the interior of the oven with a soapy cloth, rinse it and then dry it thoroughly with a soft cloth.
4. Clean the glass surfaces with a special glass cleaning agent.
5. Do not clean the oven with steam cleaners.
6. Before opening the oven's top lid, clean any spilled liquid from the lid. Before closing the lid, ensure that the stove table is cooled enough.
7. Never use flammable agents like acid, thinner and gasoline when cleaning your oven.
8. Do not wash any part of your oven in dishwasher.

Removing the oven door:

Three-panel illustration showing a hand holding a cable buckle, a close-up of the seat, and a person adjusting a wall-mounted device (no text or symbols)

free standing gas

KGS4503

KGS4504

EN

2.4. Troubleshooting

Gas equipment

The gas burner does not spark ignition.	There is no any current.	Check the general fuse box and correct if there are any thrown breakers.
	The main gas valve is turned off.	Turn on the main gas valve.
	The gas hose is bent.	Connect the gas hose out properly.
No gas comes from the gas burner	The burner injectors are clogged.	Clean the injectors.
	The gas hose is bent.	Connect the gas hose properly.
Uneven flame / No flame	The burner injectors are clogged.	Clean the injectors.
	The burners might be wet.	Dry the burner parts carefully.
	The burner caps might not be placed correctly.	Make sure the caps and the burners are placed correctly.
	The main gas valve is turned off.	Turn on the main gas valve.
	The gas bottle is empty (LPG is used).	Replace with new bottle.

If the problem is not solved, call the manufacturer, its services agent or a similar qualified persons.

IMPORTANT

Do not try to repair any appliance parts by yourself.

kunft®

3. TECHNICAL SPECIFICATIONS

(*) Optional

SPECIFICATIONS 50 x 50

Outer width 500 mm

Outer depth 600 mm

Outer height 850 mm

Inner width 395 mm

Inner depth 405 mm

Inner height 330 mm

Thermostat 140 - 240°C

BURNER INJECTOR VALUES ACCORDING TO THE GAS TYPE		LPG	Natural gas	Natural gas	Natural gas
		G30-30 mbar	G20-20 mbar	G20-25 mbar	G25-25 mbar
Rapid Burner	Injector mm 0.80 1.15 1.15 1.15
	Power KW 2.66 2.44 2.66 2.22
	Consumption gr/h, m ^3 /h 210	0.227	0.254	0.245
Semi-rapid Burner	Injector mm 0.65 0.95 0.95 0.95
	Power KW 1.67 1.78 1.89 1.67
	Consumption gr/h, m ^3 /h 130	0.162	0.182	0.177
Auxiliary Burner	Injector mm 0.50 0.70 0.70 0.70
	Power KW 1.00 0.89 1.00 0.83
	Consumption gr/h, m ^3 /h 78	0.081	0.093	0.089
Oven Burner	Injector mm 0.75 1.10 1.05 1.15
	Power KW 2.55 2.55 2.66 2.66
	Consumption gr/h, m ^3 /h 200	0.241	0.251	0.294

free standing gas

KGS4503

KGS4504

EN

4. POST-SALE SERVICE

Kunft has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

kunft.®

cocina de gas

KGS4503

KGS4504

ES

Estimado cliente:

Diagram of a greenhouse with an oven, air intake, and cooling system (no text or labels)

Diagram of a house interior with a stove, roof, and airflow indicators (no text or symbols)

Diagram showing two room interior views: one with a window and a vertical pipe, the other with a door and steam rise (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a bracket with a screwdriver inserted (no text or symbols present)

Two-step diagram showing a pipe fitting and a hand holding a tool, no text or symbols present.

cocina de gas

KGS4503

KGS4504

ES

Three-panel illustration showing a person adjusting a door frame, with no visible text or symbols.

Two schematic diagrams of a greenhouse with steam rising from the roof, showing internal air and heating elements (no text or labels)

Diagram showing two room interior views: one with a window and a hand valve, the other with a door and a steaming cup (no text or symbols)

Technical illustration showing mechanical assembly steps: tool, pipe fitting, and hand holding screwdriver (no text or symbols)

Three-panel illustration showing a person adjusting a door panel, with no visible text or symbols.

fogão a gás

KGS4503

KGS4504

PT

Imported, produced and distributed by:
