Product Type	Microwave Oven
Model	JMO001399
Brand	Jocel
Power Levels	5 levels: Low (17%), Medium Low/Defrost (33%), Medium (55%), Medium High (77%), High (100%)
Timer	Up to 35 minutes, 1-minute increments
Turntable	Glass turntable, rotates clockwise or counterclockwise
Control Type	Manual knobs (Power and Timer)
Interior Light	Yes, automatically turns on during operation
Door Opening	Button release
Safety Interlock	Door locks when operating; prevents operation if door is open
Voltage	230 V ~ 50 Hz
Installation	Freestanding; minimum clearances: back 10 cm, sides 5 cm, top 20 cm, floor 85 cm
Cleaning	Wipe exterior, door, and cavity with damp soft cloth; wash turntable and ring with mild soap and water
Material	Metal cavity, glass door
Waveguide Cover	Fixed; do not remove
Accessories Included	Glass turntable, rotating ring
Warranty	Standard warranty; refer to manual for terms

Frequently Asked Questions - JMO001399 Jocel

How do I set the timer for less than 10 minutes?

Turn the timer knob past 10 minutes and then back to the desired time (e.g., turn to 15 and then to 8 for 8 minutes).

Can I use metal containers in the microwave?

No, metal containers are not allowed as they can cause sparks and damage the microwave. Use heat-resistant ceramic, glass, or plastic.

Why does smoke sometimes come out of the microwave?

Smoke usually occurs if food is overcooked or grease builds up. Clean the waveguide cover and interior regularly. If smoke appears, keep the door closed and unplug the microwave.

How should I clean the microwave interior?

Wipe the cavity with a damp soft cloth. For stubborn odors, heat lemon slices or orange peel in water for 2-3 minutes. Never use abrasive cleaners or metal scrapers.

What should I do if the turntable doesn't rotate?

Ensure the turntable is properly seated on the rotating axis and the rotating ring is in place. If it still doesn't rotate, check if the motor is working (run a test with water). If not, contact technical support.

Is it safe for children to use the microwave?

Children aged 8 and above can use it if supervised and instructed on safe use. Young children should be kept away as the surfaces become hot.

Can I operate the microwave without food inside?

No, running the microwave with no load can damage it. Always have food or liquid inside.

How do I defrost food?

Select the Medium Low/Defrost power level (33%) and set an appropriate time. Turn or stir food halfway through for even defrosting.

What power level should I use for normal cooking?

For most cooking, use Medium High (77%) or High (100%) for quick heating. Use Medium (55%) for slow cooking, and Low (17%) for keeping food warm.

Where should I place the microwave?

Place it on a flat, stable surface at least 85 cm from the floor, with clearances: back 10 cm, sides 5 cm, top 20 cm. Keep away from heat sources and moisture.

USER MANUAL JMO001399 Jocel

White Jocel microwave oven with control knobs and a mesh screen (no visible text or symbols)

JMO001399

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

Technical line drawing of a mechanical component with no visible text or symbols

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

A) Panel de control

Circular gauge or dial with icons and symbols, no readable text or labels

Telef. 00 34 914 879 573

http://www.jocel.es

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fire in the microwave cavity:

a) Do not overcook the food.
b) Remove wire twist -ties from paper or plastic bags before placing bags in the microwave.
c) Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
d) After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.
e) If materials inside the microwave should smoke or ignite, keep microwave door closed, turn microwave off and disconnect the power supply.
f) When heating food in plastic or paper containers, keep an eye on the microwave due to the possibility of ignition.

1. To reduce the risk of explosion and sudden boiling:

a) WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
b) Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.
c) Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard -boiled eggs should not be heated in microwave microwaves since they may explode, even after microwave heating has ended.
d) The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.

2. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

3. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and microwave cooking bags away from the face.

4. To prevent the turntable from breaking:

a) Let the turntable cool down before cleaning.
b) Do not place hot foods or utensils on the cold turntable.
c) Do not place frozen foods or utensils on the hot turntable.

1. Make sure the utensils do not touch the interior walls during cooking.

2. Only use utensils that are suitable for use in microwave microwaves.

3. Do not store food or any other things inside the microwave.

4. Do not operate the microwave without any liquid or food inside the microwave. This would do damage the microwave.
5. When the appliance is operated in the combination mode, children should only use the microwave under adult supervision due to the temperatures generated.
6. Any accessories not recommended by the manufacturer may cause injuries to persons.

7. Do not use outdoors.

8. Save these instructions.

9. WARNING: If the door or door seals are damaged or the microwave is malfunctioned, the microwave must not be operated until it has been repaired by a competent person;
10. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
11. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
12. Microwave heating of beverages can result in delayed eruptive boiling; therefore, care must be taken when handling the container;
13. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the microwave door glass since they can scratch the surface, which may result in shattering of the glass.
14. The lamp of microwave is not intended for other purposes.
15. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

16. This appliance is intended to be used in household and similar applications, such as:

17. Staff kitchen areas in shops, offices and other working environments;

18. Farm houses;
19. By clients in hotels, motels and other residential environments;

20. Bed and breakfast type environments.

21. The microwave is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

22. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
23. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
24. Children should be supervised to ensure that they do not play with the appliance.
25. A steam cleaner is not to be used.
26. The door or the outer surface may get hot when the appliance is operating.
27. WARNING: Accessible parts may become hot during use. Young children should be kept away.
28. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the microwave.
29. The surfaces are liable to get hot during use.

: CAUTION:HOT SURFACE

Household use only

INSTALLATION

1. Remove all traces of packaging material. If there is a safety film placed in the microwave, remove it before using it. Check carefully for signs of damage. If there are, contact the seller immediately.
2. Microwaves should be placed in dry, non-corrosive environments. Keep them away from heat and moisture, such as gas burners or water tanks.
3. To ensure sufficient ventilation, the distance between the back of the microwave and the wall must be at least 10 cm, the distance between the sides and the wall must be at least 5 cm. clearance at the top of the equipment must be at least 20 cm and the distance from the microwave to the floor must be at least 85 cm.
4. The microwave must be placed in such a way that it is away from the TV, radio or antennas, as image disturbances or noise may occur.
5. The equipment must be placed so that the socket is accessible and must have a ground wire so that in case of leakage, a short-circuit current to earth can be formed in order to avoid electric shocks.
6. The microwave must work with the door closed.
7. The microwave must not be placed inside a cabinet. The microwave must be used as a standalone unit.
8. As there are residues from the manufacturer or oil inside the cavity, odors, or even some smoke, may normally appear. This is normal and stops happening after a few uses. Keep the door or window open to provide good ventilation.

CLEANING

MICROWAVE CARE

CAUTION

The microwave should be cleaned regularly and any food deposits removed.

WARNING

1. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.
2. Failure to maintain the microwave in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
3. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
4. Do not remove the waveguide cover
5. When the microwave has been used for a long time, there may be some strange odors exist in microwave, following 3 methods can get rid of them:

a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
b. Place a cup of red tea in microwave, then heat with high micro power.
c. Put some orange peel into microwave, and then heat them with high Micro Power for 1 minute.

1. WARNING: Only allow children to use the microwave without supervision when adequate instructions have been given so that the child is able to use the microwave in a safe way and understands the hazards of improper use;

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window

Wipe the door seals and adjacent parts to remove any spill or spatter

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the cavity with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed

Turntable/ Rotation ring/ Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

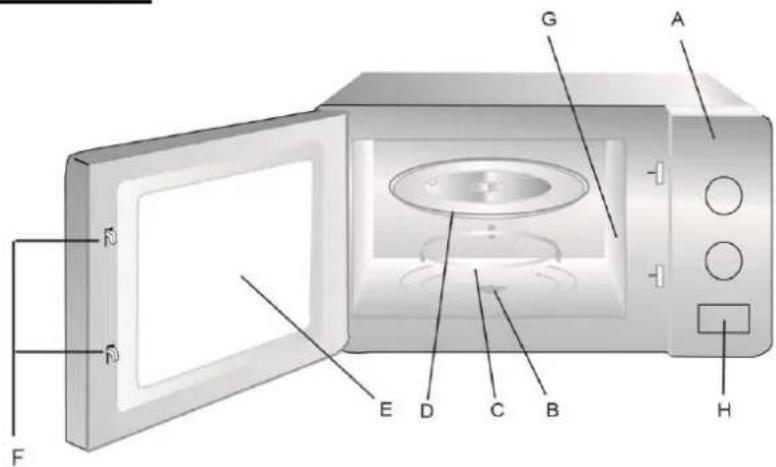

PRODUCT DESCRIPTION

A) Control panel

See below in details (the control panel is subject to change without prior notice)

B) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

C) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

D) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

• Place the rotating ring first
• Fit the turntable onto the rotating axis and make sure that it is geared in properly

E) Viewing window

Allow user to see the cooking status

F) Door lock

Microwave door must be properly closed in order for it to operate

G) Waveguide cover

It is inside the microwave, next to the wall of control panel. Never remove the waveguide cover.

H) Dor opening button

Press to open de microwave door.

CONTROL PANEL

JOCEL®

©

Circular gauge with flame icons and a small heart symbol at the bottom (no text or labels)

L

Function / Power knob

Low	17% power output	(Keep warm)
Medium Low/Defrost	33% power output	(Medium cooking/Defrost)
Medium	55% power output	(Slow cooking)
Medium High	77% power output	(Normal cooking)
High	100% power output	(Quick cooking)

Timer

• The max cooking time length that can be set is 35 minutes.
  – Each setting is 1 minute.
• A bell ring will be heard when the timer times out and returns to "0" position.

OPERATION

1) Connect the cord.

-Before connecting the cord, make sure the timer is set to "0" position.

-Do not block the ventilation.

2) Place the food on the glass turntable and close the door.

- Food must be contained in a utensil.

3) Select the desired power level.
4) Set the timer If desired time is less than 10 minutes, turn the timer knob to over 10 minutes position and then turn back to the desired time setting.
5) Once the desired time is set, the cooking begins. If pausing in between is needed, just open the door at any time, and close it to resume operation.
6) When it times out and cooking ends, the microwave produces a bell ring, the inside lamp will also be automatically turned off.

• If food is removed before time out, make sure to set back the timer to "0" position, this avoids the microwave from operating in empty load.
• It is recommended to wear gloves when removing the cooked food from microwave.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave	Notes
Heat-resistant ceramic	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	Can not be used for long time microwave cooking
Heat-resistant glass	Yes
Plastic film	Yes	It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack	No
Metal container	No	It should not be used in microwave. Microwave cannot penetrate through metal.
lacquer	No	Poor heat-resistant. Cannot be used for High-temperature cooking
Bamboo wood and paper	No	Poor heat-resistant. Cannot be used for High-temperature cooking

COOKING TIPS & SERVICING

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the microwave for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

Please check and carry out the following checks before requesting service.

1. Place a cup of water (about 150 ml) inside a measuring glass in the microwave and close the door firmly. Let the microwave run for 1 minute.
2. Does the microwave light come on?
3. Does the cooling fan work?

(Place your hand over the rear ventilation slots).

1. Does the turntable rotate?

(The turntable rotates clockwise or counterclockwise. This is quite normal).

1. Is the water inside the microwave hot?

If the answer is "NO" to any of the above questions, please confirm the wall socket.

If the wall outlet is working properly, contact Technical Support.

Servicing

CAUTION: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the microwave chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 230V to earth.

3. Magnetron
   • High voltage transformer
   • High voltage capacitor
   • High voltage diode

4. High voltage fuse

5. The following conditions may cause undue microwave exposure during servicing.

Improper fitting of magnetron;

Improper matching of door interlock, door hinge and door;

Improper fitting of switch support;

Door, door seal or enclosure has been damaged.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 230V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.
2. Exceeded the current legal period, for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of labor hand, according to current fees
3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910 351

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below:

Product

MICROWAVE

Brand

JOCEL

Model

JMO001399

Complies with the following European directives and standards implementation.

Low Voltage

2014/35/EU

EN 62233:2008

EN 60335-2-25:2012+A1:2015+A2:2016

EN 60335-2-9:2003+A1:2004+A2:2006+

A12:2007+A13:2010+ACV:2011+AC:2012+ EK1-AG2:2018-05

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

Electromagnetic Compatibility

2014/30/EU

EN 55011:2016+A1:2017+A11:2020+A2:2021

EN IEC 55014-1:2021

EN IEC 61000-3-2: 2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55014-2:2021
