Product Type	Range Hood
Brand	PKM
Model	BS47-60ABTH
Installation Type	Built-in / Wall-mounted
Width	60 cm
Depth	50 cm
Height (Min-Max)	60 - 110 cm
Weight	10 kg
Power Supply	220-240 V, 50 Hz
Motor Power	200 W
Number of Speeds	3
Exhaust Power	600 m³/h
Lighting	2 x 3W LED
Noise Level	55 dB (max)
Filter Type	Activated carbon filter (optional) + Grease filter (aluminum)
Control Type	Touch buttons
Duct Diameter	150 mm
Energy Class	A+
Cleaning	Grease filter: dishwasher safe every 2 weeks; carbon filter: replace every 3-6 months
Safety Features	Automatic shut-off, thermal overload protection
Included Accessories	Mounting kit, manual, grease filter
Spare Parts Availability	Filters, LED modules, motor (through PKM service centers)
Warranty	2 years

Frequently Asked Questions - BS47-60ABTH PKM

How do I install the PKM BS47-60ABTH range hood?

Installation should be done by a qualified technician. Ensure the hood is at least 65 cm above the cooking surface. Use the included mounting kit and follow the manual for wall or cabinet attachment.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2 weeks in the dishwasher or by hand with warm soapy water. Allow it to dry completely before reinstalling.

When should I replace the carbon filter?

If using recirculation mode, replace the activated carbon filter every 3-6 months, depending on usage. A clogged filter reduces performance and increases noise.

Why is my range hood noisy?

Normal noise level is up to 55 dB. If excessive, check for loose parts, blocked ducting, or clogged filters. Ensure the hood is securely mounted.

Can I use the hood without ducting?

Yes, you can recirculate the air by installing an activated carbon filter (not included). The hood must be set to recirculation mode.

How do I change the LED light?

LED modules are non-replaceable in some models. If faulty, contact PKM service. For replaceable types, consult the manual for specific instructions.

What does the thermal overload protection do?

It automatically shuts off the motor if it overheats, preventing damage. Allow the motor to cool before restarting.

Can I control the hood remotely?

This model does not come with remote control. It is operated via touch buttons on the front panel.

What to do if the buttons are unresponsive?

Check that the hood is properly powered. If still unresponsive, reset by disconnecting from power for 1 minute. If persists, call customer service.

Where can I buy spare parts?

Spare parts like filters, LED modules, and motors are available from PKM authorized dealers or online service centers. Refer to the manual for part numbers.

USER MANUAL BS47-60ABTH PKM

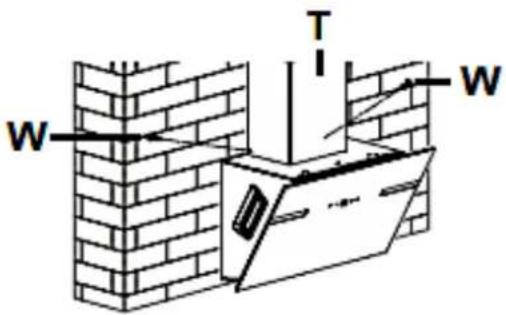

Black industrial chimney with a vertical chimney and control panel (no text or symbols visible)

Deutsch

Seite

2

English

Page

52

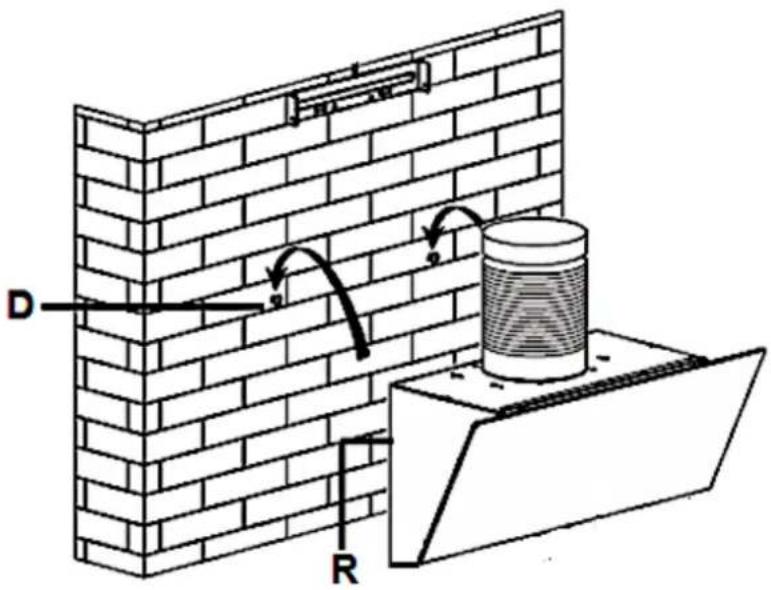

Cross-sectional diagram of a pipe system with water and brick wall (no text or labels)

Abb. ähnlich.

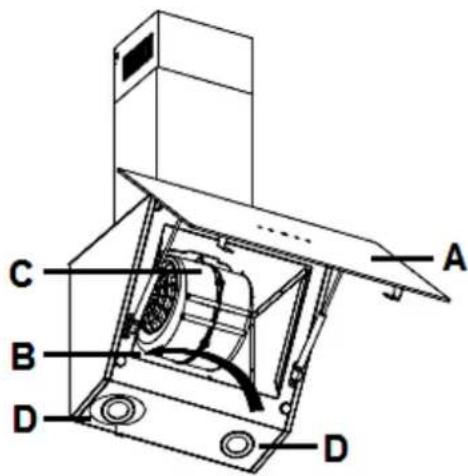

Diagram of a brick chamber with an inset showing a rack structure (no text or symbols)

Abb. ähnlich.

*

Pure geometric diagram of nested rectangles with a dashed centerline (no text or symbols)

RICHTIG

Simple line drawing of three stacked rectangles with a vertical dashed line through them (no text or symbols)

FALSCH

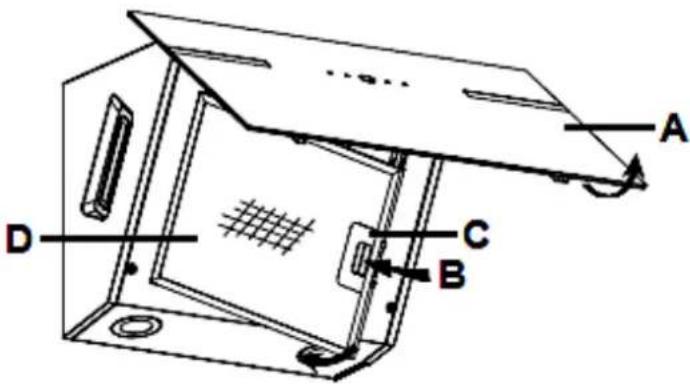

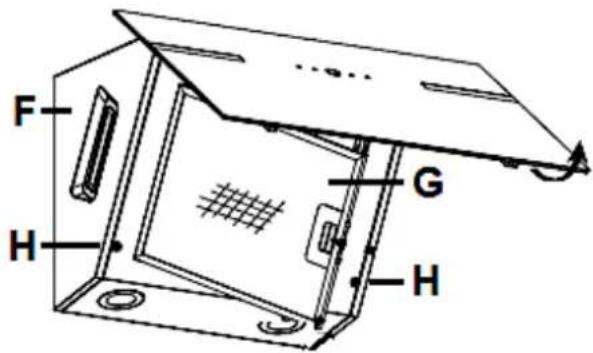

Diagram of a mechanical or fluid system with directional arrows and a central block, no text or symbols present.

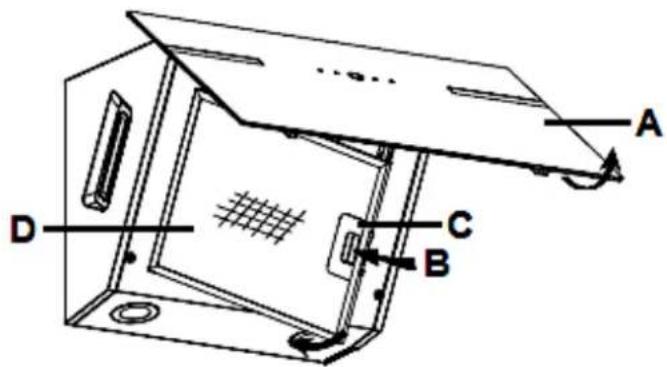

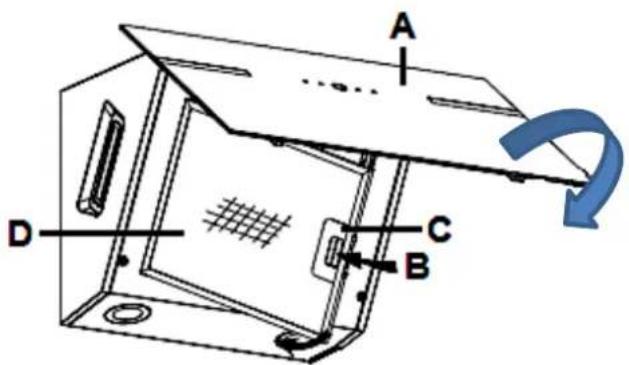

A	GLASABDECKUNG DER DUNSTABZUGSHAUBE
B	ARRETIER-TASTE DES FETTFILTERS
C	GRIFF DES FETTFILTERS
D	ALUMINIUM - FETTFILTER

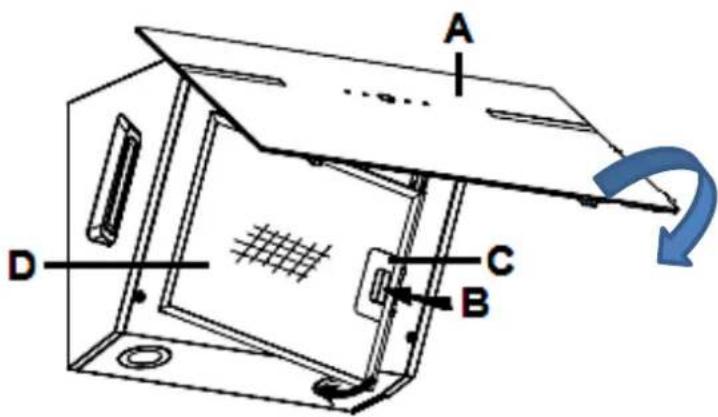

A	GLASABDECKUNG DER DUNSTABZUGSHAUBE
B	ARRETIER-TASTE DES FETTFILTERS
C	GRIFF DES FETTFILTERS
D	ALUMINIUM - FETTFILTER

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions ....54

1.1 Signal words ....55
1.2 Safety instructions....55

1. Installation 59

2.1 General installation instructions....59
2.2 Important installation instructions: extraction mode....59
2.3 Minimum distances....60

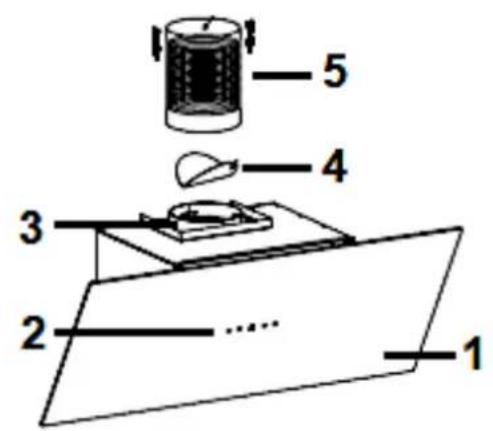

2.4 View of the appliance ....61
2.5 Installation: one way valve / extractor hood....62

2.5.1 Installation of the one-way valve....63

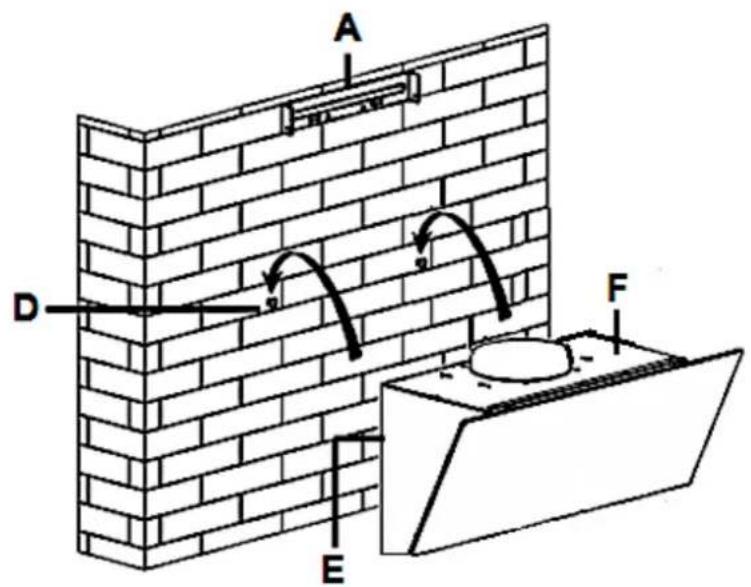

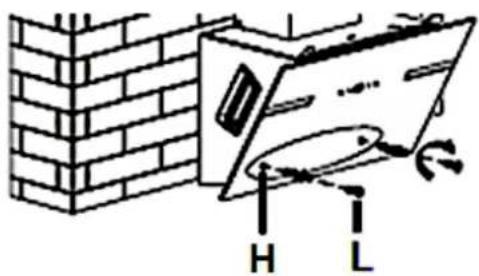

2.5.2 Installation of the extractor hood ....65
2.6 Electrical connection....72

1. Recirculation mode / Extraction mode 73

3.1 Extraction mode....73
3.2 Recirculation mode 73

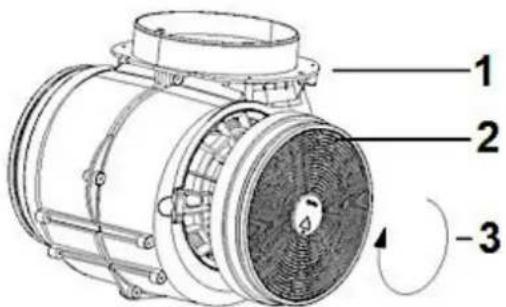

3.2.1 Carbon filters 74
3.3 Grease filters 77

1. Control panel and operation ....77

4.1 Control panel....77
4.2 Operation....78

4.2.1 Power levels....82

1. Environmental protection ....84

5.1 Environmental protection: disposal....84
5.2 Environmental protection: energy saving....84

1. Cleaning and maintenance....85

6.1 Cleaning of the grease filters 86

6.2 Carbon filters 88

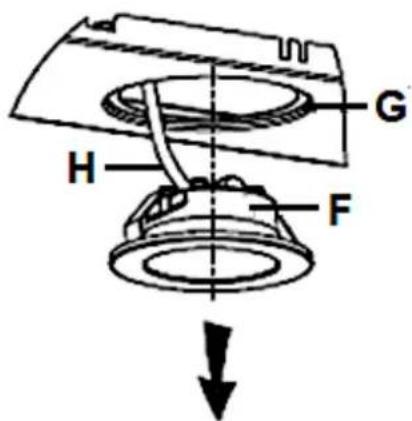

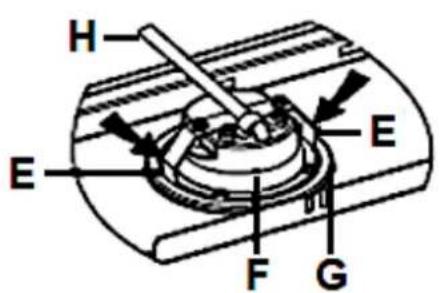

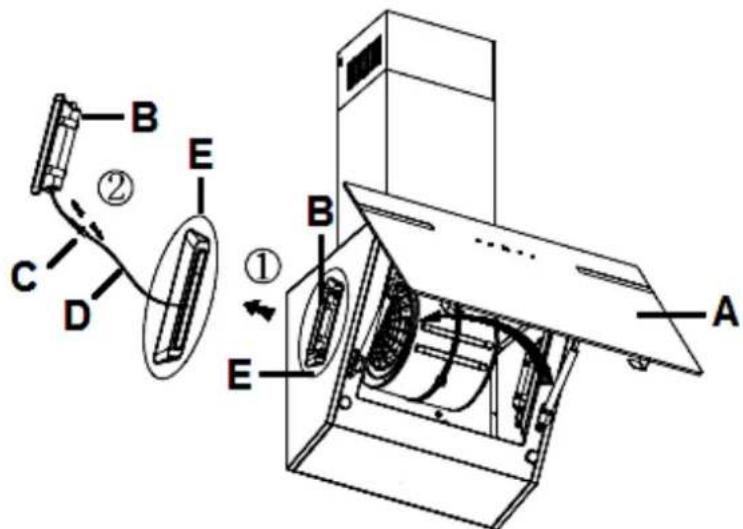

6.3 Replacing of the illuminants 89

6.3.1 Replacing of the standard LED illuminants....89
6.3.2 Replacing of the coloured LED light strip....92

1. Troubleshooting....93
2. Technical data....95
3. Waste management....96
4. Guarantee conditions ....97

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonised regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newl made connections must be done by an authorised professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
The appliance is intended for extracting/recirculating cooking vapours in a private household only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution.

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
3. When the power cord is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional (electrical engineer) only.
4. All electrical work that may be necessary to connect the appliance to the mains must be carried out by a qualified professional (electrical engineer). Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations.
5. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
6. Never try to repair the appliance yourself. Repairs carried out by unauthorised persons can cause serious damage. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at. ^12 Original spare parts should be used only.

7. In case of an event caused by a technical malfunction, disconnect the appliance from the mains (fuse box of your household power supply). Contact the aftersales service or the shop you purchased the appliance at. ^13 RISK OF ELECTRIC SHOCK!

8. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise, harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g., coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculation mode, you can simultaneously run room-air dependent fireplaces.

9. If gas is set free in your home:

a) open all windows.
b) do not unplug the appliance and do not use the control panel.
c) do not touch the appliance until the gas has gone.
d) otherwise, sparks can be generated which will ignite the gas.

1. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!

2. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons.

1. Whenever you use extractor hoods in combination with non-electrically operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa ( 4 × 10^-5 bar).

2. An electrical supply of 220 \~ 240 V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220 \~ 240 V / 50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.

3. Only connect the appliance to a properly grounded and dedicated socket.

4. The appliance must be grounded. Only use a proper safety socket to minimise risk of electric shock.

5. The technical data of your energy supply must meet the data on the rating label.

6. Your domestic circuit must be equipped with an automatic circuit breaker.

7. Strictly observe the minimum distance between hood and hob. It is also absolutely necessary to observe the individual minimum distances to extractor hoods which are specified in the instruction manual of your hob / oven / etc.

MINIMUM DISTANCE HOOD TO

ceramic-glass rings / hotplates	min. 65 cm
gas cookers	min. 75 cm
coal / oil / stove wood firing	min. 85 cm

1. Never install the appliance below the required minimum distance. If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

2. The load-bearing capacity of the wall/ceiling ^14 of the installation room must be checked before you install the appliance. The appliance must be installed at a suitable position only.

3. Before you install the appliance, check that there are not any electrical or other cables in the installation area; this prevents these cables from being drilled unintentionally. RISK OF ELECTIC SHOCK!

4. We recommend carrying out the installation of the extractor hood by qualified personnel. Any damage caused by improper installation of the appliance are not subject to the guarantee or warranty!

5. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and / or cause fire.

6. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and / or cause fire.

7. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.

8. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and / or cause fire.

9. The exhaust hose (depending on model) must not be made of flammable materials or contain any flammable materials.

10. Operate the appliance with inserted grease filters only. Otherwise, recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.

11. Disconnect the appliance from the mains before you clean or maintain it.

12. Failure to follow the cleaning instructions will increase the RISK OF FIRE due to fat deposits.

13. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD! RISK OF INJURY!

14. Always supervise children when they are near the appliance.

15. Children must not play with the appliance.

16. Only allow children to use the appliance without supervision when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Any potential user must be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!
3. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.
2. Unpack the parts of the chimney very carefully; otherwise, you will damage the chimney.
3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
4. Take the enclosed parts from the packaging and its polystyrene-components.
5. Do not use any aggressive, abrasive and acrid detergents or sharpedged items to clean the appliance. Otherwise, you may scratch the surface. RISK OF DAMAGE!
6. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.
7. Check that the power cord and the appliance are not damaged before electrical connection.
8. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

NOTICE! Any damage caused by an appliance that is improperly installed and improperly connected to the mains is not covered by the warranty or guarantee.

We recommend carrying out the installation of the extractor hood by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!

2.1 General installation instructions

The load-bearing capacity of the wall/ceiling of the installation room must be checked before you install the appliance.
The appliance must be installed at a suitable position only.
Before you install the appliance, check that there are not any electrical or other cables in the installation area; this prevents these cables from being drilled unintentionally.
Clean the environment thoroughly before installation. This prevents dust or rubble from being sucked in during initial operation of the appliance.
➢ DURING INSTALLATION: ensure that the extractor hood is in horizontal position in order to avoid accumulations of fat in one corner of the appliance.

2.2 Important installation instructions: extraction mode

⚠ WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.

For extracting the exhaust air always observe the current legal regulations.
The diameter of the exhaust hose must meet the diameter of the connecting ring.
If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.
The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise, you have to expect increased noise and decreased performance of your appliance.
The proper maximum bending angle outwards is 120^ .
➢ Use smooth tubes or flexible, non-inflammable exhaust hoses only.

When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^ is required. Otherwise, condensate will get into the motor of the hood.
When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.
If the exhaust duct passes through cool areas (e.g., an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
➢ Depending on the appliance model the hood is equipped with one (top) or two (top, back) outlets. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.

2.3 Minimum distances

i Strictly observe the minimum distance between the extractor hood and the hob.
i It is also absolutely necessary to observe the individual minimum distances between hobs and extractor hoods; these are specified in the instruction manual of your hob / oven / etc.

REQUIRED MINIMUM DISTANCE HOOD TO
ceramic-glass rings / hotplates	min. 65 cm
gas cookers	min. 75 cm
coal / oil / stove wood firing	min. 85 cm

1. The minimum distances do not represent the required total height, but a minimum value generated by adding the height of the hob (floor hob) and the required minimum distance of the hob to the extractor hood (hob extractor hood)

$$ \begin{array}{c c} & (\text {floor} \leftrightarrow \text {hob}) \ + & (\text {hob} \leftrightarrow \text {extractor hood}) \ \hline = & \textbf {M I N I M U M I N S T A L L A T I O N H E I G H T} \end{array} $$

1. Adapt the total installation height to the height of the user. Please note that the extraction capacity of the appliance can decrease if installed at a large distance to the hob.

⚠ WARNING! Never install the appliance below the required minimum distance. If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

CAUTION! Any potential user must be careful not to hit their head on the corners and edges of the extractor hood. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!

2.4 View of the appliance

1	HOUSING OF THE EXTRACTOR HOOD
2	CONTROL PANEL
3	ONE-WAY VALVE
4	EXHAUST AIR OUTLET
5	EXHAUST HOSE (for extraction mode only)
6	OUTER CHIMNEY
7	INNER CHIMNEY
8	FIXING BRACKET

2.5 Installation: one way valve / extractor hood

⚠ WARNING! For safety reasons, use only fastening or installation screws of the sizes specified in this instruction manual. Failure to follow the size and installation instructions for screws or mounting devices may result in electrical hazards. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Do not damage the wiring in the wall while drilling. RISK OF ELECTRIC SHOCK!

NOTICE! Two assistants are required for installation.

NOTICE! Any damage caused by an appliance that is improperly installed and improperly connected to the mains is not covered by the warranty or guarantee.

We recommend carrying out the installation of the extractor hood by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!

YOU CAN LAY THE EXHAUST HOSE AS FOLLOWS(FOR EXTRACTION MODE ONLY)
VERTICALLY: lay the exhaust hose to a roof cap*.	Fig. similar.
HORIZONTALLY: lay the exhaust hose to an exhaust outlet equipped with an air grille*.	Fig. similar.
*	Article not included in the scope of delivery.

2.5.1 Installation of the one-way valve

If your appliance does not have the one-way valve installed at the factory, you still need to install it. The following figures only show an example of how to install the one-way valve, as the exhaust air outlet may vary depending on the model and configuration of the appliance.

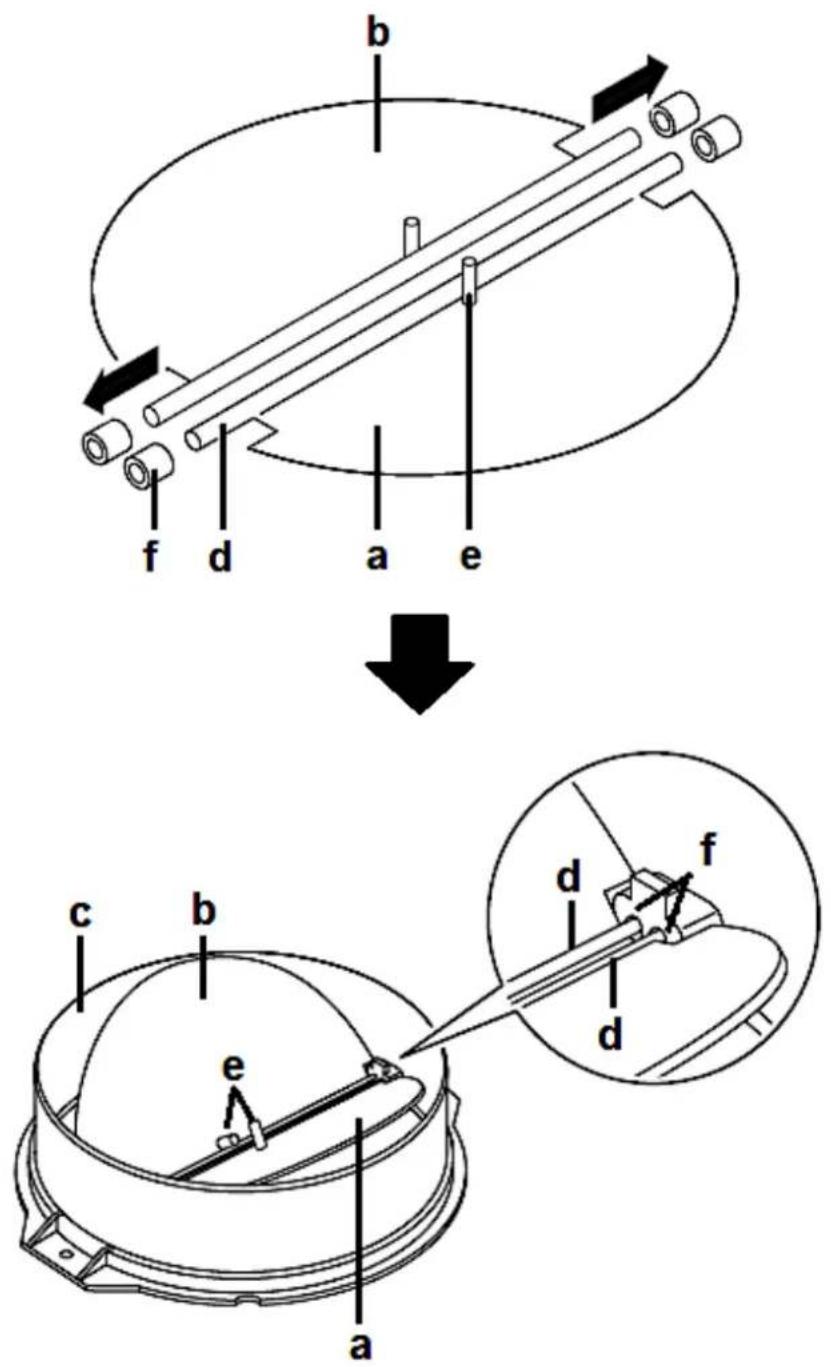

The one-way valve consists of two flap parts (a / b). You must install both flap parts individually in the housing of the exhaust air outlet (c / s. fig. below).

a	ONE-WAY VALVE: flap part « a »
b	ONE-WAY VALVE: flap part « b »
c	HOUSING OF THE EXHAUST AIR OUTLET

INSTALLATION STEPS

1. Each of the two individual flap parts (a / b) consist of a semicircle including an axle (d). In the centre of the axle (d) of a flap part is an axle pin (e / s. fig. below).

2. Insert the axle (d) of a flap part carefully into the corresponding openings (f / on both sides) in the housing of the exhaust air outlet (c); the axle pin (e) must point upwards (s. fig. below).

3. Repeat step 2 for the other flap part.

4. Ensure that both parts of the one-way valve are installed properly. The flap parts must not jam or get caught.

a	ONE-WAY VALVE: flap part « a »
b	ONE-WAY VALVE: flap part « b »
c	HOUSING OF THE EXHAUST AIR OUTLET
d	AXLES
e	AXLE PINS
f	OPENINGS in the housing of the exhaust air outlet (on both sides)

2.5.2 Installation of the extractor hood

INSTALLATION STEPS

1. Find a suitable position for the extractor hood.
2. Measure and mark the positions of the four drill holes required (2 for the inner chimney bracket and two for hanging the housing of the extractor hood on the wall). Ensure that the minimum distances are observed.

Note that the position of the screw holes for the fixing of the inner chimney bracket, also represents the highest point of the entire chimney.

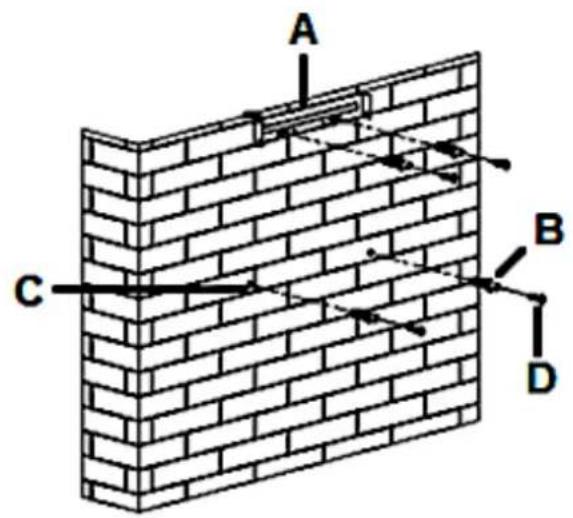

1. For the fixing of the inner chimney bracket (A) and for hanging the housing of the appliance on the wall, drill 4 holes ( 8 mm) in the wall. Insert the expansion dowels (B) into the four drilled holes (C / s. fig. below).

2. For hanging the housing of the appliance on the wall, screw two screws (D / ST 4*8 mm) into the expansion dowels (s. fig. below). Do not tighten the screws completely as you have to hang the appliance on the screw heads. The screw heads must have a distance of 3 - 5 mm to the wall.

A	INNER CHIMNEY BRACKET
B	EXPANSION DOWELS (4 pcs. in total)
C	SCREW HOLES (4 pcs. in total)
D	SCREWS: ST 4*8 mm (2 pcs. in total)

1. Hang the extractor hood on the wall by placing the installation openings (E) of the extractor hood housing (F) on the screws (D) installed previously (steps 3. and 4.). Align the extractor hood properly.

A	INNER CHIMNEY BRACKET
D	SCREWS: ST 4*8 mm (2 pcs. in total)
E	INSTALLATION OPENINGS (2 / on the back of the housing)
F	HOUSING OF THE EXTRACTOR HOOD

1. Open the extractor hood carefully and remove the grease filter (G / s. fig. below), if necessary. The removal of the grease filter is described in chapter 6.1 CLEANING OF THE GREASE FILTERS.

2. Mark the positions of the two drill holes required for the fixing of the extractor hood housing (F) on the wall using the factory-prepared fixing openings (H) in the housing (s. fig. below).

F	HOUSING OF THE EXTRACTOR HOOD
G	GREASE FILTER
H	FIXING OPENINGS PREPARED AT THE FACTORY

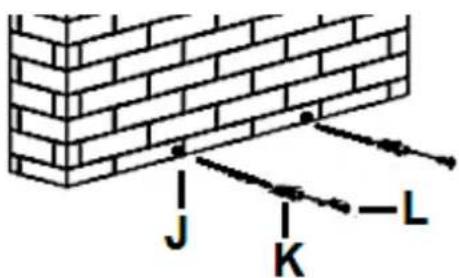

1. When you have marked the drill holes, remove the extractor hood again.

2. Drill two holes (J / ∅ 8 mm) in the wall at the marked points. Insert the corresponding expansion dowels (K) into the two drill holes (s. fig. below).

3. The extractor hood will be fixed to the wall later using two fixing screws (L / ST 4*30 mm / s. steps 15. and 16.).

J	DRILL HOLES (2 pcs. in total)
K	EXPANSION DOWELS (2 pcs. in total)
L	FIXING SCREWS: ST 4*30 mm (2 pcs. in total)

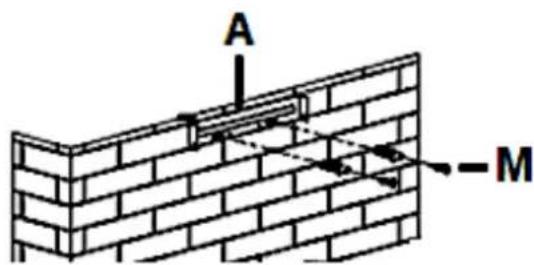

1. Fix the inner chimney bracket (A) on the wall using two screws (M / ST 4*40 mm).

A	INNER CHIMNEY BRACKET
M	SCREWS: ST 4*40 mm (2 pcs. in total)

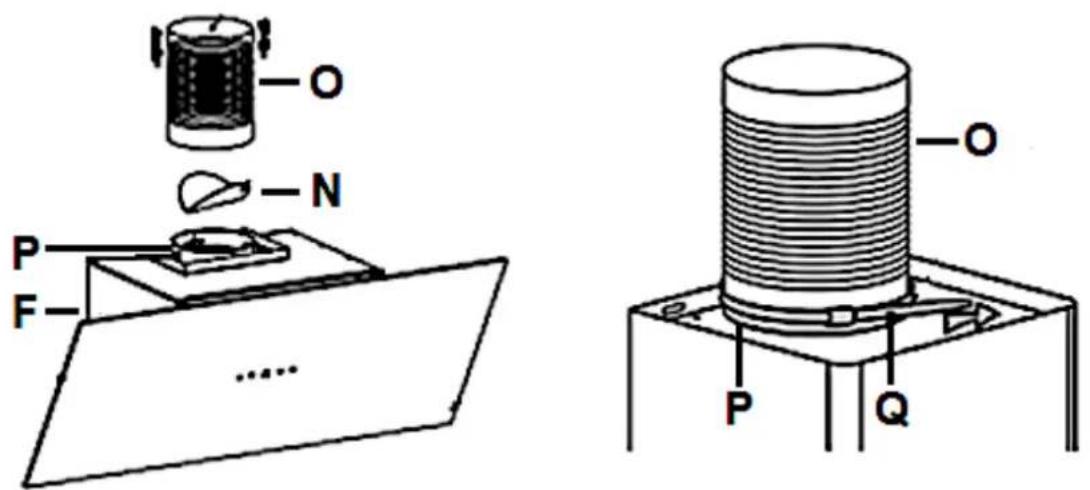

1. If the one-way valve (N / s. fig. below) has not yet been installed, install it now (s. chapter 2.5.1 INSTALLATION OF THE ONE-WAY VALVE).

2. EXTRACTION MODE: connect the exhaust hose (O) to the exhaust air outlet (P) of the extractor hood (F / s. fig. below on the left). Fix the exhaust hose (O) using a cable tie (Q / s. fig. below on the right).

RECIRCULATION MODE: please ignore step 13. « EXTRACTION MODE » and step 19.; please observe the instructions given in chapter 3.2 RECIRCULATION MODE.

F	HOUSING OF THE EXTRACTOR HOOD
N	ONE-WAY VALVE
O	EXHAUST HOSE (for extraction mode only)
P	EXHAUST AIR OUTLET
Q	CABLE TIE ^15

1. Hang the extractor hood on the wall by placing the installation openings (R) of the extractor hood housing on the screws (D) installed previously (steps 3. and 4.). Align the extractor hood properly.

D	SCREWS: ST 4*8 mm (2 pcs. in total)
R	INSTALLATION OPENINGS (2 / on the back of the housing)

1. When the extractor hood is properly aligned, open it. Insert the two fixing screws (L / ST 4*30 mm) into the factory-prepared fixing openings (H) and into the expansion dowels previously installed in the wall (step 9.), (see fig. below).

2. Tighten the two fixing screws (L) properly (s. fig. below).

i Two safety vents, each with a diameter of 6 mm, are on the back of the extractor hood housing.

H	FIXING OPENINGS PREPARED AT THE FACTORY
L	FIXING SCREWS: ST 4*30 mm (2 pcs. in total)

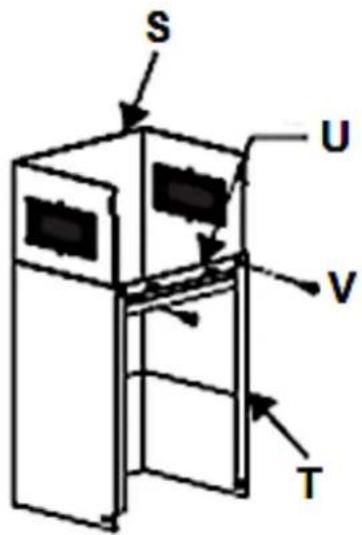

1. Insert the inner chimney (S) into the outer chimney (T). Fix the fixing bracket (U) on the outer chimney using the corresponding screws (V / s. fig. below). Do not tighten the screws too firmly so that the inner chimney (S) remains extendable after installation.

S	INNER CHIMNEY
T	OUTER CHIMNEY
U	FIXING BRACKET OF THE OUTER CHIMNEY
V	SCREWS

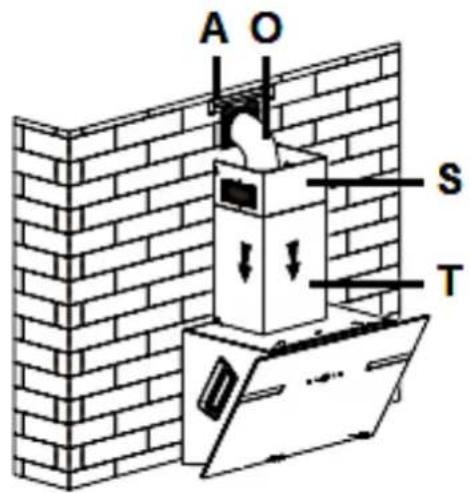

1. Place the whole chimney (S + T) on the extractor hood and guide the exhaust hose (O / for extraction mode only) to the outside (s. fig. below and s. step 19).

A	INNER CHIMNEY BRACKET
O	EXHAUST HOSE (for extraction mode only)
S	INNER CHIMNEY
T	OUTER CHIMNEY

1. You can lay the exhaust hose as follows (for EXTRACTION MODE ONLY).

VERTICALLY: lay the exhaust hose to a roof cap*.	Fig. similar.
HORIZONTALLY: lay the exhaust hose to an exhaust outlet equipped with an air grille*.	Fig. similar.

*

Article not included in the scope of delivery.

1. Fix the outer chimney (T) on the appliance using 2 screws (W / ST 4*8 mm): s. fig. below.

T	OUTER CHIMNEY
W	SCREWS (ST 4*8 mm /2 in total) to fix the chimney on the appliance

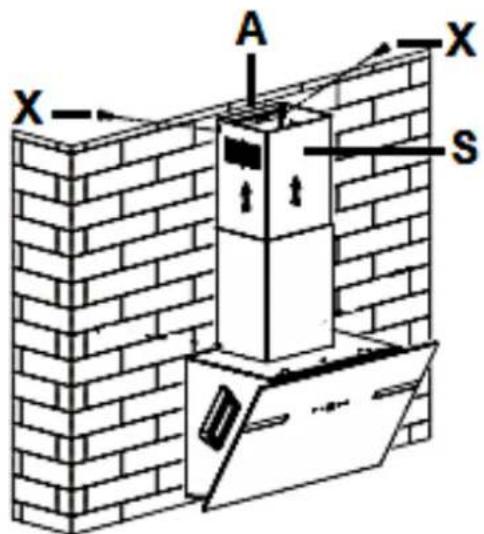

1. Pull out the inner chimney (S); up to the installed inner chimney bracket (A). Fix the inner chimney (S) on the inner chimney bracket (A) using 2 screws (X / 4*8 mm / s. fig. below).

A	INNER CHIMNEY BRACKET
S	INNER CHIMNEY
X	SCREWS (ST 4*8 mm / 2 pcs. in total) to fix the inner chimney

1. Install the grease filter and connect the appliance to the mains ^16 . The installation of the grease filter is described in chapter 6.1 CLEANING OF THE GREASE FILTERS.

2. Check the correct position of the extractor hood from front and side perspective (s. fig below). Otherwise, the appliance will not work properly.

Pure geometric diagram of a T-shaped structure with no text, numbers, or symbols

RIGHT

Abstract geometric diagram of three overlapping rectangles with dashed lines indicating hidden edges (no text or symbols)

WRONG

⚠ WARNING! Operate the appliance with inserted grease filters only. Otherwise, recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE!

2.6 Electrical connection

Check that the voltage indicated on the rating plate matches the mains voltage of your home before you connect the extractor hood to the mains.
Check that the extractor hood is installed properly before you connect the appliance to the mains.

NOTICE! Any damage caused by an appliance that is improperly connected to the mains is not covered by the warranty or guarantee.

3.1 Extraction mode

⚠ WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.

The extractor hood is usually ready for the use in extraction mode (modifications are possible).
In extraction mode, the intake air is led through an exhaust hose to the outside. For this purpose, an exhaust shaft or an outwardly leading exhaust pipe must be available in your home.
If your appliance is equipped with a carbon filter, you must remove the carbon filter before you operate the appliance in extraction mode!
If you want to use the extractor hood in extraction mode, please always observe the instructions given in chapter 2. INSTALLATION et seq. and in chapter 2.5.2 INSTALLATION OF THE EXTRACTOR HOOD: step 13. « EXTRACTION MODE » and step 19.

3.2 Recirculation mode

You can also use the appliance in recirculation mode.
If you do not use an exhaust air pipe to the outside for the installation of the extractor hood, the exhaust hose is not required.
In recirculation mode, the exhaust air is led back into the kitchen (s. fig. below).
If you want to use the extractor hood in recirculation mode, you can install carbon filters (s. chapter 3.2.1 CARBON FILTERS).
In addition to the grease filters (must always be installed), carbon filters also neutralise odours and absorb fine dust particles, etc. In this way, carbon filters additionally improve the exhaust air that is returned to the kitchen. We always recommend the use of carbon filters in recirculation mode.
The installation of the extractor hood is the same as described in chapter 2.5.2 INSTALLATION OF THE EXTRACTOR HOOD (please ignore step 13. « EXTRACTION MODE » and step 19.).
i Only in recirculation mode you can use CARBON FILTERS to eliminate cooking vapours and odours.

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Fig. similar: fig. serves as an example only.

3.2.1 Carbon filters

Product code: CF150

WARNING! Carbon filters must be used in recirculation mode only!

NOTICE! Carbon filters are not included in the scope of delivery ^17 .

i Replace the CARBON FILTERS regularly (see also chapter CLEANING AND MAINTENANCE).
CARBON FILTERS for your extractor hood are optionally available.

You can order the CARBON FILTERS at

www.pkm-online.de

➢ Type name of the CARBON FILTERS: see chapter TECHNICAL DATA

WARNING! Switch off the appliance and disconnect it from the mains before you install any carbon filters (use the relevant fuse in your household fuse box).

HOW TO INSTALL THE CARBON FILTERS

1. Lift the glass cover (A) of the extractor hood to open the appliance (s. fig. below, direction of arrow).

2. Remove the aluminium grease filter: press the locking button (B) on the handle (C) of the grease filter (D) to release the grease filter from its lock (s. fig. below). Then remove the grease filter (D).

Behind the grease filter is the motor of the appliance. The carbon filters are installed on the motor.

A	GLASS COVER OF THE EXTRACTOR HOOD
B	LOCKING BUTTON OF THE GREASE FILTER
C	HANDLE OF THE GREASE FILTER
D	ALUMINIUM GREASE FILTER

1. The CARBON FILTERS are intended to be installed on both sides of the motor.
2. Place the CARBON FILTER on the motor and turn it clockwise until it is firmly tightened (s. fig. below).

Fig. similar: modifications are possible.

1	MOTOR
2	CARBON FILTER
3	CLOCKWISE ROTATIONPlace the CARBON FILTER on the motor and turn the filter clockwise until it is installed properly.

1. Repeat the procedure on the other side of the motor.

2. If you want to uninstall the CARBON FILTERS, turn the filters anti-clockwise and remove them.

3. Reinstall the aluminium grease filter: insert the grease filter properly into the corresponding slots on the extractor hood. Press and hold the locking button (B) on the grease filter handle (C) while pushing the grease filter into its proper position. Once the grease filter is properly in position, release the locking button (B) to lock the grease filter in place (s. fig. below).

4. Lower the glass cover (A) of the extractor hood carefully to close the appliance (s. fig. below).

A	GLASS COVER OF THE EXTRACTOR HOOD
B	LOCKING BUTTON OF THE GREASE FILTER
C	HANDLE OF THE GREASE FILTER
D	ALUMINIUM GREASE FILTER

⚠ WARNING! Install the carbon filters safely and properly; otherwise, the carbon filters can loosen and cause hazardous situations.

⚠ WARNING! Operate the appliance with inserted grease filters only. Otherwise, recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE!

NOTICE! The suction capacity is decreased by installed carbon filters.

NOTICE! Depending on frequency of use, replace the carbon filters every three to six months. Clean the grease filter(s) regularly for proper operation of the motor (s. chapter CLEANING AND MAINTENANCE).

3.3 Grease filters

i Always ensure that the grease filters are inserted properly.

i Clean the grease filters regularly (s. chapter CLEANING AND MAINTENANCE).

⚠ WARNING! Operate the appliance with inserted grease filters only. Otherwise, recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE!

4. Control panel and operation

4.1 Control panel

⚠ WARNING! The illuminant must not be covered by thermal insulation or other materials. RISK OF FIRE!

⚠️ CAUTION! Do not touch the illuminant within 30 minutes after using the appliance. RISK OF BURNS!

NOTICE! Only switch on the illumination while the appliance is operating. Do not switch on the illumination to illuminate the room.

NOTICE! Never press two buttons simultaneously.

CONTROL PANEL

➢ Sensor to switch on / off the coloured illumination and to set the desired illumination colour.

➢ Sensor to decrease the power level (motor speed).

	«ON / OFF» - SENSOR and DIGITAL DISPLAY➢ Sensor to switch on / off the extractor hood.➢ This sensor is also a digital display and indicates the currently set power level (motor speed) of the extractor hood.
	«INCREASE» - SENSOR➢ Sensor to increase the power level (motor speed).
	«ILLUMINATION» - SENSOR➢ Sensor to switch on / off the standard illumination.

4.2 Operation

« ON / OFF » - SENSOR AND DIGITAL DISPLAY

i After the extractor hood switched on using the « ON / OFF » - SENSOR, it is always in OPERATION MODE. The motor is switched off and the digital display indicates « 0 ».

The indicator of the sensor you are currently using lights up. The indicators of the sensors that are not in use are in backlight mode.

1. If you want to switch off the extractor hood, proceed as follows.

a. Set the power level (motor speed) to « 0 » using the « DECREASE — » - SENSOR. If the illumination is on, switch it off using the sensor « DECORATIVE ILLUMINATION ✪ » and / or the sensor « ILLUMINATION ✪ ».

b. The digital display indicates the power level « 0 »; the motor is off.

c. The appliance switches off (standby mode) and the indicator of the « DECREASE — » - SENSOR changes to backlight mode; you can also switch off the appliance using the « ON / OFF » - SENSOR. ^18

d. The appliance is now in STANDBY MODE.

To switch off the extractor hood, you must always set the power level (motor speed) to « 0 » using the « DECREASE » - SENSOR.

DIGITAL DISPLAY

❖ The digital display indicates the currently set power level (motor speed).

If no sensor is touched within 2 minutes after the appliance is switched on, the DIGITAL DISPLAY and the indicators of the sensors « DECORATIVE ILLUMINATION », « DECREASE », « INCREASE » und « ILLUMINATION » go off. Touch the « ON / OFF » - SENSOR (= digital display « Ⓗ ») to reactivate the digital display and the indicators of the sensors.

Use the « DECREASE » - SENSOR to decrease the power level (motor speed) of the extractor hood (see also chapter 4.2.1 POWER LEVELS).

Use the « INCREASE » - SENSOR to increase the power level (motor speed) of the extractor hood (see also chapter 4.2.1 POWER LEVELS).

Use the « ILLUMINATION » - SENSOR to switch on / off the STANDARD ILLUMINATION of the extractor hood.

HOW TO SWITCH ON THE STANDARD ILLUMINATION

1. Touch the « ILLUMINATION » - SENSOR once briefly to switch on the standard illumination of the extractor hood.
2. The indicator of this sensor goes on.
3. The standard illumination is switched on.

HOW TO SWITCH OFF THE STANDARD ILLUMINATION

1. Briefly touch the « ILLUMINATION » - SENSOR once again to switch off the standard illumination of the extractor hood.
2. The indicator of this sensor changes to backlight mode.
3. The standard illumination is switched off.

⚠ WARNING! The illuminant / illuminants must not be covered by thermal insulation or other materials. RISK OF FIRE!

⚠️ CAUTION! Do not touch the illuminant / illuminants within 30 minutes after using the appliance. RISK OF BURNS!

NOTICE! Only switch on the illumination while the appliance is operating. Do not switch on the illumination to illuminate the room.

Use the « DECORATIVE ILLUMINATION ★ » - SENSOR to switch on / off the coloured illumination of the extractor hood and to set the desired illumination colour or colour combination.

i AFTER THE APPLIANCE IS SWITCHED ON FOR THE FIRST TIME USING THE «ON/OFF» - SENSOR: When you use the «DECORATIVE ILLUMINATION» - SENSOR for the first time, a white illumination is the default setting (depending on model: modifications are possible). You can change the default illumination colour and set different illumination colours and colour combinations individually (s. below «SETTABLE ILLUMINATION COLOURS AND

1. Touch the « DECORATIVE ILLUMINATION » - SENSOR once briefly to switch on the coloured illumination of the extractor hood.
2. The indicator of this sensor goes on.
3. The coloured illumination is switched on.

HOW TO SWITCH OFF THE DECORATIVE ILLUMINATION

1. Briefly touch the « DECORATIVE ILLUMINATION » - SENSOR once again to switch off the coloured illumination of the extractor hood.
2. The indicator of this sensor changes to backlight mode.
3. The coloured illumination is switched off.

HOW TO SET AN ILLUMINATION COLOUR OR A COLOUR COMBINATION

1. Touch and hold the « DECORATIVE ILLUMINATION » - SENSOR for 3 seconds to activate the setting mode of the illumination colours.
2. After the activation of the setting mode, the colour change of the decorative illumination runs automatically and starts with the colour blue. The individual colours merge into one another gradually and change their intensity at the same time (from light to dark or from dark to light). The colour change is repeated continuously (s. table below: « SEQUENCE OF THE ILLUMINATION COLOURS / COLOUR COMBINATIONS IN SETTING MODE (AUTOMATIC COLOUR CHANGE) ».
3. During the automatic colour change in the setting mode: when you like an illumination colour or a colour combination of several illumination colours, touch the « DECORATIVE ILLUMINATION » - SENSOR once briefly. The colour change pauses and the current illumination colour or colour combination remains for a longer moment, so you have a good look at it.
   To continue the automatic colour change, briefly touch the « DECORATIVE ILLUMINATION » - SENSOR once again.
4. If you like the illumination colour or colour combination that remains for a longer moment during the colour change pause, touch and hold the « DECORATIVE ILLUMINATION » - SENSOR for 3 seconds.
5. The illumination goes off, the setting mode is deactivated and the set illumination colour or colour combination is saved.
6. The next time you switch on the decorative illumination, it will light up in the illumination colour or colour combination you have set.

SETTABLE ILLUMINATION COLOURS AND COLOUR COMBINATIONS
BLUE	BLUE / GREEN	GREEN
GREEN / RED	RED	RED / BLUE
RED / BLUE / GREEN

SEQUENCE OF THE ILLUMINATION COLOURS / COLOUR COMBINATIONS IN SETTING MODE (AUTOMATIC COLOUR CHANGE):

blue	→	blue / green	→	green	→
green / red	→	red	→	red / blue	→
red / blue / green	→	blue	→	blue / green	etc.

The colour change of the decorative illumination runs automatically. The individual colours merge into one another gradually and change their intensity at the same time (from light to dark or from dark to light).
i After the illumination colour has changed from the combination red / blue / green to blue, the sequence starts again from the beginning (see table above).

NOTICE! Only switch on the illumination while the appliance is operating.

4.2.1 Power levels

The extractor hood is equipped with 3 power levels (= 3 motor speeds) and a power level « 0 » (= motor is off).
Use the SENSORS « INCREASE — » and / or « DECREASE + » to set the desired power level (motor speed) of the extractor hood.
The currently set power level (0 / 1 / 2 or 3) is indicated on the digital display « H».
When you set the power level (motor speed) to « 0 » using the « DECREASE » - SENSOR, the extractor hood returns to STANDBY MODE.
You must always set the power level (motor speed) to « 0 » using the « DECREASE » - SENSOR to switch off the extractor hood (STANDBY MODE).

0

POWER LEVEL « 0 » = MOTOR IS SWITCHED OFF

When you set the power level (motor speed) to « 0 » using the « DECREASE » - SENSOR, the motor of the extractor hood goes off and the appliance returns to STANDBY MODE.

1 - 3

Power level « 1 » is the lowest power level (motor speed) of the extractor hood.
This power level is suitable for slow cooking / simmering and roasting with the lid of the cookware closed.

Use this power level when low steam generation occurs (low concentration of cooking fumes).

Power level « 2 » is the medium power level (motor speed) of the extractor hood.
This power level is suitable for standard cooking.
Use this power level for an ideal air circulation in the kitchen when medium steam generation occurs (medium concentration of cooking fumes).

Power level « 3 » is the highest / maximum power level (motor speed) of the extractor hood.

Use this power level when lots of steam occurs (strong concentration of cooking fumes).

5.1 Environmental protection: disposal

Appliances bearing this symbol « — » must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

5.2 Environmental protection: energy saving

❖ Cover your cookware (cooking pot / pan) with lids during cooking.
The diameter of the cooking pot / pan should meet the diameter of the cooking zone or the size of the flame of the burner (gas appliances).
❖ Switch off the extractor hood after cooking or use the delayed switch-off function (equipment depends on model).
Only switch on the illuminant while the appliance is in operation. Do not switch on the illuminant to illuminate the room.
❖ Switch off the illuminant(s) of the appliance after cooking.

The power level should always meet the intensity of the generated cooking fumes. Use the highest motor speed of the appliance (highest / maximum power level) to extract strong concentration of cooking fumes only. A lower power level always means a lower energy consumption.

Make sure there is sufficient supply air to allow the extractor hood to operate efficiently and with low operating noise.

In the case of a strong concentration of cooking fumes select a higher power level early. Cooking fumes which are already distributed in the kitchen may require a longer operation of the extractor hood.

- Clean the aluminium grease filter(s) regularly as clean filters will increase the efficiency of the appliance.

❖ Replace the carbon filters (for recirculation mode only) regularly. Observe the information given on the packaging of the carbon filters.

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Ignoring the cleaning and maintenance instructions will cause an increased RISK OF FIRE!

NOTICE! Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise, you will damage the surface of the appliance.

NOTICE! Any damage that is caused to the appliance by a cleaning product will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise, you may damage the electronic components of the controls.
3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.
4. Clean the glass panels ^19 with a suitable detergent only.
5. When you clean or replace the grease filters or the carbon filters, also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents. Such changes do not influence the capacity of the appliance and are no reason for complaint.
7. Do not use any abrasive detergents or vinegar cleaners.
8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!

SPECIAL INSTRUCTIONS FOR APPLIANCES WITH A STAINLESS-STEEL CASING ^20

To clean stainless-steel surfaces, use a non-abrasive stainless-steel cleaning agent only.

NOTICE! Never use stainless steel cleaner for the direct environment of the control panel or the control panel itself.

NOTICE! Aggressive detergents such as abrasive detergents, vinegar cleaners, etc. damage the surface of the extractor hood.

6.1 Cleaning of the grease filters

⚠ WARNING! Failure to follow the cleaning instructions will increase the RISK OF FIRE due to fat deposits.

NOTICE! The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents. Such changes do not influence the capacity of the appliance and are no reason for complaint.

NOTICE! Do not damage the grid of metal-made (aluminium) grease filters.

i You do not need to replace grease / aluminium filters ^21 .

• Clean the filters by hand or in a dishwasher regularly (up to 30 °C).
  Do not use any acrid or corrosive detergents.
  Do not use any abrasive detergents!
  Do not use any alkaline dishwasher-detergents! (pH more than 7).

CLEANING INTERVAL FOR ALUMINIUM GREASE FILTERS

➢ Every 2 - 3 weeks according to the frequency of use of the extractor hood.

HOW TO DEINSTALL / INSTALL THE ALUMINIUM GREASE FILTERS

1. Lift the glass cover (A) of the extractor hood to open the appliance (s. fig. below, direction of arrow). Behind the glass cover is the aluminium grease filter.
2. Press the locking button (B) on the handle (C) of the grease filter (D) to release the grease filter from its lock (s. fig. below). Then remove the grease filter (D) and clean it as described in this chapter.

A	GLASS COVER OF THE EXTRACTOR HOOD
B	LOCKING BUTTON OF THE GREASE FILTER
C	HANDLE OF THE GREASE FILTER
D	ALUMINIUM GREASE FILTER

1. To reinstall the cleaned aluminium grease filter, insert the grease filter properly into the corresponding slots on the extractor hood. Press and hold the locking button (B) on the grease filter handle (C) while pushing the grease filter into its proper position. Once the grease filter is properly in position, release the locking button (B) to lock the grease filter in place (s. fig. below).

2. Lower the glass cover (A) of the extractor hood carefully to close the appliance (s. fig. below).

A	GLASS COVER OF THE EXTRACTOR HOOD
B	LOCKING BUTTON OF THE GREASE FILTER
C	HANDLE OF THE GREASE FILTER
D	ALUMINIUM GREASE FILTER

⚠ WARNING! Operate the appliance with inserted grease filters only. Otherwise, recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE!

NOTICE! Any damage caused by an uninstalled or improperly installed grease filter is not subject to the guarantee

HOW TO CLEAN THE ALUMINIUM GREASE FILTERS MANUALLY

1. Soak the aluminium grease filters in warm rinse water (up to 30 °C)
2. Then clean the grease filters with a soft brush. Be careful not to damage the grid of the grease filters.
3. After cleaning: Rinse the grease filters thoroughly using hot water.
4. Repeat this process in case of stubborn soilings or deposits.
5. Dry the filters properly before you reinstall them.

HOW TO CLEAN THE ALUMINIUM GREASE FILTERS IN THE DISHWASHER

The grease filters can also be cleaned in the dishwasher: Normal programme (up to 30 °C).
Do not put the filters in the dishwasher together with tableware. Dry the filters properly before you reinstall them.

NOTICE! Filters which are blocked with food leftovers are not covered by the guarantee.

6.2 Carbon filters

WARNING! Switch off the appliance and disconnect it from the mains before you install any carbon filters (use the relevant fuse in your household fuse box).

CARBON FILTERS for your extractor hood are optionally available.

◆ Conventional carbon filters cannot be cleaned.
The capacity of these filters is limited. You can use such filters for about 3 - 6 months approx.
❖ Replace used filters immediately. Find further information on the filter packaging.

REPLACEMENT INTERVAL FOR CARBON FILTERS

➢ At least every 3 - 6 months according to the frequency of use of the extractor hood.

You can order the CARBON FILTERS at

www.pkm-online.de

➢ Type name of the CARBON FILTERS: see chapter TECHNICAL DATA

6.3 Replacing of the illuminants

⚠ WARNING! LED illuminants must be replaced by a competent person only. Do not carry out the replacement of the illuminant yourself. If the LED illuminants are damaged, please contact a qualified professional (electrical engineer): not covered by the guarantee!

⚠ WARNING! Switch off the appliance and disconnect it from the mains before you replace the illuminants (use the relevant fuse in your household fuse box).

NOTICE! Do not touch the illuminant with your hands. The sweat on your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a thin glove.

6.3.1 Replacing of the standard LED illuminants

INSTRUCTIONS FOR THE QUALIFIED PROFESSIONAL (ELECTRICAL ENGINEER)

1. The LED illuminant should have cooled down before you remove it.
2. Open the extractor hood and remove the aluminium grease filter. The removal of the grease filter is described in chapter 6.1 CLEANING OF THE GREASE FILTERS.
3. Move one hand into the cavity (B) below the motor (C) and above the LED illuminant (D / see fig. below, arrow).

A	GLASS COVER OF THE EXTRACTOR HOOD
B	CAVITY IN THE HOUSING
C	MOTOR
D	LED ILLUMINANT

1. Carefully press the spring clips (E) on both sides of the LED illuminant (F) inwards using your hand (see fig. below on the left) until the LED illuminant is pushed out of its socket (G / see fig. below on the right). Be very careful while doing so.

E	SPRING CLIPS (2 pcs. per illuminant)
F	LED ILLUMINANT
G	SOCKET OF THE ILLUMINANT
H	ILLUMINANT CONNECTION CABLE

1. Carefully pull out the illuminant connection cable (H) until you see the terminal (J) of the cable (see fig. below).

2. Disconnect the terminal connection.

F	LED ILLUMINANT
H	ILLUMINANT CONNECTION CABLE
J	TERMINAL OF THE ILLUMINANT CONNECTION CABLE

1. Replace the used LED illuminant by a new one of the same type and power.

a. ILCOS D-Code for this illuminant: DSR-1.5/65-S-64

b. LED module: round lamp.

c. Max. Wattage: 2*1.50 W.

d. Round lamp: diameter ( ) in mm = 64.00.

1. Replace the other LED illuminant as described above.
2. To reinstall the LED illuminant(s), please proceed in reverse order.

	Required minimum distance to surfaces such as pot lids, oven cloths etc. to avoid any hot parts and risk of fire.
--- m = 0.45 m
	Only use self-shielded illuminants to avoid hot parts, risk of fire and exposure to UV-radiation.

NOTICE! Any damage caused by improper and incorrect replacement of the LED illuminants is not subject to the guarantee!

6.3.2 Replacing of the coloured LED light strip

INSTRUCTIONS FOR THE QUALIFIED PROFESSIONAL (ELECTRICAL ENGINEER)

1. The LED light strip should have cooled down before you remove it.
2. Open the extractor hood and remove the aluminium grease filter. The removal of the grease filter is described in chapter 6.1 CLEANING OF THE GREASE FILTERS.
3. Move one hand into the housing left of the motor and push the LED light strip (B) out of its socket (E / from the inside towards the outside) carefully (see fig. below).
4. Disconnect the terminal connection (C) of the illuminant connection cable (D / see fig. below).

A	GLASS COVER OF THE EXTRACTOR HOOD
B	COLOURED LED LIGHT STRIP
C	TERMINAL OF THE ILLUMINANT CONNECTION CABLE
D	ILLUMINANT CONNECTION CABLE
E	SOCKET OF THE ILLUMINANT

1. Replace the used coloured LED light strip by a new one of the same type and power.

2. To reinstall the coloured LED light strip, please proceed in reverse order.

NOTICE! Any damage caused by improper and incorrect replacement of the LED illuminants is not subject to the guarantee!

7. Troubleshooting

MALFUNCTION
POSSIBLE CAUSE	MEASURE
THE APPLIANCE DOES NOT WORK AT ALL.
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
THE ILLUMINANT IS ON BUT THE MOTOR DOES NOT WORK.
1. Ventilation damper blocked.2. Motor mounting defective.	1. Remove blockage.2. Replace motor.
ABNORMAL MOTOR-SMELLS.
1. Motor defective.	1. Replace motor.
SMEAR OF OIL.
1. One-way valve is leaky.	1. Seal the valve.
THE APPLIANCE VIBRATES.
1. Motor not properly fixed.2. Hood not properly fixed.	1. Fix motor properly.2. Fix hood properly.
INSUFFICIENT EXTRACTING CAPACITY.
1. Too much distance hood-hob.2. Too much draught because of open doors and/or windows.	1. Lower position of hood.2. Close the doors/windows.
ALFUNCTION
POSSIBLE CAUSE	MEASURE
THE APPLIANCE IS UNSTABLE.
1. Screws are not firmly tightened.2. The mounting bracket / mounting plate is not fixed firmly.	1. Tighten the screws.2. Fix the mounting bracket / mounting plate properly.
THE ILLUMINANTS DO NOT WORK.
1. The extractor hood is not switched on.2. One or all illuminants are defective.	1. Switch on the extractor hood.2. Replace the defective illuminants. See chapter « REPLACING OF THE ILLUMINANTS ».PLEASE NOTE: LED illuminants must be replaced by a qualified professional (electrical engineer) only.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the schedule but the problem still exists, please contact the aftersales service.

IF THE HOOD DOES NOT WORK PROPERLY AND / OR YOU CAN HEAR INCREASED OPERATING NOISE, CHECK THE SCHEDULE BELOW.

IN EXTRACTION MODE

▶ Incorrect dimension of the air duct.
Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120/150 mm (see chapter « TECHNICAL DATA »); otherwise, the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
➢ Install a cover panel with movable slats, which do not obstruct the air vent.
➢ Check condition and cleanliness of the filters.
➢ Check if the air which is extracted by the hood is replaced to avoid negative pressure.

IN RECIRCULATION MODE

▶ Check condition and cleanliness of the filters.
When you run your appliance in recirculation mode, check if the carbon filter has been replaced on time (min. every 3-6 months).

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the schedule but the problem still exists, please contact the aftersales service.

8. Technical data

TECHNICAL DATA*
Type	Extractor hood
Material	Black glass
Installation-width in cm	60.00
Wall installation	yes
Touch Control	yes
Recirculation / extraction mode**	yes yes
Annual energy consumption (AEC _hood )	22.30 kWh/year
Energy efficiency category***	A
Fluid dynamical efficiency (FDE _hood )	22.80
Fluid dynamical efficiency category	C
Lighting efficiency (LE _hood )	53.00 lux/W
Lighting efficiency category	A
Grease separation	68.20 %
Grease separation category	D
Air flow ****	158 m ^3 /h 306 m ^3 /h
Air flow during operation at intensive	-
A-rated noise emission ****	41 dB 66 dB
A-rated noise emission during operation at intensive or rapid operation setting	-
Connected load	64.00 W
Lighting system	LED
Power consumption lighting system (W _l )	2*1.50 W
Power consumption per illuminant	1*1.50 W
Voltage / frequency	AC 220 – 240 V / 50 Hz
Grease filter / material / dishwasher-proof	1 aluminium yes
Carbon filter ****	2*CF150 / optionally available
Display	yes
Supplied accessory: exhaust hose	yes
Supplied accessory: one-way valve	yes
Supplied accessory: installation material	yes
Supplied accessory: instruction manual	yes
Telescopic chimney extractable from-to	40.00 - 78.00 cm
Total height incl. telescopic chimney	112.30 cm
Dimensions: appliance H*W*D	34.30 - 112.30*60.00*34.30 cm
Weight net / gross in kg	10.00 / 11.50

◆ Technical modifications reserved.

*	According to Regulation (EU) No. 65/2014
**	Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = 150 mm ∅, drilling approx. 160 mm ∅.
***	On a scale from A+++ (highest) to D (lowest).
****	Measured values at minimum / maximum motor speed.
*****	Optional equipment.

9. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorised condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.
