HFN-123274.13 - Fan Emerio - Free user manual and instructions

Product Type	Fan
Brand	Emerio
Model	HFN-123274.13
Color	White/Black
Dimensions (approx.)	30 x 30 x 120 cm
Weight	2.5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	50 W
Speed Settings	3 speeds (low, medium, high)
Oscillation	Yes, 90° horizontal
Timer	Not specified (likely no timer)
Remote Control	Not included (manual operation)
Safety Features	Overheat protection, tip-over safety switch
Cleaning	Wipe with a damp cloth; do not immerse
Spare Parts	Replacement blades and motor available
Repairability Index	5/10 (user-serviceable parts limited)
Certifications	CE, RoHS

Frequently Asked Questions - HFN-123274.13 Emerio

How do I assemble the fan?

Follow the manual: attach the base, insert the pole, fix the motor unit, and attach the fan blades. Ensure all screws are tight.

How do I clean the fan?

Unplug the fan. Use a soft damp cloth to wipe the grille and blades. Do not use water directly on the motor.

Can I use the fan outdoors?

No, this fan is designed for indoor use only.

Why is the fan making noise?

Check for loose screws, debris on blades, or an unbalanced stand. Tighten all parts and clean if needed.

Does the fan have a remote control?

No, this model does not include a remote control. It is operated manually via buttons.

How many speed settings are there?

The fan has 3 speed settings: low, medium, and high.

What is the warranty period?

Emerio typically offers a 2-year warranty for manufacturing defects. Check your local terms.

Can I adjust the tilt of the fan?

Yes, the fan head can be tilted manually up or down by loosening the tilt screw.

Is the fan energy efficient?

With a power consumption of 50W, it is relatively energy-efficient for a tower fan.

What safety features does the fan have?

It includes overheat protection and a tip-over safety switch that shuts off the fan if it falls.

USER MANUAL HFN-123274.13 Emerio

Pink electric fan with a circular top and base, no visible text or symbols on the fan body.

Handy fan USB (EN)

Handventilator USB (DE)

Handfläkt USB (SE)

Praktisk vifte USB (NOR)

CE

Instruction manual – English ...... - 2 -

As for all electrical household devices, special caution is required when using this fan in order to avoid injuries, fire and damages to the device itself. Before you use it for the first time, please read through this instruction manual carefully and pay attention to the safety guidelines and instructions printed on the device.

IMPORTANT SAFETY GUIDELINES

WARNING – When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. This appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

3. Incorrect use of this appliance may cause damage to the appliance or any products that is may be connected to.

4. Always unplug the USB plug when it is fully charged or before cleaning. When unplugging, make sure to grasp by the USB plug and not the cable.

5. Ensure that the USB cable is not hung over sharp edges and keep it away from hot objects and open flames.

6. Do not immerse the appliance or USB cable in water or other liquids. There is danger to life due to electric shock!

7. Do not plug or unplug the appliance from the USB port with a wet hand.

8. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

9. Never leave the appliance unattended during use.
10. This appliance is not designed for commercial use.
11. Do not use the appliance for other than intended use.
12. Keep the appliance away from damp, and protect from splashes.
13. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
14. Never put fingers or any other objects through the fan guards when the fan is running.
15. Never operate the product without the fan guards in place, as serious personal injury may result.
16. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
17. Do not point the air flow at people for a long time.
18. Ensure that the USB plug of the fan is removed from the supply mains before removing the guard.

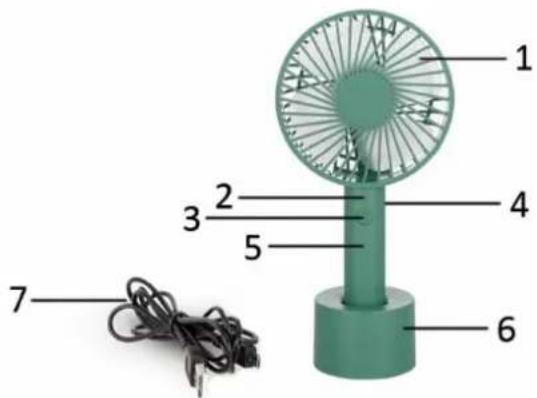

PARTS DESCRIPTION

The device consists of the following main components:

1. Main body (Fan guard + Fan blade)
2. Indicator light
3. On/off/ speed switch
4. USB charge jack
5. handle
6. Base
7. USB cable

HOW TO CHARGE

1. Connect one end of the USB cable to the charge jack of the appliance, and another end to the USB port of the computer or other DC5V USB adaptor port. Be sure it fits tightly.
2. The appliance begins to charge, the indicator light will flash red. When the battery is full, the indicator light will be still in red.

FIRST USE / OPERATION

1. Press the on/off/speed switch once, the appliance will work on low speed; press twice, the appliance will work on middle speed; press three times, the appliance will work on high speed; press four times, the appliance will be off. When the appliance is working, the indicator light is still in blue.
2. You can use the appliance in three ways:

1) Hold the fan in hand.

2) Stand the fan in its base.

3) Make the fan lie on its left side as below picture shows.

Technical line drawing of a circular fan with radial blades and a handle (no text or symbols)

Note:

• To prevent overloading a USB-computer port, do not plug the fan into a USB port that is servicing other electrical needs.
• The fan will be fully charged in 4.5 hours approximately. Do not exceed this length of time for charging as you may damage the battery and shorten the lifespan of the fan.

CLEANING AND MAINTENANCE

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the appliance.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe the fan down with a damp cloth and then dry it carefully.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.
4. Pack the appliance in its original box and place it in a dry, well-ventilated place when it is not to be used for a long period of time.

TECHNICAL DATA

Mains voltage : DC 5V

Power consumption: 3W

Battery voltage : DC 3.7V

Battery capacity: 1800mAh

Charge time: 4.5H

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Technical line drawing of a circular fan or impeller with radial blades and a handle (no text or symbols)

Hinweis:

Technical line drawing of a circular fan or impeller with radial blades and a handle (no text or symbols)

Obs!

Technical line drawing of a circular fan or impeller with radial blades and a handle (no text or symbols)

Merk:
