Product Type	Tower Fan
Model	TFN-114569.5
Brand	Emerio
Power Supply	220-240V ~ 50Hz
Power Consumption	50W
Maximum Fan Flow Rate	28.2 m³/min
Fan Power Input	37.8 W
Service Value	0.7 (m³/min)/W
Standby Power Consumption	0.2 W
Fan Sound Power Level	63 dB(A)
Maximum Air Velocity	2.6 m/s
Speed Settings	3 levels: Low, Medium, High
Modes	Normal, Natural, Sleep
Timer	1-12 hours
Oscillation	Yes, horizontal swing
Remote Control	Yes, with battery CR2025
LED Lamp	Yes, on/off
Display	Digital display panel
Assembly Required	Yes, base attachment with screws
Filter Cleaning	Detachable, washable with water
Safety Features	Overheat protection, child lock? Not specified, but includes safety instructions

Frequently Asked Questions - TFN-114569.5 Emerio

How do I assemble the fan base?

Align the two base pieces and fasten them together. Then align the base with the turnplate and tighten the 4 screws to secure it. Refer to the assembly diagram in the manual.

How do I use the remote control?

Insert one CR2025 battery into the remote control. The buttons have the same functions as the control panel. If not using for a long time, remove the battery.

What are the different fan modes?

The fan has three modes: Normal (constant speed you select), Natural (simulates natural wind, speed not adjustable), and Sleep (gradually reduces speed over time to prevent catching cold).

How do I set the timer?

Press the timer button on the control panel or remote to set the timer from 1 hour up to 12 hours. The fan will automatically turn off after the set time.

How do I clean the fan?

Before cleaning, unplug the fan. Wipe the exterior with a damp cloth. The air outlet filter can be removed and washed under running water. Dry it completely before reinstalling.

Can I use the fan in a bathroom?

No, the fan is not designed for damp environments. Keep it away from water and splashes to avoid electric shock.

What should I do if the fan stops working?

Check if the power cord is plugged in and the outlet is working. If the fan still doesn't work, contact customer service. Do not attempt to repair it yourself.

Is the fan safe for children?

The fan can be used by children aged 8 and above with supervision. Children should not play with the fan or clean it without supervision.

How do I activate the swing function?

Press the swing button (OSC) on the control panel or remote to turn oscillation on or off. The fan will oscillate horizontally.

What do the LED indicators mean?

The display shows the current mode, speed, and timer settings. The LED lamp can be turned on/off separately using the LED button for ambient lighting.

USER MANUAL TFN-114569.5 Emerio

Modern vertical tower with black and silver casing, emitting blue light, next to a remote control unit (no text or symbols visible)

Tower Fan (EN)

Turmventilator (DE)

Tornveida ventilators (LV)

Tornifänn (ET)

Bokštinis ventiliatorius (LT)

Content – Inhalt – Saturs – Sisukord – Turinys

Instruction manual – English....- 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Keep the appliance away from damp, and protect from splashes.
18. Use the appliance on a flat, dry and heat resistance surface.
19. Do not store or operate the appliance in the open air.
20. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
21. Never put fingers or any other objects through the fan guards when the fan is running.
22. Never operate the product without the fan guards in place, as serious personal injury may result.
23. The appliance must be assembled completely before use.
24. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
25. Do not point the air flow at people for a long time.
26. The rotor guard shall not be disassembled/ opened to clean the rotor blades.

PARTS OF DESCRIPTION

1. Control panel and display panel
2. Air outlet
3. Base
4. Remote control
5. Small slot for storing the remote control
6. Handle

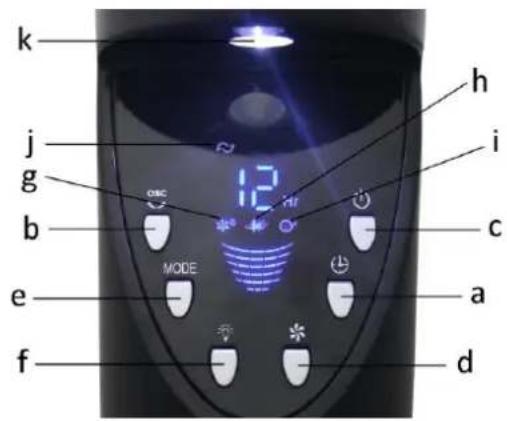

CONTROL PANEL AND DISPLAY PANEL

(1) Control panel

a. Timer button
b. Swing function button
c. On/off button
d. Speed button
e. Mode button
f. LED lamp button
(2) Display panel
g. Normal mode
h. Natural mode
i. Sleep mode
j. Swing indicator
k. LED lamp

REMOTE CONTROL

This unit has a remote control. Please use one piece of CR2025 battery for this remote control. Please insert the battery to the remote control tightly (Refer to the instruction behind the remote control). If it is not in use for a long time, please take the battery out of the remote control. The functions of the remote control buttons are the same as the functions of the buttons on the control panel.

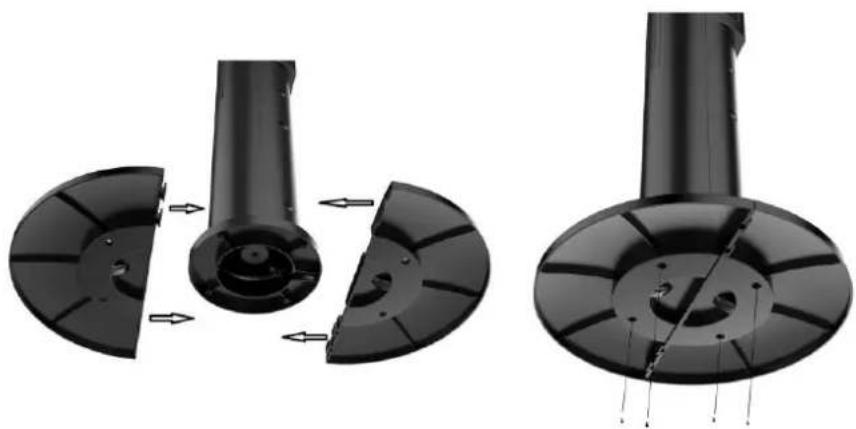

ASSEMBLY

Two black mechanical components with internal cutouts and directional arrows indicating movement or assembly (no text or symbols)

1. Spin 4 screws out from the turnplate.
2. Fasten two pieces of base together.
3. Align the base with the turnplate and then spin 4 screws back to fasten them up.

OPERATION

Connect the appliance to a suitable power source. Then press the control panel or the remote control to choose your desired functions.

1. ON/off: Press “⏻” to turn the appliance on. It will work with the following presetting: Speed: low / Mode: normal / Timer: off / Swing: off

Press “” again to turn off the appliance. The appliance will be in standby mode.

1. SPEED: Press “✿” to adjust the speed: low wind; Medium wind; high wind

2. MODE: Press "MODE" to choose the mode functions from Normal → Natural → Sleeping → ... (Repeating).

1) Normal: under this mode, the motor works with the preset speed. You can press the speed button to choose speed Low/Mid/High.

2) Natural: under this mode, the display of “” is on. The appliance runs according to the natural mode program. The speed will follow the rules: Low, Mid, High, Mid, Low, Mid, High, Mid, Low, Mid, High, ... generating softer and more comfort air volume, you feel like the wind from the nature. The speed button will not work in this mode.

3) Sleep: under this mode, the display of “💡” is on. The appliance runs according to the sleeping mode program. Air volume will weaken with the decrease of body temperature when you fall asleep, which will protect you from catching cold. You can press the speed button to choose Low /Mid /High sleeping wind.

High sleeping wind mode: the appliance will work in high speed for half an hour, then work in mid speed for half an hour, then work in low speed all the time;

Mid sleeping wind mode, the appliance will work in mid speed for half an hour, then work in low speed all the time;

Low sleeping wind moe, the appliance will work in low speed all the time.

1. TIMER: Press “💡” to set your desired working time from 1h →2h →3h ... →12h →off. When the set time has elapsed, the fan will be off and under standby condition.

2. SWING: Press "OSC" to control the oscillation function on or off.

3. LED lamp: press " 🔥" to turn on/off the LED lamp.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

4. Filter of air outlet can be detached to clean. Wash the filter directly under the running water and then dry it completely. After cleaning, spin 2 screws back to the position. (see below picture)

Technical line drawing of a mechanical component with threaded slots and mounting holes (no text or symbols)

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 50W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE OR

IN FIRE OR SHORT CIRCUIT.

Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

ERP information (EN)

Supplier: Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Declare that the product detailed below:

Information requirements

Information to identify the TFN-114569.5 to which the information relates to [Tower Fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	28.2	m3/min
Fan power input	P	37.8	W
Service value	SV	0.7	(m3/min)/W
Standby power consumption	PSB	0.2	W
Fan sound power level	LWA	63	dB(A)
Maximum air velocity	c	2.6	meters/sec
Measurement standard for service value	2009/125/EC(EU) No 206/2012 + (EU) No 2016/2282EN 60879:2019EN 60704-1:2010+A11:2012EN 60704-2-7:2020
Contact details for obtaining more information	Emerio B.V.Zomervaart 1A2033 DA HaarlemThe Netherlands

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

"Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging."

SICHERHEITSHINWEISE

Two black plastic mechanical components with internal cutouts and directional arrows indicating movement or assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

TECHNISCHE DATEN

Two black mechanical components with arrows indicating movement or assembly, showing internal circular features (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

TEHNISKIE DATI

Spriegums: 220-240 V \~ 50 Hz

Two views of a black mechanical component with internal features and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

TEHNILISED ANDMED

Pinge: 220-240 V \~ 50 Hz

Two black mechanical components with arrows indicating movement or assembly, showing internal structure and alignment (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

TECHNINIAI DUOMENYS

Itampa: 220-240 V \~ 50Hz

Galios sąnaudos: 50 W
