Type	Stand Fan
Brand	Emerio
Model	FN-108784.1
Power Supply	220-240 V ~ 50 Hz
Power Consumption	44 W
Motor Power Input	36.32 W
Number of Speeds	3 (Low, Medium, High)
Oscillation	Yes, push/pull knob
Maximum Airflow	40.19 m³/min
Maximum Air Velocity	2.09 m/s
Sound Power Level	50.30 dB(A)
Service Value	1.11 (m³/min)/W
Standby Power	0.00 W
Blade Material	Plastic
Guard Material	Metal wire
Height Adjustment	Yes, adjustable pipe
Assembly Required	Yes
Safety	Do not immerse in water; keep away from children <8 years; use only on flat surface
Cleaning	Wipe with damp cloth, unplug first
Warranty	2 years
Compliance	IEC 60879, EN 50564, EN 60704-2-7, EN 60704-1

Frequently Asked Questions - FN-108784.1 Emerio

How do I assemble the Emerio FN-108784.1 fan?

First, attach the standing shaft to the base. Then pull out the height adjustment pipe and tighten the fasten set. Connect the fan body to the pipe using the fastening screw. For the rear guard, unscrew the guard fastening screw, fix the rear guard onto the motor pillars, and retighten. Insert the blade onto the shaft and tighten the blade screw counterclockwise. Finally, attach the front guard by hooking it on top and closing the clips, then secure with the screw.

How do I clean the fan?

Always unplug the fan before cleaning. Never immerse it in water. Use a damp cloth to wipe the exterior and a dry brush or vacuum cleaner to remove dust from the air intake and outlet grilles. Dry thoroughly before next use.

What does the oscillation button do?

The oscillation button controls the side-to-side movement of the fan head. Push the knob down to activate oscillation, and pull it up to stop oscillation.

How many speed settings are available?

The fan has three speed settings: 1 (Low), 2 (Medium), and 3 (High). Use the push buttons on the control panel. Do not press more than one button at a time to avoid damage.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. It should be kept away from damp and protected from splashes. Do not operate in open air.

Is the fan safe for children?

The fan can be used by children aged 8 and above if supervised. Children should not play with the fan. Cleaning and maintenance should not be done by children without supervision. Keep the appliance and cord out of reach of children under 8.

What should I do if the fan stops working?

First, unplug the fan and check the power cord and plug for damage. If the cord is damaged, it must be replaced by the manufacturer or a qualified person. Ensure the fan is on a flat surface and the speed button is pressed correctly. If the problem persists, contact the service department.

How should I store the fan when not in use?

Store the fan in a dry place, out of reach of children. It is best to keep it in its original packaging. Unplug it and clean it before storing. Ensure it is completely dry.

Can I use an extension cord with the fan?

The manual does not recommend using an extension cord. If necessary, use a cord with appropriate rating and ensure it is not damaged. However, it is safer to plug the fan directly into a wall socket.

How do I replace the fan blade?

Unplug the fan. Remove the front guard by opening the clips and unscrewing the screw. Loosen the blade fastening screw (turn counterclockwise) and pull the blade off. Place the new blade onto the shaft, ensuring it fits the clip, and tighten the screw counterclockwise. Reattach the front guard.

USER MANUAL FN-108784.1 Emerio

Black desktop fan with three blades and a stand, no visible text or symbols

Stand fan (EN)

Stand Ventilator (DE)

Golvfläkt (SE)

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.
6. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.
7. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
8. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.

9. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

10. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.

11. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
12. Keep the appliance away from damp, and protect from splashes.
13. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
14. Keep the appliance and its cord out of reach of children less than 8 years.
15. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
16. Use the appliance on a flat, dry and heat resistance surface.
17. Never leave the device in unattended during use.
18. Do not store or operate the appliance in the open air.
19. Keep the appliance in a dry place, inaccessible to children (in its packaging).
20. Never put fingers or any other objects through the fan guards when the fan is running.
21. Never operate the product without the fan guards in place, as serious personal injury may result.
22. The appliance must be assembled completely before use.
23. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
24. Do not point the air flow to the people for a long time.
25. Ensure that the fan is switched off from the supply mains before removing the guard.

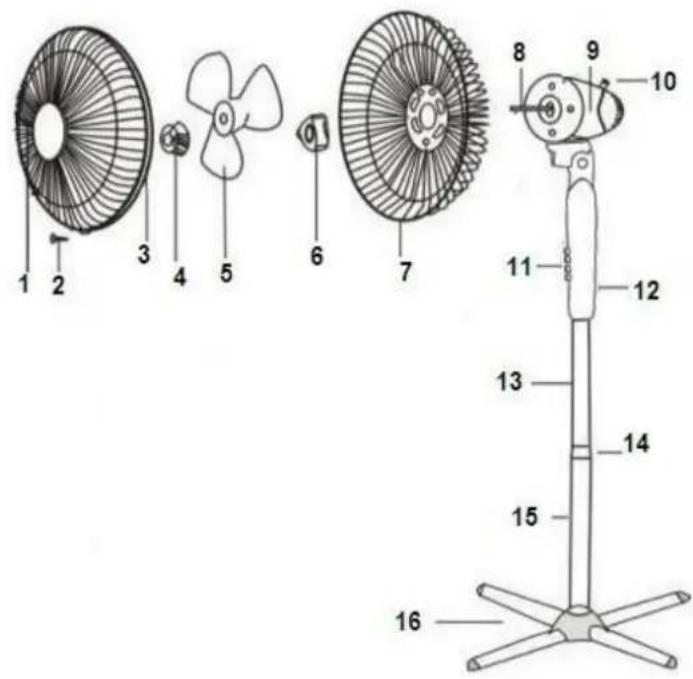

PARTS DESCRIPTION

1. Front guard
2. Guard clips screw
3. Guard clips
4. Blade fastening screw
5. Blade
6. Guard fastening screw
7. Rear guard
8. Motor shaft
9. Rear shell
10. Oscillation button
11. Speed switch
12. Fastening screw
13. Height adjustment pipe
14. Fasten set
15. Standing shaft
16. Standing base

ASSEMBLING INSTRUCTIONS

** Please assemble correctly by the following orders when using.

1. Assemble the stand

2. Put the standing shaft on the standing base.

3. Screw the standing shaft on the standing base.

4. The whole assembly

5. Pull the height adjustment pipe out and tighten the fasten set.

6. Link the fan main body and the height adjustment pipe together by the fastening screw and then fix them.

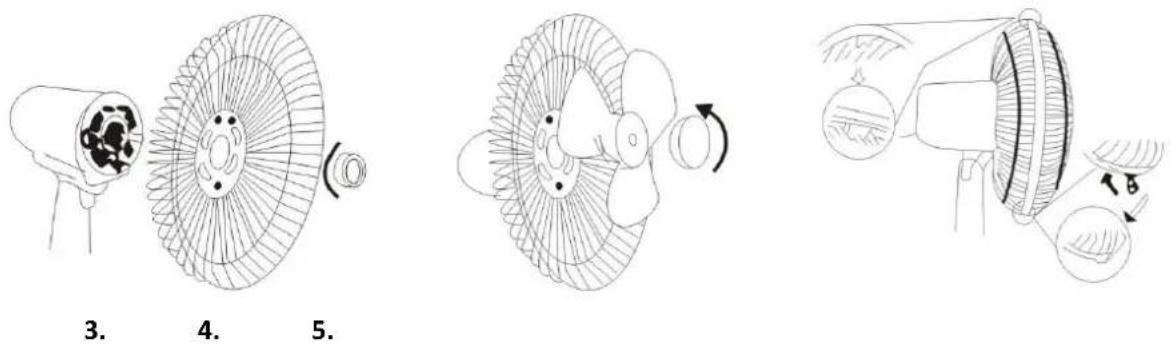

7. Rear grille assembly

8. Screw the guard fastening screw out in anti-clockwise direction.
   ● Fix the rear guard onto the two pillars of the motor front shell.

9. Screw the guard fastening screw tightly in clockwise direction.

10. The assembly of fan blade

11. Insert fan blade onto shaft ensuring blade fits properly onto clip on shaft.
    ● Tighten blade screw onto shaft. Note: Blade screw should be tightened in anti-clockwise.

12. Front grille assembly

13. Put the hook of the front grille on the top of rear grille.

14. Attach front grille to rear grille and then close clips and using the appropriate screw to secure grille together.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull-up the oscillation knob.
3. The fan is switched on by using the push buttons on the control panel, i.e. 0: Off, 1 = Low Speed, 2 = Medium speed, 3 = High speed.

CAUTION: Press only one of the speed control button at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V\~50Hz

Power consumption: 44W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	40.19 m^3/min
Fan power input (P)	36.32 W
Service value (SV)	1.11( m^3/min )/W
Measurement standard for service value	IEC 60879: 1986EN 50564: 2011EN 60704-2-7: 1998EN 60704-1: 2010
Standby power consumption ( P_SB )	0.00 W
Fan sound power level ( L_WA )	50.30 dB(A)
Maximum air velocity (c)	2.09 meters/sec
Contact details for obtaining more information	Emerio International ABSmedjegatan 6131 54 NackaSweden

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19-EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
