Product Type	Desk Fan
Brand	Emerio
Model	FN-114224.4
Power Supply	220-240 V ~ 50-60 Hz
Power Consumption	40 W
Maximum Airflow	32.2 m³/min
Sound Level	46.5 dB(A)
Maximum Air Velocity	2.8 m/s
Speed Settings	3 speeds: Low, Medium, High
Oscillation	Yes (push/pull knob)
Tilt Adjustment	Manual tilt by pushing fan guard
Fan Guards	Front and rear guards included
Cleaning Method	Wipe with damp cloth; do not immerse
Safety Features	Overheat protection not specified; guards prevent finger access
Warranty	2 years
Recommended Age	8 years and above with supervision
Indoor Use Only	Yes
Standby Power Consumption	Not specified (likely 0 W when off)
Disposal	Recycle according to WEEE directive

Frequently Asked Questions - FN-114224.4 Emerio

How do I assemble the fan?

First, insert the power cord through the base and attach the standing shaft to the base. Then remove the blade and guard screws from the motor shaft. Fit the rear guard onto the motor body using the guard fastening screw. Slide the fan blade onto the motor shaft matching the slot with the shaft pin, then tighten the blade fastening screw counter-clockwise. Finally, attach the front guard and secure with the clamping ring.Ensure the blade rotates freely before use.

How do I clean the fan?

Always unplug the fan before cleaning. Do not immerse the fan in water. Wipe the exterior with a damp cloth and dry carefully. Clean the air intake and outlet grills occasionally with a dry brush or vacuum cleaner to prevent dust buildup.

What are the speed settings and how do I use them?

The fan has three speed settings: 1 (Low), 2 (Medium), and 3 (High) controlled by the speed control buttons. Press button 0 to turn off. Only press one button at a time to avoid damaging the switch.

How do I use the oscillation feature?

To make the fan head oscillate, push down the oscillation knob on top of the motor. To stop oscillation, pull up the knob.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Do not store or operate it in the open air. Keep it away from damp and splashes.

Is it safe for children to use?

The fan can be used by children aged 8 years and above if they have been given supervision and understand the hazards. Children should not play with the fan. Cleaning and maintenance should not be done by children without supervision. Keep the appliance and cord out of reach of children under 8.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard. Do not use the fan until repaired.

How do I adjust the tilt angle?

To adjust the tilt angle, simply push the fan guard to the desired elevation. The fan head can be tilted manually.

What is the warranty period?

Emerio provides a 2-year guarantee from the day of purchase. Keep your receipt. The warranty does not cover damage from improper use, third-party repairs, or normal wear. For claims, contact the point of purchase or customer service.

How should I dispose of the fan at the end of its life?

Do not dispose of the fan with household waste. Follow the WEEE directive (2012/19/EU) for recycling. Return it to a collection point or the retailer where you purchased it for environmentally safe recycling.

USER MANUAL FN-114224.4 Emerio

Front view of a white electric fan with radial blades and a stand (no text or symbols visible)

Desk fan (EN)

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.
8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.
9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
10. Ensure that the mains cable does not hang over sharp edges or become trapped.

11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistant surface.
15. Never leave the device unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

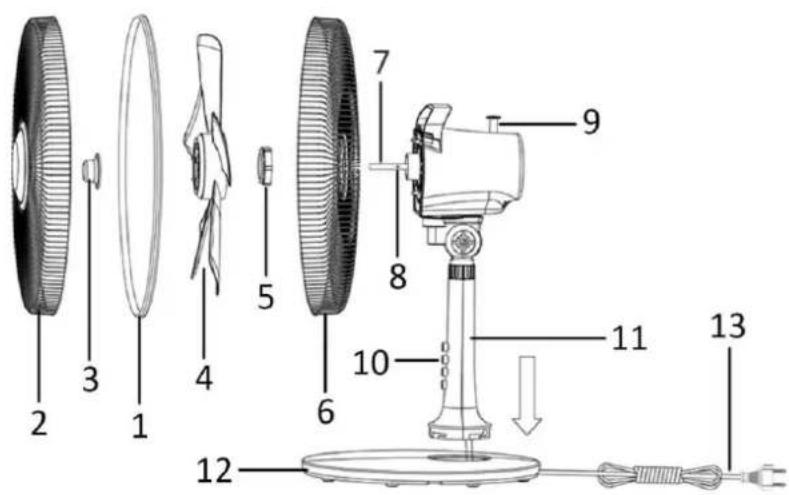

PARTS DESCRIPTION

1. Clamping ring
2. Front guard
3. Blade fastening screw
4. Fan blade
5. Guard fastening screw
6. Rear guard
7. Motor shaft
8. Shaft pin
9. Oscillation knob
10. Speed control buttons
11. Standing shaft
12. Standing base
13. Power cord

ASSEMBLING INSTRUCTIONS

1. Base Assembly

Put power cord (13) through the hole of standing base (12). Align the bottom of standing shaft (11) with the hole of standing base, turning to fix the connection. Set the power cord through the groove at the edge of standing base.

2. The Whole Assembly

• Remove the blade fastening screw (3) and guard fastening screw (5) from the motor shaft (7) spindle.
• Fit the rear guard (6) by positioning with the location pins. Secure the guard onto the motor body with the guard fastening screw (5).
• Place the fan blade (4) onto the motor shaft by matching the slot with the shaft pin (8). Fix the blade by tightening the blade fastening screw (3) in a counter-clockwise direction. Check that the fan blade can rotate freely by turning it with your hand.
• Put the front guard (2) against the rear guard (6) and fix with the clamping ring (1). Make sure the clamping ring is set properly at the rim of the fan guards. Tighten the screw on the clamping ring.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob (9). To stop the fan head from oscillating, pull up the oscillation knob.
3. The fan is switched on and off by pressing the speed control buttons, i.e. 0 = Off, 1 = Low air flow speed, 2 = Medium air flow speed, 3 = High air flow speed.
4. Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CAUTION: Press only one of the speed control buttons at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 40W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

ERP information (EN)

Supplier: Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Declare that the product detailed below:

Information requirements

Information to identify the FN-114224.4 to which the information relates to [Desk fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	32,2	m^3/min
Fan power input	P	42,2	W
Service value	SV	0,8	(m^3/min)/W
Standby power consumption	P_SB	--	W
Fan sound power level	L_WA	46,5	dB(A)
Maximum air velocity	c	2,8	meters/sec
Measurement standard for service value	IEC 60879:2019 – Comfort fans and regulators for household and similar purposes – Methods for measuring performance
Contact details for obtaining more information	Emerio B.V.Zomervaart 1A2033 DA HaarlemThe Netherlands

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
