Brand	Emerio
Model	FN-114202.5
Product Type	Desk Fan
Power Consumption	35W
Voltage	220-240V ~ 50/60Hz
Speed Settings	3 (Low, Medium, High)
Oscillation	Yes, push-button control
Blade Material	Plastic
Guard Material	Metal mesh with plastic parts
Assembly Required	Yes, rear guard, blade, front guard, clamping ring
Control Type	Push buttons on base
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Guards prevent finger access; automatic shut-off if guard removed? Not specified
Guarantee	2 years
Disposal	Recycle according to WEEE directive (2012/19/EU)
Usage	Indoor, dry location

Frequently Asked Questions - FN-114202.5 Emerio

How do I assemble the fan?

First, remove the blade fastening screw and guard fastening screw from the motor shaft. Place the rear fan guard onto the motor shaft and secure it with the guard fastening screw. Slide the fan blade onto the motor shaft ensuring the shaft pin aligns, then tighten the blade fastening screw. Attach the front guard to the rear guard and secure with the clamping ring, tightening its screw.

How do I clean the fan?

Always unplug the fan before cleaning. Use a damp cloth to wipe the exterior; do not immerse the fan in water. For the grilles, a dry brush or vacuum cleaner can remove dust buildup.

What are the safety precautions?

Do not operate without guards. Keep fingers and objects away from moving parts. Do not use near water. Children 8+ only under supervision. Ensure cord is not damaged. Do not pull cord to unplug.

How does the oscillation work?

Push the oscillation knob down to start oscillation, pull it up to stop. The fan head will oscillate left and right.

How many speed settings are there?

Three speeds: 1 (low), 2 (medium), 3 (high). Press only one button at a time to avoid damaging the switch.

What voltage does the fan require?

The fan operates on 220-240V AC, 50/60Hz, with a power consumption of 35W.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Keep it away from damp and open air.

What if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

How do I dispose of the fan?

Do not dispose with household waste. Follow local recycling regulations under WEEE directive (2012/19/EU) or return to retailer.

Is there a warranty?

Yes, 2 years from date of purchase. Keep receipt. Damage from misuse or unauthorized repairs voids warranty.

USER MANUAL FN-114202.5 Emerio

Black electric fan with mesh grille and three blades, mounted on a stand (no visible text or symbols)

Desk fan (EN)

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.

6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.

8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.

10. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.

11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistance surface.
15. Never leave the device unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

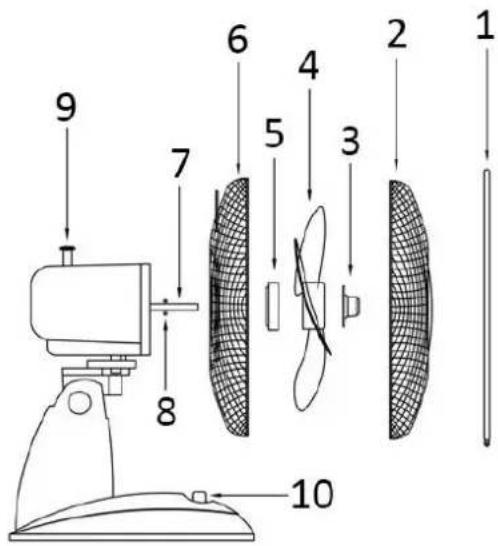

PARTS DESCRIPTION

1. Clamping ring
2. Front fan guard
3. Blade fastening screw
4. Fan blade
5. Guard fastening screw
6. Rear fan guard
7. Motor shaft
8. Shaft pin
9. Oscillation knob
10. Speed buttons

ASSEMBLING INSTRUCTION

1. Rotate the blade fastening screw and guard fastening screw out of the motor shaft.
2. Put the rear fan guard on the motor shaft and screw together with the guard fastening screw.
3. Push the fan blade onto the motor shaft ensuring the blade fits properly with the shaft pin. Tighten the blade fastening screw to fix the fan blade firmly.
4. Put the front fan guard against the rear fan guard and fix with the clamping ring. Make sure the clamping ring is set properly at the rim of the fan guards.
5. Tighten the screw on the clamping ring.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: to make the fan head oscillate, push down the Oscillation knob. To stop the fan head from oscillating, pull up the Oscillation Knob.
3. The fan is switched on using the push buttons on the control panel, i.e. 0: Off, 1 = low speed, 2 = medium speed, 3 = high speed.

CAUTION: Press only one of the speed control button at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power consumption: 35W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred

during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.
