Product Type	Pedestal Fan
Model Number	TFN-110154.13
Brand	Emerio
Dimensions (H x W x D)	135 x 40 x 40 cm (approx.)
Weight	4.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	50 W
Speed Settings	3 speeds (low, medium, high)
Oscillation	Yes, 90° horizontal
Tilt Adjustment	Yes, manual tilt
Timer	0-2 hours (optional)
Remote Control	Yes, included
Noise Level	≤ 65 dB
Blade Diameter	40 cm (16 inches)
Material	Plastic and metal
Safety Features	Overheat protection, stable base
Cleaning	Wipe with damp cloth, do not immerse
Spare Parts Availability	Contact Emerio customer service
Certifications	CE, RoHS
Warranty	2 years

Frequently Asked Questions - TFN-110154.13 Emerio

How do I assemble the fan?

Follow the assembly steps in the manual: attach the base to the pole, then secure the motor housing and fan blades. Ensure all screws are tightened properly before use.

How do I clean the fan?

Unplug the fan. Use a damp cloth to wipe the grille, blades, and base. Do not use abrasive cleaners or immerse in water. For deep cleaning, disassemble the front grille and blade as described in the manual.

The remote control is not working. What should I do?

Check the batteries (replace if needed). Ensure there is no obstruction between the remote and the receiver. Point the remote directly at the fan. If still not working, try resetting the fan by unplugging for 10 seconds.

How do I activate oscillation?

Press the oscillation button on the control panel or remote. The fan will swing left to right. To stop oscillation, press the button again.

The fan makes a rattling noise. How can I fix it?

Check that all screws are tight and blades are properly attached. Uneven blade balance can cause noise. Clean the blades as dust buildup may cause imbalance. If noise persists, contact customer service.

Can I use the fan in a bathroom or outdoors?

No, this fan is designed for indoor use only. Do not expose to water or moisture to avoid electrical shock. Use in a dry, ventilated area.

How do I set the timer?

Press the timer button repeatedly to select the desired hours (usually 1 or 2 hours). The fan will automatically turn off after the set time. Refer to the manual for timer range.

My fan does not turn on. What should I check?

Ensure the power cord is plugged in and the outlet works. Check the fuse in the plug (if any). Make sure the fan is assembled correctly and the safety switch is engaged (if applicable). Test with another device.

Is it safe to leave the fan running overnight?

Yes, the fan has overheat protection. However, it is recommended to use the timer and ensure the fan is on a stable surface away from curtains or obstructions.

Where can I find spare parts or accessories?

Contact Emerio customer service or authorized service centers. Have your model number (TFN-110154.13) ready. Parts like remote control, blades, or grille may be available.

USER MANUAL TFN-110154.13 Emerio

Black vertical electronic tower with coiled insulation and a remote control unit visible (no text or symbols)

Tower Fan (EN)

Turmventilator (DE)

Tornveida ventilators (LV)

Tornifänn (ET)

Bokštinis ventiliatorius (LT)

Content – Inhalt – Saturs – Sisukord – Turinys

Instruction manual – English ...... - 2 -

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over.

WARNING – When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INFORMATION

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.

8. Do not operate the appliance if the mains cable or the mains plug show signs of damage, if the appliance has fallen on the floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.

9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
10. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
11. Keep the appliance away from damp, and protect from splashes.
12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistance surface.
15. Never leave the appliance in unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the grilles (fan guards) when the fan is running.
19. The appliance must be assembled completely before use.
20. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
21. Do not point the air flow to the people for a long time.
22. The rotor guard shall not be disassembled/ opened to clean the rotor blades.

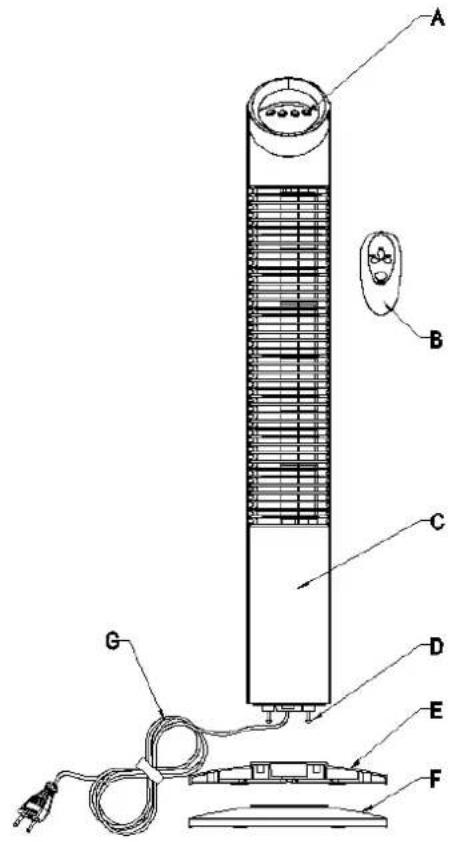

PARTS OF DESCRIPTION

A. Control panel
B. Remote control
C. Body
D. Screws
E. Front base
F. Back base
G. Power cord

ASSEMBLY

Technical line drawing of a mechanical component with a cylindrical body and threaded shaft, showing a curved arrow indicating motion (no text or symbols)

1

Mechanical assembly diagram showing a rotating component with a shaft and base, no text or symbols present

2

Technical line drawing of a mechanical assembly with no visible text or symbols

3

Technical line drawing of a circular mechanical component with radial axes and concentric rings (no text or symbols)

4

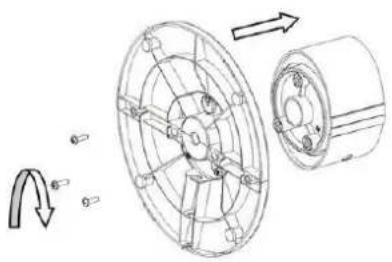

1. Spin 3 screws out from the turnplate.
2. Fasten the back and front base together.
3. Align the base with turnplate and then spin into 3 screws.
4. Press the power cord into the line deduction.

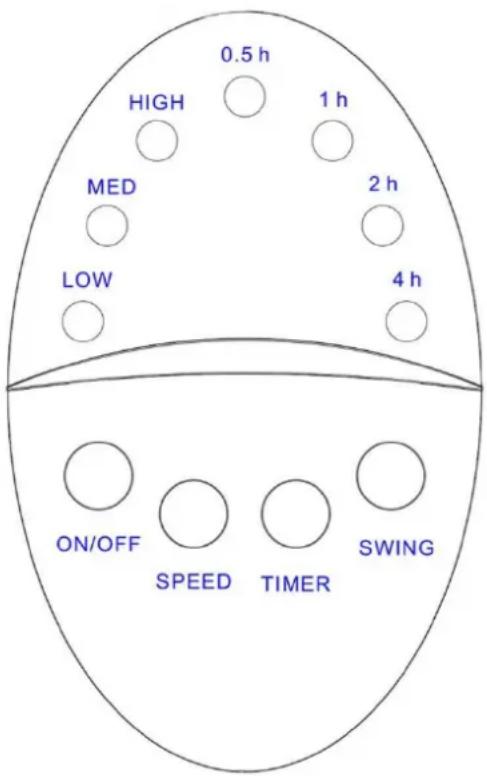

OPERATION

1. Plug the power cord into a suitable socket.
2. Press button "ON/OFF" to start the fan. The fan will begin to work under low speed and the LED light of "LOW" will be on.
3. Press button "SPEED" to choose your desired speed "LOW → MED → HIGH → LOW ..." The corresponding LED light will be on.

4. Press button "TIMER" to choose your desired working time "0.5 h → 1 h → 1.5 h → 2 h → 2.5 h → 3 h → 3.5 h → 4 h → 4.5 h → 5 h → 5.5 h → 6 h → 6.5 h → 7 h → 7.5 h → no timer → 0.5 h ...". The corresponding LED lights will be on.

5. If you wish to activate oscillatin function, please press button "SWING". Press the button again, the oscillation function will be deactivated. Oscillation angle: 0-70°

6. After use, press button "ON/OFF" to turn off the appliance and then unplug it.

NOTE: This unit has a remote control. 2X1.5V AAA batteries are to be installed. The functions of the remote control buttons are the same as of the buttons on the control panel.

CARE AND CLEANING

CAUTION: ALWAYS UNPLUG THE PRODUCT FROM THE ELECTRICAL OUTLET PRIOR TO CLEANING IT.

1. Do not use the product in oily or dirty areas, as the air vents may become blocked.
2. Clean the plastic parts with a mild soap and a damp cloth or sponge.
3. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
4. Periodically check the screws on the product to ensure they are securely tightened.
5. Store the product in a cool, dry place.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 30W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT

DISPOSE OR IN FIRE OR SHORT CIRCUIT.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

ERP information (EN)

Supplier: Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Declare that the product detailed below:

Information requirements

Information to identify the TFN-110154.13 to which the information relates to [Tower Fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	12.9	m^3/min
Fan power input	P	25.4	W
Service value	SV	0.51	(m^3/min)/W
Standby power consumption	P_SB	0.39	W
Fan sound power level	L_WA	56.1	dB(A)
Maximum air velocity	c	1.77	meters/sec
Measurement standard for service value	IEC 60879:1986+ (corr. 1992)
Contact details for obtaining more information	Emerio Holland B.V.Zomervaart 1A2033 DA HaarlemThe Netherlands

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.

GEBRAUCHSANWEISUNG

AUFBAU

Technical line drawing of a mechanical component with a cylindrical body and threaded shaft, showing a curved arrow indicating motion (no text or symbols)

1

Mechanical assembly diagram showing a rotating component with a shaft and base, no text or symbols present

2

Technical line drawing of a mechanical component with internal structure and directional arrows (no text or symbols)

3

Technical line drawing of a circular mechanical component with radial axes and mounting holes (no text or symbols)

4

MONTĀŽA

Technical line drawing of a mechanical component with a cylindrical body and internal components, showing a tool and motion arrow (no text or symbols)

1

Mechanical component diagram showing a rotating shaft and housing with a downward arrow indicator (no text or symbols)

2.

Technical line drawing of a mechanical component with exploded view and assembly (no text or symbols)

3

Technical line drawing of a circular mechanical component with radial axes and mounting holes (no text or symbols)

4

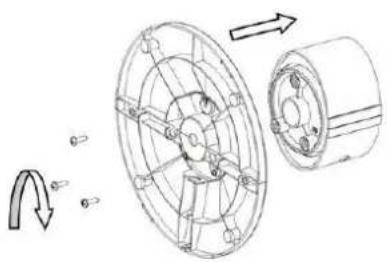

KOKKUPANEK

Technical line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

1

Mechanical component diagram showing a rotating shaft and housing with a downward arrow indicator (no text or symbols)

2.

Technical line drawing of a mechanical assembly with exploded view and directional arrows (no text or symbols)

3

Technical line drawing of a circular mechanical component with radial axes and mounting holes (no text or symbols)

4

Surinkimas

Technical line drawing of a mechanical component with no visible text or symbols

1

Mechanical assembly diagram showing a rotating component with a shaft and housing (no text or symbols)

2.

3

Technical line drawing of a circular mechanical component with radial axes and mounting holes (no text or symbols)

4

GARANTIJA IR KLIENTŲ PASLAUGOS
