CH250 - Heating Cotech - Free user manual and instructions

Product type	Panel heater
Brand / Model	Cotech / CH250
Supply voltage	220–240 V AC, 50 Hz
Max power output	1000 W
Heating element	1000 W
IP rating	IP20
Mains lead length	1.7 m
Dimensions (H x W x D)	68 × 28.5 × 8 cm
Mounting	Wall-mounted with included brackets
Thermostat control	Rotary knob with freeze prevention setting (min ~5°C)
Overheating protection	Automatic safety cut-off, resettable
Freeze prevention	Maintains room temperature above 5°C when set to min
Power switch	On/off toggle
Recommended clearance	At least 50 mm from wall (sides/bottom)
Safety notes	Do not cover; keep away from children under 3; not near bathtubs/showers/pools
Cleaning instructions	Wipe with damp cloth, mild detergent only; vacuum grilles
Disposal	Recycle at local facility; do not dispose with household waste
Certification	CE marked

Frequently Asked Questions - CH250 Cotech

How do I install the CH250 panel heater on the wall?

Use the supplied wall brackets. Detach them by pressing the release catch, mark and drill holes (ensuring no hidden cables/pipes), screw the brackets to the wall using suitable plugs and screws (not included), then hook the heater onto the brackets. Keep at least 50 mm clearance from the wall.

How do I set the desired room temperature?

Turn the thermostat knob to max, wait until the room reaches your desired temperature, then slowly turn the knob back until you hear a click (the heater switches off). It will then maintain that temperature automatically.

What is the freeze prevention feature and how do I use it?

Set the thermostat knob to the minimum (min) position. The heater will then try to keep the room temperature above 5°C, useful when you are away. Note that in very cold conditions or rapid temperature changes, it might not be sufficient.

What should I do if the heater stops working or overheats?

Unplug the heater, let it cool down for at least 10 minutes. Plug it back in and switch it on. The built-in over-temperature safety cut-off should reset and the heater will function normally again.

Can I use the panel heater in a bathroom?

No, the manual states: 'Do not use the panel heater in the immediate vicinity of bathtubs, showers or swimming pools.' It has an IP20 rating, which is not splash-proof.

How do I clean and maintain the heater?

Switch off and unplug the heater, let it cool completely. Vacuum the air intake/outlet grilles and wipe the exterior with a damp cloth using a mild cleaning agent. Never use solvents or corrosive chemicals.

Is the heater safe to leave unattended?

Yes, it has overheating protection and a freeze prevention setting. However, never cover the heater or place it directly under a wall socket. It should not be used with an external timer or automatic switch-on device.

What power does the heater consume?

The maximum power is 1000 W. It runs on 220–240 V AC, 50 Hz. Actual consumption depends on thermostat cycling.

Can I use an extension cord with the heater?

The manual does not explicitly forbid it, but it is recommended to plug it directly into a wall socket. If you must use an extension cord, ensure it is rated for at least 10 A and fully unwound to avoid overheating.

How should I dispose of the heater at the end of its life?

Take it to a local recycling facility or contact your retailer. Do not discard it with general household waste. The crossed-out wheeled bin symbol indicates separate collection for electrical and electronic equipment.

USER MANUAL CH250 Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

General instructions

• Never turn the panel heater on if there are any visible signs of damage (splits/cracks) on the housing or the mains lead or if you suspect the any hidden damage (if the heater has been dropped).
• The panel heater should only be connected to a 220–240 V wall socket.
• The external surfaces can reach temperatures of over 60 °C.

Safety

When using electrical appliances, the following basic precautions must be followed to reduce the risk of fire, electric shock or personal injury:

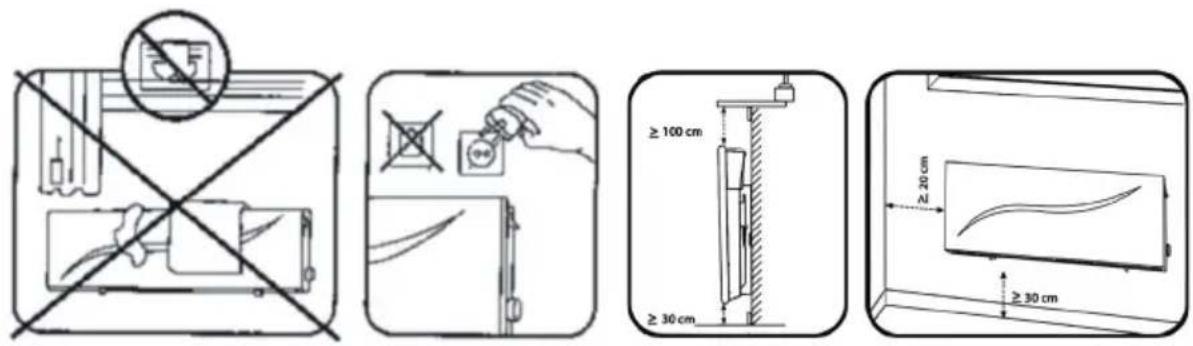

• Warning: In order to prevent overheating, do not cover the appliance.
• The appliance must not be covered by towels, curtains, etc. The appliance may overheat if it is covered. The air intake and outlet grilles must not be blocked.
• The appliance must never be placed directly beneath a wall socket.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, authorised service facility or a qualified tradesman.
• The appliance must never be connected via an on/off timer or other device which can switch the appliance on automatically since there is a risk of fire if the appliance is covered or positioned incorrectly.
• Do not use the panel heater in the immediate vicinity of bathtubs, showers or swimming pools.
• The appliance must be kept out of reach of children under 3 years of age unless they are under constant supervision.
• Children between the ages of 3 and 8 years must only switch the appliance on/off provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children between the ages of 3 and 8 years must not plug in, regulate and clean the appliance or perform user maintenance.
• Note: The appliance becomes very hot during use. Burn hazard. Particular attention has to be given where children and vulnerable people are present.

- The appliance may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Never let children play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

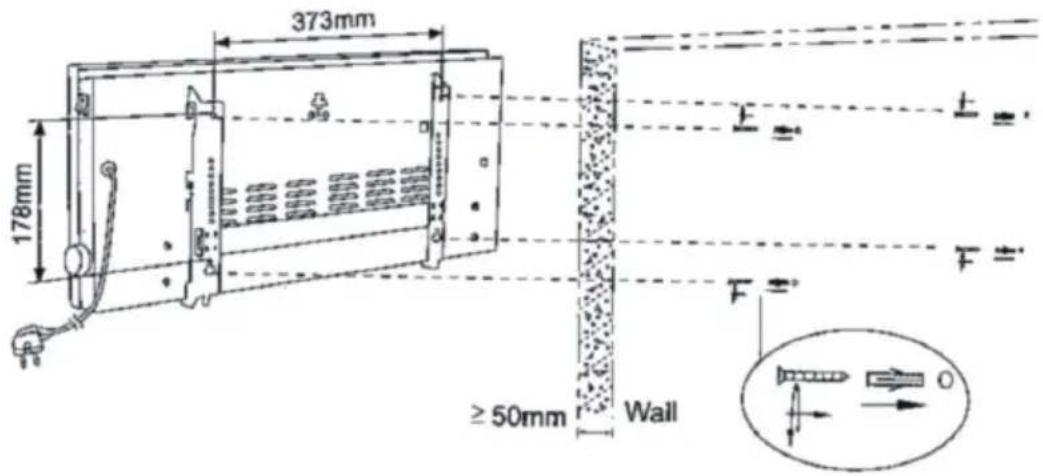

Installation

The wall brackets come fitted to the panel heater, pay attention to how they are attached so that you know how to hang the panel heater onto the brackets once they have been mounted on the wall.

1. Detach the wall brackets from the panel heater by pressing in the release catch.

2. Using the wall brackets as a guide, mark out the position of the mounting holes. Note: Before drilling the mounting holes, first make sure that there are no hidden electrical cables or water pipes in the wall.

3. Use wall plugs and screws (sold separately) or another appropriate fastening method and screw the brackets to the wall.

Technical line drawing of a mechanical bracket or mounting detail with an arrow pointing to a small component (no text or symbols present)

1. Hook the panel heater onto the wall brackets.

Buttons and functions

Power switch

Switch the heater on and off.

Simple line drawing of a door with a switch and arrow pointing to the right side (no text or symbols)

Thermostat knob

1. Max

2. Min

Operating instructions

1. Plug the heater into a wall socket.
2. Switch the panel heater on.
3. Turn the thermostat knob to max.
4. Wait until the room has reached the desired temperature.
5. Turn the knob back the other way until the panel heater switches off.
6. The panel heater will now start heating automatically when the temperature in the room drops below this setting and stop heating once the set temperature has been reached.

Overheating protection

The heater is fitted with an over-temperature safety cut-off which switches the heater off if it overheats.

To reset the over-temperature safety cut-off switch, unplug the heater and let it cool. Plug the mains lead back in and switch the panel heater on again. The appliance should now function normally again.

Freeze prevention feature

To prevent the room temperature from dropping to under 5 °C (if you are going on holiday), the thermostat can be set to the freeze prevention setting min. The panel heater then keeps the room temperature at about 5 °C. Note: Bear in mind that the room temperature can be affected by many factors. The capacity of the panel heater may be insufficient in very cold weather or if the temperature changes rapidly. It might be necessary to monitor the temperature of the room to prevent it from dropping below 5 °C.

Care and maintenance

• Switch the panel heater off, unplug it from the wall socket and let it cool before cleaning.
• Vacuum clean and wipe the panel heater with a damp cloth, if and when required. Use only mild cleaning agents, never solvents or corrosive chemicals.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin with no visible text or labels

Specifications

Supply voltage 220–240 V AC, 50 Hz

Max power 1000 W

IP rating IP20

Mains lead 1.7 m

Size 68 × 28.5 × 8 cm

Elelement 1000 W

ART.NR 36-6037 MODELL CH250

Montering

Technical line drawing of a mechanical bracket or mounting detail with an arrow pointing to a small component (no text or symbols present)

Simple line drawing of a door switch with an arrow pointing to the left side (no text or symbols)

Termostatvred

1. Max

2. Min

Användning

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Specifikationer

Nätanslutning 220–240 V AC, 50 Hz

Maxeffekt 1000 W

IP-klass IP 20

Nätkabel 1,7 m

Mått 68 × 28,5 × 8 cm

Varmeelement 1000 W

ART.NR. 36-6037 MODELL CH250

Montering

Technical line drawing of a mechanical bracket or mounting detail with an arrow pointing to a small component (no text or symbols present)

1. Huk elementet fast til festet.

Simple line drawing of a door with a switch and arrow pointing to the right side (no text or symbols)

Termostatbryter

1. Max

2. Min

Bruk

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Spenning 220–240 V AC, 50 Hz

Maks effekt 1000 W

IP klasse IP 20

Strømkabel 1,7 m

Mål 68 × 28,5 × 8 cm

Lämpöpatteri 1000 W

TUOTENRO 36-6037 MALLI CH250

Asennus

Technical line drawing of a mechanical bracket or mounting detail with an arrow pointing to a small component (no text or symbols present)

Simple line drawing of a door with a switch and arrow pointing to the right side (no text or symbols)

Termostaatti

1. Max

2. Min

Käyttö

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Montage

Technical line drawing of a mechanical bracket or mounting detail with an arrow pointing to a detail (no text or symbols present)

Simple line drawing of a door with a switch and arrow pointing to the right side (no text or symbols)

Temperaturregler

1. Max

2. Min

Bedienung

Symbol of a trash bin crossed with no visible text or labels

Technische Daten
