34-2256 - Slicer Coline - Free user manual and instructions

Product Type	Multi-Chopper/Mandolin
Brand	Coline
Model	34-2256
Category	Food Slicer/Chopper
Operation	Manual
Functions	Slicing, grating (fine & coarse), dicing, chopping, julienne (fine & coarse)
Included Accessories	Mandolin lid, chopper/dicer lid, food holder with lid, container, fine grater, coarse grater, slicing accessory, dicing accessory, chopping accessory, fine julienne accessory, coarse julienne accessory, clean-out tool
Material	Plastic body, stainless steel blades
Cleaning Method	Hand wash with mild detergent; use clean-out tool for lid; vegetable oil to remove discoloration
Safety Features	Sharp blades; use food holder to protect hands; always handle accessories with care
Disassembly	Chopper/dicer lid can be disassembled by pressing catches
Disposal	Dispose according to local regulations
Documentation	User manual included (20 pages, English)

Frequently Asked Questions - 34-2256 Coline

What accessories are included with the Coline 34-2256?

The multi-chopper/mandolin comes with a mandolin lid, chopper/dicer lid, food holder with lid, container, fine and coarse graters, slicing accessory, dicing accessory, chopping accessory, fine and coarse julienne accessories, and a clean-out tool.

How do I use the mandolin lid?

Fit the mandolin lid onto the container. Insert the desired accessory by aligning its pins with the holes in the lid and pressing down until flush. Place the food holder on the lid, lock the catches, add food, put the lid on, and slide back and forth.

How do I use the chopper/dicer lid?

Fit the lid onto the container and insert either the chopping or dicing accessory. Place the food on the accessory and chop/dice by pushing down on the lid.

Can I wash the accessories in the dishwasher?

The manual recommends hand washing only with mild detergents. Do not use solvents or corrosive chemicals, and avoid dishwasher to prevent damage.

How do I clean the chopper/dicer lid effectively?

Use the provided clean-out tool to remove food residue from the inside face of the lid. The lid can also be disassembled by pressing in the catches for thorough cleaning.

How do I remove discoloration from carrots or tomatoes?

Apply a small amount of vegetable oil to the affected area and wipe clean. This helps remove stains without damaging the plastic.

Are the blades sharp?

Yes, all cutting plates and accessories are extremely sharp. Handle them with care during use and cleaning to avoid injury.

Can I slice or grate different types of vegetables?

Yes, the multi-chopper/mandolin is designed for a variety of foods. It can slice, grate (fine and coarse), dice, chop, and julienne vegetables, fruits, and more.

How do I disassemble the chopper/dicer lid?

Press in the catches on the sides of the lid and pull the two halves apart. This allows access to the interior for cleaning.

What should I do at the end of the product's life?

Dispose of the product according to local regulations. Contact your local council for proper disposal methods if unsure.

USER MANUAL 34-2256 Coline

Illustration of various household appliances including a microwave oven, kitchen drawer, and air purifier (no text or symbols present)

Art. No.:

34-2256

English 3

Svenska 6

Norsk 9

Suomi 12

Deutsch 15

Multi-Chopper/Mandolin

Art.no 34-2256

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services (see address details on the back).

Note: All the accessories (cutting plates) are extremely sharp, handle them with care when using or washing them.

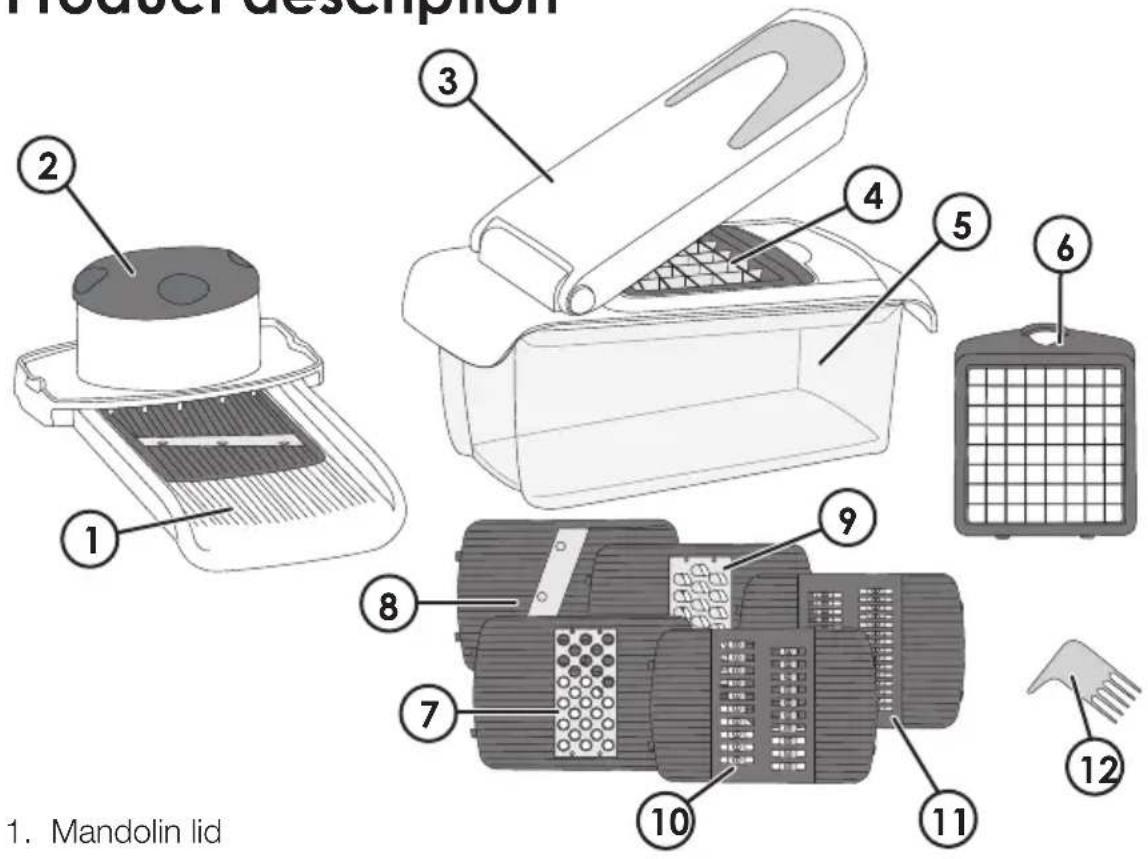

Product description

1. Mandolin lid
2. Food holder with lid
3. Chopper/dicer lid
4. Chopping accessory
5. Container
6. Dicing accessory
7. Grater (fine)
8. Slicing accessory
9. Grater (coarse)
10. Julienne accessory (coarse)
11. Julienne accessory (fine)
12. Clean-out tool

Operating instructions

Using the mandolin lid

Technical line drawing of a rectangular basin or container with a central opening and side slats (no text or symbols)

1. Fit the mandolin lid onto the container.

Cross-sectional diagram of a mechanical component with layered structure (no text or symbols)

Illustration of a hand holding a mobile phone with a dotted line indicating rotation around it (no text or symbols present)

Line drawing of a rectangular container with a dark central object and a patterned top surface (no text or symbols)

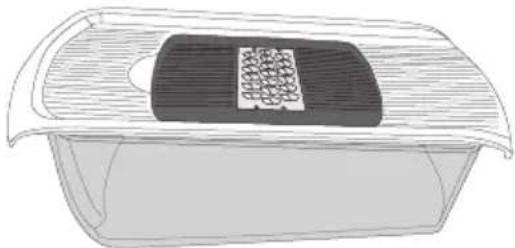

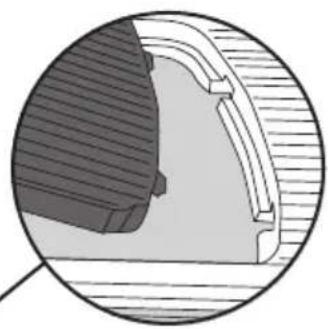

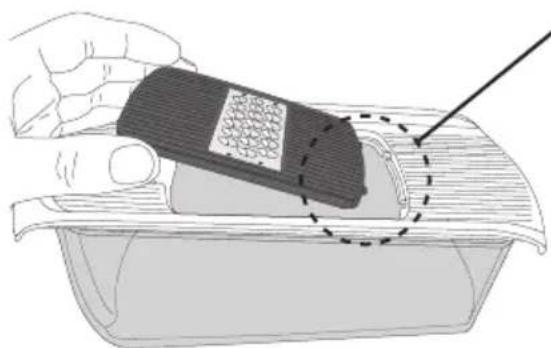

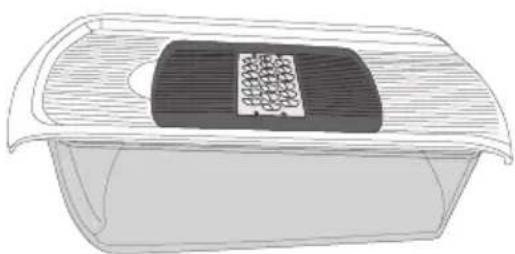

1. Insert the accessory of your choice. Align the pins in the accessory with the holes in the lid and press down until the accessory is flush with the lid.

Technical illustration showing a hand adjusting a circular component and its internal structure (no text or symbols present)

1. Pull out the catches on the sides of the food holder, place the food holder onto the lid and slide the catches back in.

2. Place the food to be grated/sliced into the food holder, put the lid on the food holder and slide the holder back and forth.

3. Detach the food holder from the lid by pulling out the catches.

Using the chopper/dicer lid

1. Fit the lid onto the container and insert either the chopping accessory or the dicing accessory.

1. Place the food to be chopped/diced onto the accessory.
2. Chop/dice the food by pushing down on the lid.

Care and maintenance

• Discolouration from carrots, tomatoes, etc., can be removed using vegetable oil.
• Always wash the multi-chopper/mandolin after use. Only use mild detergents, never solvents or corrosive chemicals.
• Use the provided comb tool to clean the inside face of the chopper lid.
• If necessary the chopper/dicer lid can be disassembled by pressing in the catches. The two halves can then be pulled apart.

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local council.

Multihackare/rivjärn

Art.nr 34-2256

Technical line drawing of a boat hull with side panels and hull (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure (no text or symbols)

Illustration of a hand holding a mobile phone with a screen, showing a hand interacting with the phone (no text or symbols present)

Line drawing of a rectangular container with a central black lid and patterned top surface (no text or symbols)

Technical illustration showing a hand holding a circular component and its side view of a mechanical component with internal structure (no text or symbols)

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Avfallshantering

Technical illustration showing a hand holding a circular component and its side view of a mechanical component with internal structure (no text or symbols)

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Avfallshåndtering

Technical illustration showing a hand holding a circular component and a close-up of its internal structure (no text or symbols)

Illustration of hands installing or adjusting a component inside a device casing (no text or symbols visible)

Kierrättäminen

Technical line drawing of a boat hull with side panels and hull (no text or symbols)

Technical illustration showing a hand adjusting a circular component and its internal structure (no text or symbols present)

Illustration of a hand inserting a component into a device panel (no text or symbols visible)
