JGR011718 - Contact grill Jocel - Free user manual and instructions

Product Type	Contact Grill
Brand	Jocel
Model	JGR011718
Power Supply	220-240V ~ 50/60Hz
Power Rating	1500 W (typical)
Cooking Surface	Non-stick coated, rectangular
Temperature Control	Adjustable thermostat with indicator light
Temperature Range	Approx. 120°C - 190°C
Handle	Cool-touch handle
Drip Tray	Removable drip tray for fat collection
Safety Features	Hot surface warning, short cord, auto-off when unplugged
Cleaning Instructions	Hand wash with warm soapy water; do not immerse cord or probe
Included Accessories	Temperature control probe
Warranty	2 years for household use (from invoice)
Approvals	CE compliant, Low Voltage Directive 2006/95/CE, EMC 2004/108/CE

Frequently Asked Questions - JGR011718 Jocel

How do I condition the non-stick surface before first use?

Apply a small amount of oil or vegetable shortening to the surface, then heat the grill at 120°C for 15 minutes. This ensures stick-free cooking.

What is the correct way to connect the temperature control probe?

Ensure the control is set to OFF, plug the cord into the appliance first, then into the wall outlet. Always grip the probe when inserting or removing.

Can I use metal utensils on the non-stick surface?

No, metal utensils may scratch the non-stick coating. Use wooden or heatproof plastic utensils instead.

Why does the indicator light turn on and off during cooking?

The light indicates that the grill is maintaining the selected temperature. It cycles on and off to regulate heat.

How should I clean the grill after use?

Unplug and let it cool completely. Wash the surface with a soft sponge and warm soapy water. Never immerse the cord, plug, or probe in water.

What should I do if the grill stops working?

Check that the probe is fully inserted and the outlet is working. If it still fails, contact Jocel technical assistance ([e-mail]).

Can I cook frozen foods directly on the grill?

It is not recommended; thaw frozen food first for even cooking and to avoid damaging the non-stick surface.

What is the maximum cooking time for chicken breast?

Cook 12-15 minutes on each side at 175°C, or until internal temperature reaches 75°C.

Is the grill suitable for outdoor use?

No, the grill is for indoor household use only. Do not use outdoors.

How do I replace the temperature control probe if damaged?

Only use a replacement probe provided by the manufacturer. Contact Jocel customer service for a genuine part.

USER MANUAL JGR011718 Jocel

White JOCET grater with black handle and control knob (no visible text or symbols)

JGR011718

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTIONS MANUAL

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

(CAUTION: Hot surface): The surfaces are liable to get hot during use.

IMPORTANT SAFEGUARDS

Basic safety precautions should always be followed when using electrical appliances, including the following:

1. Read all Instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse electrical cord in water or other liquid.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury.
8. Do not use outdoors.
9. Do not let cord touch hot surfaces or hang over the edge of a counter or table.
10. Do not place on or near a hot burner or in a heated oven.
11. Extreme caution must be used when using or moving an appliance containing hot oil or other hot liquids.
12. Do not use the appliance for other than intended use.
13. Always attach plug to appliance first and then plug cord into the wall outlet. To disconnect, turn any control to "O" (OFF) then remove plug from wall outlet.
14. Make sure to insert temperature control probe completely into the receptacle. When inserting or removing temperature control probe, always grip the probe instead of pulling the power cord.
15. This appliance is not intended to be operated by means of an external timer or separate remote-control system
16. Only the appropriate connector can be used.
17. Domestic use only.
18. Do not use outdoors.

SHORT CORD INSTRUCTIONS

1. A short detachable power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
3. If a longer detachable power-supply cord or extension cord is used:

a. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.

b. The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally, the extension cord should be a grounding-type 3-wire cord.

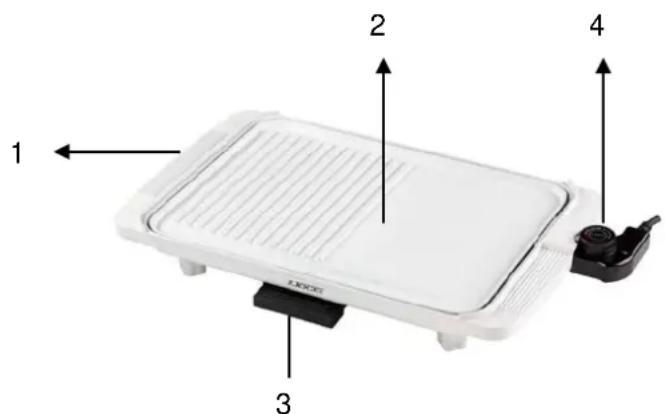

PARTS IDENTIFICATION

1. Cool-Touch Handle
2. Non-stick Cooking Surface
3. Drip Tray
4. Temperature Control Probe

HOW TO USE

BEFORE USING FOR THE FIRST TIME

1. Remove all packaging materials.
2. Pull the grill away from the plastic base.
3. Wash the Grilling surface, with warm soapy water by using a sponge or dishcloth. Rinse thoroughly to remove soap residue.
4. Never immerse the power cord, plug or temperature selector in water or other liquid.
5. Do not use abrasive cleaners or scouring pads.

CONNECTING TEMPERATURE CONTROL PROBE

1. Be sure the temperature control is set to the "O" (OFF) position.
2. Plug the power cord to the appliance first, and then plug cord into the wall outlet.

CONDITIONING THE COOKING SURFACE

Before using for the first time, we recommend conditioning the non-stick surface to ensure stick-free cooking.

1. Apply a small amount of oil, or vegetable shortening to the non-stick surface.
2. Set the temperature control to 120^ C and heat for 15 minutes.

START COOKING

1. Turn the knob to the desired temperature setting. The red indicator light will illuminate.
2. The light will go off when the grill has reached the selected temperature.
3. Cook food with little or no oil. Remove the plastic wrapping material from food first if any exists.
4. When finished, turn the temperature control to the "O" (OFF) position and unplug the power plug from wall outlet.

NOTE:

• During operation the light will turn on and off indicating the proper temperature is being maintained.
• Metal utensils that may scratch the non-stick surface are not recommended for use with the grill. Use wooden and heatproof plastic utensils.

CAUTIONS

- Do not touch any hot surfaces.

• Do not pour large amount of oil or butter on the grill surface. The grill has non-stick surface so that only little or no oil is needed for cooking. Be careful of the spattering oil while cooking; wear protective mitts if necessary.
• Do not cut any food while still in the grill, as this will damage the non-stick cooking surface. Remove food with large spatula and place on a cutting board before cutting.
• Do not use metal or abrasive utensils when cooking on non-stick grill surface to prevent from scratching.

HOW TO CLEAN & CARE

AFTER USE

1. Disconnect the plug from wall outlet, and then remove the power cord from the appliance.
2. Allow the unit to completely cool.
3. Wash the grill by soft sponge with warm water.
4. Due to the harsh abrasives in many dishwashing detergents, we recommend that you hand wash the grill with warm water.

CARE OF TEMPERAURE CONTROL PROBE

- Clean temperature control and receptacle pin with dry soft cloth.

To prevent damage to the temperature control probe do not drop, hit, or impact the control.
- Only use the temperature control that is provided by the manufacturer to be used with this appliance.

CAUTIONS:

• Never immerse the power cord, plug or temperature selector in water or other liquid.
- Do not use abrasive cleaners or metal scouring pads to clean the grill surface.

QUICK COOKING GUIDE

Food	Cooking Time	Temperature
Salmon/Fish	15-20 minutes	160°C
Bacon	15-20 minutes	140°C
Sausage Links 20 minutes		145°C
Hamburger	15-20 minutes	190°C
Hotdogs 15 minutes		145°C
Chicken Breast	12-15 minutes each side	175°C
Bone in Pork Chops	10-12 minutes each side	145°C
Steak (rare) 5-6 minutes each side		190°C
Steak (well done)	8-9 minutes each side	190°C
Lamb Cutlets	6-7 minutes each side	190°C

This appliance is intended for household use only.

SAVE THESE INSTRUCTIONS

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product

GRILL

Brand

JOCEL

Model

JGR011718

Complies with the following European directives and standards implementation

Low Voltage

2006/95/CE

EN 60335-2-9/A13:2010

EN 60335-1:2012

EN 62233:2008

Electromagnetic Compatibility

2004/108/CE

EN 55014-1/A2:2011

EN 55014-2/A2:2008

EN 61000-3-2/A2:2009

EN 61000-3-3:2008

Country of Origin: R.P.C.
