Product Type	Soldering Gun
Brand	Holzmann
Model	LP 700
Power Supply	220–240 V ~ 50 Hz
Power Consumption	100 W (estimated)
Temperature Range	70 °C – 500 °C
Temperature Stages	Stage A: 70–200 °C (plastic welding) Stage B: 200–350 °C (PCB soldering) Stage C: 350–500 °C (high-temp applications)
Heating Element	Transformer-based, replaceable tip
Work Light	Integrated, activated with trigger
Weight	Approx. 0.5 kg
Dimensions (L x W x H)	Approx. 200 x 50 x 30 mm
Operating Humidity	Max. 70%
Operating Temperature	+5 °C to +40 °C
Intended Use	Soldering/desoldering electronic components, tinning, cable connections
Prohibited Use	Heating liquids, plastic parts, use in wet/flammable environments
Safety Features	RCD protection recommended, auto-off when trigger released, cool-down before storage
Maintenance	Clean tip with fine sandpaper after ~20 h; wipe housing with damp cloth; no solvents
Spare Parts	Soldering tip (1), grip nuts (2), spacer (3), transformer (4), temperature knob (5), housing (6,7), screws (8), cable (9), cable jacket (10), cable terminal (11), temperature board (12), bolt (13), switch (14), switch lever (15), LED board (16)
Repairability	Only original Holzmann spare parts; professional repair required
Warranty	12 months (private use), 6 months (commercial use)
Certifications	CE, EN 60335-1, EN 60335-2-45, EN 55014, EN 61000
Included Accessories	Soldering tip, damp sponge (for cleaning)

Frequently Asked Questions - LP 700 Holzmann

How do I change the soldering tip on the Holzmann LP 700?

First, ensure the soldering gun is turned off, unplugged, and completely cooled. Loosen the two grip nuts (part 2) and remove the old tip. Clean the heater lightly and apply a thin film of oil. Install the new tip and tighten the nuts securely. Always use original Holzmann spare parts.

What are the three temperature settings for and how do I select them?

The LP 700 has an adjustment knob (3) with three stages: Stage A (70–200 °C) for welding/cutting plastic parts; Stage B (200–350 °C) for soldering circuit boards; Stage C (350–500 °C) for high-temperature tasks like wood engraving. Rotate the knob to the desired position before use.

How should I clean the soldering tip and the unit?

For the tip, remove oxides and contaminants with fine sandpaper after about 20 hours of use. Do not use aggressive cleaners. For the housing, unplug the unit and wipe with a soft, lightly damp cloth. Never allow moisture to enter the openings. Avoid solvents or harsh chemicals.

What safety precautions should I take when using the LP 700?

Always work in a well-ventilated area and wear protective goggles. The tip can reach 500 °C – do not touch metal parts. Never leave the hot iron unattended. Only operate on a non-flammable surface and keep away from children. Use a RCD-protected outlet. Disconnect the power supply before any maintenance.

Can I use the Holzmann LP 700 for soldering plastic parts?

Yes, but only in Stage A (70–200 °C). The manual specifically allows welding and cutting of plastic parts at this low temperature. Never use higher stages for plastic, as toxic vapors may be released. Ensure proper ventilation.

What type of solder is recommended for the LP 700?

The manual recommends using a non-corrosive flux solder. Common solder with 60% tin and 40% lead is suitable. Always follow the solder manufacturer's temperature guidelines to avoid cold joints or component damage.

Why might the soldering tip not heat up?

First check the power supply: ensure the plug is connected and the outlet is working. Press the ON‑OFF button (5) fully. If still no heat, the tip may be oxidized or the heater may be faulty. Inspect the tip and clean it. If the issue persists, the unit may need professional repair – do not open it yourself.

How do I dispose of the LP 700 at the end of its life?

Do not dispose of the soldering gun in household waste. Contact your local authorities for recycling options. When purchasing a replacement unit, your dealer may take back the old device. Follow local regulations for electronic waste.

What should I do in case of an emergency or burn?

In case of a burn, cool the affected area with cold water and seek medical attention if necessary. Keep a first aid kit nearby. For electrical shock, disconnect the power immediately and call emergency services. Provide details: accident location, type, number of injured, and injury types.

Can I use the LP 700 in damp or outdoor conditions?

No. The soldering gun must only be used in dry indoor rooms. Operating in damp or wet conditions, or in the presence of flammable gases, is strictly prohibited due to risk of electric shock and fire. Always ensure the environment is dry and well-ventilated.

USER MANUAL LP 700 Holzmann

Red and black metal soldering gun (LP 700) with visible branding, no text or symbols on the tool itself.

LP 700

LÖTPISTOLE

SOLDERING GUN

Read the operation manual carefully before first use!

Technical data subject to changes, errors excepted!

Edition: 18.05.2016 - Revision 01 - CEC - DE/EN

1 INHALT /INDEX

9.1 Intended use 14
9.2 Prohibited use 14
9.3 Safety information.... 15
9.4 Residual risks....17
9.5 In an emergency 17

10 OPERATION 18

10.1 operating instructions.... 18

10.1.1 Operating instructions:....18

10.2 Operation....18

10.2.1 Changing the tip 19

11 MAINTENANCE 19

11.1 Cleaning....19
11.2 Disposal 19

12 ERSATZTEILE / SPARE PARTS 20

EN ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

EN READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls n order to use the machine correctly and to avoid injuries and machine defects.

EN Wear protective equipment

EN Stop and pull out the power plug before any break and engine maintenance!

EN Protect from moisture!

EN CE-Conformal! - This product complies with the EC-directives.

3 TECHNIK / TECHNIC

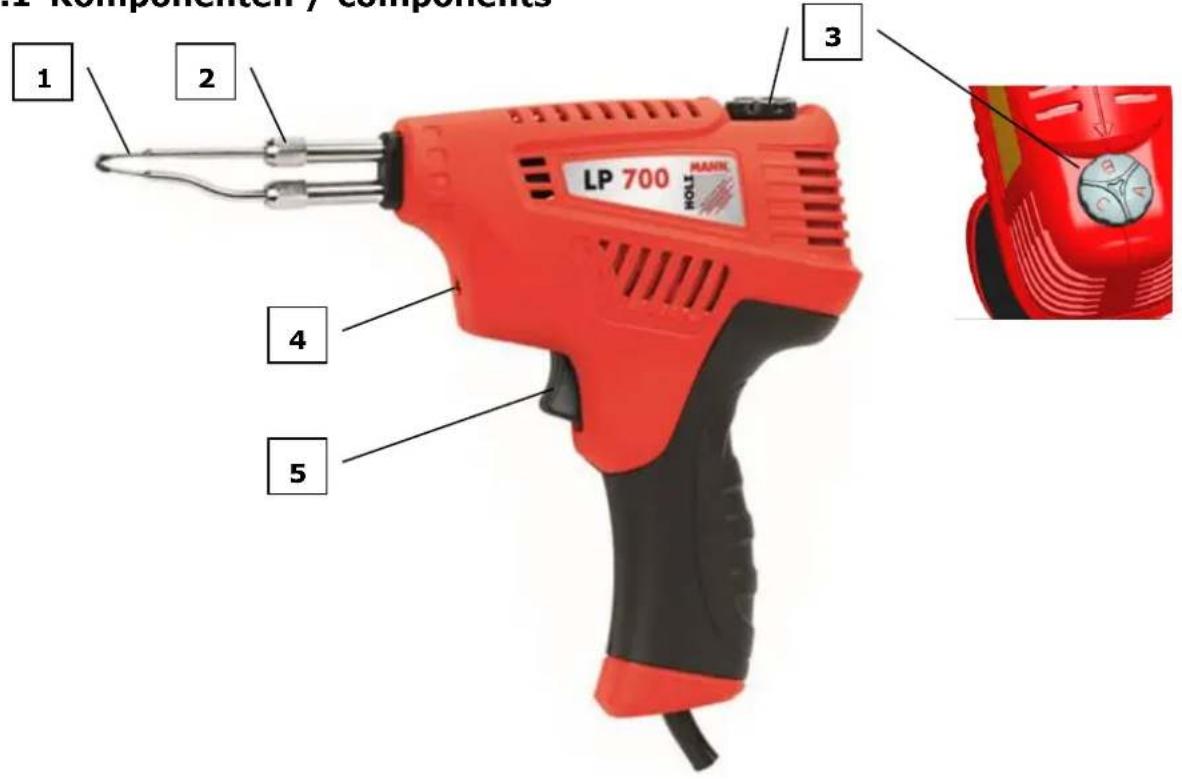

3.1 Komponenten / components

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

8 PREFACE

Dear Customer!

This manual contains information and important instructions for the installation and correct use of the Soldering gun LP 700.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

This manual is part of the product and shall not be stored separately from the product. Save it for later reference and if you let other people use the product, add this instruction manual to the product.

Please read and obey the security instructions!

Before first use read this manual carefully. It eases the correct use of the product and prevents misunderstanding and damages of product and the user's health.

Due to constant advancements in product design, construction pictures and content may diverse slightly. However, if you discover any errors, inform us please.

Technical specifications are subject to changes!

Please check the product contents immediately after receipt for any eventual transport damage or missing parts.

Claims from transport damage or missing parts must be placed immediately after initial product receipt and unpacking before putting the product into operation.

Please understand that later claims cannot be accepted anymore.

Copyright

© 2016

This document is protected by international copyright law. Any unauthorized duplication, translation or use of pictures, illustrations or text of this manual will be pursued by law.

Court of jurisdiction is the Landesgericht Linz or the competent court for 4170 Haslach, Austria!

CUSTOMER SERVICE CONTACT

The machine only in technically perfect condition, for their intended safety, and use risk-conscious! Faults which could impair safety, must be rectified immediately! It is generally forbidden to modify safety equipment on the machine or to make ineffective!

Working conditions:

The device is intended for work under the following conditions:

Humidity

max. 70%

Temperature

of + 5 °C to + 40 °C

The Soldering gun may only be operated:

• for soldering / desoldering electric and electronic components in printed circuit boards and modules
  • for tinning of conductors and cable ends
  • for the production of cable connections

9.2 Prohibited use

• The operation of the device under conditions outside the limits specified in these instructions is not permitted.
• It is not permitted the operation of the machine with materials that are not specifically mentioned in this manual.
• Any changes in the design of the device are not permitted.
• Operation is in a manner or for purposes contrary to the instructions of this manual is 100% forbidden.

The soldering gun must not be used under any circumstances:

for heating liquids (water, bases, solvents) or plastic parts (release of toxic vapors, fire hazard)

The soldering gun may only be used if safe operation is guaranteed. In the following cases, a safe operation is to be expected:

• visible damage (eg insulation faults, housing breakage)
- long storage under unfavorable conditions

The device must not be used in damp or wet conditions and not in the presence of flammable or combustible materials and gases.

For another, or use beyond that and resulting damage or injuries accepts HOLZMANN MASCHINEN no responsibility or warranty.

9.3 Safety information

To avoid malfunctions, damage and physical injury MUST be observed:

Safety must be observed and regularly inspected for completeness!

Warning signs and / or labels on the machine which have been removed must be replaced immediately!

DANGE R

Unauthorized modifications and tampering with the machine immediately invalidate all warranty and damage claims.

With fatigue, lack of concentration or under the influence of drugs, alcohol or drugs is prohibited to work with the machine!

The device may only be operated by qualified personnel enrolled.

Unauthorized, in particular children, and not trained persons must be kept away from the equipment!

Take care. Always a good ventilation of the work area

When working with the device suitable protective goggles must be worn!

Before carrying out maintenance or adjustment work the machine must be disconnected from the power supply! Off the main switch before disconnecting the power supply (OFF).

Use the power cord Never transport or manipulation of the machine!

- A defective soldering gun must not be put into operation or continue to operate, but must be immediately disconnected from the mains and secured against further use. To repair the soldering gun may only be opened and repaired by professionals who are authorized to do so because of their education. A self-intervention poses the risk of electric shock and also voids the warranty.

- The soldering gun may only be at 230 (220 ... 240 V) / 50 Hz AC power to operate.

- The soldering gun may only be installed and operated in dry interior rooms.

- The activated soldering gun must not be left unattended.

- The soldering gun must not be used or stored within the reach of children.

- When used in teaching the soldering gun must be supervised by an experienced teacher.

- The fumes produced during soldering can impair the health! The soldering must therefore only be carried out in well ventilated rooms or under an appropriate deduction.

- The soldering work may only be carried out to current and voltage loose particles.

- the relevant regulations must be observed to prevent accidents when commercial use of the soldering gun.

- When transporting the soldering gun from a cold to a warm environment may lead to the formation of condensation water (condensate), which can lead to an impairment or damage to the instrument electronics. Therefore, turn the soldering gun on only after it has acclimatized.

- The soldering gun reaches temperatures up to 500 °C. A touch of metallic parts of the heated soldering iron can cause serious burns in humans and animals!

- The soldering gun should not be unnecessarily set to a high temperature for long.

- The soldering iron must never be immersed in water for cooling.

- The soldering gun can get very hot during operation, and therefore may only be parked on a firm, solid, non-combustible surface. The attached for heat dissipation in the housing louvers must never be covered or blocked.

- When soldering cables and contacts is to ensure that senior, bare metal parts by means of appropriate measures (cover with non-flammable insulation material) must be protected against contact.

- If the housing or covers of electrical equipment for repair and maintenance work must be opened, live parts are exposed, contacts and charged capacitors open. Because of the possible danger to life, the soldering work may be carried out in this case only by qualified personnel.

- When repair work, the recommendations of the equipment manufacturer for the use of suitable solder as solder paste, solder honey, soldering tincture etc.

- To clean the exterior and rubber parts of the off and disconnected from the mains soldering gun only a dusting brush and a soft, slightly damp cloth (no harsh cleaners, aerosol cleaners or solvents). Ensure that passes through openings in the interior of the device while cleaning no liquid.

D ANGER

Check and follow the instructions! Non-compliance can result in severe injury or death! HOLZMANN Maschinen can not be held liable for accidents if the safety instructions are not followed!

9.4 Residual risks

Despite its intended use, certain residual risk factors can not be completely eliminated. Due to construction and design the device can perform the following risks occur:

- Risk of shortages of the device

If one or more parts fault of the equipment, the use of the appliance is prohibited. Defective parts must be replaced immediately. Only manufacturer-approved replacement parts are used. Modifications on the device are forbidden. Check each time before the machine is in perfect condition!

- Risk of electric shock

Operate the unit only to a power source, which is protected by an RCD! Outlets must be properly installed, grounded and checked! Check the plug and supply current network only by an electrician!

9.5 In an emergency

	NOT I CE
	Emergency procedureA first aid kit should always be readily available for a possible accident.Initiate the violation in accordance with the necessary first aid measures.When requesting support, provide the following details:
	1. Place of accident	2. Type of accident
	3. Number of injured people	4. Injury type(s)

10 OPERATION

10.1 operating instructions

10.1.1 Operating instructions:

The right temperature is an important requirement for a successful solder joint while soldering. If the temperature is too low, the solder not distributed properly so that it comes to so-called cold soldering. At too high a temperature, the flux evaporates, so that the solder flows poorly. In addition, the components can be damaged with too high temperature. The recommended temperature of the solder can be found in the packaging. The most common solder containing 60% tin and 40% lead.

Note: It is recommended to use with non-corrosive solder flux.

The soldering gun has 3 temperature settings that are set by controller (3).

Level A:

Temperature of 70 to 200 degrees - welding and cutting of plastic parts.

STAGE B:

Temperature of 200 to 350 degrees - and tin soldering or working on circuit boards, circuit boards and the like.

Level C:

Temperature 350 to 500 degrees - Where use is required by high temperatures. e.g. Wood engraving etc.

10.2 Operation

Switch on:

Pressing the ON - OFF button (5) the work light and the unit will be turned on. Releasing the button ends the operation and the work light goes out.

After the end of the soldering:

• Remove excess tin from the soldering tip on the damp sponge (2) prior to the soldering tip before the torch is turned off.
• Let the soldering gun cool down after soldering. Unplug the power cord from the electrical outlet when the torch is no longer used. Let the soldering gun to the final cooling unattended!

10.2.1 Changing the tip

1. Wait until the tip and fixing nuts are well cooled.
2. Loosen the fixing nuts and remove the soldering tip.
3. Clean the heater and lightly lubricate with a thin film of oil.
4. Install a new tip and secure with the two nuts.

11 MAINTENANCE

ATTENTION

During cleaning and maintenance with connected machine: Property damage and serious injury from inadvertent switching on the machine!

Therefore:

Switch the machine off and disconnect it from the power supply before any maintenance works or cleaning is carried out

11.1 Cleaning

The full and regular cleaning of the machine ensures a long life and is a safety requirement. Use only mild detergent, ie no gasoline, kerosene, soda etc ...

1. Always unplug the mains lead before cleaning.
2. Dry the soldering gun with a soft, lightly moistened cloth. Never use strong cleaning solutions or solvents.
3. Make sure that no moisture gets into any of the soldering gun's openings.
4. To clean the soldering tip thoroughly use a fine grade sandpaper to remove any oxides or other contaminants on a regular basis or after about 20 hours of use.

Note: Never set the soldering gun to high during long periods as this can damage the soldering tip.

11.2 Disposal

Do not dispose the machine in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

12 ERSATZTEILE / SPARE PARTS

With original Holzmann spare parts you use parts that are attuned to each other shorten the installation time and elongate your products lifespan.

I MP OR T AN T

The installation of other than original spare parts voids the warranty!

So you always have to use original spare parts

When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.

You find the order address in the preface of this operation manual.

Part No.	Description of Spare Part
1	Soldering Tip
2	Grip nut
3	Spacer
4	Transformer
5	Temperature Adjustment Knob
6	Left Housing
7	Right Housing
8	Screw
9	Cable
10	Cable Jacket
11	Cable Terminal
12	Temperature Adjustment System Board
13	Bolt
14	Switch
15	Switch lever
16	LED board

13 EG-KONFORMITÄTSERKLÄRUNG / CE-CERTIFICATE OF CONFORMITY

CE	Inverkehrbringer / DistributorHOLZMANN MASCHINEN® GmbH4170 Haslach, Marktplatz 4, AUSTRIATel.: [phone]; Fax.: [phone]www.holzmann-maschinen.at
Bezeichnung / name
LÖTPISTOLE / SOLDERING GUN
Typ / model
LP 700
EG-Richtlinien / EC-directives
2006/95/EG, 2014/30/EU
Angewandte Normen / applicable Standards
EN 60335-1:2012, EN 60335-2-45:2002+A1:08+A2:12, EN 62233:2008,EN 55014-1:2006/+A1:2009/+A2:2011, EN 55014-2: 1997/+A1:2001/+A2:2008EN 61000-3-2:2014, EN 61000-3-3:2013

Hereby we declare that the above mentioned machines meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

(applicable from 17.05.2016)

Please consult our troubleshooting section for initial problem solving. Feel free to contact your HOLZMANN reseller or us for Customer Support!

Warranty claims based on your sales contract with your HOLZMANN retailer, including your statutory rights, shall not be affected by this guarantee declaration. HOLZMANN-MASCHINEN grants guarantee according to following conditions:

A) The guarantee covers the correction of deficiencies to the tool/product, at no charge, if it can be verified adequately that the deficiencies were caused by a material or manufacturing fault.
B) The guarantee period lasts 12 months, and is reduced to 6 months for tools in commercial use. The guarantee period begins from the time the new tool is purchased from the first end user. The starting date is the date on the original delivery receipt, or the sales receipt in the case of pickup by the customer.
C) Please lodge your guarantee claims to your HOLZMANN reseller you acquired the claimed tool from with following information:

Original Sales receipt and/or delivery receipt

Service form (see next page) filed, with a sufficient deficiency report
for spare part claims: a copy of the respective exploded drawing with the required spare parts being marked clear and unmistakable.
D) The Guarantee handling procedure and place of fulfillment is determined according to HOLZMANNs sole discretion in accordance with the HOLZMANN retail partner. If there is no additional Service contract made including on-site service, the place of fulfillment is principally the HOLZMANN Service Center in Haslach, Austria.

Transport charges for sending to and from our Service Center are not covered in this guarantee.

E) The Guarantee does not cover:

• Wear and tear parts like belts, provided tools etc., except to initial damage which has to be claimed immediately after receipt and initial check of the product.
• Defects in the tool caused by non-compliance with the operating instructions, improper assembly, insufficient power supply, improper use, abnormal environmental conditions, inappropriate operating conditions, overload or insufficient servicing or maintenance.
• Damages being the causal effect of performed manipulations, changes, additions made to the product.
• Defects caused by using accessories, components or spare parts other than original HOLZMANN spare parts.
• Slight deviations from the specified quality or slight appearance changes that do not affect functionality or value of the tool.
• Defects resulting from a commercial use of tools that - based on their construction and power output - are not designed and built to be used within the frame of industrial/commercial continuous load.

F) Claims other than the right to correction of faults in the tool named in these guarantee conditions are not covered by our guarantee.

G) This guarantee is voluntary. Therefore Services provided under guarantee do not lengthen or renew the guarantee period for the tool or the replaced part.

SERVICE

After Guarantee and warranty expiration specialist repair shops can perform maintenance and repair jobs. But we are still at your service as well with spare parts and/or product service. Place your spare part / repair service cost inquiry by filing the SERVICE form on the following page and send it:

via Mail to [e-mail]

or via Fax to: [phone]

16 PRODUKTBEOBACHTUNG PRODUCT EXPERIENCE FORM

We observe the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:

Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitte beachten

/ Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- LERATES THE HANDLING OF YOUR INQUIRY.

VIELEN DANK!
