AHS401 - Humidifier BLAUPUNKT - Free user manual and instructions

Brand	Blaupunkt
Model	AHS401
Product Type	Air Humidifier
Power Supply	220-240V~50-60Hz
Power Consumption	25W
Water Tank Capacity	4 liters
Humidification Intensity	3 levels
Timer	1-10 hours
Night Mode	Yes (display turns off)
Aromatherapy Function	Yes (with included attachment)
Filter Type	Resin filter (reduces water hardness)
Filter Replacement Interval	Every 3-6 months
Recommended Filter	Blaupunkt ACC066
Cleaning Reminder	After 72 hours of operation
Display	LED showing relative humidity
Auto Shut-off	When water tank is empty
Control Type	Push buttons
Color	White
Usage	Indoor domestic use only
Certifications	CE (LVD, EMC)

Frequently Asked Questions - AHS401 BLAUPUNKT

How do I refill the water tank?

You can refill by removing the tank cover (9) and pouring water directly into the tank, or by lifting the tank out and filling it under a tap. Always unplug the device before refilling.

How do I use the aromatherapy function?

Remove the aromatherapy attachment (6), apply a few drops of water-soluble aroma oil to the sponge, then place the attachment back. The aroma will release when the humidifier is on.

How do I clean the humidifier?

Turn off and unplug the device. Empty and wash the water tank. Descale the transmitter and internal tank using water with citric acid or vinegar. Do not immerse the device in water.

What does the flashing 72H indicator mean?

It means 72 hours of operation have passed, reminding you to clean the humidifier. To reset, long press the button until the display shows 00H.

How often should I replace the filter?

The resin filter should be replaced every 3-6 months, depending on water hardness. The recommended replacement filter is the Blaupunkt ACC066.

What type of water should I use?

Use only clean, fresh water. Do not add any drugs, chemicals, essential oils (except in the aromatherapy attachment), or cleaning agents to the water tank.

Is it safe to leave the humidifier unattended?

Never leave the product connected to the power source without supervision. It is designed for domestic use only and should be monitored while operating.

Can I add essential oils directly to the water?

No, only use the aromatherapy attachment for essential oils. Adding them to the water tank may damage the device and void the warranty.

How do I set the timer?

Press the timer button briefly. Each press sets the auto-off time from 1 to 10 hours. Long press (3 seconds) cancels the timer.

What does night mode do?

Night mode turns off the display for a darker sleeping environment. The humidifier continues to operate normally.

USER MANUAL AHS401 BLAUPUNKT

White BLAUPUNKT water purifier with digital display and control buttons (no text or symbols on device body)

Enjoy it.

Air humidifier Luftbefeuchter Nawilžacz powietrza Zvlhčovač vzduchu Zvlhčovač vzduchu Párásító Vlažilnik zraka

Ovlaživač Zraka Уүраντηρασ αερα Овлажнител на въздух Umidificator De Aer Oro Drėkintuvas Õhuniisutaja

Important notes

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not

work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Do not add drugs or chemicals to the water tank, base or vapor outlet. Do not add aromatic oils, salt, decalcifying tablets, powders or cleaning agents to water. Use only clean water.
• Make sure that the water mist outlet is not aimed directly at the walls, furniture, electrical outlets, electrical and electronic equipment.
• Do not block the device ventilation. Keep at least 20 cm free space around the device. Do not block the water mist outlet.

• Do no use the device if there is risk of developing condensation. Moisture may occur on the external or internal device parts if:

• the device is moved from a cold to a warm place,

• the heating system has just been turned on,
• the device is being used in a high moisture area,
• the device is cooled by the air conditioning cooling system.

- Do not tilt or overturn the device and do not attempt to add or drain water when the device is operating.

- Do not remove the water tank from the device base during

the device operation.

• Do not touch the device with wet hands.
- Do not leave water in the humidifier if it is not in use.

- Too much humidity in the room can lead to moisture accumulation causing the growth of bacteria and fungi and damage to walls, furniture and wallpaper.

- The working environment for humidifier is when temperature is between 5 to 40 degrees Celsius, and relative humidity is lower than 80%RH.

- The device should be disconnected from the mains when filling up the tank, placing the water tank in the device, and cleaning the humidifier.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Voltage: 220-240V\~50-60Hz

Power: 25W

Water tank capacity: 4l

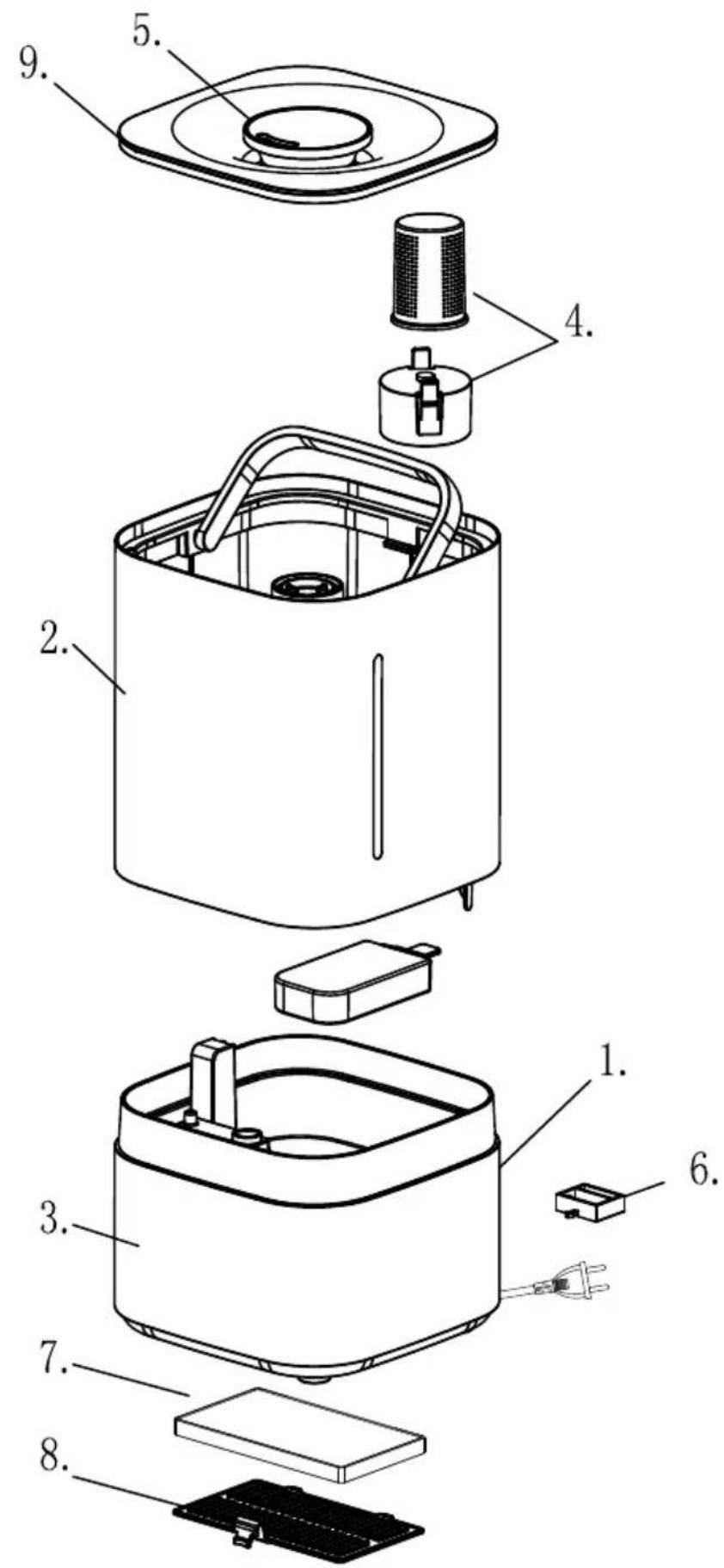

1. Body
2. Water tank
3. Display with control panel
4. Filter with valve

5. Water-mist outlet

6. Aromatherapy attachment

7. Air-filter cover
8. Pre-filter
9. Lid of the water tank

REFILLING THE WATER TANK

The tank can be refilled in two ways.

1. After removing the tank cover (9), pour water into the tank using a bottle or other container.
2. After removing the cover (9), the tank can be removed. Lift the tank using the handle. Fill the tank under the tap. Place the tank on the body of the device paying attention to the location of internal components such as a lamp, aromatherapy basket, etc.

USING THE AIR HUMIDIFIER

1. Refill the water tank.
2. Connect the appliance to a suitable power source. The display lights up for a moment, then turns off, and the device goes into standby mode.

WARNING: When the water tank is empty, the "empty water tank" indicator will appear on the display and the humidifier will stop working. Fill the water tank to continue operation.

BUTTON DESCRIPTIONS

Switch: ⬇ When the push-button is pressed, the humidifier will emit a water mist and the operating parameters can be checked on the LED display, Press this button again to return to standby mode.

Humidification intensity: ☐ The humidification intensity can be adjusted in three steps by pressing this button.

Timer: ☑ A short press of the button launches the timer, each press sets the time to turn off the device from 1 to 10 hours, A long press of the button (3 seconds) turns off the timer.

Night mode: ☑ Press on this button to activates the night mode, the display goes blank.

THE LED DISPLAY

The display shows the relative humidity of the air

When you set for timer, the display shows the remaining amount of time to turn off the device

THE AROMATHERAPY FUNCTION

To use the aromatherapy function, follow these instructions.

1. Take out the aromatherapy attachment (6).
2. Apply a few drops of water-soluble aroma oil (for use in humidifiers) on the sponge.
3. Put the aromatherapy attachment in the right place. The aroma will begin to release when the humidifier is switched on.
4. When you want to stop the aromatherapy, or the appliance will be unused for some time, remove the sponge from the aromatherapy attachment and clean it.

CLEANING AND MAINTENANCE

Turn off the device and unplug it.

Remove the water tank and empty it. Then wash it and remove all dirt and sediment from it.

Dry the water tank.

The transmitter and the internal water tank should be regularly desalinated. It is recommended to use water with the addition of citric acid or vinegar.

Do not immerse the device in water.

The humidifier uses a resin filter which reduces the hardness of the water. It is recommended to replace it every 3-6 months (depending on the hardness of the water). Recommended filter: the Blaupunkt ACC066.

REGULAR CLEANING REMINDER FUNCTION

The device has a function to remind you about the need to clean your humidifier. A notification informs the user that 72 hours have passed since the last cleaning. The time is counted continuously when the device is connected to a power source.

After this time has elapsed, the appliance will begin to display the flashing message "72H". The unit will continue to operate without changing the operating parameters. To reset the timer, long press the button. It is recommended to clean the appliance according to the chapter "Cleaning and Maintenance".

If night mode is enabled, the unit will operate smoothly. When night mode is switched off, or the unit is switched on again, the message "72H" will be displayed.

After cleaning your humidifier, the timer can be reset even if 72 hours have not passed. Long press the button. The display will show "00H".

The machine has 72 hours clean mode function which will count the accumulated working hours automatically, 72H icons will be flashing when the machien reached continuous wokring time of 72 hours to remind machine cleaning. After cleaning, to press this key longer for 2 secs to reset and machine will be work normally.

Night mode: ☑ Press on this button to activates the night mode, the display goes blank.

Pregled pokazuje relativnu vlažnost zraka

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
