ViewPro GK-17N - Kettle CUISINART - Free user manual and instructions

Product Type	Electric Kettle
Model	ViewPro GK-17N
Brand	Cuisinart
Capacity	1.7 Liters
Power	1500 Watts
Voltage	120 V, 60 Hz
Material	Borosilicate Glass, Stainless Steel
Dimensions (Approx.)	9.5 x 6.5 x 9 inches
Weight	2.5 lbs
Cord Length	30 inches
Base Type	360° Swivel Cordless Base
Temperature Settings	Preset for Green, White, Oolong, Black, Herbal & French Press (160°F - 212°F)
Keep Warm Feature	Keeps water at selected temperature for 30 minutes
Safety Features	Auto Shut-Off, Boil-Dry Protection
Filter	Removable Lime Scale Filter
Water Window	Illuminated Water Window
Cord Storage	Built-in Cord Storage under Base
Cleaning	Wipe exterior with damp cloth; descalc with vinegar/lemon acid
Maintenance	Descale regularly; clean filter periodically
Spare Parts	Filter, Lid Gasket (contact Cuisinart)
Warranty	Limited 3-Year Warranty

Frequently Asked Questions - ViewPro GK-17N CUISINART

How do I descale the Cuisinart ViewPro GK-17N kettle?

Mix equal parts white vinegar and water (or use lemon juice). Fill the kettle to the max line, boil, let sit for 30 minutes, then rinse thoroughly. Repeat if necessary.

Can I boil milk or other liquids in this kettle?

No, this kettle is designed for water only. Boiling other liquids can damage the kettle and void the warranty.

What is the capacity of the ViewPro GK-17N?

The kettle has a capacity of 1.7 liters (approximately 7 cups).

How do I set a specific temperature for tea?

Press the Temperature Selector button repeatedly until the desired temperature appears (e.g., 160°F for green tea). The kettle will heat and hold that temperature.

Why does my kettle turn off before boiling?

Check if the Keep Warm function is activated. If set to a lower temperature, the kettle will stop at that temp. Also ensure the lid is closed properly.

Can I use the kettle without the base?

No, the kettle must be placed on the 360° swivel base to operate. The base connects to the power source.

How do I clean the lime scale filter?

Remove the filter by pulling it out from the spout. Rinse under running water and scrub with a soft brush. Replace by pushing it back in until it clicks.

What does the illuminated water window show?

The blue LED lights up the water level, making it easy to see how much water is inside, even in low light.

Is the kettle cordless?

Yes, the kettle itself is cordless and lifts off the base for easy pouring. The base has a built-in cord storage.

What safety features does this kettle have?

It includes auto shut-off when water reaches the set temperature or boils, and boil-dry protection that turns off the kettle if it runs out of water.

USER MANUAL ViewPro GK-17N CUISINART

Glass kettle with water and ice cubes, accompanied by a glass mug of orange liquid and a lemon slice (no text or symbols visible)

ViewPro™ 1.7 L Cordless Electric Kettle

GK-17N Series

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic safety precautions should always followed, including the following:

1. Read all instructions.
2. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.
3. Do not touch hot surfaces. Use handle or lid lever.
4. To protect against fire, electric shock and injury to persons, DO NOT IMMERSE CORD, PLUG, KETTLE BODY OR BASE UNIT in water or other liquids.
5. Close supervision is necessary when any appliance is used by or near children.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance has malfunctioned or has been damaged in any manner. Return appliance to the nearest Cuisinart Authorized Service Facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by Cuisinart may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let power cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always put kettle on base, then plug cord into wall outlet. To disconnect, push button to OFF, then remove plug from wall outlet.
    CAUTION: Do not operate your appliance in an appliance garage or under a wall cabinet. When storing any appliance in an appliance garage, always unplug the unit from the electrical outlet. Be sure the appliance does not touch the interior wall of the appliance garage, and the door does not touch the unit as it closes. Contact could cause the unit to turn on, creating a risk of fire.
12. Do not use appliance for other than its intended use.

13. Scalding may occur if the lid is removed during the brewing cycle.

14. Lock lid securely onto kettle before serving any beverages.

15. The kettle is designed for use only with the power base provided. It must never be used on a range top.
16. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
17. Children should be supervised to ensure that they do not play with the appliance. Avoid spillage on the connector. The heating element surface is subject to residual heat after use. If the kettle is overfilled, boiling water may be ejected. The appliance is only to be used with the stand provided.
18. Do not use a cracked/broken container or a container having a loosed or weakened handle.

SAVE THESE INSTRUCTIONS

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

To reduce the risk of injury, do not drape cord over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks

resulting from becoming entangled in or tripping over a longer cord.

Longer extension cords are available and may be used if care is exercised in their use.

If a long extension cord is used, the marked electrical rating of the extension cord must be at least as great as the electrical rating of the appliance. The extension cord should be a grounding-type, 3-wire cord, and the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

For your protection, this unit is equipped with a 3-conductor cord set that has a molded 3-prong, grounding-type plug, and should be used in combination with a properly

connected grounding-type outlet as shown in Figure A.

If a grounding-type outlet is not available, an adapter, shown in Figure B, may be obtained so that a 2-slot wall outlet can be used with a 3-prong plug. As shown in Figure C, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate.

NOTE: Do not remove the grounding prong.

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician. Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada.

TABLE OF CONTENTS

Important Safeguards ......2

Unpacking Instructions ....4

Introduction ....4

Features and Benefits ....4

Operation....4

Helpful Hints....5

Cleaning and Maintenance ....5

Decalcification....6

Warranty 7

UNPACKING INSTRUCTIONS

1. Place the box on a large, sturdy, flat surface.
2. Remove the instruction book and any other literature.
3. Lift the power base from the box and remove the polybag.
4. Remove the upper pulp molded insert.
5. Lift the kettle from the box and remove the polybag.

We suggest you save all packing materials in the event that future shipping of the machine is needed. Keep all plastic bags away from children.

INTRODUCTION

Your new Cuisinart ^® ViewPro ^TM 1.7 L Cordless Electric Kettle features the latest technology to make boiling water quicker and easier than ever.

This kettle is exceptionally simple to operate, but as with every new product, we suggest you read the following information carefully to familiarize yourself with the kettle's use and care.

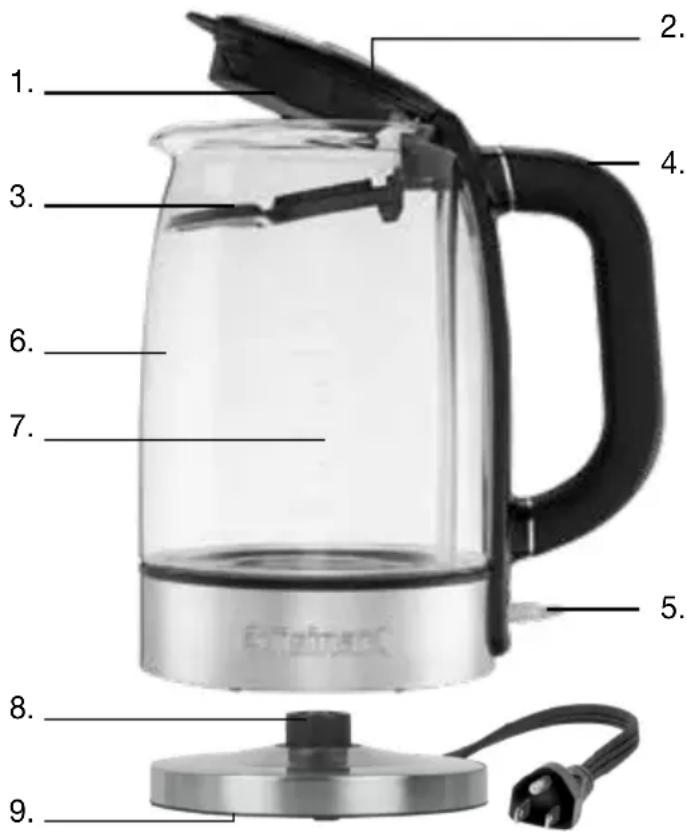

FEATURES AND BENEFITS

1. Lid
2. Lid with Release Button For quick and easy filling.
3. User-friendly Spout (with Spout Filter)
4. Stay-Cool Handle Ergonomically shaped for comfort.
5. Power ON/OFF Switch Simply push down until “click” is heard to begin the boiling process. Kettle shuts off automatically once water has boiled. ON indicator light illuminates when kettle is on.
6. Glass Body
7. Level Indicator
8. Body Base Supplies power to kettle.
9. Cord Wrap (under base) Unwind only as much as you need. Provides convenient storage.

BEFORE USING FOR THE FIRST TIME

Before using your Cuisinart® ViewPro™ 1.7 L Cordless Electric Kettle for the first time, we recommend RINSING THE KETTLE WITH THE MAXIMUM AMOUNT OF FRESH WATER IT ALLOWS. BOIL FRESH WATER INSIDE THE KETTLE TWO TO THREE TIMES AND DISCARD THE BOILED WATER BEFORE NORMAL USE.

OPERATION

1. Put the appliance on a heat-resistant flat surface.
2. Lift the lid lever upward to open the lid.
3. Fill the kettle with the desired quantity of cold water between the Min. and Max. levels.
4. The kettle is equipped with a borosilicate glass body. It is important to avoid thermal shocks. Do not use iced water, especially if your glass kettle is still warm.
5. Close the lid until it locks.
6. Ensure the cable has been connected and the ON/OFF switch is at the OFF position.

7. Press the ON/OFF switch to the ON position. The power indicator will then be illuminated.

8. Water temperature will continue to rise until boiling occurs. The switch will then automatically go into the OFF position.

9. If the water has cooled and you need boiling water again, simply switch the kettle on.

HELPFUL HINTS

• Always use fresh water in the kettle.
- If the kettle is accidentally switched on without a sufficient amount of water, a boil-dry safety mechanism will automatically switch the kettle off.
- The lid should always be securely in place while heating water.

CLEANING AND MAINTENANCE

• The kettle should always be emptied before cleaning and storage.
• It is extremely important to remember that cleaning of the kettle can only be performed when the plug has been removed from the power supply.
• Cleaning should be performed only when the kettle has cooled down.
• Always ensure the electrical connections of the kettle remain absolutely dry.
• Ensure the outside and the electrical connections of the kettle are completely dry before using.
• Wipe the kettle and base with a soft, damp cloth. Do not use cleaning products that can cause health hazard or discoloration of the kettle.
• Do not use abrasive cleansers or scouring agents of any kind on the interior or exterior of the kettle.
• Never immerse any part of the kettle, especially the cable and base, into water.

To install filter and remove it for cleaning, follow instructions below:

For cleaning the filter, please refer to the illustrations above at right, for assembling and disassembling:

Filter Assembly Sequence

Line drawing of a mechanical device with a handle and lever (no text or symbols)

Hang on filter holder.

Line drawing of a mechanical component with curved and straight lines, no text or symbols present

While filter is hanging, lift it up.

Line drawing of a mechanical component with curved and straight ends (no text or symbols)

Lift up the filter to click into place.

Filter Disassembly Sequence

Technical line drawing of a mechanical component with no visible text or symbols

Push down on filter as shown in number 1.

Technical line drawing of a mechanical component with no visible text or symbols

Remove filter, as shown in number 2.

Filter can be cleaned with warm soapy water or placed in dishwasher, top rack only.

MAINTENANCE: Any other servicing should be performed by an authorized service representative.

DECALCIFICATION

Decalcification refers to removing mineral deposits, which may form in the interior of the kettle and may result in discoloration.

To get the best performance from your kettle, decalcify your unit from time to time. Frequency will depend on the hardness of your tap water and how often you use your kettle.

We suggest using a kettle descaler in order to dissolve these deposits or scale. Follow the directions on the descaler package.

If a commercial descaler is not available, fill the kettle with enough white vinegar to cover the bottom by about 12 inch (1.25 cm). Heat the vinegar to a boil. Repeat this with cooled vinegar until all deposits are removed. When the descaling process is complete, empty the kettle and rinse out several times with clean water.

WARRANTY Limited Three-Year Warranty

This warranty is available only to U.S. consumers who purchase products directly from Cuisinart or an authorized Cuisinart ^® reseller. You are a consumer if you own a Cuisinart ^® ViewPro ^™ 1.7 L Cordless Electric Kettle that was purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners or consumers who purchase from unauthorized Cuisinart ^® resellers. We warrant that your Cuisinart ^® ViewPro ^™ 1.7 L Cordless Electric Kettle will be free of defects in materials and workmanship under normal home use for 3 years from the date of original purchase. We recommend that you visit our website, https://cuisinart.registria.com, for a fast, efficient way to complete your product registration. However, product registration does not eliminate the need for the consumer to maintain the original proof of purchase in order to obtain the warranty benefits. In the event that you do not have proof of purchase date, the purchase date for purposes of this warranty will be the date of manufacture.

CALIFORNIA RESIDENTS ONLY

California law provides that for In-Warranty Service, California residents have the option of returning a nonconforming product (A) to the store where it was purchased or (B) to another retail store that sells Cuisinart products of the same type. The retail store shall then, according to its preference, either repair the product, refer the consumer to an independent repair facility, replace the product, or refund the purchase price less the amount directly attributable to the consumer's prior usage of the product. If neither of the above two options results in the appropriate relief to the consumer, the consumer may then take the product to an independent repair facility, if service or repair can be economically accomplished. Cuisinart and not the consumer will be responsible for the reasonable cost of such service, repair, replacement, or refund for nonconforming products under warranty. California residents may also, according to their preference, return nonconforming products directly to Cuisinart for repair or, if necessary, replacement by calling our Consumer Service Center toll-free at 1-800-726-0190. Cuisinart will be responsible for the cost of the repair, replacement, and shipping and handling for such nonconforming products under warranty.

HASSLE-FREE REPLACEMENT WARRANTY

Your ultimate satisfaction in Cuisinart products is our goal, so if your Cuisinart® ViewPro™ 1.7 L Cordless Electric Kettle should fail within the generous warranty period, we will repair it or, if necessary, replace it at no cost to you. To obtain a return shipping label, visit us at https://www.cuisinart.com/customer-care/product-assistance/product-inquiry/. Or call our toll-free Consumer Service Center at 1-800-726-0190 to speak with a representative.

Your Cuisinart ^® ViewPro ^™ 1.7 L Cordless Electric Kettle has been manufactured to the strictest specifications and has been designed for use only in 120-volt outlets and only with authorized accessories and replacement parts. This warranty expressly excludes any defects or damages caused by attempted use of this unit with a converter, as well as use with accessories, replacement parts or repair service other than those authorized by Cuisinart. This warranty does not cover any damage caused by accident, misuse, shipment or other than ordinary household use. This warranty excludes all incidental or consequential damages. Some states do not allow the exclusion or limitation of these damages, so these exclusions may not apply to you. You may also have other rights, which vary from state to state.

Important: If the nonconforming product is to be serviced by someone other than Cuisinart's Authorized Service Center, please remind the servicer to call our Consumer Service Center at 1-800-726-0190 to ensure that the problem is properly diagnosed, the product is serviced with the correct parts, and the product is still under warranty.

©2022 Cuisinart Glendale, AZ 85307

Printed in China

22CE083175

IB-17620-ESP
