| Product Type | Microwave Oven with Grill |
| Brand | Corbero |
| Model | CMICIG225 |
| Power Consumption | 230-240V / 50Hz, 1400W (Microwave), 1000W (Grill) |
| Rated Microwave Power Output | 900W |
| Operation Frequency | 2450 MHz |
| Outside Dimensions (H x W x D) | 390 mm x 595 mm x 380 mm |
| Cavity Dimensions (H x W x D) | 220 mm x 340 mm x 344 mm |
| Oven Capacity | 25 Litres |
| Net Weight | Approx. 15.3 kg |
| Functions | Microwave, Grill, Combination, Weight Defrost, Auto Cook, Express Cooking, Multi-Stage Cooking, Kitchen Timer |
| Control Type | Dial (Time/Menu) + Buttons (Power, Grill, Combi, etc.) |
| Display | Digital (Cooking time, power level, clock) |
| Child Lock | Yes (press and hold Stop/Cancel for 3 seconds) |
| Turntable | Glass tray with roller ring |
| Grill Heater | Yes (1000W) |
| Combination Cooking | 2 modes (Co-1 and Co-2) with varying microwave/grill cycles |
| Defrost Function | Weight-based defrost (100-1800g) |
| Auto Cook Menus | 8 menus (Popcorn, Coffee, Fresh Vegetable, Potato, Pizza, Reheat, Grilled Chicken, Grilled Steak) |
| Cleaning | Interior: damp cloth; Glass tray and roller ring: dishwasher safe; Control panel: soft damp cloth |
| Warranty | 36 months (manufacturer's legal warranty) |
Frequently Asked Questions - CMICIG225 CORBERO
Combi-2 (Co-2): 40% microwave, 15% rest, 45% grill – suitable for poultry and puddings.
User questions about CMICIG225 CORBERO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwave in PDF format for free! Find your manual CMICIG225 - CORBERO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CMICIG225 by CORBERO.
USER MANUAL CMICIG225 CORBERO
DIAGRAMA DE PRODUCTOS....8
PANEL DE CONTROL....9

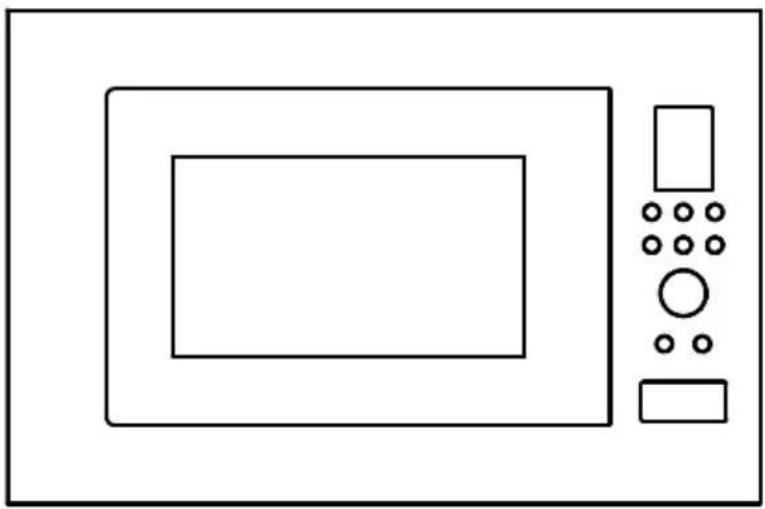

Microwave Oven Instructions
Please read these instructions carefully before installing and operating the oven.
CONTENT
CONTENT ....1
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ..... 2
IMPORTANT SAFETY INSTRUCTIONS ....2
INSTALLATION GUIDE....5
GROUNDING INSTRUCTIONS ....5
RADIO INTERFERENCE 6
BEFORE CALLING FOR SERVICE....6
COOKING TECHNIQUES....7
COOKING UTENSILS GUIDE ....7
SPECIFICATIONS......8
PRODUCT DIAGRAM 8
CONTROL PANEL 9
OPERATION INSTRUCTIONS ....10
SETTING THE CLOCK....10
CLEANING AND CARE....13
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
- Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
- Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
- Do not operate the oven if it is damaged. It is very important that the oven door close properly and that there is no damage to the
a) Door (including any bent),
b) Hinges and latches (broken or loosened),
c) Door seals and sealing surfaces. - The oven should not be adjusted or repaired by anyone except qualified service personnel.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliance basic safety precautions should be followed, including the following:
WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:
- Read all instructions before using the appliance and keep for future reference.
- Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
- Do not operate the oven when empty.
-
Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
-
WARNING!--Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
-
WARNING!--When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated
- To reduce the risk of fire in the oven cavity:
When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
Remove wire twist-ties from paper or plastic bags before placing bag in oven.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
- WARNING!--Liquid or other food must not be heated in sealed containers since they are liable to explode.
- Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
- Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
- Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
- The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
- Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
- Utensils should be checked to ensure that they are suitable for use in microwave oven.
- WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
- This Microwave complies with EN 55011/CISPR 11, in this standard it belong to Class B Group 2 classification. Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9 kHz to 400 GHz is intentionally generated and used or only used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of
material, for inspection/analysis purposes, or for transfer of electromagnetic energy. Class B equipment is equipment suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
-
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Children should be supervised to ensure that they do not play with the appliance.
-
The microwave oven is only used in freestanding.
-
WARNING!--Do not install oven over a range cook top or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.
-
The microwave oven shall be placed in a cabinet.
-
The door or the outer surface may get hot when the appliance is operating.
-
WARNING!--Accessible parts may become hot during use. Young children should be kept away.
-
During use the appliances becomes hot. Care should be taken to avoid pressing heating elements inside the oven, for cooking ranged and ovens.
-
The temperature of accessible surfaces may be high when the appliance is operating.
-
Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
-
WARNING!--If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
-
The appliances are not intended to be operated by means of an external timer or separate remote-control system.
-
The microwave oven is for household use only and not for commercial use.
-
Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
-
Please secure the turntable before you move the appliance to avoid damages.
-
CAUTION!--It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
-
The microwave oven is intended for defrosting, cooking and steaming of food only.
-
Use gloves if you remove any heated food.
-
Caution! Steam will escape, when opening lids or wrapping foil.
-
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
-
If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
INSTALLATION GUIDE
- Make sure that all the packing materials are removed from the inside of the door.
- WARNING!--Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
- This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
- Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
- Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
- Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
- The socket must be readily accessible so that it can be easily unplugged in an emergency.
- Do not use the oven outdoors.
GROUNDING INSTRUCTIONS
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.
WARNING!--Improper use of the grounding plug can result in a risk of electric shock. Note:
- If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
- Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.
The wires in this cable main are colored in accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
RADIO INTERFERENCE
Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:
- Clean door and sealing surface of the oven.
- Reorient the receiving antenna of radio or television.
- Relocate the microwave oven with respect to the receiver.
- Move the microwave oven away from the receiver.
- Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.
BEFORE CALLING FOR SERVICE
Before asking for service, please check each item below:
- Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
- Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
- Check to ensure the control panel is programmed correctly and the timer is set.
- Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
COOKING TECHNIQUES
- Arrange food carefully. Place thickest areas towards outside of dish.
- Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
- Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
- Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
- Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.
COOKING UTENSILS GUIDE
- Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
- Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
- Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
- Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
- Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.
The list below is a general guide to help you select the correct utensils.
| COOKWARE MICROWAVE GRILL COMBINATION | |||
| Heat-Resistant Glass Yes Yes | Yes | ||
| Non Heat-Resistant Glass | No | No | No |
| Heat-Resistant Ceramics | Yes Yes | Yes | |
| Microwave-Safe Plastic Dish | Yes | No | No |
| Kitchen Paper | Yes | No | No |
| Metal Tray | No | Yes | No |
| Metal Rack | No | Yes | No |
| Aluminum Foil & Foil Containers | No | Yes | No |
SPECIFICATIONS
| Power Consumption: | 230-240V/50Hz, 1400W(Microwave) |
| 1000W(Grill) | |
| Rated Microwave Power Output: 900W | |
| Operation Frequency: 2450MHz | |
| Outside Dimensions: 390mm(H)×595mm(W)×380mm(D) | |
| Oven Cavity Dimensions: 220mm(H)×340mm(W)×344mm(D) | |
| Oven Capacity: 25Litres | |
| Net Weight: Approx.15.3kg |

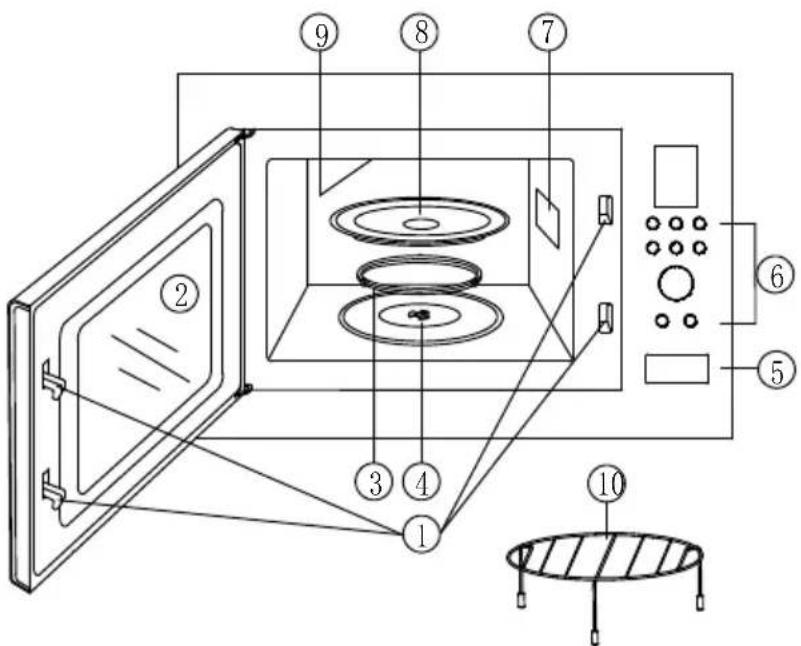

PRODUCT DIAGRAM
- Door Safety Lock System
- Oven Window
- Roller Ring
- Shaft
- Door Release Button
- Control Panel
- Wave Guide (Please do not remove the mica plate covering the wave guide)
- Glass Tray
- Grill Heater
- Metal Rack

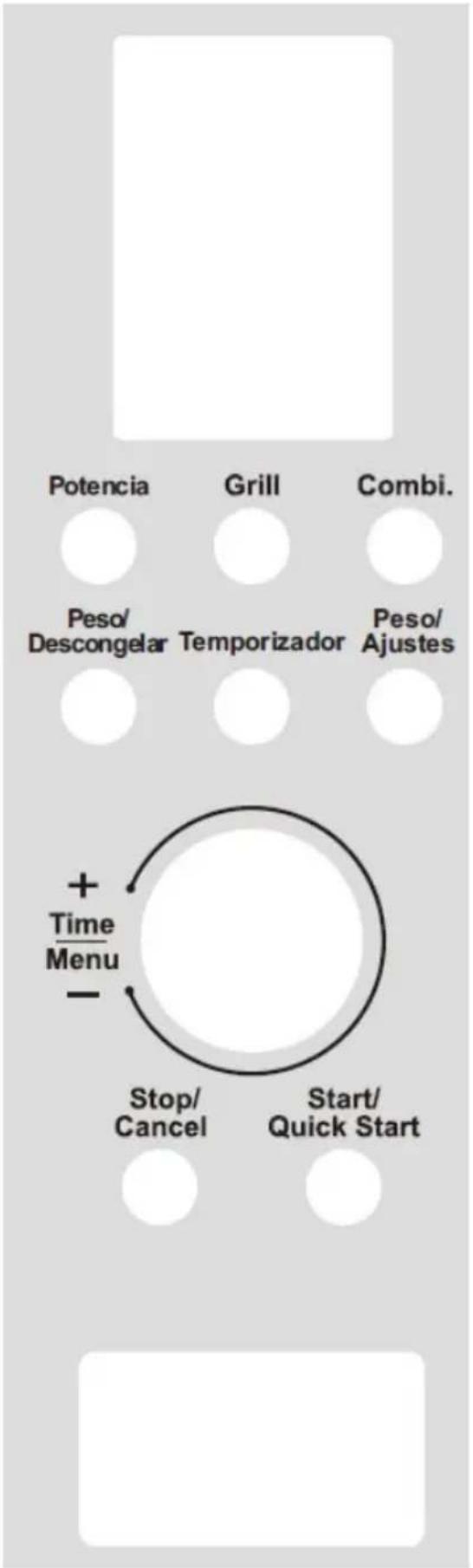

CONTROL PANEL
- DISPLAY
Cooking time, power, indicators and clock time are displayed.
- POWER
Press to select microwave cooking power level.
- GRILL
Press to set grill cooking program.
- COMBI.
Press to set combination cooking program.
WEI.DEF.
Press to defrost food based on weight.
- CLOCK/KITCHEN TIMER
Press to set clock time or kitchen timer function.
WEI.ADJ.
Press to set food weight or servings.
- TIME/MENU (dial)
Turn to set time and select auto cooking menus.
- STOP/CANCEL
Press once to temporarily stop cooking, or twice to cancel cooking altogether.
It is also used to set child lock function.
- START/QUICK START
Press to start cooking and defrosting programs. Simply press it a number of times to set cooking time and cook immediately at full power level.
OPERATION INSTRUCTIONS
When the oven first plugged in, a beep will sound and the display will show " " and "1:00".
In the process of setting, broke about 20 seconds the oven will return to standby mode.
During cooking, if press STOP/CANCEL button once, the program will be paused, then press START/QUICK START button to resume. But if press STOP/CANCEL button twice, the program will be cancelled.
➢ After cooking end, the display will show End and beep will sound every two minutes until user press any button or open the door.
SETTING THE CLOCK
This is a 12- and 24-hour clock. You can choose to set the clock time in 12- or 24-hour by pressing CLOCK/KITCHEN TIMER button in standby mode.
- In standby mode, press and hold CLOCK/KITCHEN TIMER button for 3 seconds to select 12-hour clock, press it again to select 24-hour clock.
- Turn TIME/MENU dial until the correct hour is displayed.
- Press CLOCK/KITCHEN TIMER button once.
- Turn TIME/MENU dial until the correct minute is displayed.
- Press CLOCK/KITCHEN TIMER button to confirm.
MICROWAVE COOKING
- In standby mode, press POWER button repeatedly to select cooking power level.
- Turn TIME/MENU dial to set cooking time. The longest time is 95 minutes.
- Press START/QUICK START button to start.
Select power level by pressing the POWER button:
| Press POWER button | Power level (Display) |
| Once 100% (P100) | |
| Twice 80% (P-80) | |
| 3 times 60% (P-60) | |
| 4 times 40% (P-40) | |
| 5 times 20% (P-20) | |
| 6 times 0% (P-00) | |
NOTE: During cooking, you can check the cooking power level by pressing POWER button. If you want to cook at full power level, directly turn TIME/MENU dial clockwise to set cooking time, then press START/QUICK START button to start..
EXPRESS COOKING
Use this feature to program the oven to microwave food at 100% power conveniently. In standby mode, press START/QUICK START button repeatedly to set cooking time (each press to increase 30 seconds, and up to 10 minutes). The microwave oven will start to cook at full power level. During cooking, you can add the cooking time by pressing START/QUICK START button.
KITCHEN TIMER
- In standby mode or during cooking, press CLOCK/KITCHEN TIMER button once.
- Turn TIME/MENU dial to set desired time. The longest time is 95 minutes.
- Press START/QUICK START button to confirm.
NOTE: When the countdown ends, the buzzer will beep to remind you. Time countdown can be seen in display for 5 seconds by pressing CLOCK/ KITCHEN TIMER button and you can cancel the program by pressing STOP/CANCEL button when the display shows the time.
GRILL
Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes.
- In standby mode, press GRILL button once.
- Turn TIME/MENU dial clockwise to set cooking time. The longest time is 95 minutes.
- Press START/QUICK START button to start.
COMBINATION
Combination 1: 30% of time for microwave cooking, 55% time for grill cooking and 15% time the oven will stop working in one cycle. Use for fish, potatoes or au gratin.
Combination 2: 40% of time for microwave cooking, 15% time the oven will stop working and 45% for grill cooking in one cycle. Use for pudding, omelets, baked potatoes and poultry.
- In standby mode, press COMBI. button once or twice to select "Co-1" or "Co-2".
- Turn TIME/MENU dial clockwise to set cooking time. The longest time is 95 minutes.
- Press START/QUICK START button to start.
MULTI-STAGE COOKING
Your oven can be programmed for up to 3 automatic cooking sequences.
Suppose you want to set the following cooking program.
Microwave-cooking
Microwave-cooking (with lower power level)
- Open the door and place the food into the oven, close it.
- Input the first microwave cooking program. Do not press START/QUICK START.
- Input the second microwave cooking program.
- Press START/QUICK START button to start.
NOTE: Weight defrost, express cooking and auto cook menus cannot be set in multistage cooking program.
WEIGHT DEFROST
The defrosting time and power level are automatically set once the food weight is programmed. The weight ranges from 100 g to 1800 g.
- In standby mode, press WEI. DEF. button once.
- Press WEI. ADJ. button repeatedly to select food weight.
- Press START/QUICK START button to start.
NOTE: During defrosting, the oven will pause and sound beeps to remind you to turn food over, after that, press START/QUICK START button to resume defrosting.
CHILD LOCK
The childproof lock prevents unsupervised operation by children.
To set: In standby mode, press and hold STOP/CANCEL button for 3 seconds or more, then a beep will sound, the oven will auto enter child lock mode and the lock indicator light will turn on. In the lock state, the oven can't be operated.
To cancel: Press and hold STOP/CANCEL button for 3 seconds or more, then a beep will sound and the indicator light will come off, the oven can be operated.
AUTO COOK
For the following food or cooking mode, it is not necessary to program the cooking time and power. It is sufficient to indicate the type of food that you want to cook as well as the weight or servings of the food.
- In standby mode, turn TIME/MENU dial anti-clockwise once, and then turn it clockwise to select food code.
- Press WEI. ADJ. button repeatedly to set food weight or servings.
3. Press START/QUICK START button to start.
Auto cook menus :
| Code | Menu | Note |
| A-1 | Popcorn (99 g) | 1. For items A-7 and A-8, during cooking, you need to turn food over.2. The result of auto cooking depends on factors such as voltage fluctuation, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly. |
| A-2 | Coffee (200 ml/serving, 1-3 servings) | |
| A-3 | Fresh Vegetable (200-600 g) | |
| A-4 | Potato (230 g/servings, 1-3 servings) | |
| A-5 | Pizza (150 g, 300 g, 450 g) | |
| A-6 | Reheat (200-800 g) | |
| A-7 | Grilled Chicken (800-1400 g) | |
| A-8 | Grilled Steak (200-600 g) |
CLEANING AND CARE
- Turn off the oven and unplug the power cord from the wall when cleaning.
- Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.
- The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
- Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
- A steam cleaner is not be used.
- Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
- If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
-
It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
-
The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
- Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
- If the light bulb burns out, please contact customer service to have it replaced.
- The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.
- Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
- When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon, because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.
The user manual can also be check and download from our website: www.corbero.es
DIAGRAMA DE PRODUCTOS....9
PANEL DE CONTROL....10

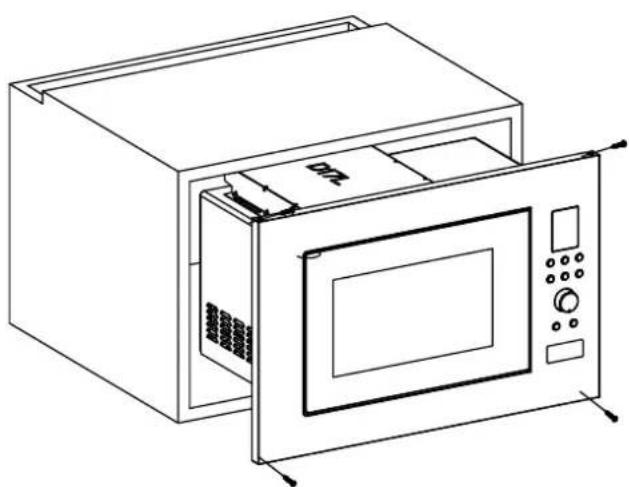

| Sequence | Name | Quantity |
| 1 | Cabinet | 1 |
| 2 | Microwave Oven | 1 |
| A | Screw3x20 | 4 |
A3x20mm

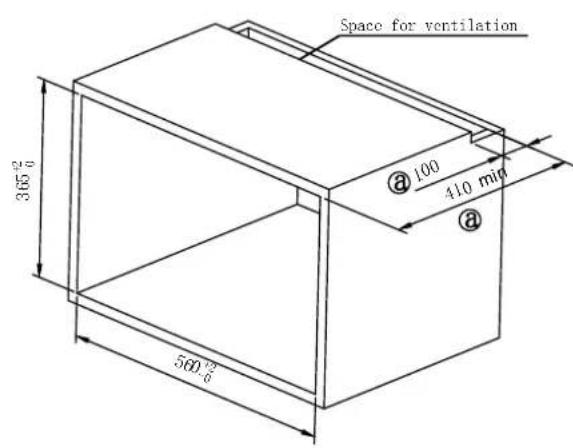

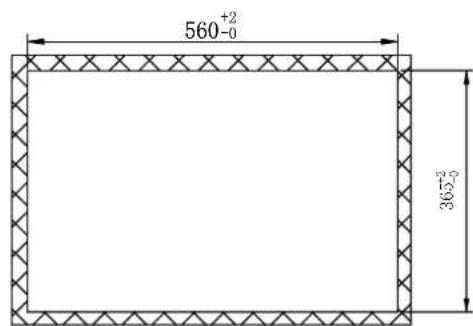

Make a cabinet to the dimension
CERTIFICADO DE GARANTÍA
The presentation of the purchase invoice accompanied by this guarantee certificate is essential.
Covered Risks.
This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within the warranty period and only by the authorized SAT network.
Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or manufacturing fault. Warranty Exceptions
Warranty Exceptions
- That the date of the certificate does not coincide with the date of sale of the original invoice.
• Faults produced by blow, by fall or any other cause of force majeure.
• If the device has been manipulated by unauthorized personnel. - Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that alter its operation.
- Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts, oxidation, plastics, rubbers, housings and crystals.
- Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at home.
Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks, for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs the protection function adequately. For this, it is recommended that the anode be checked biannually by the Official Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3 content greater than 200mg / L , that is, from 20^ of hardness) Deposits without the correct state of the protection anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not cover damages caused by not channeling the water spilled by this valve.
"THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER"
Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is "RD 7/2021"
Official Technical Service: 911 08 08 08
- Microwave Oven Instructions
- CONTENT
- PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
- IMPORTANT SAFETY INSTRUCTIONS
- INSTALLATION GUIDE
- GROUNDING INSTRUCTIONS
- RADIO INTERFERENCE
- BEFORE CALLING FOR SERVICE
- COOKING TECHNIQUES
- COOKING UTENSILS GUIDE
- SPECIFICATIONS
- PRODUCT DIAGRAM
- CONTROL PANEL
- - DISPLAY
- - POWER
- - GRILL
- - COMBI.
- WEI.DEF.
- - CLOCK/KITCHEN TIMER
- WEI.ADJ.
- - TIME/MENU (dial)
- - STOP/CANCEL
- - START/QUICK START
- OPERATION INSTRUCTIONS
- SETTING THE CLOCK
- MICROWAVE COOKING
- EXPRESS COOKING
- KITCHEN TIMER
- GRILL
- COMBINATION
- MULTI-STAGE COOKING
- WEIGHT DEFROST
- CHILD LOCK
- AUTO COOK
- Press START/QUICK START button to start.
- CLEANING AND CARE
- CERTIFICADO DE GARANTÍA
- Covered Risks.
- Warranty Exceptions
- Official Technical Service: 911 08 08 08
Brand : CORBERO
Model : CMICIG225
Category : Microwave
