CCH559MX - Oven CORBERO - Free user manual and instructions

Product Type	Electric Built-in Oven
Brand	Corbero
Model	CCH559MX
Energy Class	A
Energy Consumption (Conventional)	0.86 kWh/cycle
Energy Consumption (Fan Forced)	0.78 kWh/cycle
Oven Capacity	65 L
Weight	28.5 kg
Power Supply Voltage	220-240 V ~ / 380-415 V 3N ~
Number of Cavities	1
Heat Source	Electric
Oven Functions	Static, Fan, Lower Heating + Fan, Grilling, Faster Grilling, Double Grill + Fan, Defrost, Oven Light
Timer Type	Mechanical (0-100 minutes)
Door Type	Removable for cleaning
Oven Lamp	Replaceable, E14, 15-25W, 300°C
Safety Features	Automatic shut-off via timer
Cleaning	Enamel interior, removable door glass, stainless steel parts
Installation Type	Built-in
Certifications	CE, EN 60350-1
Warranty	36 months (from January 2022)

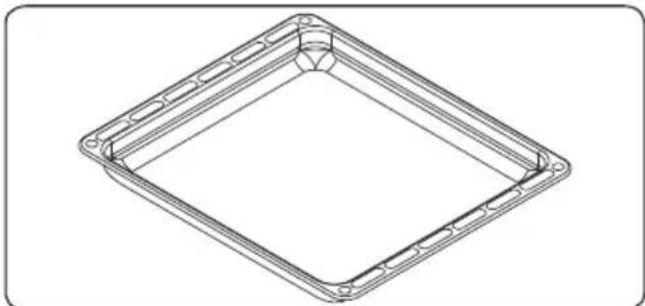

Accessories Included	Deep tray, wire grid, water collector

Frequently Asked Questions - CCH559MX CORBERO

How do I set the mechanical timer?

Turn the timer knob to the desired cooking time between 0 and 100 minutes. When the timer reaches zero, the oven will automatically switch off and an audible warning will sound. For continuous operation, set the knob to 'M'.

What should I do if the oven does not heat up?

Check that the oven function knob is set to a cooking function, the thermostat knob is set to a temperature, and the timer is set to a time or 'M'. Ensure the power supply is on and the door is closed.

How do I clean the oven door glass?

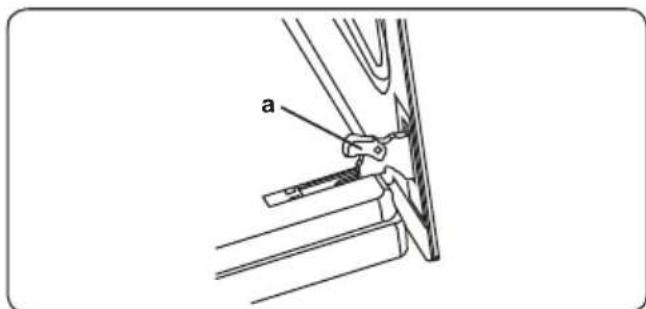

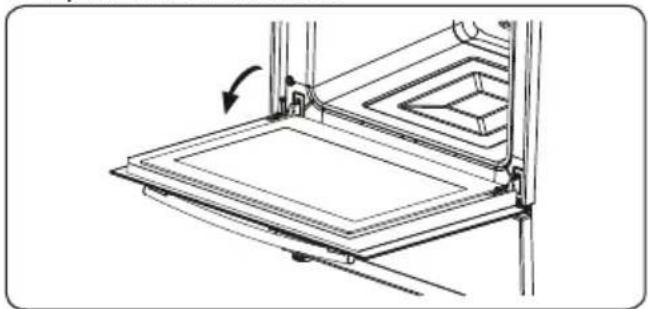

Remove the oven door by opening the locking catches with a screwdriver, then close the door almost fully and pull it towards you. Clean the glass with a glass cleaner, rinse, and dry thoroughly. Reinstall the door by reversing the steps.

How do I replace the oven lamp?

Switch off the appliance and let it cool. Remove the glass lens, then remove the old bulb. Insert a new bulb (230 V, 15-25 W, E14, resistant to 300°C). Replace the glass lens.

Why does condensation appear on the oven door?

Condensation is normal in some cooking conditions. Open the oven door to the grilling position for 20 seconds to let water drip to the collector. Wipe the inside of the door with a dry towel. Repeat regularly.

Can I use the oven for grilling?

Yes, use the grilling function. Preheat for 10 minutes. Place food on the wire grid on the upper shelves, with a tray underneath to catch drips. The oven door must be closed. Set temperature to 190°C for faster grilling.

What is the defrost function?

The defrost function uses the fan to circulate air without heat. Place frozen food on a shelf in the third slot from the bottom, with a tray underneath to catch melting water. It will not cook the food, only defrost it.

How should I clean the stainless steel parts?

Clean stainless steel parts regularly with a soft cloth soaked in water only. Dry thoroughly. Do not clean while hot, and avoid leaving vinegar, coffee, milk, salt, water, lemon, or tomato juice on the surface for long periods.

What are the recommended cooking methods?

Use static cooking for pastries and cakes, fan function for even baking, lower heating and fan for pizza, grilling for meats, and double grill with fan for thicker foods. Refer to the cooking tables in the manual for specific temperatures and rack positions.

What does the 'M' setting on the timer mean?

'M' stands for manual operation. When the timer is set to 'M', the oven will run continuously without automatic shut-off. Use this for long cooking processes. To stop, turn the timer to '0'.

USER MANUAL CCH559MX CORBERO

Line drawing of a standard oven with front panel and door (no text or symbols)

CCH450MX

CCH559MX

CCH620MW

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Simple grayscale icon of a blank rectangular frame with a small sunburst symbol on top (no text or symbols)

Abstract circular arrow graphic with concentric rings and radial lines, no text or symbols present

Abstract grayscale graphic with circular arrows and a central grid pattern (no text or symbols)

Abstract circular graphic with concentric rings and arrows, no text or symbols present

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Abstract diagram with circular arrow and gear-like pattern, no text or symbols present

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

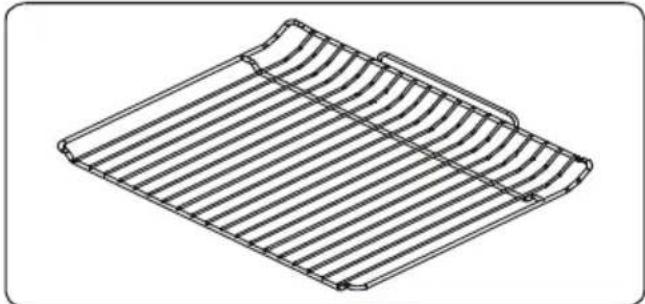

Parrilla

Line drawing of a corrugated metal sheet with ribbed texture (no text or symbols)

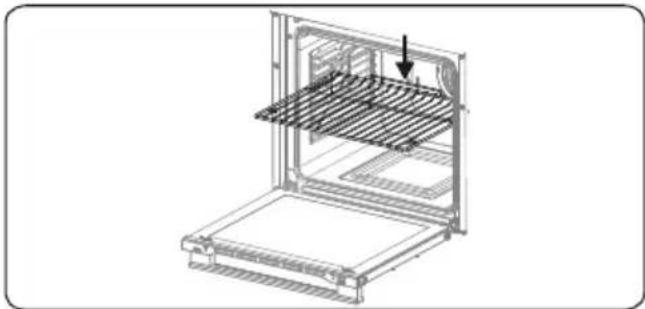

ADVERTENCIA

Technical line drawing of an oven with internal structure and a downward arrow indicating a component (no text or symbols present)

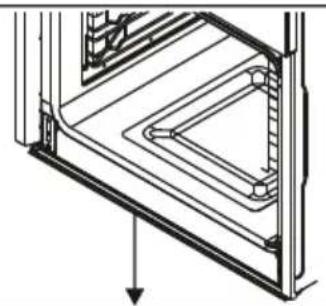

Colector de agua

Technical line drawing of a door frame with internal channels and a downward arrow indicating direction (no text or symbols)

5. LIMPIEZA Y MANTENIMIENTO

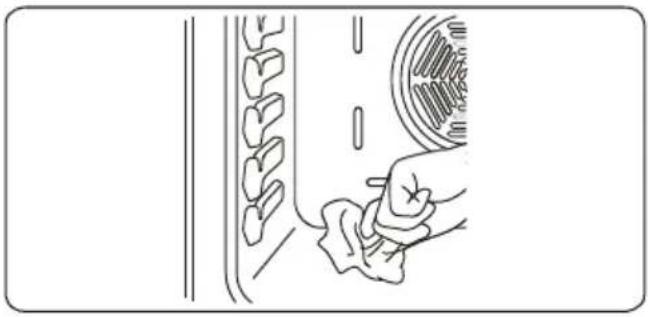

5.1. Limpieza

Line drawing of a hand cleaning teeth with a circular object on the right side (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

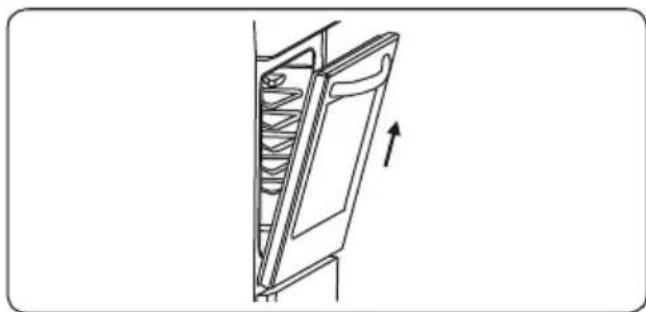

Diagram of a door with a rack inside, showing an upward arrow indicating direction (no text or symbols)

5.2. Mantenimiento

The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to Rule 2.

o de ón n)

60

25

Periodoco(m)

50-

15-

los.ivel

*

3-4

Pos. termostato (min)
200 4 10-15
200
200
200 4 15-25

ros

a

s 15

s 15

igas

rilla

los

s

s

de

as

a

as

PLA

illerí pas

stel

lleta

óno a pa

mer uose

llo

still

rne cune

stel dos nde

illerí dos nde

Bocca

Pa

Ga

Ala

Alad

Po

Co

Cava

Paenba

Boenba

	As of December
	2017	2016
in millions, except per share amounts	(In thousands)
Net earnings	3,458	3,394
Non-cash earnings	(1,458)	(1,458)

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

Technical diagram of a mechanical assembly with no visible text or symbols

Simple black rectangular frame with a small sun icon at the top, surrounded by decorative side stripes (no text or symbols)

Abstract diagram with circular arrow pattern and concentric rings (no text or symbols)

Abstract grayscale graphic with circular arrows and a central grid pattern (no text or symbols)

Abstract graphic with concentric circular arrows and a central star-like pattern, no text or symbols present.

Simple icon of a black rectangular object with five white zigzag lines on top, surrounded by decorative side stripes (no text or symbols)

Black rectangular object with white downward arrows on top and bottom, resembling a stylized monitor or button (no text or symbols)

Abstract diagram with concentric circles and arrows, no readable text or symbols

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Rede de Arame

Line drawing of a corrugated metal sheet with ribbed texture (no text or symbols)

AVISO

Technical line drawing of an oven with internal structure and a downward arrow indicating a component (no text or symbols present)

Coletor de Água

Technical line drawing of a mechanical component with internal channels and a downward arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning teeth with a circular object on the right side (no text or symbols)

Limpar as Partes de Vidro

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Diagram of a refrigerator with a door and rack inside, showing an upward arrow (no text or symbols)

5.2. Manutenção

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Dear customer,

This user manual includes information about the benefits that all Corbero oven models.

As it is a generic manual, some of the features listed here may not correspond to those of the oven that you have chosen.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE	Warning; Risk of ☐☐☐☐☐ materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS....4
1.1 General Safety Warnings ....4
1.2 Installation Warnings ....6
1.3 During Use 7
1.4 During Cleaning and Maintenance 8
2.INSTALLATION AND PREPARATION FOR USE....10
2.1 Instructions for the Installer .... 10
2.2 Installation of the Oven....10
2.3 Electrical Connection and Safety 11
3.PRODUCT FEATURES....13
4.USE OF PRODUCT 14
4.1 Oven Controls....14
4.2 Use of the Mechanical Timer....15
4.3 Accessories 15
5.CLEANING AND MAINTENANCE....16
5.1 Cleaning 16
5.2 Maintenance....17
6.TROUBLESHOOTING & TRANSPORT 18
6.1 Troubleshooting....18
6.2 Transport 18
7.TECHNICAL SPECIFICATIONS....19
7.1 Energy Fiche 19

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 General Safety Warnings

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Danger of fire: Do not store items on the cooking surfaces.

⚠️ WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not operate the appliance with an external timer or separate remote-control system.
• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside

the oven.

• Handles may get hot after a short period during use.
• Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
• Do not use steam cleaners for cleaning the appliance.

⚠️ WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.
⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

- Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.

- Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for

heating a room.

• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• Please keep children and animals away from this appliance.

1.2 Installation Warnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it is has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, Styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance from the atmosphere. Do not expose it to effects such as sun, rain, snow, dust or excessive humidity.

• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C.

• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 During Use

- When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.

- Do not put flammable or combustible materials in or near the appliance when it is operating.

• Always use oven gloves to remove and replace food in the oven.

Do not leave the cooker unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.

• If the product will not be used for a long period of time, turn the main control switch off. Turn the gas valve off when gas appliances are not in use.
• Make sure the appliance control knobs are always in the “0” (stop) position when it is not in use.
  • The trays incline when pulled out. Take care not

to spill or drop hot food while removing it from the ovens.

• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.
• Do not place heavy or flammable items (e.g. nylon, plastic bag, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles).
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 During Cleaning and Maintenance

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

2. INSTALLATION AND PREPARATION FOR USE

WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

2.1 Instructions for the Installer General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage,

do not use it and contact an authorised service person or qualified technician immediately.

• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
- The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.

2.2 Installation of the Oven

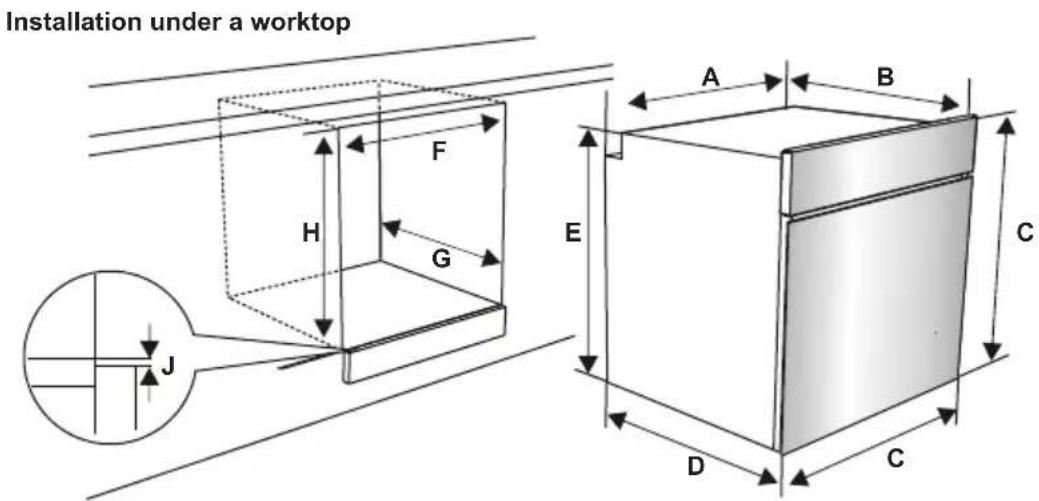

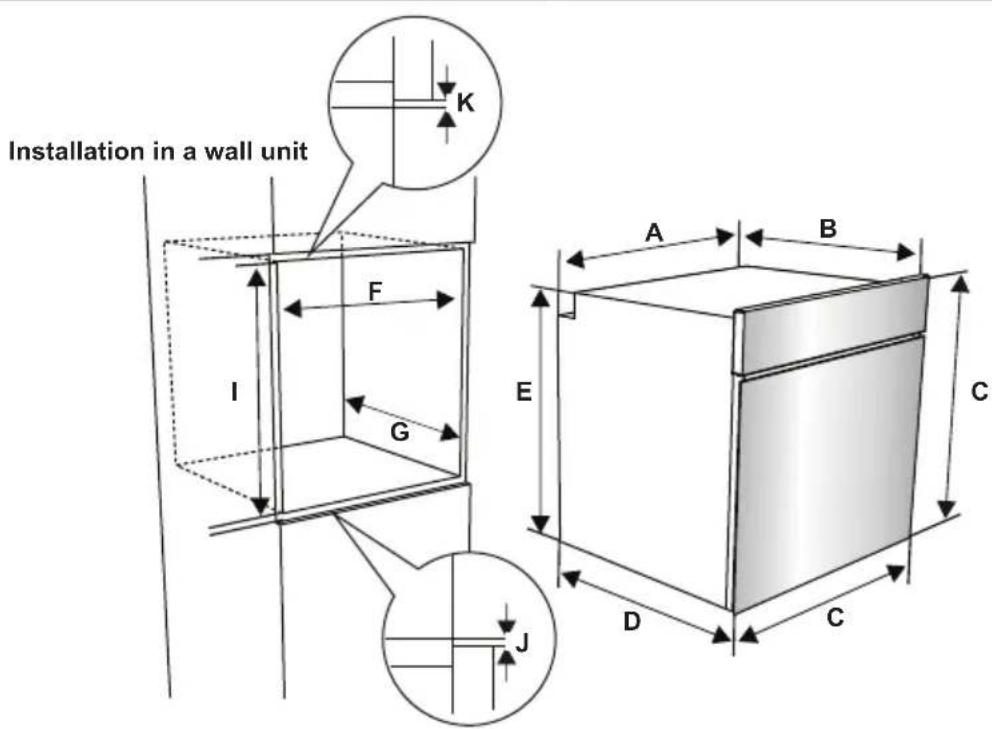

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

A (mm)	557 min./max. F (mm) 560/580
B (mm)	550 min. G (mm) 555
C (mm)	595 min. H/I (mm) 600/590
D (mm)	575 min. J/K (mm) 5/10
E (mm)	574

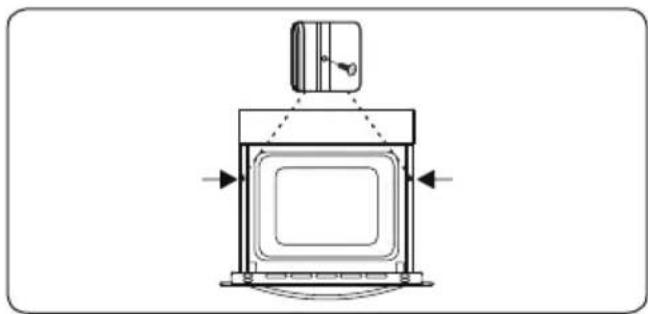

After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

Technical line drawing of a mechanical device with no visible text or symbols

2.3 Electrical Connection and Safety

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

- Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the

appliance's power rating (also indicated on the identification plate).

• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220-240V \~ and 380-415V 3N\~. If your supply is different, contact the authorised service person or a qualified electrician.
• The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.
• Ensure all connections are adequately tightened.

• Fix the supply cable in the cable clamp and then close the cover.
- The terminal box connection is placed on the terminal box.

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

List of Components

1. Control Panel
2. Oven Door Handle
3. Oven Door

Control Panel

1. Timer
2. Oven Function Control Knob
3. Oven Thermostat Knob

4. USE OF PRODUCT

4.1 Oven Controls

Oven function control knob

Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see 'Oven Functions'.

Oven thermostat knob

After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will illuminate whenever the thermostat is in operation to heat up the oven or maintain the temperature.Oven Functions

Black rectangular object with a small sun icon on top, surrounded by gray border and white slats (no text or symbols)

Oven Lamp: Only the oven light will switch on. It will remain on for the duration of the cooking function.

Abstract circular graphic with concentric arrows and a central star-like pattern, no text or symbols present.

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven

on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Gray gradient rectangular button with ventilation grilles (no text or symbols)

Static Cooking

Function: The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The

static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract grayscale graphic with circular arrow and grid pattern, no text or symbols present

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and

fan will start operating. This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes. The fan and lower heating function is ideal for baking food, such as pizza, evenly in a short period of time. The fan evenly disperses the heat of the oven, while the lower heating element bakes the food.

Abstract graphic with concentric arrows and a central geometric pattern (no text or symbols)

Lower Heating and Fan Function: The oven's thermostat and warning lights will switch on, and the lower heating element and fan will start

operating. The lower heating and fan function is ideal for heating foods evenly in a short time. It is recommended that you preheat the oven for about 10 minutes.

Black rectangular object with white zigzag arrows on a dark surface, surrounded by decorative corner lines (no text or symbols)

Grilling Function: The oven's thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for

grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Pure electrical circuit lines without any symbols

Faster Grilling Function: The oven's thermostat and warning lights will switch on, and the grill and upper heating elements will start

operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips

of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^ C .

Abstract diagram with curved arrows and a central circular pattern, no text or symbols present

Double Grill and Fan
Function: The oven's thermostat and warning lights will switch on, and the grill, upper heating elements and fan will
start operating. This function is used for faster grilling of thicker food and for grilling of food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

4.2 Use of the Mechanical Timer

Function Description

M Manual operation

0......100 Operating by adjusting the timer

Manual operation

When you set the timer button to the "M" position, you will be able to continuously run your oven. When you set the timer button to the "0" position, the oven will not operate.

Operating by adjusting the timer

Set the desired cooking time by turning the timer knob to between 0 and 100 minutes. When the timer reaches zero, the oven will automatically switch off and an audible warning will sound.

4.3 Accessories

The Deep Tray

The deep tray is best used for cooking stews.

Put the tray into any rack and push it to the end to make sure it is placed correctly.

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

Line drawing of a corrugated metal sheet with ribbed texture (no text or symbols)

WARNING

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Technical line drawing of an oven with a rack and vent, showing internal structure and mounting base (no text or symbols)

The Water Collector

In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

Open the oven door into the grilling position and leave it in this position for 20 seconds.

Water will drip to the collector.

Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

Technical line drawing of a mechanical component with no visible text or symbols

5. CLEANING AND MAINTENANCE

5.1 Cleaning

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts ur appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car trunk with a circular object on the side (no text or symbols)

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

1. Open the oven door.

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

1. Close the door until it almost reaches the fully closed position and remove the door by pulling it towards you.

Technical line drawing of a door or cabinet with a rack and an arrow indicating direction (no text or symbols)

5.2 Maintenance

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).
• Replace the glass lens, and your oven is ready for use.

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room illumination.

6. TROUBLESHOOTING & TRANSPORT

6.1 Troubleshooting

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible	Cause Solution
Oven does not switch on.	Power is switched off.	Check whether there is power supplied.Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is turned on at the wall socket outlet.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.

6.2 Transport

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

7. TECHNICAL SPECIFICATIONS

7.1 Energy Fiche

Brand		Corberō
Model		CCH450MX/CCH559MX CCH620MW
Type of Oven ELECTRIC
Mass kg		28,5
Energy Efficiency Index - conventional		104,5
Energy Efficiency Index - fan forced		94,8
Energy Class A
Energy consumption (electricity) - conventional kWh/cycle		0,86
Energy consumption (electricity) - fan forced kWh/cycle		0,78
Number of cavities 1
Heat Source ELECTRIC
Volume I		65
This oven complies with EN 60350-1
Energy Saving TipsOven- Cook the meals together, if possible.- Keep the pre-heating time short.- Do not elongate cooking time.- Do not forget to turn-off the oven at the end of cooking.- Do not open oven door during cooking period.

DISHES	TURBO LOWER-UPPER LOWER-UPPER FAN GRILL
	Thermostat pos. (°C)	Rack pos.	Cooking period (min)	Thermostat pos. (°C)	Rack pos.	Cooking period (min)	Thermostat pos. (°C)	Rack pos.	Cooking period (min)	Thermostat pos. (min)	Rack pos.	Cooking period (min)
Layered pastry	170-190 1-2	-3 35-45 17	0-190 1-2 35-45	170-190 1-2 25-35
Cake 150-170	1-2-3 30-40 17	0-190 1-2	30-40 150-170	1-2-3 25-35
Cookie 150-170	1-2-3 25-35	170-190 1-2	30-40 150-170	1-2-3 25-35
Grilled meatballs										200 4 10-15
Watery food	175-200	2	40-50	175-200	2	40-50	175-200	2	40-50
Chicken				200	1-2	45-60	200	1-2	45-60	200	*	50-60
Chop										200	3-4	15-25
Beefstake										200 4 15-25
Two-tray cake	160-180	1-4 30-40
Two-tray pastry	170-190	1-4 35-45
* Cook with roast chicken skewer...

CERTIFICADO DE GARANTÍA

The presentation of the purchase invoice accompanied by this guarantee certificate is essential.

Covered Risks.

This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within the warranty period and only by the authorized SAT network.

Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or manufacturing fault. Warranty Exceptions

Warranty Exceptions

• That the date of the certificate does not coincide with the date of sale of the original invoice.
• Faults produced by blow, by fall or any other cause of force majeure.
• If the device has been manipulated by unauthorized personnel.
- Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that alter its operation.
- Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts, oxidation, plastics, rubbers, housings and crystals.

- Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at home.

Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks, for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs the protection function adequately. For this, it is recommended that the anode be checked biannually by the Official Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3 content greater than 200mg / L , that is, from 20^ of hardness) Deposits without the correct state of the protection anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not cover damages caused by not channeling the water spilled by this valve.

"THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER"

Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is "RD 7/2021"

Official Technical Service: 911 08 08 08
