Product Type	2-way center speaker upgrade for BMW vehicles
Brand	Audiotec Fischer
Model	Match UP X4BMW-CTR.3
Power Handling (RMS / Max)	60 / 120 Watts
Frequency Response	100 Hz - 25,000 Hz
Impedance	4 Ω
Sensitivity (1W/1m)	90 dB
Woofer Diameter	100 mm (4")
Tweeter Diameter	13 mm (0.52")
Tweeter Material	Coated silk dome
Woofer Material	Coated paper
Tweeter Crossover	Integrated, 6 dB slope
Woofer Crossover	Separate, 6 dB slope
Overall Diameter	114 mm
Mounting Depth	37.8 mm
Cutout Diameter	101.5 mm
Compatible BMW Series	1, 2, 3, 4, 5, 6, 7, X1-X6, Z4, i8, MINI (various model years)
Installation Location	Original center speaker position
Additional Components Required	Inline crossover (included) if driven directly by car radio
Recommended DSP Amplifier Highpass	120 Hz / 24 dB slope
Installation Recommendation	Authorized MATCH dealer for warranty coverage

Frequently Asked Questions - Match UP X4BMW-CTR.3 Audiotec Fischer

What vehicles is the Match UP X4BMW-CTR.3 compatible with?

It is compatible with many BMW models including 1, 2, 3, 4, 5, 6, 7 series, X1-X6, Z4, i8, and MINI (Clubman, 3-door, 5-door, Convertible) from various model years. See the manual for a full list.

How do I install the UP X4BMW-CTR.3?

First, remove the center protective cover by unscrewing hidden screws and unclipping plastic clips. Then remove the original midrange speaker, connect the UP X4BMW-CTR.3 to the original speaker harness, and insert it into the mounting location. If driven directly by the car radio, plug the enclosed inline crossover between the speaker and harness.

Do I need a separate amplifier for this speaker?

While not mandatory, using a separate DSP amplifier is recommended for maximum sound quality. If using a DSP amp, set a highpass filter at 120 Hz with a 24 dB slope.

What is the power handling of the UP X4BMW-CTR.3?

The speaker handles 60 Watts RMS and 120 Watts maximum power.

How do I ensure proper phase when wiring?

Connect positive to positive and negative to negative. Correct phase is essential for optimal sound.

What tools are needed for installation?

Basic tools like screwdrivers, trim removal tools, and possibly a TORX bit for BMW screws. Refer to your BMW service manual for specific removal instructions.

Can I install this speaker without professional help?

Yes, but we strongly recommend an authorized MATCH dealer to ensure proper installation and warranty coverage. The manual provides detailed instructions.

What is the frequency response of the UP X4BMW-CTR.3?

The frequency response is 100 Hz to 25,000 Hz.

Does the speaker come with a crossover?

Yes. The tweeter has an integrated crossover (6 dB slope) and the woofer uses a separate inline crossover (6 dB slope) included in the package.

What is the warranty for this product?

The limited warranty covers manufacturing defects. Failures due to overload or improper use are not covered. Warranty conditions comply with legal regulations.

USER MANUAL Match UP X4BMW-CTR.3 Audiotec Fischer

UPGRADE center speaker for BMW vehicles

Technical line drawing of a mechanical component with mounting holes and a wire, shown from two different angles (no text or symbols)

Congratulations on your purchase of this high-quality MATCH speaker system.

This system highlights best quality, excellent manufacturing and state-of-the-art technology.

Thanks to more than 30 years of experiences in research and development of audio products this speaker system generation sets new standards.

We wish you many hours of enjoyment with your new MATCH speakers.

Yours

AUDIOTEC FISCHER Team

General instructions

General instructions for MATCH UPGRADE speaker systems for BMW vehicles

The MATCH UPGRADE UP X4BMW-CTR.3 for BMW vehicles is a 2-way center speaker system which will be mounted in the original speaker location.

To reach the maximum sound quality, we recommend to use a separate DSP amplifier. In this case it is mandatory to set a highpass filter with 120 Hz crossover frequency / 24 dB slope inside the used DSP amplifier.

General installation instructions for MATCH components

To prevent damage to the speaker and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.

For a proper performance and to ensure full warranty coverage, we strongly recommend to get this product installed by an authorized MATCH dealer.

General instruction for installing MATCH speaker systems

The method of installation chosen and level of execution will effect the overall performance of the speaker system. Treat each installation step with a high degree of attention.

We strongly recommend that you operate the speaker system at low volume before final installation. This will allow a trial listening test before securing the loudspeaker into its mounting location.

Install the cabling in a manner which precludes any danger of the leads being exposed to shear, crushing or rupture forces. If there are sharp edges in the vicinity (e.g. holes in the bodywork) all cables must be cushioned and protected to prevent fraying.

Make sure that all speaker wires easily reach the speaker terminals without stress on the wire or connectors.

Attention: Ensure that the loudspeaker is correctly connected (phase), i.e. plus to plus and minus to minus.

Once you have tested the speaker system and have confirmed correct operation, turn the audio system off and prepare the loudspeaker for final mounting.

Further installation guides at www.audiotec-fischer.com

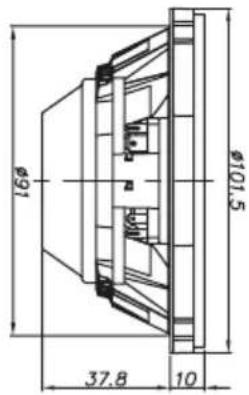

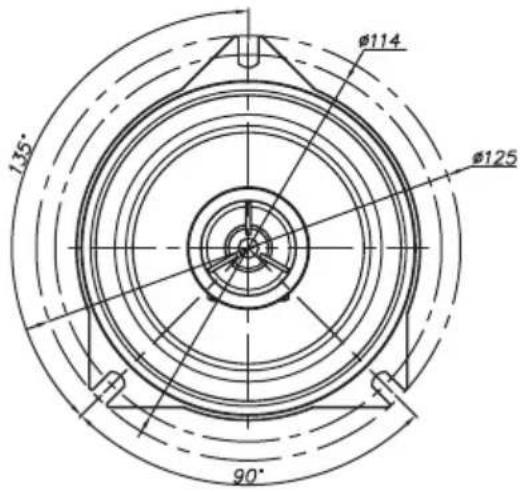

Dimensions

UP X4BMW-CTR.3:

*All dimensions are noted in mm

Installation

Removal of the center protective cover

In order to install the MATCH speaker in the original mounting position it is mandatory to remove the center protective cover.

If you are uncertain how to remove the cover, please either ask your local BMW dealer or an experienced car audio dealer for assistance. In any case follow the instructions of the car manufacturer.

Please pay attention to the following notes:

1. The cover can be fastened with several hidden screws to the metal sheet of the car. Make sure that you have loosened all screws before you try to remove the cover.

2. Additionally the cover is usually fixed by numerous plastic clips, which may be damaged during the disassembly when the ambient temperature is below 10^ C. Always pull the cover horizontally to loosen the clips – never apply any vertical force. Note that broken plastic clips have to be replaced before reinstalling the cover in order to avoid undesired rattle and noise.

Installation of the UP X4BMW-CTR.3

After you have dismantled the cover of the original speaker location, you can remove the original midrange speaker. Then connect the UP X4BMW-CTR.3 to the original speaker cable harness and insert it into the original mounting position.

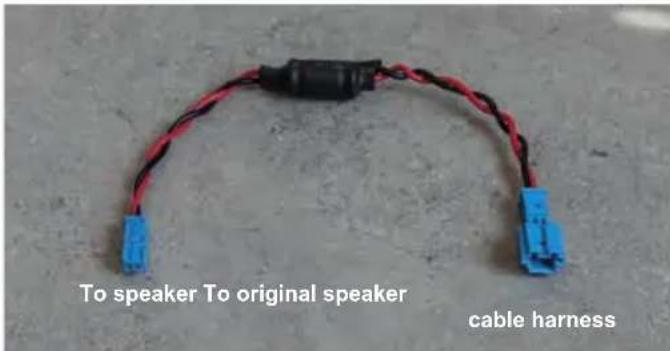

If the loudspeaker is directly driven by the car radio, the enclosed inline crossover must be plugged between the speaker and the original speaker cable harness.

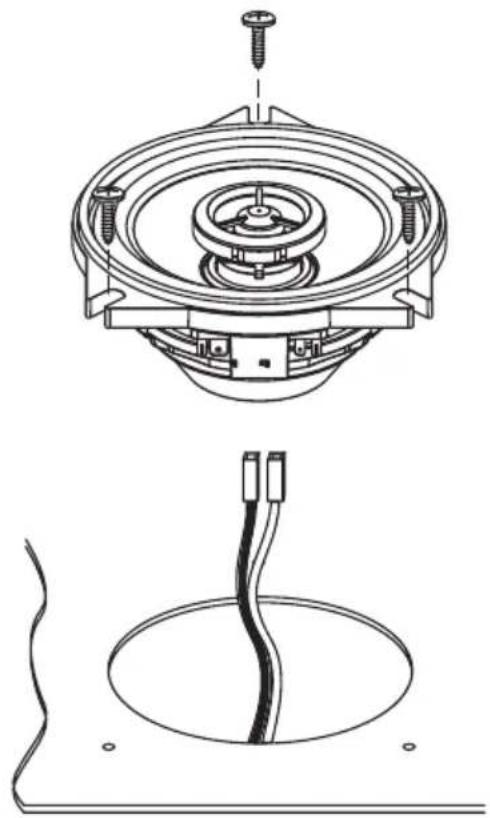

Installation of the UP X4BMW-CTR.3:

Technical line drawing of a mechanical component with screw fasteners and a wire, shown from two views (top: top-down view; bottom: side view with no text or symbols)

Attention: Take care that the speaker is installed properly.

Technical Data

	UP X4BMW-CTR.3
Power RMS / max. 60 / 120 Watts
Frequency response 100 Hz - 25,000 Hz
Impedance 4 Ω
Efficiency 1 W / 1 m 90 dB
Diameter W / TW 100 mm / 13 mm; 4" / 0.52"
Membranmaterial TW: Coated silk dome	W: Coated paper
Crossover TW: Integrated, 6 dB slope	W: Separate, 6 dB slope

BMW vehicle compatibility (Status November 2020):

Series Type Model Model year

1-series F20 5-door From 2011
	F21 3-door From 2011
	F40 5-door From 2019
2-series F22 Coupe From 2011
	F23 Convertible From 2011
	F44 Grand Coupe From 2020
	F45 Active Tourer From 2014
	F46 Gran Tourer From 2015
	F87 M2 Coupe From 2015
3-series E90 Sedan 2005 - 2011
	E91 Touring 2005 - 2011
	E92 Coupe 2005 - 2011
	E93 Convertible 2005 - 2011
	F30 Sedan From 2012
	F31 Touring From 2012
	F34 Gran Turismo From 2013
	F80 M3 2014 - 2018
	G20 Sedan From 2019
	G21 Touring From 2019
4-series F32 Coupe From 2014
	F33 Convertible From 2014
	F36 Gran Coupe	From 2014
	F82 M4 Coupe From 2014
	F83 M4 Convertible	From 2014
5-series E60 Sedan 2003 - 2010
	E61 Touring 2003 - 2010
	F07 Gran Turismo 2009 - 2017
	F10 Sedan From 2011
	F11 Touring From 2011
	G30 Sedan From 2017
	G31 Touring From 2017
6-series E63 Coupe 2003 - 2010
	E64 Convertible 2003 - 2010
	F06 Gran Coupe	2011 - 2018
	F12 Coupe 2011 - 2018
	F13 Convertible 2011 - 2018
	G32 Gran Turismo From 2017
7-series E65 Sedan 2001 - 2008
	E66 Sedan Long Version	2002 - 2008
	F01 Sedan 2008 - 2015
	F02 Sedan Long Version	2008 - 2015
	G11 Sedan From 2015
	G12 Sedan Long Version	From 2015
i8	L15 Roadstar	From 2013
X1	E84 SUV	2009 - 2012
	F48 SUV	From 2015
	F49 SUV Long Version	From 2015
X2	F39 SUV	From 2018

Series Type Model Model year

X3	F25 SUV	2010 - 2017
	G01 SUV	From 2017
X4	F26 SUV	2014 - 2017
	G02 SUV	From 2018
X5	E70 SUV	2006 - 2013
	F15 SUV	2013 - 2018
	F85 SUV	2014 - 2018
	G05 SUV	From 2018
X6	E71 SUV	2008 - 2014
	F16 SUV	2014 - 2019
Z4	E89 Roadstar	2009 - 2016
MINI	F54* Clubman 2. gen.	From 2015
	F55* 5-door From 2014
	F56* 3-door From 2014
	F57* Convertible From 2016

Legal note

• MATCH by Audiotec Fischer or Audiotec Fischer GmbH are in no way affiliated with the Bayerische Motoren Werke AG or any of its subsidiaries or affiliated companies connected to, or is acting on its behalf or with its authorization.
• All registered product names, trade marks and brands are the property of their respective owners.
• The compatibility with the specified types of vehicles reflects the information available on November 2020.
• Technical changes and errors reserved.

Warranty Disclaimer

The limited warranty comply with legal regulations. Failures or damages caused by overload or improper use are not covered by the warranty.

Please return the defective product only with a valid proof of purchase and a detailed malfunction description. Technical specifications are subject to change! Errors are reserved!

For damages on the vehicle and the device, caused by handling errors of the device, we can't assume liability.

All MATCH speakers are tagged with a CE-Certification mark. Thereby these devices are certified for the use in vehicles within the European Community (EC).
