Product Type	LED TV
Model	TX-65LXX889
Screen Size	65 inches (164 cm diagonal)
Dimensions (with pedestal)	1453 x 889 x 302 mm (W x H x D)
Dimensions (TV only)	1453 x 841 x 83 mm (W x H x D)
Weight (with pedestal)	24.0 kg
Weight (TV only)	21.0 kg
Power Source	AC 220-240 V, 50/60 Hz
Panel Type	LED backlit LCD
Sound Output	20 W (10 W x 2)
HDMI Ports	3 (HDMI 1/2/3, with ARC on HDMI 2)
USB Ports	2 (USB 2.0, 5V/500mA each)
Built-in Wireless	Wi-Fi (2.4/5 GHz 802.11a/b/g/n/ac) and Bluetooth 5.1
Tuner Systems	DVB-T/T2, DVB-C, DVB-S/S2, Analogue PAL/SECAM
Smart TV Platform	Android TV with Google Assistant
HDR Support	Dolby Vision, HDR10, HLG (via HDMI and USB)
Voice Control	Yes, via remote control microphone
Maintenance	Wipe with soft cloth; for stubborn dirt, use diluted neutral detergent and wipe dry
Safety Features	Ventilation space required (10 cm around); do not remove covers; use only specified pedestal
Included Accessories	Remote control (N2QBYA000051), pedestal, batteries (2xAAA), mains lead, manual, guarantee card

Frequently Asked Questions - TX-65LXX889 PANASONIC

The TV does not switch on. What should I do?

Check that the mains lead is securely plugged into the TV and the mains socket. If the LED is off, press the Mains power On/Off switch on the bottom of the TV. If still off, try a different socket or contact support.

Why does my TV go into standby mode automatically?

The TV has an Auto Power Standby function. By default, it switches to standby after 4 hours of inactivity (Switch Off Timer) or after 10 minutes with no signal (No Signal Power Off). You can adjust these settings in the Power menu.

The remote control is not working or is intermittent.

First, ensure the batteries are installed correctly (polarity) and are not low. Replace if needed. Point the remote directly at the TV’s sensor (within 7 m, 30° angle). If using voice controls, the remote must be paired via Bluetooth. To pair, press and hold Volume Down and Google Assistant buttons simultaneously for 3 seconds during setup.

No image is displayed on the screen.

Check that the TV is turned on and the correct input mode is selected. Verify all cable connections. Ensure Backlight, Brightness, and Contrast are not set to minimum. Perform a TV Self Test via Settings > Device Preferences > About. If issue persists, try a Reset in the same menu.

The picture or sound from external devices connected via HDMI is unusual.

Try setting HDMI Auto Setting to Mode1 (Settings > Device Preferences > Inputs). This improves compatibility. Also ensure the HDMI cable is high-speed and fully wired. If sound is missing, set the external device's audio output to PCM.

How do I connect a Bluetooth device like headphones?

Go to Settings > Bluetooth devices. Put your Bluetooth audio device in pairing mode. On the TV, select Pairing and follow on-screen instructions. Keep the device within 50 cm during pairing. Up to 5 Bluetooth devices can be connected simultaneously, but only one audio device (A2DP) at a time.

How can I access the detailed operating instructions?

Press the eHELP button on the remote control. This opens the built-in manual with search and menu navigation. You can also access it via the Home menu under Help or eHELP.

Why does the TV get hot?

It is normal for parts of the TV to become warm during use. Ensure at least 10 cm of space around the TV for ventilation. Do not block the vents. If the TV overheats, turn it off and let it cool down.

How do I clean the TV screen?

First, unplug the TV. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn dirt, dampen the cloth with a mixture of 1 part neutral detergent to 100 parts water, wring well, and wipe. Finish with a dry cloth. Never spray liquid directly on the TV.

What should I do if the TV screen moves slightly when touched?

This is normal. There is a small gap around the panel to prevent damage from impact. It does not affect performance or quality.

USER MANUAL TX-65LXX889 PANASONIC

Operating Instructions

LED TV

Series

TX-43LX*88*

TX-50LX*88*

TX-55LX*88*

TX-65LX*88*

English

Nederlands

Русский

Exterior view of a modern flat-screen monitor with a stand (no text or symbols visible)

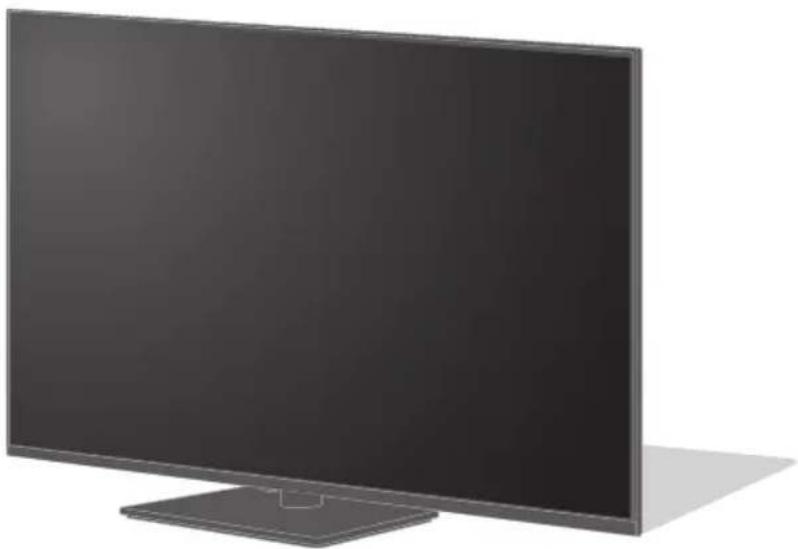

(image: TX-55LX*88*)

For more detailed instructions, please refer to [eHELP] (Built-in Operating Instructions).

• How to use [eHELP] (p. 20)

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference.

Please carefully read the "Safety Precautions" of this manual before use.

The images shown in this manual are for illustrative purposes only.

Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.

OIB_2

72-LXT886-X32Z2

Model No.

TX-43LXT886 TX-43LXN888

TX-50LXT886 TX-50LXN888

TX-55LXT886 TX-55LXN888

TX-65LXT886 TX-65LXN888

TX-43LXF887 TX-43LXX889

Safety Precautions 5

Accessories 9

Installing the TV 9

Installing the wall-hanging bracket 10

Connections 11

Identifying Controls 16

Initial Setup 18

Watching TV 19

How to Use eHELP 20

FAQs 20

Maintenance 21

Specifications 22

Dolby Atmos

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Manufactured under license from Dolby Laboratories. Confidential unpublished works.

Copyright © 1992-2021 Dolby Laboratories. All rights reserved.

Wi-Fi ^ is a registered trademark of Wi-Fi Alliance ^ . WPA3 ^TM , WPA2 ^TM , WPA ^TM are trademarks of Wi-Fi Alliance ^ .

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Holdings Corporation is under license.

DVB and the DVB logos are trademarks of the DVB Project.

x.v.Colour ^TM is a trademark.

DiSEqC ^™ is a trademark of EUTELSAT.

Google is a trademark of Google LLC.

YouTube and the YouTube logo are trademarks of Google LLC.

Amazon, Prime Video and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

© Disney

This product complies with the UHD Alliance Technical Specification: UHDA Specified Reference Mode, Version 1.0. FILMMAKER MODE™ logo is a trademark of the UHD Alliance, Inc. in the United States and other countries.

- For information about the trademarks, refer to [eHELP] (Search by Purpose > Read first > Before use > Licence).

The illustration for TX-55LX*88* is used in this manual unless otherwise mentioned. Illustrations shown may be different depending on the model.

Important Notice

Notice for DVB / Data broadcasting / IPTV functions

- This TV is designed to meet the standards (as of May, 2022) of DVB-T / T2 (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265)) digital terrestrial services, DVB-C (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265)) digital cable services and DVB-S (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265)) digital satellite services.

Consult your local dealer for availability of DVB-T / T2 or DVB-S services in your area.

Consult your cable service provider for availability of DVB-C services with this TV.

• This TV may not work correctly with the signal which does not meet the standards of DVB-T / T2, DVB-C or DVB-S.
• Not all the features are available depending on the country, area, broadcaster, service provider, satellite and network environment.
• Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
• This TV may not work correctly with CI module that is not approved by the service provider.
• Additional fees may be charged depending on the service provider.
• Compatibility with future services is not guaranteed.

Internet apps, voice control function are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time.

Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services.

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker's peripheral devices.

Damages

• Excepting cases where responsibility is recognised by local regulations, Panasonic accepts no responsibility for malfunctions caused by misuse or use of the product, and other problems or damages caused by use of this product.
• Panasonic accepts no responsibility for the loss, etc., of data caused by disasters.
• External devices separately prepared by the customer are not covered by the warranty. Care for the data stored in such devices is the responsibility of the customer. Panasonic accepts no responsibility for abuse of this data.

Handling of customer information

Customer's personal information may be recorded on this TV by broadcasting organization or application provider. Before repairing, transferring or discarding this TV, erase all the information recorded on this TV according to the following procedure.

[eHELP] (Search by Purpose > Functions > Reset) Customer information may be collected by provider via application provided by third parties on this TV or website. Please confirm the terms and conditions etc. of provider in advance.

• Panasonic will not be held responsible for collecting or using customer information via application provided by third party on this TV or website.
• When entering your credit card number, name, etc., pay special attention to the trustworthiness of the provider.
• Registered information may be registered in the server etc. of provider. Before repairing, transferring or discarding this TV, be sure to erase the information according to the terms and conditions etc. of provider.

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, L.L.C.

See http://www.mpegla.com.

This mark indicates the product operates on AC voltage.

This mark indicates a Class II or double insulated electrical appliance wherein the product does not require a safety connection to electrical earth (ground).

Transport only in upright position.

Safety Precautions

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings and cautions below:

■ Mains plug and lead

Warning

If you detect anything unusual, immediately remove the mains plug.

• Mains plug type may vary depending on the country.

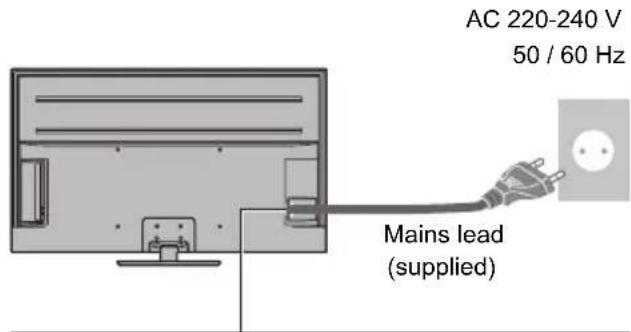

• This TV is designed to operate on AC\~220-240 V, 50 / 60 Hz.
• Insert the mains plug fully into the mains socket.
• To turn Off the apparatus completely, you must pull the mains plug out of the mains socket.

Consequently, the mains plug should be easily accessible at all times.

• Disconnect the mains plug when cleaning the TV.
• Do not touch the mains plug with wet hands.

• Do not damage the mains lead.

• Do not place a heavy object on the lead.
• Do not place the lead near a high temperature object.
• Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.
• Do not move the TV with the lead plugged into a mains socket.
• Do not twist the lead, bend it excessively or stretch it.
• Do not use a damaged mains plug or mains socket.
• Ensure the TV does not crush the mains lead.

- Do not use any mains lead other than that provided with this TV.

Take care

Warning

- Do not remove covers and never modify the TV yourself as live parts are accessible and risk of electric shock when they are removed. There are no user serviceable parts inside.

- Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

• Do not insert foreign objects into the TV through the air vents.
• If the TV is used in an area where insects may easily enter the TV.

It is possible for insects to enter the TV, such as small flies, spiders, ants, etc. which may cause damage to the TV or become trapped in an area visible on the TV, e.g. within the screen.

- If the TV is used in an environment where there is dust or smoke.

It is possible for dust/smoke particles to enter the TV through the air vents during normal operation which can become trapped inside the unit. This may cause overheating, malfunction, deterioration in picture quality, etc.

• Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.
• Do not apply any strong force or impact to the display panel.
• Ensure that children do not climb on the TV.

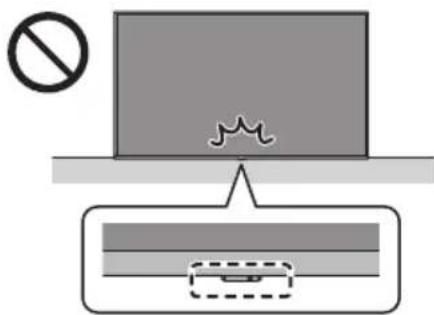

• Do not place the TV on sloping or unstable surfaces, and ensure that the TV does not hang over the edge of the base.

Warning Stability Hazard

A TV may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the TV.
• ALWAYS use furniture that can safely support the TV.
• ALWAYS ensure the TV is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the TV or its controls.
• ALWAYS route cords and cables connected to your TV so they cannot be tripped over, pulled or grabbed.
• NEVER place a TV in an unstable location.
• NEVER place the TV on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the TV to a suitable support.
• NEVER place the TV on cloth or other materials that may be located between the TV and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the TV or furniture on which the TV is placed.

If the existing TV is going to be retained and relocated, the same considerations as above should be applied.

• This TV is designed for table-top use.
- Do not expose the TV to direct sunlight and other sources of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

■ Suffocation / Choking Hazard

Warning

- The packaging of this product may cause suffocation, and some of the parts are small and may present a choking hazard to young children. Keep these parts out of reach of young children.

Pedestal

Warning

- Do not disassemble or modify the pedestal.

Caution

• Do not use any pedestal other than the one provided with this TV.
• Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.
• During setup, make sure that all screws are securely tightened.
• Ensure that the TV does not suffer any impact during installation of the pedestal.
• Ensure that children do not climb onto the pedestal.

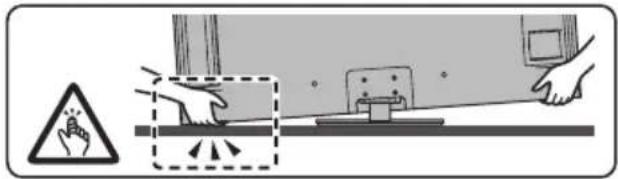

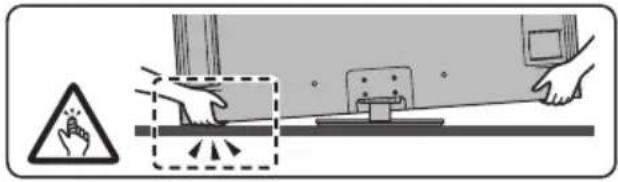

• Install or remove the TV from the pedestal with at least two people.
• Install or remove the TV according to the specified procedure.

Radio waves

Warning

• Do not use the TV and the remote control in any medical institutions or locations with medical equipment. Radio waves may interfere with the medical equipment and may cause accidents due to malfunction.
• Do not use the TV and the remote control near any automatic control equipment such as automatic doors or fire alarms. Radio waves may interfere with the automatic control equipment and may cause accidents due to malfunction.
• Keep at least 15 cm away from the TV and the remote control if you have a cardiac pacemaker. Radio waves may interfere with the operation of the pacemaker.
• Do not disassemble or alter the TV and the remote control in any way.

■ Built-in wireless LAN

Caution

• Do not use the built-in wireless LAN to connect to any wireless network (SSID*) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.
  *SSID is a name for identifying a particular wireless network for transmission.
• Do not subject the built-in wireless LAN to high temperatures, direct sunlight or moisture.
• Data transmitted and received over radio waves may be intercepted and monitored.
• The built-in wireless LAN uses 2.4 GHz and 5 GHz frequency bands. To avoid malfunctions or slow response caused by radio wave interference when using the built-in wireless LAN, keep the TV away from other devices that use 2.4 GHz and 5 GHz signals such as other wireless LAN devices, microwave ovens, and mobile phones.
• When problems occur due to static electricity, etc., the TV might stop operating to protect itself. In this case, turn the TV off at the Mains power On / Off switch, then turn it back on.

■ Bluetoothwireless technology

Caution

- The TV and the remote control use the 2.4 GHz radio frequency ISM band (Bluetooth ^ ). To avoid malfunctions or slow response caused by radio wave interference, keep the TV and the remote control away from the devices such as other wireless LAN devices, other Bluetooth ^ devices, microwaves, mobile phones and the devices that use 2.4 GHz signal.

Ventilation

Caution

Allow sufficient space (at least 10 cm) around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

- Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

- Whether you are using a pedestal or not, always ensure the vents at the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

■ Moving the TV

Caution

Before moving the TV, disconnect all cables.

• At least two people are required to move the TV to prevent injury that may be caused by the tipping or falling of TV.

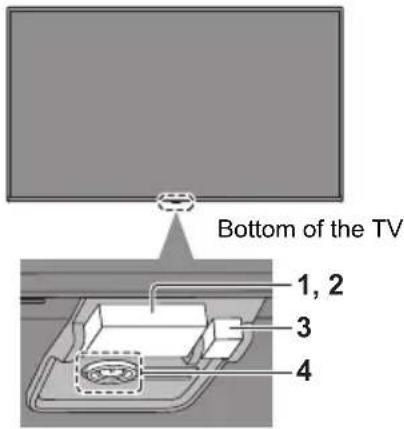

• The remote control signal receiver, etc., are on the bottom of the TV, so do not apply shocks by allowing it to hit the floor, etc.

■ When not in use for a long time

Caution

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live mains socket.

- Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

■ Excessive volume

Caution

- Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

- If you hear a drumming noise in your ears, turn down the volume or temporarily stop using the headphones.

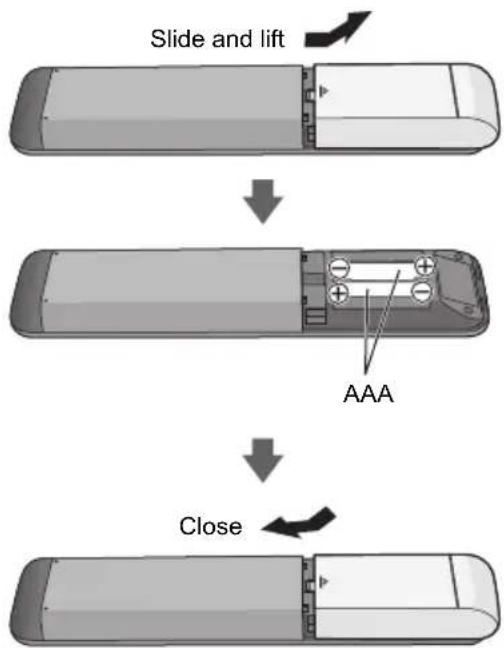

■ Battery for the Remote Control

Warning

- Keep the batteries out of reach of children to prevent swallowing.

Adverse physical effects can result if accidentally swallowed. If you suspect a child has swallowed one, seek medical attention immediately.

Caution

- Incorrect installation may cause battery leakage, corrosion and explosion.

- Replace only with the same or equivalent type.

• Do not mix old and new batteries.

- Do not mix different battery types (such as alkaline and manganese batteries).

• Do not use rechargeable batteries (Ni-Cd, etc.).

• Do not burn or break up batteries.

- Do not expose batteries to excessive heat such as sunshine, fire or the like.

• Make sure you dispose of batteries correctly.

- Remove the battery from the unit when not using for a prolonged period of time to prevent battery leakage, corrosion and explosion.

LED TV

EU Declaration of Conformity (DoC)

Hereby, Panasonic Entertainment & Communication Co., Ltd. declares that this TV is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU.

If you want to get a copy of the original DoC of this TV, please visit the following website:

https://www.ptc.panasonic.eu/compliance-documents

Authorized Representative in EU:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Manufacturer:

Panasonic Entertainment & Communication Co., Ltd.

1-10-12 Yagumo-higashi-machi, Moriguchi City,

Osaka 570-0021, Japan

Assembled in the Republic of Poland

5.15 - 5.35 GHz band of wireless LAN is restricted to indoor operation only in the following countries.

Austria, Belgium, Bulgaria, Czech Republic, Denmark, Estonia, France, Germany, Iceland, Italy, Greece, Spain, Cyprus, Latvia, Liechtenstein, Lithuania, Luxembourg, Hungary, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Slovakia, Turkey, Finland, Sweden, Switzerland, Croatia

Output power transmitted in the frequency bands

Type of wireless F	frequency band	Output Power (EIRP)
Wireless LAN	2412-2472 MHz <	20 dBm
	5150-5250 MHz <	23 dBm
	5250-5350 MHz <	23 dBm
	5470-5725 MHz <	23 dBm
Bluetooth®	2402-2480 MHz <	10 dBm

Accessories

Standard accessories

Remote Control (p. 16)

N2QBYA000051

Pedestal (p. 9)

Mains lead (p. 12)

Batteries (2) (p. 17)

AAA

Operating Instructions

Pan European Guarantee Card

- Accessories may not be placed all together. Take care not to throw them away unintentionally.

Installing the TV

Ⓐ Pedestal

3D diagram of a mechanical clamp or bracket mounted on a flat base plate (no text or symbols)

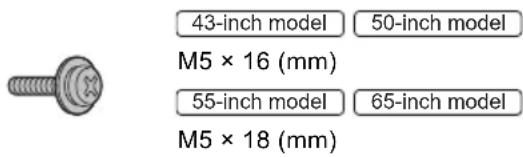

⑧ Assembly screw (4)

Preparations

• Do not hold the screen panel part.
  • Make sure not to scratch or break the TV.
• Do not place the TV temporarily on the floor or desk.

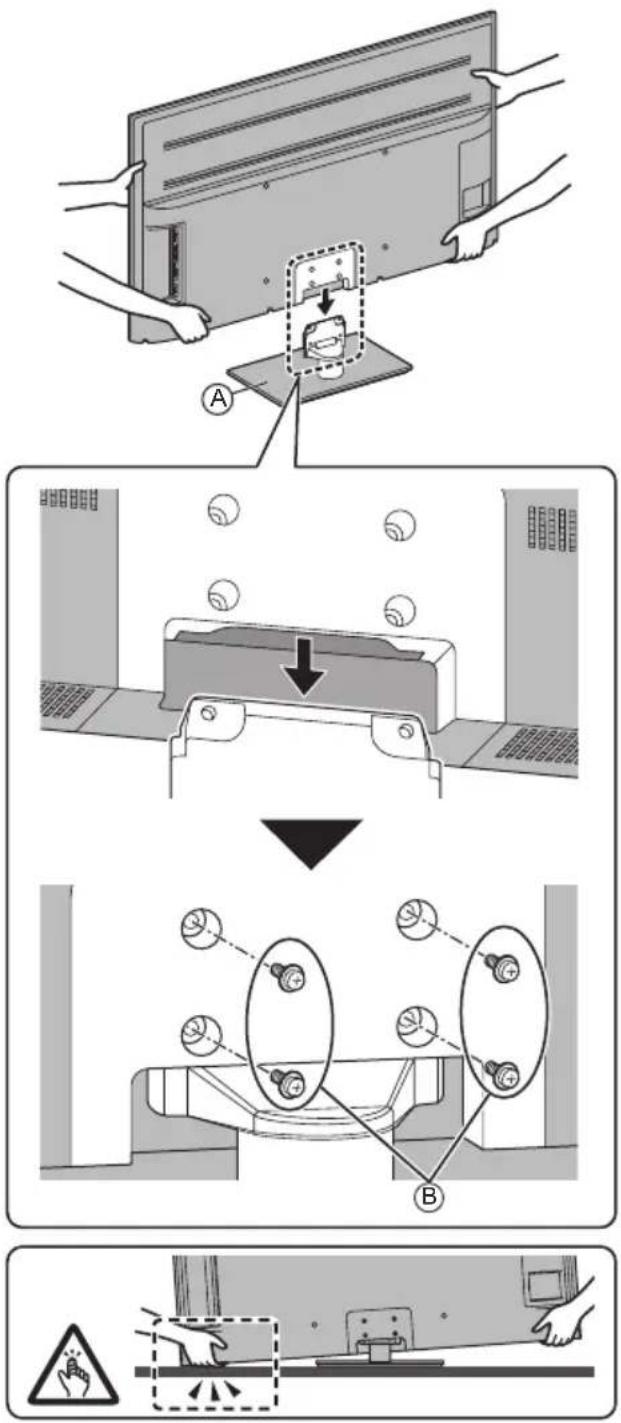

Assembling the pedestal

• Insert the pedestal firmly, otherwise it may come off when setting up the TV.
  • Make sure that all screws are securely tightened.
• Do not assemble the pedestal by any method other than those specified below.

Removing the pedestal

Be sure to remove the pedestal in the following procedures when you use the wall-hanging bracket or repack the TV.

1 Remove the assembly screws Ⓑ from the pedestal.
2 Pull out the pedestal from the TV.

Installing the wall- hanging bracket

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.

• Holes for wall-hanging bracket installation

Rear of the TV

43-inch model

50-inch model

a: 200 mm

b: 200 mm

55-inch model

65-inch model

a: 400 mm

b: 300 mm

(View from the side)

Depth of screw

43-inch model

minimum: 9 mm

maximum: 11 mm

50-inch model

minimum: 9 mm

maximum: 17 mm

55-inch model 65-inch model

minimum: 12 mm

maximum: 36 mm

Diameter of screw M6

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Warning

• Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit's performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
• Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.
• Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
  Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
• To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

Connections

• External equipment and cables shown are not supplied with this TV.
- Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
- Check the terminal type and cable plugs are correct for connection.
• Use a fully wired HDMI compliant cable.
- Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.
- Please also read the manual of the equipment being connected.

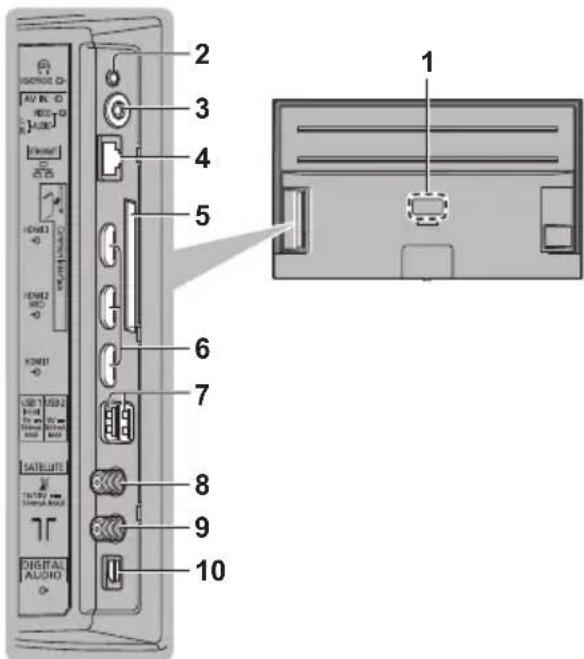

Terminals

1 Model name plate
2 Headphone jack
(3.5 mm stereo mini plug)
3 A V I N
4 ETHERNET terminal
• Use Shielded Twist Pair (STP) LAN cable.
5 CI slot
6 HDMI 1 - 3
7 USB 1 - 2 port
This symbol indicates DC operation.
8 Satellite terminal
9 Terrestrial / cable terminal
10 DIGITAL AUDIO

Basic connections

AV devices

(DVD Recorder / Blu-ray Recorder, Set top box, etc.)

- For details, refer to [eHELP] (Search by Purpose > Watching > Basic > Basic connection).

Aerial

(For viewing cable / digital / analogue broadcasts)

TV

① RF cable

② Terrestrial aerial

Mains lead

Insert the mains plug firmly into place.

- When disconnecting the mains lead, be absolutely sure to disconnect the mains plug from the mains socket first.

Satellite dish

• To ensure your satellite dish is correctly installed, please consult your local dealer. Also consult the received satellite broadcasting companies for details.
• For details, refer to [eHELP] (Search by Purpose > Watching > Basic > Basic connection).

Network

A broadband network environment is required to be able to use internet services.

• If you do not have any broadband network services, please consult your retailer for assistance.
  • Prepare the internet environment for wired connection or wireless connection.
• Setup of the network connection will start when first using the TV. (p. 18)
• For details, refer to [eHELP] (Search by Purpose > Network > Network connections).

Connections for 4K / HDR compatible equipment

TV

① HDMI cable

② 4K / HDR compatible equipment

• Reproduces the image more precisely with the expanded colour gamut when connecting the 4K compatible equipment. [Mode2] is a mode that supports higher definition signals than [Mode1]. Set to [Mode1] when the image or sound in HDMI input is not played properly.
• Connect the 4K compatible equipment to HDMI terminal using a 4K compatible cable and you can watch content in 4K format.
  • Supporting HDR does not increase the peak brightness capabilities of the TV panel.

■ [HDMI Auto Setting] ([Settings] menu)

Reproduces the image more precisely with the expanded colour gamut when connecting the 4K compatible equipment. Select the mode depending on the equipment.

[Mode1]:

For better compatibility. Set to [Mode1] when the image or sound in HDMI input is not played properly. [Mode2]:

For the 4K compatible equipment that has the function to output the image precisely with the expanded colour gamut

• To change the mode

1. Select the HDMI input mode connected to the equipment.
2. Display the menu and select [HDMI Auto Setting] (Settings > Device Preferences > Inputs).

- For information about the valid format, refer to [eHELP] (Search by Purpose > Watching > 4K resolution > HDMI Auto Setting).

Other connections

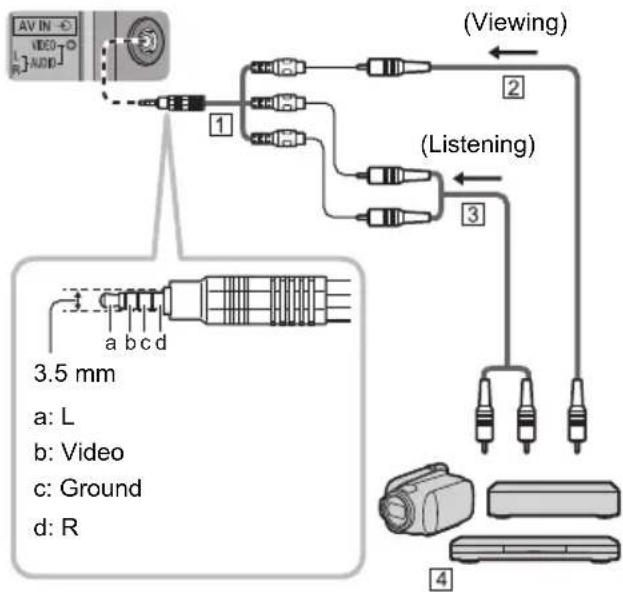

■ DVD Player / Camcorder / Game equipment (VIDEO equipment)

TV

1 AV adaptor (Shielded / not supplied)
② Composite video cable (Shielded)

• Use shielded composite cable.

3 Audio cable (Shielded)

• Use shielded audio cables.

4 DVD Player / Camcorder / Game equipment

■ Amplifier (listening with external speakers)

• To enjoy multi-channel sound from external equipment (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For information about the connections, read the manuals of the equipment and amplifier.
• For details, refer to [eHELP] (Search by Purpose > Watching > External equipment > External connection).

Headphones

• To use headphones, set [Audio Output] in the Sound menu to [Headphone].
• For details, refer to [eHELP] (Search by Purpose > Watching > External equipment > External connection).

■ USB HDD (for recording)

• Use USB 1 port for connecting the USB HDD.
- For details, refer to [eHELP] (Search by Purpose > Recording).

HDMI CEC

• Use HDMI 1 - 3 for HDMI CEC connection.
- For details, refer to [eHELP] (Search by Purpose > Functions > HDMI CEC).

■ Common Interface

• Turn the TV off with Mains Power On / Off switch whenever inserting or removing the CI module.
• If a smart card and a CI module come as a set, first insert the CI module, then insert the smart card into the CI module.
• Insert or remove the CI module completely in the correct direction as shown.
• Normally encrypted channels will appear. (Viewable channels and their features depend on the CI module.)

If encrypted channels do not appear

[Common Interface] (Settings > Channel > Advanced Options > Common Interface)

• There might be some CI modules in the market with older firmware versions that do not work fully interoperable with this new CI+ v1.4 TV. In this case, please contact your content provider.
• For details, refer to [eHELP] (Search by Purpose > Functions > Common Interface), read the manual of the CI module, or check with the content provider.
• Be sure to remove the CI module card, etc. before repairing, transferring or discarding.

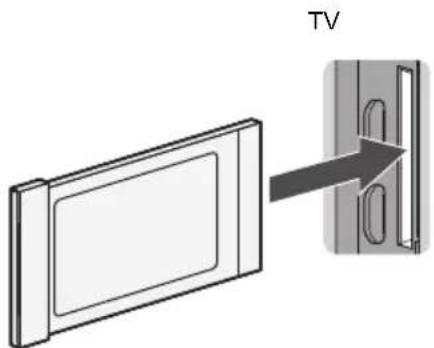

CI module

Connecting Bluetooth ^® devices

Registering Bluetooth ^® devices

This TV supports Bluetooth® communications.

Bluetooth ^® devices that have been registered (paired) with this TV can connect to (communicate with) this TV.

• When registering (pairing) a Bluetooth device with this TV, move the device within 50 cm of the TV.
• It is not possible to register (pair) Bluetooth devices that are not compatible with this TV.
• If a Bluetooth-enabled device that you have registered (paired) with this TV is then registered and used on another device, it may then be made unavailable for use with this TV. Register the device on this TV again if this occurs.
• You can register Bluetooth audio devices that support A2DP on this TV. Due to the characteristics of wireless technology, there will be some delay between the playback of video and audio.
• A maximum of 1 audio device that support A2DP can be used simultaneously.
• For details, refer to [eHELP] (Search by Purpose > Functions > Bluetooth devices).

Registering the remote control (supplied)

Either Bluetooth ^® wireless technology or the infrared communication function can be used for the transmissions between the TV and the remote control.

Since voice controls (p. 17) use Bluetooth wireless technology, the remote control needs to be registered (paired) with the TV.

• Register (pair) the remote control during Initial Setup (p. 18).
• If the remote control is not registered when you start using voice controls, press the Google Assistant (voice control) button to display the registration screen, then follow the on-screen instructions to register. If the registration screen doesn't appear

→ "If registration fails" (p. 15)

• When registering, face the remote control at the remote control signal receiver on the TV, within about 50 cm.
• Registration may not be completed correctly if the batteries in the remote control are running low.

■ If registration fails

If registration (pairing) is not completed properly, try registering again.

1 Display the menu and select [Settings]

2 Select [Remote Control]

3 Select [Pairing Start]

- The registration screen is displayed, so follow the on-screen instructions to register.

■ When the remote control does not respond

1 Press and hold the buttons shown below simultaneously for about 3 seconds

2 Point the remote control at the remote control signal receiver and follow the procedure below to deregister (unpair) the remote control

3 Register (pair) the remote control again "If registration fails" (p. 15)

- For details, refer to [eHELP] (Search by Purpose > Settings > Remote Control).

Note

- If the remote control is not registered (paired) with the TV, they communicate via infrared. Face the remote control at the TV's remote control signal receiver for operation when infrared communication is used. Please note that voice controls will not be available.

- If the remote control is registered (paired) with the TV, they communicate via Bluetooth®. You will not need to face the remote control at the TV's remote control signal receiver when Bluetooth® communication is used.

Please note, however, that when the LED is red (standby) indicating that the TV is turned off, you will need to face the remote control at the TV's remote control signal receiver for operation in order to turn on the TV.

Identifying Controls

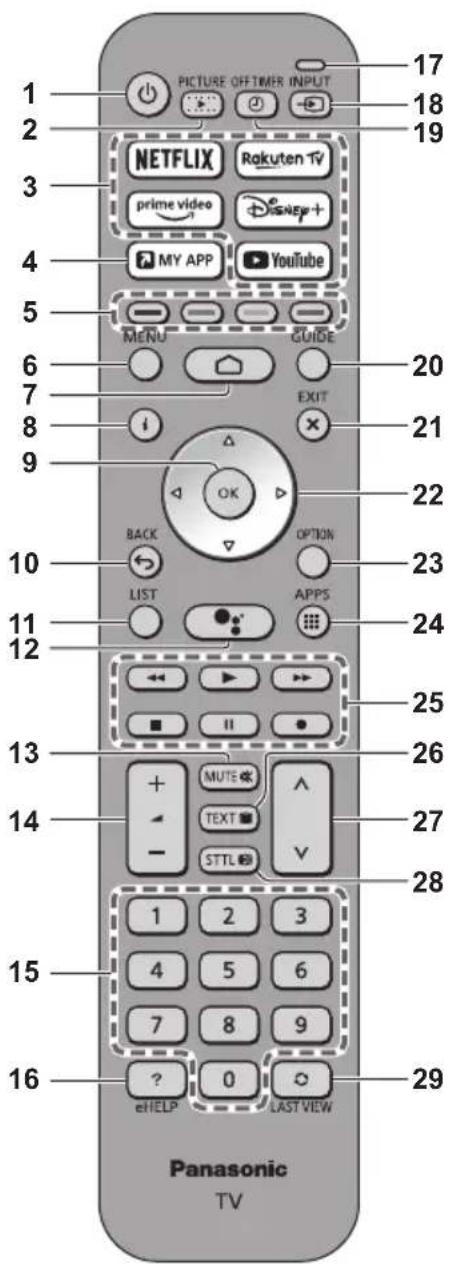

Remote Control

1 [ ] Switches TV On or Off (Standby)
2 PICTURE
• Changes the viewing mode.
3 Netflix, Prime Video, Rakuten TV, Disney+, YouTube
• Used to access each service directly.

4 M Y A P P

• Displays [my Home Screen].
- Assigns a favourite application. After setting, starts the application easily by pressing this button.
- For details, refer to [eHELP] (Search by Purpose > Home > Apps).

5 Coloured buttons

(red-green-yellow-blue)

• Used for the selection, navigation and operation of various functions.

6 [Quick setting menu]

- Press to access Settings, Picture, Viewing Mode and Sound, etc.

7 HOME

• Displays [Home].
- For details, refer to [eHELP] (Search by Purpose > Home > Home).

8 Information

• Displays information on channels, programmes, and online content (Netflix, etc.).

9 OK

• Confirms selections and choices.
- Press after selecting channel positions to quickly change channel.

10 BACK

- Returns to the previous menu / page.

11 LIST

• Displays channel list.

12 Google Assistant

• Used for the voice control function. (Voice control button)

13 Sound Mute On / Off

14 Volume Up / Down

15 Numeric buttons

• Changes channel and teletext pages.

16 [eHELP]

• Displays [eHELP] (Built-in Operating Instructions).

17 Microphone

- Operates with the voice control microphone.

18 Input mode selection

- Selects the TV or AV input mode from the input selection list.

19 Off Timer

- Sets the time for the TV to automatically turn off.

20 TV Guide

• Displays Electronic Programme Guide.

21 EXIT

• Returns to the normal viewing screen.

22 Cursor buttons

• Makes selections and adjustments.

23 Option menu

• Displays optional settings.

24 APPS

• Displays [Apps] (applications list).

25 Operations for contents, connected equipment, etc.

26 Teletext button

27 Channel Up / Down

28 Subtitles

• Displays the Subtitle setting screen.

29 Last view

• Switches to previously viewed channel.

■ Installing / Removing batteries

• Note the correct polarity (+ or -).

Voice controls

The TV recognizes speech when you talk into the voice control microphone, enabling you to perform operations such as changing TV channels, adjusting the volume, searching for programmes, and doing internet searches.

• If the remote control is not registered (paired) with the TV, register (pair) the remote control. (p. 14)
• Google Assistant functions may be currently under consideration for a future release in your region. They will be made available when they become ready for release.
• Google Assistant functions may not be available in certain countries or regions or for certain broadcasters.
• The TV needs to be connected to the internet in order to perform searches, etc. (p. 12)
• The effective range for voice controls depends on the viewing environment.
• Operation may not be correct depending on the type of voice the person has and the way they speak, as well as the surrounding environment and conditions.
• When other Bluetooth devices are connected at the same time, voice controls may not work properly depending on the connected devices.

Controlling with your voice

1 Press the Google Assistant (voice control) button

2 Speak into the voice control microphone

- Press the BACK button to end voice control.

- For information about settings and operations for voice controls, refer to [eHELP] (Search by Purpose > Functions > Voice Control).

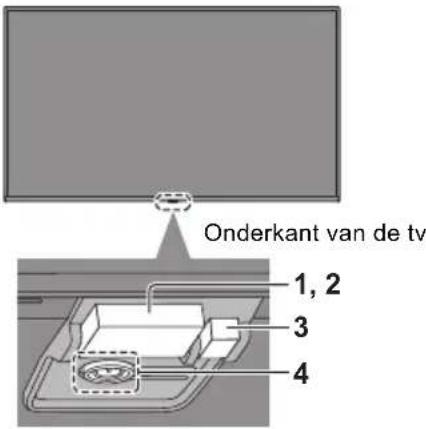

Indicator / Control panel

1 Ambient sensor

- Senses brightness to adjust picture quality when [Ambient Sensor] in the Picture menu is set to [On].

2 Remote control signal receiver (for infrared communication)

- Do not place any objects between the TV remote control signal receiver and remote control.

3 Power LED

Red: Standby

Green: On

- Depending on the ambient brightness, adjusts the brightness of LED to easy-to-view levels automatically.

Orange: Standby with some functions (recording, etc.) active

- The LED blinks when an infrared signal is received from the remote control.

4 Mains power On / Off switch

- Press the switch to turn on. When the TV is on, press and hold the switch to turn off. Keep pressing until it turns off.

- When the TV is on, press the switch to display the operation guide.

Operation guide (Example):

Power

Volume Volume

Channel

Channel

Input

estart

The item selection switches between Power, Volume, Channel, Input*, and Restart each time you press the switch, and pressing and holding enables item operation. Follow the on-screen messages.

* Press the switch to select the input when the input selection list appears. Wait without any operation to finish your selection.

- To turn Off the apparatus completely, you must pull the mains plug out of the mains socket.

• Standby / On (Bottom of the TV)

Initial Setup

When the TV is turned on for the first time, it will automatically search for available TV channels and give options to set up the TV.

• These steps are not necessary if the setup has been completed by your local dealer.
- Please complete connections (p. 11 - 14) and settings (if necessary) of the connected equipment before starting Initial Setup. For information about the settings for the connected equipment, read the manual of the equipment.

1 Plug the TV into a live mains socket and turn the power on

• Takes a few seconds to be displayed.

Icon of a remote control device with a power button and control buttons (no text or symbols)

2 Select the following items

Set up each item by following the on-screen instructions.

Example:

Select TV mode

"Home" mode is optimized for efficient energy usage for home use. "Shop" mode is optimized to store demo with fixed settings.

Home

Shop

■ How to use the remote control

Move the cursor

Access the item / store the setting

Return to the previous item (if available)

Select the language

Register (pair) the Bluetooth ^® remote control

- Point the remote control at the TV's remote control signal receiver, then press and hold the volume down button and the Google Assistant (voice control) button simultaneously for 3 seconds.

Set up your Wi-Fi network and Google account

• If you are using an Android phone for setup, select [Continue]. You can then easily transfer your Android phone's Wi-Fi network and Google account to your TV.
• If you are not using an Android phone for setup, select [Skip], then complete settings on the setup screen which appears next.

Select your country

Enter the PIN number for parental controls

Select your tuner mode

- When [Satellite] has been selected, follow the on-screen instructions to set the satellite type and other details.

Run a channel scan

Select [Home]

Select [Home] for use in a home viewing environment.

• [Shop] is for shop display.
- To change the viewing environment later on, the set will need to have all settings initialised by accessing [Reset].

Initial Setup is now complete and the TV is ready for viewing.

If tuning has failed check the Satellite cable, RF cable, and the network connection, and then follow the on-screen instructions.

Note

• The TV goes into Standby mode when no operation is performed for 4 hours if [Switch Off Timer] in the Power menu is set to [240 Minutes] (factory setting).
• The TV goes into Standby mode when no signal is received and no operation is performed for 10 minutes if [No Signal Power Off] in the Power menu is set to [10 Minutes] (factory setting).

• To retune all channels

→ [Channel Scan] (Settings > Channel > Channels)

• To switch the TV signal mode later
→ [Channel Installation Mode] (Settings > Channel)

• To initialise all settings

→ [Reset] (Settings > Device Preferences > About)

Watching TV

1 Turn power on

(Bottom of the TV)

or

(Remote Control)

- Mains power On / Off switch should be on. → (p. 18)

2 Select TV

TV

3 Select a channel

or

• To select a channel position with 2 or more-digit, e.g. 399

How to Use eHELP

[eHELP] is the detailed operating instructions built into the TV, and gives a more detailed explanation for a better understanding of the operation of each feature.

- [eHELP] covers all models. Some features described in [eHELP], therefore, may not be available on certain models. Refer to this manual, the menus of the TV, etc. to check your model's actual features.

1 Display [eHELP]

or

[eHELP]

2 Select the menu

• To access [How to use]

(green)

3 Select the item

Example:

• To return to the previous screen / field

FAQs

Before requesting service or assistance, please follow these simple guides to solve the problem.

• For details, refer to [eHELP] (Support > FAQs).

The TV does not switch on

• Check the mains lead is plugged into the TV and the mains socket.
• If the LED is off, press the TV's Mains power On / Off switch to turn on the TV. (p. 18)

The TV goes into Standby mode

• Auto power standby function is activated.

The remote control does not work or is intermittent

• Are the batteries installed correctly? → (p. 17)
  Has the TV been switched on?
• The batteries may be running low. Replace them with new ones.
• Operation of the remote control is not possible due to system startup when the LED is blinking orange. You can use the remote control after the LED turns constant red.
• Point the remote control directly at the TV's remote control signal receiver (within about 7 m and a 30 degree angle of the signal receiver).*
• Situate the TV away from sunshine or other sources of bright light so they do not shine on the TV's remote control signal receiver.*
• If you are trying to use voice controls, is the remote control registered (paired) with the TV? (p. 14)
• If the solutions above do not fix the problem, deregister (unpair) the remote control, then register (pair) it again. "When the remote control does not respond" (p. 15)

* When infrared communication is used

No image is displayed

• Check the TV is turned on.
• Check the mains lead is plugged into the TV and the mains socket.
• Check the correct input mode is selected.
• Check the input mode in the input selection list to match the signal being output by the external equipment.

- Is [Backlight], [Brightness], [Contrast] or [Colour] in the Picture menu set to the minimum?

- Check all required cables and connections are firmly in place.

An unusual image is displayed

- This TV has a built-in Self Test. Makes a diagnosis of picture or sound problems.

[TV self test] (Settings > Device Preferences > About)

- Turn the TV off with Mains power On / Off switch, then turn it on again.

- If the problem persists, initialise all settings.

→ [Reset] (Settings > Device Preferences > About)

The image or sound from external equipment are unusual when the equipment is connected via HDMI

- Set [HDMI Auto Setting] (Settings > Device Preferences > Inputs) to [Mode1]. (p. 13)

No sound is produced from the connected HDMI equipment

- Set the audio output format of the connected HDMI equipment to PCM.

Voice control function does not work

- If the remote control is not registered (paired) with the TV, register (pair) the remote control. (p. 14)

- Check the network connections and settings.

Parts of the TV become hot

- Parts of the TV may become hot. These temperature rises do not pose any problems in terms of performance or quality.

When pushed with a finger, the display panel moves slightly and makes a noise

- There is a little gap around the panel to prevent damage to the panel. This is not a malfunction.

About the inquiry

- Please contact your local Panasonic dealer for assistance.

If you make an inquiry from a place where this TV is not present, we cannot answer about contents that require visual confirmation for connection, phenomenon, etc. of this TV itself.

Maintenance

First, remove the mains plug from the mains socket.

Display panel, Cabinet, Pedestal

Regular care:

Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or fingerprints.

For stubborn dirt:

(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water).
(3) Wring out the cloth firmly. (Please note, do not let liquid enter the TV inside as it may lead to product failure.)
(4) Carefully wipe moisten and wipe away the stubborn dirt.
(5) Finally, wipe away all the moisture.

Caution

• Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.
  Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
• The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may cause fire or electrical shock.

Specifications

TV

Model No.

43-inch model : TX-43LXT886, TX-43LXF887, TX-43LXN888, TX-43LXX889

50-inch model : TX-50LXT886, TX-50LXF887, TX-50LXN888, TX-50LXX889

55-inch model : TX-55LXT886, TX-55LXF887, TX-55LXN888, TX-55LXX889

65-inch model : TX-65LXT886, TX-65LXF887, TX-65LXN888, TX-65LXX889

Dimensions (W × H × D)

43-inch model

965 mm × 617 mm × 250 mm (With Pedestal)

965 mm × 566 mm × 83 mm (TV only)

50-inch model

1 120 mm × 701 mm × 250 mm (With Pedestal)

1 120 mm × 652 mm × 83 mm (TV only)

55-inch model

1 234 mm × 768 mm × 302 mm (With Pedestal)

1 234 mm × 719 mm × 83 mm (TV only)

65-inch model

1 453 mm × 889 mm × 302 mm (With Pedestal)

1 453 mm × 841 mm × 83 mm (TV only)

Mass

43-inch model

11.5 kg Net (With Pedestal)

9.0 kg Net (TV only)

50-inch model

14.0 kg Net (With Pedestal)

11.5 kg Net (TV only)

55-inch model

19.0 kg Net (With Pedestal)

16.0 kg Net (TV only)

65-inch model

24.0 kg Net (With Pedestal)

21.0 kg Net (TV only)

Power source

AC 220-240 V, 50 / 60 Hz

Panel

LED backlight Liquid Crystal Display

Sound

Speaker output

20 W (10 W × 2)

Headphones

Connection terminals

AV input

VIDEO

1.0 V[p-p] (75 Ω)

AUDIO L - R

0.5 V[rms]

HDMI 1 / 2 / 3 input

TYPE A Connectors

HDMI 1 / 3:

4K, Content Type, Deep Colour, x.v.Colour™

HDMI 2:

4K, Content Type, ARC (Audio Return Channel),

Deep Colour, x.v.Colour™

Card slot

Common Interface slot (complies with CI Plus) × 1

ETHERNET

RJ45, IEEE802.3 10BASE-T / 100BASE-TX

USB 1 / 2

USB 1 / 2:

DC = 5 V, Max. 500 mA [Hi-Speed USB (USB

2.0)]

DIGITAL AUDIO output

PCM / Dolby Audio, Fibre optic

Receiving systems / Band name

Satellite

DVB-S / S2

Receiver IF frequency range - 950 MHz to

2150 MHz

Digital

DVB-T / T2, DVB-C

Channel coverage: UHF / VHF / Cable

Analogue

PAL B / G, D / K, H, I

SECAM B / G, D / K, L / L'

Channel coverage: UHF / VHF / Cable

PAL 525 / 60 (VCR)

M.NTSC (VCR)

NTSC (AV input only)

Satellite dish input

Female F-type 75 Ω × 1

Aerial input

VHF / UHF

Operating conditions

Temperature

0^ C - 35^ C

Humidity

20% - 80% RH (non-condensing)

Built-in wireless LAN

Standard compliance and Frequency band

IEEE802.11a/n/ac: 5 GHz band

IEEE802.11b/g/n: 2.4 GHz band

Security

WPA3-SAE (AES)

WPA2-PSK (TKIP/AES)

WPA-PSK (TKIP/AES)

WEP (64 bit/128 bit)

Bluetooth® wireless technology\*

Standard Compliance and Frequency band

Bluetooth ^® 5.1: 2.4 GHz band

* Not all the Bluetooth® compatible devices are available with this TV. Up to 5 devices can be used simultaneously.

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• For information about the open source software, refer to [eHELP] (Search by Purpose > Read first > Before use > Licence).
• For more product information, please visit EPREL: https://eprel.ec.europa.eu.
  EPREL registration number is available on https://eprel.panasonic.eu/product.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Customer's Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic®

Gebruiksaanwijzing

Led-tv

Nederlands

Serie

TX-43LX*88*

TX-50LX*88*

TX-55LX*88*

TX-65LX*88*

Exterior view of a modern flat-screen monitor with a stand (no text or symbols visible)

TX-55LXT886 TX-55LXN888

TX-65LXT886 TX-65LXN888

TX-43LXF887 TX-43LXX889

Copyright © 1992-2021 Dolby Laboratories.

Panasonic Testing Centre

3D diagram of a mechanical clamp or bracket mounted on a flat base plate (no text or symbols)

⑧ Montageschroef (4)

43 inch-model 50 inch-model

M5 × 16 (mm)

55 inch-model 65 inch-model

M5 × 18 (mm)

Voorbereidingen

Diagram showing a TV screen with an arrow pointing to its side panel (no text or symbols present)

CI-module

Bluetooth®-apparaten verbinden

Bluetooth®-apparaten registreren

Illustration of a remote control with signal waves and a car on a stand (no text or symbols)

Indicator/Bedieningspaneel

Simple icon of a remote control panel with a power button and control buttons (no text or symbols)

9,0 kg netto (alleen tv)

50 inch-model

16,0 kg netto (alleen tv)

65 inch-model

21,0 kg netto (alleen tv)

Stroomvoorziening

220-240 V wisselstroom, 50/60 Hz

Paneel

LED-achtergrondverlichting Liquid-Crystal Display

Geluid

Uitgang luidspreker

20 W (10 W × 2)

Hoofdtelefoon

3,5 mm stereo ministekker × 1

Aansluitingen

AV-ingang

VIDEO

1,0 V[p-p] (75 Ω)

AUDIO L - R

0,5 V[rms]

HDMI 1 / 2 / 3 ingang

4K, Content-type, ARC (Audio Return Channel),

Deep Colour, x.v.Colour™

Kaartsleuf

CI-sleuf (conform CI Plus) × 1

ETHERNET

RJ45, IEEE802.3 10BASE-T / 100BASE-TX

USB 1 / 2

USB 1 / 2:

DC = 5 V, Max. 500 mA [Hi-Speed USB (USB 2.0)]

IEEE802.11a/n/ac: 5 GHz band

IEEE802.11b/g/n: 2,4 GHz band

Veiligheid

WPA3-SAE (AES)

WPA2-PSK (TKIP/AES)

WPA-PSK (TKIP/AES)

WEP (64 bit/128 bit)

Bluetooth® draadloze technologie\*

Exterior view of a modern flat-screen monitor with a stand (no text or symbols visible)

(рис.: TX-55LX*88*)

TX-55LXT886 TX-55LXN888

TX-65LXT886 TX-65LXN888

TX-43LXF887 TX-43LXX889

Covered by patents at patentist.accessadvance.com

Dolby Atmos

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Германия

Изготовитель:

Panasonic Entertainment & Communication Co., Ltd. 1-10-12 Yagumo-higashi-machi, Moriguchi City, Osaka 570-0021, Japan

3D illustration of a mechanical clamp or bracket mounted on a flat base plate (no text or symbols)

Diagram showing a door panel being inserted into a wall-mounted door (no text or symbols present)

Модуль СІ

Simple line drawing of a car on a stand with sound waves (no text or symbols)

Simple icon of a remote control panel with buttons and a power button (no text or symbols)
