WKSGS227 - Freezer Wolkenstein - Free user manual and instructions

Product Type	Freezer (also usable as fridge)
Model	WKSGS227
Brand	Wolkenstein
Total Net Volume	227 L
Freezing Capacity	15 kg per 24 h
Storage Time in Malfunction	10 h
Energy Efficiency Class	A++
Annual Energy Consumption	228 kWh/year
Climate Class	SN, N, ST, T (10 °C to 43 °C)
Noise Emission	42 dB(A)
Dimensions (H x W x D)	1722 mm x 595 mm x 632 mm
Net Weight	66.0 kg
Gross Weight	74.5 kg
Power Supply	220-240 V, 50 Hz AC
Refrigerant	R600a (53 g)
Defrosting	Automatic (No Frost)
Temperature Range (Freezer Mode)	-16 °C to -24 °C
Temperature Range (Fridge Mode)	+2 °C to +8 °C
Number of Drawers	3
Door Hinge	Reversible (left/right)
Special Features	Fast Cooling, Fast Freezing, Electronic Temperature Control
Cleaning	Monthly cleaning recommended; condenser cleaned twice a year
Safety	Child safety lock not specified; keep away from children
Spare Parts	Original parts recommended; contact aftersales service

Frequently Asked Questions - WKSGS227 Wolkenstein

How do I switch between fridge and freezer mode?

Press and hold the FRIDGE / FREEZER button for 3 seconds. The mode will change, and the temperature indicator will update accordingly.

How to set the temperature?

Press the TEMPERATURE button repeatedly until the desired temperature is displayed. After 15 seconds, the setting is confirmed. In freezer mode, range is -16°C to -24°C; in fridge mode, +2°C to +8°C.

What is the Fast Freezing mode and how to activate it?

Fast Freezing rapidly lowers the temperature to -24°C for 24 hours. Activate by pressing TEMPERATURE until the fast freezing indicator lights up. It switches off automatically or can be deactivated manually.

Can I change the door opening direction?

Yes, the door hinge is reversible. Follow the detailed instructions in the manual (section 3.5). It requires two persons and specific tools. Disconnect power first.

How to clean the freezer?

Clean monthly with warm water and mild detergent. Do not use abrasive or harsh chemicals. Clean the condenser twice a year with a vacuum or soft brush. Always unplug before cleaning.

What do the error codes mean?

Error codes appear on the control panel. For example: E1 indicates temperature sensor failure, E5 defrost sensor failure, E6 communication error, etc. Refer to the troubleshooting section in the manual for full list.

Why is my freezer making unusual noises?

Common sounds include flowing water (refrigerant), clicking (compressor), and humming (normal operation). Ensure the appliance is level and not touching walls. If noise persists, check for loose items.

What to do during a power failure?

Keep door closed as much as possible. The freezer can maintain temperature for up to 10 hours. Do not add new food. After power returns, check food condition.

Can I store canned beverages in the freezer?

No, never store bottled or canned beverages (still or carbonated) in the freezer compartment. They may explode due to freezing.

How to defrost the freezer?

The appliance has No Frost technology, so manual defrosting is usually not needed. If ice builds up, unplug the appliance, remove food, and allow ice to melt. Do not use sharp tools or heaters.

USER MANUAL WKSGS227 Wolkenstein

Exterior view of a modern stainless steel refrigerator with control panel and side-mounted door (no visible text or symbols)

Deutsch

English

Seite

Page

2

59

Simple line drawing of a door with two labeled points and a handle (no text or symbols)

Diagram of a door frame with arrows indicating direction (no text or symbols)

MILCHPRODUKTE UND EIER

Illustration of a window with a door and bird flying (no text or symbols)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....61

1.1 Signal words ......62
1.2 Safety instructions....62

1. Climatic classes ....67
2. Installation 67

3.1 Unpacking and positioning....67
3.2 Space and ventilation requirements....69

3.2.1 Space requirement....69
3.2.2 Ventilation 70

3.3 Levelling....73
3.3 Levelling....73

3.4 Installation of the door handle....74
3.4 Installation of the door handle....74

3.5 Change of the hinge position....75

1. Operation....84

4.1 Before initial operation....84

4.2 Description of the appliance ....85

4.3 Control panel: operating buttons and indicators....86

4.4 Setting of the fridge or freezer mode....87

4.5 Setting of the temperature 88

4.5.1 Fridge mode: setting of the cooling temperature....89
4.5.2 Freezer mode: setting of the freezing temperature....89

4.6 Selection of the modes .....90

4.6.1 Fast Cooling Mode (fridge mode only)....90
4.6.2 Fast Freezing Mode (freezer mode only)....91

4.7 Power failure....92

4.8 The fridge mode....93

4.9 The freezer mode....94

WOLKENSTEIN

4.9.1 Meaning of the *-labelling of freezers ....95

4.10 Storage of food....96

1. Environmental protection ....101

5.1 Environmental protection: disposal....101

5.2 Environmental protection: energy saving....101

5.3 Operational parameters....102

1. Cleaning and maintenance....103

6.1 Appliance drawers....104

6.2 Defrosting....104

1. Troubleshooting....105

7.1 Error codes....108

1. Decommissioning....110

2. Technical data....111

3. Waste management ....112

4. Guarantee conditions ....113

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

1. Safety information

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for cooling food only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children between 3 and 8 years are allowed to load and unload refrigerators. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
3. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
4. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
5. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at. ^16 Original spare parts should be used only.

6. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.

7. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

8. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
9. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the aftersales service or the shop you purchased the appliance at immediately. ^17

3. If gas is set free at the installation site:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. Do not install the appliance near of volatile or combustible materials (e.g. gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g. garage).

3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

5. Always observe the required minimum distances for proper ventilation.

6. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

7. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.
8. Do not use a socket board or a multi socket when connecting the appliance to the mains.
9. Never place portable multiple sockets or portable power supplies behind the appliance. RISK OF FIRE!
10. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.
11. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.
12. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
13. The technical data of your energy supplier must meet the data on the model plate of the appliance.
14. Your domestic circuit must be equipped with an automatic circuit breaker.
15. Do not modify the appliance.
16. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
17. Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!
18. Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!
19. Keep the cord away from heated surfaces.
20. The power plug must always be accessible after installation.
21. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
22. Do not put any heat-radiating appliances onto your appliance.
23. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
24. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

25. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

26. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

27. Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.
28. Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.
29. Children must never play with the appliance.
30. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
31. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.
2. Freezer mode: do not store any bottled or canned beverages (neither still nor carbonated) inside the appliance as their containers could explode.
3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
4. Never stow food and / or storage containers, especially containers made of metal, in the freezer while your hands are damp or wet. Ensure that your hands are always dry. RISK OF FROSTBITE!

NOTICE!

1. Do not store dry ice in the appliance.
2. 1- (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food (see also chapter MEANING OF THE *-LABELLING OF FREEZERS).
3. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
4. When you move the appliance using the rollers (depending on model), only move it forwards or backwards as the rollers are not pivotable and do not allow any lateral motion. Lateral motion can damage the appliance and floor seriously.

WOLKENSTEIN

1. Do not tilt the appliance more than 45^0 .

2. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.

3. Leave the appliance in an upright position for 4 - 6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.

4. If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 3 until 4 hours on medium temperature setting before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, the food can thaw and / or spoil.

5. Never use the door for moving the appliance as you will damage the hinges.

6. The appliance must be transported and installed by at least two persons.

7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

8. Do not operate the appliance unless all components are installed properly.

9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.

10. Never close the door(s) of the appliance while shelves or drawers are extended, otherwise you will damage the shelves / drawers and the appliance.

11. Do not put hot liquids or hot foodstuff into the appliance.

12. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

13. Do not place any food directly against the air outlet on the rear wall.

14. Do not overfill the shelves / drawers /door trays ^18 to protect them from damage.

15. Clean the appliance at least once a month (s. chapter CLEANING AND MAINTENANCE).

16. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Climatic classes

Look at chap. « TECHNICAL DATA » for information about the CLIMATIC CLASS of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+10^0 +32^0 C	e.g. unheated cellar
N	+16^0 +32^0 C	inner home temperature
ST	+16^0 +38^0 C	inner home temperature
T	+16^0 +43^0 C	inner home temperature

3. Installation

i All dimensions in these chapters are given in millimetres.

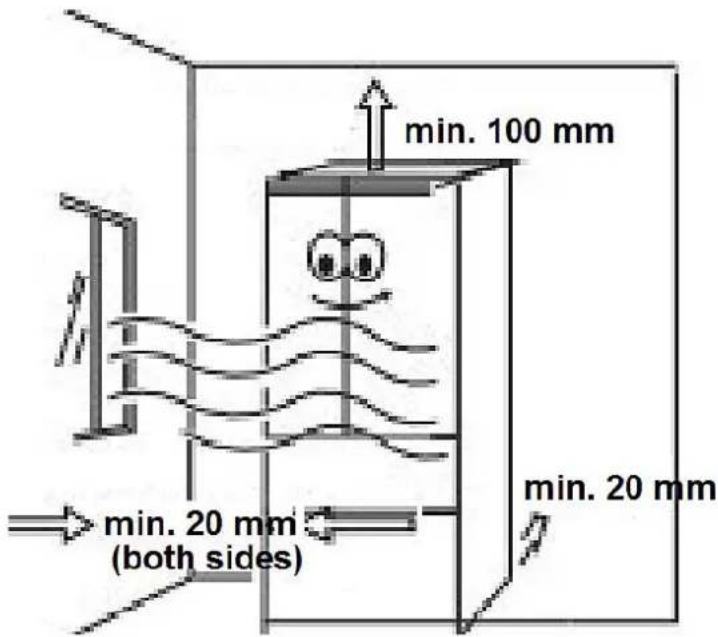

The minimum distances required for proper ventilation can be found in chapter 3.2.2 VENTILATION.

3.1 Unpacking and positioning

WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.

2. Remove all packaging materials.

3. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!

4. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.

5. If installation near a heat source is unavoidable, use a suitable insulation plate or keep the following minimum distances to the heat source:

To another refrigerators:	min. 20 mm
To electric cookers:	min. 30 mm
To radiators or ovens:	min. 300 mm

1. Install the appliance in a dry and well-ventilated place.
2. Protect the appliance from direct sunlight.
3. The door(s) must open completely and without hindrance.
4. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
5. Check that the appliance and the power cord are not damaged.
6. Connect the appliance to the mains properly.
7. The rating plate is inside the appliance or at the back.

3.2 Space and ventilation requirements

i Observe the required minimum distances for proper ventilation.

3.2.1 Space requirement

SPACE REQUIREMENT OF THE APPLIANCE WHEN THE DOOR IS CLOSED

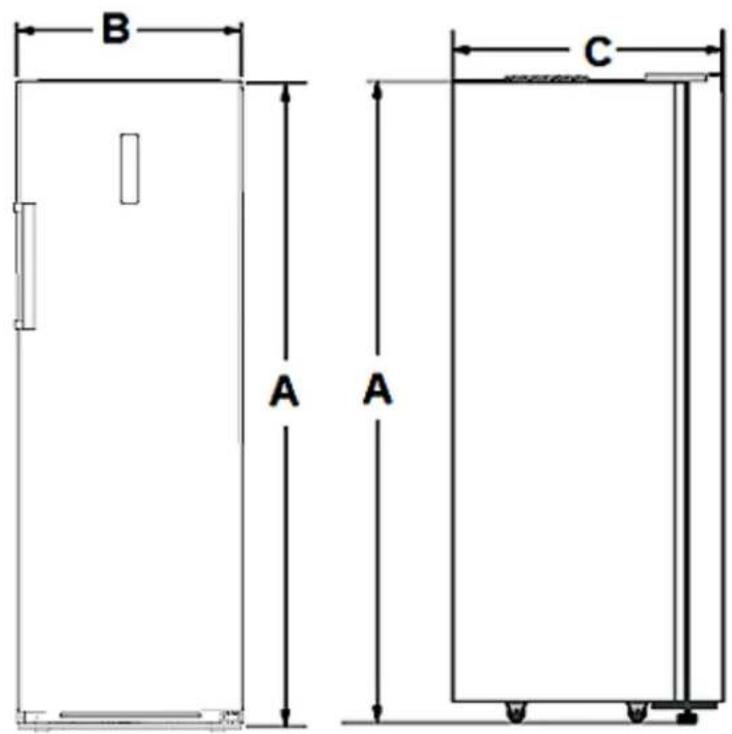

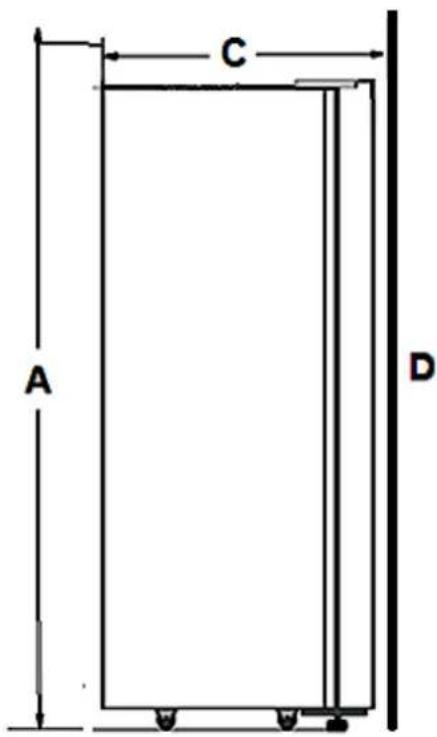

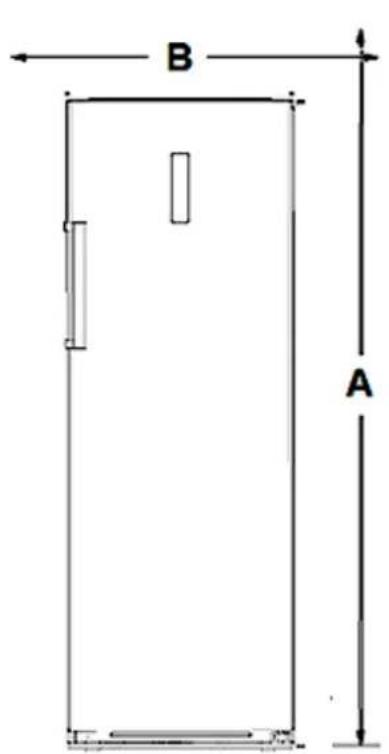

A = H HEIGHT / B = WIDTH / C = DEPTH

A	B	C
1722 mm	595 mm	632 mm

i Please observe the additional front and lateral space requirement of the open door(s) relevant to the door opening angle of your appliance (s. fig. below).

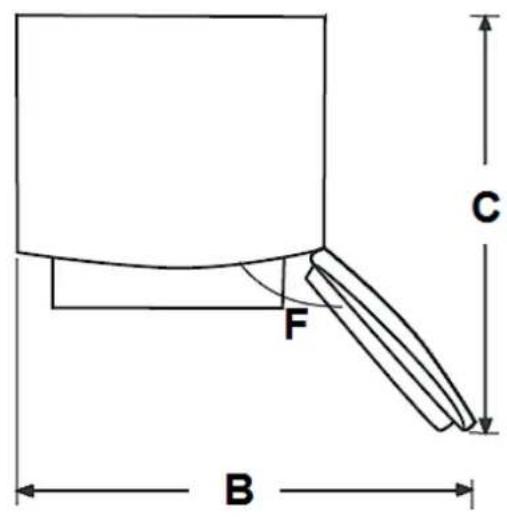

B = W WIDTH / C = DEPTH / F = DOOR OPENING ANGLE

B	C
min. 1015 mm	min. 1042 mm
F	min. 135^

3.2.2 Ventilation

i Observe the required minimum distances for proper ventilation.

MINIMUM DISTANCES REQUIRED FOR PROPER VENTILATION

Back ↔ wall	min. 20 mm
Sides ↔ wall	min. 20 mm
Free space above	min. 100 mm

SPACE REQUIREMENT OF THE APPLIANCE WHEN THE DOOR IS CLOSED (INCL. MINIMUM DISTANCES FOR PROPER VENTILATION)

A = HEIGHT / B = WIDTH / C = DEPTH

i Please observe the additional front and lateral space requirement of the open door(s) relevant to the door opening angle of your appliance.

The following minimum distances are recommended by the manufacturer to ensure optimum efficiency of the appliance:

back ↔ wall	min. 100 mm
right / left ↔ any piece of furniture / wall	min. 100 mm
free space above	min. 300 mm

i These minimum distances may be less, but to do so can increase the power consumption of the appliance.

3.3 Levelling

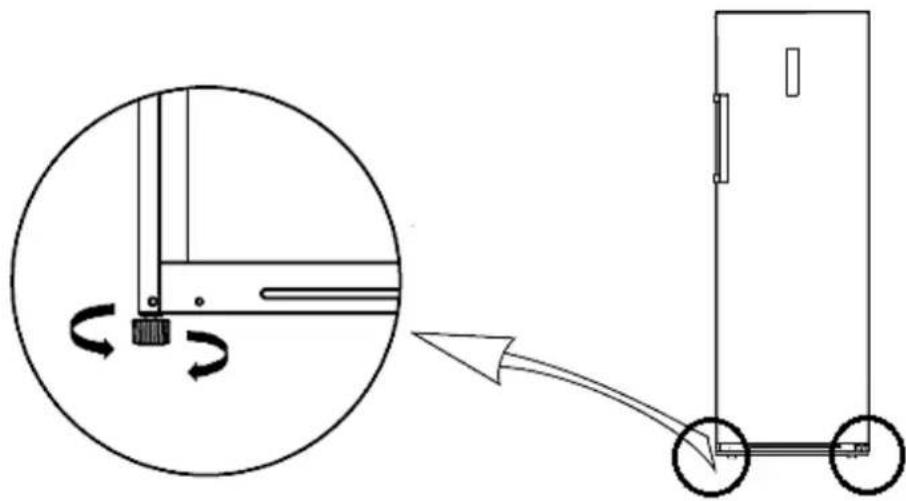

Use the adjustable supporting feet for proper levelling and for proper air circulation in the lower sectors of the appliance. Adjust the supporting feet using a suitable spanner.

Diagram showing a mechanical device with rotating components and a separate circular inset view of a component (no text or symbols)

Fig. similar: fig. serves as an example only.

The appliance must stand in a stable and level position to ensure proper operation. The 2 front supporting feet and the 2 rear rollers ^19 must stand firmly on the ground so that the appliance does not wobble. Adjust the supporting feet accordingly. The firm contact of the supporting feet and the rollers with the ground also ensures that the appliance does not vibrate, move or roll away unintentionally.

If you have to move the appliance, set the adjustable feet to minimum position so the appliance can be moved on its rollers ^20 easily. Readjust the appliance when transport has been completed.

NOTICE! The rollers (depending on model) are no castors and intended to move the appliance forward and backwards only. Lateral movements can damage your floor and the rollers.

3.4 Installation of the door handle

TOOLS REQUIRED (NOT INCLUDED IN THE SCOPE OF DELIVERY)

CROSS-HEAD SCREWDRIVER

INSTALLATION

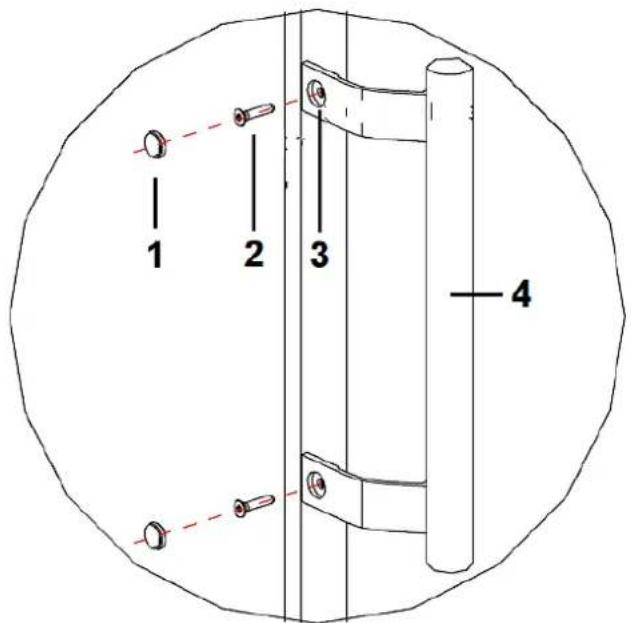

1. Remove the screw caps (1) of the door handle screw holes.
   i If you want to change the hinge position (see chapter 3.5), you must install the door handle on the right side of the appliance door.

2. Align the door handle (4) with the screw holes (3) and fix it using the screws (2) provided.

3. Reinstall the screw caps (1).

Simple line drawing of a door with two labeled points and a handle (no text or symbols)

1. Please proceed in reverse order to deinstall the door handle.

3.5 Change of the hinge position

WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

CAUTION! The change of the position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance.

NOTICE! You should contact a qualified technician if you want to have the door swing reversed. Only try to carry out the steps described below when you believe that you are qualified to do so.

NOTICE! Adjust the door properly before you finally tighten the screws of the hinges. The seal must close properly.

NOTICE! Do not tilt the appliance more than 45 ^0 .

PREPARATORY MEASURES

▶ Empty the appliance.
If possible, remove all door trays, glass shelves and drawers ^21 from the appliance so that they cannot be damaged.
It is necessary to tilt the appliance backwards while removing the door. Lean the appliance against a solid and immovable surface so it will not slip while changing the hinge positions.
➢ Do not lay the appliance flat as this can damage the cooling system.
All parts removed must be saved for proper reinstallation of the door.
➢ Always remove the door carefully. Keep the door in a safe place so that it cannot be damaged.

TOOLS REQUIRED (NOT INCLUDED IN THE SCOPE OF DELIVERY)
FLAT BLADED SCREWDRIVER	CROSS-HEAD SCREWDRIVER
SOCKET WRENCH AND RATCHET 5/16"	PUTTY KNIFE
ADDITIONAL PARTS REQUIRED (IN THE PLASTIC BAG)
Top left door hinge cover / 1x	Left door block / 1x
Top left door hinge / 1x

HOW TO CHANGE THE HINGE POSITION

1. Disconnect the appliance from the power supply (unplug).
2. Open the door of the appliance (appliance in upright position) and remove the glass shelves / door trays / drawers, etc. ^22 of the appliance, if possible.
3. Close the door.
4. Door handle: remove the screw caps (1), the screws and the door handle (4); s. below, fig. a); s. chapter 3.4 INSTALLATION OF THE DOOR HANDLE. Also remove the screw hole covers on the opposite side of the door.

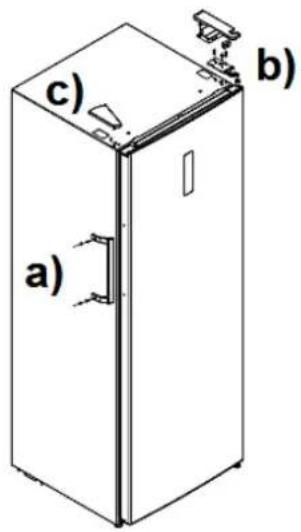

5. Unscrew the top screw hole cover (10); s. fig. below, c).
6. Remove the top hinge cover (5).
7. Disconnect the signal wire terminals; s. below, fig. b): 6 / 7 / 8
8. Unscrew the top right door hinge (5a); s. below, fig. b).
9. Meanwhile, hold the door of the appliance with your hand so it cannot drop down.
10. Keep the top right door hinge cover (5) and the top right door hinge (5a) in a safe place.

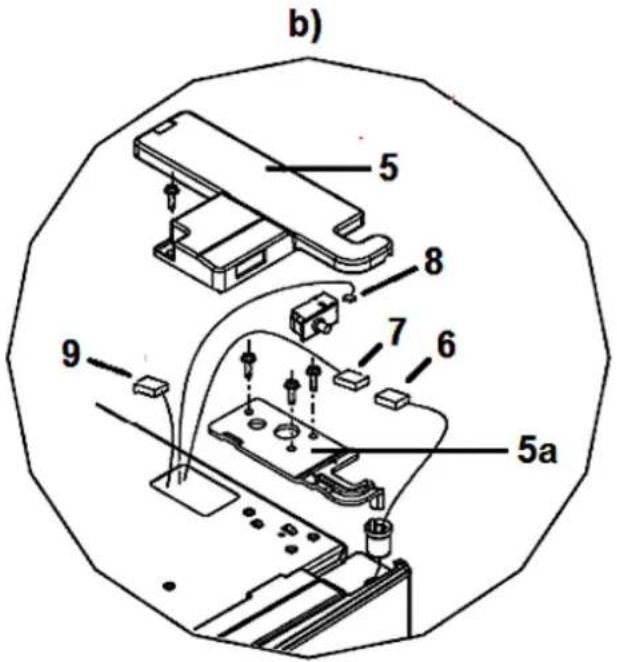

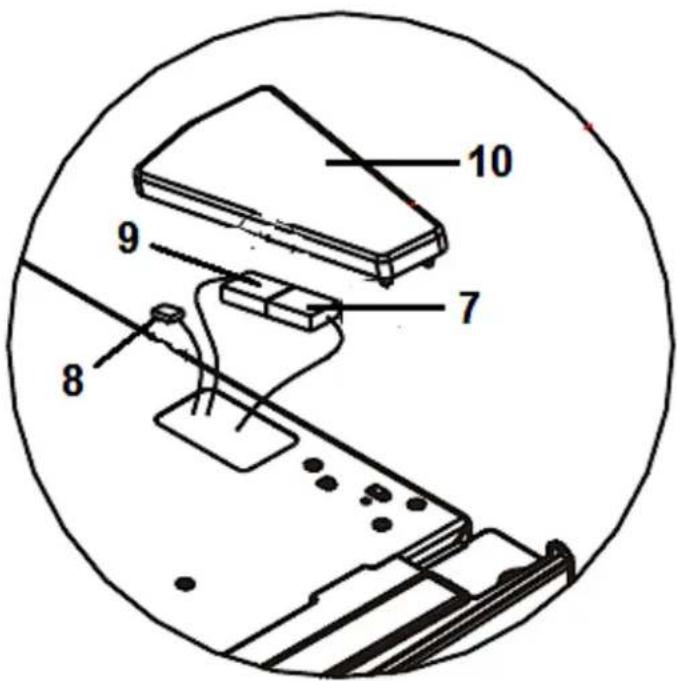

5	TOP RIGHT DOOR HINGE COVER
5a	TOP RIGHT DOOR HINGE
6	SIGNAL WIRE TERMINAL 6
7	SIGNAL WIRE TERMINAL 7
8	SIGNAL WIRE TERMINAL 8 / DOOR SWITCH
9	SIGNAL WIRE TERMINAL

WOLKENSTEIN

10	TOP SCREW HOLE COVER
11	SIGNAL WIRE TERMINAL 11
12	SIGNAL WIRE TERMINAL 12

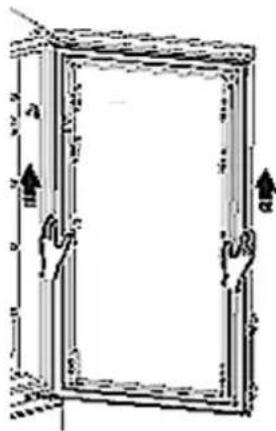

1. Lift the door of the appliance and remove it carefully; s. fig. below. Place the door on a smooth surface with the external cladding facing up.

Simple line drawing of a rectangular frame with arrows indicating direction (no text or symbols)

1. It is necessary to tilt the appliance backwards. Lean the appliance against a solid and immovable surface so it will not slip. Do not tilt the appliance more than 45^0 .

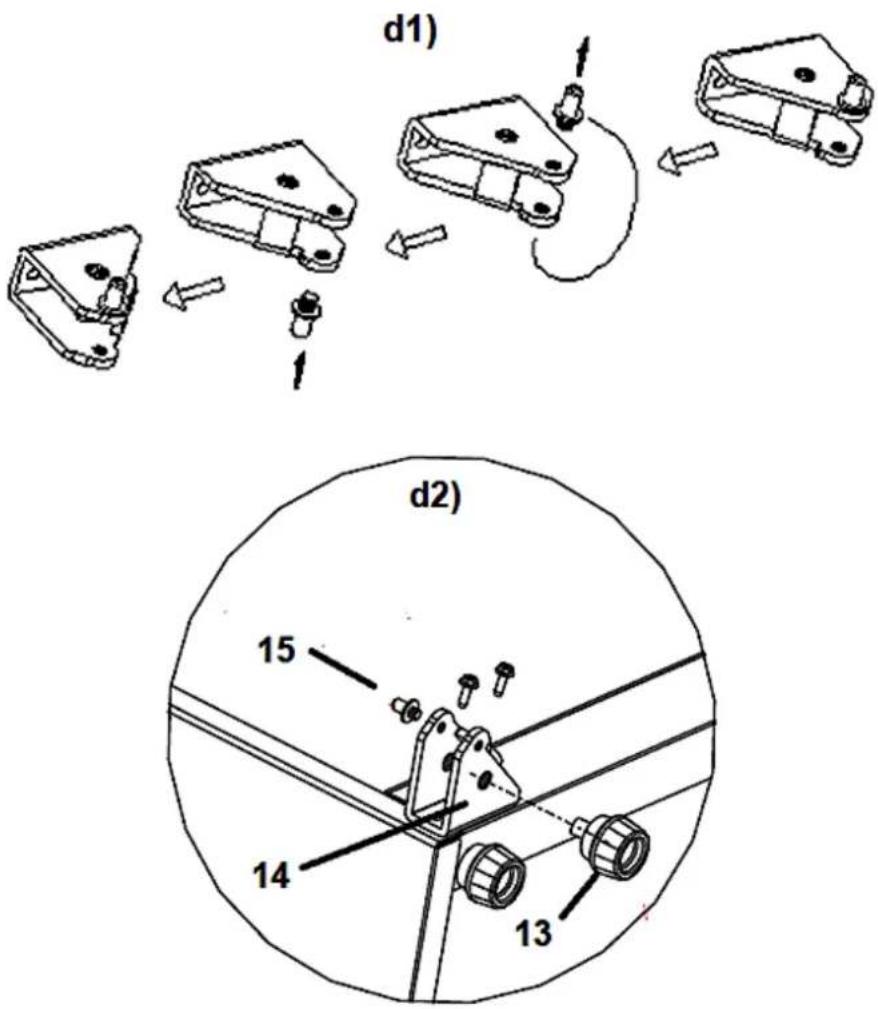

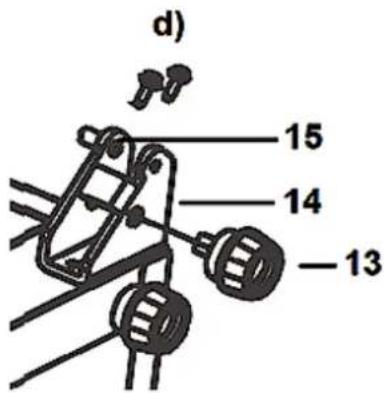

2. Unscrew the bottom door hinge (14); s. fig. below.

3. Unscrew the adjustable stand (13) from this side of the door hinge and install it on the opposite side of the door hinge; s. fig. below: d) / d2)

4. Remove the hinge axle (15) from this side of the door hinge and install it on the opposite side of the door hinge; see figure below, d1) / d2).

5. Align the door hinge with the holes on the bottom left side of the appliance properly and screw it tight; see fig. below, d2).

WOLKENSTEIN

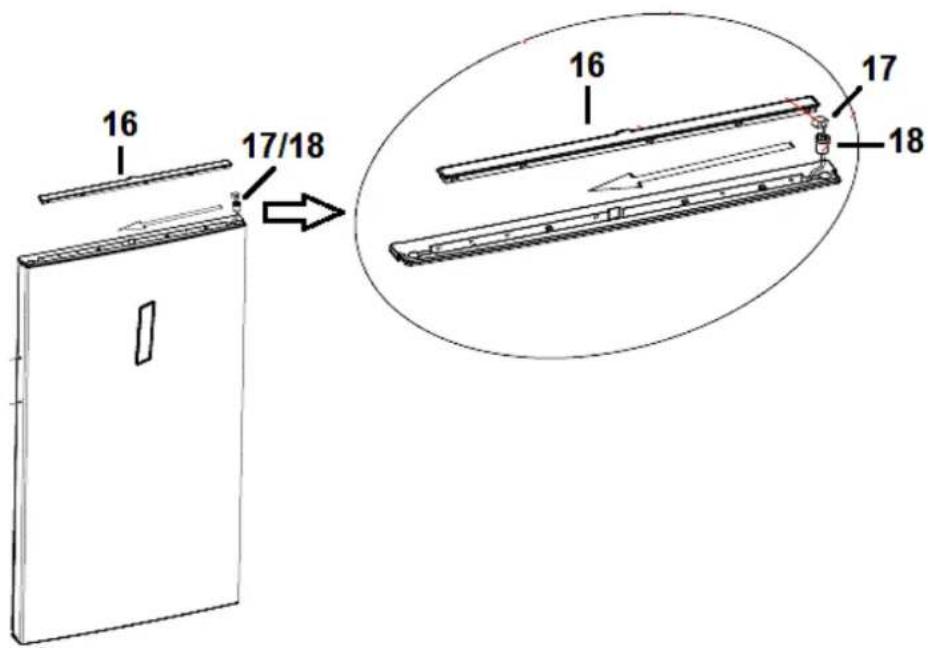

1. Remove the top cover (16) of the door of the appliance. Install the door signal wire (17) and the hinge sleeve (18) on the opposite side of the door (left) carefully; s. fig. below. Reinstall the cover (16) properly.

16	TOP COVER OF THE DOOR OF THE APPLIANCE
17	DOOR SIGNAL WIRE
18	HINGE SLEEVE

1. Unscrew the right door block (19) on the bottom of the appliance door; s. fig. below. Keep the right door block (19) in a safe place.
2. Insert the sleeve pipe (20) into the bottom left hinge opening of the door (22).

19	RIGHT DOOR BLOCK
20	SLEEVE PIPE
21	SCREW OF THE DOOR BLOCK
22	BOTTOM LEFT HINGE OPENING of the door

1. Take the left door block (23) from the plastic bag and install it on the bottom left side of the appliance door accordingly.

20	SLEEVE PIPE
21	SCREW OF THE DOOR BLOCK
23	LEFT DOOR BLOCK

1. Take the top left door hinge (24) and the top left door hinge cover (25) from the plastic bag.
2. Install the appliance door on the bottom door hinge. For this purpose, insert the hinge axle of the bottom door hinge into the bottom hinge opening of the appliance door carefully. Hold the door in position.
3. Align the top left door hinge (24) with the prepared holes on the left side of the appliance; s. fig. below. While doing so, insert the hinge axle of the top door hinge into the top hinge opening of the appliance door. Screw the hinge tightly.
4. Meanwhile, hold the door of the appliance with your hand so it cannot drop down.
5. Ensure that the door of the appliance is fixed safely and properly by the hinges.

NOTICE! Adjust the door properly before you finally tighten the screws of the hinge. The seal must close properly.

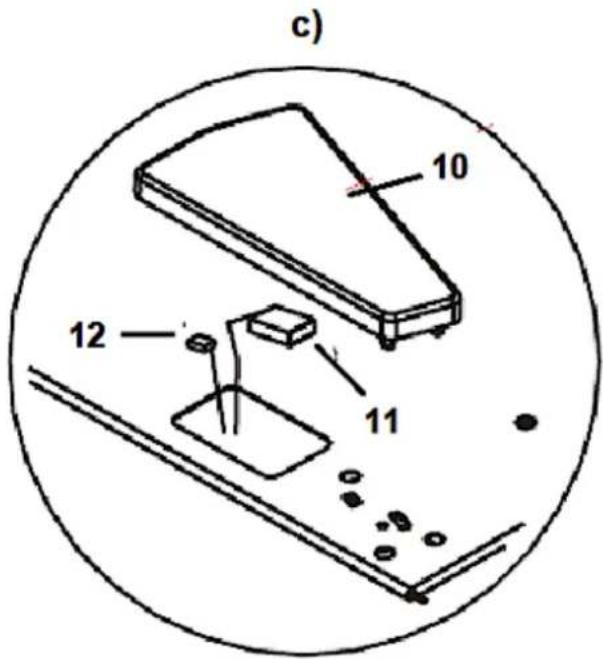

1. Connect the signal wire terminals 11 and 6; s. fig. below, see also fig. b) and c) above.
2. Connect the signal wire terminal 12 to the door switch 8a; s. fig. below, see also fig. b) and c) above.
3. Now you can screw the top door hinge cover (25) tight.

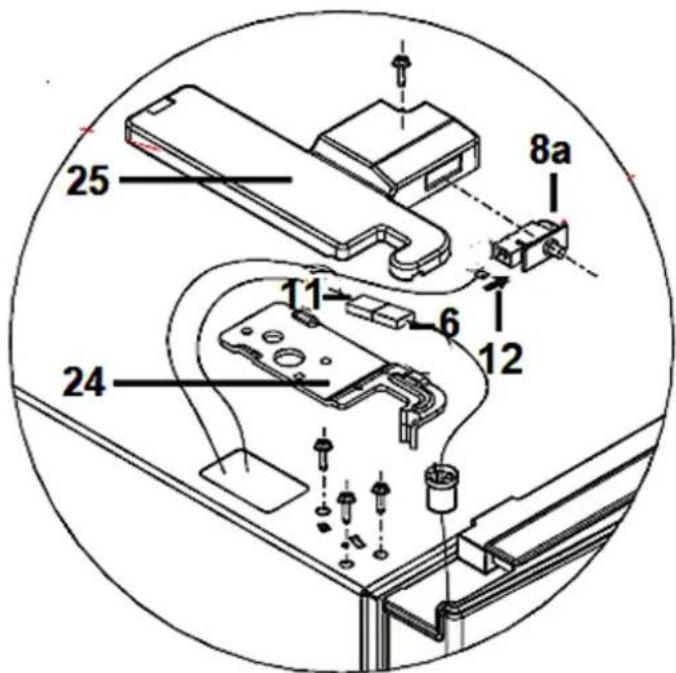

6	SIGNAL WIRE TERMINAL 6; see also fig. b) above
11	SIGNAL WIRE TERMINAL 11; see also fig. c) above
12	SIGNAL WIRE TERMINAL 12; see also fig. c) above
8a	DOOR SWITCH
24	TOP LEFT DOOR HINGE
25	TOP LEFT DOOR HINGE COVER

1. Connect the signal wire terminals 7 and 9 on the top right side of the appliance; s. fig. below, see also fig. b) above.

2. Install the screw hole cover (10) on the top right side of the appliance; s. fig. below.

7	SIGNAL WIRE TERMINAL 7; see also fig. b) above
8	SIGNAL WIRE TERMINAL 8 (not used)
9	SIGNAL WIRE TERMINAL 9; see also fig. b) above
10	SCREW HOLE COVER

1. Install the door handle on the right side of the appliance door; refer to chapter 3.4 INSTALLATION OF THE DOOR HANDLE.

NOTICE! Adjust the door properly. The seal must close properly.

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

4.1 Before initial operation

⚠ WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

NOTICE! Leave the appliance in an upright position for at least 4 - 6 hours before you connect it to the mains to ensure, that the oil has flowed back into the compressor.

NOTICE! If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 3 until 4 hours on medium temperature setting (s. chapter 4.5 SETTING OF THE TEMPERATURE) before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, the food can thaw and / or spoil.

1. Remove all packaging materials.
2. Adjust the feet and clean the appliance (see chapter CLEANING AND MAINTENANCE).
3. Do not start the appliance immediately after installation. Wait at least 4 - 6 hours to ensure proper operation.
4. The setting of the temperature of the appliance can be adjusted manually by pressing the relevant button until the desired value will be indicated (s. chapter 4.5 SETTING OF THE TEMPERATURE).
5. If operation was interrupted, wait 5 minutes before restart.
6. The appliance needs some time to balance temperatures when you have changed the settings before or when you have stored additional food in the appliance. The duration of this period of time depends on the range of the change, the ambient temperature, the amount of food and the frequency of door-openings. When you set the temperature of the appliance these aspects should be taken into account.
7. Operate the appliance according to the instructions described in the following chapters.

4.2 Description of the appliance

i The appliance can be used as a fridge or freezer (fridge mode / freezer mode).

Fig. serves as an example only: modifications are possible.

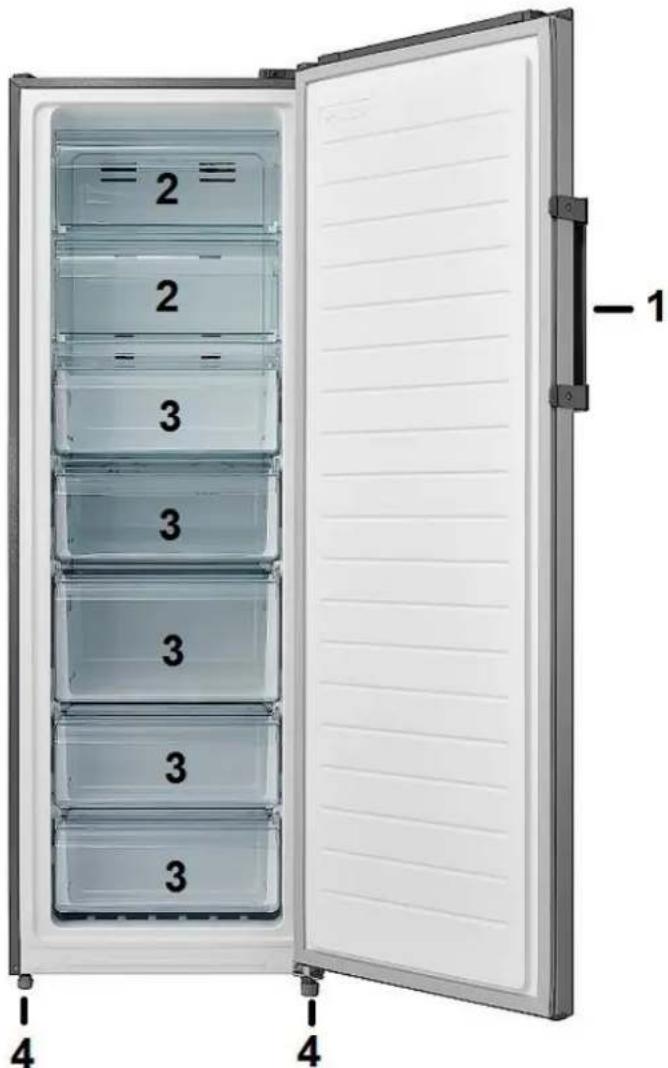

FRIDGE OR FREEZER
1	HANDLE of the appliance door
2	COMPARTMENTS for the cooling or freezing of food
3	DRAWERS for the cooling or freezing of food
4	ADJUSTABLE FEET

4.3 Control panel: operating buttons and indicators

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

◆ Operate the appliance according to the instructions about the control of the functions and modes described in the following paragraphs.
❖ The appliance can be used as a fridge or freezer (fridge mode / freezer mode).
When you connect the appliance to the mains, all indicators of the control panel will go on within 3 seconds.
The FREEZER MODE of the appliance is factory-set.
When you operate the appliance for the first time, the default freezer temperature is -20^ .
The temperatures and the modes can be set manually, if required (s. chapter 4.5 SETTING OF THE TEMPERATURE).

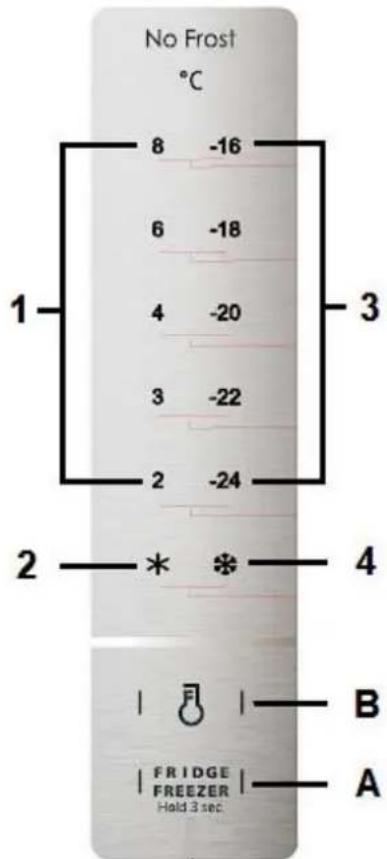

CONTROL PANEL: OPERATING BUTTONS AND INDICATORS

Fig. similar: modifications are possible.

WOLKENSTEIN

OPERATING BUTTONS
A	Button «FRIDGE / FREEZER»➢ Button for the setting of the fridge or freezer mode.
B	Button «TEMPERATURE»➢ Button for the setting of the cooling or freezing temperature.

INDICATORS
1	+ 2 ^0C - + 8 ^0C	Temperature indicator of the FRIDGE MODE in ^0C
2		Operational status indicator of the FAST COOLING MODE
3	- 16 ^0C - - 24 ^0C	Temperature indicator of the FREEZER MODE in ^0C
4		Operational status indicator of the FAST FREEZING MODE

4.4 Setting of the fridge or freezer mode

❖ The appliance can be used as a fridge or freezer (fridge mode / freezer mode).
The FREEZER MODE of the appliance is factory-set.

HOW TO SET THE FRIDGE MODE
1. The FREEZER MODE must be set. The indicator of the current set freezing temperature is on.	e.g.-22 ^0C
2. Press and hold the button « FRIDGE / FREEZER » for 3 seconds to set the FRIDGE MODE.	3 seconds
3. The indicator of the set freezing temperature goes off and the indicator of the previous set cooling temperature goes on.	e.g.4 ^0C

1. The FRIDGE MODE is in operation.

HOW TO SET THE FREEZER MODE
1. The FRIDGE MODE must be set. The indicator of the current set cooling temperature is on.	e.g. 4^
2. Press and hold the button « FRIDGE / FREEZER » for 3 seconds to set the FREEZER MODE.	3 seconds
3. The indicator of the set cooling temperature goes off and the indicator of the previous set freezing temperature goes on.	e.g. -22^

1. The FREEZER MODE is in operation.

4.5 Setting of the temperature

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

NOTICE! If you want to switch off the appliance for a longer period of time, disconnect it from the mains (unplug!). S. also Chapter « DECOMMISSIONING, TEMPORARILY ».

The temperature of the appliance can be set manually by pressing the relevant button until the desired value will be indicated on the control panel; s. chapter 4.3 CONTROL PANEL: OPERATING BUTTONS AND INDICATORS.
When you set a temperature, you set an average temperature for the whole appliance. Temperatures inside each area may vary from the temperature value indicated on the display, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance. When you set the temperature of the appliance these aspects should be taken into account

i The set temperature can be changed as needed.

When the ambient temperature is very high, it is recommended to set the temperature of the appliance to a colder setting if needed. If the colder setting should cause strong formation of encrusted ice, please select a lower setting.

i High ambient temperatures and simultaneously operating at the coldest setting may make the compressor to operate permanently to keep the temperature constant inside the appliance.

4.5.1 Fridge mode: setting of the cooling temperature

The adjustable temperature range of the fridge is from +8^ to +2^ .

HOW TO SET THE COOLING TEMPERATURE
1. The FRIDGE MODE must be set. The indicator of the current set cooling temperature is on.	e.g. 3^0C
2. Press the button « TEMPERATURE » repeatedly until the desired cooling temperature is indicated on the control panel.	e.g. 6^0C
3. After 15 seconds without using any operating buttons, the set cooling temperature will be activated.	6^0C
4. The temperature changes by 1^0C or 2^0C each time you press the button « TEMPERATURE ».

THE SEQUENCE OF THE TEMPERATURE SETTING IS:

$$ 2 ^ {\circ} \mathrm{C} \sim 3 ^ {\circ} \mathrm{C} \sim 4 ^ {\circ} \mathrm{C} \sim 6 ^ {\circ} \mathrm{C} \sim 8 ^ {\circ} \mathrm{C} $$

4.5.2 Freezer mode: setting of the freezing temperature

The default temperature of the freezer mode is -20^ .
The adjustable temperature range is from -16^ to -24^ .

HOW TO SET THE FREEZING TEMPERATURE
1. The FREEZER MODE must be set. The indicator of the current set freezing temperature is on.	e.g. -22^
2. Press the button « TEMPERATURE » repeatedly until the desired freezing temperature is indicated on the control panel.	[WASD]e.g. -18^
3. After 15 seconds without using any operating buttons, the set freezing temperature will be activated.	-18^

1. The temperature changes by 2 ^ C each time you press the button « TEMPERATURE ».

THE SEQUENCE OF THE TEMPERATURE SETTING IS:

$$ - 1 6 ^ {\circ} \mathrm{C} \sim - 1 8 ^ {\circ} \mathrm{C} \sim - 2 0 ^ {\circ} \mathrm{C} \sim - 2 2 ^ {\circ} \mathrm{C} \sim - 2 4 ^ {\circ} \mathrm{C} $$

⚠️ CAUTION! Freezer mode: do not store any bottled or canned beverages (neither still nor carbonated) inside the appliance as their containers could explode.

4.6 Selection of the modes

NOTICE! The temperatures given in the following chapters are guide values only. The actual temperature inside the appliance may vary from the temperature value indicated on the control panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

THE FOLLOWING MODES CAN BE SET

→ FAST COOLING MODE (fridge mode only)
→ FAST FREEZING MODE (freezer mode only)

4.6.1 Fast Cooling Mode (fridge mode only)

The cooling temperature of the appliance will be set to +2^ automatically.
After 150 minutes the FAST COOLING MODE switches off automatically and the cooling temperature will be reset to the previous setting.
The FAST COOLING MODE decreases the refrigeration temperature rapidly and makes sure that the food will be cooled faster as usual. Thereby this mode helps to keep the stored food fresh for a longer period of time.

HOW TO ACTIVATE THE FAST COOLING MODE

1. The FRIDGE MODE must be set. The indicator of the current set cooling temperature is on.	e.g. 3^0C
2. Press the button « TEMPERATURE » repeatedly until the operational status indicator of the FAST COOLING MODE goes on.
3. After 15 seconds without using any operating buttons, the FAST COOLING MODE will be activated.

1. After 150 minutes the FAST COOLING MODE switches off automatically.

HOW TO DEACTIVATE THE FAST COOLING MODE PREMATURELY

i After 150 minutes the FAST COOLING MODE switches off automatically.
i You can also prematurely deactivate the FAST COOLING MODE manually.

If you want to deactivate the FAST COOLING MODE prematurely, press the button « TEMPERATURE 📄 repeatedly until the desired cooling temperature is indicated on the control panel. The operational status indicator of the FAST COOLING MODE goes off.

4.6.2 Fast Freezing Mode (freezer mode only)

⚠️ CAUTION! Freezer mode: do not store any bottled or canned beverages (neither still nor carbonated) inside the appliance as their containers could explode.

The temperature of the freezer will be set to -24^ automatically.
✿ After 24 hours, the FAST FREEZING MODE switches off automatically and the freezing temperature will be reset to the previous setting.

i In the FAST FREEZING MODE, the compressor operates continuously.
The FAST FREEZING MODE decreases the freezing temperature rapidly and makes sure that the food will be frozen faster as usual. Thereby this function helps to preserve vitamins and nutrients of fresh food for a longer period of time.
i Select this mode when you like to freeze fresh meat or fish for long term storage.

WOLKENSTEIN

HOW TO ACTIVATE THE FAST FREEZING MODE

1. The FREEZER MODE must be set. The indicator of the current set freezing temperature is on.	e.g.-22°C
2. Press the button « TEMPERATURE » repeatedly until the operational status indicator of the FAST FREEZING MODE goes on.
3. After 15 seconds without using any operating buttons, the FAST FREEZING MODE will be activated.

1. After 24 hours the FAST FREEZING MODE switches off automatically.

HOW TO DEACTIVATE THE FAST FREEZING MODE PREMATURELY

i After 24 hours the FAST FREEZING MODE switches off automatically.

You can also prematurely deactivate the FAST FREEZING MODE manually.

If you want to deactivate the FAST FREEZING MODE prematurely, press the button « TEMPERATURE 📄 repeatedly until the desired freezing temperature is indicated on the control panel. The operational status indicator of the FAST FREEZING MODE goes off.

4.7 Power failure

In the case of a power failure, the current settings will be secured and maintained.

If the appliance is supplied with power again, it continues to work with the settings adjusted before.

Max storage time in case of malfunctions: s. chapter TECHNICAL DATA.

i In the event of an unpredictable power failure:

reduce the opening frequency of the doors.

➢ do not put any new food in the appliance to avoid a rapid rise of the temperature inside the appliance.

4.8 The fridge mode

The fridge mode is not intended for storing food for a longer period of time. So, use the fridge mode for short-term storage only. Different temperature areas due to the air circulation occur in the appliance. Use these different temperature areas to store different kinds of food.

COMPARTMENT	STARS (*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
FRIDGE MODE	-	+2 ^ - +8 ^	➤ Eggs, ready meals, packaged foods, fruits and vegetables, dairy products, cakes, drinks and other food that is not suitable for freezing.

Store covered or packaged food in the appliance only so the smell or taste of the food will not diffuse. The following materials are suitable for proper packaging:

◆ Food safe cling film / airtight bags and aluminium foil.
◆ Food safe covering hoods.
◆ Food safe containers made of plastic / glass / ceramics.
- Store fresh, packaged food on the shelves, fresh fruit and vegetable in the crisper ^23 .
◆ Store fresh meat packaged in protective foil for max. 2 days.
Let warm food such as cooked meals cool down before you store them in the appliance.
◆ Store food in such a way that the cooled air can circulate properly.
Do not place heavy bottles in the bottle pocket ^24 as it can come off the door.

NOTICE! Food (especially oily and fatty food) must not come into direct contact with the inner lining of the appliance. The direct contact with the inner lining can cause stains or damages. If liquids have been spilled in the interior of the appliance, remove them immediately using warm water to prevent damages.

4.9 The freezer mode

⚠ WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.
⚠ WARNING! Contact with frozen food, ice and metal components in the freezer can cause injuries similar to burns.
⚠️ CAUTION! Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
⚠️ CAUTION! Freezer mode: do not store any bottled or canned beverages (neither still nor carbonated) inside the appliance as their containers could explode.

The freezer mode is intended for long-term storage of food. Please observe the advice for max. storage time on the packaging of frozen food products. Do not refreeze defrosted food.

Protect fresh food you want to freeze using aluminium foil, cling film, air and water tight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
Leave some free space between the single pieces of frozen food as proper air circulation is required.
The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter TECHNICAL DATA).
Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.
- Observe the complete information on the packaging of frozen food.

NOTICE! Food (especially oily and fatty food) must not come into direct contact with the inner lining of the appliance. The direct contact with the inner lining can cause stains or damages. If liquids have been spilled in the interior of the appliance, remove them immediately using warm water to prevent damages.

4.9.1 Meaning of the \*-labelling of freezers

i 1- (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food.
2-stars (**) and 3-stars (***) freezers are suitable for storing frozen food (prefrozen) and ice or for making ice and ice cubes.

COMPARTMENTS	STARS(*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
FREEZER	(***)*	≤ -18°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiSuitable for freezing fresh food.
FREEZER	***	≤ -18°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiNot suitable for freezing fresh food.
FREEZER	**	≤ -12°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 2 monthsiNot suitable for freezing fresh food.
FREEZER	*	-6^	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 1 monthNot suitable for freezing fresh food.
0*-COMPARTMENT	-	-6^ - 0^	Suitable for fresh meat products (pork, beef, chicken, etc.) and processed food consumed or processed within the same day or within the next three days after storage (max.).Not suitable for freezing food or for storing frozen food.

4.10 Storage of food

The operation of your appliance is described generally in the chapters « OPERATION » et seq.; the following explanations will help you to store your food properly.
i Food must not get in touch with the surfaces inside the appliance directly. It has to be wrapped separately in aluminium foil or in cellophane foil or in airtight plastic boxes.

STORING FOOD IN THE REFRIGERATOR COMPARTMENT

The fridge helps to extend the storage times of fresh perishable foods.

PROPER STORAGE OF FRESH FOOD ENSURES BEST RESULTS

➢ Store food that is very fresh and of good quality only.
➢ Ensure that food is well wrapped or covered before it is stored. This will help to maintain the freshness of food and prevent it from dehydrating, deteriorating in colour or losing taste It will also prevent odour transfer.
- Vegetables and fruit need not be wrapped if they are stored in the crisper of the fridge compartment.
Make sure that strong smelling food is wrapped or covered in storage and kept away from foods such as butter, milk and cream as they can be spoiled by strong odours.
➢ Cool hot food down before placing it in the fridge compartment.

DAIRY FOODS AND EGGS

Most pre-packed dairy foods have a recommended „use by / best before / best by / date stamped on them. Store them in the fridge compartment and use within the recommended time.
- Butter can be spoiled by strong smelling foods so it is best stored in a sealed container.
➢ Eggs should be stored in the fridge compartment.

RED MEAT

➢ Place fresh red meat on a plate and cover it with waxed paper, plastic wrap or foil.
Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

POULTRY

➢ Fresh whole birds should be rinsed inside and outside with cold running water, dried and placed on a plate covered with plastic wrap or foil.
➢ Poultry pieces should also be stored this way.
Whole poultry must only be filled immediately before cooking to avoid food poisoning.

FISH AND SEAFOOD

Whole fish and fillets should be used on the day of purchase. Until required, they should be stored in the fridge on a plate which is covered with plastic wrap, waxed paper or foil loosely.
If storing overnight or longer, take particular care to select very fresh fish.
Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a scaled plastic bag.
Keep shellfish chilled at all times. Use within 1 – 2 days.

PRECOOKED FOOD AND LEFTOVERS

These should be stored in suitable covered containers so that the food will not dry out.
▶ Keep for 1-2 days only.
➢ Reheat leftovers once only and until steaming hot.

CRISPER

The crisper is the optimum storage location for fresh fruit and vegetables.
➢ Take care not to store the following food at temperatures of less than 7 °C for long periods: citrus fruit, melons, pineapple, papaya, passion fruit, cucumber, peppers, tomatoes.
Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
➢ Do not refrigerate avocados (until they are ripe), bananas and mangoes.

FREEZING AND STORING OF FOOD IN THE FREEZER COMPARTMENT

To store deep-frozen food.
To make ice cubes.
To freeze food.

NOTICE! Ensure that the door of the freezer compartment has been closed properly.

PURCHASING OF FROZEN FOOD

The packaging must not be damaged.
➢ Use by the „use by /best before/best by/“ date.
If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

STORING OF FROZEN FOOD

➢ Store at -18 °C or colder.
- Avoid opening the freezer compartment door unnecessarily.

FREEZING OF FRESH FOOD

➢ Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

NOTICE! Keep food to be frozen away from food which is already frozen.

THE FOLLOWING FOOD IS SUITABLE FOR FREEZING

➢ Cakes and pastries.
▶ Fish and seafood.
▶ Meat, game and poultry.
▶ Vegetables, fruit and herbs.
Eggs without shells.
➢ Dairy products such as cheese and butter.
➢ Ready meals and leftovers such as soups, stews, cooked meat and fish.
▶ Potato dishes and soufflés.
▶ Desserts.

THE FOLLOWING FOOD IS NOT SUITABLE FOR FREEZING

Types of vegetables, which are usually consumed raw, such as lettuce or radishes.
Eggs in shells.
▶ Grapes, whole apples, pears and peaches.
➢ Hard-boiled eggs, yogurt, soured milk, sour cream, and mayonnaise.

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

SUITABLE PACKAGING

➢ Plastic film, tubular film made of polyethylene, aluminium foil.

i These products are available from specialist outlets.

RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER COMPARTMENT

◆ These times vary depending on the type of food.
The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

FOOD	STORAGE TIME
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

IMPORTANT INSTRUCTIONS!

When you freeze fresh foods with a „use by / best before / best by“ date, you must freeze them before this date expires.
Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
i Once defrosted, food should be consumed quickly.

5. Environmental protection

5.1 Environmental protection: disposal

Appliances bearing this symbol « 📄 » must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

5.2 Environmental protection: energy saving

• Install the appliance in a dry and well-ventilated place.
• Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
  ◆ Protect the appliance from direct sunlight.
  Do not line the drawers with aluminium foil, waxed paper or paper layers; otherwise optimum circulation of the cold air is impeded so the appliance cannot work at best performance.
  ◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.

◆ Store your food in colourless, airtight and tasteless materials.

Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.

Allow ample storage place for your food. Do not overfill your appliance.

- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.

Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales container -18 ^0 C or lower).
Put the frozen food you want to defrost into the cooling-compartment of your appliance.
How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature
√ in the cooling-compartment of your appliance
√ in an electrical oven ^25
√ in a microwave ^26

❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
◆ Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

5.3 Operational parameters

The appliance can only reach the relevant temperatures when:

1. the ambient temperature meets the climatic class.
2. the doors close properly.
3. you do not open the doors too often or too long.
4. the door seals are in proper condition.
5. the appliance is properly positioned.
6. you have not overfilled the appliance.
7. you do not store warm or hot food in the appliance.

⚠️ DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

⚠ WARNING! Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

NOTICE! Clean the appliance at least once a month.

1. Always keep the appliance clean so that unpleasant odours do not occur.
2. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
3. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

DETERGENT

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^27 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

EXTERNAL CLEANING

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

INTERNAL CLEANING

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

DOOR SEALS

Clean with warm water and a mild, non-acidic detergent. Do not restart the appliance until the door seals have dried completely.

6.1 Appliance drawers

The appliance drawers can be removed according to the appliance.

HOW TO REMOVE / REINSERT THE APPLIANCE DRAWERS

1. Remove all stored food of the relevant drawer before.
2. Pull the drawer forward carefully and lift it slightly until you can remove it.
3. Proceed in reverse order to reinsert the drawer.

Diagram of a door with a curved arrow indicating rotation or movement (no text or symbols)

i Any of the appliance drawers can be removed and reinserted for cleaning as shown above. ^28

6.2 Defrosting

The appliance is defrosted automatically (No Frost).

FREEZER MODE: (optional procedure if encrusted ice should have occurred)

⚠ WARNING! Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

⚠ WARNING! Never use any mechanical items, knives or other sharpedged objects to remove the encrusted ice. Never use a steam cleaner. RISK OF ELECTRICAL SHOCK!
⚠ WARNING! Do not use hairdryers, electrical heaters or other technical devices to accelerate the defrosting-progress. RISK OF ELECTRICAL SHOCK!

1. Remove the contents from the freezing-compartment and put them into a cooling box.

2. Place a container in front of the appliance to catch the water.

3. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.

4. Do not use hot water to accelerate the defrosting operation.

5. Remove the big pieces of ice first.

6. Afterwards remove the small pieces of ice.

7. Wipe and dry the appliance and door seals with dry and soft cloths.

8. After cleaning leave the door open for some time to ventilate the appliance.

7. Troubleshooting

Malfunction
Possible cause	Measure
THE APPLIANCE DOES NOT WORK AT ALL.
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
THE COMPRESSOR DOES NOT WORK AT ALL.
1. Incorrect energy supply.	1. Check the energy supply.

THE COMPRESSOR OPERATES FOR TOO LONG.

1. The appliance has been switched off for a while.2. Too much or too hot food in the appliance.3. Doors opened too often or too long.

1. The appliance needs some time to reach the preset temperature.2. Remove any hot food.3. Do not open the door too often/too long.

FORMATION OF ENCRUSTED ICE.

1. The air outlets may be blocked by food.2. The door is not properly closed.3. The door seal is damaged or soiled.

1. Store the food in another place.2. Close the door properly.3. Clean and / or replace the door seal.

THE DOOR MAKES A STRANGE SOUND WHEN OPENED.

1. The door seals are soiled.	1. Clean the door seals.
UNCOMMON NOISE.
1. The appliance is not installed on a flat and level ground. The appliance touches a wall or another object.2. Frozen food is stored improperly.3. Items have dropped behind the appliance.	1. Install the appliance properly.2. Store food properly.3. Remove the items.

WATER DRIPS ON THE FLOOR.

1. The water pan ^29 (located at the rear bottom of the cabinet) may not be properly levelled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the water spout is blocked.

1. You may need to pull the appliance away from the wall to check the pan and spout.

i If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

THE OPERATING CONDITIONS DESCRIBED BELOW ARE NORMAL AND DO NOT INDICATE A MALFUNCTION.

The refrigerant generates a sound similar to flowing water.
- Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

DISTINCT NOISE

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

CONDENSED WATER IN / ON THE APPLIANCE

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

CLICKING

You will hear the compressor click if it is activated or deactivated.

HUM

is caused by the compressor while running.

KNOCKING / SNAPPING

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

7.1 Error codes

Error codes are indicated by the relevant indicator combinations; s. table below.

FRIDGE MODE
ERROR CODE	MEANING	INDICATOR COMBINATIONS
E 1	Failure of the temperature sensor	The operational status indicator of the Fast Cooling Mode «*» and the temperature indicator «6 (°C)» go on simultaneously.
E 5	Failure of the defrosting sensor	The operational status indicator of the Fast Cooling Mode «*» and the temperature indicator «4 (°C)» go on simultaneously.
E 6	Communication error	The temperature indicators «6 (°C)» and «3 (°C)» go on simultaneously.
E 7	Failure of the ambient temperature sensor	The operational status indicator of the Fast Cooling Mode «*» and the temperature indicator «3 (°C)» go on simultaneously.
E 10	Blocking problems with a button	The temperature indicators «6 (°C)» and «4 (°C)» go on simultaneously.

FREEZER MODE

ERROR CODE	MEANING	INDICATOR COMBINATIONS
E 1	Failure of the temperature sensor	The operational status indicator of the Fast Freezing Mode « » and the temperature indicator « -24 (0C) » go on simultaneously.
E 5	Failure of the defrosting sensor	The operational status indicator of the Fast Freezing Mode « » and the temperature indicator « -22 (0C) » go on simultaneously.
E 6	Communication error	The temperature indicators « -24 (0C) » and « -20 (0C) » go on simultaneously.
E 7	Failure of the ambient temperature sensor	The operational status indicator of the Fast Freezing Mode « » and the temperature indicator « -20 (0C) » go on simultaneously.
E 10	Blocking problems with a button	The temperature indicators « -24 (0C) » and « -22 (0C) » go on simultaneously.

DECOMMISSIONING, TEMPORARILY

IF THE APPLIANCE IS NOT USED FOR A LONGER PERIOD OF TIME:

1. disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. remove all food stored in the appliance.
3. dry the inside of the appliance with a cloth and leave the door open for a few days.

WHILE AWAY ON AN AVERAGE VACATION / HOLIDAY (14-21 DAYS):

1. do the same as described above, or
2. let the appliance operate and

a. remove all perishable food from the cooling compartment.
b. clean the cooling compartment.
c. freeze all food which is suitable to be frozen.

IF YOU WANT TO MOVE THE APPLIANCE:

1. secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. do not damage the feet of the appliance.

DECOMMISSIONING, ULTIMATE

1. Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

9. Technical data

TECHNICAL DATA*

Model	Fridge / Freezer
Climatic class	SN / N / ST / T(ambient temperature 10 - 43 °C)
No Frost: freezer	yes
Energy efficiency class**	++
Annual energy consumption in kW/h***	228.00
Voltage / frequency	220 - 240 V AC / 50 Hz
Volume gross in l	261
Net volume fridge or freezer in l	227
Stars	4****
Max. freezing capacity within 24 h	15.00 kg
Max. storage time / malfunction	10.00 h
Noise emission	42 dB/
Adjustable thermostat	yes / adjustable electronically
Temperature range: fridge / freezer	+2 °C - +8 °C / -16 °C - -24 °C
Compressor	1
Refrigerant / total quantity	R600a / 53 g
Changeable door hinge	yes
External handle	yes
Internal light	-
Compartments with flaps	2
Drawers	3
Adjustable supporting feet	2 / in front
Defrosting process: fridge / freezer	- / No Frost
Dimensions appliance H*W*D in cm	172.20*59.50*63.20
Weight net / gross in kg	66.00 / 74.50

◆ Technical modifications reserved.

*	According to regulation (EU) No. 1060/2010
**	On a scale from A+++ (highest efficiency) to D (lowest efficiency).
***	Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

10. Waste management

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
3. Old and unused appliances must be sent for disposal to the responsible recycling centre or contact the retailer you purchased the appliance at. They may accept the appliance for environmentally sound recycling. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

REFRIGERANT

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
2. ⚠ WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the WOLKENSTEIN-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a WOLKENSTEIN-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

WOLKENSTEIN

August 2014

WOLKENSTEIN

WOLKENSTEIN

SERVICE INFORMATION

Aftersales service information on the leaflet inside this instruction manual.
