WTT98CD - Freezer Wolkenstein - Free user manual and instructions

Product Type	Freezer
Brand	Wolkenstein
Model	WTT98CD
Energy Efficiency Class	D
Annual Energy Consumption	135 kWh
Total Net Volume	98 L
Freezing Capacity (24h)	6.5 kg
Maximum Storage Time at Power Failure	11 h
Star Rating	4 stars (****)
Climatic Class	SN/N/ST/T (10 °C to 43 °C)
Noise Emission	41 dB(A)
Refrigerant	R600a (58 g)
Defrost Type	Manual
Adjustable Thermostat	Yes
Number of Drawers	3
Adjustable Feet	Yes
Reversible Door Hinge	Yes
Dimensions (H x W x D)	85.0 x 60.0 x 61.0 cm
Net Weight	38.0 kg
Voltage / Frequency	220-240 V ~ 50 Hz
Power Cord Length	Approx. 1.5 m (estimated)
Included Accessories	3 drawers, 2 glass shelves, 1 handle, 2 hexagonal screws, 1 Allen wrench, 2 screw hole caps

Frequently Asked Questions - WTT98CD Wolkenstein

What is the recommended thermostat setting for normal daily use?

For daily use, set the thermostat to position 3. For colder temperatures, set to a higher value. The 'Off' setting (0) only stops the compressor; unplug to disconnect completely.

How do I defrost the freezer?

Turn the thermostat to 0/Off and unplug the appliance. Remove all food and place it in a cool box. Put dry cloths inside to absorb water. Do not use sharp objects or hot water. After defrosting, clean and dry the interior, then restart as per the manual.

Can I change the door hinge side?

Yes, the door hinge position is reversible. Empty the appliance, set the adjustable feet to maximum height, then unscrew the bottom hinge. Use the hexagonal hole in the hinge as a wrench to remove and install the hinge pin on the opposite side. Reinstall the handle on the opposite side and cover the old holes with the supplied caps. Two persons are recommended for this task.

What is the minimum clearance required for ventilation?

For proper ventilation, maintain at least 1 cm gap at the back, sides, and top. To maintain energy efficiency class D, the minimum distances are 20 cm back, 20 cm sides, and 30 cm top. Insufficient ventilation may cause fire risk.

How should I clean the freezer?

Always unplug before cleaning. Use a damp cloth with mild washing-up liquid for external surfaces, and warm water with mild detergent for interior. Rinse with clear water and dry. Do not use abrasive or organic detergents. Clean the condenser (rear) twice a year with a vacuum cleaner or soft brush.

What does the star rating mean for freezing?

This freezer has 4 stars (****) meaning it can freeze fresh food and store frozen food at -18 °C. The recommended storage periods vary: up to 3 months for seafood and meat, up to 12 months for fruit and beef. Always respect the 'use by' dates.

What should I do if the compressor runs continuously?

Possible causes: the appliance was just turned on, too much warm food was added, door opened too often, or high ambient temperature. Normal operation after a defrost or initial start may be longer. If it persists, check that the door seals properly and the appliance is not overfilled.

Is the refrigerant R600a dangerous?

R600a is flammable but environmentally friendly. Do not damage the cooling circuit. If a leak occurs, open windows, do not touch the appliance or electrical switches, and contact the retailer. Keep away from open flames and sparks.

How long is the guarantee period?

The manufacturer provides a 24-month guarantee from the date of purchase for material and fabrication defects. It does not cover damage from improper use, repairs by non-professionals, or fragile parts like plastic and glass. The guarantee is valid for appliances purchased and used in Germany, Austria, Belgium, Luxembourg, and Netherlands.

How can I save energy with this freezer?

Let hot food cool before placing inside; avoid opening the door unnecessarily; keep the appliance well-ventilated (see clearance requirements); defrost periodically to prevent ice buildup; do not overfill; set the thermostat to 3 for normal use.

USER MANUAL WTT98CD Wolkenstein

White stainless steel refrigerator with a black handle, no visible text or symbols on the cabinet surface.

Deutsch

Seite 2

English

Page 28

Two identical line drawings of rectangular doors with handles, no text or symbols present.

White refrigerator with open door showing interior compartments labeled 1 to 5 (no text or symbols on the cabinet itself)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

Index....28

1. Safety information....29

1.1 Signal words....30
1.2 Safety instructions....30

1. Climatic classes 34
2. Installation....34

3.1 Site....34
3.2 Installation of the door handle.... 36
3.3 Changing of the hinge position 36

1. Operation....38

4.1 Temperature control....38
4.2 Operational parameters ...... 38
4.3 Meaning of the *-labelling of freezers 39
4.4 Storage of food 40
4.5 Helpful hints/energy saving.... 43

5 Cleaning and maintenance 44

5.1 Defrosting....45

1. Trouble shooting....45
2. Decommissioning....47
3. Technical data....48
4. Waste management....49
5. Guarantee conditions....50

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

1. Safety information

READ THE SAFETY INFORMATION AND SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for cooling food only.

i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Children between 3 and 8 years are allowed to load and unload refrigerators. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
3. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.

4. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

5. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!

6. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons:

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.
2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.
3. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.
2. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.
3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
4. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.
5. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.
6. Do not use a socket board or a multi socket when connecting the appliance to the mains.
7. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.

8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

10. Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!
11. Keep the cord away from heated surfaces.
12. Do not use any extension cords, multiple sockets or adapters. RISK OF FIRE!
13. The technical data of your energy supplier must meet the data on the model plate of the appliance.
14. Your domestic circuit must be equipped with an automatic circuit breaker.
15. Do not modify the appliance.
16. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
17. Disconnect the appliance from the mains before you clean or maintain it.
18. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
19. Do not put any heat-radiating appliances onto your appliance.
20. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
21. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.
22. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
23. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
24. Children must never play with the appliance.
25. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
26. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient

ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time

1. Do not put any gassy beverages into the freezer compartment of the appliance, because their containers could explode.

2. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.

2. Do not tilt the appliance more than 45^0 .

3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.

4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.

5. Never use the door for moving the appliance as you will damage the hinges.

6. The appliance must be transported and installed by at least two persons.

7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

8. Do not operate the appliance unless all components are installed properly.

9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.

10. Do not put hot liquids or hot foodstuff into the appliance.

11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

12. The rating plate must not be removed or made illegible. Noncompliance will expire the guarantee!

2. Climatic classes

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+10^0 +32^0 C	e.g. unheated cellar
N	+16^0 +32^0 C	inner home temperature
ST	+16^0 +38^0 C	inner home temperature
T	+16^0 +43^0 C	inner home temperature

3. Installation

Please check the scope of delivery before installation:

3 drawers
▶ 2 glass-shelves
▶ 1 handle
▶ 2 hexagonal screws
▶ 1 Allen wrench
▶ 2 screw hole caps

3.1 Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter WASTE MANAGEMENT.
2. Remove all packaging materials.
3. Remove the foam between the outside condenser and housing.
4. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!
5. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
6. Check that the appliance and the power cord are not damaged.
7. Install the appliance in a dry and well-ventilated place.
8. Protect the appliance from direct sunlight.

9. The doors must open completely and without hindrance.

10. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.

11. Connect the appliance to the mains properly.
12. The nameplate is inside the appliance or at the back.

Levelling

1. Use the adjustable feet at the front to level the appliance properly.
2. When the appliance is not levelled, the door and the magnetic seals will not close properly.

Ventilation

NOTICE! Please note, that the minimum distances listed below serve for proper ventilation only.

To ensure proper ventilation the minimum distances listed below must be fulfilled, otherwise there is a RISK OF FIRE!

Minimum distances required for proper ventilation:

A. Back ↔ wall	min. 1 cm
B. Right/left ↔ any piece of furniture/wall	min. 1 cm
B. Free space above	min. 1 cm
Door opening angle	min. 160^

Maintenance of the energy efficiency class D

To operate the appliance in accordance with its energy efficiency class D, the following minimum distances must be fulfilled:

Minimum distances required for the maintaining of the energy efficiency class D:

A. Back ↔ wall	min. 20 cm
B. Right/left ↔ any piece of furniture/wall	min. 20 cm
B. Free space above	min. 30 cm

NOTICE! Dropping below the minimum distances for the maintaining of the energy efficiency class D can increase the power consumption of the appliance.

3.2 Installation of the door handle

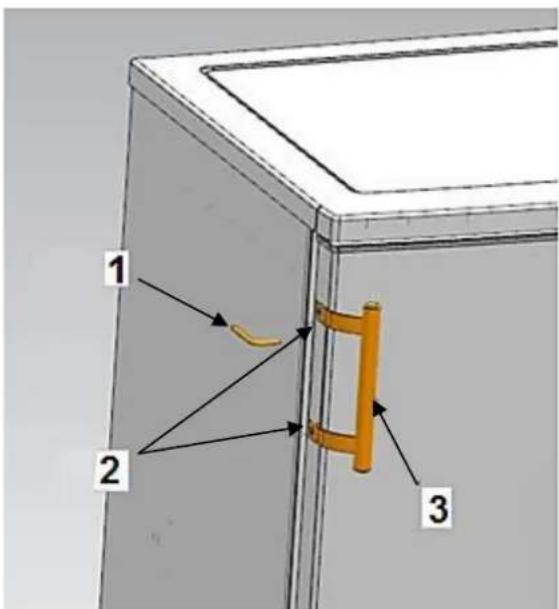

Use the supplied handle, the two hexagonal screws and the Allen wrench.

1: Allen wrench

2: screws

3: handle

3.3 Changing of the hinge position

WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

⚠️ CAUTION! The change of the hinge position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance. Do not tilt the appliance more than 45^0 .

NOTICE! Empty the appliance before. Set the adjustable feet to their highest position.

1. Set the two adjustable feet to maximum position.

2. Unscrew the screw (1) of the bottom hinge.

Line drawing of a simple rectangular table with a square top and metal legs (no text or symbols)

WOLKENSTEIN

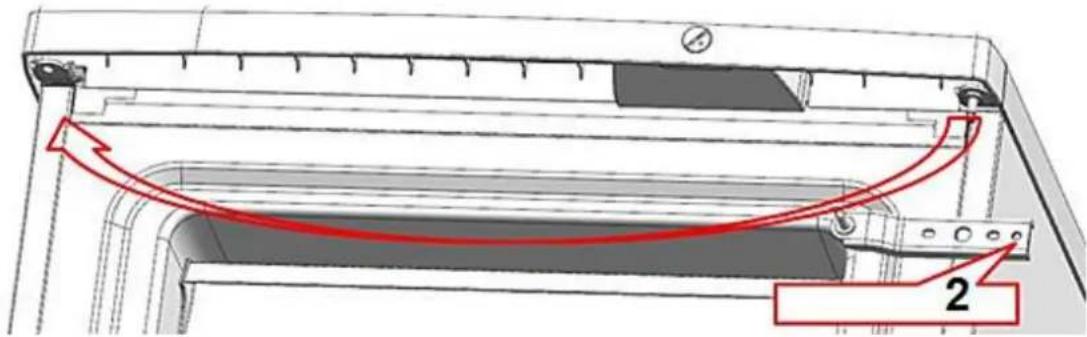

1. Move the hinge pin and spring washer. Use the hexagonal hole (2) of the bottom hinge as a wrench to remove and install the hinge pin.

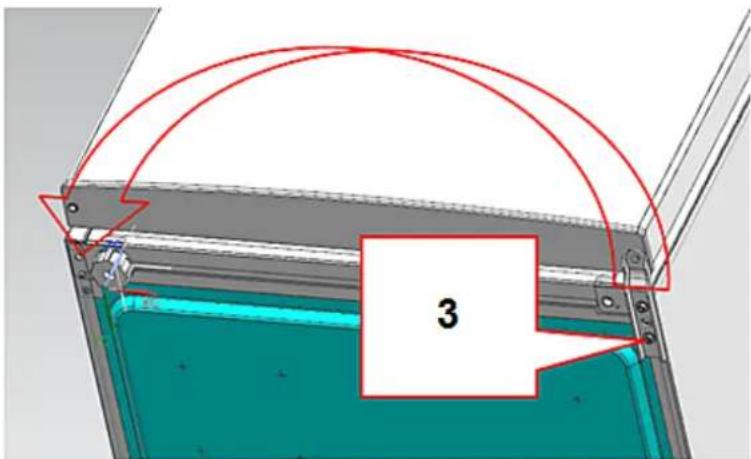

1. Place the door and install the bottom hinge (3) on the opposite side.

3D architectural diagram showing a window frame with colored flooring and red curved lines, labeled with number 3 (no text or symbols beyond label)

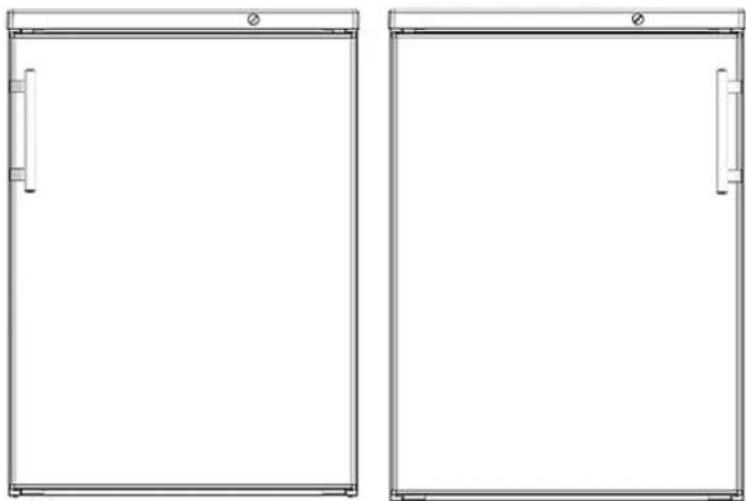

1. Install the handle on the relevant side (on the opposite side of the hinges). Cover the holes on the edge of the door using the supplied caps.

Two identical line drawings of rectangular doors with handles, no text or symbols present.

NOTICE! Adjust the door properly. The seal must close properly.

WOLKENSTEIN

4. Operation

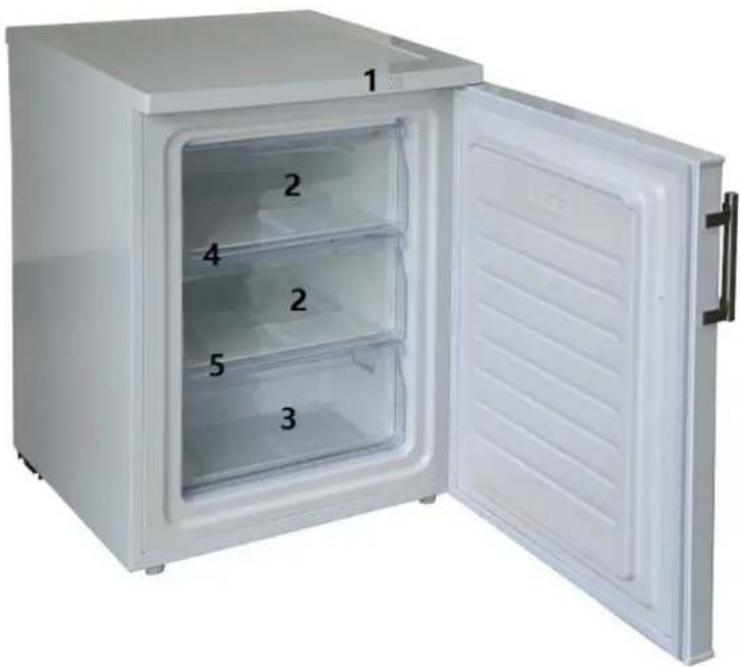

White refrigerator with open door showing internal compartments labeled 1 to 5 (no text or symbols on the cabinet itself)

1: Thermostat
2: Drawers
3: Drawer
4: Glass-shelf
5: Glass-shelf

4.1 Temperature control

Clean the appliance before initial operation (see also chap. CLEANING AND MAINTENANCE).

1. Switch on the appliance after the waiting phase (4 to 6 hours after installation) and operate it without any food stored inside approx. 24 hours on setting 7.
2. Set the thermostat to 3, the setting for daily use.
3. If you desire a colder temperature, set the thermostat to a higher setting. The higher the setting is, the longer the compressor operates to reach the set cooling temperature.
4. You can check the temperature inside the cooling compartment using a suitable thermometer (not included in delivery).
5. The description of the setting levels represents standard values only.

⚠ WARNING! The setting Off ● switches off the compressor only. You must unplug the appliance to disconnect it from the mains.

4.2 Operational parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.

b. the doors close properly.

c. you do not open the doors too often or too long.

d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. When the ambient temperature is very high, it is recommended to set the thermostat to a colder setting if needed. If the colder setting should cause strong formation of encrusted ice, please select a lower setting.
2. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.
3. Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

4.3 Meaning of the \*-labelling of freezers

i 1- (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food.
2-stars ( ^ ) and 3-stars ( ^* ) freezers are suitable for storing frozen food (prefrozen) and ice or for making ice and ice cubes.

COMPARTMENTS	STARS(*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
Freezer	(***)*	-18 °C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiSuitable for freezing fresh food.
Freezer	***	-18 °C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiNot suitable for freezing fresh food.
Freezer	**	-12 °C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.

WOLKENSTEIN

			➢Recommended storage period: 2 monthsiNot suitable for freezing fresh food.
Freezer	*	-6°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 1 monthiNot suitable for freezing fresh food.
0* - compartment	-	-6°C - 0°C	➢Suitable for fresh meat products (pork, beef, chicken, etc.) and processed food consumed or processed within the same day or within the next three days after storage (max.).iNot suitable for freezing food or for storing frozen food.

⚠️WARNUNG Do not eat food which is still frozen. The coldness can cause injuries in the mouth.

⚠️WARNUNG Do not touch extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

4.4 Storage of food

Your appliance has the accessories as the “Description of the appliance” showed in general, with this part instruction you can have the right way to storage your food. Food is not allowed to touch directly all surfaces inside the appliance. It has to be wrapped separately in aluminium sheet or in cellophane sheet or in airtight plastic boxes.

Storing food in the refrigerator compartment The fridge freezer compartment helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

Store foods that are very fresh and of good quality.

Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer. Vegetables and fruit need not be wrapped if they are stored in the vegetable container of the fridge compartment.

Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.

Cool hot foods down before placing them in the fridge compartment.

Dairy foods and eggs

Most pre-packed dairy foods have a recommended „use by /best before/best by/date stamped on them. Store them in the fridge compartment and use within the recommended time.

Butter can become tainted by strong smelling foods so it is best stored in a sealed container.

Eggs should be stored in the fridge compartment.

Red meat

Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.

Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Poultry

Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.

Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Fish and seafood

Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.

If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.

Keep shellfish chilled at all times. Use within 1 - 2 days.

Precooked foods and leftovers

These should be stored in suitable covered containers so that the food will not dry out.

Keep for only 1-2 days.

Reheat leftovers only once and until steaming hot.

Vegetable container

The vegetable container is the optimum storage location for fresh fruit and vegetables.

Take care not to store the following at temperatures of less than 7^ C for long periods: Citrus fruit, melons, aborigines, pineapple, papaya, curettes, passion fruit, cucumber, peppers, tomatoes.

Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.

Do not refrigerate avocados (until they are ripe), bananas and mangoes.

Freezing and storing food in the freezer compartment

To store deep-frozen food.

To make ice cubes.

To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

Packaging must not be damaged.

Use by the „use by /best before/best by/“ date.

If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food

Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

The following foods are not suitable for freezing:

Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yogurt, sourd milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminum foil. These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

When you freeze fresh foods with a „use by /best before/best by/“ date, you must freeze them before this date expires.

Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

Once defrosted, food should be consumed quickly.

4.5 Helpful hints/energy saving

✿ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
❖ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.
Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your

appliance. Otherwise the energy consumption will increase.

Put the frozen food you want to defrost into the cooling-compartment of you appliance.
✿ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides

How to freeze food

• Wrap fresh food you want to freeze in aluminium foil, cling film, air and water tight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
  Leave some free space between the single pieces of frozen food as proper air circulation is required.
  The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter technical data).
  Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
  Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
  Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.
  ✿ Observe the complete information on the packaging of frozen food.

5. Cleaning and maintenance

1. WARNING! Disconnect the appliance from the mains before you clean or maintain it.

2. Always keep the appliance clean so that unpleasant odours do not occur.

3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.

4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^2 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a small amount of washing-up liquid.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acidic detergent.

5.1 Defrosting

⚠ WARNING! Never use any mechanical items, knives or other sharpedged objects to remove the encrusted ice. RISK OF ELECTRICAL SHOCK!

1. The Clever-Defrost-System decreases the amount of encrusted ice inside the cooling compartment. The amount of encrusted ice depends on the ambient temperature and relative humidity.
2. Remove the contents, wrap them in several layers of newspaper and store them in a cooling box or a cool place.
3. Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
4. When the encrusted ice melts put some dry cloths into the appliance to hold the water back.
5. Do not support the defrosting procedure with hot water.
6. Remove the big pieces of ice first. Then remove the small pieces of ice.
7. Clean and dry the appliance and door seals with soft cloths.
8. Leave the door of the appliance open for a while.
9. Put the appliance into operation again as described in chapter 4.

6. Trouble shooting

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.

➢ Check the corresponding socket by connecting it with another appliance.

The plug has become loose.

▶ Check the fuse box.

The socket is not supplied with

energy.

The fuse is switched off.

The voltage is too low.

➢ Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

▶ Incorrect energy supply.

▶ Check the energy supply.

The compressor operates for too long.

The appliance has been switched off for a while.

The appliance needs some time to reach the preset temperature.

➢ Too much or too hot food in the appliance.

Remove any hot food.

➢ Doors opened too often or too long.

Do not open the door too often/too long.

Strong formation of encrusted ice.

The door is not properly closed.

▶ Close the door.

The door seal is damaged or soiled.

▶ Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled.

Clean the seals.

Uncommon noise.

The appliance is not installed on flat and level ground.. The appliance touches a wall or other object

Install properly.

➢ Frozen food is stored improperly.

➢ Store food properly.

Items have dropped behind the appliance.

Remove the items.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

i

The operating conditions described below are normal and do not indicate a malfunction.

❖ The refrigerant generates a sound similar to flowing water.
- Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures..

Clicking

You will hear the compressor click if it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

7. Decommissioning

Decommissioning, temporarily

❖ If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

❖ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or
2. let the appliance operate.
   a. remove all perishable food from the cooling compartment.
   b. clean the cooling compartment.
   c. freeze all food which is suitable to be frozen.

◆ If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

Technical Data*

Model	Freezer
Climatic class	SN/N/ST/T
Energy efficiency class**	D
Annual energy consumption in kW/h***	135,00
Voltage/frequency	220-240W AC/50Hz
Volume in l	98
Noise emission	41 dB/A
Stars	4****
Freezing capacity/24 h	6.50 kg
Max. storage time/malfunction	11.00 h
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a/58g
Changeable hinge position	yes
Adjustable feet	yes
Defrosting	manually
Drawers	3
Dimensions appliance H*W*D in cm	85.00*60.00*61.00
Weight net/gross in kg	38.00/40.00

◆ Technical modifications reserved

*	According to regulation (EU) No. 2019/2016
**	On a scale from A (highest efficiency) to G (lowest efficiency).
***	Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

9. Waste management

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Refrigerant

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.

2. ⚠ WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

10. Guarantee conditions

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the WOLKENSTEIN-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a WOLKENSTEIN-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

WOLKENSTEIN

August 2014

WOLKENSTEIN

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 08/11/2020
