WMW820G EB - Oven Wolkenstein - Free user manual and instructions

Product Type	Electric Built-in Oven
Brand	Wolkenstein
Model	WMW820G EB
Energy Source	Electricity
Dimensions (H x W x D)	595 x 595 x 550 mm
Oven Capacity	71 Liters
Weight	32 kg
Power Source Voltage	220-240 V / 50 Hz
Total Power Consumption	3.0 kW
Cooking Functions	Convection, Grill, Top Heat, Bottom Heat, Defrost, Light
Temperature Range	50°C - 250°C
Control Type	Electronic Touch + Rotary Knobs
Display	LED Digital Display
Interior Light	Yes
Cleaning Method	Easy-clean Enamel Interior
Safety Features	Child Lock, Automatic Shut-off, Cool Touch Door
Spare Parts Availability	Heating elements, door glass, thermostat, knobs
Repairability Index	7.0 / 10
Energy Class	A
Installation Type	Built-in

Frequently Asked Questions - WMW820G EB Wolkenstein

How do I set the oven timer?

Press the Clock button, use the +/- buttons to set the desired time, then press Start. The oven will turn off automatically when the time elapses.

What should I do if the oven does not heat up?

Check that the oven is properly connected to the power supply and that the circuit breaker is on. Also verify that the selected cooking function and temperature are correct. If the problem persists, contact customer support.

Can I use aluminum foil in the oven?

Yes, but avoid covering the bottom of the oven or the heating elements. Use foil only on the rack or in a dish to prevent direct contact with the oven walls.

How often should I clean the oven?

Clean the oven interior after each use to prevent buildup. Use a damp cloth and mild detergent. Avoid abrasive cleaners to protect the enamel.

What is the maximum weight I can place on the oven door?

Do not place more than 15 kg on the open door. The door is not designed to support heavy loads.

How do I activate the child lock?

Press and hold the Lock icon for 3 seconds until a key symbol appears on the display. Repeat to deactivate.

Why is the oven making a noise?

Normal operation includes sounds from the cooling fan and heating elements expanding/contracting. If the noise is loud or irregular, check for loose items or contact service.

Can I use the oven for grilling with the door closed?

Yes, the grill function works best with the door closed to maintain temperature. However, always monitor cooking to prevent burning.

How do I replace the oven light bulb?

Turn off power, remove the glass cover by twisting counterclockwise, replace the bulb (typically 25W, 300°C rated), and reassemble. Consult manual for exact type.

Where can I find spare parts?

Spare parts such as heating elements, door glass, and thermostats can be ordered from authorized Wolkenstein service centers or online retailers. Use the model number WMW820G EB.

USER MANUAL WMW820G EB Wolkenstein

Front view of a silver microwave oven with control panel and display (no visible text or symbols)

English language on pg. 25ff.

PE<= Polyethylen
PS< = Styropor
PP< = Polypropylen

CHAPTER	SUBJECT	PAGE
1.	Preface	26
2.	Explanation of the warning notice	27
3.	Safety instructions and warnings	27
4.	Installation	30
5.	Description of the appliance	33
6.	Control panel	34
7.	Operating of the appliance	36
8.	Guide for microwave cooking	39
9.	Cleaning and maintenance	40
10.	Trouble shooting	41
11.	Waste management	42
12.	Technical data	43
13.	Guarantee conditions	44

Technical modifications as well as misprints shall remain reserved.

Please read this manual carefully before you use or install the appliance.

EU - Declaration of Conformity

★ The EU Conformity Declarations concerning the products, which are described in this instruction manual, are available.
★ The relevant documents can be requested from the final retailer by the competent authorities.

→ Front page figure: figure similar.
The figures in this instruction manual may differ in some details from the current design of your appliance.
Nevertheless follow the instructions in such a case.

1. PREFACE

Dear customer

We would like to thank you for purchasing a

SCHNEIDER - product from our wide range of domestic appliances.

When you are familiar with this instruction manual operating the appliance will not cause you any problems.

Before your appliance was allowed to leave manufacturer's works, it was carefully checked according to our safety and operating standards.

If your appliance is visibly damaged do not connect it to the power supply.

Contact the shop you purchased the appliance at.

1. Read this manual before you operate the appliance for the first time.
2. The appliance is intended for private use only.
3. The appliance is intended for cooking food only.
4. The appliance is intended for indoor-use only.
5. Only operate the appliance in accordance with its intended use.
6. Do not allow anybody, who is not familiar with this instruction manual, to use the appliance.
7. Retain this manual in a safe place for future reference.
8. If you transfer the appliance to a third party, also hand over this instruction manual.

Please, read this instruction manual carefully so you will be able to use all functions and options of your appliance at their best performance.

Strictly observe the safety instructions so you will enjoy your appliance for a long period of time.

Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.

Please dispose of the packing with respect to your current local and municipal regulations.

⚠️WARNUNG!

While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

Strictly observe the signal words this instruction manual contains.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Pictograms

RISK OF ELECTRIC SHOCK

indicates a possible risk of electric shock when you do not observe the corresponding information and/or warning.

RISK OF FIRE indicates a possible risk of fire when you do not observe the corresponding information and/or warning.

3. SAFETY INSTRUCTIONS

Store this manual in a safe place so you can use it whenever it is needed.
The instructions and descriptions this manual contains are designed for various types of microwave-ovens. So the manual may contain some descriptions of functions or accessories which are not part of your current appliance.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or may they be time-worn and do not match the efficiency of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional.
All connections and energy-leading components (also wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
Do not connect your appliance to the electric supply unless all packaging and transit protectors have been removed.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

Precautions to avoid possible exposure to excessive microwave energy

1	Do not attempt to operate this appliance with the door open as open-door operating can result in harmful exposure to microwave energy. Do not break or tamper with the safety interlocks.
2	Do not place any object between the front of the appliance and the door or allow soil or cleaner residuals to accumulate on the sealing surfaces.
3	Do not operate the appliance if it is damaged. It is particularly important that the door closes properly and that there is not any damage on the:
a	door (bent).
b	hinges and latches (must not be broken or loosened).
c	door seals and sealing surfaces.
4	The appliance should not be adjusted or repaired by anyone except properly qualified service personal.

WARNING!

Strictly observe the following instructions to reduce any risk of burns, electric shock, fire and injury to persons or exposure to excessive microwave energy.

1. Do not use the appliance when:

a. the cord or plug is damaged
b. it does not work properly.
c. it is damaged.
d. it has dropped down.

1. Do not use corrosive chemicals or vapours in this appliance.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid any hazard.
3. Do not use the appliance to dry clothes or wet newspapers etc.
4. Do not use the appliance when it is empty.
5. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently when you use plastic or paper containers.

b. remove wire twist-ties from paper or plastic bags before you place such a bag in the appliance.

c. Switch off or unplug the appliance if you notice any smoke. Keep the door closed to stifle any flames.

d. Do not use the appliance to store anything inside.

e. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

1. Microwave heating of beverages can result in delayed eruptive boiling. Be extremely careful when handling the container.

2. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin- burns.

3. Never heat any food or liquids in sealed containers, because they can explode.

4. Do not heat eggs in their shell or hard-boiled eggs as they may explode even after microwave heating has ended.

5. Pierce food with thick skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby food should be stirred or shaken and their temperature should be checked before serving to avoid burns.
7. Cooking utensils may become hot because of the heat transferred by the heated food. Pot-holders may be needed to handle such utensils.
8. Check your utensils if they are suitable for use in a microwave appliance.
9. This product is a Group 2 Class B ISM equipment.

i. The definition of Group 2: includes all ISM (Industrial, Scientific, Medical) equipment, in which radio-frequency is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

WARNING!

Any repair or service work including the removal of any cover, which protects against exposure to microwave energy, must be performed by an authorized aftersales service only.

Child safety

1. Always supervise children so that they do not play with the appliance.
2. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.
3. When the appliance is operated in its combination mode, children should only use the appliance under an adult's supervision due to the high temperatures.

Final safety instructions

1. This appliance is designed for the use by adults only.
2. Children must neither play with nor around the appliance.
3. The appliance is not intended for commercial purposes.
4. Do not use the appliance in a laboratory.
5. Do not use the appliance for camping.
6. Do not use the appliance in public transport.
7. The appliance is designed for indoor use only.

WARNING!

Check the appliance for any damage, such as a misaligned or bent door, damaged door seals and scaling surfaces, broken or loose door hinges and latches, and dents inside the appliance or on the door. Do not use the appliance if it is damaged.

General instructions

1. Remove all packing materials even from inside the door.
2. The appliance must be placed on a flat and stable surface to hold its weight including the heaviest food to be cooked in the appliance.
3. Do not install the appliance in areas, where heat, moisture or high humidity is generated.
4. Do not install the appliance near flammable materials.
5. The appliance must be properly ventilated for correct operation. 5 cm distance are required at both sides of the appliance.
6. Do not cover or block any openings on the appliance. Do not remove its feet.
7. Do not operate the appliance without using the glass tray and the roller support.
8. The supply cord must not be damaged and must not run under the appliance or over any hot or sharp-edged surfaces.

Electrical connection

WARNING!

All electric work must be carried out by an authorized professional. Do not carry out any changes or modifications of the energy supply. The connection of the appliance must be performed in compliance with this instruction manual. An installation which is incorrectly performed may cause serious injuries to individuals or animals or your property.

1. The appliance needs a properly grounded 16A socket (behind the appliance).
2. All leads of the main current circuit must meet the current legal regulations.
3. A dedicated power circuit is recommended for your appliance but not required. Additional electric appliances on the same circuit may exceed the current (amperage) rating for this circuit. If after the installation of your appliance the circuit breaker trips or the fuse fails repeatedly, a dedicated circuit may be needed.

Grounding

WARNING! The appliance must be grounded. Use a suitable power cord only. It must be plugged into a wall socket which is installed and grounded properly. In event of an electrical short circuit grounding reduces the risk of electric shock by

providing an escape wire for the electric current. It is recommended that the appliance is connected to a dedicated circuit, which supplies your appliance only. To use high voltage is dangerous and may result in a fire or other accidents, which will damage your appliance.

1. If you have got any question about the grounding or the electrical-connection instructions, consult a qualified professional or an authorized aftersales service.

2. Neither the manufacturer nor the dealer can accept any liability for damage of the appliance or personal injury resulting from disregarding the proper electrical connection procedures.

Radio interference

While operating the appliance, it can cause interferences of your radio, TV set or similar equipment. When this problem occurs, it may be reduced or eliminated by taking the following measures:

1. Clean the door and the sealing surfaces of the appliance.

2. Relocate the microwave with respect to the receiver.

3. Move the microwave away from the receiver.

4. Connect the microwave to a different socket so the microwave and the receiver run on different branch circuits.

Installation

1. The appliance is designed for being built-in (kitchen unit or comparable built-in structure).

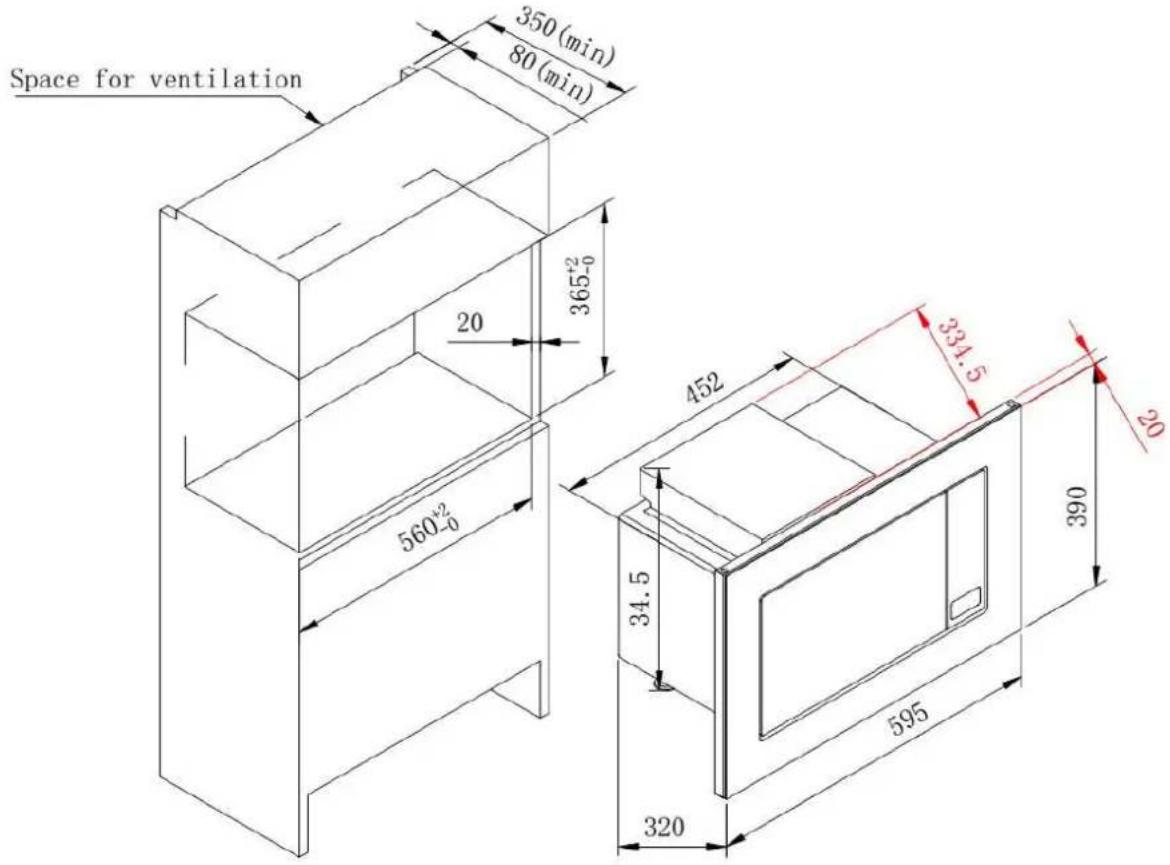

2. The built-in structure must be equipped with a proper ventilation. Contact your furniture retailer if need be.

3. The upper exhaust duct must be installed properly.

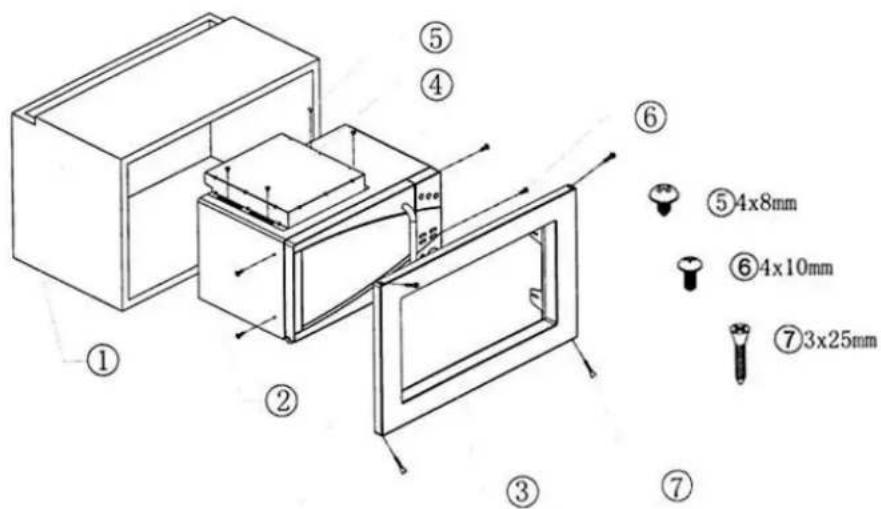

4. How to built-in the appliance (look at the following figure).

Sequence	Name	Quantity
1	Built-in unit	1
2	Appliance	1
3	Cover	1
4	Top exhaust duct	1
5	Screw 4*8	4
6	Screw 4*10	4
7	Screw 3*25	4

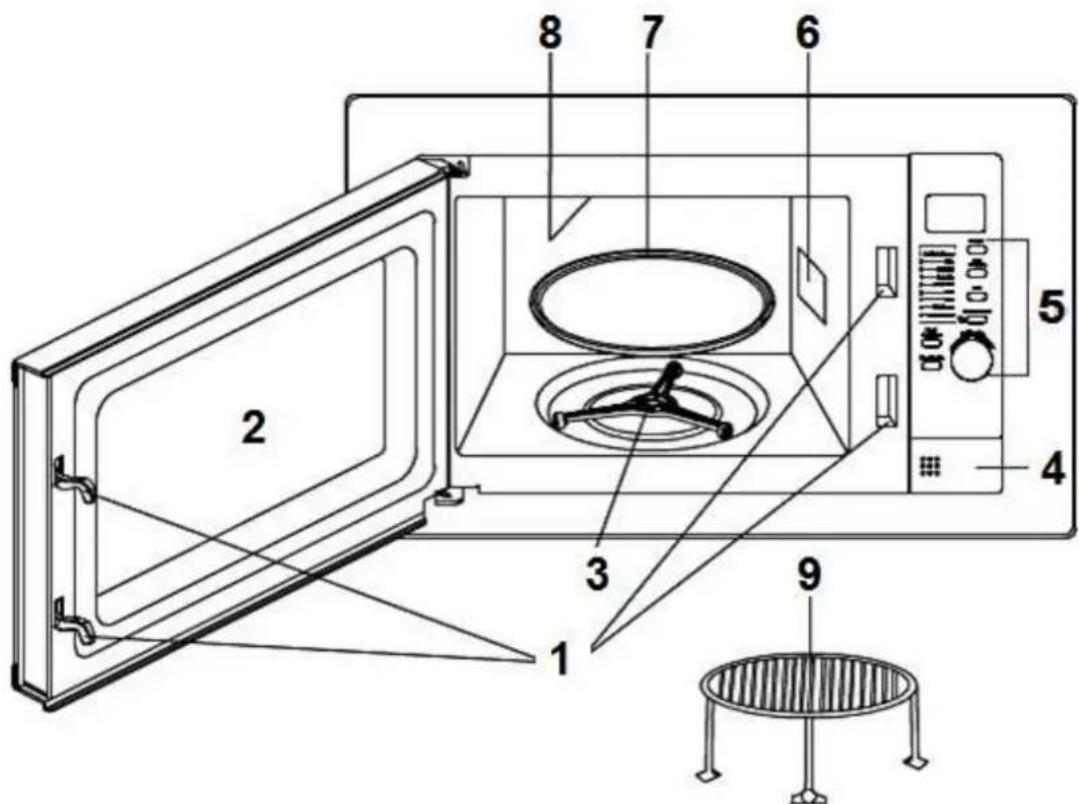

1. DESCRIPTION OF THE APPLIANCE

1. Door safety lock system.
2. Window.
3. Roller support.
4. Door release button.
5. Control panel.
6. Wave Guide (Please do not remove the mica plate covering the wave guide).
7. Glass tray.
8. Grill heater.
9. Metal rack.

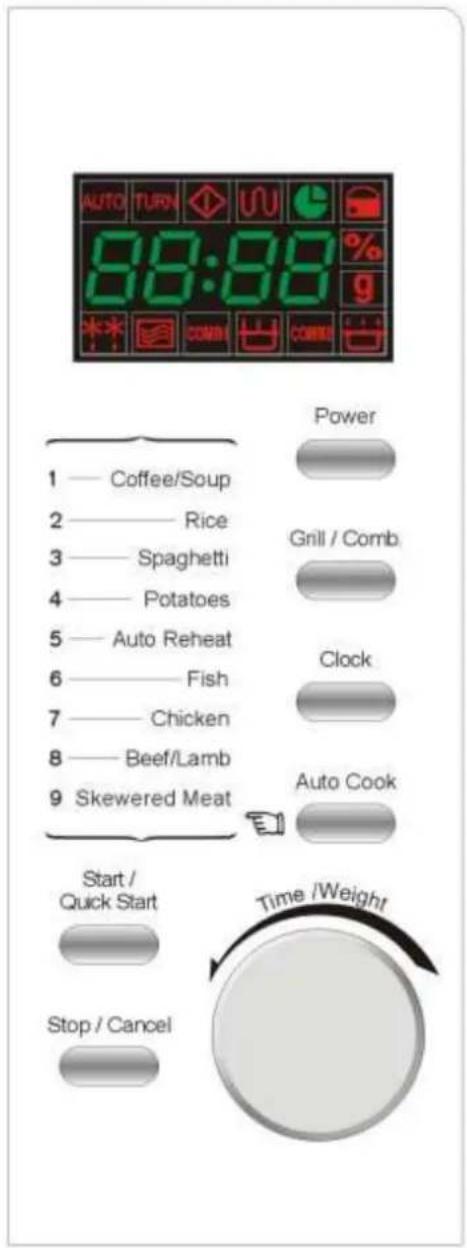

6. CONTROL PANEL

Display

Cooking time, power, action indicators, and clock time are displayed.

Power

Press this button a number of times to set a microwave-cooking power level.

Grill/Comb.

Press this button a number of times to enter the grill cooking mode or one of two combination cooking settings.

Clock

Press this button to start setting the oven clock.
→ Confirm setting by pressing it again.

Auto Cook

→ Press for instant settings to cook popular food.

Start/Quick Start

→ Press to start a cooking program.

Press it a number of times to begin express cooking without previously setting power level and cooking time.

Time/Weight

Turn the dial to set the oven clock time or cooking time.

→ Turn to specify food weight or number of servings.

Stop/Cancel

Press to cancel a setting or reset the oven before setting a cooking program.

Press once to stop cooking temporarily, or twice to cancel cooking.

→ Child lock on/off.

The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.

When you use the grill function of your appliance for the first time, some smoke and odour may be generated. This is normal, because the steel panel the appliance is made of is coated with lubrication oil. Smoke and odour are generated by burning this oil.

7. OPERATING OF THE APPLIANCE

Digital clock

Touch the clock button once or twice to set the digital clock to a 12 or 24 hour circuit.

Example: supposed that you want to set the time of day to 8:30.

1. Press Clock button once or twice
2. Turn Time / Weight button to set the hour-digit 8.
3. Press Clock button
4. Turn Time / Weight button to set the minute-digits. Choose 8:30.
5. Press Clock button to confirm the setting.

Press the Clock button once to check the clock time while cooking. The time will be displayed.

Microwave cooking

1. Press Power button to select a cooking power level when you want to cook with microwave energy only.

2. Turn Time / Weight button to set the cooking time you desire.

3. The longest cooking time available is 90 minutes.

Select power level by pressing the Power button

Frequency	Power in % and W
1	100 % (800W)
2	80 % (640W)
3	60 % (480W)
4	40 % (320W)
5	20 % (160W)
6	0 % (0W)

Example: supposed that you want to cook for 1 minute at 60 % of microwave power.

1. Press Power button 3 times.
2. Turn Time / Weight button to 1:00.
3. Press Start / Quick Start button.

Grill / Combination

This entire function is divided into 3 sub-functions.

1. Grill function

2. Combination 1

3. Combination 2

Press the Grill / Combination button to choose one of these sub-functions. The longest cooking time available is 95 minutes.

The grill cooking is particularly useful for cooking thin slices of meat, steaks, chops, kebabs, sausages or chicken-pieces. It is also useful for sandwiches and au gratin dishes.

Combination 1: 30 % of time for microwave cooking, 70 % for grill cooking. Use it for fish or au gratin dishes.

Combination 2: 55 % of time for microwave cooking, 45 % for grill cooking. Use it for puddings, omelettes, baked potatoes and poultry.

Example: supposed that you want to set combination 1 for 25 minutes.

1. Press Grill / Combination button twice.
2. Turn Time / Weight button to 25:00.
3. Press Start / Quick Start button.

Auto-Defrosting

Your appliance can defrost meat, poultry and seafood. The time and the defrosting power are adjusted automatically as soon as the weight is programmed.

Example: supposed that you want to defrost 600 g of shrimps.

1. Place the frozen shrimps into the appliance.
2. Rotate Time / Weight button anticlockwise to choose a weight of 600 g.
3. Press Start / Quick Start button.

You will hear an acoustic signal in the middle of the cooking time. Turn over your food then.

Auto Cook

It is not necessary to set a cooking time or a power level when using the auto cook. Select the type of food you want to cook as well as its weight. Press the Auto Cook button to select a category of food/cooking mode. Then, turn the Time / Weight button to set the weight. The appliance begins cooking as soon as you press the Start / Quick Start button.

When using some programmes an acoustic signal will sound in the middle of the cooking period. The auto cook will pause now. Open the door and check the progress of the cooking procedure. Turn over your food. Be very careful when handling hot food inside the appliance. Shut the door now. To continue the cooking procedure, press the Start / Quick Start button. The appliance will finish the cooking procedure now.

Example: supposed that you want to cook 400 g of fish.

1. Press Auto Cook button 6 times.
2. Turn Time / Weight button anticlockwise to choose a weight of 400 g.
3. Press Start / Quick Start button.

No. Food

1	Coffee / soup (1)
2	Rice
3	Spaghetti (2)
4	Potatoes
5	Auto reheat
6	Fish
7	Chicken
8	Beef / lamb
9	Skewered meat

Turn Time / Weight button to set the weight of the food. The result of auto cooking depends on factors such as the shape and the size of food, your personal preferences as to how well done you want certain food and even how you placed food inside the appliance. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit

(1) 200 ml / cup
(2) Add boiled water before cooking.

Quick Start

Press the Start / Quick Start button a number of times to set the cooking time. The appliance will start running at full power immediately.

Child Lock

The child lock prevents unsupervised use of the appliance by little children. When activated it is indicated on the display and the appliance cannot be run now.

Setting of the Child Lock: Press Stop / Cancel button for 3 seconds. You will hear an acoustic signal. The lock indicator lights up.

Cancelling of the Child Lock: Press Stop / Cancel button for 3 seconds. The lock indicator on the display goes off.

8. GUIDE FOR MICROWAVE COOKING

Basics

1. Arrange your food carefully. Place thick pieces at the outer areas of your arrangement.
2. Consider the cooking times. Choose the shortest time available. If needed add some more cooking time later. Any food, which is cooked too long in a microwave, can begin to fume or catch fire.
3. Cover food while it is cooking. Covering avoids splashes and enhances an even cooking procedure.
4. Turn over your food once while cooking it. Food like chicken or hamburgers will then cook faster. Larger pieces like roasts must be turned over at least once.
5. Rearrange food like meat-balls in the middle of the cooking time from the outer

areas to the inner ones ( and inversely ) and also turn them over.

Suitable cookware

1. Microwave-convenient cookware is transparent for microwave-radiation. It allows the radiation to penetrate the cookware so the radiation can heat the food.
2. Do not use metal-made cookware or other metal-made items. Microwave radiation cannot penetrate metal.
3. Do not use any products made of recycled paper. This paper may contain small metal-particles, which could cause sparks or a fire.
4. Use round or oval dishes instead of square or oblong ones. Food, which is arranged in the corners, can overcook.
5. You can use thin layers of aluminium foil to cover exposed parts of your dishes to protect them. Be very careful when handling aluminium foil. Do not use too many layers. There must be a minimum distance of 2,6 cm (1 inch) between the foil and the walls of the appliance.

Schedule: general guide for choosing the right utensils

Cookware / utensil	Microwave	Grill	Combination
Heat-resistant glass	yes	yes	yes
Non heat-resistant glass	no	no	no
Heat-resistant ceramics	yes	yes	yes
Microwave-safe plastic dishes	yes	no	no
Kitchen paper	yes	no	no
Metal-made tray	no	yes	no
Metal rack	no	yes	no
Aluminium foil/foil containers	no	yes	no

9. CLEANING AND MAINTENANCE

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.

1. Keep the inside of your appliance clean. When food splatters or spilled liquids are on the walls of your appliance, clean it with a damp cloth. Mild detergents may be used if the appliance has become very dirty. Avoid the use of sprays and other harsh cleaners as they may stain, streak or dull the door-surface.
2. Clean the outside with a damp cloth. Water should not run into the ventilation-openings to prevent damage to the operating parts inside the appliance.
3. Wipe both sides of the door and the window, the door seals and adjacent parts

frequently using a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.

1. The control panel should not become wet. Clean it with a soft and damp cloth. When cleaning the control panel, leave the door open so the appliance cannot be switched on randomly.

2. If steam accumulates inside or around the outside of the door, wipe it with a soft cloth. This may occur when the appliance runs under high humidity conditions; it is a normal occurrence.

3. It is sometimes necessary to remove the glass tray for cleaning.. Wash the tray in warm soapy water or in a dishwasher.

4. Clean the roller ring and floor of the appliance inside regularly to avoid excessive noise. Simply wipe the bottom surface with a mild detergent. You may wash the roller ring in mild soapy water or in a dishwasher. When having removed the roller ring from the appliance, you must replace it in its proper position.

5. Remove odours from your appliance by combining a cup of water with the juice and the skin of one lemon in a deep microwave-suitable bowl. Microwave it for 5 minutes. Wipe thoroughly and dry with a soft cloth.

6. ⚠️ WARNING! If it is necessary to remove the internal light of the appliance, please contact the shop you purchased the appliance at.

7. Clean the appliance regularly and remove all residuals of food. Not keeping the appliance in a clean condition could lead to deterioration of the surface. This will affect the life-time of your appliance and may result in a hazardous situation.

8. Please do not dispose of the appliance with your domestic waste. It should be disposed of at a suitable local disposal centre.

10. TROUBLE SHOOTING

ERROR

POSSIBLE CAUSES

MEASURES

The appliance does not work at all.

The plug of the appliance is not connected to the socket.

The plug has become loose.

The socket is not supplied with energy.

The fuse is switched off.

The voltage is too low.

▶ Check the corresponding socket by connecting it with another appliance.

→ Check the fuse box.

▶ Compare the data on the model plate with the data of your energy supplier.

The appliance does not work at all.

→ Door safety lock.

1. Check if all settings are properly

programmed and the time is set.

1. Check if the door is well closed and the locking system has engaged. Otherwise the appliance will not run..

The appliance does not work at all.

→ Break in the power supply.

1. Check if the plug is properly positioned in the socket.

2. If not, remove the plug from the socket.

3. Wait 10 seconds and plug it into the socket again.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact your aftersales service.

DANGER!

If your appliance does not seem to run correctly, please contact the shop you purchased the appliance at.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

11. WASTE MANAGEMENT

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic waste.
Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you make a significant contribution to the protection of our environment.

Packaging

The packaging is recyclable. The recommended modus operandi is:

→ Dispose of any paper and cardboard into the corresponding containers.
→ Dispose of any plastics into the corresponding containers.
If a suitable container is not available in your residential area, you can dispose of these materials with your domestic waste; but it would be better to take it to an appropriate facility for waste recycling.

WARNING!

While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

Materials with this symbol on are recyclable.

PE<=Polyethylene
PS< = Styrofoam
PP< = Polypropylene

These materials can be recycled when you depose them of in a suitable collecting container of your local facilities.

Appliance

Do not dispose of the appliance with your domestic waste.
Waste separation is essential so that the single components of the appliance will be recycled according to their appropriate use.
Do not dispose of electric appliances as unsorted domestic waste. Use the local or municipal facilities for waste separation.
If electric appliances are disposed of at landfills, substances which are dangerous to one's health can get into the ground water. Such substances will become part of the food chain and cause damage to your health.

Please contact your local authorities to receive detailed information regarding waste separation.

Safe disposal

Please help our environment! Dispose of old appliances and their packaging in accordance to your national, local and municipal regulations concerning waste management.
Old appliances are not unusable waste. A lot of valuable resources can be gained by serious waste management.
Before you dispose of an old appliance, render it inoperative.

1. Always remove the plug from the socket. Afterwards cut off the power cord directly at the appliance. Dispose of the power cord with the plug immediately.

The above mentioned materials are environmental-friendly and recyclable.
Receive more detailed information from your retailer or your local and municipal facilities.

12. TECHNICAL DATA

Model	Built-in Microwave
Nominal voltage	230~240V~50 Hz
Power rating	Microwave 1200 W	Grill 1000 W
Microwave power output	800 W
Operation frequency	2450 MHz
Dimensions appliance in cm	H 34,50 / W 45,20 / D 32,00
Dimensions appliance incl. Frame and Heat Protection	H 39,00 / W 59,50 / D 35,40
Usable oven capacity	20 Litres
Cooking uniformity	Turntable system
Net Weight	Approx. 12.5 kg

13. GUARANTEE CONDITIONS

This appliance was made and checked according to the most modern production methods. This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

The guarantee is valid without prejudice to stringent legal liability regulations, e.g. the product liability law, in the case of malice and of wanton negligence in view of harm of life, body or health by Wolkenstein or its agents.

The right on the guarantee is not granted, when the purchase is made in the course of a commercial activity.

The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. This has to be reported to us or to our after sales service in the Federal Republic of Germany.

This report has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee.

The guarantee for our appliances is valid under the following conditions:

Defects of the appliance which are verifiably caused by material or fabrication deficiency will be rectified free of charge by our after sales. When the defect appears within 6 months we suppose that there is a material or fabrication deficiency.

Within the guarantee we will repair deficient components free of charge using components of our own choice or they will be replaced by flawless components. Appliances, which can, due to their dimensions, be reasonably transported by an

automobile, should be given over or submitted to our after sales.

If the repair work is refused by us or if the repair work finally fails, the old appliance, if requested, will be replaced by an appliance of the same kind, quality and type within the period of guarantee. If the old appliance is no longer produced at the time the defect occurred, Wolkenstein will be entitled to deliver a similar appliance.

The exchange of the appliance principally takes place in the shop the first vendee bought the appliance in unless the appliance is too large to be transported by the vendee.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction.

Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the Wolkenstein-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a Wolkenstein-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The guarantee period for installed replacement parts ends with the guarantee.

Provided that a product-related malfunction is not covered by this guarantee the vendee has to bear the cost, when the appliance is checked, including any labour costs that may arise.

If the holder of the guarantee has requested repair work, then the holder of the

guarantee must be informed about the non-intervention of the guarantee and possible costs, that may arise, and thereafter he must bear all costs for spare parts and wages.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

WOLKENSTEIN

August 2014

Subject to alterations / Updated March 2020
