Product Type	Car Speaker System
Model	Titan TS6.2C
Brand	Hifonics
Speaker Size	6.5 inches (165 mm)
Speaker Type	Component (2-way)
Impedance	4 ohms
Power Handling (RMS)	60 Watts
Power Handling (Peak)	120 Watts
Sensitivity	90 dB
Frequency Response	55 Hz - 20 kHz
Mounting Depth	2.5 inches (64 mm)
Weight (each)	2.0 lbs (0.9 kg)
Dimensions (each)	6.7 x 6.7 x 2.8 inches
Material	Polypropylene cone, rubber surround
Tweeter Type	1-inch silk dome
Crossover	External, 12 dB/octave
Maintenance	Clean gently with a soft, dry cloth. Avoid moisture and solvents.
Safety	Ensure correct polarity. Avoid short circuits. Disconnect battery during installation.
Spare Parts	Mounting grilles, screws, and wiring harness included. Replacement parts may be ordered from Hifonics.
General Information	Keep away from magnetic fields. Designed for car audio use only.

Frequently Asked Questions - Titan TS6.2C Hifonics

What is the size of the Hifonics Titan TS6.2C speakers?

The Titan TS6.2C is a 6.5-inch component speaker system, suitable for most car doors and custom enclosures.

What is the power handling of these speakers?

The RMS power handling is 60 watts, with a peak of 120 watts. For best performance, use an amplifier that delivers 30-90 watts RMS per channel.

Are the tweeters separate?

Yes, the Titan TS6.2C includes separate tweeters and an external crossover for optimal sound staging.

What is the impedance of these speakers?

The impedance is 4 ohms, compatible with most car stereo amplifiers.

Can I install these speakers in a 6x9 opening?

No, these are 6.5-inch round speakers. You would need an adapter bracket to fit a 6x9 opening, which may affect sound quality.

What tools do I need for installation?

You will need a screwdriver, wire strippers, crimping tool, and panel removal tools. Always disconnect the battery first.

How do I maintain the speakers?

Clean the speakers with a soft, dry cloth. Avoid using water or cleaning chemicals as they may damage the cone and surround.

Are these speakers waterproof?

No, they are not waterproof. Keep them away from moisture to prevent corrosion and damage.

What is the warranty period?

Hifonics typically offers a 1-year limited warranty. Check the included documentation for details or contact support.

Can I use these speakers with a factory radio?

Yes, but for optimal sound quality, use an external amplifier as factory radios often lack sufficient power.

USER MANUAL Titan TS6.2C Hifonics

Technical line drawing of a circular mechanical component with multiple holes and mounting holes (no text or symbols)

LOUDSPEAKERS

TS5.2C

TS6.2C

DEUTSCH

INSTALLATION DER LAUTSPRECHER

Two 3D mechanical assembly diagrams showing a presser lifting a tire and a gear mechanism, with no visible text or symbols.

The first step of installing a speaker system is a well-thought-out planning. Choose a suitable location for your speaker components carefully. Please observe the following suggestions to ensure proper results and best performance:

1. Choose a location which offers none or just a minimum of obstacles between the components and your ears. Please observe at thereto, the positions of the driver's seat, the headrests and other constructions of the inside of vehicle interior.
2. Mount the left and right speakers in the same array on each side, which means that they are installed at the same height and directly across from each other. Do not install one speaker higher, lower, further forward or further back from the opposite speaker.
3. Always check what's behind the chosen mounting locations to ensure that there is proper clearance for the back of the speaker components and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
4. The best performance will be achieved, when the speakers are securely mounted to a designated speaker opening in a door panel or a rear speaker shelf. There should be no gaps between the speaker basket and the mounting surface.

TWEETER MOUNTING

A.) Flush mount with standard housing B.) Angle mount with built-on housing

ENGLISH

MIDRANGE WOOFER INTERCONNECTION

• Connect the positive terminals (" + ") and the negative terminals (" - ") of the midrange woofers with the according terminals "WOOFER" of the crossover.
• Use for the interconnection the supplied cables with jacks (red and black).

TWEETER INTERCONNECTION

- Connect the positive connectors (+) and the negative connectors (−) of the tweeters with the according terminals "TWEETER" of the crossover.

CROSSOVER INTERCONNECTION

• Connect the positive terminals (+") and the negative terminals (−") of the amplifier speaker outputs with the according terminals "INPUT" of the crossover.
• Use for this the supplied speaker cables without jacks.

Repeat all three steps for the channel pair on the opposite side of the vehicle.

TO THE SPEAKER OUTPUTS OF THE AMPLIFIER

TWEETER LEVEL ADJUSTMENT OF THE CROSSOVER

The TITAN TS crossovers offer the opportunity to match the tweeter level of the loudspeaker system with the characteristics of the interior environment and the complete soundsystem. You find the slide switch beneath the acrylic cover on the left center.

- To adjust the tweeter level set the 3-way slide switch to the following positions: "+ 3dB" (high level), "0dB" (mid level) and "-3dB" (low level)

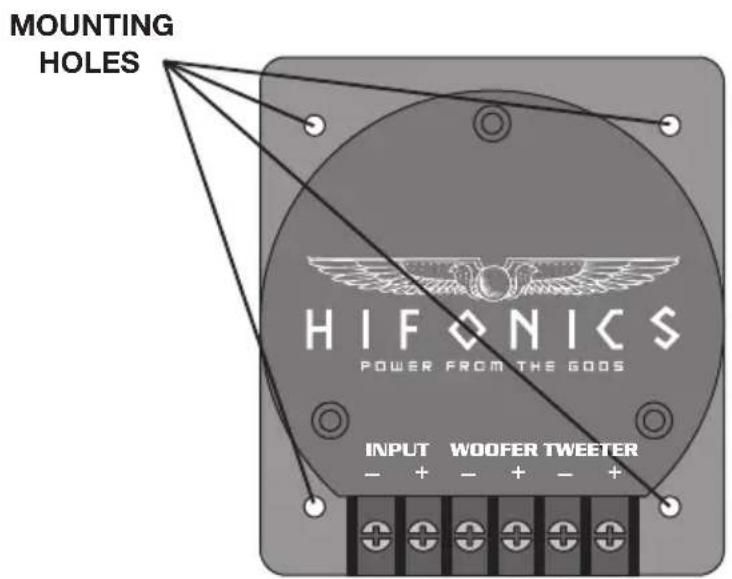

INSTALLATION OF THE CROSSOVER

Under specific circumstances it will be necessary to mount the crossover to the vehicle. To use the designated mounting holes, which you find on each corner of the crossover. Use appropriate screws, depending on the surface, where the housing will be installed on.
