Product Type	Desk Fan / Air Cooler with Mist
Brand	Innoliving
Model	INN-518
Power Supply	USB 5V/2A (DC)
Battery	Built-in rechargeable, 2-4 hours runtime
Water Tank Capacity	200 ml (max)
Mist Levels	3 (Low, Medium, High)
Fan Speeds	3 (Gear I, II, III with LED indicators)
Color Light	RGB (Green, Red, Purple, Blue)
Adjustable Airflow	Manual louver (up/down tilt)
Material	ABS plastic
Dimensions (approx.)	150 x 150 x 200 mm
Weight (approx.)	0.5 kg
Filter Type	Evaporative cooling pad (washable)
Safety Rating	Class III (low voltage)
Certifications	CE
Included Accessories	USB cable, user manual

Frequently Asked Questions - INN-518 Innoliving

How do I charge the fan?

Connect the provided USB cable to the charging port at the back of the unit and to a USB power adapter (recommended 5V/2A). Full charge provides 2-4 hours of runtime.

How to use the mist function?

Fill the water tank with clean water (max 200ml). Press the Mist button to cycle through low, medium, and high mist levels. Press again or long-press to turn off mist.

Can I use the fan without water?

Yes, the fan operates normally without water. Simply do not press the Mist button. The fan will blow air without humidification.

What is the battery life?

Battery life depends on fan speed and mist usage, typically 2-4 hours on a full charge. Charging time is not specified but expect a few hours.

How do I clean and maintain the device?

Empty the water tank, then turn on the fan at maximum speed for at least 4 hours to dry the internal parts. Do not submerge the unit. Use a soft cloth for exterior cleaning.

Can I use a different USB cable?

It is recommended to use only the original USB cable supplied. If damaged, replace with a cable of equivalent specifications to avoid damage.

Is it safe to leave the fan on unattended?

No, always turn off the device and disconnect from USB when not in use. Do not leave children unattended with the fan.

What kind of water should I use for the mist?

Use clean water or distilled water. Do not add chemicals, oils, or metallic substances, as they may damage the device.

How to store the fan when not in use?

Empty the water tank and run the fan on max speed for 4 hours to dry the filter. Store in a cool, dry place away from direct sunlight.

Why is the airflow weak?

Ensure the USB input is 5V/2A (lower voltage reduces airflow). Clean the evaporative filter if clogged, and keep the fan at least 20 cm from walls.

USER MANUAL INN-518 Innoliving

White instant air conditioner unit with digital display and three buttons, no visible text or symbols on the device itself.

INN-518

MANUALE D'USO

USER MANUAL

PRIMA DELL'USO LEGGERE ATTENTAMENTE IL SEGUENTE MANUALE DI ISTRUZIONI E CONSERVARLO PER FUTURE CONSULTAZIONI.

Diagram of a device with ports and cable, no text or symbols present

Top-down schematic of a door with buttons and a handle (no text or symbols)

Line drawing of a door with buttons and a handle (no text or symbols)

Line drawings of a microwave oven and its internal air conditioner device (no text or symbols)

ETICHETTA DATI:

BEFORE USE PLEASE READ CAREFULLY THE FOLLOWING ISTRUCTION MANUAL AND KEEP IT FOR FUTURE REFERENCES.

Before using the appliance, carefully read instruction manual and in particular safety warnings and comply with them. Keep this manual for the entire life of the device for reference.

If safety instructions are not followed it can cause incidents and the warranty will be cancelled, and the manufacturer will be declined from any responsibility.

WARNINGS

- The packing materials (plastic bags, cartons, polyester Etc.) should not be left at the reach of children since they are potential sources of danger and must be disposed according to current laws.

- Before use, be sure USB cable is not damage. If the cable is damaged, replace it with an equivalent one.

- The device must be used only for the main it has been designed; it is to say home use air cooler. Any other use is considered non-compliant and therefore dangerous.

- This device can be used by children over the age of 8 and by people with reduced physical sensorial, mental capabilities or with luck of experience or knowledge if under supervision or if they have been given use instructions and if they understand the risks involved. Cleaning operations and maintenance cannot be done by children, unless they over the age of eight and under supervision. Keep the device and the cable out of the reach of children under 8 years old.

- Be sure children do not play with the device.

- Remove the USB cable from USB port when the device is OFF.

- Always be sure the USB cable is completely inserted in the USB port before turning the device ON.

- Place the product only on plane and stable surfaces, avoid inclined surfaces.

- Do not use the device at open air or next to bath tubes, pools, showers etc.

- Water level inside the tank should never be over the board of the tank itself. Be sure not to add water while the device is ON. Pour water in the tank or remove water from the tank when the product is OFF and disconnected from USB port.

- Do not insert foreign objects inside the device. Do not insert fingers or other object in the grill to avoid mechanical risk during use. Do not block air inlets or outlets.

- Do not add chemical or metallic products inside the water tank. Those components can cause damages to the product and compromise the correct use.

- Elders and children should avoid prolonged exposure to the direct flow of the device.

- Do not let the device exposed to direct sun light for a long period of time.

- Do not use aggressive detergents to clean the product

- Do not let the device and/or the cable in contact with heated surfaces.

- This device should be used only for the aim it has been designed.

- Avoid to let the devise drop

- If there should be problems with device contact the authorized customer care centre. Do not try to repair the product

- Do not use the device if it has fallen or if there are visible signs of damage or loss. Avoid impacts or falls.

- Use the device in a well aired place. During use, the device should be positioned at least 20 cm far from walls, in order to guarantee the correct functioning of air sockets. The device should not be placed under or over a tent or similar. Do not cover the device with blankets or similar during use.

- Do not place the USB cable under carpets, fabrics or similar. Keep out of transition areas or where there is falling or obstacle risks.

- Do not place objects on the device.

- Switch off the device before removing USB cable from USB port.

- Do not move the cooler when the tank is full of water.

- Use clean water or distilled water to fill in the water tank.

- The product works better in no smog and no polluted environments. The presence of dust particles or dirt reduces product lifetime.

- It is suggested the use in dried environments, if the device is used in a damp environment, pay attention to not let water be in contact with the device.

- In case of loss or outlet of water, switch off the device and disconnect from USB port and let dry for at least 24 hours before use it again.

- Do not place the cooler under direct sunlight for prolonged time.

- Do not place the cooler next to fire or hot sources.

- In case the device is not used for a prolonged time, empty the tank, switch on the device and set maximum speed for at least 4 hours. This procedure allows to dry the filter and inside parts of the device.

- Always use the USB original cable supplied with the product.

- Do not touch the cable or the product connected to the USB port with damp hands.

- Always disconnect the cooler from USB cable for cleaning and maintenance operation, for filter replacement or to move the cooler.

- Do not turn upside down the device

- Do not submerge the cooler in water or other liquids.

- The product must be supplied only at a very low safety voltage corresponding to the rating label.

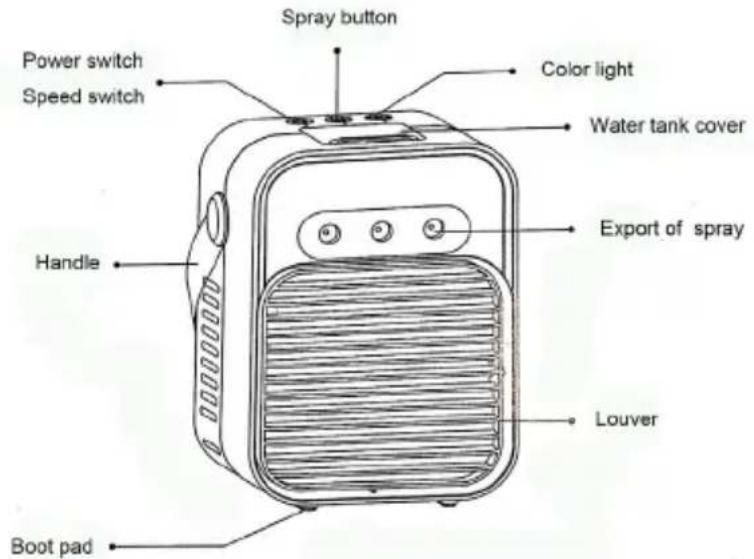

PRODUCT DESCRIPTION

USE INSTRUCTIONS

- Place the cooler on a plane and stable surface for example a table, writing desk or shelf. It is suggested a raised surface like a table, writing desk or shelf to obtain a better performance of the product.

HOW TO USE

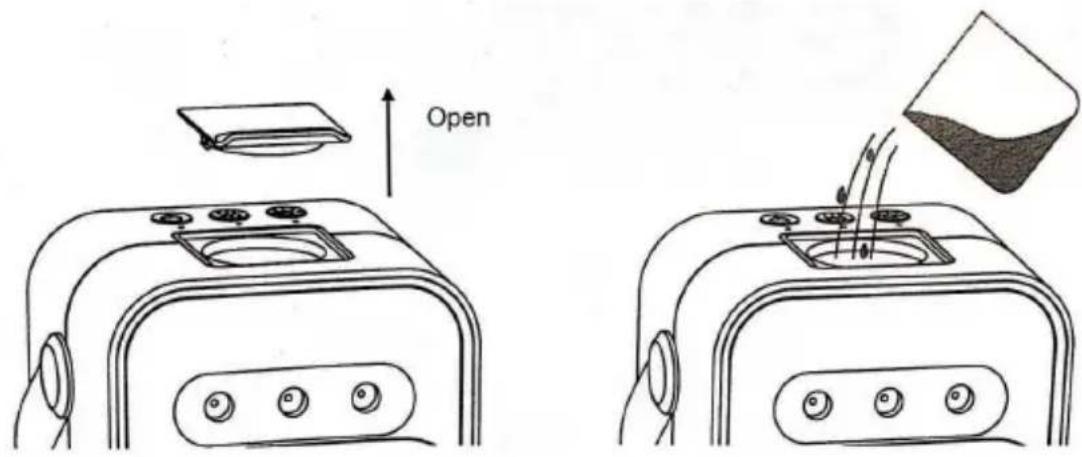

1. Open the water tank cover and add the water or ice water. (Don't add more than 200ml) Cover the tank tightly after adding water to avoid running out

Note: When there is water in the water tank, please keep the water tank placed horizontally to prevent water leakage.

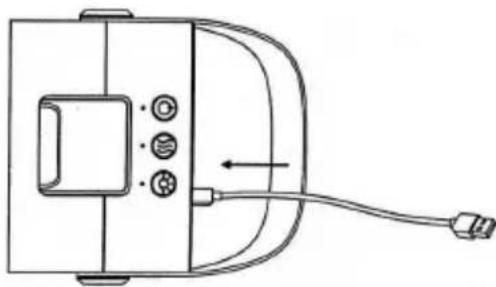

1. Connect the USB cable into the charging hole at the back of the unit. The service time is 2-4 hours after full

charge. It could also be connected the USB cable to the external power supply directly. It is recommended to make sure the voltage is correct (== 5V/2A). In case the input voltage is less than 5V/2A, it may lead to a decrease in air volume.

Diagram of a device with labeled ports and an external cable, no text or symbols present

1. Pressing the power switch, the unit will start to work in Gear I and the power red light will be flashing. Pressing the power switch again, the unite into Gear II and the power light will change green. Pressing it for the third time, the wind speed is Gear III and the light will change Blue. When the button is pressed again or long pressed in any state, the unit shuts down (From I>2>3>Close)

Top-down schematic of a door with buttons and a handle (no text or symbols)

1. Mist function can be used separately, or worked together with the fan.

-If you push "Mist" button once, the mist spray will be in low volume.

-If you push push "Mist" button twice, the mist spray will be in medium volume.

-If you push push Mist button three times, the mist spray will be in high volume.

Line drawing of a door with buttons and a switch (no text or symbols)

Note: Please make sure that there is water in the water tank when you press "Mist" button. When there is no water in the water tank, please pay attention to add the water or stop the humidification function in time, otherwise the unit will be damaged.

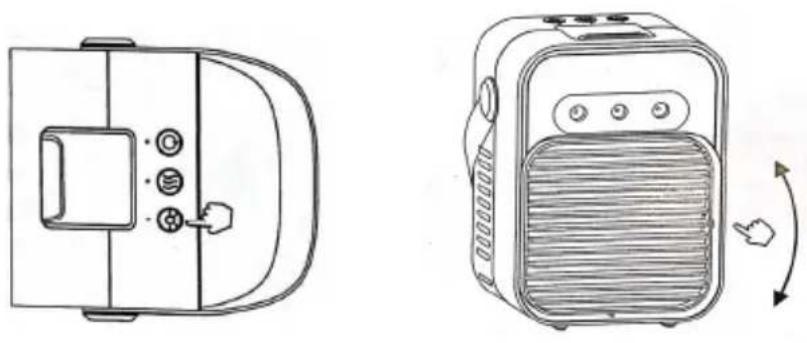

1. Pressing the "Light" button, the color light will up. The color will change from Greeb>Red>Purple>Blue It can be possible to adjust the Angle by swinging the louver up and down.

RATING LABEL:

CE

This product complies with all the applicable European regulations

III

Class III insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

The batteries used in this device cannot be removed by user and must be disposed of in the special bins at the end of their life. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps preventing potentially negative consequences on the environment

innoliving

Innoliving Spa

Via Merloni, 2/B

60131 Ancona Italy

Tel [phone]

www.innoliving.it

MADE IN CHINA

CE
