Product Type	Wet and Dry Vacuum Cleaner
Brand	Hyundai
Model	57708
Power Supply	220-240V~, 50/60Hz
Power Consumption	2000W (typical)
IP Rating	IPX4
Protection Class	Class I or II (depending on model)
Wet Vacuum Mode	Uses foamed plastic filter
Dry Vacuum Mode	Uses dust bag
Switch Positions	I (On), O (Off), II (Automatic with socket) for select models
Socket Outlet	Max load 1000W for external tool
Filter Maintenance	Wash foamed filter with water; no detergents; dry thoroughly
Accessories Included	Foamed plastic filter, dust bag
Safety Features	Unplug before cleaning; do not vacuum hazardous materials; keep away from children
Warranty	1 year (2 years in Germany)
Manufacturer	Xialixi Industrial Zone, Yongkang City, Zhejiang, P.R. China

Frequently Asked Questions - 57708 HYUNDAI

How do I use the vacuum cleaner for wet vacuum cleaning?

First, ensure the appliance is unplugged. Remove the dust bag and attach the foamed plastic filter over the filter basket. Plug in and turn the switch to the 'I' or 'II' position (depending on model). The vacuum will start. Never use the dust bag for wet cleaning.

How do I switch between wet and dry mode?

For wet mode, use the foamed plastic filter. For dry mode, use the dust bag. Always unplug before changing filters or bags. Refer to the assembly diagrams in the manual.

What does the 'II' position on the switch do?

On models with a socket outlet, the 'II' position enables automatic operation: the vacuum starts 3-5 seconds after a connected tool starts and stops when the tool stops. The tool's power must be below 1000W.

Can I vacuum flammable liquids or hot ashes?

No. Never vacuum burning matches, glowing ashes, cigarette ends, or any flammable, corrosive, or explosive substances. This can cause fire or damage.

How do I clean the foam filter?

Unplug the vacuum. Remove the filter and wash it with clean water only. Do not use detergents. Let the filter dry completely before reinstalling.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard.

Is the dust bag suitable for wet vacuum cleaning?

No. The dust bag is intended only for dry vacuum cleaning. Using it for wet cleaning will damage the bag and the vacuum.

What is the maximum power load for the socket outlet?

The socket outlet on models with this feature has a maximum load of 1000W. Do not exceed this rating.

How should I dispose of this product?

Do not dispose with household waste. Follow local recycling regulations for electrical appliances. Use return systems or contact the retailer for environmentally safe recycling.

What is the warranty period?

The manufacturer provides a warranty of at least 1 year (2 years in Germany) from the date of purchase. It covers defects in material or workmanship. Keep the original bill of purchase.

USER MANUAL 57708 HYUNDAI

Xialixi Industrial Zone, Yongkang City, Zhejiang Province, P. R. China

Attention:

Before cleaning or maintaining the appliance, the power plug must be removed from the socket-outlet

• Attention: Before assembly and starting operation, read the operating instructions carefully
• Check that the mains voltage corresponds to the details on the type plate
• Pull the mains plug out of the socket when: the unit is not in use, before opening the unit, before cleaning and maintenance
• Never clean with solvents
• Do not use the cable to pull the plug out of the socket
• When unit is ready for use, do not leave unattended
  ● Safeguard from children
• Care must be taken that the mains connection lead is not damaged by being driven over, crushed, stretched, etc
• The unit must not be operated if the mains connection lead is not in perfect condition
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent to a similarly qualified person in order to avoid a hazard.
• On no account vacuum: burning matches, glowing ashes and cigarette ends, inflammable, corrosive, fire hazard or explosive substances, vapours and liquids
  ● This unit is not suitable for vacuuming dust which is damaging to health
• Store the unit in a dry place
• Do not operate a defection unit
  ● Servicing only by an authorized after-sales service point
• Use only for operations for which the unit is intended
  ● Take great care when cleaning stairs
• Use only manufacturer's attachments and spare parts
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• IPX4 is only granted by connect an IPX4 plug to socket-out of the appliance or the cover of the socket-out is closed. (JN301-**L-1-****W, JN301-**L-11-****W, JN601-**L-1-2000W, JN601-**L-11-2000W)
• Max. load of socket-out: 1000W. (JN301-**L-1-****W, JN301-**L-11-****W, JN601-**L-1-2000W, JN601-**L-11-2000W)

Technical data:

220-240V\~, 50/60Hz, IPX4

JN301-**L-****W: Class II,

*** = 1000: 1000W; *** = 2000: 2000W; *** = 3000: 3000W

JN301-**L-1-****W, JN301-**L-11-****W: Class I,

*** = 1000:1000W, 2000W with max load of socket-outlet,

****=2000:2000W, 3000W with max load of socket-outlet

JN601-**L-****W: Class II, ****=2000: 2000W; ****=3000: 3000W,

JN601-**L-1-2000W, JN601-**L-11-2000W: Class I,

2000W, 3000W with max load of socket-outlet

Overview of nozzles

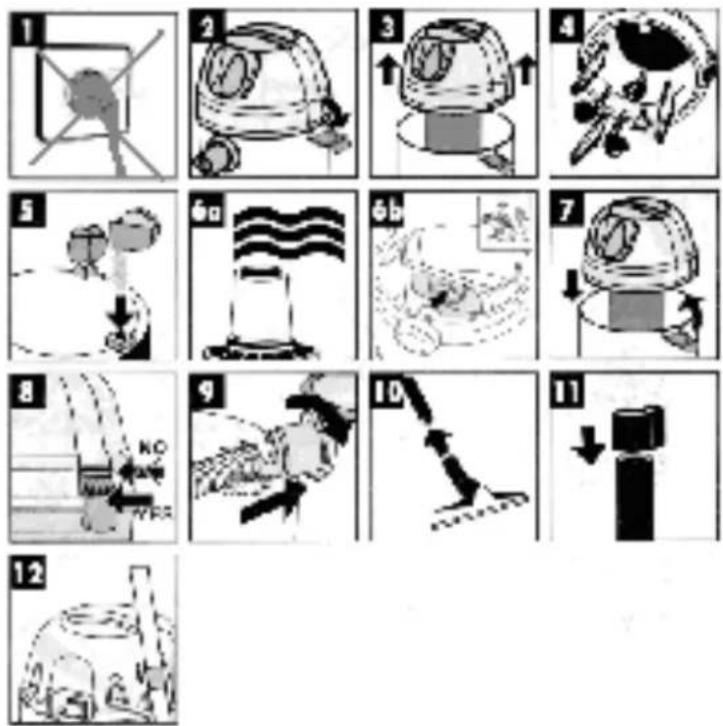

Assembly

Please note:

Figure 6a: Use the supplied foamed plastic filter for wet vacuum-cleaning
Figure 6b: Use the supplied dust bag for dry vacuum-cleaning

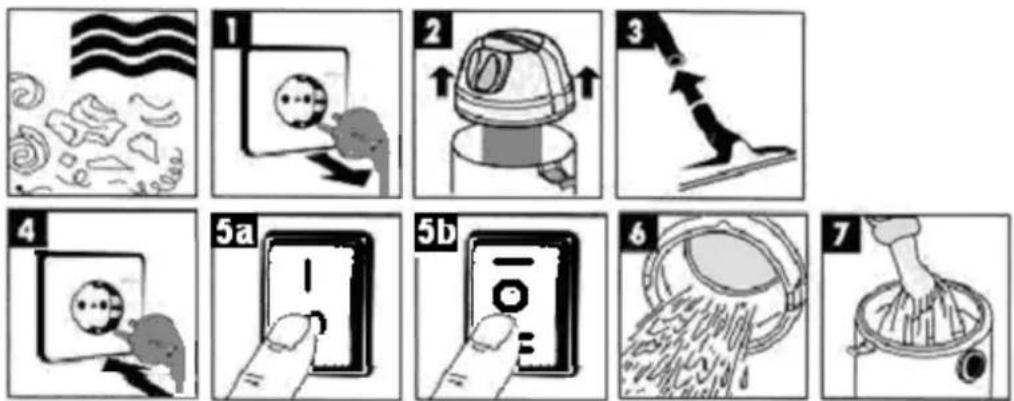

Wet vacuum - cleaning

Unplug before change filter (Figure 1)

Pull the supplied foamed plastic filter over the filter basket (Figure 2) for wet vacuum-cleaning.

Insert the plug and turn on the switch, then appliance starts to work (Figure 4 & 5a or 5b)

For JN301-**L-****W, JN301-**L-1-****W, JN601-**L-****W,

JN601-**L-1-2000W: When push the switch to the “T” position, the vacuum cleaner will work; when push the switch to the “O” position, vacuum cleaner will not work.

For JN301-**L-11-****W, JN601-**L-11-2000W: When push the switch to the “I” position, the vacuum cleaner will work alone; when push the switch to the “O” position, vacuum cleaner will not work; when push the switch to the “II” position, while the tool which is connected with the socket working, the vacuum cleaner also work 3-5 seconds later, while the tool stop working, the vacuum cleaner also stop working.

The outer facility for the socket's power is below 1000W.

The dust bag included upon delivery is not suitable for wet vacuum-cleaning!

Dry vacuum-cleaning

Abstract line drawing of stylized animals or figures in motion (no text or symbols)

Diagram of a mechanical device with a knob and rotating base (no text or symbols)

Diagram showing a mechanical or robotic arm interacting with a surface, no text or symbols present

Abstract line drawing with geometric shapes and no readable text or symbols

Unplug before change filter (Figure 1), then take out the bag and empty the dust or replace the bag. Slip the dust bag onto the socket(figure 2) for dry vacuum-cleaning.

Insert the plug and turn on the switch, then appliance starts to work (Figure 5 & 6a or 6b)

For JN301-**L-****W, JN301-**L-1-****W, JN601-**L-****W,

JN601-**L-1-2000W: When push the switch to the "I" position, the vacuum cleaner will work; when push the switch to the "O" position, vacuum cleaner will not work.

For JN301-**L-11-****W, JN601-**L-11-2000W: When push the switch to the “I” position, the vacuum cleaner will work alone; when push the switch to the “O” position, vacuum cleaner will not work; when push the switch to the “II” position, while the tool which is connected with the socket working, the vacuum cleaner also work 3-5 seconds later, while the tool stop working, the vacuum cleaner also stop working.

The outer facility for the socket's power is below 1000W. The dust bag is suitable only for dry vacuum-cleaning!

Maintenance – cleaning

Unplug before maintenance (Figure 1)

Take off the foamed plastic filter (Figure 3), and wash by water (Figure 5)

IMPORTANT: Do not use detergents to clean the filter. The filter must be thoroughly dry before the machine is used.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Warranty Information

The manufacturer provides warranty in accordance with the legislation of the customer's own country of residence, with a minimum of 1 year (Germany: 2 years), starting from the date on which the appliance is sold to the end user.

The warranty only covers defects in material or workmanship.

The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.

The warranty will not apply in cases of:

• Normal wear and tear
• Incorrect use, e.g. overloading of the appliance, use of non-approved accessories
• Use of force, damage caused by external influences
• Damage caused by non-observance of the user manual, e.g. connection to an unsuitable mains supply or non-compliance with the installation instructions
• Partially or completely dismantled appliances

Xialixi Industrial Zone, Yongkang City, Zhejiang Province, P. R. China

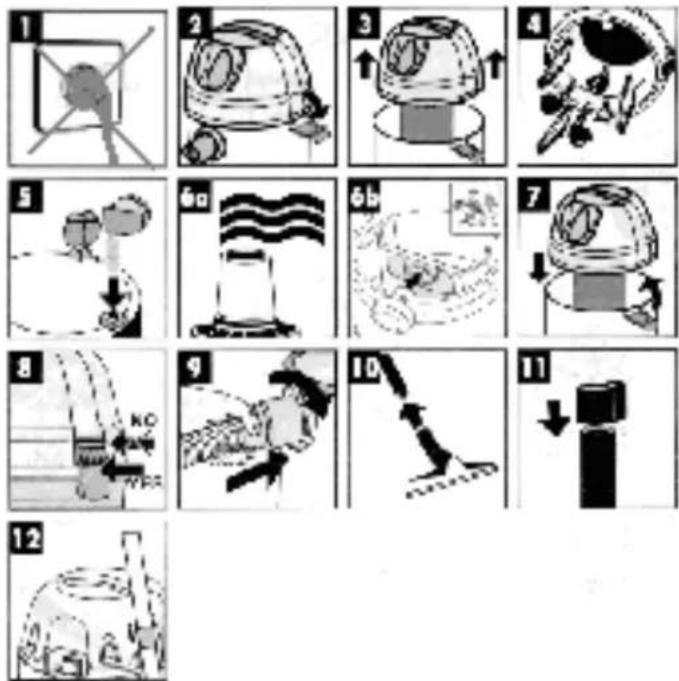

Zusammenbau:
