HZ-3 - Light effect machine Qtx - Free user manual and instructions

Product Type	Haze Machine
Brand	Qtx
Model	HZ-3
Power Supply	230Vac, 50Hz
Power Consumption	700W
Fuse Rating	F5A
Heat-up Time	Approx. 2–3 minutes
Re-heat Time	Approx. 3 minutes
Haze Output	2,400 Cu Ft (68 m³) per minute
Tank Capacity	1.6 Litres
Dimensions	310 x 330 x 263mm
Weight	5.5kg
DMX Channels	2 (Fan Speed and Haze Output)
DMX Address Range	A001–A512
Control Options	Standalone, Timer Remote, DMX (2-channel)
Fan Speed Settings	5 levels (1 slow – 5 high)
Haze Output Settings	5 levels (0 off – 5 high)
Timer Remote Control	Included (interval, duration, manual override)
Fluid Level Sensor	Yes (low fluid indicator)
Removable Fluid Tank	Yes
Adjustable Output Angle	Yes (via output flap)
Recommended Fluid	QTX Haze Fluid (e.g., 160.591UK, 5L)
Housing	Durable metal with carry handle
Mounting	Via bracket with thumb screw
Indoor Use Only	Yes

Frequently Asked Questions - HZ-3 Qtx

What fluid should I use with the HZ-3 haze machine?

Use only high-quality haze fluid. QTX recommends their own formula (ref. 160.591UK, 5L) specially designed for heater-based haze machines to produce an ultra-fine mist.

How do I set up the HZ-3 for the first time?

Unpack the machine, unscrew the tank cap, fill with recommended haze fluid, replace the cap ensuring the pipe reaches the bottom. Connect the remote control and IEC power lead, then power on. Allow 2–3 minutes warm-up until the LED illuminates.

Why is the display showing 'HEAt'?

The unit is warming up. This typically takes 2–3 minutes. Do not press any buttons during this time. Once ready, the display will show the current mode.

How do I operate the machine without the remote control?

Use the built-in digital display. Press MENU to cycle through options: set DMX address (A001–A512), manual fan speed (FS-1 to 5), and manual haze output (HO-0 to 5). These settings override any remote control.

Can I control the HZ-3 via DMX?

Yes, it uses 2 DMX channels: CH1 (Fan Speed, 0–255) and CH2 (Haze Output, 0–255). Connect DMX in/out, set the address via the menu, and control from your DMX controller.

What does the timer remote control do?

It allows timed haze output. Adjust the interval (0–30 min) and duration (0–15 sec) dials, or use continuous output. The manual override button activates instant haze. Ensure FS and HO settings are set to zero for remote to work.

How do I clean and maintain the haze machine?

Unplug and let cool. Use a vacuum or compressed air to remove dust from vents and internal parts. Clean the exterior with a dry cloth. If blockage occurs, flush with distilled water or haze machine cleaning fluid.

What should I do if the machine stops producing haze?

Check the power, fuse, and fluid level. Ensure the pipe inside the tank reaches the bottom. If in DMX mode, verify the DMX controller is sending signals. For blockages, use cleaning fluid.

How do I replace the fuse?

Disconnect from mains. Remove the fuse holder above the IEC socket. Replace with the correct rating (F5A). Lock the holder back into place.

Can I use the HZ-3 outdoors?

No. The HZ-3 is designed for indoor, dry environments only. Do not expose to rain, moisture, or extreme temperatures.

USER MANUAL HZ-3 Qtx

Order ref: 160.451UK

User Manual

Please read through this manual thoroughly before use, any damage Caused by misuse of product will not be covered by warranty.

INTRODUCTION:

HZ-3 Haze Machine

The HZ-3 haze machine features a range of upgrades to ensure it remains the top haze machine in its class. An improved 700W heater ensures all fluid is vaporised quickly as well as decreasing the warm up time. The LED digital display allows for standalone operation whilst still allowing for the use of a timer remote or 2 channel DMX operation. There is a fluid level sensor which indicates when the machine needs refilling so as not to damage the pump. This product has been specifically developed for professional installations and high-end DJ applications.

• 2,400 CU Ft (68m³) per minute (approx.)
• Relay temperature controlled for constant temperature control and longer life
• Uniquely designed nozzle for reduced condensation build-up in the pipes
- Easy to use digital display operation
• True constant haze output
• Variable output angle
- Low fluid indicator
- Removable fluid tank
- Timer output remote control included
- Easy to transport and portable
• 2-channel DMX (output level and fan speed)

PACKAGE CONTENTS:

Please check the contents to ensure that the product has been received in good condition.

HZ-3 Haze Machine x 1pc	User Guide x 1pc
Power Cord x 1pc	Remote Control x 1pc

If you find any accessory is missing or the machine has arrived with any problems, please contact your local dealer at once. Do not try to fix this item yourself or you will invalidate the warranty. Please keep the original packaging and invoice for any possible replacement or return demand.

RECOMMENDED FLUID:

For the HZ-3 haze machine we strongly recommend the following fluid which has been specifically formulated to perform best with any heater-based haze machines.

QTX Ref Code	Description	Size	Results
	High quality professional Haze fluid		High quality ultra fine mist
160.591UK		5 Litre

SETUP:

1. Unpack the haze machine
2. Unscrew the top cap of the tank and remove to fill with the recommended haze fluid
3. Replace the bottle and screw the cap securely ensuring the pipe is fed down to the bottom of the bottle so a consistent flow of fluid is supplied to the machine
4. Connect the remote control
5. Connect the IEC mains plug and power up
6. Heat up time is usually between 2-3 minutes. Please ensure no button is pressed during the heat up time. When the machine is ready the LED light on the machine and remote control will illuminate
7. After heat up, please refer to page 8 "Operation for HZ-3"

Please do not open cover, contains high voltage. This product is not serviceable or repairable by the end user. Please refer to qualified personnel for service and repair.

For your safety, please kindly pay attention to all the warnings listed below:

■ Always plug in the power last and disconnect from the mains when the device is not in use or before cleaning
■ Do not install and operate the unit in rain or extreme heat, moisture or dusty environments
■ This unit is for indoor use and dry environments only
■ Do not switch on immediately but wait until the unit reaches room temperature if it has been exposed to drastic temperature fluctuations
■ Do not shake the unit and avoid brute force when installing or operating
■ Do not use during thunderstorms and please disconnect the power
■ Do not use solvents or aggressive detergent to clean the unit. Use a soft and clean cloth

QUICK TROUBLESHOOTING

If the unit is not functioning properly

■ Check if main power is on

■ Check the fuse hasn't blown

■ Check the unit isn't in DMX mode

■ Check there is fluid in the tank and the pipe is pushed down to the bottom of the bottle

■ If there is blockage use distilled water or haze machine cleaning fluid

REPLACING FUSE

Disconnect from the main power supply first, then remove the fuse holder above the IEC Socket to reveal the fuse. Replace the correct fuse rating as stated on lighting or user guide. Then, lock the fuse holder cover back into place.

GENERAL MAINTENANCE

To maintain optimum performance and minimize wear, the item should be cleaned frequently. Usage and environment are contributing factors in determining frequency. As a rule, fixtures should be cleaned after use to avoid dust build-up and blockages, which can result in poor performances, overheating and breakages. Be sure to power off fixture before conducting maintenance.

Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust collected on external vents and internal components. Clean the external case when the fixture is cold with a dry cloth or tissue and drag dirt and grime to the outside case.

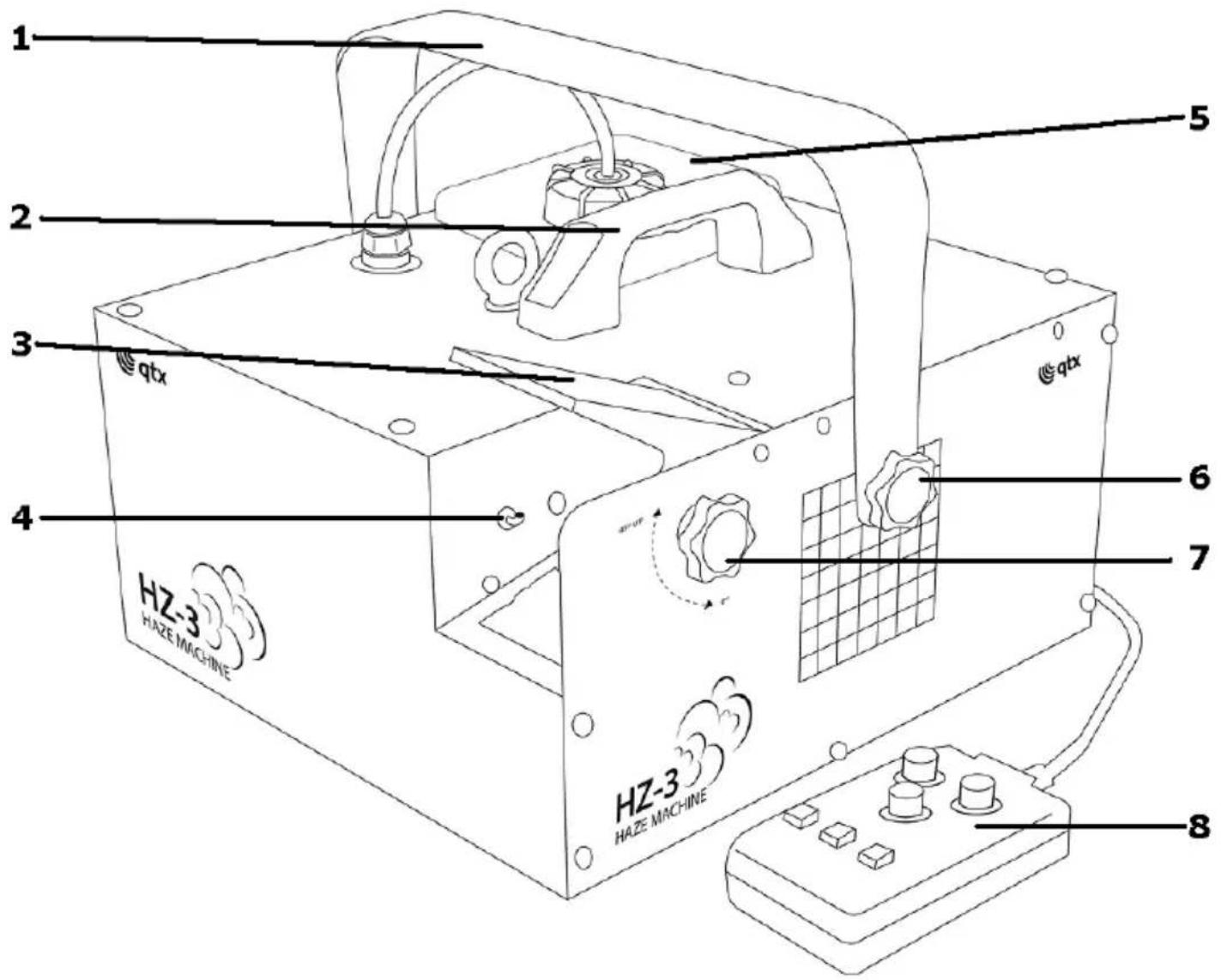

LAYOUT HZ-3:

1. Mounting Handle
2. Carry handle
3. Adjustable output flap
4. Haze nozzle output
5. Removable bottle
6. Thumb screw for mounting bracket
7. Thumb screw for adjustable out put flap.
8. Handheld Remote controller

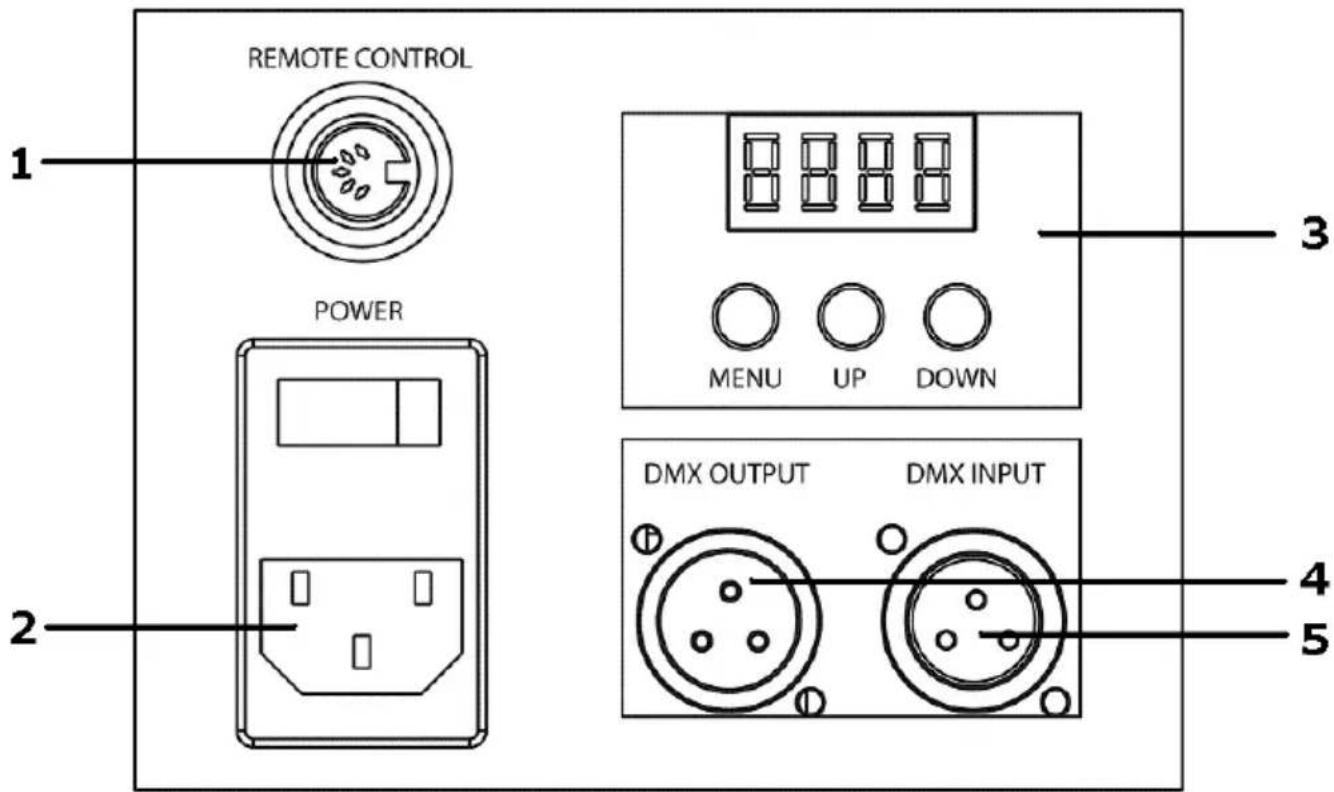

LAYOUT AND CONNECTIONS:

1. Remote connection
2. Power IN (Use IEC lead provided)
3. LED Digital controller (see next section)
4. DMX Out
5. DMX In

OPERATION FOR HZ-3

When you first turn on the Haze machine it will display "HEAt" for around 2-3 minutes while the unit warms up. When completed you will have access to various options if the wired remote control is not connected

Press menu to scroll through the various options listed below. Use the up and down keys to set the secondary function.

Display	Function
HEAt	Unit is warming up no function available
A001-A512	DMX address
FS-1 to 5	Manual Fan Speed 1=slow, 5=high
HO-0 to 5	Manual Haze output 0 = off, 1 = low, 5 = high

FS (Fan Speed) and HO (Haze Output) are settings for continuous stand-alone operation and will override any remote control of the HZ-3

DMX MODE

When in DMX mode there are two channels with the following functions:

DMX channel	DMX Scale	Detail function
CH 1	000 - 255	0% - 100% Fan Speed
CH 2	000 - 255	0% - 100% Haze Output

TIMER CONTROLLER

The timer controller can be used to control the HZ-3 remotely.

Please note Fan Speed (FS) and Haze Output (HO) must be set to zero for the remote timer controller to operate.

1. Timer on/off button
2. Continuous output
3. Manual override button
4. Timer LED indicator (Illuminated Yellow when timer active)
5. Manual ready indicator (Illuminates Green when ready)
6. Power indicator (Illuminates red when power is on)
7. Adjust the amount of Haze released (between 0 - 100%)
   NOTE: The below controls are only used when in timer mode

8. Adjust the interval gap between each release of Haze (between 0 - 30 Min approximately)

9. Adjust the duration the Haze / Haze is released at each interval (between 0 – 15 seconds approximately)

For best results select "continuous" and adjust output to achieve desired effect, note it can take around 30 seconds for the machine to produce the correct output.

TECHNICAL SPECIFICATION

Power supply	230Vac, 50Hz
Fuse	F5A
Power	700W
Re-heat time	3 min (approx)
Haze Output	2,400 Cu Ft ( 68m3 ) per minute
Tank capacity	1.6 Litres
Dimensions	310 x 330 x 263mm
Weight	5.5kg

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
