Product Type	Portable Work Light
Brand	Cocraft
Model	LXC WLU18
Dimensions (LxWxH)	Approx. 200 x 150 x 250 mm
Weight	Approx. 1.2 kg
Power Source	18V Li-ion battery (compatible with Cocraft LXC series)
Light Source	LED
Luminous Flux	Up to 1000 lumens
Beam Angle	120 degrees adjustable
Color Temperature	5000K (cool white)
Run Time (max)	Up to 10 hours (depending on battery)
Main Functions	Multiple brightness levels, swivel head, hook and stand for versatile placement
Maintenance	Clean with a dry cloth; do not use abrasive cleaners
Safety Features	Over-discharge protection, short-circuit protection, IP54 splash-proof rating
Spare Parts	Replacement LED module and battery pack available through Cocraft service centers
Repairability	Designed for basic maintenance; professional repair recommended for LED unit
Operating Temperature	-10°C to 40°C
Warranty	2 years
Package Contents	Light unit, user manual (battery and charger sold separately)

Frequently Asked Questions - LXC WLU18 Cocraft

What battery does the Cocraft LXC WLU18 use?

The Cocraft LXC WLU18 uses an 18V Li-ion battery from the Cocraft LXC series. The battery is not included.

How long does the battery last?

Run time depends on brightness setting and battery capacity. With a 3.0 Ah battery, you can expect up to 10 hours on low mode and about 2 hours on high mode.

Is the light waterproof?

The LXC WLU18 has an IP54 rating, meaning it is splash-proof but not submersible. It can withstand rain and dust but should not be immersed in water.

Can I use other 18V batteries?

Only use Cocraft LXC series 18V batteries. Using incompatible batteries may damage the light or cause safety hazards.

How do I change the brightness level?

Press the power button repeatedly to cycle through brightness levels: low, medium, high, and off.

Can I mount the light on a tripod?

Yes, the base has a 1/4-inch thread mount compatible with standard camera tripods.

What is the beam angle?

The light has a 120-degree beam angle, and the head can be tilted 180 degrees for directional lighting.

How do I clean the light?

Wipe the surface with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

Is the LED replaceable?

The LED module is replaceable by an authorized service center. Do not attempt to replace it yourself to avoid damage.

What does the warranty cover?

Cocraft provides a 2-year warranty against manufacturing defects. It does not cover damage from misuse, accidents, or unauthorized repairs.

USER MANUAL LXC WLU18 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Illustration of a blue and black Cocaft camera device with a power button (no text or symbols on the device itself)

Art.no Model

41-1380

DQD020

Ver. 20180219

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Postal 10 - 13 Market Place

Kingston upon Thames

Surrey

KT1 1JZ

DEUTSCHLAND

Kundeservice Hotline: [phone]

E-Mail: [e-mail]

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services.

Safety

Warning:

• The LEDs in this work light have a very intensive light output. Do not look directly into the light or direct the light into another person's eyes, doing so could cause eye damage.
• The product should not be taken apart or modified.
• Never use the product if it has been damaged in any way.
• Do not use the work light in environments where explosive or flammable gases are stored or used.
• Only use the product with batteries from the Clas Ohlson LXC series.
• Treat the product with care and do not subject it to shocks or impacts.
• Never immerse the product in water or other liquid.
• Never let children play with the product.

Product description

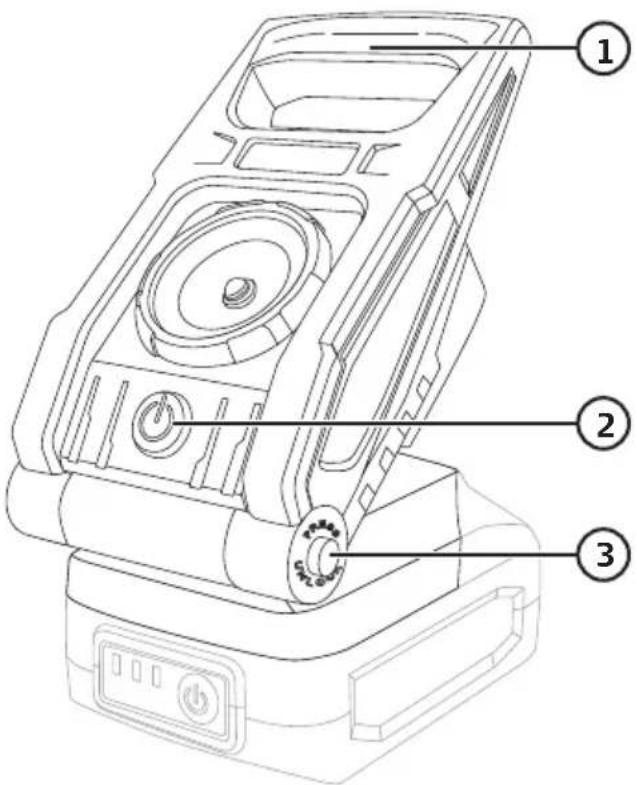

1. Carrying handle
2. [⏻] On/off, turns on the USB port
3. [ PRESS, UNLOCK ] Button to angle the light, one on each side of the lamp

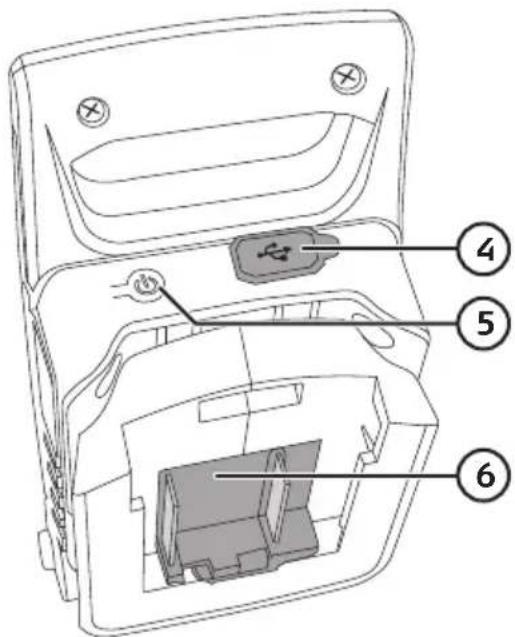

1. USB port for charging e.g. a smartphone (charger cable sold separately)

2. [⏻] Button to turn on the USB port when the lighting has been switched off

3. Battery connection

Instructions for Use

Light

1. Connect a battery to the light.
2. Turn on/off the light with [⏻] (2).
3. Press in the button (3) and tilt the light to the desired angle.

USB port

1. Connect a battery to the light.
2. Turn on the USB port with [⏻] (5) (the USB port will remain on as long as the light is on).

△ Important: The USB port switches off automatically approximately 10 minutes after the device has been turned off or been disconnected from the USB port (the USB port cannot be switched off manually with the button).

Care and maintenance

• Always remove the battery before cleaning it and putting it away.
- Clean the exterior of the light by wiping it with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
- Store the light in a dry place out of children's reach whenever it is not to be used for a long time.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifications

Runs off batteries from the Clas Ohlson 18 V LXC series.

LED power 3 W

Beam angle 113°

Luminous flux 180 lm

Colour temperature 5500 K

Tiltable 0–160°

Operating time LED bulb With 1.5 Ah = 7 hours, 2.0 Ah = 9 12 hours, 3.0 Ah = 14 hours, 4.0 Ah = 19 hours

USB output 5 V, 2.1 A, 10.5 W

Weight 0.27 kg (excluding battery)

Arbetslampa

Användning

Lampa

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifikationer

Drifttid LED lampa Med 1,5 Ah = 7 tim, 2,0 Ah = 9 12 tim, 3,0 Ah = 14 tim, 4,0 Ah = 19 tim

USB uttag 5 V, 2,1 A, 10,5 W

Vikt 0,27 kg (utan batteri)

Arbeidslampe

1. USB-uttak for lading av smarttelefon (synk-kabel selges separat)
2. [☐] Knapp for å aktivisere USB-uttaket när lampen er slukket
3. Batteritilkoblingspunkt

Bruk

Lampe

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Spesifikasjoner

Drives med batterier fra Clas Ohlsons 18 V LXC-serien

Effekt LED 3 W

Lysspredning 113°

Lysmengde 180 lm

Fargetemperatur 5500 K

Vinkling 0–160°

Driftstid LED lampe Med 1,5 Ah = 7 timer, 2,0 Ah = 9 12 timer, 3,0 Ah = 14 timer, 4,0 Ah = 19 timer

USB uttak 5 V; 2,1 A; 10,5 W

Vekt 0,27 kg (uten batterier)

Työvalaisin

Käyttö

Valaisin

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Tekniset tiedot

3,0 Ah = 14 h, 4,0 Ah = 19 h

Bedienung

Leuchte

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technische Daten
