CW1296 - Kettle Coline - Free user manual and instructions

Product Type	Electric Kettle
Brand	Coline
Model	CW1296 / KK-2020A
Power Supply	220-240 V, 50 Hz
Power Consumption	1850-2200 W
Capacity	1.2 L
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Cordless Operation	Yes (with base)
Water Level Indicator	Yes
Removable Filter	Yes, in spout
Lid Release Catch	Yes
Power Indicator Light	Yes
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Cleaning and Maintenance	Wipe exterior with damp cloth; descale regularly with vinegar or descaler; clean filter regularly
Usage	For boiling water only; indoor household use
Warranty	Refer to point of purchase

Frequently Asked Questions - CW1296 Coline

How do I descale the kettle?

Mix 100 ml of white vinegar (12%) with 300 ml cold water, or follow the descaler instructions. Boil the mixture twice, then pour it out. Refill with fresh water to the max mark, boil, and discard. Repeat three times to remove all residues. Descale every 2-3 months of daily use or when limescale is visible.

How do I clean the filter?

Carefully push the top of the filter down to release the snap lock. Remove the filter and clean it under running water or with a soft brush. Reinsert by fitting the bottom first, then pressing into place. Be careful of sharp edges.

Can children use this kettle?

Children aged 8 years and above can use the kettle if supervised and instructed on safe use. Keep the appliance and cord out of reach of children under 8. Cleaning and maintenance should not be done by children unless they are older than 8 and supervised.

What should I do if the kettle does not turn off?

Ensure the lid is properly closed and the filter is correctly fitted. The kettle may not shut off if the lid is open or the filter is misaligned, posing a risk of hot water expulsion. If the issue persists, unplug and contact customer service.

Can I boil liquids other than water?

No, only water should be heated in the kettle. Boiling other liquids can damage the appliance and may cause injury.

What is the boil-dry protection feature?

If the kettle is turned on empty, the boil-dry protection automatically switches it off. Let the kettle cool down before refilling and using again.

How do I remove the filter?

Press the top of the filter down carefully until the snap lock releases. Lift the filter out. Be cautious of sharp edges on the filter bracket. To replace, insert the bottom first and press into place until it clicks.

What voltage does the kettle require?

The kettle operates on 220-240 V, 50 Hz. Ensure your power supply matches and connect to an earthed socket.

What is the capacity of the kettle?

The maximum capacity is 1.2 litres. Do not fill above the max mark to avoid hot water expulsion during boiling.

Can I immerse the kettle or base in water?

No, never immerse the kettle, base, cord, or plug in water or any liquid. Doing so increases the risk of electric shock. Clean only with a damp cloth.

USER MANUAL CW1296 Coline

Close-up of a metallic funnel pouring liquid into a white container (no text or symbols visible)

Kettle

Art.no. 18-4620-1, -2, -3, -4, -5, -6 Model KK-2020A 44-1296-1, -2, -3, -4, -5, -6 KK-2020A

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• This kettle can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the kettle in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children aged under 8 years.
• The kettle can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the kettle in a safe way and understand the hazards involved. Never let children play with the kettle.
• Check that your power supply is 220–240 V and that the kettle is connected to an earthed socket.
• Always unplug the kettle from the power point when it is not in use.
• Always unplug the lead from the power point and let the kettle cool down properly before cleaning it.
• Do not pull or carry the kettle by the mains lead. Do not use the lead as a handle or let it get pinched in door jambs. Do not pull the lead around sharp corners or edges.

• Make sure that the lead does not come in contact with hot surfaces such as cooker hobs.

• Never immerse the lead, plug, bottom plate or kettle in water or other liquid. Doing so may increase the risk for electric shock.

• Children who are close by when the kettle is used must be supervised at all times.
• Certain parts of the kettle become hot during use, only touch the handle.
• Never use the kettle if it is damaged or does not work normally.
• The mains lead should be checked regularly. Never use the kettle if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, authorised service facility or a qualified tradesman.
• The kettle is designed for indoor use only.
• The kettle should only be used as described in this instruction manual.
• The kettle may only be used with the supplied bottom plate.
• When filling with water, do not exceed the maximum mark. If more water is filled, hot water may be expelled when heating.
• Note: Make sure that the kettle is on a stable, flat surface before it is turned on.
• Note: Make sure that the mains lead, plug and the electrical connectors on the bottom plate and the kettle are clean, intact and dry before the kettle is turned on.
• Note: Ensure that the filter is fitted correctly and that the lid is closed properly before the kettle is turned on. The kettle will not turn off and there is a risk that hot water can be expelled if the lid is not closed properly or if the filter is fitted incorrectly.

• Note: Never fill the kettle with water when it is positioned on the bottom plate. Lift the jug and fill carefully with water. Make sure that the bottom plate and the kettle's housing are both completely dry before the kettle is placed on the bottom plate and is turned on.

• Never fill with water when the kettle is switched on.

• Never use the kettle near an open fire or hot surfaces.
• Clean the kettle with a lightly moistened cloth. Never use solvents or corrosive cleaning products. Use a mild cleaning agent.
• Never heat liquids other than water in the kettle.
• Never touch the kettle while it is switched on. Hot steam can cause burn injuries.
• Never leave the kettle unattended and always unplug the mains lead from the wall socket when it is not in use.
• Never use the kettle if you have dropped it or if it has been damaged in any way.
• The kettle is only intended for normal household use or in staff kitchens, hostels, motels, etc.
• Warning: Water must never come into contact with the bottom plate.
• Warning: There is a risk of personal injury if the instructions in this instruction manual are not followed.
• Neither the kettle nor the bottom plate must be immersed in water when cleaning.
• Note that the bottom plate and certain parts of the kettle are still hot even after the kettle has been turned off.

Buttons and functions

1. Spout with filter
2. Lid
3. Water-level indicator
4. Lid release catch
5. Handle
6. Power switch
7. Bottom plate

Before initial use

Before using the kettle you should boil two kettles of water in it in order to rinse it of any residue. Never boil the kettle when it contains water mixed with washing-up liquid or other detergents.

Operating instructions

• Open the lid by pressing in the latch and fill the kettle with water. Do not fill the jug above the max level mark.
• Close the lid.
• Connect the mains lead to a 220–240 V earthed wall socket.
• Place the kettle on the base and set the power switch to I. The power indicator light will come on to indicate that the kettle is switched on.
• Never turn the kettle on when it is empty.
• The kettle turns off automatically and the indicator lamp goes out once the water has boiled. The switch will then return to the 0 position.

Boil-dry protection

If you should turn on the kettle while it is empty the boil-dry protection will activate and automatically turn off the kettle. Let the kettle cool before attempting to use it again.

Care and maintenance

Always unplug the lead from the power point and let the kettle cool down properly before cleaning it. If necessary, the exterior of the kettle can be wiped with a lightly moistened cloth.

Descaling

Due to the natural occurrence of calcium in water, limescale deposits may form in the kettle after some use. Limescale deposits might lengthen the time needed for water to boil. For descaling you can use a mixture of white vinegar and water or a special descaler which can be purchased from well-stocked grocery stores.

1. Mix 100 ml of white vinegar (12 %, not regular vinegar) with 300 ml cold water or follow the directions included with the descaling agent.
2. Pour the mixture into the kettle and turn it on. Boil up the mixture 2 times, and then pour it out.

3. In order to remove the last remnants of limescale and descaling agent, the kettle should be filled to the max mark with fresh cold water. Turn the kettle on and let it come to the boil.

4. Pour out the water and repeat this process 3 times. The kettle is now ready to use again.

The kettle should be descaled after 2–3 months daily use or whenever it has visible limescale deposits.

Cleaning the filter

Clean the filter in the spout regularly. Instructions:

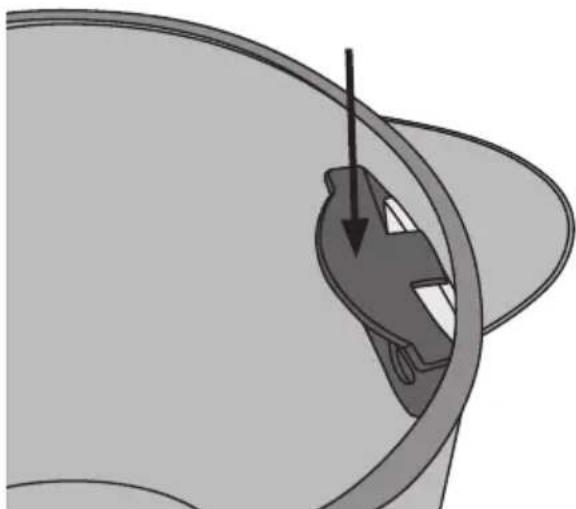

1. Carefully push the top of the filter down so that the snap lock detaches from the housing.

Note: Be careful as the edges of the filter bracket are sharp.

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of a smiling face with a bandage and a small object inside (no text or symbols)

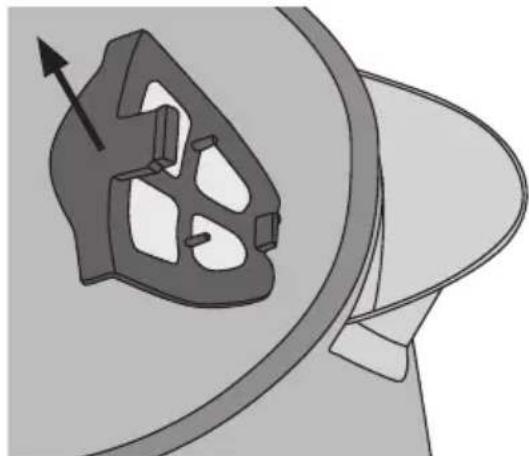

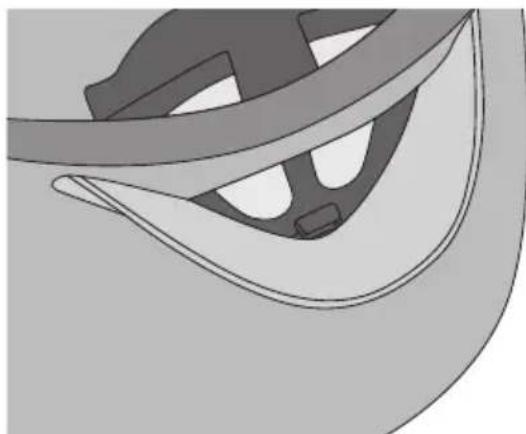

1. Remove the filter and clean it. 3. Replace the filter, first fit the bottom and then carefully push into place.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Specifications

Supply voltage 220–240 V, 50 Hz

Capacity 1.2 l

Power 1850–2200 W

Vattenkokare

Art.nr 18-4620-1, -2, -3, -4, -5, -6 Modell KK-2020A 44-1296-1, -2, -3, -4, -5, -6 KK-2020A

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of a smiling face with a curved band and rectangular object inside (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Specifikationer

Nätanslutning 220–240 V, 50 Hz

Kapacitet 1,2 l

Effekt 1850–2200 W

Vannkoker

Art.nr. 18-4620-1, -2, -3, -4, -5, -6 Modell KK-2020A 44-1296-1, -2, -3, -4, -5, -6 KK-2020A

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a smiling face with a bandage and a small object inside (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Spesifikasjoner

Spenning 220–240 V, 50 Hz

Kapasitet 1,2 liter

Effekt 1850–2200 W

Vedenkeitin

Tuotenro 18-4620-1, -2, -3, -4, -5, -6 Malli KK-2020A 44-1296-1, -2, -3, -4, -5, -6 KK-2020A

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a smiling face with a bandage and a small object inside (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Tekniset tiedot

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a smiling face with a curved band and rectangular object inside (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technische Daten
