USER MANUAL 153801 Coline

Black and white photo of a 30-inch toaster with control knobs and temperature/temperature indicators (no visible text or symbols on the device itself)

Art. No: Model. No:

18-4014 153801-UK

34-7247 153801

English 3

Svenska 10

Norsk 17

Suomi 24

Deep Fat Fryer 3 litre

Art.no: 18-4014 Model: 153801-UK 34-7247 153801

Please read the entire instruction manual before using and save it for future use. We apologise for any text or photo errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse.)

Contents

Safety 4

Buttons and functions 5

Getting started 6

Use 7

Care and maintenance 8

Disposal 9

Specifications 9

Safety

• Never leave the fryer unattended while in use.
• Never attempt to extinguish burning oil with water. Pull out the plug cable and smother the fire with a fire blanket.
• Check that the correct voltage is used for the fryer. See the fryer's product plate.
• Only use fryer in an earthed wall socket.
  • Always remove the fryer from the mains before cleaning when it is not in use.
• To avoid electric shock, protect the fryer and its connection lead from damp and wet.
• Never place the fryer in water or other fluid.
• Never place the electric cable on hot surfaces or sharp edges.
• Do not pull out the plug by pulling the electrical cable.
• High temperatures are generated when fryer is in use, be careful not to touch any part with your hands. Never touch other surfaces with fryer's handle.
• Check the electrical cable regularly. If it is damaged it should be changed by a qualified service technician.
• Never allow children to use the appliance without adult supervision.
• Make sure the appliance's parts are correctly assembled before use.
• Never use the appliance near sources of heat, e.g. on an oven hob.
• The appliance may only be used indoors.
• Be careful when moving fryer containing hot oil.
• Never overload the fryer's basket.

• Never use the fryer without oil in it! If this should occur the fryer will overheat and automatically switch off. To use the fryer again, the thermostat must be reset.

• Disconnect from mains and let it cool down.

• Take out the control unit and heating element from the fryer.
• Lightly press the reset button on the back of the thermostat with a small screwdriver.
• Assemble the parts and follow instructions for use.
  • Always use accompanying attachments, never anything else.
• Never use the appliance for anything other than that it was designed for.

Buttons and functions

1. Condensation collector
2. Filter holder with filter
3. Lid

4. Timer

5. Handle

6. Button for opening
7. Temperature gauge

Getting started

1. Wash the frying basket and holder before first using.

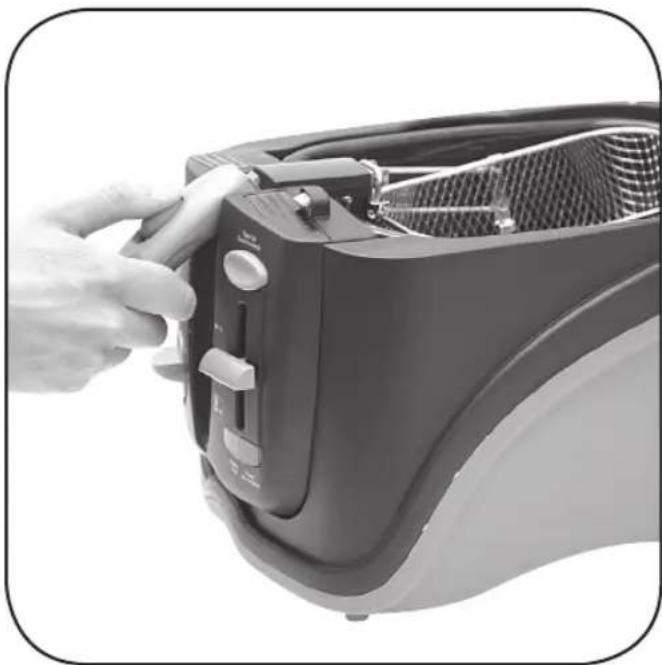

2. Lift the frying basket out of the holder and then take out the heating element by carefully lifting the control unit and heating element upwards. Then lift up the fryer holder straight up out of the fryer. Wash both the frying basket and holder in warm water.
3. The heating element can be rinsed in water. The control unit should never be dipped or rinsed in water. Clean only with kitchen paper or a damp cloth.
   Attention! The heating element and control unit may not be placed in a dishwasher!

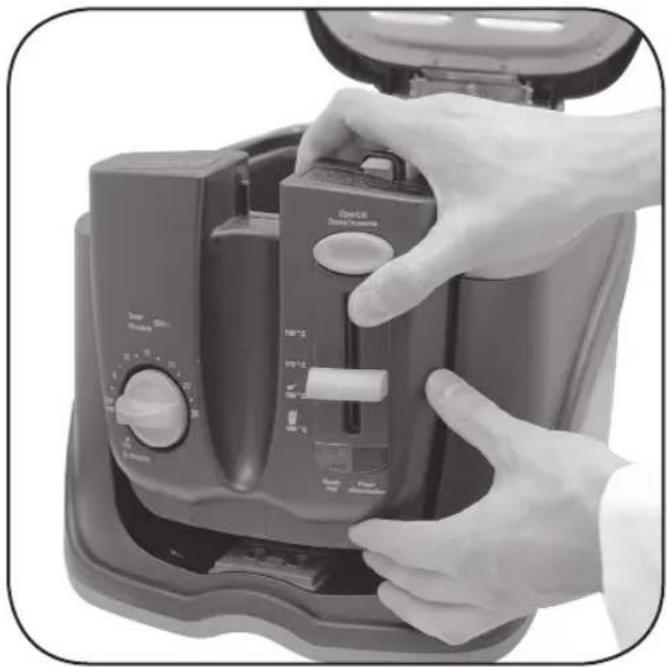

4. Put the holder back and mount the heating element and control unit. Line up the control unit and push it downwards. Make sure the contact is correctly connected to the fryer.
5. Mount the lid on the holder's hinge by holding the lid downwards and carefully pressing the lid down in the hinge. Check that the lid can be closed properly.

Close-up of a hand holding an open air fryer with a mesh net inside, next to a black appliance (no visible text or symbols)

Close-up of a hand adjusting a black-and-white photo of a toaster oven with a handle (no visible text or symbols)

Person assembling a Turkey's 3-wheat air fryer with control panel (no visible text or symbols)

1. Lift the frying basket from the fryer.

2. Fill the holder with oil recommended for frying.

Attention!

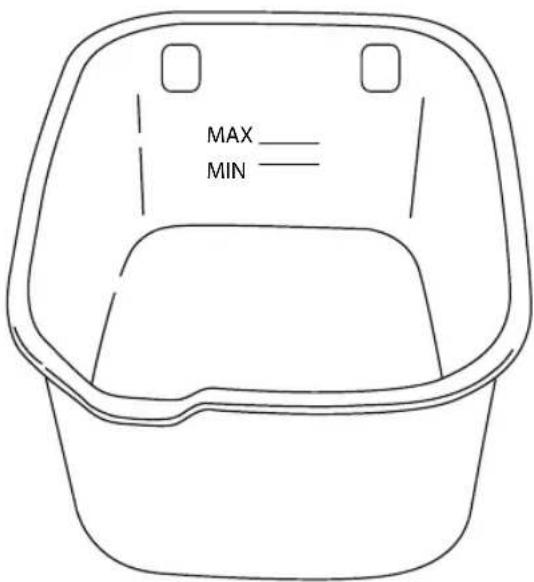

It is important that the amount of frying oil is filled up so that it is between the minimum and maximum markers on the inside of the holder. Never overfill the holder.

1. Make sure first that the fryer is switched off (setting "OFF") and afterwards connect the electrical cable to an earthed socket.

2. Set the thermostat to desired temperature and close the lid by pressing the right hand front edge. Then set the dial to "ON" to begin heating up of the oil. The red indicator light ("Power") lights up.

3. When the oil has reached the correct temperature, the green indicator light appears ("Ready"). Press "Open Lid" to open the lid.

4. Put the frying basket on the holder and fold out handle to raise the frying basket from the oil. Lift the handle until you hear a clicking sound.

5. Fill the frying basket with the food you intend to fry (do not overfill the basket) and close the lid. Then lower the frying basket down into the frying oil by moving the locking button towards you at the same time as you carefully fold away the handle.

6. Set the desired frying time with the dial to begin frying. Never lift the lid when frying, check the food through the window on the lid instead.

7. When the set time has run its course a little "ping sound" is heard and the fryer switches off.

8. Raise the frying basket from the frying oil and allow the oil to run off for 20 seconds before you open the lid and lift out of the frying basket to remove the fried food.

9. Adjust the oil level in relation to the amount that should be fried before you use the fryer again.

10. Make sure the fryer is switched off after use.

Food Temperature		Time approx. (minutes)
Shredded chicken 190 °C 5-8
Chicken pieces 180 °C 15-20
Fish 170 °C 8-10
Chips 190 °C 3-5
Onion rings 190 °C 3-5
Shrimps 190 °C 2-4

Care and maintenance

1. Pull out the plug and make sure that the oil has cooled down (1-2 hours after use) before cleaning.
2. Lift the frying basket out of the holder and then take out the control panel with the heating element by lifting it straight up.
3. Remove the condensation collector from the back of the fryer by pulling it straight out. The condensation collector gathers excess condensation which occurs when the lid is opened while in use. Always empty the condensation collector [2] after every use.
4. Wash the frying basket and holder in warm water.
5. The heating element can be rinsed in water. The control unit should never be dipped or rinsed in water. Clean only with kitchen paper or a damp cloth.

Attention! The heating element and control unit may not be placed in a dishwasher!

1. The outside of the fryer can only be cleaned with a lightly damp cloth.
2. The oil can be fried and reused, but should be changed after 8-10 uses. Never pour the oil down the drain or in the open. Bring used frying oil to a recycling station.
3. Make sure the fryer and its parts are completely dry before you use it again.

Attention! Never place the fryer in water or other fluid.

Cleaning the filter

1. Open the filter holder on the fryer's lid by pressing the open button [1] the same time as you lift it to the rear. Then pull the holder straight back.
2. Remove the white filter from the filter holder and clean it with warm soapy water. Let it air dry after.
3. Clean the inside of the filter holder with a lightly damp cloth and then dry.
4. Place the filter in the filter holder with the black carbon filter placed farthest in and the white filter farthest out (down against the holder).
5. Put the filter holder back on the lid.

Filtering the oil

1. Lift out the frying basket and heating element from the holder and empty the cooled oil into a can or other suitable container.

2. Filter the oil though a coffee filter, for example.

Disposal

• When disposing of the product it should be done in accordance with local rules and regulations. If you are unsure as to how to proceed please contact your local council.
• Used frying oil should be taken to a recycling station. Never pour the frying oil down the drain or in the open.

Specifications

Voltage 220-240 V AC, 50 Hz

Effect 1700 W

Fritös 3 liter

Art.no: 18-4014 Model: 153801-UK 34-7247 153801

Close-up of a hand holding an air fryer with a mesh grater inside, showing internal components (no text or symbols visible)

Close-up of a hand adjusting a kitchen grater with a handle, showing heat transfer and ventilation slots (no text or symbols visible)

Close-up of hands installing or adjusting a 3D kitchen air fryer with control knobs (no visible text or symbols)

Close-up of a hand holding an air fryer with a mesh net inside, showing internal components (no text or symbols visible)

Close-up of a hand adjusting a black-and-white photo of a toaster oven with a handle (no visible text or symbols)

Close-up of hands operating a kitchen electric fryer with control knobs and a tray (no visible text or symbols)

Close-up of a hand holding a white electric oven with a mesh basket underneath (no text or symbols visible)

Close-up of a hand adjusting a black toaster oven with a handle (no visible text or symbols)

Person assembling a grayscale electric fryer with control panel (no visible text or symbols)
