Product Type	Side-by-Side Refrigerator-Freezer
Brand	Midea
Model	MDRS723MYF28
Dimensions (H x W x D)	1470 mm x 905 mm x 577 mm
Climate Class	SN (10-32°C), N (16-32°C), ST (16-38°C), T (16-43°C)
Temperature Setting Range - Refrigerator	2°C to 8°C
Temperature Setting Range - Freezer	-16°C to -24°C
Defrost Type	Automatic (air-cooling)
Control Type	Electronic touch panel with lock/unlock
Special Functions	Super Cool, Super Freeze, Vacation Mode
Light Source	LED (replaceable only by qualified personnel)
Shelves	Adjustable glass shelves
Door Trays	Adjustable
Fruit and Vegetable Drawer	Yes
Leveling Feet	Yes, adjustable
Door Alignment	Adjustable with wrench
Door Ajar Alarm	Yes (opening music)
Refrigerant	Flammable (R600a or similar, not specified)
Spare Parts Availability	Thermostats, sensors, PCBs, lights, handles, hinges, trays, baskets, gaskets (min. 7-10 years after last model)
Energy Saving Tips	Provided in manual: keep away from heat, cool food before storing, limit door openings

Frequently Asked Questions - MDRS723MYF28 MIDEA

How do I adjust the temperature settings?

Press the TEMP.SELECT button to select the compartment (fridge or freezer). Then use the + or - buttons to set the desired temperature. For the refrigerator, the range is 2°C to 8°C; for the freezer, -16°C to -24°C. After setting, lock the control panel by pressing and holding the lock button for 3 seconds.

What is Super Cool mode and how do I activate it?

Super Cool mode rapidly cools the refrigerator compartment. Press the SUPER COOL button; the icon will light up. Lock the control panel to start the mode. It will automatically exit after 6 hours.

What does error code E1 mean?

Error code E1 indicates a temperature sensor failure in the refrigerating chamber. Contact a qualified service technician for repair, as the appliance may still cool but not optimally.

How should I clean the refrigerator?

Unplug the appliance and remove all food. Use a soft cloth or sponge with a solution of two tablespoons of baking soda and a quart of warm water. Rinse with clean water and dry. Do not use abrasive cleaners, hard brushes, or organic solvents. Leave the door open to dry naturally before turning on.

Why is the compressor running for long periods?

This is normal during high ambient temperatures (summer). It can also be caused by overloading the refrigerator with too much warm food, frequent door openings, or improper ventilation. Ensure adequate clearance around the unit (10 cm at sides, 30 cm above).

How do I level the refrigerator?

Turn the leveling feet clockwise to raise the refrigerator, and counterclockwise to lower it. Adjust both front feet until the appliance is stable and level. Use a wrench if necessary.

How can I align the refrigerator doors?

Open the door and use a wrench to loosen the locking nut. Rotate the adjusting nut counterclockwise to raise a low door, or clockwise to lower a high door. Once aligned, tighten the locking nut.

What should I do during a power failure?

Keep the doors closed as much as possible. The refrigerator will keep food cold for several hours. Avoid adding fresh food. Do not open doors unnecessarily. When power returns, check food quality.

Can I replace the LED light myself?

No, the LED light is replaceable only by the manufacturer, its service agent, or a similarly qualified person. Do not attempt to replace it yourself.

What are the recommended temperature settings for daily use?

For optimal food preservation and energy efficiency, set the refrigerator to 4°C and the freezer to -18°C. Adjust as needed based on your storage habits.

USER MANUAL MDRS723MYF28 MIDEA

Before using this product, please read this manual carefully and keep it for future reference.

The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

EN

USER MANUAL

Two vertical blue bars on white background, no text or symbols present

MODEL: MDRS723MY

SERIES

www.midea.com

CONTENTS

1 Safety warnings

2 Proper use of the refrigerator

3 Structure and functions

1. Key components: 10
   ② Functions 11-12

4 Maintenance and care of the refrigerator

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Do not damage the refrigerant circuit.

Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Warning: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

Danger Risk of child entrapmen Before you throw away your old refrigerator or freezer:

-Take off the doors. Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the appliance are flammable.

Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)

- One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)

- For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

This product contains two light source of energy efficiency class (G).

2. Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

B. Electricity related warnings

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a monitor and fan (no text or symbols)

Simple line drawing of a device with a warning symbol (no text or labels)

• Do not pull the power cord when pulling the power plug of the refrigerator. please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

- Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power cord should be firmly contacted with the socket or else fires might be caused.

- Please ensure that the grounding electrode of the power socket is equipped

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. - Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

14. Warnings for using

Simple line drawing of a cabinet with an open lid and tools, no text or symbols present

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Simple line drawing of a child climbing a ladder inside a refrigerator (no text or symbols)

- Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a cartoon character with a frowning expression, surrounded by a cross and warning symbol (no text or labels)

• Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration of hands holding a tray with items including a bottle, cheese, and instant noodles (no text or symbols)

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scraped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product :

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerators

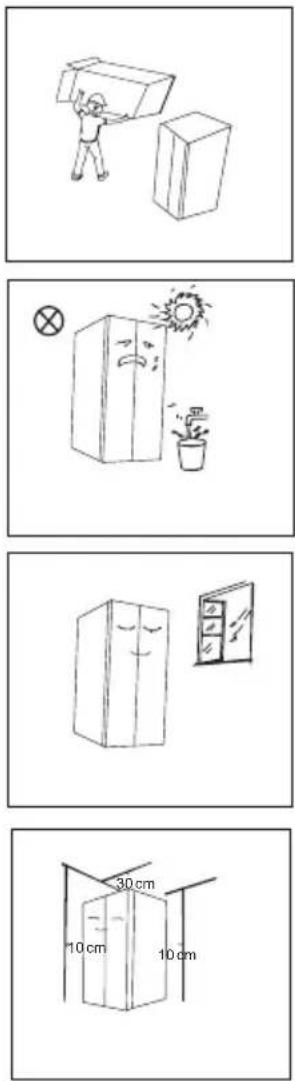

2.1 Placement

• Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.
• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
• The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for leveling if unstable).
• The top space of the refrigerator shall be greater than 30cm, and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

2.2 Levelling feet

1) Precautions before operation: Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury.

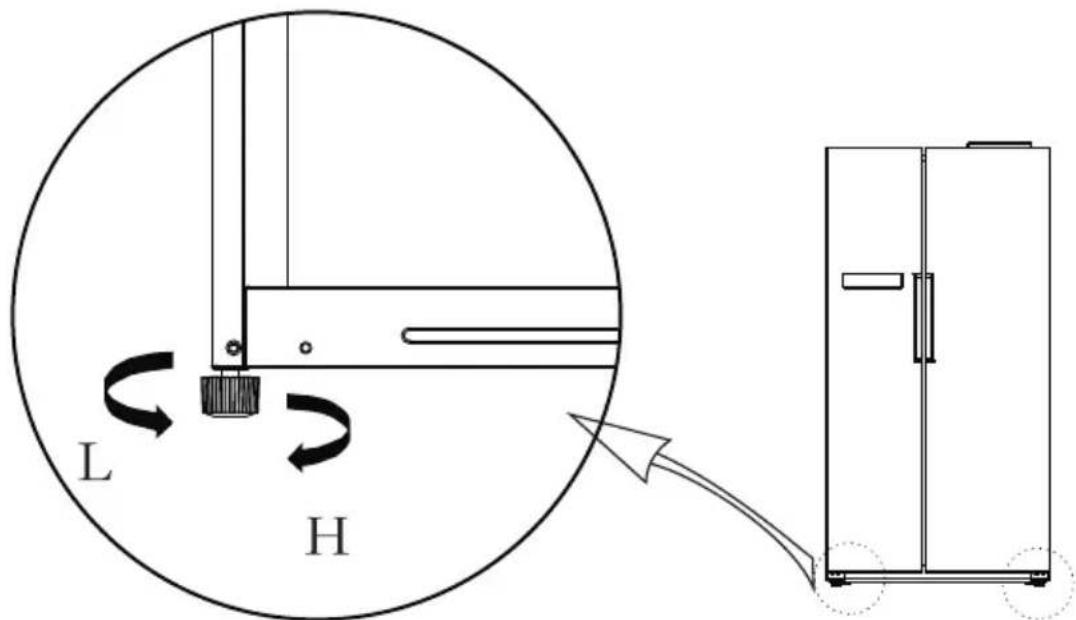

2) Schematic diagram of the levelling feet

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

3) Adjusting procedures:

a. Turn the feet clockwise to thaisefrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2.3 Levelling door

1) Praperations before o :

Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting one, precautions shall be taken to prevent any personal injury.

2) Schematic diagram of levelling the door body

List of tools to be provided by the user
	wrench

Simple line drawing of a refrigerator with an arrow pointing upward (no text or symbols)

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

When the fridge door is low:

Open the door, use a wrench to loosen the locking nut and to rotate the adjusting nut anti-clockwise to raise the height of the door. Once the doors are aligned, then tighten the locking nut by rotating it anti-clockwise.

When the fridge door is high:

Open the door, use a wrench to rotate the adjusting nut clockwise to lower the height of the door. Once the doors are aligned, then tighten the locking nut by rotating it anti-clockwise.

2. Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2. Starting to use

Simple line drawing of a smiling refrigerator with eyes closed, connected to a power outlet (no text or symbols)

• Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

• Spare enough space for convenient opening of the doors and drawers.
• The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

2.6 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Structure and functions

3. Key components

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short terms suggested storage time 3 days to 5 days.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.

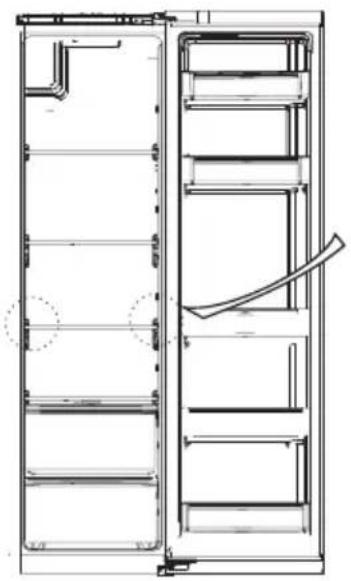

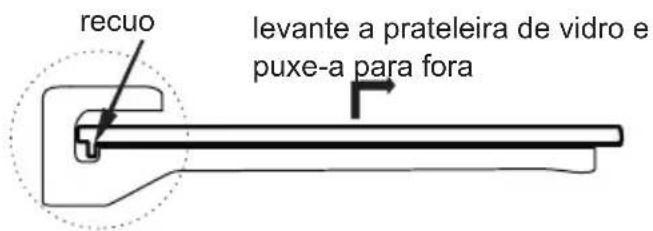

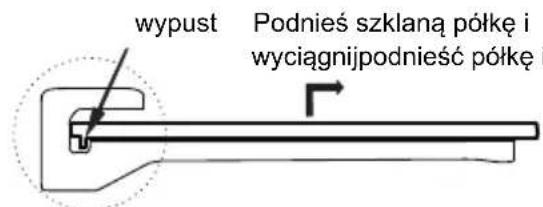

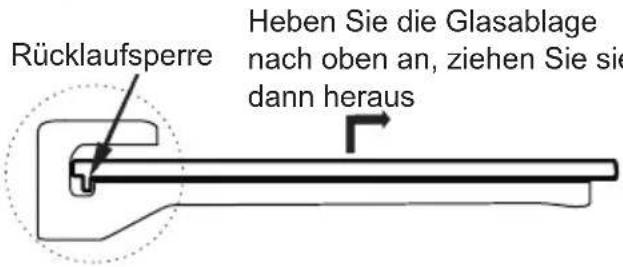

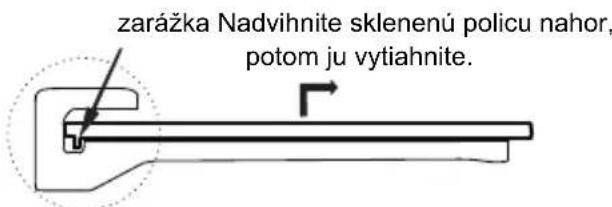

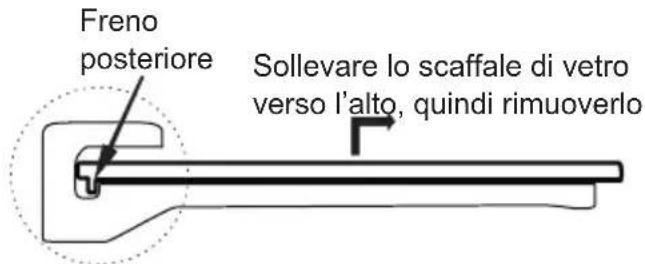

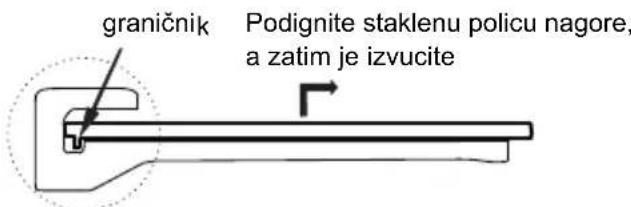

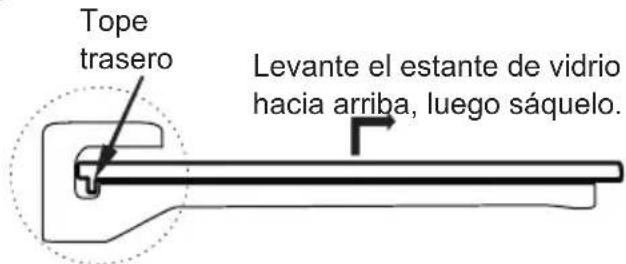

• The glass shelves can be adjusted up or down for a proper storage space and easy use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Please be noted food shall be consumed within the shelf time.

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.

2 Functions

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

1. Display

1. Freezer compartment temperature
2. Quick Freezing icon
3. Refrigerating compartment temperature
4. Quick Refrigerating icon
5. Vacation icon
   6.Lock/unlock icon

2.Button

A.Freezer compartment temperature adjustment
B. Refrigeration temperature adjustment
C.Mode function/setting
D. Lock/unlock controls

3.Operation

1) Lock / Unlock

In the unlocked state, long press the button for 3 seconds, enter the lock state; In the locked state, long press the button for 3 seconds, enter the unlocked state. All the following functions must be operated in the unlocking status.

2) vacationde

Click the button 📄 to enter the vacation mode. Icon lights up, the vacation mode will start after locking the control panel.

Under vacation mode, the refrigerating compartment is turned off and temperature area display - the freezer compartment temperature is set at -18 °C.

3) Super cool mode

Click the button to enter the Super cooling mode. Icon lights up, the Super cooling mode will start after locking the control panel, Super cool exits 6h.

4) Super freeze mode

Click the button 📄 to enter the Super freeze mode. Icon ✿ lights up, the Super freeze mode will start after locking the control panel, Super freeze exits for up to 26h.

5) Temperature setting of refrigerating chamber

Click temperature adjusting button TEMP. SELECT, refrigerating compartment temperature will blink. Then click the button + or - again to set the temperature, and will hear one beep. Setting scope is between 2°C and 8°C. Every time you click the button, the temperature will be changed 1°C. After adjusting, New temperature setting will take effect after locking the control panel.

6) Temperature setting of freezing chamber

Click temperature adjusting button TEMP. SELECT , freezer compartment temperature will blink . Then click the button + or - again to set the temperature, and you will hear one beep. Setting scope is between -16°C and -24°C. Every time you click the button, the temperature will be changed1°C, New temperature setting will take effect after locking the control panel.

7) Storage upon power failure

In case of power failure, the instant working state will be locked and maintained till re-electrification.

Recommended setting: Refrigerated chamber 4 °C, freezing chamber - 18 °C.

8) Opening warning and alarm control

when open the refrigerator doors, the opening music will play.

9) Error code

The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the refrigerator may still have cold storage function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of the appliance.

Error Code	Fault Description
E1	Temperature sensor failure of refrigerating chamber
E2	Temperature sensor failure of freezing chamber
E5	Freezing defrost selection circuit error
E6	Communication error
E7	Ambient temperature sensor error
E	Radar temperature senor failure
E二	Radar temperature senor failure

4. Maintenance and care of the appliance

4.1 Overall cleaning

- Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

- Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

- The interior of the refrigerator should be cleaned regularly to avoid odor.

- Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

- Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

- For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

- Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

- Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

- Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

- Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Please unplug the refrigerator for defrost and cleaning.

Illustration of various alcohol and beverage items including a gas container, alcohol spray bottle, and a kettle with a flame (no text or symbols)

4.2 Cleaning of door tray, Fruits and vegetables box and drawer

- According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.

- After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

- Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

4. Cleaning of Glass shelf

- As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.

- Adjust or clean the shelves according to your requirement. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

Technical line drawing of a door frame with internal compartments and a handle (no text or symbols)

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

4.4 Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4.5 Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired

5 Trouble shooting

You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packages Too much food is placedThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water,resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normalWhen housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Table 1 Climate classes

Class	Symbol	Ambient temperature range °C
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from channel :

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

Importer / Address: MIDEA HOME APPLIANCES UK LTD

5 New Street Square, London, United Kingdom, EC4A

FRIŽIDER Side By Side

UPUTSTVO ZA UPOTREBU

Two adjacent rectangular frames with dark blue borders, no text or symbols present.

Upozorenje:

Pre upotrebe ovog proizvoda pažljivo pročitajte ovo uputstvo i sačuvajte ga za buduću referencu. Dizajn i specifikacije se mogu promeniti bez prethodnog obaveštenja u cilju poboljšanja proizvoda. Za detalje se obratite svom prodavcu ili proizvođaču.

verzija:002-6-2020

MODEL: MDRS723MY

SERIJA

www.midea.com

SADRŽAJ

Upozorenje: opasnost od požara / zapaljivih materijala

Ovaj uređaj je namenjen upotrebi u domaćinstvu i sličnim primenama, kao što su kuhinjski prostori za osoblje u prodavnicama, kancelarijama i drugim radnim okruženjima; u seoskim gazdinstvima i od strane gostiju hotela, motela i drugih objekata za smeštaj gostiju; u smeštajima tipa prenoćišta sa doručkom; u ugostiteljstvu i sličnim primenama van maloprodajnih objekata.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and appliance, no text or symbols present

Simple line drawing of a cabinet with an open lid and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face and a broken handle, accompanied by a crossed-out cross symbol (no text or labels)

• Nemojte samovoljno rastavljati ili rekonstruisati frižider, niti oštetiti kolo rashladnog sredstva; održavanje uređaja mora da obavi obučena osoba
• Oštećenje kabla za napajanje mora da zameni proizvođač, odeljenje za održavanje ili slični stručnjaci kako bi se izbegla opasnost.

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

• Praznine između vrata frižidera i između vrata i kućišta frižidera su male, treba napomenuti da ne stavljate ruku u ta područja da ne bi došlo do prignječenja prsta. Budite pažljivi kada zatvarate vrata frižidera da bi se izbeglo padanje predmeta.
• U zamrzivaču nemojte da uzimate hranu ili posude vlažnim rukama kada je frižider uključen, posebno metalne posude kako bi se izbegle promrzline.

Simple line drawing of a child climbing a ladder inside a refrigerator (no text or symbols)

Simple line drawing of a cartoon character with a frowning expression, no text or symbols present

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

- Frižider je namenjen za kućnu upotrebu, kao što je odlaganje hrane; ne sme da se koristi u druge svrhe, poput skladištenja krvi, lekova ili bioloških proizvoda, itd.

- Nemojte odlagati flaširane ili zatvorene posude sa tečnostima poput flaširanih piva i pića u zamrzivač friižidera; u suprotnom, flaše ili zatvorene posude mogu pući usled zamrzavanja i prouzrokovati oštećenja.

1.6 Upozorenja vezana za energiju

1) Rashladni uređaji možda neće raditi dosledno (mogućnost odmrzavanja sadržaja ili prekomerne temperature u odeljku za zamrznutu hranu) ako su na duži vremenski period postavljeni ispod krajnjeg opsega temperatura hlađenja za koji je rashladni uređaj namenjen.
2) Činjenica je da se gazirana pića ne smeju čuvati u odeljcima ili fiokama za zamrzavanje hrane ili u odeljcima ili fiokama sa niskom temperaturom, i stoga se neki proizvodi poput ledenih kocki ne smeju konzumirati previše hladni;
3) Potrebno je da se ne prekorači vreme skladištenja u zamrzivaču i odeljcima i fiokama za čuvanje zamrznute hrane koje preporučuju proizvođači hrane za bilo koju vrstu hrane, a posebno za komercijalno brzo zamrznute namirnice;
4) Mere predostrožnosti su potrebne za sprečavanje nepotrebnog porasta temperature zamrznute hrane prilikom odmrzavanja rashladnog uređaja, kao što je umotavanje zamrznute hrane u nekoliko slojeva novina.
5) Činjenica je da porast temperature zamrznute hrane tokom ručnog odmrzavanja, održavanja ili čišćenja može skratiti rok trajanja namirnica.
6) Neophodno je da ključevi za vrata ili poklopce, kod uređaja koji imaju brave i ključeve, budu van dohvata dece, a ne u blizini rashladnog uređaja, da bi se sprečilo da se deca zaključuju unutar uređaja

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

- Pre upotrebe uklonite sve ambalažne materijale, uključujući uloške na dnu, penaste obloge i trake u frižideru; uklonite zaštitnu foliju na vratima i kućištu frižidera.

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

- Frižider treba da se postavi u dobro provetrenom zatvorenom prostoru; podloga mora biti ravna i čvrsta (okrećite levo ili desno da biste podesili točkić za nivelisanje ako je nestabilan).

- Prostor iznad frižidera mora biti veći od 30cm i frižider treba postaviti uz zid sa slobodnim prostorom većim od 10cm da bi se olakšalo odvođenje toplote.

2.2 Stopica za nivelisanje

1) Mere predostrožnosti pre početka upotrebe:

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

• Ostavite dovoljno mesta za praktično otvaranje vrata i fioka.
• Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera.

2.6 Saveti za uštedu energije

• Uređaj treba da se nalazi u najhladnijem delu prostorije, daleko od uređaja koji proizvode toplotu ili grejnih vodova, i van direktne sunčeve svetlosti.
• Ostavite tople namirnice da se ohlade na sobnu temperaturu pre stavljanja u uređaj. Preopterećenje uređaja dovodi do dužeg rada kompresora. Hrana koja se zamrzava suviše sporo može izgubiti kvalitet ili se pokvariti.
• Obavezno dobro umotajte hranu i obrišite posude pre nego što ih stavite u uređaj. Ovo smanjuje gomilanje leda unutar uređaja.
• Kutiju za skladištenje ne treba oblagati aluminijumskom folijom, voštanim papirom ili papirnim ubrusom. Obloge ometaju cirkulaciju hladnog vazduha, što čini uređaj manje efikasnim.
• Organizujte i označite hranu kako bi se smanjila česta otvaranja vrata i vreme traženja. Izvadite odjednom onoliko namirnica koliko je potrebno i zatvorite vrata što je pre moguće.

3 Struktura i funkcije

3.1 Glavne komponente

(Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera)

Frižider

• Frižider je pogodan za skladištenje raznih vrsta voća, povrća, pića i ostale hrane koja se konzumira u kratkom roku, preporučeno vreme skladištenja od 3 dana do 5 dana.
• Kuvana hrana se ne sme stavljati u frižider dok se ne ohladi na sobnu temperaturu.
• Preporučuje se da hranu zatvorite pre stavljanja u frižider.
• Staklene police mogu da se podese više ili niže za odgovarajući prostor za odlaganje i jednostavnu upotrebu.

Zamrzivač

• Zamrzivač na niskoj temperaturi može dugo vremena da održava hranu svežom i uglavnom se koristi za skladištenje zamrznute hrane i pravljenje leda.
• Zamrzivač je pogodan za skladištenje mesa, ribe, pirinčanih kuglica i ostale hrane koja se ne neće konzumirati u kratkom roku.
• Komade mesa je poželjno podeliti na manje komade radi bržeg zamrzavanja i jednostavnog pristupa. Imajte u vidu da hranu treba konzumirati u roku skladištenja.
  Napomena: Skladištenje previše hrane tokom rada, nakon prvog priključenja na napajanje može negativno da utiče na efekat zamrzavanja frižidera. Hrana koja se skladišti ne sme da blokira izlaz za vazduh; jer će u suprotnom negativno uticati na efekat zamrzavanja.
  Fioke, kutije za hranu, police, itd. koje su postavljene prema položaju na slici iznad su energetski najefikasnije.

3.2 Funkcije

(Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera)

1. Displej

1. Temperatura zamrzivača

2. Ikona brzog zamrzavanja

3. Temperatura frižidera

4. Ikona brzog hlađenja

5. Ikona za odmor

6. Ikona zaključavanja/otključavanja

2. Taster

A. Podešavanje temperature zamrzivača
B. Podešavanje temperature frižidera
C. Funkcija/postavka režima rada
D. Kontrole zaključavanja/otključavanja

3. Rad

Illustration of various household items including a gas cylinder, alcohol spray bottle, and a kettle with steam (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

(Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera)

4.3 Čišćenje staklene police

• Kako najdublji unutrašnji deo podloge frižidera gde kontakt sa policama ima graničnik, morate da podignite police nagore, a zatim ih možete izvaditi.
• Podesite ili očistite police prema vašim potrebama.

Za čišćenje se preporučuju meki peškiri ili sunder umočeni u vodu i nekorozivni neutralni deterdženti. Zamrzivač se mora na kraju očistiti čistom vodom i obrisati suvom krpom. Otvorite vrata za prirodno sušenje pre nego što se uključi napajanje.

Nemojte koristiti tvrde četke, čelične kuglice za čišćenje, žičane četke, abrazivna sredstva (kao što su paste za zube), organske rastvarače (kao što su alkohol, aceton, ulje banane, itd.), ključalu vodu, kisele ili alkalne predmete da očistite frižider s obzirom da to može da ošteti površinu i unutrašnjost frižidera.

Technical line drawing of a door frame with internal shelves and structural ribs (no text or symbols)

(Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera)

4.4 Odmrzavanje

- Frižider je napravljen na principu vazdušnog hlađenja i na taj način ima funkciju automatskog odmrzavanja. Mraz koji se formira zbog promene godišnjeg doba ili temperature može i ručno da se ukloni isključivanjem uređaja sa napajanja ili brisanjem suvim peškirom.

4.5 Prestanak rada

• Nestanak struje: U slučaju nestanka struje, čak i ako je to leti, hrana unutar uređaja može da se sačuva nekoliko sati; tokom nestanka struje, učestalost otvaranja vrata treba smanjiti i više ne stavljati svežu hranu u uređaj.
• Dugotrajno nekorišćenje: Uređaj treba isključiti i zatim očistiti; zatim ostaviti vrata otvorena kako bi se sprečio neprijatan miris.
• Premeštanje: Pre nego što premeštate frižider, izvadite sve predmete napolje, pričvrstite trakom staklene pregrade, držač povrća, fioke zamrzivača i sl., a zatim zategnite stopice za nivelisanje; zatvorite vrata i pričvrstite ih trakom. Tokom premeštanja, uređaj ne sme da se postavlja naopako ili horizontalno, niti da se trese; nagib tokom kretania ne sme biti veći od 45°.

Two vertical blue bars on white background, no text or symbols present

Opozorilo:

Opozorilo: nevarnost požara/vnetljivi materiali

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a wall-mounted device, no text or symbols present.

Simple line drawing of a cabinet with an air vent and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a distressed character with a hat and crossed-out symbol (no text or labels)

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

- Hladilnik postavite na dobro prezračenem mestu v notranjih prostorih; tla morajo biti ravna in trpežna (če hladilnik ni stabilen, zavrtite izravnalne noge levo ali desno).

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of various household items including a gas vial, alcohol spray bottle, and a kettle with steam (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a door frame with internal shelves and structural ribs (no text or symbols)

FRIGIDER Side by Side

Avertisement:

Two vertical blue rectangular frames on white background, no text or symbols present

MODEL:MDRS723MY

SERIA

www.midea.com

CONTINUT

Avertizare: risc de incendiu! / materialele inflamabile

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and wall-mounted equipment, no text or symbols present.

Simple line drawing of a refrigerator with a chimney and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face and a broken handle, accompanied by a crossed-out cross symbol (no text or labels)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a distressed character with a hat and crossed eyes, accompanied by a cross and warning symbol (no text or labels)

1.5 Avertismente privind amplasarea

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

Symbol of a trash bin crossed with no text or numbers, accompanied by a black rectangular block below (no text or symbols present)

Simple line drawing of a person pushing a large box next to a smaller box (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

3) Mod super cool (rece)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator or cabinet with no visible text or symbols

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a computer monitor with an open screen and a warning symbol (no text or labels)

Simple line drawing of a refrigerator with a chimney and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a distressed character with a hat and crossed-out cross symbol (no text or labels)

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a door frame with internal compartments and structural ribs (no text or symbols)

Two vertical blue bars on white background, no text or symbols present

CONTENIDOS

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and equipment (no text or symbols)

Simple line drawing of a cabinet with an open lid and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a cartoon character with a frowning expression, no text or symbols present

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Two vertical blue bars on white background, no text or symbols present

MODEL: MDRS723MY

SERIJA

www.midea.com

SADRŽAJ

1 Sigurnosna upozorenja.... 1

1.1 Upozorenje....1
1.2 Značenje simbola upozorenja o sigurnosti.... 3
1.3 Upozorenja vezana uz električnu energiju 3
1.4 Upozorenja za upotrebu....4
1.5 Upozorenja za smještanje....4
1.6 Upozorenja za energiju 5
1.7 Upozorenja za odlaganje 5

Upozorenje: opasnost od požara/zapaljivih materijala

Ovaj je uređaj namijenjen za upotrebu u kućanstvu i sličnim aplikacijama, poput kuhinjskih prostora za osoblje u trgovinama, uredima i drugim radnim okruženjima; seoske kuće i klijenti u hotelima, motelima i drugim okruženjima rezidencijalnog tipa; okruženja tipa noćenja s doručkom; ugostiteljstvo i slične aplikacije za maloprodaju.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a wall-mounted device, no text or symbols present.

Simple line drawing of a kitchen appliance with a chimney and warning symbol (no text or labels)

• Nemojte povlačikabel za napajanje dok povlačite utikač za hladnjak. čvrsto uhvatite utikač i izvucite ga izravno iz utičnice.

• Da biste osigurali sigurnu uporabu, nemojte oštetiti kabel za napajanje niti ga upotrebljavati kad je oštećen ili istrošen.

• Koristite namjensku utičnicu i utičnica se neće dijeliti s drugim električnim uređajima.

• Kabel za napajanje trebao bi biti čvrsto u kontaktu s utičnicom, inače bi moglo doći do požara.

• Provjerite je li elektroda za uzemljenje utičnice opremljena

• Molimo isključite ventil propuštajućeg plina, a zatim otvorite vrata i prozore u slučaju istjecanja plina i drugih zapaljivih plinova.

• Ne isključujte hladnjak i druge električne uređaje iz utičnice s obzirom da iskra može izazvati požar.

- Ne upotrebljavajte električne uređaje na vrhu uređaja, osim ako nisu tipa koji je preporučio proizvođač.

1.4 Upozorenja za upotrebu

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a refrigerator, with no text or symbols present.

- Ne dopustite djetetu da uđe u hladnjak ili se popne na njega; u protivnom može doći do gušenja ili pada djeteta.

Simple line drawing of a distressed character with a hat and crossed eyes, accompanied by a cross and warning symbol (no text or labels)

• Ne stavljajte teške predmete na vrh hladnjaka jer objektivi mogu pasti kad se zatvore ili otvore vrata i mogu nastati slučajne ozljede.
• Molimo izvucite utikač u slučaju nestanka struje ili čišćenja. Ne spajajte zamrzivač na napajanje u roku od pet minuta kako biste spriječili oštećenja kompresora uslijed uzastopnih pokretanja.

1.5 Upozorenja za smještanje

Illustration of hands holding a tray with items including a bottle, cheese, and milk (no text or symbols)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

- Hladnjak se postavlja na dobro prozračeno zatvoreno mjesto; tlo mora biti ravno i čvrsto (zakrenuti lijevo ili desno da podesite kotač za niveliranje ako je nestabilan).

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Molimo isključite hladnjak za odmrzavanje i čišćenje.

4.2 Čišćenje ladice na vratima, kutije s voćem i povrćem i ladice

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

(Gornja slika je samo za referencu. Stvarna konfiguracija ovisit će o fizičkom proizvodu ili izjavi distributera)

4.3 Čišćenje staklene police

Technical line drawing of a door frame with internal shelves and structural ribs (no text or symbols)

(Gornja slika je samo za referencu. Stvarna konfiguracija ovisit će o fizičkom proizvodu ili izjavi distributera)

4.4 Odmrzavanje

Two vertical blue bars on white background, no text or symbols present

МОДЕЛ:MDRS723MY

СЕРИЯ

www.midea.com

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a cabinet and monitor, no text or symbols present

Simple line drawing of a refrigerator with a warning sign (no text or symbols on the device itself)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a distressed character with a hat and crossed eyes, accompanied by a cross and warning symbol (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Line drawing of hands holding a rectangular object with arrows indicating upward and downward motion (no text or symbols)

Technical line drawing of a door frame with internal shelves and ladder (no text or symbols)

Two vertical blue bars on white background, no text or symbols present

MODELI: MDRS723MY

SERIA

www.midea.com

PËRMBAJTJA

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a door and fan, no text or symbols present

Simple line drawing of a cabinet with a door and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a cartoon character with a frowning expression, no text or symbols present

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of various alcohol and beverage items including a glass, alcohol spray bottle, and a kettle (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level storage cabinet or enclosure with no visible text or symbols

Two vertical blue bars on white background, no text or symbols present

MODELLO: MDRS723MY

SERIE

www.midea .c om

CONTENUTI

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a window and a monitor, no text or symbols present

Simple line drawing of a cabinet with a door and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, accompanied by other items including scissors, pencils, and a prohibition symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect (no text or symbols)

Simple line drawing of a child inside a refrigerator with no text or symbols

Simple line drawing of a distressed character with a cross and warning symbol (no text or labels)

Symbol of a trash bin with no text or numbers present

Simple line drawing of a person lifting a large box (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbols (no text or labels)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet connected to its side (no text or symbols)

Illustration of various cooking and beverage items including a gas cylinder, alcohol lamp, and a kettle (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a door frame with internal compartments and structural elements (no text or symbols)

Two vertical blue bars on white background, no text or symbols present

MONTEAO: MDRS723MY

ΣΕΙΡΑ

www.midea .c om

ΠΕΡΙΕΧΟΜΕΝΑ

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a wall-mounted device, no text or symbols present.

Simple line drawing of a refrigerator with a door and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, accompanied by other items including a pencil, scissors, and a prohibition symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing a shelf inside a refrigerator (no text or symbols)

Simple line drawing of a distressed trash can with a sad face and warning symbols (no text or labels)

Simple line drawing of a person pushing a large box (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbol above (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a smiling rectangular cabinet with eyes closed, connected to a power outlet (no text or symbols)

Illustration of various cooking and cooking items including a gas cylinder, a micelle, a bottle, a kettle, and a beaker (no text or symbols present)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-panel refrigerator with no visible text or symbols

Two vertical blue bars on white background, no text or symbols present

MODELO: MDRS723MY

SERIES

www.midea .c om

CONTENIDOS

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a cabinet with an open door and a warning symbol (no text or labels)

Simple line drawing of a refrigerator with a warning symbol (no text or labels)

Simple line drawing of a cabinet with tools and a crossed-out box, no text or symbols present

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing inside a refrigerator with no text or symbols

Simple line drawing of a trash can with a sad face and warning symbols (no text or labels)

Simple line drawing of a person lifting a large box (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbol (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet connected to its side (no text or symbols)

Illustration of various cooking and beverage items including a gas cylinder, alcohol lamp, and a kettle (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a refrigerator door frame with internal compartments and structural details (no text or symbols)

Two vertical blue bars on white background, no text or symbols present

MODELO: MDRS723MY

SÉRIES

www.midea .c om

CONTEÚDOS

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and wall-mounted equipment (no text or symbols)

Simple line drawing of a cabinet with a door and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, accompanied by other items including a pencil, scissors, and a prohibition symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing inside a refrigerator (no text or symbols)

Simple line drawing of a distressed character with a crossed-out cross symbol and an exclamation mark (no text or labels)

Simple line drawing of a smiling rectangular cabinet with eyes closed, connected to a power outlet (no text or symbols)

Illustration of various cooking and beverage items including a glass, beer bottle, and kettle (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a refrigerator front view showing internal compartments and door frame (no text or symbols)

Two adjacent rectangular panels with dark blue borders, no text or symbols present.

MODELL: MDRS723MY

SERIES

www.midea .c om

INHALT

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and wall-mounted equipment (no text or symbols)

Simple line drawing of a cabinet with a door and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, accompanied by tools and a prohibition symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing a ladder inside a refrigerator (no text or symbols)

Simple line drawing of a distressed character with a cross and exclamation mark, no text or symbols present

Simple line drawing of a person lifting a large box (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbol (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a smiling refrigerator with eyes closed, connected to a power outlet (no text or symbols)

Illustration of various cooking and cleaning items including a glass, milk carton, and a kettle (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a door frame with internal compartments and structural elements (no text or symbols)

Two vertical blue rectangular frames on white background, no text or symbols present

MODEL:MDRS723MY

ŘADA

www.midea.com

OBSAH

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a cabinet and door, no text or symbols present

Simple line drawing of a refrigerator with a chimney and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a refrigerator (no text or symbols)

Simple line drawing of a cartoon character with a frowning expression, no text or symbols present

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of various household items including a gas vial, alcohol spray bottle, and a teapot with a flame (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a door frame with internal shelves and structural ribs (no text or symbols)

Two adjacent rectangular frames with blue borders, no text or symbols present

MODELIS: MDRS723MY

SERIES

www.midea.com

CONTENIDOS

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a cabinet and monitor, no text or symbols present

Simple line drawing of a refrigerator with a warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a distressed character with a hat and crossed eyes, accompanied by a warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator or cabinet frame with no visible text or symbols

Two vertical blue rectangular frames on white background, no text or symbols present

MODELIS: MDRS723MY

SĒRIJA

www.midea.com

SATURS

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and alarm clock (no text or symbols)

Simple line drawing of a cabinet with an open lid and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a cartoon character with a hat and crossed eyes, no text or symbols present

Illustration of hands holding a tray with a bottle, cheese, and cubes (no text or symbols)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of various household items including a gas vial, alcohol spray bottle, and a kettle with steam (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator or cabinet frame with no visible text or symbols

atbalsta mehanisms Paceliet stikla plauktu augšup un izvelciet to

Two vertical blue rectangular frames on white background, no text or symbols present

MODEL:MDRS723MY

SERIA

www.midea.com

SPIS TREŚCI

Simple line drawing of a plug with a cable and warning symbol (no text or labels)

Simple line drawing of a room interior with a cabinet and monitor, no text or symbols present

Simple line drawing of a cabinet with a smokestack and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a wardrobe, with no text or symbols present.

Simple line drawing of a character with a mustache and exclamation mark (no text or symbols)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a door frame with internal compartments and structural elements (no text or symbols)

Two vertical blue bars on white background, no text or symbols present

MODEL:MDRS723MY

RAD

www.midea.com

OBSAH

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a cabinet with an open door, no text or symbols present

Simple line drawing of a refrigerator with a chimney and warning symbol (no text or labels)

Simple line drawing of a cabinet with a sad face, falling into a box, and holding tools (no text or symbols)

• Chladničku svojvolne nerozoberajte ani neprestavujte a nepoškodzujte chladiaci okruh; údržbu spotrebiča musí vykonávat' odborník.
• Poškodený napájací kábel musí byť vymenený výrobcom, jeho oddelením údržby alebo príslušnými odborníkmi, aby sa zabránilo nebezpečenstvu.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing an open refrigerator with no text or symbols

Simple line drawing of a distressed character with a hat and crossed eyes, accompanied by a warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, cheese, and milk next to an 'X' symbol (no text or labels)

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a door frame with internal compartments and structural elements (no text or symbols)

Light source in this product is replaceable only by qualified engineers.

1. Please take out the plug before removal.

Simple line drawing of a tool with a screwdriver and a flat surface, labeled with number 2 (no text or symbols on the object itself)

1. Remove the lampshade with a screwdriver.

Illustration of a hand holding a rectangular object with a numbered circle (3) above, no text or symbols present.

1. Take down the lamp panel.

1. Remove the connection terminal.
