IAN 317420 - Lighting lamp Livarno Lux - Free user manual and instructions

Brand	Livarno Lux
Model	IAN 317420
Product Type	LED Panel Light
Color	White
Material	Aluminum + Plastic
Shape	Square
Dimensions	300 x 300 x 30 mm
Weight	0.5 kg
Input Voltage	220-240 V AC, 50/60 Hz
Power Consumption	6 W
Luminous Flux	500 lm
Color Temperature	3000K - 6500K (adjustable)
Beam Angle	120°
Lifespan	20,000 hours
IP Rating	IP20 (indoor use only)
Dimmable	Yes (via remote control or wall switch)
Mounting Type	Ceiling recessed
Safety Certifications	CE, RoHS
Package Includes	Light fixture, mounting screws, instruction manual
Maintenance	Wipe with dry cloth; do not use water
Spare Parts	Not available separately
Warranty	2 years

Frequently Asked Questions - IAN 317420 Livarno Lux

How do I install the LED panel light?

Ensure power is off. Cut a hole in the ceiling (if recessed) to the specified dimensions (300x300 mm). Connect the wires (L, N, E) using the included connectors. Push the light into the opening and secure with clips. Restore power.

Is the light dimmable?

Yes, this model is dimmable. It can be controlled with a compatible wall dimmer (trailing edge recommended) or the included remote control (if present). Some dimmers may not work; check compatibility.

What color temperatures are available?

The light offers adjustable color temperature from warm white (3000K) to cool white (6500K). You can select the desired setting using the remote or a wall switch cycle.

Can I use this light in a bathroom?

No, this light has an IP20 rating, meaning it is only protected against solids larger than 12.5 mm and not against moisture. It is suitable for indoor use in dry areas only, not in bathrooms or kitchens with high humidity.

How do I change the color temperature?

If the light is equipped with a remote control, press the color temperature button (CCT) to cycle through 3000K, 4000K, 6500K. If using a wall switch, you may need to turn the light off and on within 3 seconds to toggle modes.

What is the expected lifespan of the LED?

The LED panel has a rated lifespan of approximately 20,000 hours, which is equivalent to over 2 years of continuous use. Actual lifespan depends on usage conditions and heat dissipation.

Does the light come with a remote control?

Yes, the package includes a remote control for dimming and color temperature adjustment. Batteries are usually included but check the manual; if not, you need 2 AAA batteries.

What is the beam angle of this light?

The beam angle is 120°, providing a wide and even illumination suitable for general room lighting. It works well for living rooms, bedrooms, and offices.

Can I use a standard dimmer switch?

It is recommended to use a trailing edge dimmer for best performance. Standard leading edge dimmers may cause flickering or reduced dimming range. Verify compatibility with your specific dimmer model.

How do I clean the LED panel?

Always unplug or turn off power before cleaning. Use a soft, dry cloth to gently wipe the surface. Do not use water, chemicals, or abrasive cleaners as they may damage the LED coating and cause discoloration.

USER MANUAL IAN 317420 Livarno Lux

PIANTANA A LED "CIELO STELLATO" / PIANTANA A LED

IT MT

PIANTANA A LED "CIELO STELLATO"/ PIANTANA A LED

STARS LED FLOOR LAMP / LED FLOOR LAMP

Operation and safety notes

DE AT CH

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB / MT Operation and safety notes Page 11

55321

Whitehouse Buildings Mountbatten Street

Intended use......Page 12

Scope of delivery....Page 12

Parts description......Page 13

Technical data......Page 13

Safety Page 13

Safety notices....Page 13

Initial use Page 14

Setting up the product....Page 14

Turning the product on and off....Page 14

Maintenance and cleaning......Page 14

Disposal Page 14

Declaration of conformity....Page 15

Warranty / service centre Page 15

Warranty Page 15

Service address......Page 15

List of pictograms used
	Read the instructions!		Observe the warnings and safety notices!
	Safety instructionsInstructions for use		Accident hazard and risk of fatal injury for infants and children!
	This light is only suitable for indoor use in dry and enclosed spaces.		Warning! Risk of electric shock!
	Volt (AC) Warning - Hot surfaces!
	Hertz (mains frequency) Not dimmable.
	Watt (effective power)		Dispose of the packaging and the product in an environmentally friendly manner!
	Switching cycles LED operating life
	Safety class II Autonomous control unit
	Short-circuit proof safety transformer

Stars LED Floor Lamp / LED Floor Lamp

Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. Please be sure to

carefully read all the instructions for use. Fold out the page with illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or the service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This light is only suitable for indoor use in dry and enclosed spaces. This product is only intended for private household use.

- Scope of delivery

Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking.

1 LED floor lamp

1 Set of instructions for use

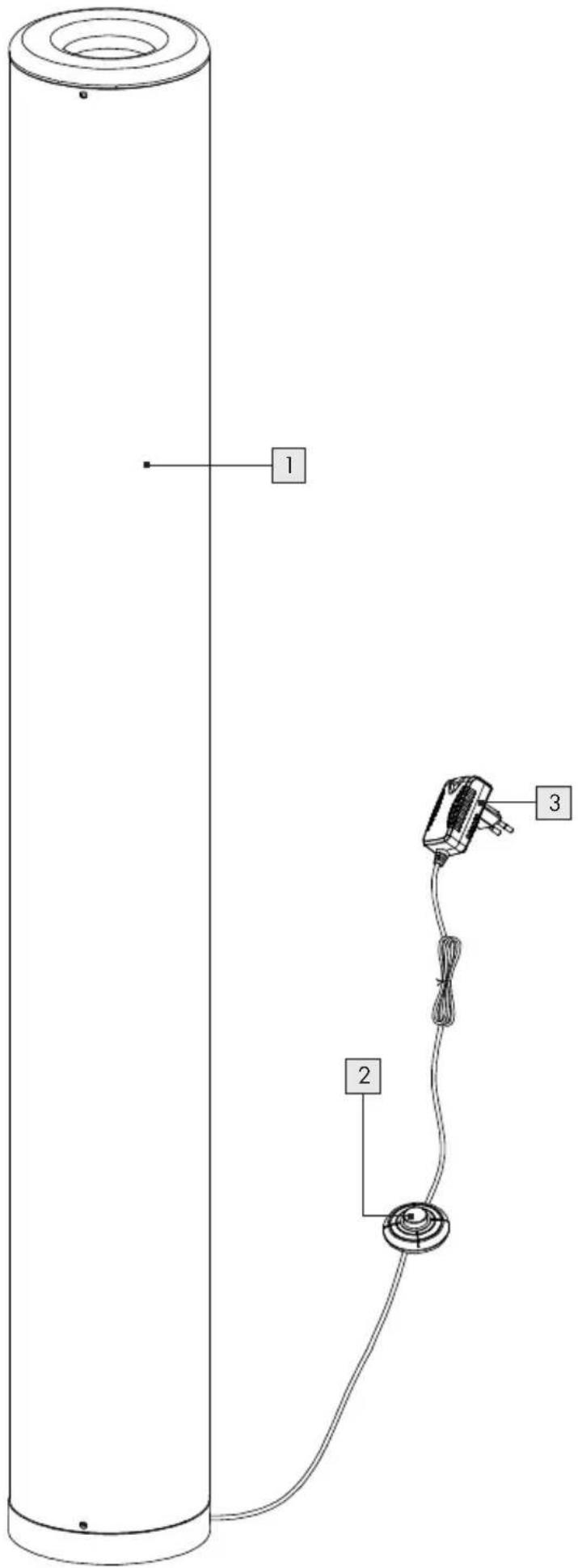

Partsdescription

1 LED floor lamp
2 ON/OFF foot switch
3 LED plug-in mains adapter

- Technicaldata

Item number: 55319 (with star effect), 55321 (without star effect)

Operating voltage: 220-240V\~50/60Hz

LED module: Warm white (LED module is not replaceable)

Total output: 12 Watt

Protection class: II/

Dimensions: Height approx. 103.5 cm,

∅ approx. 13 cm

Mains cable length: approx. 180 cm

Distributor:

EDI Light GmbH, Heiligkreuz 22, AT-6136 Pill, www.edi-light.com

●Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

RISK AND WARNING! CIDENT AND DANGER TO LIFE FOR INFANTS AND CHIL-

DREN! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product may be used by children aged 8 years and up, as well as by persons with

reduced physical, sensory or mental capacities, or lacking experience and knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision. This product is not a toy.

If you notice anything unusual during use (e.g. unusual noise, strange odour or smoke), switch the product off immediately and unplug the LED plug-in mains adapter from the mains socket. Do not use the product until it has been examined by a qualified person.

Avoid the risk of fatal injury from electric shock

■ We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
■ Never use the light if any defects have been identified.
■ Always check the lamp and the mains cable with the LED plug-in mains adapter for any damage before connecting it to the mains socket.
- Ensure that the light does not come into contact with water or other liquids under any circumstances.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
- Only touch the insulated area of the LED plugin mains adapter when connecting it to or disconnecting it from the mains socket!
The external flexible cord on this light is not replaceable; if the cord is damaged the light must be disposed of.
Before use, verify the available mains voltage matches the voltage required for operating the light (220-240V\~, 50/60Hz).
■ Always unplug the LED plug-in mains adapter from the mains socket before cleaning or if the lamp will not be used for extended periods.

Prevent fire and injury hazards

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Ensure the lamp has been switched off and has cooled down before touching it to avoid burns. Light bulbs become very hot.
Do not cover the lamp with objects. Excessive heat build-up can result in fire.
■ Position the lamp so it is protected from moisture and dirt.
- Do not hang any other objects from the product, e.g. pieces of clothing.
■ Always place the product on a stable and smooth surface.
Do not wrap the mains cable around the product.
- Do not carry or pull the product by the mains cable.
■ Never leave the lamp unattended during operation. Excessive heat can result in a fire.
Lay the mains cable in such a way that nobody will trip over it.
The light bulb is not replaceable. The light bulb in this lamp is not replaceable; if the light bulb reaches the end of its life, replace the entire lamp.
■ The LED lamp is not dimmable.

- Do not look directly into the light source (light bulb, LED, etc.). Do not look into the light source (light bulb, LED, etc.) with an optical instrument (e.g. magnifier).

- Initial use

- Setting up the product

□ Carefully remove the LED floor lamp 1 from the package and remove all packaging materials.
☐ Place the LED floor lamp 1 on a stable and smooth surface.
☐ Ensure that nobody can trip over the mains cable.

☐ Plug the LED plug-in mains adapter 3 into a properly installed mains socket.

The product is now ready to use.

● Turning the product on and off

☐ Use the ON / OFF foot switch 2 to switch the product on or off.

● Maintenance and cleaning

WARNING! DANGER OF ELECTRIC SHOCK! Always unplug the LED plug-in mains adapter 3 from the mains

socket before cleaning.

WARNING! RISK OF ELECTRIC SHOCK! For electrical safety reasons do not clean the lamp with harsh deter-

gents and never immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.

• Do not use solvents such as petrol and the like, as they could damage the lamp.
  ☐ Only use a dry, lint-free cloth for cleaning.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Declaration of conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

● Warranty / service centre

Warranty

We provide a 3 year warranty from the date of purchase.

Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified. The warranty does not extend to damage due to improper handling as well as wear items and consumables. These can be ordered from the telephone number listed for a charge. Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical data) when inquiring about the product.

Serviceaddress

Great Britain

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton NN3 6UR

GREAT BRITAIN

T: [phone]

E: [e-mail]

Malta

ITC Ltd.

Whitehouse Buildings Mountbatten Street

Please have your receipt and item number (e.g. IAN 123456_7890) ready as your proof of purchase when enquiring about the product.

EDI Light Service Center

c / o RTS Service Solutions

Halle 17-1

EDI Light Service Center

Heiligkreuz 22

AT-6136 Pill

AUSTRIA

E-Mail: [e-mail]

Telefon: [phone]

Schweiz

EGLO Schweiz AG

Seetalstraße 142

CH-6032 Emmen

SCHWEIZ

E-Mail: [e-mail]

Telefon: [phone]

IAN 311927_1904

EDI Light GmbH

Heiligkreuz 22

AT-6136 Pill

AUSTRIA
