Product Type	LED Tube Light
Brand	Livarno Lux
Model	IAN 110578
Item Number	14102206L
Power Consumption	18 W
Luminous Flux	1900 lm
Color Temperature	4000 K (Neutral White)
Color Rendering Index (Ra)	≥80
Socket Type	G13
Dimensions (Length x Diameter)	1200 mm x 27 mm
Input Voltage	220-240 V~, 50 Hz
Current	140 mA
Beam Angle	160°
Lifetime	25,000 hours
Switching Cycles	15,000
Quick Light	<1 s to 60% light
Mercury Content	0 mg
Dimmable	No
Ambient Temperature Range	-10°C to +40°C
Intended Use	Indoor, with IP-certified lamp for outdoor use
Compatibility	Replaces fluorescent tubes with starting electrodes (single or twin circuit); not suitable for electronic ballasts
Included Accessories	1 LED tube, 1 blind starting electrode, instructions
Safety	Cut off power before installation; not repairable; do not look directly into LED
Maintenance	Wipe with a dry cloth; do not use water or liquids
Warranty	36 months from date of purchase

Frequently Asked Questions - IAN 110578 Livarno Lux

Can I use this LED tube with an electronic ballast?

No, this LED tube is not suitable for electronic ballasts. It is designed for use with magnetic ballasts and requires the included blind starting electrode.

Is the LED tube dimmable?

No, this LED tube is non-dimmable. Do not use it with dimmer switches or electronic switches.

How do I install the LED tube?

First, cut off the power by removing the fuse or switching off the circuit breaker. Remove the old fluorescent tube and starting electrode. Insert the included blind starting electrode in place of the old starter. Then insert the LED tube and restore power.

Does this LED tube contain mercury?

No, the LED tube contains 0 mg of mercury (Hg: 0 mg), making it environmentally friendly.

What is the expected lifetime of this LED tube?

The LED tube has a rated lifetime of 25,000 hours and can withstand up to 15,000 switching cycles.

Can I use this LED tube outdoors?

The LED tube is suitable for indoor use only. For outdoor use, it must be installed in an IP-certified lamp to protect against moisture.

What should I do if the LED tube is damaged?

Do not use a damaged LED tube as it poses a risk of electric shock. The tube is not repairable and must be disposed of properly at a recycling facility for electrical and electronic equipment.

How do I dispose of this LED tube?

Do not dispose of it in household waste. Take it to a collection site for electrical and electronic appliances for recycling. The crossed-out wheelie bin symbol indicates separate collection.

Does the LED tube require a special starter?

Yes, you must use the included LED blind starting electrode (model ST15-001). Do not use the old fluorescent starter.

What is the warranty period for this product?

Livarno Lux offers a 36-month warranty from the date of purchase. Proof of purchase is required. The warranty covers material and manufacturing defects, but not damage from improper use or unauthorized interference.

USER MANUAL IAN 110578 Livarno Lux

LED-RÖHRE

DE AT CH

LED-RÖHRE

Operation and Safety Notes

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 9

Technical line drawing of a mechanical assembly with a cylindrical component and a rectangular housing, showing rotational motion (no text or symbols)

Technical diagram of a mechanical assembly with a cylindrical component and labeled parts (no text or symbols)

Pure mechanical diagram showing a rectangular block connected to a cylindrical component with a curved handle, no text or symbols present.

Technical line drawing of a mechanical assembly with a cylindrical component and a rectangular housing (no text or symbols)

LED-Röhre

●Einleitung

Quick light: <1s = 60% light

Hg: 0 mg

Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the complete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

Intendeduse

The LED tubes are suitable for indoor use at an ambient temperature of -10 °C to +40 °C. Only use the LED tubes outdoors with an IP-certified lamp. The LED tubes are suitable to directly replace fluorescent tubes with starting electrodes (single- or twin circuit). Not suitable for electronic ballasts.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED T8 tube, model 14102206L

1 Blind starting electrode

1 Instructions for assembly and use

Partsdescription

1 ON/OFF switch
2 Fluorescent tube
3 Starting electrode

4 LED blind starting electrode
5 LED tube

●TechnicalData

Item no.: 14102206L

Wattage: 18 W

Lumens: 1900lm

Kelvin: 4000K

Ra: ≥80

Socket: G13

V: 220-240V\~

Hz: 50 Hz

mA: 140 mA

Beam angle: 160°

T(h): 25,000 h

ON/OFF: 15,000 x

Quick light: <1s = 60% light

Hg: 0 mg

Dimensions: L 1200 mm; D 27 mm

Ambient temperature: -10^ - +40^

Non-dimmable

- Safety

Safetyinformation

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

- Cut off the current before installation to prevent electric shock. Check local electrical requirements and ordinances.

■ Never use the LED tube if any damage is detected. A damaged LED tube means danger of death from electric shock.

Safety / Installation notices

The LED tube cannot be repaired. If the LED tube is damaged, the product must be disposed of.
Remove the fuse or switch off the circuit breaker in the fuse box before installation. Set the light switch to the "OFF" position.
- Verify the mains voltage on site corresponds with the operating voltage required for the light (220–240 V\~) before installation.
Only use the individual parts supplied, otherwise all warranty claims will become invalid.
■ Only operate the LED tube with the included LED blind starting electrode.
■ Protect the LED tube from moisture. Never allow the LED tube to come into contact with water or other liquids.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Not suitable for direct current!
When replacing conventional fluorescent lights with LED lights, check for possible regulations on the illuminance required which may apply.
Do not look directly into the light source (LED mp).
The LED tube is not suitable for dimmer- or electric switches.
■ Not suitable for electronic ballasts!
The total energy efficiency and light distribution of your lighting system depends on the construction of the system.
■ Use only with magnetic ballasts.
This lamp is not suitable for use in security lights.
■ Operate only with the included LED starter ST15-001.

● Installation notices

The LED tubes are suitable to directly replace fluorescent tubes with starting electrodes. Only operate the LED tube 5 with the included LED blind starting electrode 4.

Note: Note suitable for electronic ballasts!

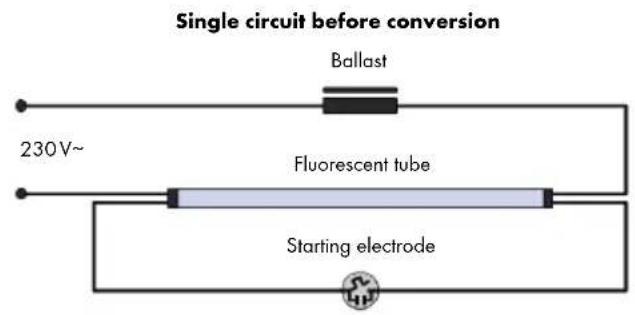

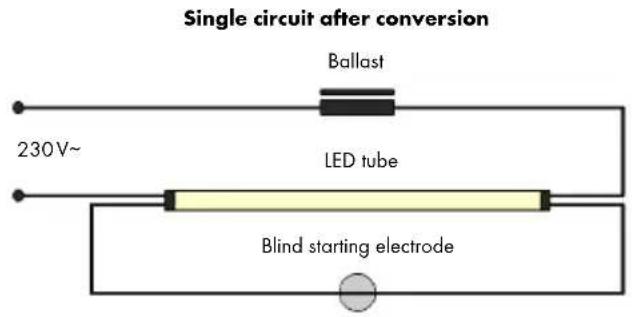

LED tubes are suitable for lamps with single- or twin circuit:

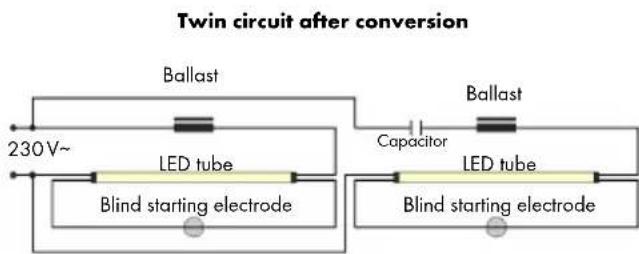

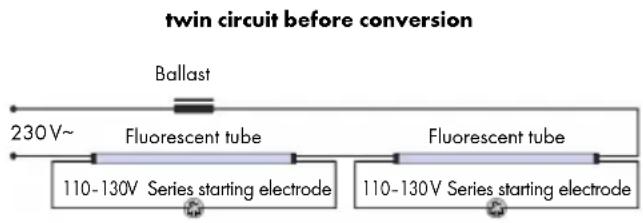

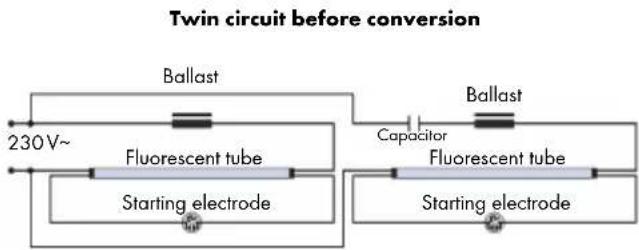

twin circuit replacement

twin circuit replacement

Remove the starting electrode and replace it with the included LED blind starting electrode 4.

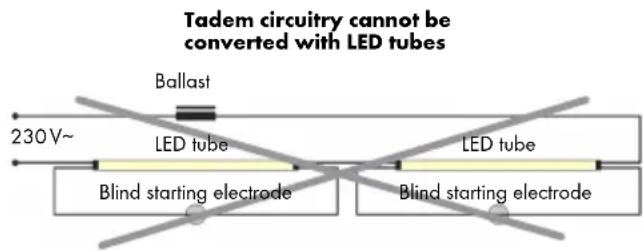

Note: Not suitable for lights with tandem circuits

- Installation

☐ Remove the fuse or switch off the circuit breaker in the fuse box before installation.
☐ Remove the contact covers on the LED tube prior to installation.
☐ Set the light switch to the OFF/0 position.

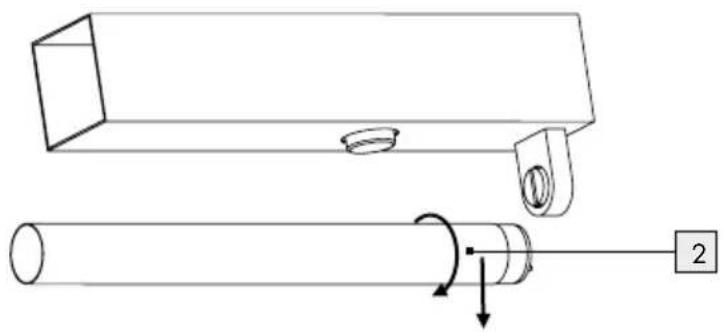

Remove the fluorescent tube.

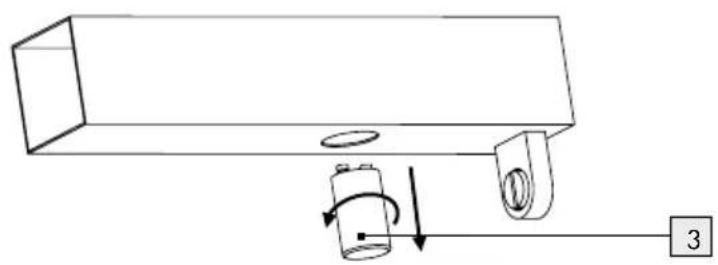

Remove the starting electrode.

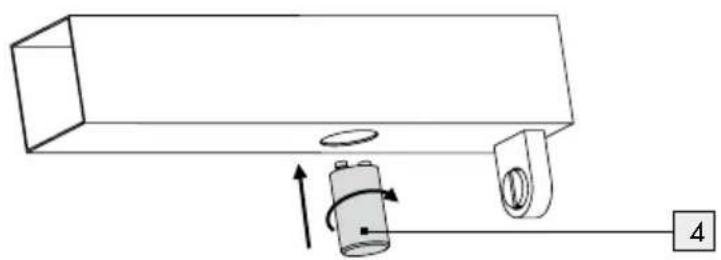

☐ Insert the LED blind starting electrode.

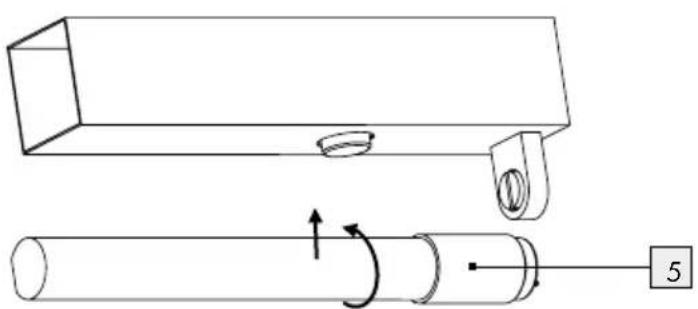

Insert the LED tube.
☐ Reinsert the fuse or switch on the circuit breaker in the fuse box.
☐ Set the light switch to the ON/I position.

- Disposal

The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of in local recycling containers.

The icon showing the crossed out wheelie bin means within the European Union the product must be disposed of

through separate refuse collection. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but

instead they must be taken for recycling to a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment. Do not dispose of in the household waste.

- Information

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the device to the listed Service Centre address, making reference to the following article number: 14102206L. Damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

- Declaration of Conformity CE

This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage Directive 2006/95/EC, Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

● Manufacturer / Service

Please have your register receipt and the item number (e.g. IAN 12345) as your proof of purchase when making enquiries.

BRILONER LEUCHTEN GMBH

Im Kissen 2

59929 Brilon (Germany)
