Product Type	USB-C Docking Station
Brand	Icy Box
Model	IB-DK2254AC
Dimensions (approx.)	200 x 100 x 30 mm
Weight (approx.)	200 g
Power Supply	USB-C Bus Power or External Power Adapter (20V, 3A)
Host Interface	USB-C (Thunderbolt 3/4 compatible)
Video Output	1x HDMI 2.0, 1x DisplayPort 1.4
USB Ports	2x USB-A 3.2 Gen 2, 2x USB-A 2.0, 1x USB-C 3.2 Gen 2
Network	1x Gigabit Ethernet (RJ45)
Audio	3.5mm Combo Audio Jack
Card Reader	SD/MicroSD slot
Max Resolution	4K@60Hz (single display)
Power Delivery	Up to 100W (PD 3.0)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Care and Cleaning	Wipe with a dry, lint-free cloth. Do not use liquid cleaners.
Safety Warnings	Keep away from water and heat sources. Do not disassemble.
Spare Parts and Repairability	Power adapter available as spare part. No user-serviceable parts inside.
Warranty	2 years limited warranty

Frequently Asked Questions - IB-DK2254AC Icy Box

Is the IB-DK2254AC compatible with my laptop?

The docking station works with any laptop that supports USB-C with DisplayPort Alt Mode or Thunderbolt 3/4. It is compatible with Windows, macOS, and Chrome OS.

How do I connect the docking station to my laptop?

Simply connect the included USB-C cable from the docking station to a USB-C port on your laptop. If your laptop supports Power Delivery, it will charge through the same cable.

Can I connect two monitors at the same time?

Yes, the docking station supports dual monitors via HDMI and DisplayPort. However, performance may vary based on your laptop's graphics capabilities. For best results, use identical resolutions.

Does the docking station support 4K resolution?

Yes, it supports 4K@60Hz on a single display. When using dual monitors, the maximum resolution may drop to 4K@30Hz or lower, depending on your system.

Can I charge my laptop through the docking station?

Yes, if your laptop supports USB Power Delivery, the docking station can deliver up to 100W of power, charging your laptop while connected to peripherals.

What USB ports are available on the IB-DK2254AC?

It features 2x USB-A 3.2 Gen 2 (10Gbps), 2x USB-A 2.0 (480Mbps), and 1x USB-C 3.2 Gen 2 (10Gbps). All ports support data transfer and the USB-C port also supports power delivery.

Does the docking station have an Ethernet port?

Yes, it includes a Gigabit Ethernet (RJ45) port for stable wired internet connections. Simply plug in an Ethernet cable to access network speeds up to 1000 Mbps.

How do I connect headphones or a microphone?

Use the 3.5mm combo audio jack to connect headphones, headsets, or external speakers. It supports both audio output and microphone input.

Can I use an SD card with this docking station?

Yes, the docking station has a SD/MicroSD card slot for quick file transfers from cameras, phones, or other devices. Insert the card directly into the slot.

What should I do if the docking station stops working?

First, try unplugging and reconnecting the USB-C cable. Ensure your laptop's drivers are updated. If the issue persists, test with another device or contact Icy Box support for warranty assistance.

USER MANUAL IB-DK2254AC Icy Box

Handbuch IB-DK2254AC

Type-C ^® USB 3.0 DockingStation with triple video output

Handbuch IB-DK2254AC

Black rectangular electronic device with two USB ports and a power button, shown against a white background (no text or symbols visible)

DisplayLink®

Plug and Display

Manual IB-DK2254AC

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

PORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
• Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
• Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

Manual IB-DK2254AC

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.raidsonic.de.

Handbuch IB-DK2254AC

• Host PC with a free USB 3.0 Type-C ^ or Type-A interface
  • Power Delivery, DP Alt Mode and/or DisplayLink ^® driver support (depending on your demands)
  • Available AC electrical outlet
• HDMI ^ and DisplayPort ^TM enabled displays with cable as needed (for additional external display)
  • 4K-capable displays are required to achieve 4K resolutions
  • Any of the following operating systems: Windows ^® 10, macOS ^® , Chrome OS ^®
• The device is compatible with Thunderbolt ^TM 3 equipped computers

Manual IB-DK2254AC

USB Type-C®

Not all USB Type-C® ports support the full functionality of the USB Type-C® standard. Some ports might only provide data transfer without supporting Power Delivery or DP Alt Mode over USB.

USB Type-C™ ≠ USB Type-C™

Wichtig!

To use this dock to its full potential, ensure that the host USB Type-® port of your computer supports USB Power Delivery, DP Alt Mode or Thunderbolt™ 3.

Please consult your host PC documentation or contact the PC manufacturer to confirm compatibility with these technologies. For safety, check whether the host PC Bios Version is the latest or not and confirm compatibility with USB Type-C® Power Delivery and/or DP Alt Mode before application.

Attention!

In case your computer supports only the DP Alt Mode protocol, and DisplayLink® drivers are not installed:

- Only Display 1 (3840x2160@60 Hz) interface can be used.

In case your computer does not support the DP Alt Mode protocol, and only USB 3.0 and installed DisplayLink® drivers are available:

- Only Display 2 (3840x2160@60 Hz) and Display 3 (3840x2160@60 Hz) interfaces can be used.

In case your computer supports both, the DP Alt Mode protocol and USB 3.0 with installed DisplayLink® drivers:

- Display 1 (3840x2160@60 Hz), Display 2 (3840x2160@60 Hz) and Display 3 (3840x2160@60 Hz) interfaces can be used.

Manual IB-DK2254AC

Installation of the driver!

Caution: Do not connect the DockingStation to your computer before installing the driver from the download area of: https://www.displaylink.com/downloads

Windows®:

A. Download the correct driver from webpage above

B. Click on "Run Setup.exe"

C. Follow the instructions and finish the driver installation

D. Connect the DockingStation to a supported USB Type-C or USB 3.0 Type-A port on the PC

E. Restart the PC

F. The IB-DK2254AC is ready to be used

macOS®:

A. Download the correct driver from the webpage above

B. Run the file Mac_driver\ driver.dmg by double-click

C. Follow the instructions and finish the driver installation

D. Connect the DockingStation to a supported USB Type-C or USB 3.0 Type-A port on the macOS ^® computer

E. Restart the computer

F. The IB-DK2254AC is ready to be used

Chrome OS®:

The DisplayLink ^® drivers are pre-installed under Chrome OS ^® .

Starting up

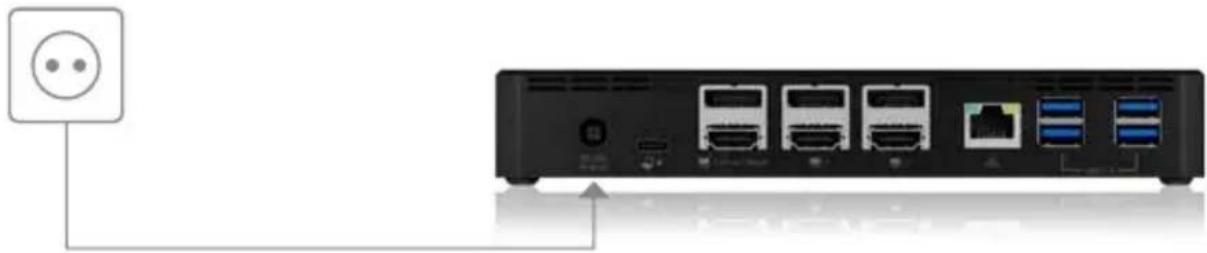

1. Plug in the power supply

Front view of a network device showing ports and an outlet, with a power outlet indicator (no text or symbols on the device itself)

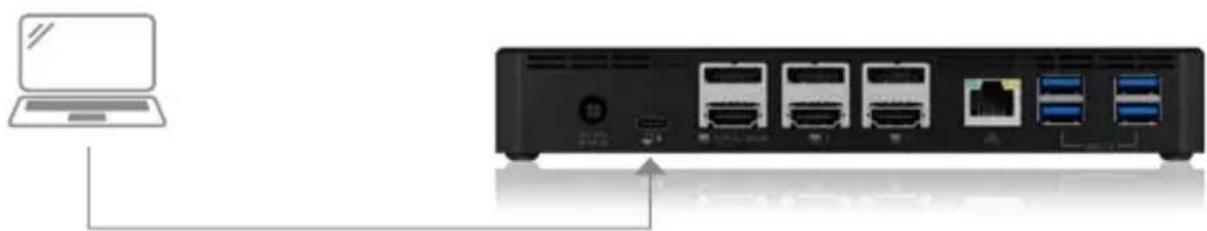

1. Connect the USB Type-C ^® to Type-C ^® (Type-A) cable between the DockingStation and your computer.

Front view of a network device showing ports and connections, with a laptop icon pointing to it (no text or symbols on the device itself)

1. Connect your devices to the appropriate interfaces on the dock

Manual IB-DK2254AC

Monitor connections

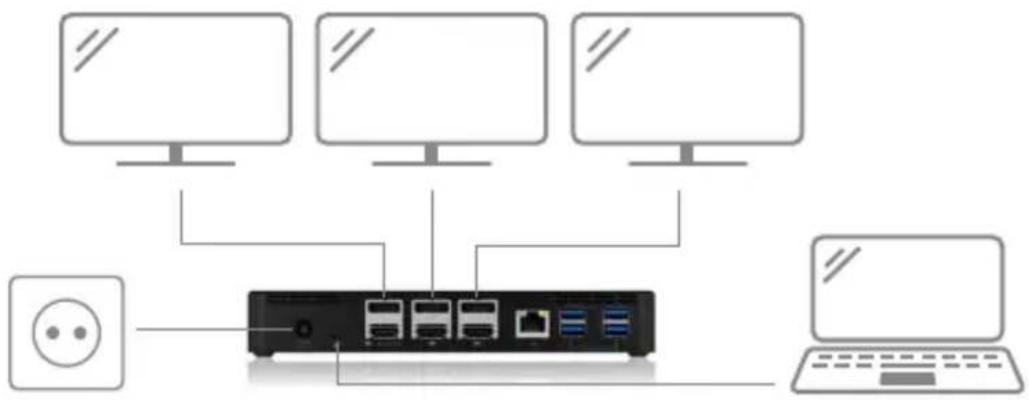

Connection of one computer to three DisplayPort™ or three HDMI® monitors

You can set up three displays by using the video output ports of the IB-DK2254AC (3x DisplayPort or 3x HDMI ^ or mixed).

Connect your monitors to the DisplayPort™/HDMI® interfaces by using certified DisplayPort™/HDMI® cables (not included).

It is recommended to use monitors of the same size, type and resolution. Same monitor type means that the monitors have the same native resolution and display refresh rate.

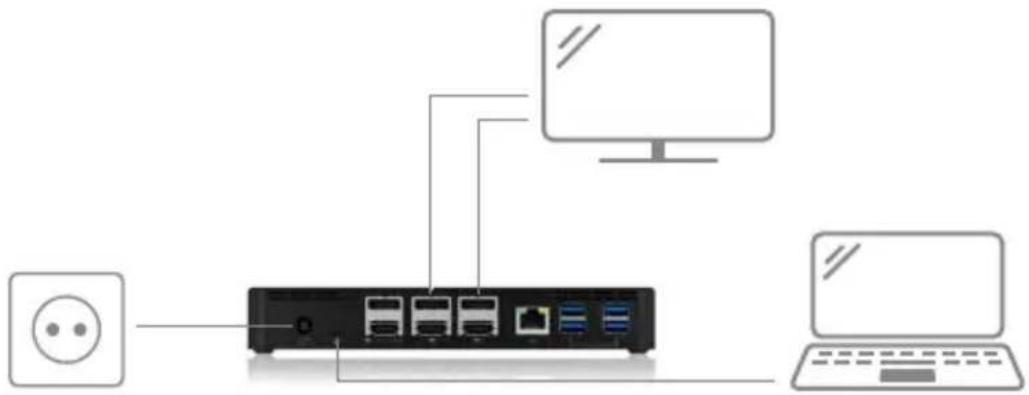

Connection of one computer to one 5K DisplayPort™ monitor

You can set up one 5K display by using the two video output ports 2 and 3 of your IB-DK2254AC (2x DisplayPort ^™ ).

Connect your supported 5K monitor to both DisplayPort™ interfaces by using certified DisplayPort™ cables (not included).

Note: The DockingStation is compatible with most 5K-enabled monitors on the market.

Please refer to http://www.displaylink.com/downloads to download the latest driver for better compatibility.

Please set up your display settings according to your operating system and requirements.

For detailed information of your operating system, consult the respective operation manual and description of your operating system.

Manual IB-DK2254AC

Supported video resolutions

The DockingStation supports 3x 4K@60 Hz Ultra HD resolution if the connected DisplayPort ^™ /HDMI ^® displays support it (up to 3840x2160@60 Hz /each).

or

The DockingStation supports 1x 5K@60 Hz Ultra HD resolution if the connected DisplayPort" display supports it (up to 5120x2880@60 Hz).

Video matrix design (USB Type-C* DP Alt Mode + DisplayLink*, DP 1.4 HBR3), maximum resolutions
	Inputs (plug-in) Output
Number of displays	Display 1	Display 2	Display 3	Display 1	Display 2	Display 3
Triple video output	✓	✓	✓	3840x2160@60 Hz	3840x2160@60 Hz	3840x2160@60 Hz
Dual video output	✓	✓		3840x2160@60 Hz	3840x2160@60 Hz
		✓	✓		3840x2160@60 Hz	3840x2160@60 Hz
	✓		✓	3840x2160@60 Hz	3840x2160@60 Hz
	✓	✓		3840x2160@60 Hz	5120x2880@60 Hz
Single video output	✓			3840x2160@60 Hz
		✓			3840x2160@60 Hz
			✓			3840x2160@60 Hz
Video matrix design (USB 3.0 DisplayLink*, only Display 2 and Display 3), maximum resolutions
	Inputs (plug-in) Output
Number of displays	Display 1	Display 2	Display 3	Display 1	Display 2	Display 3
Dual video output		✓	✓		3840x2160@60 Hz	3840x2160@60 Hz
Single video output		✓			3840x2160@60 Hz
			✓			3840x2160@60 Hz
		✓			5120x2880@60 Hz

Manual IB-DK2254AC

Windows® Display configuration

NOTE: The screenshots might vary slightly with the operating system.

Arrange your displays

Once the extra monitors are connected, they can be configured to either mirror mode, extended mode or to the setting of the primary display.

e.g: extending your monitors

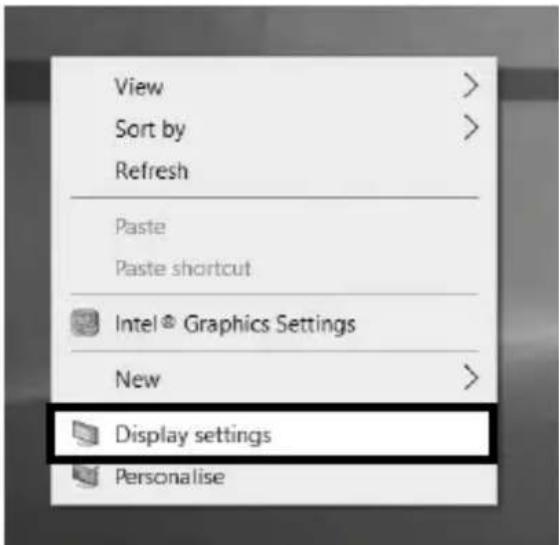

- Position the mouse anywhere on the Windows desktop

- Right-click and select Display settings to bring up the configuration window.

- Refer to the Display configuration section

- Identify your monitors by clicking the Identify button.

- Select the relevant monitor for the following settings by clicking the identified monitor symbol

Manual IB-DK2254AC

- Select Multiple displays > Extend desktop to this display if you wish to extend a monitor.

Multiple displays

Multiple displays

1.

Extend desktop to this display

Make this my main display

Display resolution

1920×1090

Display orientation

Landscape

2.

Duplicate desktop on 1 and 3

Duplicate desktop on 2 and 3

Extend desktop to this display

Disconnect this display

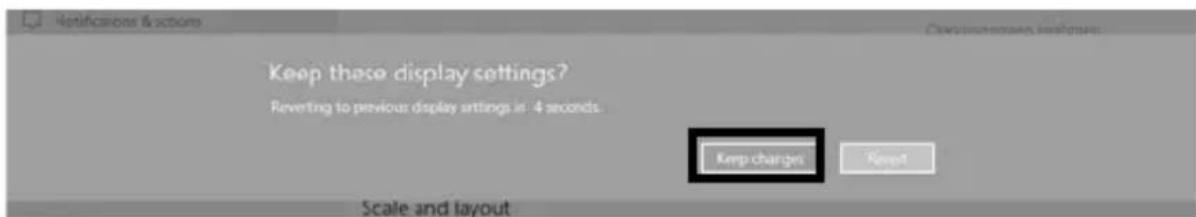

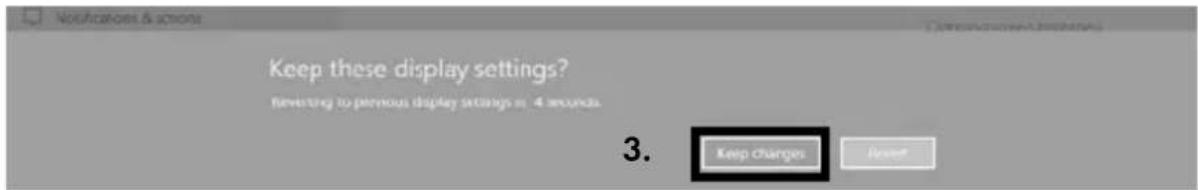

- Click Keep changes to confirm and exit.

- Once the setting is completed, simply drag and drop the application icons to arrange your monitors. (However, some applications may not support to display on the extended desktop).

Display

Select a display below to change the settings for it. Press and hold (or select) a display, then drag to rearrange it.

Manual IB-DK2254AC

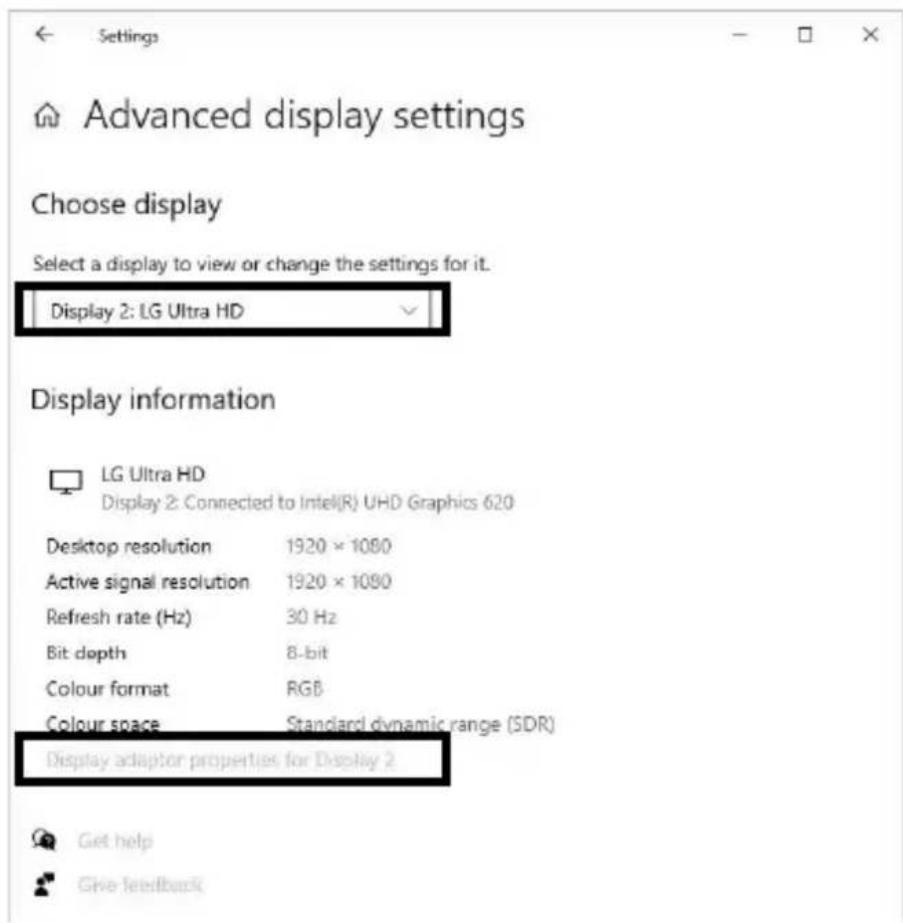

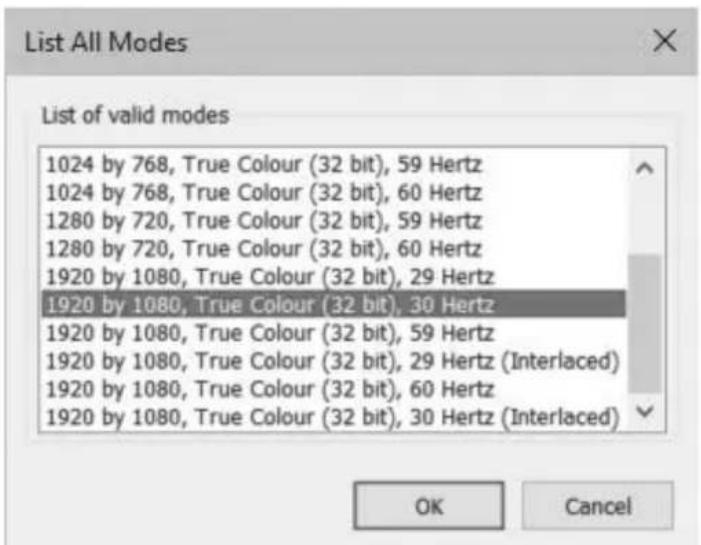

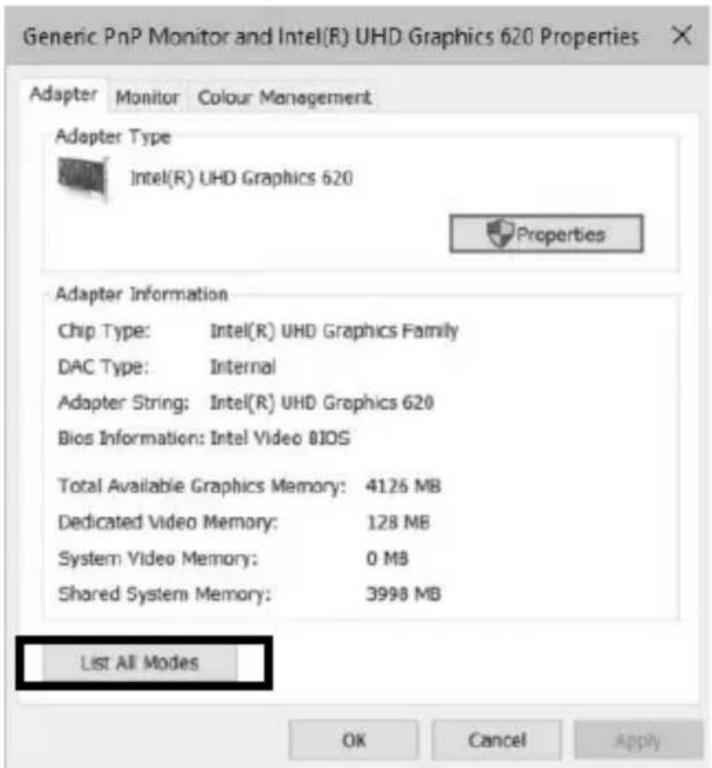

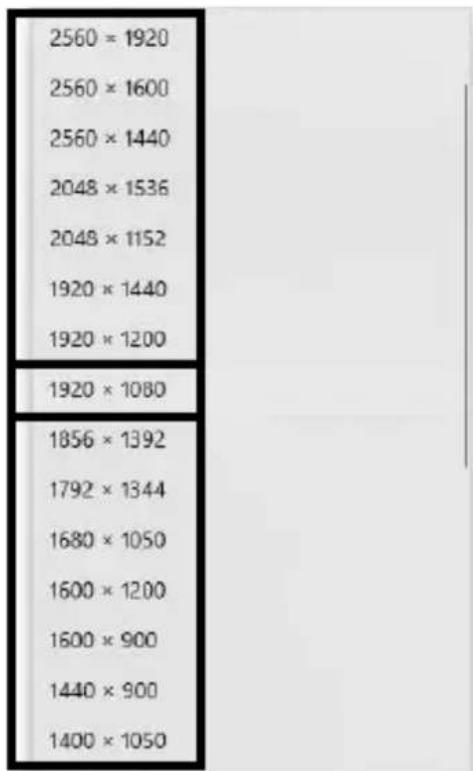

Setting the right resolution and frequenzy of your displays

There are two possibilities to choose the resolution of the selected monitor:

1. Standard

• Identify your monitors by clicking the Identify button.
• Select the relevant monitor by clicking the identified monitor symbol
• Click on Display resolution

Scale and layout

Change the size of text, apps and other items

Advanced scaling settings

Display resolution

1.

1920 × 1080

- Choose the right resolution from the drop-down menu.

2.

- Click Keep changes to confirm and exit.

Manual IB-DK2254AC

2. Advanced display settings

• Identify your monitors by clicking the Identify button.
• Click on Advanced display settings

Multiple displays

Multiple displays

Extend desktop to this display

Make this my main display

Connect to a wireless display

1.

Graphics settings

A new page opens up

• Select the relevant monitor by clicking Choose display
• Click on Display adaptor properties for Display X

2.

3.

Manual IB-DK2254AC

A new window opens up

- Click on List All Modes

A new window opens up

- Click on a valid mode according to your demands.

Repeat for each attached monitor if necessary.

Manual IB-DK2254AC

macOS® Display configuration

Once the extra monitors are connected, they can be configured to mirror mode or extend mode.

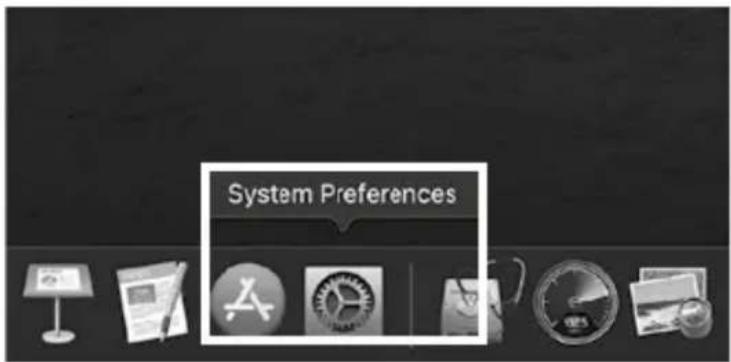

- Click on System Preferences

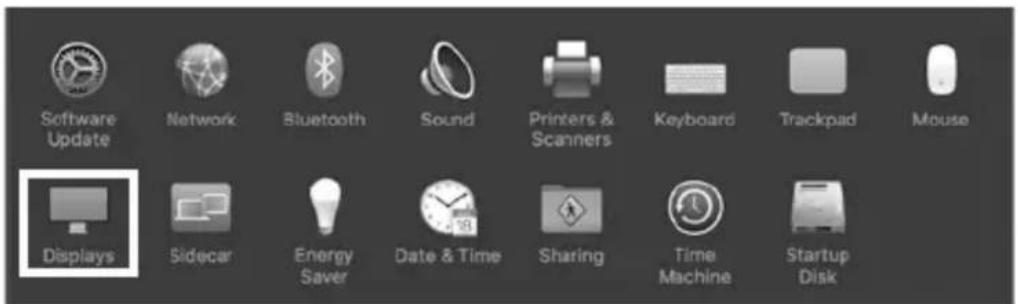

- Click on Displays

A new window opens up

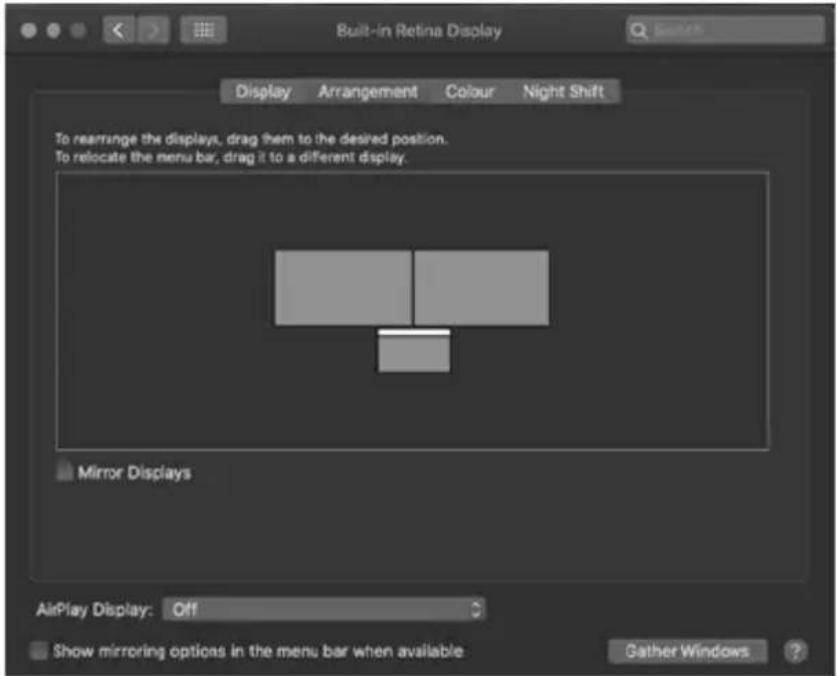

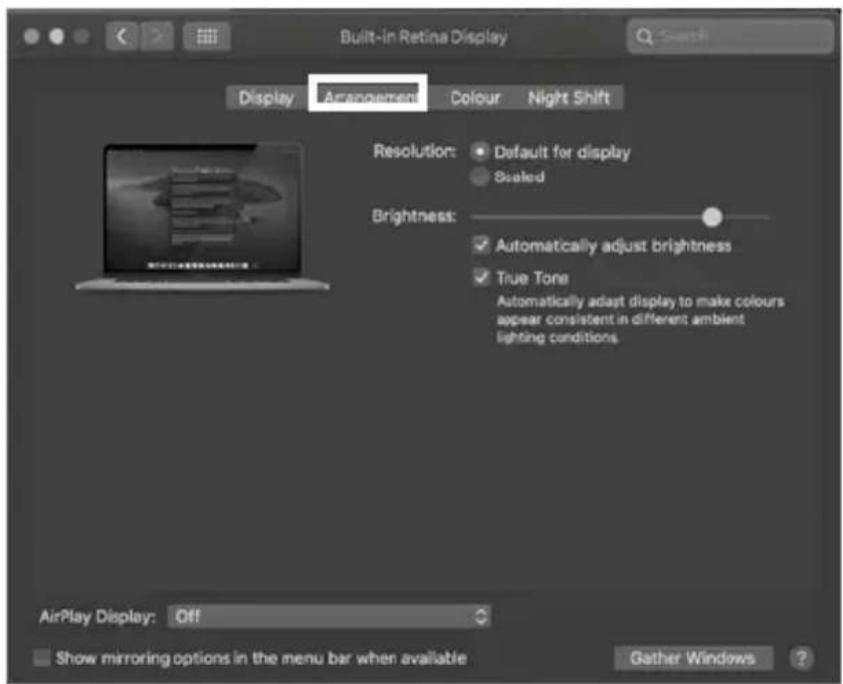

- Click Arrangement

Manual IB-DK2254AC

- Select the corresponding monitor symbol by clicking and holding on the symbol of the monitor to be placed.

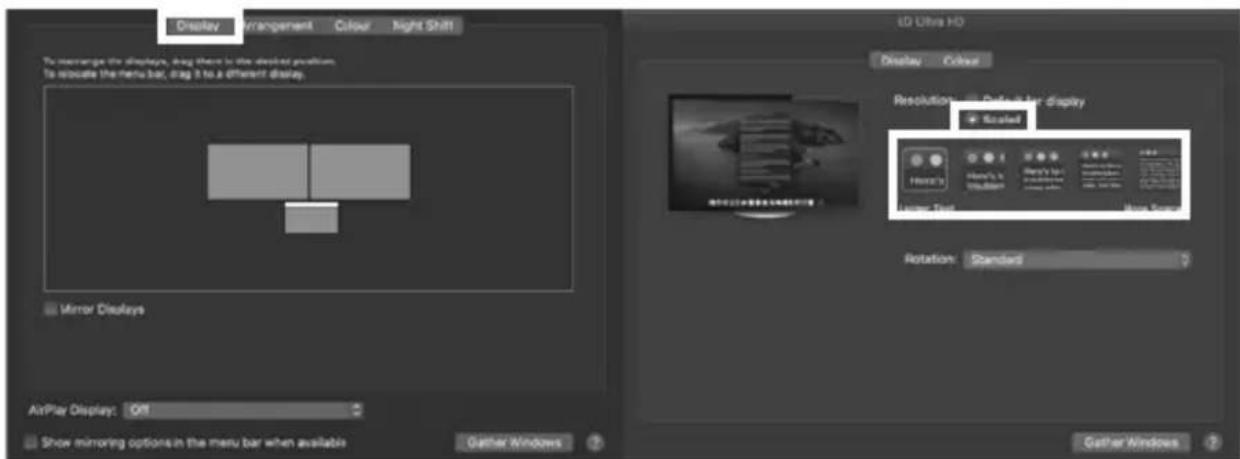

To set up scaled resolutions of the monitor displays, click the Display tab and then, in the opened window of the respective display, set your desired views separately. Select the Scaled option and then select the appropriate size in the field below.

Manual IB-DK2254AC

Advanced display settings

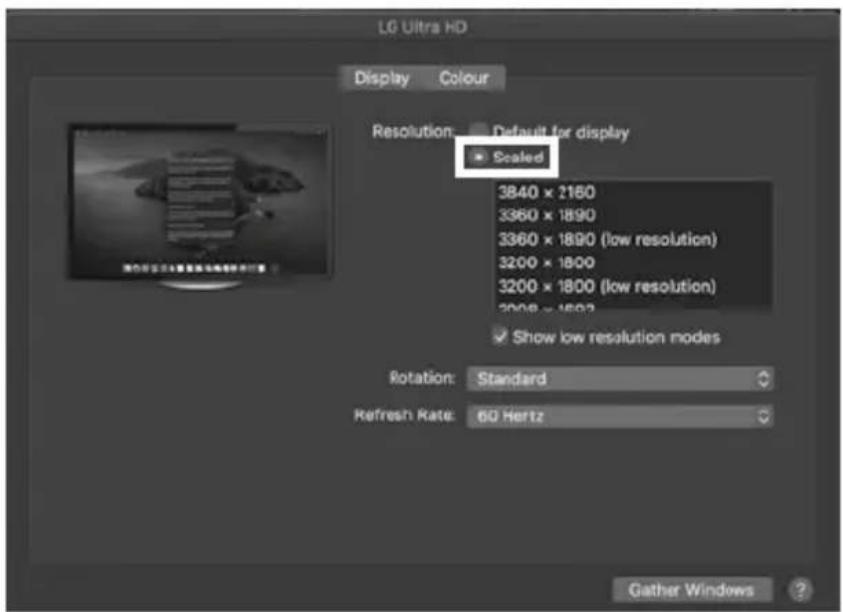

Hold down the option key, click again on Scaled and an advanced menu for resolution settings and repeat frequency settings opens.

Please select your preferred settings here.

Repeat for each attached monitor if necessary.

Handbuch IB-DK2254AC

Verpackungsinhalt

Front view of a network switch device showing port connections (no text or labels visible)

Front view of a network device showing ports and connections to a laptop (no text or symbols visible)

© Copyright 2020 by RaidSonic Technology GmbH. All Rights Reserved.

The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above-mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have. DisplayLink® is the registered trademark of DisplayLink Corp. in the EU, the US, and other countries DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. The terms HDMI® and HDMI® High-Definition Multimedia Interface, and the HDMI® logo are trademarks or registered trademarks of HDMI® LA, Inc. in the United States and other countries. Apple and macOS are registered trademarks of Apple Computer Inc. Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation. DisplayLink® is the registered trademark of DisplayLink Corp. in the EU, the US, and other countries
