Product Type	Stand Fan
Model	FN-110148
Brand	Emerio
Color	White/Silver
Fan Diameter	40 cm (16 inches)
Height	130 cm (adjustable)
Weight	3.5 kg
Power Supply	AC 220-240V, 50Hz
Power Consumption	45 W
Speed Settings	3 speeds (low, medium, high)
Oscillation	Yes, 90° horizontal
Tilt Adjustment	Yes, up/down
Control Type	Manual rotary switch on base
Protection Grille	Yes, metal with narrow spacing
Overheat Protection	Yes, thermal fuse
Cleaning	Wipe with damp cloth; do not immerse
Assembly Required	Yes, simple tool-free assembly
Warranty	2 years
Package Contents	Fan head, stand base, pole, blade, grille, screws, manual

Frequently Asked Questions - FN-110148 Emerio

How do I assemble the Emerio FN-110148 fan?

Assembly is straightforward: attach the base to the pole, slide the fan head onto the pole, secure with the screw, attach the rear grille, blade, and front grille. Refer to the manual for detailed steps. Ensure all parts are tightened before use.

How do I clean the fan?

Always unplug the fan before cleaning. Use a soft, damp cloth to wipe the grille and blades. Do not use abrasive cleaners or immerse the fan in water. Dry thoroughly before reassembly.

The fan is not oscillating. What should I do?

Check if the oscillation knob is pushed in or pulled out to activate oscillation. If it still doesn't work, ensure the fan is on a stable surface and not obstructed. If the problem persists, contact customer support.

Can I use the fan in a bathroom?

No, this fan is designed for indoor dry use only. Do not use it in humid or wet areas like bathrooms to avoid electrical hazards.

What is the power consumption of the fan?

The fan has a power consumption of 45 watts at maximum speed, making it energy-efficient.

Does the fan have a remote control?

No, the FN-110148 model is controlled manually via a rotary switch on the base. It does not include a remote.

How do I adjust the fan height?

Loosen the height adjustment collar on the pole, slide the inner tube to the desired height, and tighten the collar securely. The fan height is adjustable from approximately 110 cm to 130 cm.

Why is the fan making a knocking noise?

A knocking noise may indicate loose parts. Check that the blade is properly attached, the grille screws are tightened, and the fan is on a level surface. If noise continues, stop using and inspect for damage.

Can I replace the fuse myself?

Yes, the fan has a replaceable fuse in the plug. Use a 5A fuse of the same type. Always unplug before replacing.

What should I do if the fan stops working suddenly?

Check the power cord and plug for damage. Ensure the outlet is working. If the fan has overheated, it may have a thermal cut-out; let it cool for 30 minutes and try again. If it still doesn't work, contact Emerio support.

USER MANUAL FN-110148 Emerio

Front view of a metallic multi-panel electric fan with visible blades and mounting base (no text or symbols)

Instruction manual – English ...... - 2 -

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over.

WARNING – When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INFORMATION

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.
8. Do not operate the appliance if the mains cable or the mains plug show signs of damage, if the appliance has fallen

on the floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.

1. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
2. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
3. Keep the appliance away from damp, and protect from splashes.
4. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
5. Keep the appliance and its cord out of reach of children less than 8 years.
6. Use the appliance on a flat, dry and heat resistant surface.
7. Never leave the appliance unattended during use.
8. Do not store or operate the appliance in the open air.
9. Keep the appliance in a dry place, inaccessible to children (in its packaging).
10. Never put fingers or any other objects through the grilles (fan guards) when the fan is running.
11. Never operate the appliance without the grilles (fan guards) in place, as serious personal injury may result.
12. The appliance must be assembled completely before use.
13. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
14. Do not point the air flow to the people for a long time.
15. Ensure that the fan is switched off from the supply mains before removing the guard.

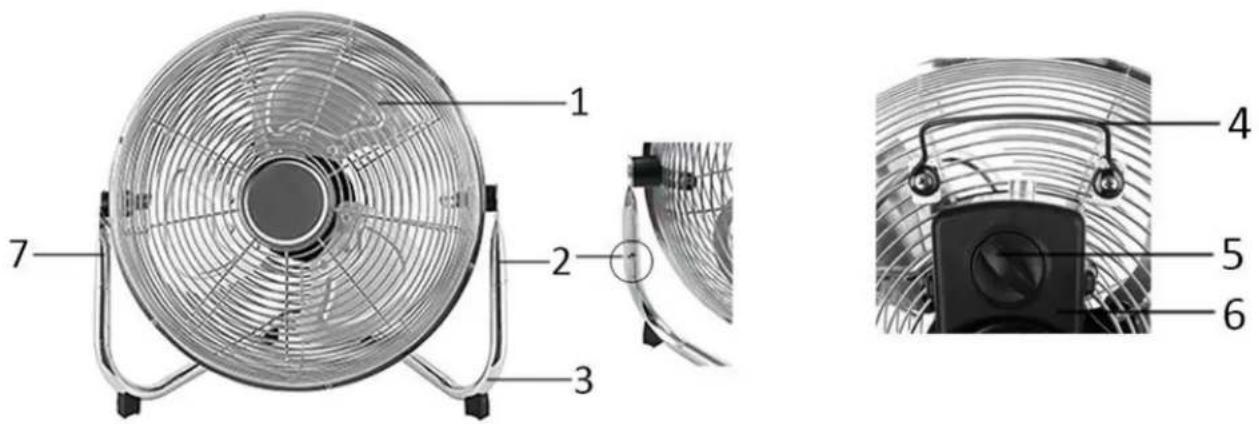

PARTS DESCRIPTION

1. Main body (Fan guard + Fan blade)
2. Spring button
3. Tube stand
4. Handle
5. Speed switch
6. Control box
7. Straight tube

ASSEMBLY OF YOUR FAN

1. Take the main body of the fan and tube stand from the packaging.
2. Press and hold the spring buttons on both straight tubes; insert the main body into the tube stand. Make sure the main body and tube stand are connected firmly with the spring buttons popped out.
3. Make sure the fan is correctly assembled as shown in the picture above.

OPERATING INSTRUCTIONS:

1. Plug the power cord into a suitable socket.
2. Turn the switch at the rear of control box to select at a speed, 0= OFF, 1 = Low Speed, 2 = Medium speed, 3 = High speed.
3. Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 50W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19/EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.
