ETD42SKS - Cooker ELECTROLUX - Free user manual and instructions

Product Type	Portable Induction Cooktop
Brand	Electrolux
Model	ETD42SKS
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	2100 W
Dimensions (W x D x H)	290 x 360 x 42 mm
Weight	2.27 kg
Cooking Zones	1 (single zone)
Heating Technology	Induction
Control Type	Touch control panel with LED display
Cooking Modes	6 presets: Steam, Simmer, Stir Fry, Deep Fry, Boil, Hot Pot
Power Levels	120 W to 2100 W (adjustable in steps)
Timer Function	1 minute to 3 hours, with automatic shut-off
Default Shut-off Time	2 hours if no timer set
Child Lock	Yes, press and hold lock button for 3 seconds
Automatic Shut-off	Yes, on timer completion or overheat protection
Overheat Protection	Yes (temperature sensors)
Cookware Compatibility	Steel, enamelled steel, cast iron (limited), stainless steel (if labelled)
Cooktop Surface	Ceramic glass
Cooling Fan	Automatic, runs after cooking
Cleaning Method	Soft damp cloth; use neutral cleaner or toothpaste for tough stains
Safety Features	Residual heat indicator, automatic shut-off, child lock, overheat protection
Environmental Compliance	RoHS compliant

Frequently Asked Questions - ETD42SKS ELECTROLUX

What type of cookware can I use with the Electrolux ETD42SKS induction cooktop?

Use cookware with a flat, ferromagnetic bottom. Suitable materials: steel, enamelled steel, cast iron (limited use may shorten lifespan), and stainless steel if labelled as induction-compatible. Avoid aluminium, copper, brass, glass, ceramic, or porcelain.

How do I clean the ceramic glass surface?

For slight stains, wipe with a soft, damp cloth. For tough stains, use a soft cloth dipped in toothpaste or neutral liquid cleaner. Avoid abrasive cleaners. Remove melted plastic, aluminium foil, or high-sugar foods immediately to prevent pitting.

What do error codes E3 and E6 mean?

E3 and E6 indicate overheat protection. Wait a few minutes for the appliance to cool, then press the power button to resume normal operation.

How do I activate the child lock feature?

Press the lock button (symbol: a lock) to lock the settings. The child lock indicator light will turn on. To unlock, press and hold the lock button for 3 seconds until the indicator turns off.

Can I use a timer while cooking?

Yes. During heating, press the timer button (COOK TIME). The display will flash; press '+' or '-' to set time from 1 minute to 3 hours. Confirm with the start button, or press timer again to cancel.

Why does the cooktop stop heating suddenly?

Possible causes: ambient temperature too high, blocked air inlet/outlet, voltage out of range, timer expired, or system protection activated. Check ventilation and voltage; if error codes appear, refer to troubleshooting.

What is the default power level when selecting a cooking mode?

Each mode has a default power: Steam 1600W, Simmer 1300W, Stir Fry 1800W, Deep Fry 2100W, Boil 2100W, Hot Pot 1600W. You can adjust power from 120W to 2100W.

Is the Electrolux ETD42SKS suitable for commercial use?

No, it is intended for household use and similar environments like offices, farm houses, hotels, motels, and breakfast areas. Not for continuous commercial operation.

How do I turn off the cooktop?

Press the power button. Heating will stop, and the cooling fan will run for a while to cool internal components. Unplug if not in use.

What should I do if the power cable is damaged?

Stop using the appliance immediately. The cable must be replaced by the manufacturer, an authorized service centre, or a qualified technician to avoid hazard.

USER MANUAL ETD42SKS ELECTROLUX

EN Portable induction cooktop

CN 便携式电磁炉

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer quality products that make your life more comfortable. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!

CONTENTS

Description of the Appliance 2

Safety Instructions 3

Operating the Appliance 4

Tips on Cooking 5

Cleaning and Care Disposal 6

Troubleshooting 7

Product Specification 7

Customer care center 8

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance

General information and tips

Environmental information

DESCRIPTION OF THE APPLIANCE

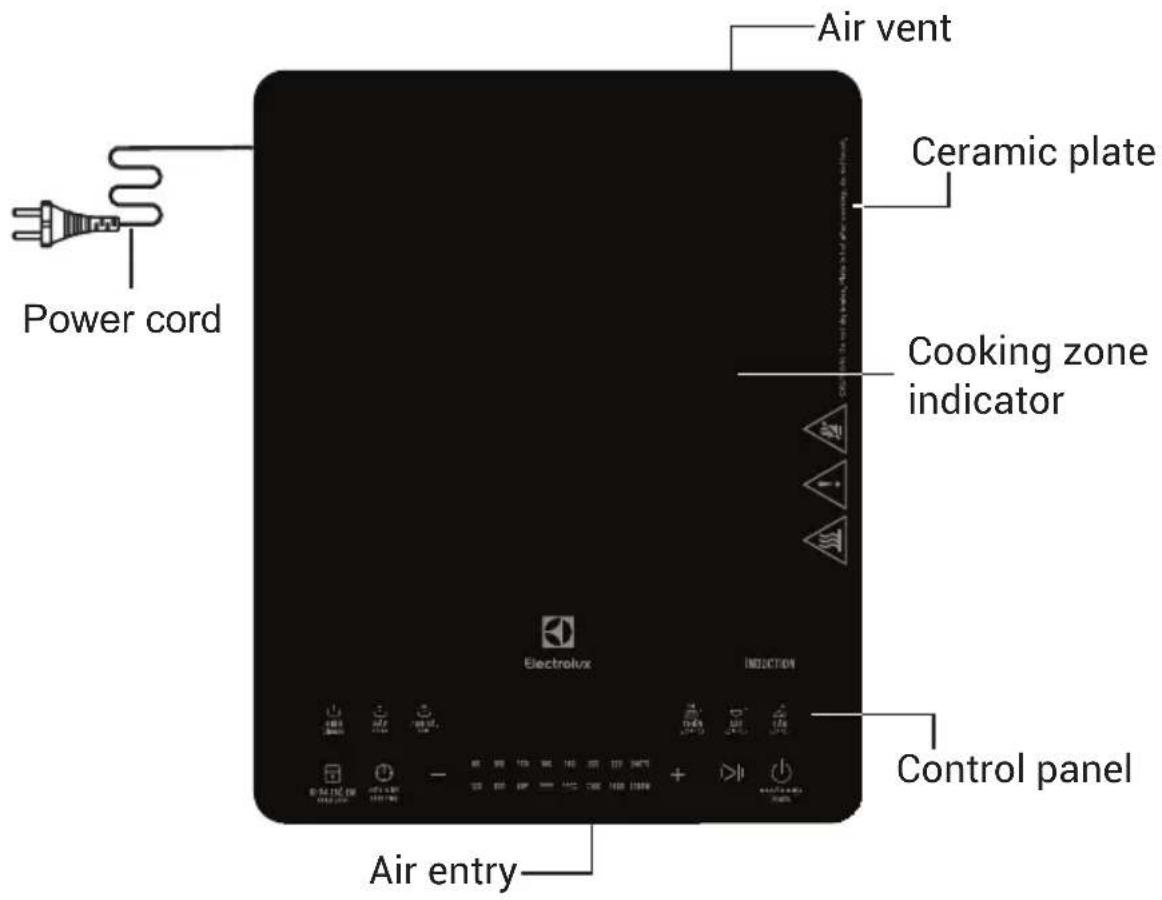

Designation of parts

ETD42SKA, ETD42SKR, ETD42SKS

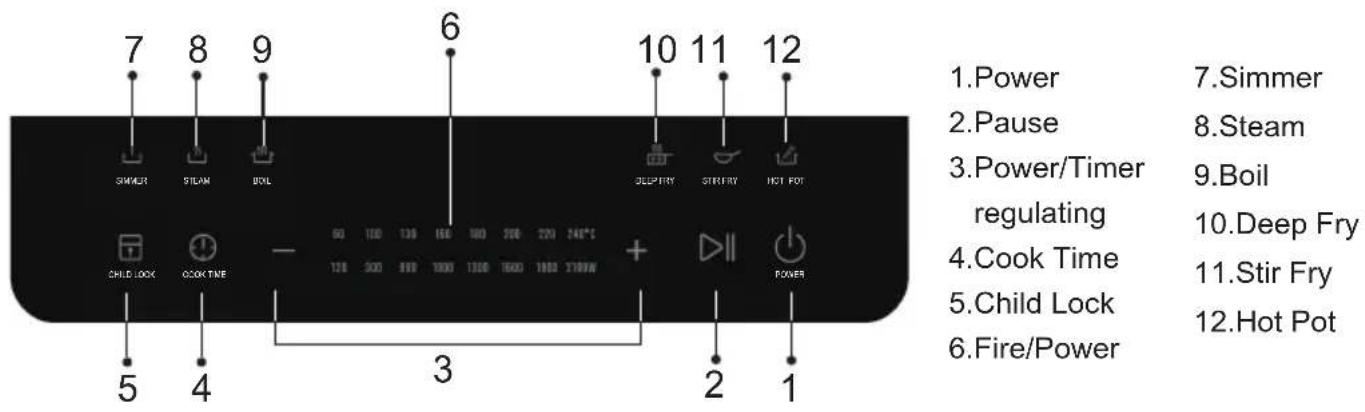

Control Panel

Warning

The air entry is at the bottom of induction cooker. Make sure fresh air can get in. Forbid cover. Prevent burning by residual heat. After turning it off, the heat area shall be cooled down after a while.

SAFETY INSTRUCTIONS

General information and tips

Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.

General safety

• In the event of faults with the appliance or damage to the ceramic glass (cracks, scratches or splits), the appliance must be turned off and disconnected from the electrical supply to prevent the possibility of an electric shock.
  • Repairs to the appliance must only be carried out by trained registered service engineers.
• The appliance should be placed in a well ventilated environment and at least 10cm from the wall.
• Never use the appliance when the power cable is damaged.
• The appliance should be placed on a flat surface in order to prevent the pot from slipping when placed on the cooking zone.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities; or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• If the mains cord is damaged, it must be replaced by the manufacturer, or a service centre authorised by manufacturer in order to avoid hazard.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Child safety

• Young children must be kept away from the appliance. Only let older children work on the appliance under supervision.
  • Children should be supervised to ensure that they do not play with this appliance.

Correct use

- This appliance should be used only for normal domestic cooking.

- The appliance must not be used as a work surface or as a storage surface.

- Never use the appliance in a high humidity environment.

- Additions or modifications to the appliance are not permitted.

- Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

- Remove stickers and film from the ceramic glass before use.

- There is a risk of burns from the appliance if used carelessly.

- Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.

• Overheated fat and oil can ignite quickly. When cooking with fat or oil (e.g. frying chips) do not leave the appliance unattended.

- Turn the appliance off after each use.

- Users with implanted pacemakers should keep their upper body at least 30cm from appliance that is turned on.

- Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and saucepan lids on the cooking zone, as they can get hot.

- Do not block the air inlet and outlet.

• Make sure the surface of the pot in contact with the cooking zone is clean (e.g. oil or water).

- This appliance is intended for household use or similar places such as shops, offices and pantry areas in work environment; farm houses; hotels, motels and other accommodation places for use by the guests; and breakfast areas.

Safety when cleaning

• For cleaning, the appliance must be turned off, unplugged and cooled down.
• Make sure no water enters into the air inlet and outlet.
• For safety reasons, the cleaning of the appliance with steam jet or high pressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• Falling substances will break the ceramic glass.
• The edges of ceramic glass will be damaged due to crash of induction cooker.
• Pushing cook made of cast iron or aluminum or damaged cook bottom on the induction cooker will make the surface of the induction cooker get scratched.
• Split food after melting or boiling will burn on the ceramic glass. Clean them at once.
  • Prohibit using this induction cooker with open cook or without cook.
  • In order to prevent damaging cook or ceramic glass, prohibit heating the stewing cook or baking cook without substances in it.

General information and skills

The residual heat can be used to melt food or for short-period warm keeping. The heat area can directly provide the cook bottom with heat needed. The reason why the temperature of ceramic glass increases is the residual heat of cook. The cooling fan can be automatically turned on or off according to temperature of parts of the induction cooker.

OPERATING THE APPLIANCE

This induction cooker can cook multiple delicious foods. It boasts high thermal efficiency, safe operation and convenience for cleaning.

Put a pot on the induction cooker

Put the cook with food/liquid on the heat area. Make sure the air entry and air vent are not plugged and there isn't mental substances around the induction cooker.

Turn on the induction cooker

Plug the power wire in the power socket. All of the indication lights are on for 1 second, and the buzzer buzzes. When you press the power control button, the buzzer buzzes and the power indication light flashes; this indicates the induction cooker is under standby state.

Press start button“▷‖” to start cooking, or it will be automatically turned off after 10 seconds.

Selecting functions

When the cooker is under standby state, press any preset menu to enter the functional mode, default time and power level appear on display alternately. Press“▷‖” to start cooking.

Press "+" or "-" , you can adjust the power rank from 120w to 2100w.

First press 📊, and then press “+” or “-” to set the desired time. You can set the timer between 1 min and 3h.

Manual heat mode

When the induction cooker is under standby state, press“+” or “-”, and then press“▷‖” to enter the heatmode. When the buzzer buzzes and the powerindication light is on, the cook begins to get heated.

The default power rank is 1600 w. The default time of timer is 2h. Press “+” or “-”, you can adjust the power rank from 120w to 2100w.

First press COST TIME, and then press "+" or "-" to set the desired time. You can set the timer between 1 min and 3h.

MENU	STEAM SIMMER STIR FRY DEEP FRY BOIL HOT POT
Default pow er (W)	1600 1300 1800 2100 2100 1600
Default Time (h:min) 0:30 1:00 1:00 1:00 x 2:00
Default adjustment time (h: min) 0:30 0:30 0:30 0:30 x 0:30
Pow er adjustment (W)	120-2100	120-2100	120-2100	120-2100	120-2100	120-2100
Time adjustment (h:min)	0:01~3:00	0:01~3:00	0:01~3:00	0:01~3:00	x	0:01~3:00

*NOTE: For STEAM menu, place the steam rack into the pot, pour water in. Make sure the water level is below the rack height.

Setting the timer

When the appliance is heating, press the timer control to activate the timer mode. The LED will flash and display "0:30", indicating the timer mode has been activated.

Increase (Decrease) the timer by 1 minute by pressing the "+" ("-") button once. If you hold the press of the "+" ("-") button longer, the time will increase (decrease) quickly by 10 minutes.

The time range of timer is 1min to 3h. After you set the desired time (the time will be displayed on the LED screen), before countdown, the LED screen will keep flashing for 5s. Press Start button “▷||” to start cooking, or press Timer button “COOK TIME” again to cancel Timer function.

If you wish to reset the time during the countdown, first press the timer control, then press "+" ("-") button to adjust the time.

The power level can also be reset during countdown by pressing "+" ("-") button to adjust the power level.

When the time is completed, the buzzer will sound and the appliance will automatically switch off.

For security purpose, if no time applied, the appliance turns itself off after a default time of 2 hours.

TIPS ON COOKING

Cookware for the induction cooktop

Steel, enamelled steel	Yes
Cast iron	Limited use, as it may shorten the appliance life time
Stainless steel	If appropriately labelled by the manufacturer
Aluminium, copper, brass	No
Glass, ceramic, porcelain	No

Lock the appliance

Press “☐” to lock the setting of the induction cooker. The children lock indication light will be on. Press “☐” for 3s, the locking function will be canceled. The children lock indication light will be off.

Turning off the appliance

Press the power control button and the induction cooktop will stop heating. The fan will run for a while to cool down the induction cooktop.

General information and tips

This induction cooktop is sold together with a pot, which is specifically designed to give excellent cooking performance.

Cookware for induction cooktops is labelled as suitable by the manufacturer.

Suitability test

Cookware is suitable for induction cooking, if

• a small amount of water is boiling within a short time when the pot is put on the cooking zone at power level 9.
• a magnet sticks to the bottom of the cookware.

If there is no any cookware or unsuitable cookware was used, the buzzer will sound for about 60 seconds and turn off.

General information and tips

Certain cookware can make noises when being used on induction cooktops. These noises are not a fault in the appliance and do not affect operation in any way.

Bottom of the cookware

The bottom of the cookware must be as thick as possible and completely flat.

Warning

Cookware with uneven bottom must not be used on this cooktop as it may impact the functionality and lead to glass crack.

Pan size

The cooking zone size adapts automatically to the size of the bottom of the cookware to a certain limit. The size of the cooking zone on this cooktop is 14.5-20cm.

General information and tips

The cookware must be placed centrally on the cooking zone.

CLEANING AND CARE

Warning

Take care! Risk of burns from residual heat.

Sharp objects and abrasive cleaning materials will damage the appliance.

Be careful water does not enter the air inlet and outlet. Residues from cleaning agents will damage the appliance.

Ceramic panel and control panel

Slight stains: Please wipe off plate with a soft moistened cloth.

Tough stains: Please clean with a soft moistened cloth dipped in a little toothpaste or neutral liquid cleaner and swab lightly until no residue exists.

Cleaning the appliance after each use

1. Wipe the appliance with a damp close using warm water.

2. Rub the appliance dry using a clean cloth.

Remove stubborn residues with a cleaner for ceramic glass.

Some scratches and dark stains on the ceramic glass may not be able to be removed. These however do not affect the functioning of the appliance.

If aluminium foil, plastic items or high sugar content liquids/foods are allowed to melt on the ceramic glass, these should be removed immediately before the surface has cooled down, otherwise pitting of the surface can occur. NOTE: Items with high sugar content not only include jam and fruit but also vegetables such as peas, tomatoes and carrots.

General information and tips

After the first use, some white spots may appear on the inner bottom of the pot. This is normal. Pour some vinegar into the pot, heat it to about 60-80 degrees Celsius, then wipe the spots away with a brush.

TROUBLESHOOTING

Problem		Possible cause/action
After power is supplied, the power level display fails to light up.		The plug is not inserted tightly.The switch, socket, fuse and power cord are not in good condition.
The power level display lights up but heating does not start.		The pot material is not suitable.For other reasons, please contact your service technician.
Heating stops suddenly during operation.		The ambient temperature is too high.The air inlet or outlet is blocked.The voltage is outside the range of this appliance.The timing period has reached.The system protection functions and is conducting energizing test.
Code of failure.	E3, E6	Wait a few minutes for the temperature of the appliance to become normal. Press the power control button and the induction cooktop will operate as usual.
	E7, E8	Wait a few minutes. When the voltage is back to normal, the induction cooktop will operate as usual.
	E1, E2, E4, E5, Eb, EC	Please contact your service technician.

PRODUCT SPECIFICATION

Model	Imposed voltage/frequency	Rated power (W)	Overall dimension (mm)	Weight (kg)
ETD42SKA	220-240 V~50/60Hz	2100 290x360x42		2.27ETD42SKR
ETD42SKS

Environmental Information

RoHS

Compliant.

If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to collecting points where available.

This product is RoHS compliant.

CUSTOMER CARE CENTER

IndonesiaConsumer Care Center Tel : [phone]PT. Electrolux IndonesiaGedung Plaza KuninganMenara Utara 2nd Floor,Suite 201, JI. HR Rasuna Saidkav C 11-14, Karet SetiabudiJakarta Selatan 12940Office Tel: [phone]Office Fax: [phone]Email: [e-mail]	SingaporeConsumer Care Center Tel: [phone]Electrolux S.E.A. Pte Ltd.1 Fusionopolis Place,#07-10 Galaxis, West LobbySingapore 138522.Office Fax: [phone]Email: [e-mail]
MalaysiaConsumer Care Center Tel: 1300-88-11-22Electrolux Home Appliances Sdn. Bhd.Corporate Office Address: Unit T2-7, 7th Floor,Tower 2, Jaya 33 Hyperoffice, No. 3, JalanSemangat, Seksyen 13, 46100 PetalingJaya, SelangorOffice Tel: [phone]Office Fax: [phone]Consumer Care Center Address: Lot C6,No. 28, Jalan 15/22, Taman PerindustrainTiong Nam, 40200 Shah Alam, SelangorConsumer Care Center Fax: [phone]Email: [e-mail]	ThailandConsumer Care Tel: [phone]Electrolux Thailand Co., Ltd.Electrolux Building 14th Floor1910 New Phetchaburi Road,Bangkapi, Huai Khwang, Bangkok 10310Office Tel: [phone]Office Fax: [phone]Email: [e-mail]
PhilippinesConsumer Care Center Toll Free:1-800-10-845-CARE 2273Consumer Care Hotline:(+63 2) 845 CARE 2273Electrolux Philippines, Inc.10th Floor. W5th Avenue Building5th Avenue Corner 32nd StreetBonifacio Global City,Taguig Philippines 1634Trunkline: [phone]Website: www.electrolux.com.phEmail: [e-mail]	VietnamConsumer Care Center Toll Free: 1800-58-88-99Tel: [phone]Electrolux Vietnam Ltd.Floor 9th, A&B Tower76 Le Lai street - Ben Thanh Ward - District 1Ho Chi Minh City , VietnamOffice Tel: [phone]Office Fax: [phone]Email: [e-mail]
Tel: [phone]Dah Chong Hong, Ltd. - Service Centre8/F., Yee Lim Godown Block C2-28 Kwai Lok Street, Kwai Chung, N.T.
