Product Type	Cooling Fan (Tower/Directional)
Brand	Fakir
Model	Prestige TVC 360
Dimensions (W x D x H)	240 x 203.5 x 340 mm
Weight	Not specified (approx. 3-4 kg based on size)
Power Supply	230V, 50Hz (EU standard)
Power Consumption	34.34 W (max 45 W)
Air Flow Rate	14.44 m³/min
Fan Speed Settings	3 speeds (Low, Medium, High)
Modes	Normal, Natural, Sleep
Oscillation	Yes, 30°, 90°, 180°, 360° (circular) with stepper motor
Timer	1h, 2h, 4h, 8h
Remote Control	Yes, battery 3V CR2032, range ~6m
Control Panel	Touch buttons on fan base
Blade Diameter	180 mm
Grille Diameter	225 mm
Sound Power Level	57.06 dB(A)
Standby Power	0.27 W
Service Value	0.42 (m³/min)/W
Seasonal Electricity Consumption	11.29 kWh/a
Assembly Required	No, pre-assembled
Cleaning	Wipe with dry or slightly damp cloth; no solvents or abrasive cleaners
Safety Features	Overheat protection, auto shut-off on timer, child lock (not specified)
Warranty	24 months (12 for industrial use)

Frequently Asked Questions - Prestige TVC 360 FAKIR

How do I assemble the Fakir Prestige TVC 360 fan?

The fan comes pre-assembled. Simply unpack it, place the base if needed (included), and plug it in. No tools are required.

How do I use the remote control?

Insert a CR2032 battery (included) into the remote control, point it at the infrared receiver on the fan, and press the desired buttons. Range is approximately 6 meters.

How do I set the timer?

Press the Timer button repeatedly to cycle through 1h, 2h, 4h, and 8h. The fan will automatically switch to standby after the set time.

What does the oscillation function do?

Press the Oscillation button to cycle through 30°, 90°, 180°, and 360° oscillation. At 360°, the fan rotates clockwise in a full circle.

How do I clean the fan?

Unplug the fan. Use a dry or slightly damp cloth to wipe the exterior. For dust inside, use a vacuum cleaner or compressed air. Never use solvents or abrasive cleaners.

The fan does not start. What should I check?

Ensure the power cord is plugged into a working outlet and the fan is switched on. If it still doesn't work, contact Fakir service hotline.

The remote control does not work. What can I do?

Check if the battery is installed correctly (polarity) and replace it if empty. Ensure no obstacles between remote and fan receiver.

What are the different fan modes?

Normal mode runs at constant speed. Natural mode cycles through high, medium, and low speeds to simulate a breeze. Sleep mode gradually reduces speed over time.

Is the fan suitable for outdoor use?

No, the fan is designed for indoor use only. Never use or store it outdoors as rain or dirt may damage it.

How do I dispose of the fan at the end of its life?

Do not dispose with household waste. Cut the power cord and take it to a local recycling facility for electrical appliances. Dispose of batteries separately.

USER MANUAL Prestige TVC 360 FAKIR

Exterior view of a modern electric fan with visible blades and control buttons (no text or symbols on the fan body)

Bedienungsanleitung

Pure electrical circuit lines without any symbols

- Fernbedienung

Line drawing of a front panel with four buttons (no text or symbols)

- Bedienpanel

Simple line drawing of an open box with a black upward arrow on the lid (no text or symbols)

Hinweis!

Technical line drawing of a mechanical device with gear and base mount (no text or symbols)

Bild 1

Diagram of a smartphone with an open lid and a separate close-up showing a download arrow (no text or symbols)

Reinigen

Warnung!

Symbol of a waste bin with no text or labels

Exterior view of a white electric fan with metallic blades and a central hub (no visible text or symbols)

EN User manual Fan

en - EN

Table of Contents

General

General 23

Information on the manual....23

Liability.... 23

Notices in the user manual 23

Safety Warnings

CE Declaration of Conformity 24

Intended Use 24

Using against instructions.... 24

WARNING! Children 25

Attention! Electrical current.... 27

Transferring 28

In case of failure 28

Overview

Scope of delivery 29

Technical information / Energy data 30

Assembly

Unpacking.... 31

Assembly 31

Operation

On / Off 32

Modes 32

Sleeping Mode.... 33

Timer 33

Oscillation 34

Remote control 34

Cleaning and Maintenance

Cleaning 35

Troubleshooting 36

Recycling 38

Warranty 39

General

EN

Information on the manual

Thank you for choosing a Fakir cooling fan. It was designed and constructed for many years of trouble-free operation.

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damage resulting from failure to comply with the operating instructions.

We cannot assume any liability for damage resulting from use other than as intended, or from incorrect operation or unauthorized repairs or maintenance.

Notices in the user manual

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

CAUTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Specifies tips and other useful information in the user manual.

EN

Safety Warnings

CE Declaration of Con- formity

This appliance fulfils the requirements of the Product Safety Law -ProdSG-, as well as the EU Directives 2014/30/EU “Electromagnetic Compatibility”, 2014/35/EU “Low-Voltage Directive”, 2001/95/EG “General product safety”, 2011/65/EU “RoHS Directive”, 2009/125/EG “Eco-design Directive” and

This appliance bears the CE-Mark on the rating plate. Fakir reserves the right to change the design and equipment.

Intended Use

This cooling fan may only be used for its intended purpose – ventilating homes or offices.

The cooling fan is not suitable for commercial use. Anyother use is considered unauthorized and is prohibited.

Use the appliance with original Fakir accessories only.

Any other use is considered unauthorized and is prohibited.

Using against instructions

Using the appliance against the instructions specified above may cause damage to the appliance or personal injuries.

WARNING! Children

• This appliance may be used only by children from the age of 8 years and over, persons with limited physical, sensory or mental capacities or by persons lacking in experience, if they will be supervised, or they have been properly instructed with regard to safe use of the appliance and they are aware of the possible resulting risks.
  • Children should not play with this appliance.
• Cleaning and maintenance shall not be carried out by children without supervision.
• Keep plastic packaging foils away from children - danger of suffocation!

WARNING! Children

• Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.
- This appliance may be used by persons (includingchildren) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.
- Children shall be supervised to ensure that they do not play with the appliance.
- Suffocation risk due to packaging foils. This appliance shall not be used for play.

EN

Safety Warnings

• Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.
• Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.
• The appliance shall not be used without supervision.

WARNING! Danger from overheating!

Always keep the openings on the appliance free.

WARNING! Damage to appliance due to rain and dirt may occur!

Never use or store the appliance outdoors.

Attention! Electrical current

• Incorrect voltage may cause damage to the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• The outlet used shall be secured with a fuse switch of 16A.
• Use extension cords designed for the power input of the appliance only.

WARNING! Risk of electrocution!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat sources.
• If the power cord of this appliance is damaged, it shall be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.
• Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a fall).
• Do not use any damaged power cords.

WARNING! In case of danger

In case of danger or an accident, unplug the appliance immediately.

EN

Safety Warnings

Transferring

Pack the appliance with its original package or with similar packaging materials with proper filling to prevent damage to the appliance.

In case of failure

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. Risk of electric shock.

Before contacting our Hotline, check to see if you can eliminate the problem yourself.

Note!

Please contact our Hotline first, if you cannot trouble-shoot a problem by yourself or in case of an intentional product return.

Hotline

01805 325474

18 Cents / minute

Applies for Telecom land lines in Germany.

Always keep the serial number of the product and appliance/model name at hand before calling. You may find these information on the type label of the appliance.

WARNING!

Repairs and maintenance shall be carried out only by trained specialists (e.g. an authorized Fakir service center). Use genuine Fakir replacement parts for these procedures. Appliances that are repaired by unauthorized persons or that are not maintained properly pose a risk for the user.

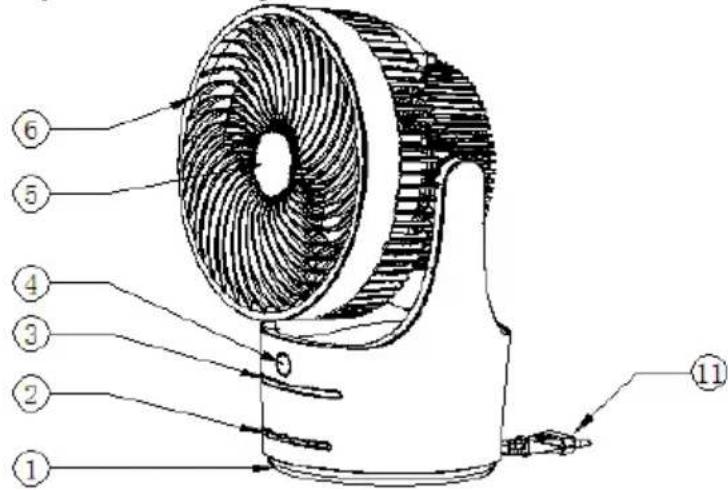

Scope of delivery

1. Base
2. Key
3. LED indicator light
4. Receiving windows
5. Decorate cover
6. Fan guard
7. Remote control

Line drawing of a front-mounted air conditioner unit with control buttons and indicator lights (no text or symbols)

1. Rear housing
2. Oscillation bracket
3. Fan body

4. Power cord

5. Remote control

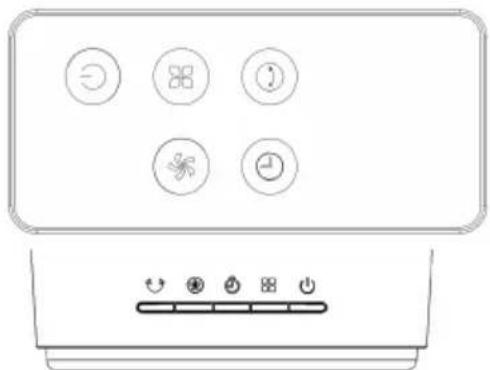

6. Control panel
   • LED indicator light display panel

Maximum power consumption 45 W

Maximum air flow 14,44 m³/min

Grille diameter 225 mm

Diameter of blades 180 mm

Speed 3

Oscillates up to approx. 360^

Measurement W x D approx. 240 x 203,5 x 340 mm

Remote control functions Oscillation, Wind mode, Speed, Timer

Range of the remote control

of approx. 6 m

Battery type 3 V Lithium CR 2032

Information for fans according the requirement of Commission Regulation (EU) No 206/2012 implementing Directive 2009/125/Ec in order to establishing eco design requirements for room air conditioners and comfort fans.

Model prestige | TVC 360 A	Article-no. 69 56 009
Discription Symbol	Value Unit
Maximum fan flow rate	F	14,44	m3/min
Fan power input	P	34,34	W
Service value	SV	0,42	(m3/min)/W
Standby power consumption	PSB	0,27	W
Seasonal electricity consumption	Q	11,29	kWh/a
Fan sound power level	LWA	57,06	dB(A)
Maximum air velocity	c	5,32	meters/sec
Contact: Fakir Hausgeräte GmbH Industriestr. 6 71665 Vaihingen / Enz +49 (0) 7042/912-0 E-Mail: [e-mail]	According IEC 60879

Assemply

EN

Unpacking

Unpack the appliance and check the contents for completeness (see "scope of delivery").

If you notice any transportation damage, please contact your dealer immediately.

Simple line drawing of an open box with a black upward arrow on the lid (no text or symbols)

Note!

Keep the packaging material for storage or transfer of the appliance (e.g. changing household, service operations).

Warning!

Never use a faulty appliance.

Assembly

Technical line drawing of a mechanical device with a cylindrical component and a separate flat plate (no text or symbols)

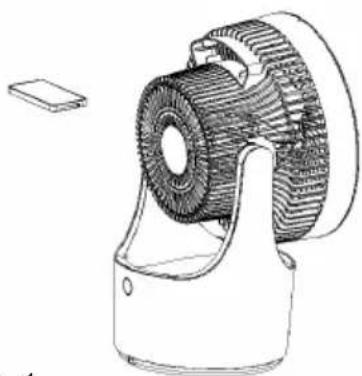

Fig. 1

• Open up carton box and take out the product: checking whether the manual, remote controller and spare parts are completed.
• This fan doesn't need assemble. Handle in the rear housing can not only be used to lift fan up but also to place remote controller. (See figure 1)

CAUTION!

Do not place the appliance directly next to any heat sources and avoid exposure to direct sunlight. Heat may cause damage to the cooling fan.

When first plug in, the fan with "Beep Beep" sound alerts, then the fan starts in standby status, in which no button and LED indicator light works.

on/off

1. press this key for opening up the fan, and LED would light up, but oscillation and timer won't work. The default set is normal mode and medium speed, (LED displays low speed instead of medium speed), then running with low speed after 3 sec. Pressing again, turning into standby mode.

Modes

1. 8 represents MODE key. The default mode is normal wind mode, but its relevant LED light would not indicate. Press 88 that can transfer modes among normal, natural and sleeping wind mode, which transformation sequence is: Normal → Natural → Sleeping → Normal. LED display would make corresponding adjustment when operating relevant mode, but LED wouldn't light in the normal mode.

Normal mode:

High wind speed high ---- Medium wind speed medium ---- Low wind speed low ----

Natural mode

The fan would automatically shift from High → Medium → Low wind speed, which imitates natural blowing pattern to make the wind be more comfortable and soft.

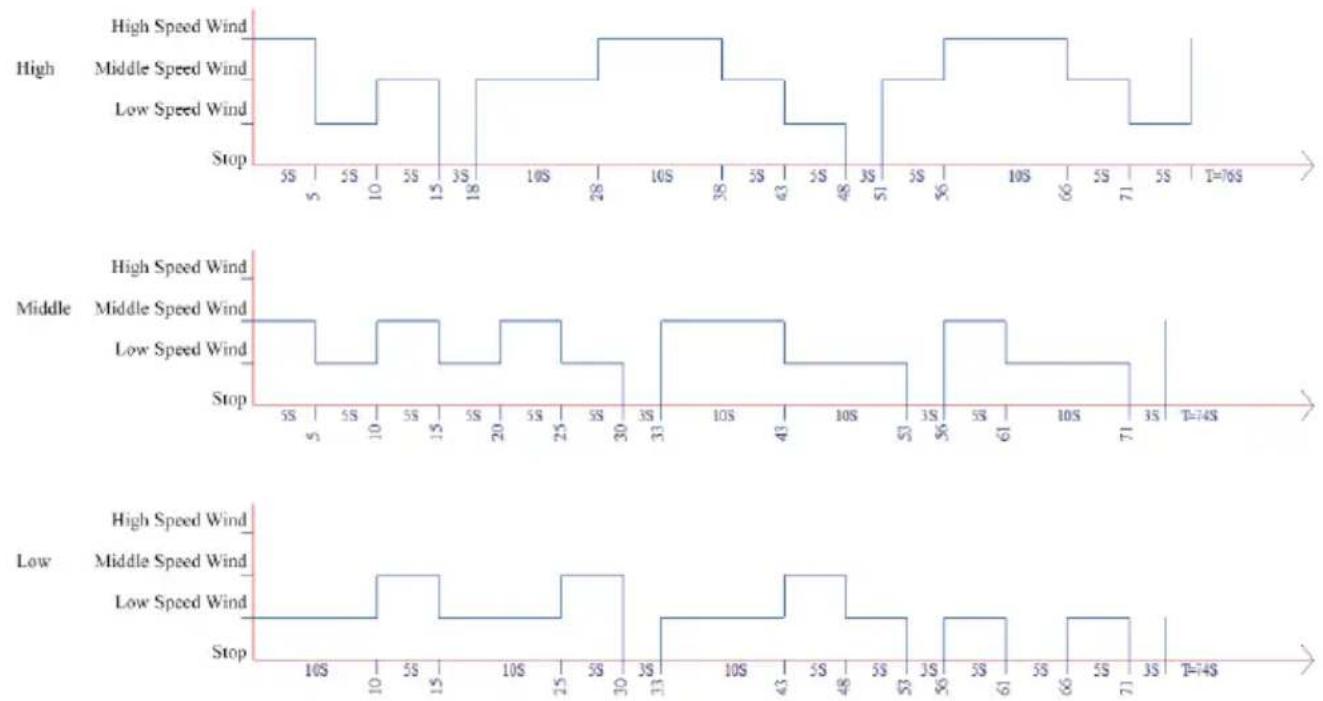

There is specific program waveform graph of natural wind mode as followed:

Sleeping Mode

Sleeping mode

Under this mode, fan would downshift regularly which can prevent users from getting sick when asleep.

There are running patterns when starting sleeping wind mode and relevant wind speed in the following:

High speed:

→30 min High speed / Normal wind

→30 min with Medium speed / Natural wind

→Low speed / Natural wind

Medium speed:

→30 min with Medium speed / Natural wind

→Low speed / Natural wind

Low speed:

→Low speed / Natural win

Timer

1. : represents Timer. There is no time setting by default. Pressing this key can transfer sequentially as: none→1h→2h→4h→8h→none... and relevant LED light would light up. The fan would get into standby mode when finishing timer.

EN

Operation

Oscillation

1. :represents OSCILLATION. There is no oscillation setting by default. Press this key and it automatically swings with the angle of 30^ - 90^ - 180^ - 360^ and the LED light changes accordingly.

2. Others.

3. The oscillation is controlled by stepping motor and swing with 15° to the left and right respectively, which apply to any angles except for 360°. It would swing circularly clockwise when at 360°

4. When in standby mode, wind speed and oscillation will all be saved. (Timing & sleeping mode will not be saved).

Remote control

Technical line drawing of a mobile phone casing with a separate component and directional arrow (no text or symbols)

- Remote control usage:

1. Open up the battery cover on the back of remote control and then install button batteries with 3V CR 2032.
2. Align to infrared receiver module when using remote controller.
3. Replace the battery after power off. Please pull out battery cover according to indication from below. Attention the positive and negative pole of the button batteries when replacing.

Cleaning / care

WARNING!

Switch off and unplug the appliance before cleaning. This will prevent the appliance from accidentally being switched on.

CAUTION!

Do not use cleaning solutions, abrasive cleaners or alcohol. This would damage the housing.

Dust accumulations inside the appliance can be removed with a vacuum cleaner or by blowing with compressed air.

Clean the appliance only with a dry or moist cloth. The appliance requires no special maintenance and care. Wind the power supply cord. Protect from dust during storage.

Appliances that have not been in use for an extended period of time must be checked by a trained technician before being put back in operation. The same applies if the appliance shows dirt on the inside.

Dear Customer,

our products are subjected to stringent quality controls.

If this appliance should nevertheless fail to function properly,

this is a matter of regret for us. Before contacting our Cus-

tomer Services, check to see if you can eliminate the problem

yourself.

Warning!

Turn off the appliance and unplug it before troubleshooting after cooling period.

Thus, you may prevent unintentional operation of the appliance.

Information!

Please contact our Hotline first, if you cannot troubleshoot a problem by yourself or in case of an intentional product return.

Hotline

01805 325474

18 Cents / minute

Applies for Telecom land lines in Germany.

Before calling, always have

the 7-digit product number with appliance/model name,

e.g. 69 56 009 and the date of production, e.g. 2016-05,

(you may find these information on the type label of the appliance.) or the 7-digit spare part number at hand.

Attention!

Repairs and maintenance shall be carried out only by trained specialists (e.g. an authorized Fakir service center). Use genuine Fakir replacement parts for these purposes. Appliances that are

repaired by unauthorized persons or that are not maintained properly pose a risk for the user.

Troubleshooting

Problem Probable Cause	Remedy
Appliance does not operate	Plug is not inserted or the appliance is not switched on.	Insert the plug into a mains socket and switch on the appliance.Call service hotline.
No oscillation Oscillation is	not switched on.Motor or gear unit is defective.	Switch on oscillation.Call service hotline.
	Power cord is damaged.	Have the power cord replaced by Fakir Customer Services.
Appliance is unusually loud	Foreign particles may be stuck.	Remove foreign particles.
Remote control does not work	Battery empty. Replace battery.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

When the cooling fan has reached the end of its service life, especially in the event of malfunctions, render the appliance unserviceable by first unplugging and then cutting the power cord.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

Unserviceable electrical and electronic appliances and batteries contain hazardous substances, which were previously necessary for the proper functioning and safety of the appliances.

Never dispose of unserviceable appliances or batteries with the household refuse!

In household refuse, or if handled incorrectly, these substances are hazardous to human health and the environment.

Unserviceable electrical and electronic appliances and batteries often contain valuable materials.

Dispose of batteries separately!

Make use of your local recycling facilities for recycling of electrical and electronic appliances and batteries.

This appliance fulfills the requirements of the 2012/19/EU – WEEE Directive

We offer a warranty under the following conditions for this appliance:

1. Your reseller's residential address / company address shall be located in the EU or the appliance shall be purchased from an authorized reseller in Germany.
2. We guarantee to ensure that you may send the appliance to us free of charge and to repair the faults which have been reported within 24 months due to material or assembly errors that occur within 24 months (12 months for industrial and professional uses).
   Proper use of the appliance is a pre-requisite for fulfilling the warranty obligation. The warranty period begins with the date of sale.
3. Parts included in natural wear parts (drive belt, batteries, brushes, filters) are not covered under warranty.
4. Warranty claims shall be void in case of intervention or repair by persons who are not authorized us. In addition, aftermarket spare parts or accessories shall not be installed.
5. Warranty service consists of repair or replacement of defective parts. On-site repairs may only be requested for fixed large appliances. In order to document warranty claims, it is necessary to present the invoice or voucher with the date of purchase, stemp and signature from the dealer.
6. If the repair operation fails and the fault or defect can not be remedied after service, the appliance shall be replaced with an equivalent appliance. If a repair or replacement is not possible, you are entitled the right to return the appliance and to demand a refund of the sales value of the appliance. A fee may be requested for the period of use in case of a request for an exchange or refund of the sales value.
7. Warranty services do not cause an extension of the warranty period or start of a new warranty period. The warranty period for the parts installed inside the appliance ends with the end of the total warranty period of the appliance.
8. Contractual or statutory clauses for repair of faults remain in effect regardless of warranty terms.

Applies as of July 1st, 2017

Rights to make changes are reserved.

Subject to revision

69 56 994 - 9811 en
