Product Type	Stand Fan with Remote Control
Model	Prestige VC 360° Rotating
Brand	Fakir
Dimensions (Height x Width x Depth)	127 – 155 cm x 50 cm x 50 cm (height adjustable)
Weight	≈ 4.9 kg
Rated Voltage	220 – 240 V AC, 50 Hz
Maximum Power Consumption	55 W
Standby Power Consumption	0.243 W
Number of Speeds	3
Wind Modes	Normal, Natural, Sleeping
Oscillation	Horizontal 360°, Vertical 35° (independent or together)
Timer	Up to 7.5 hours in 30-minute steps (15 stages)
Remote Control	Battery CR2025 (included)
Maximum Air Flow	1900 m³/h
Maximum Air Velocity	3.22 m/s
Service Value	1.18 (m³/min)/W
Fan Sound Power Level	65.7 dB(A)
Seasonal Electricity Consumption	17.38 kWh/a
Grille Diameter	≈ 47 cm
Blade Diameter	≈ 39 cm
Power Cord Length	≈ 1.5 m
Cleaning	Wipe with dry or damp cloth; do not use harsh cleaners
Safety Features	Overheat protection? Not specified; safety grille prevents contact with blades
Spare Parts / Reparability	Remote control battery (CR2025); repairs by authorized Fakir service only
Warranty	24 months (12 for industrial use) from date of sale

Frequently Asked Questions - Prestige VC 360° Rotating FAKIR

How do I assemble the Fakir Prestige VC 360° Rotating fan?

Assemble in order: attach base feet to telescopic tube, mount motor head, attach back grille, then fan blade (note left-handed thread), then front grille with clamping ring. Ensure all parts snap into place. Always unplug before assembly.

How do I adjust the height of the fan?

Loosen the cap nut on the telescopic tube, pull or push the tube to the desired height (127–155 cm), then retighten the cap nut. Do not twist the motor head by force.

How does the oscillation work?

The fan offers both horizontal 360° and vertical 35° oscillation. Press the oscillation button for horizontal; pull/press the button on the motor head for vertical. Both can operate independently or together.

How do I set the timer?

Press the TIMER button repeatedly to select from 15 steps of 30 minutes each (0.5 to 7.5 hours). The corresponding LED indicates the selected time. The fan switches off automatically after the set time.

What type of battery does the remote control use and how do I replace it?

The remote uses one CR2025 battery. Open the battery compartment on the back, insert the battery with correct polarity, and close. Dispose of old batteries according to local regulations.

How do I clean the fan?

Always unplug before cleaning. Use a dry or slightly damp cloth to wipe the housing and grille. Do not use abrasive cleaners or alcohol. For internal dust, use a vacuum cleaner or compressed air. Never remove the protective grille during cleaning.

What should I do if the fan is unusually loud?

Switch off and unplug. Check for foreign particles stuck in the blade or grille. Remove any debris. If the noise persists or the fan does not oscillate, contact Fakir service.

What is covered under warranty?

Fakir provides a 24-month warranty (12 for industrial use) for material and assembly defects. Parts subject to natural wear (e.g., battery) are excluded. Warranty requires proof of purchase and proper use.

How should I dispose of the fan when it reaches end of life?

Cut the power cord to render it unusable. Do not dispose with household waste. Recycle according to local WEEE regulations. Batteries must be removed and disposed separately.

What are the different wind modes?

Press MODE to cycle: Normal (constant speed), Natural (simulates varying breeze by changing speed at intervals), Sleeping (reduces speed by one step every 30 minutes until lowest, then remains or switches off with timer).

USER MANUAL Prestige VC 360° Rotating FAKIR

Bedienungsanleitung

Stand-Ventilator

mit Fernbedienung

de - DE

Inhalt

Allgemeines

Inhalt 2

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

Oszillation....Horizontal 360°

Oszillation .......Vertikal 35°

Timer....max. 7,5 Stunden

WARNUNG!

Symbol of a trash bin crossed with a diagonal line, indicating no waste or plastic waste (no text or labels)

Operating Instructions

Table of contents....2

Information about the operating instructions ....3

Liability 3

Notices in the operating instructions....3

Safety

CE Declaration of Conformity ....4

Intended use 4

Unauthorized use....4

Children....4

General 5

Electric current 5

In case of danger ....5

Dispatch 6

In case of defects....6

Overview

Unpacking / Scope of delivery ....7

Technical data 7

Assembly

Assembly 8

Height adjustment 9

Operation

Power-on / off....10

Speed....10

Blowing direction (oscillation) 10

Timer 11

Mode functions....11

Remote control....11

After use

Cleaning / care....12

Troubleshooting 13

Disposal 14

Warranty....15

Energy data....16

Information about the operating instructions

Thank you for choosing a Fakir cooling fan. It was designed and constructed for many years of trouble-free operation.

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability for damage resulting from use other than as intended, or from incorrect operation or unauthorized repairs or maintenance.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

en

Safety

CE Declaration of Conformity

This appliance fulfils the requirements of the Product Safety Law -ProdSG-, as well as the EU Directives 2014/30/EU “Electromagnetic Compatibility”, 2014/35/EU “Low-Voltage Directive”, 2001/95/EG

"General product safety", 2011/65/EU "RoHS Directive" and 2009/125/EG "Eco-design Directive".

This appliance bears the CE-Mark on the rating plate.

Intended use

Fakir reserves the right to change the design and equipment.

This cooling fan may only be used for its intended purpose – ventilating homes or offices.

Unauthorized use

The cooling fan is not suitable for commercial use. Any other use is considered unauthorized and is prohibited.

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury.

ATTENTION!

• Danger of fire and explosion:

Never use the appliance in the vicinity of explosive or flammable materials.

- Damage to appliance from rain and dirt

Never use or store the appliance outdoors.

WARNING! Children

• These appliances can be used by children aged 8 and above and by persons with limited physical, sensory or mental capacities or by persons lacking in experience and / or knowledge, if they are supervised or have been instructed in the safe use of the appliance and the resulting dangers.
• Children must never play with the appliance.
• Only if children are under the supervision of an adult are they permitted to perform cleaning work and user maintenance.
• Keep plastic packaging foils away from children – danger of suffocation!

General

• The protective grille must not be removed after assembly.
• Do not direct the air flow directly at people.
• Do not obstruct the air flow and keep a minimum clearance of 50 cm on all sides.

ATTENTION! Electric current!

• Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• Never immerse the appliance in water or other liquids and protect it from rain and moisture.

WARNING! Danger of electric shock!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power supply cord and do not expose it to heat sources.
• If the mains connection of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications, in order to prevent hazards.
• Use only extension cords designed for the power input of the appliance.
• For cleaning and maintenance of the appliance or when replacing parts, switch off the appliance and unplug it from the power supply.
• The protective grid must not be removed or opened to clean the rotor.
• You can wipe clean the housing and protective grid with a damp cloth.

In case of danger

WARNING!

- In case of danger or accident, unplug the appliance immediately.

Dispatch

Send the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

In case of defects

Before contacting our service department, check to see if you can eliminate the problem yourself.

See "Troubleshooting" on page 13.

Notice

If you were not able to eliminate a problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

Service hotline

[phone]

18 cents / minute

from the wire-line network of the Deutsche Telekom.

Before calling, have the article no. and appliance / model name at hand. This information can be found on the rating plate of the appliance.

WARNING!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service department). Only Fakir original replacement parts may be used. Unauthorized repairs and maintenance pose a danger for the user.

If you detect damage from transport, contact your retail dealer immediately.

NOTICE!

Keep the packaging material for storage and later transport (e.g. when moving or sending the appliance for servicing).

Unpacking / Scope of delivery

Simple line drawing of an open box with a black upward arrow indicating direction (no text or symbols)

Unpack the appliance and check the contents for completeness:

1. Central plate
2. Protective grille on front
3. Clamping ring
4. Cap nut
5. Fan blade
6. Cap nut
7. Protective grille on back
8. Installation pin
9. Motor axle
10. Button for vertical oscillation
11. Motor head
12. Cooling fan housing
13. Control panel
14. Power cord
15. Knurled screw
16. Telescopic tube, top
17. Cap nut
18. Telescopic tube, bottom
19. Cover
20. Foot connector
21. Base feet
22. Remote control (not shown)
23. Operating instructions (not shown)

Technical data

Rated voltage ....220 – 240 V AC

Rated frequency 50 Hz

Maximum power consumption....55 W

Speeds 3

3 wind modes......Normal / natural / sleeping

Oscillation....Horizontal 360°

Oscillation .......Vertical 35°

Timer max. 7.5 hours

Remote control: ......On-Off, speed, timer, wind modes, 360° oscillation

Battery type....1x CR2025

Power cord, approx. length....1.5 m

Maximum air flow....1900 m³/h

Approx. grille diameter 47 cm

Diameter of blades....39 cm

Measurement HxWxD approx....127 –155 cm / 50 x 50 cm

Weight approx....4.9 kg

WARNING!

Never use a defective appliance.

WARNING!

Prior to assembly, make sure that the mains plug is unplugged. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

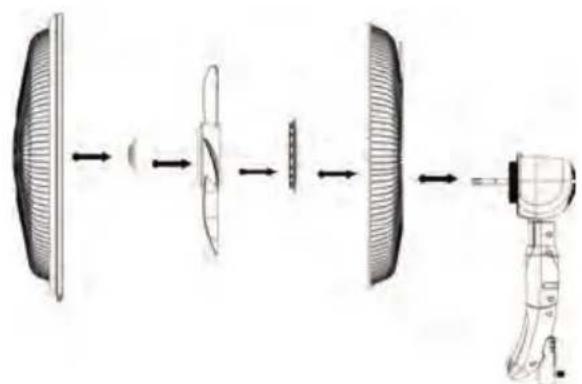

Assemble in the following order:

Insert the 4 base feet [21] through the 4 holes in the cover [19] onto the tube distributor of the pre-mounted telescopic tube [18] and secure with the enclosed screws.

Place the cooling fan [12] onto the telescopic tube and secure with the knurled screw [15].

Place the back protective grille [7] exactly onto the motor head [11] (insert the two pins on the motor head into the two holes in the protective grille) and screw tight using the included cap nuts [6]. Place the fan blades [5] all the way onto the motor axle [9] and secure with the included cap nut [4].

First remove any plastic protection on the axle.

Notice: Left-handed thread! Screw on the nut counter-clockwise. Observe truncation on the motor axle [9].

Place the front protective grille [2] with the clamping ring [3] exactly onto the top of the back protective grille [7] (screw bracket pointing down) and slowly press downward. Make sure that the grille snaps into place all the way around. Screw the clamping ring [3] with the screw bracket.

Height adjustment: The height of the cooling fan can be adjusted from approximately 127–155 cm. For adjustment, loosen the cap nut [17] and pull out or push in the tube to the desired height. Screw the cap nut tight again.

ATTENTION!

Never twist the motor head by force. Never push on the protective grid

ATTENTION!

If the fan blade is blocked, switch off the cooling fan immediately and disconnect it from the power supply. Eliminate the blockage before operating the cooling fan again.

ATTENTION!

Do not place the appliance directly next to any heat sources and avoid exposure to direct sunlight. Heat may cause damage to the cooling fan.

All functions can be controlled via:

– the control panel on the appliance

- the remote control

The following buttons are provided on the appliance and on the remote control:

Power-on/off

Press the ON/OFF button ⏻ once to switch the cooling fan to low speed or the last speed setting used. The LED for low speed lights up on the appliance. Press the ON/OFF button again to switch it off.

Speed

By pressing the SPEED button, the medium speed switches on. The corresponding LED lights up. Pressing it again turns the higher speed on. The corresponding LED lights up. For ✕ ✕ ✕, pressing again switches back to the slower speed.

Notice: If the fan blade is blocked, switch off the cooling fan immediately. Eliminate the blockage before operating the cooling fan again.

Blowing direction (oscillation)

The cooling fan is equipped with an automatic swivel device for horizontal and vertical swiveling.

The vertical swivel range is approximately 35^ . The oscillation button [10] on the side of the motor head switches from “Stationary” to “Vertical oscillation” and vice versa, also when the appliance is in operation.

Button pressed = Oscillation ON Button pulled out = Oscillation OFF

The vertical swivel range is approximately 360^ .

Press the oscillation button to turn on 360^ oscillation. The 360^ LED lights up. Press the button again to turn off 360^ oscillation. You can operate both oscillation modes individually or together.

Timer

The timer mode can be used to select 15 stages of 30 minutes each > 0.5 / 1.0 / 1.5 etc. by repeatedly

pressing the TIMER button:

After the selected time displayed by the corresponding LED on the appliance has expired, the cooling fan automatically switches off.

Mode functions

Press the MODE button to select from three different function modes, which are displayed by a corresponding LED [NORMAL, NATURAL, SLEEPING] on the appliance.

LED NORMAL Normal operation.

LED NATURAL

Depending on the selected speed, the speed changes at different intervals. After switching off natural mode, the appliance returns to the previously selected speed.

LED SLEEPING

The speed is reduced by one setting after every 30 minutes and

a) if the timer is off, remains on the lowest speed setting or
b) if the timer is on, remains at high, medium or low speed until the selected time has expired.

Remote control

Inserting / replacing the battery:

Open the battery compartment on the back: insert 1xCR2025 battery, and close the battery compartment.

Please observe the disposal instructions on page 14!

Cleaning / care

WARNING!

Switch off and unplug the appliance before cleaning. This will prevent the appliance from accidentally being switched on.

ATTENTION!

Do not use cleaning solutions, abrasive cleaners or alcohol. This would damage the housing.

Dust accumulations inside the appliance can be removed with a vacuum cleaner or by blowing with compressed air.

Clean the appliance only with a dry or moist cloth. The appliance requires no special maintenance and care. Wind the power supply cord. Protect from dust during storage.

Appliances that have not been in use for an extended period of time must be checked by a trained technician before being put back in operation. This applies in particular if the appliance shows dirt on the inside.

Troubleshooting

Dear Customer:

Our products are subjected to stringent quality controls. If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting our service department, check to see if you can eliminate the problem yourself.

WARNING!

Switch off and unplug the appliance before beginning troubleshooting. This will prevent the appliance from accidentally being switched on.

Problem Possible cause Solution
Appliance does Plug is not plugged in Plug in not operate Appliance is not switched on Switch on applianceNo electricity at wall socket Use other wall socketPower cord is damaged Call service hotline
No oscillation Oscillation is not switched on Switch on oscillationMotor or gear unit is defective Call service hotline
Appliance is Foreign particles might Remove foreign particlesunusually loud have become stuck

NOTICE!

If you were not able to eliminate a problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

Service hotline

[phone]

18 cents / minute

from the wire-line network of the Deutsche Telekom.

Before calling, make sure to have the following information:

Appliance/model designation including 7-digit article number, e.g. 69 54 009 and date of manufacture, e.g. 2015-11

(This information can be found on the rating plate of the appliance.)

or the 7-digit replacement part number.

Disposal

Symbol of a trash bin crossed with a wheel, representing waste sorting or disposal (no text present)

When the cooling fan has reached the end of its service life, especially in the event of malfunctions, render the appliance unserviceable by first unplugging and then cutting the power cord.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

Unserviceable electrical and electronic appliances and batteries contain hazardous substances, which were previously necessary for the proper functioning and safety of the appliances.

Never dispose of unserviceable appliances or batteries with the household refuse!

In household refuse, or if handled incorrectly, these substances are hazardous to human health and the environment.

Unserviceable electrical and electronic appliances and batteries often contain valuable materials.

Dispose of batteries separately!

Make use of your local recycling facilities for recycling of electrical and electronic appliances and batteries.

This appliance fulfills the requirements of the 2012/19/EU WEEE Directive

We provide a warranty for this appliance subject to the following conditions:

1. Your reseller's residential address / company address shall be located in the EU or the appliance shall be purchased from an authorized reseller in Germany.

2. We guarantee to ensure that you may send the appliance to us free of charge and to repair the faults which have been reported within 24 months due to material or assembly errors that occur within 24 months (12 months for industrial and professional uses).

Proper use of the appliance is a pre-requisite for fulfilling the warranty obligation. The warranty period begins with the date of sale.

1. Parts included in natural wear parts (drive belt, batteries, brushes, filters) are not covered under warranty.

2. Warranty claims shall be void in case of intervention or repair by persons who are not authorized us. In addition, aftermarket spare parts or accessories shall not be installed.

3. Warranty service consists of repair or replacement of defective parts. On-site repairs may only be requested for fixed large appliances. In order to document warranty claims, it is necessary to present the invoice or voucher with the date of purchase, stemp and signature from the dealer.

4. If the repair operation fails and the fault or defect can not be remedied after service, the appliance shall be replaced with an equivalent appliance. If a repair or replacement is not possible, you are entitled the right to return the appliance and to demand a refund of the sales value of the appliance. A fee may be requested for the period of use in case of a request for an exchange or refund of the sales value.

5. Warranty services do not cause an extension of the warranty period or start of a new warranty period. The warranty period for the parts installed inside the appliance ends with the end of the total warranty period of the appliance.

6. Contractual or statutory clauses for repair of faults remain in effect regardless of warranty terms.

Applies as of July 1st, 2017

Information for fans according the requirement of Commission Regulation (EU) No 206/2012 implementing Directive 2009/125/Ec in order to establishing eco design requirements for room air conditioners and comfort fans.

Model Presge | 360°	Rotang	Article-No. 69 54 009
Discription Symbol Value Unit
Maximum fan flow rate F 63,24	m3/min
Fan power input P 53,47 W
Service value SV 1,18 (m3/min)/W
Standby power consumption PSB	0,243 W
Seasonal electricity consumption	Q 17,38	kWh/a
Fan sound power level	LWA	65,7 dB(A)
Maximum air velocity	c	3,22	meters/sec
Contact: Fakir Hausgeräte GmbH Industriestr. 6 71665 Vaihingen an der Enz +49 (0) 7042/912-0 E-Mail: [e-mail]	According IEC 60879
