Product Type	Floor Fan
Blade Diameter	30 cm
Height	Adjustable from 110 to 140 cm
Weight	4.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	50 W
Speed Settings	3 speeds
Oscillation	Yes, wide-angle oscillation
Tilt Adjustment	Yes, adjustable tilt
Control Type	Rotary knob on the motor housing
Material	ABS plastic blades and metal stand
Safety Features	Safety grill with narrow gaps, tip-over switch
Noise Level	≤ 60 dB (A) at max speed
Airflow	Approximately 2000 m³/h
Assembly Required	Yes, simple tool-free assembly
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Spare Parts Availability	Replacement blades and screws available from Fakir
Warranty	2 years

Frequently Asked Questions - Prestige VL 30 G FAKIR

How do I assemble the Fakir Prestige VL 30 G fan?

Unpack all parts: base, pole, fan head, and screws. Attach the base to the pole, then slide the fan head onto the top of the pole and tighten the screw. Finally, secure the front grill by clicking it onto the back grill.

How to clean the fan?

Unplug the fan. Use a soft damp cloth to wipe the grill and blades. Do not use abrasive cleaners or immerse in water. For hard-to-reach areas, use a vacuum cleaner with a brush attachment.

Why is the fan making a rattling noise?

Check if all screws are tight and the fan is on a level surface. Loose blades or an unbalanced motor can cause noise. If the noise persists, contact Fakir support.

How do I use the oscillation feature?

Press the oscillation knob located on the motor housing downwards to engage oscillation, and pull it up to stop.

Can I adjust the height of the fan?

Yes, loosen the height adjustment ring on the pole, extend or retract the inner tube to your desired height, then tighten the ring securely.

What is the power cord length?

The power cord is approximately 1.8 meters long.

Does the fan have a remote control?

No, the Prestige VL 30 G is manually operated via a rotary knob on the motor housing. It does not include a remote control.

How to change speed settings?

Turn the rotary speed knob to the desired setting: 0 (off), 1 (low), 2 (medium), 3 (high).

Is the fan safe to use in a bathroom?

This fan is designed for indoor use in dry areas. Do not use it in wet or humid environments like bathrooms to avoid electric shock.

Where can I find spare parts?

Spare parts such as blades and screws can be ordered from the official Fakir website or authorized service centers. Use the model number Prestige VL 30 G for reference.

USER MANUAL Prestige VL 30 G FAKIR

Front view of a metallic air fan with visible blades and mounting base (no text or symbols)

Bedienungsanleitung

Tisch-Ventilator

de - DE

Inhalt

Allgemeines

Simple line drawing of an open box with a black upward arrow indicating upward motion (no text or symbols)

Symbol of a waste bin with crossed x-marks and a circular weight, no text or labels present.

Front view of a metallic open fan with visible blades and mounting base (no text or symbols)

Operating Instructions

Table fan

en - US

General

Table of contents

General

Information about the operating instructions......3

Liability....3

Notices in the operating instructions ....3

Safety

CE Declaration of Conformity....4

Intended use....4

Unauthorized use ....4

Children 4

General....5

Electric current 5

In case of danger 5

Dispatch....6

In case of defects ....6

Overview

Unpacking / Scope of delivery....7

Technical data 8

Parts and functions....8

Assembly

Assembly....9

Vertical adjustment 9

Operation

Power-on / off 10

Oscillation....10

After use

Cleaning / care....11

Troubleshooting....12

Disposal....13

Warranty 14

Energy data....15

General

Information about the operating instructions

Thank you for choosing a Fakir cooling fan. It was designed and constructed for many years of trouble-free operation.

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability for damage resulting from use other than as intended, or from incorrect operation or unauthorized repairs or maintenance.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

en

Safety

CE Declaration of Conformity

This appliance fulfills the requirements of the Product Safety Law (ProdSG) and the EU Directives 2014/30/EU "Electromagnetic Compatibility", 2014/35/EU "Low-Voltage Directive", 2001/95/EC "General Product Safety Directive", 2011/65/EU "RoHS Directive" and the 2009/125/EC "Ecodesign Directive". The appliance bears the CE mark on the rating plate.

Intended use

This cooling fan may only be used for its intended purpose – ventilating homes or offices.

The cooling fan is not suitable for commercial use. Any other use is considered unauthorized and is prohibited.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury.

• Danger of fire and explosion

Never use the appliance in the vicinity of explosive or flammable materials.

- Damage to appliance from rain and dirt

Never use or store the appliance outdoors.

• Danger from overheating

Always keep the openings in the appliance free.

WARNING! Children

• These appliances can be used by children aged 8 and above and by persons with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and the resulting dangers.
  • Children must never play with the appliance.
• Only if children are under the supervision of an adult are they permitted to perform cleaning work and user maintenance.
• Keep plastic packaging foils away from children – danger of suffocation!

General

• The protective grille must not be removed after assembly.
• Do not direct the air flow directly at people.
• Do not obstruct the air flow and keep a minimum clearance of 50 cm on all sides.

Electric current

ATTENTION!

• Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• Never immerse the appliance in water or other liquids and protect it from rain and moisture.

WARNING! Danger of electric shock!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power supply cord and do not expose it to heat sources.
• If the mains connection of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications, in order to prevent hazards.
• Use only extension cords designed for the power input of the appliance.
• For cleaning and maintenance of the appliance or when replacing parts, switch off the appliance and unplug it from the power supply.
• The protective grid must not be removed or opened to clean the rotor.
• You can wipe clean the housing and protective grid with a damp cloth.

In case of danger

WARNING!

- In case of danger or accident, unplug the appliance immediately.

Dispatch

Send the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

In case of defects

Before contacting our service department, check to see if you can eliminate the problem yourself.

See “Troubleshooting” on page 12.

Notice

If you were not able to eliminate a problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

Service hotline

[phone]

18 cents / minute

from the wire-line network of the Deutsche Telekom.

Before calling, have the article no. and appliance / model name at hand. This information can be found on the rating plate of the appliance.

WARNING!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service department). Only Fakir original replacement parts may be used. Unauthorized repairs and maintenance pose a danger for the user.

Unpacking / Scope of delivery

Simple line drawing of an open box with a black upward arrow indicating upward motion (no text or symbols)

Remove the cooling fan from the packaging.

After unpacking, please check whether all the parts cited in the following Installation Instructions are present.

• Cooling fan
• Operating Instructions

If you detect damage from transport, contact your retail dealer immediately.

NOTICE!

Keep the packaging material for storage and later transport (e.g. when moving or sending the appliance for servicing).

Technical data

VL 30 G

Article number 69 24 009

Voltage 230 V/50 Hz

Maximum power consumption 45 W

Maximum air flow 1600 m³/h

Grille diameter 340 mm

Diameter of blades 280 mm

Speeds 3

Oscillates up to approx. 75°

Measurements H x W x D approx. 46 x 34 x 30 cm

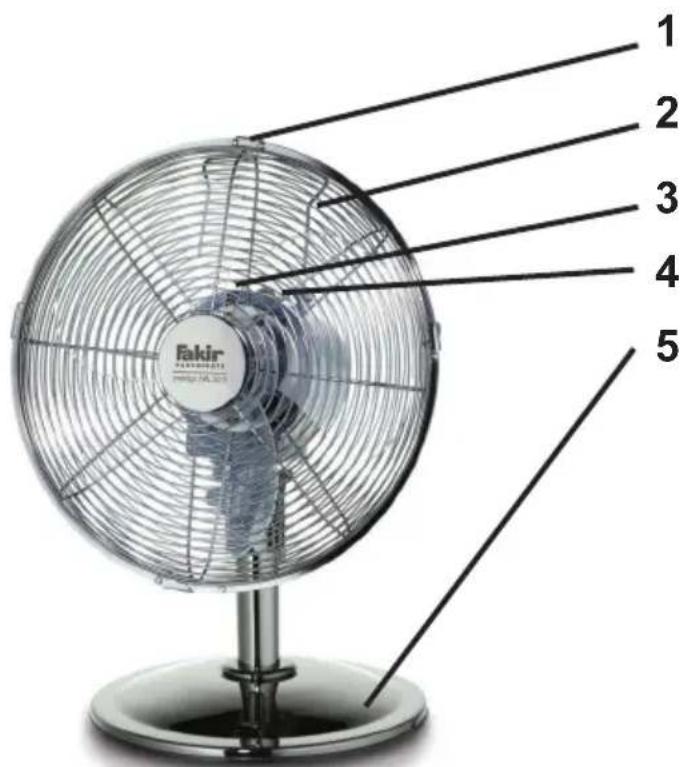

Parts and functions

1 Swivel brackets
2 Protective grid, front/back
3 Button (oscillation)
4 Rotary switch (on/off, switching steps)
5 Nozzle plate (base foot)

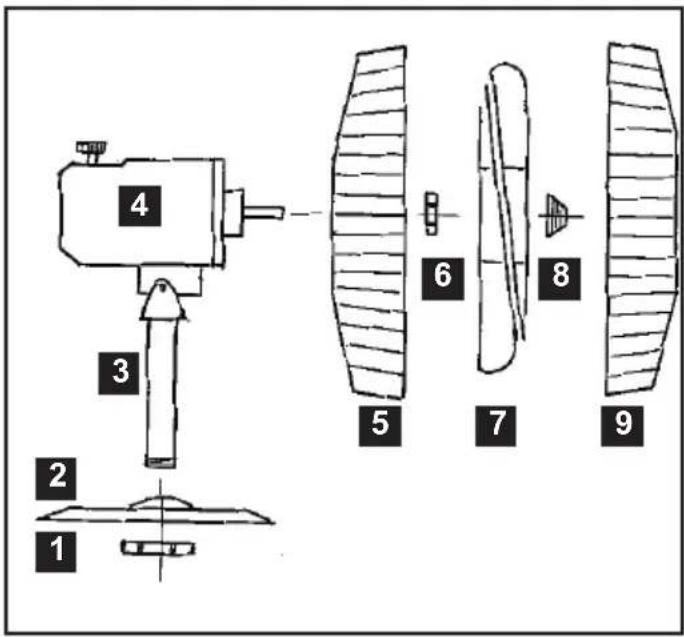

Assembly

WARNING!

Never use a defective appliance.

WARNING!

Prior to assembly, make sure that the mains plug is unplugged. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

• Place the nozzle plate (base foot) [2] onto the cap nut [3] and fasten with the enclosed cap nut [1].
• Place the back protective grid [5] exactly onto the motor head [4] (insert the three pins on the motor head into the three holes in the protective grid) and screw tightly using the included cap nuts [6].
• If required, pull off the protective hose from the motor axle.
• Place the fan blades [7] all the way onto the motor axle and secure with the included cap nut [8].

Attention: Left-handed thread.

- Place the front protective grid [9] exactly into the lower bracket on the rear protective grid [5], push on and fix with the three swivel brackets (left, right and top). Fix both protective grids at the bottom with the included M3 screw and bolt.

Vertical adjustment

The cooling fan can be set to the desired vertical operating range by hand: from approximately 15^ to the front (downwards) up to approximately 25^ to the back (upwards).

To do so, hold the cooling fan by the tube and – from the back only – carefully move the motor head forwards or backwards until the desired position has been reached.

ATTENTION!

If the fan blade is blocked, switch off the cooling fan immediately and disconnect it from the power supply. Eliminate the blockage before operating the cooling fan again.

Power-on / off

ATTENTION!

Do not place the appliance directly next to any heat sources and avoid exposure to direct sunlight. Heat may cause damage to the cooling fan.

For the VL 30 G fan, three different speeds (fan levels) can be set.

Next to the oscillation head [A] on the motor head there is a rotary switch for selecting the desired fan speed.

Switching step 0 = OFF

Switching step 1 = Low speed

Switching step 2 = Medium speed

Switching step 3 = High speed

Oscillation

The cooling fan is equipped with an automatic swivel device. This range of horizontal movement is approximately 75^ .

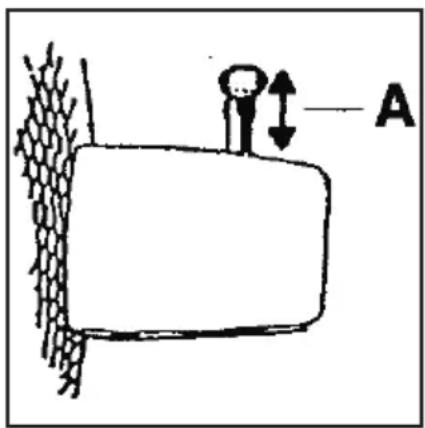

The button [A] on the motor head switches from "Stationary" to "Oscillation" and vice versa, also when the appliance is in operation:

Button pushed in = Oscillation ON

Button pulled out = Oscillation OFF

In accordance with the fan speed set (switching step 1,2 or 3), the oscillation movement either gets slower or faster.

If the standing direction of the fan is not ideal, you can:

b) if oscillation is switched off, set the position of the motor head through "rotation" to the right or left as desired or

a) if oscillation is switched on, pull out the button [A] when the motor element is in the right position.

ATTENTION!

Never twist the motor head by force. Never push on the protective grid.

Cleaning / care

WARNING!

Switch off and unplug the appliance before cleaning. This will prevent the appliance from accidentally being switched on.

ATTENTION!

Do not use cleaning solutions, abrasive cleaners or alcohol. This would damage the housing.

Dust accumulations inside the appliance can be removed with a vacuum cleaner or by blowing with compressed air.

Clean the appliance only with a dry or moist cloth. The appliance requires no special maintenance and care. Wind the power supply cord. Protect from dust during storage.

Appliances that have not been in use for an extended period of time must be checked by a trained technician before being put back in operation. The same applies if the appliance shows dirt on the inside.

Troubleshooting

Dear Customer:

Our products are subjected to stringent quality controls. If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting our service department, check to see if you can eliminate the problem yourself.

WARNING!

Switch off and unplug the appliance before beginning troubleshooting. This will prevent the appliance from accidentally being switched on.

Problem Possible cause Solution
Appliance does Plug is not plugged in Plug in not operate Appliance is not switched on Switch on applianceNo electricity at wall socket Use other wall socketPower cord is damaged Call service hotline
No oscillation Oscillation is not switched on Switch on oscillatorMotor or gear unit is defective Call service hotline
Appliance is unusually loud Foreign particles might have become stuck	Remove foreign particles

Service hotline

NOTICE!

If you were not able to eliminate a problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

Service hotline

[phone]

18 cents / minute

from the wire-line network of the Deutsche Telekom.

Before calling, make sure to have the following information:

Appliance / model designation including 7-digit article number, e.g. 69 24 009 and date of manufacture, e.g. 2015-11

(This information can be found on the rating plate of the appliance.)

or the 7-digit replacement part number.

Disposal

Symbol of a waste bin with no text or labels

When the cooling fan has reached the end of its service life, especially in the event of malfunctions, render the appliance unserviceable by first unplugging and then cutting the power cord.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

Unserviceable electrical and electronic appliances and batteries contain hazardous substances, which were previously necessary for the proper functioning and safety of the appliances.

Never dispose of unserviceable appliances or batteries with the household refuse!

In household refuse, or if handled incorrectly, these substances are hazardous to human health and the environment.

Unserviceable electrical and electronic appliances and batteries often contain valuable materials.

Dispose of batteries separately!

Make use of your local recycling facilities for recycling of electrical and electronic appliances and batteries.

This appliance fulfills the requirements of the 2012/19/EU WEEE Directive

We provide a warranty for this appliance subject to the following conditions:

1. Your reseller's residential address / company address shall be located in the EU or the appliance shall be purchased from an authorized reseller in Germany.

2. We guarantee to ensure that you may send the appliance to us free of charge and to repair the faults which have been reported within 24 months due to material or assembly errors that occur within 24 months (12 months for industrial and professional uses).
   Proper use of the appliance is a pre-requisite for fulfilling the warranty obligation. The warranty period begins with the date of sale.

3. Parts included in natural wear parts (drive belt, batteries, brushes, filters) are not covered under warranty.

4. Warranty claims shall be void in case of intervention or repair by persons who are not authorized us. In addition, aftermarket spare parts or accessories shall not be installed.

5. Warranty service consists of repair or replacement of defective parts. On-site repairs may only be requested for fixed large appliances. In order to document warranty claims, it is necessary to present the invoice or voucher with the date of purchase, stemp and signature from the dealer.

6. If the repair operation fails and the fault or defect can not be remedied after service, the appliance shall be replaced with an equivalent appliance. If a repair or replacement is not possible, you are entitled the right to return the appliance and to demand a refund of the sales value of the appliance. A fee may be requested for the period of use in case of a request for an exchange or refund of the sales value.

7. Warranty services do not cause an extension of the warranty period or start of a new warranty period. The warranty period for the parts installed inside the appliance ends with the end of the total warranty period of the appliance.

8. Contractual or statutory clauses for repair of faults remain in effect regardless of warranty terms.

Applies as of July 1st, 2017

Informaon for fans according the requirement of Commission Regulaon (EU) No 206/2012 implementing Direve 2009/125/Ec in order to establishing eco design requirements for room air conditioners and comfort fans.

Model	presge | VL 30 G	Arcle-No. 69 24 009
Discrion Symbol Value Unit
Maximum fan ow rate F 32,05 m^3 /min
Fan power input P 38,00 W
Service value SV 0,84 ( m^3 /min)/W
Standby power consumpon PSB --	W
Seasonal electricity consumpon	Q	12,16	kWh/a
Fan sound power level	LWA	57,27	dB(A)
Maximum air velocity	c 2,33	meters/sec
Contact:Fakir Hausgeräte GmbHIndustriestr. 671665 Vaihingen an der Enz+49 (0) 7042/912-0E-Mail: [e-mail]	According IEC 60879
