Product Type	Fan
Brand	Fakir
Model	Prestige VC 45 S
Category	Stand Fan
Blade Diameter	45 cm
Height	1350 mm
Weight	5.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	55 W
Speed Settings	3
Oscillation	Yes
Tilt Adjustment	Yes, manually adjustable
Control Type	Rotary switch on the motor housing
Remote Control	Not included
Safety Features	Overheat protection, tip-over switch
Material	Plastic and metal
Usage	Indoor only
Cleaning	Wipe with a soft, damp cloth; do not use water directly
Storage	Store in a dry place; disassemble base if needed
Warranty	2 years

Frequently Asked Questions - Prestige VC 45 S FAKIR

How do I clean the Fakir Prestige VC 45 S fan?

Unplug the fan first. Use a soft, damp cloth to wipe the blades, grille, and base. Do not use abrasive cleaners or submerge any part in water. For stubborn dirt, use a mild soap solution and dry thoroughly.

How to assemble the stand fan?

The fan comes partially assembled. Attach the base to the stand tube, then secure the motor housing onto the tube. Finally, snap the front and rear grilles together around the blades. Ensure all screws are tight before use.

The fan wobbles during operation. What should I do?

Check that the base is stable and all screws are tightened. Ensure the blade assembly is correctly centered. If wobbling persists, the blade might be bent; replace it if necessary.

What is the power consumption of this fan?

The Fakir Prestige VC 45 S consumes approximately 55 watts on the highest speed setting, making it an energy-efficient cooling option.

Does the fan have a timer?

No, this model does not include a built-in timer. It must be turned off manually.

Can I use the fan outdoors?

This fan is designed for indoor use only. Exposure to moisture or dust can damage the motor and pose an electrical hazard.

How do I store the fan during winter?

Clean the fan thoroughly, disassemble if possible, and store in a dry, dust-free place. Keep the power cord loosely wrapped to avoid damage.

The fan is noisy. What can I do?

Check if the blades are hitting the grille or if there is debris. Lubricate the motor shaft with a drop of oil if it’s dry. If noise persists, contact support.

Is there a warranty for this fan?

Yes, the Fakir Prestige VC 45 S comes with a 2-year warranty covering manufacturing defects. Keep your receipt for proof of purchase.

How to change the speed?

The speed is adjusted using the rotary switch located on the motor housing. Turn it to the desired setting: 0 (off), 1 (low), 2 (medium), 3 (high).

USER MANUAL Prestige VC 45 S FAKIR

Two Fokir air conditioners on a stand, one larger and one smaller, with no visible text or symbols.

Bedienungsanleitung

Stand-Ventilator

Tisch-Ventilatoren

de - DE

Inhalt

Allgemeines

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

Technical line drawing of a mechanical fan and motor assembly (no text or symbols)

Line drawings of a fan with internal blades and a side-mounted fan (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow and two cubes on a curved surface (no text or symbols)

Diagram of a mechanical linkage with an arrow indicating direction (no text or symbols present)

Diagram of a fan with directional arrows indicating airflow or circulation (no text or symbols)

ACHTUNG!

Diagram of a fan with a rotating arrow indicating clockwise motion (no text or symbols)

Symbol of a waste bin with no text or labels

Two electric fans on a stand, one larger and one smaller, with no visible text or symbols on the fan surfaces.

Operating Instructions

Information about the operating instructions......3

Liability....3

Notices in the operating instructions ....3

Safety

CE Declaration of Conformity....4

Intended use....4

Unauthorized use ....4

Children 4

General....5

Electric current 5

In case of danger 5

Dispatch....6

In case of defects ....6

Overview

Unpacking / Scope of delivery / Energy data......7

Technical data 8

Parts and functions....8

Assembly

Assembly of the VC 29....9

Assembly of the VC 45 S ....10

Operation

Power-on / off ....11

Horizontal blowing direction (oscillation) .....11

Vertical blowing direction....12

Height adjustment of the VC 45 S ....12

After use

Cleaning / care 13

Troubleshooting....14

Disposal....15

Warranty 16

Information about the operating instructions

Thank you for choosing a Fakir cooling fan. It was designed and constructed for many years of trouble-free operation.

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability for damage resulting from use other than as intended, or from incorrect operation or unauthorized repairs or maintenance.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

en

Safety

CE Declaration of Conformity

The appliance fulfils the requirements of the Appliance and Product Safety Law -ProdSG-, and Energy-related Products Act -EVPG -, as well as the EU Directives 2014/30/EC "Electromagnetic Compatibility", 2014/35/EC "Low-Voltage- Directive, 2001/95/EC "General product safety", 2011/65/EC "RoHS-Directive". 2009/125/EG "Eco design Directive". The appliance bears the CE mark on the rating plate.

Intended use

This cooling fans may only be used for their intended purpose – ventilating homes or offices.

The cooling fans are not suitable for commercial use. Any other use is considered unauthorized and is prohibited.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliances or personal injury.

• Danger of fire and explosion

Never use the appliance in the vicinity of explosive or flammable materials.

- Damage to appliance from rain and dirt

Never use or store the appliance outdoors.

- Danger from overheating

Always keep the openings in the appliance free.

WARNING! Children

• These appliances can be used by children aged 8 and above and by persons with limited physical, sensory or mental capacities or by persons lacking in experience and / or knowledge, if they are supervised or have been instructed in the safe use of the appliance and the resulting dangers.
• Children must never play with the appliance.
• Only if children are under the supervision of an adult are they permitted to perform cleaning work and user maintenance.
• Keep plastic packaging foils away from children – danger of suffocation!

General

• The protective grille must not be removed after assembly.
• Do not direct the air flow directly at people.
• Do not obstruct the air flow and keep a minimum clearance of 50 cm on all sides.

Electric current

ATTENTION!

• Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• Never immerse the appliance in water or other liquids and protect it from rain and moisture.

WARNING! Danger of electric shock!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power supply cord and do not expose it to heat sources.
• If the mains connection of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications, in order to prevent hazards.
• Use only extension cords designed for the power input of the appliance.
• For cleaning and maintenance of the appliance or when replacing parts, switch off the appliance and unplug it from the power supply.
• The protective grid must not be removed or opened to clean the rotor.
• You can wipe clean the housing and protective grid with a damp cloth.

In case of danger

WARNING!

- In case of danger or accident, unplug the appliance immediately.

Dispatch

Send the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

In case of defects

Before contacting our service department, check to see if you can eliminate the problem yourself.

See "Troubleshooting" on page 14.

Notice

If you were not able to eliminate a problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

Service hotline

[phone]

18 cents / minute

from the wire-line network of the Deutsche Telekom.

Before calling, have the article no. and appliance / model name at hand. This information can be found on the rating plate of the appliance.

WARNING!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service department). Only Fakir original replacement parts may be used. Unauthorized repairs and maintenance pose a danger for the user.

Unpacking / Scope of delivery

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

Remove the cooling fan from the packaging.

After unpacking, please check whether all the parts cited in the following Installation Instructions are present.

– Cooling fan including 6 screws
- Base foot including 4 screws
- Operating Instructions

If you detect damage from transport, contact your retail dealer immediately.

NOTICE!

Keep the packaging material for storage and later transport (e.g. when moving or sending the appliance for servicing).

Information for fans according the requirement of Commission Regulation (EU) No 206/2012 implementing Directive 2009/125/Ec in order to establishing eco design requirements for room air conditioners and comfort fans.

Model prestige | VC 45 S		Art.-No. 69 46 009	prestige | VC 29 Art.-No. 69 44 009
Discription	Symbol	Value	Value	Unit
Maximum fan flow rate	F	64,81	20,06	m^3/min
Fan power input	P	49,6	30,3	W
Service value	SV	1,306	0,662	(m^3/min)/W
Standby power consumption	PSB	--	--	W
Seasonal electricity consumption	Q	15,87	9,69	kWh/a
Fan sound power level	LWA	59,2	54,6	dB(A)
Maximum air velocity	c	3,544	2,13	meters/sec
Contact: Fakir Hausgeräte GmbH Industriestr. 6 71665 Vaihingen/Enz +49 (0) 7042/912-0 E-Mail: [e-mail]		According IEC 60879

Technical data

VC 29 VC 45 S

Article number

Voltage

6944009 6946009

Frequency

220 - 240 V 220 - 240 V

50/60 Hz 50/60 Hz

Maximum power consumption

40 W 60 W

Approx. grille diameter

31 cm 47 cm

Speeds

2 3

Oscillates up to approx.

75^ 75^

Power cord, approx. length

1.55 m 1.55 m

Dimensions: W x D x H approx.

32 x 32 x 43 cm 40 x 40 x 120 - 140 cm

Weight approx.

2.2 kg 7.1 kg

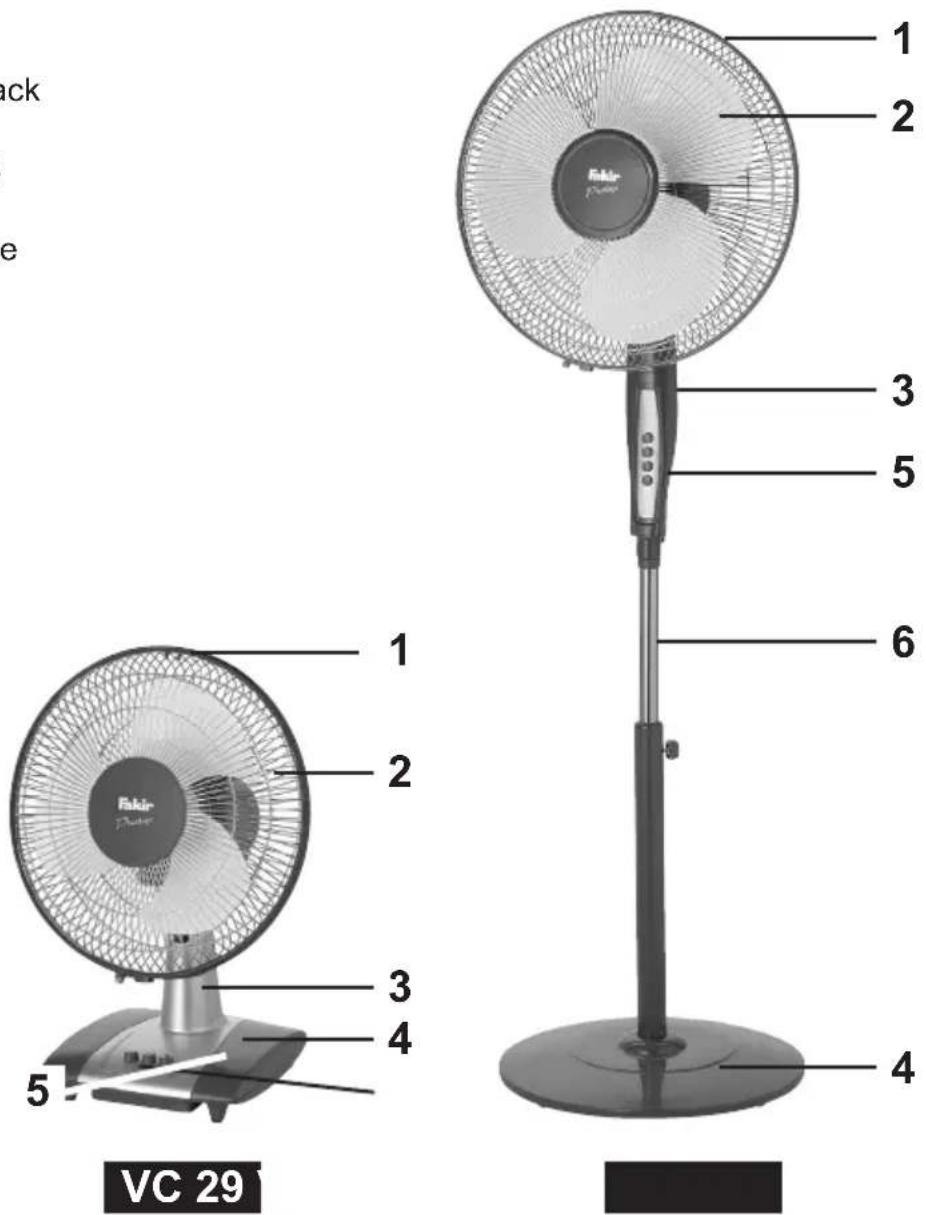

Parts and functions

1 Clamping ring
2 Protective grid, front / back
3 Foot base
4 Nozzle plate (base foot)
5 Control panel
6 Telescopic pedestal tube

Assembly of the VC 29

WARNING!

Never use a defective appliance.

WARNING!

Prior to assembly, make sure that the mains plug is unplugged. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

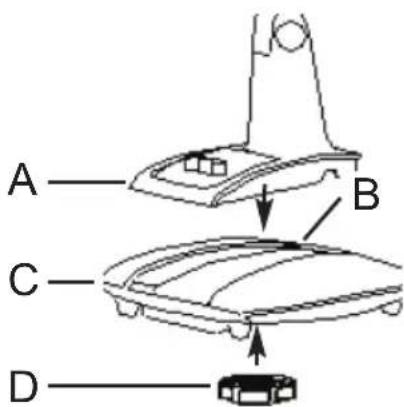

• Insert the base plate [A] of the cooling fan with the snap-in nose into the rear opening [B] of the nozzle plate [C], then press down and secure from below with the large nut [D].
• Place the rear protective grille [H] with the guiding tubes precisely onto the three recesses (one above and two below the motor axle) on the motor head and secure tightly (clockwise) with the large nut [G].
• Insert fan blades [F] all the way onto the motor axle [J]. Ensure that the tension spring is on the fan blade hub. First remove any protective tube on the axle.
• Unscrew the recessed head screw on the front protective grille [E]. Fold safety lever downwards.

Diagram of a circular object with internal striations and labeled point E (no text or symbols beyond label)

Simple line drawing of a four-petal flower with a labeled point F (no text or symbols on the flower itself)

Diagram of a biological structure resembling a cell or vesicle with internal granular pattern and labeled 'H' (no text or symbols beyond label)

Technical line drawing of a mechanical device with no visible text or symbols

- Put front protective grille [E] with the clamping ring (screw joint facing downwards) onto the rear protective grille [H] and push on, push safety lever upwards onto the grille and secure with the recessed head screw.

NOTICE!

Make sure that the grille snaps into place all the way around.

Zusammenbau VC 45 S

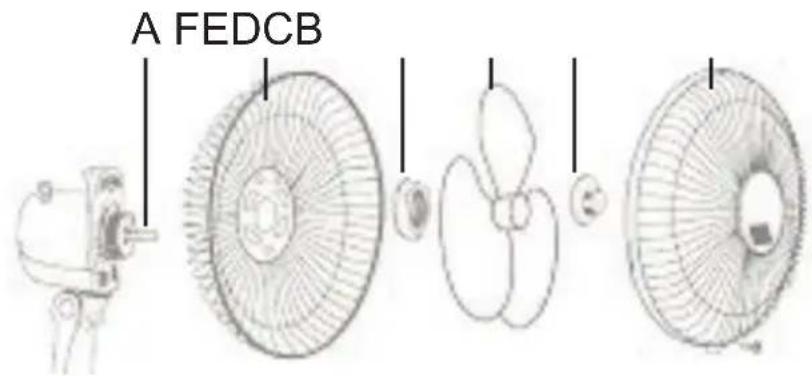

- Place the rear protective grille [B] with the three round recesses precisely onto the three knobs – two above and one below the motor axle [A] – on the motor head and secure tightly (clockwise) with the large nut [C].

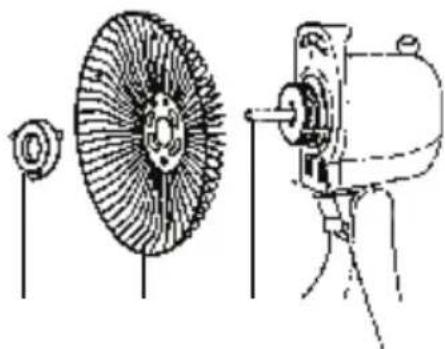

• Insert fan blades [D] all the way onto the motor axle [A]. First remove any protective tube.
• Screw the cap nut [E] onto the motor axle [A] to secure the fan blade. Left-handed thread! Screw on the nut counter-clockwise.
• Unscrew the recessed head screw on the front protective grille [E]. Fold safety lever downwards.
• Put front protective grille [F] with the clamping ring (screw facing downwards) onto the rear protective grille [B] and push on.

NOTICE!

Make sure that the grille snaps into place all the way around.

Push safety lever upwards onto the grille and secure with the recessed head screw.

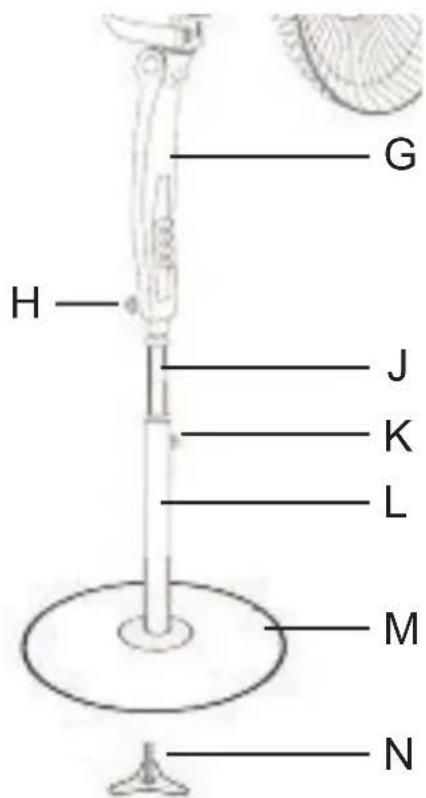

• Insert the tube [L] precisely into the base foot / nozzle plate [M] and screw [N] securely from below (clockwise).

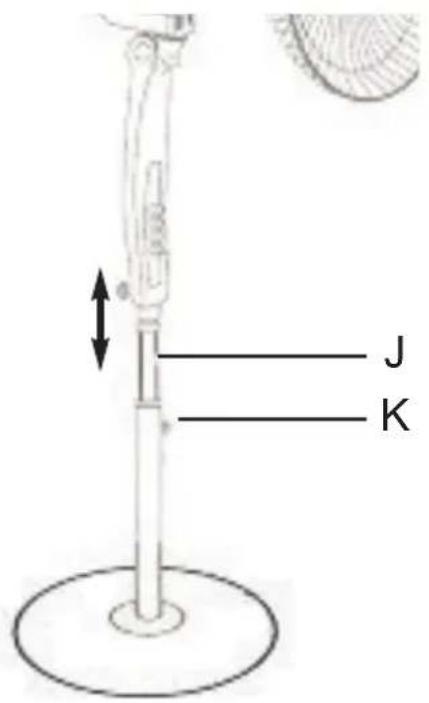

• Pull the telescopic tube [J] out of the tube [L] and secure by rotating the knurled screw [K] to the right (clockwise).
• Put the cooling fan with the foot base [G] all the way onto the telescopic tube [J] and use the knurled screw [H] to secure it by turning it to the right (clockwise).

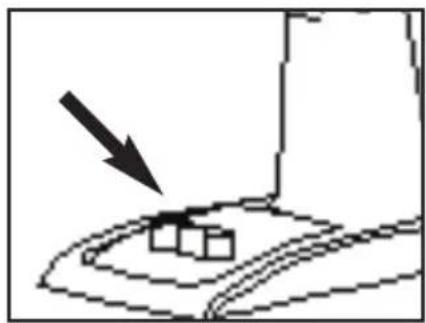

Power-on / off

Simple line drawing of a mechanical component with a downward arrow and two cubes on a curved surface (no text or symbols)

Diagram of a mechanical linkage with an arrow pointing to a circular component (no text or symbols present)

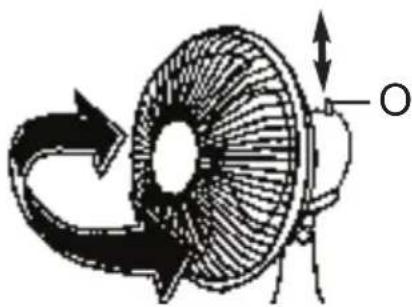

Horizontal blowing direction (oscillation)

Diagram of a fan with rotating blades and directional arrows indicating airflow or motion (no text or symbols)

ATTENTION!

Do not place the appliance directly next to any heat sources and avoid exposure to direct sunlight. Heat may cause damage to the cooling fan.

The pushbuttons for selecting the desired fan speed can be found on the foot base of the VC 29 or on the VC 45 S operating panel.

VC 29

Switching step 0 = OFF

Switching step 1 = Low speed

Switching step 2 = High speed

VC 45 S

Switching step 0 = OFF

Switching step 1 = Low speed

Switching step 2 = Medium speed

Switching step 3 = High speed

The cooling fans are equipped with an automatic swivel device for horizontal swiveling.

The swivel range is approximately 75^ .

The button [O] switches from "Stationary" to

"Oscillation" and vice versa, also when the appliance is in operation.

Button pressed = Oscillation ON

Button pulled out = Oscillation OFF

The oscillation speed is faster or slower depending on the selected speed.

If the direction of the fan is not to your liking, you can:

a) if oscillation is switched on, pull out the button [v] when the motor element is in the right position.

b) if oscillation is switched off, set the position of the motor element through "rotation" to the right or left as desired.

ATTENTION!

Never twist the motor head by force.

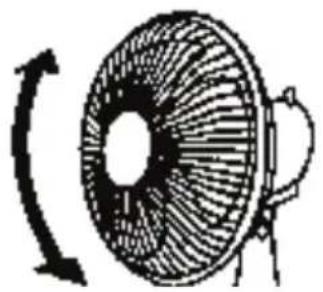

Vertical blowing direction

Diagram of a fan with a rotating arrow indicating clockwise motion (no text or symbols)

The cooling fans can be set manually to the desired vertical area of use (blowing direction) – from approx. 15^ downwards to approx. 25^ upwards.

• Switch off the cooling fan
• Hold the bottom of the fan (foot base) securely and then swivel the motor element – only from the back – forwards (blowing direction downwards) or backwards (blowing direction upwards) until the desired position has been reached.

ATTENTION!

Never push on the protective grid.

Height adjustment of the VC 45 S

The height of the pedestal cooling fan VC 45 S can be adjusted from approximately 120 – 140 cm:

• Loosen the knurled screw [K] by turning it to the left (anti-clockwise).
• Pull out telescopic tube [J] to the desired height or push in.
• Secure the telescopic tube again by turning the knurled screw [K] to the right (clockwise).

Cleaning / care

WARNING!

Switch off and unplug the appliance before cleaning. This will prevent the appliance from accidentally being switched on.

ATTENTION!

Do not use cleaning solutions, abrasive cleaners or alcohol. This would damage the housing.

Dust accumulations inside the appliance can be removed with a vacuum cleaner or by blowing with compressed air.

Clean the appliance only with a dry or moist cloth. The appliance requires no special maintenance and care. Wind the power supply cord. Protect from dust during storage.

Appliances that have not been in use for an extended period of time must be checked by a trained technician before being put back in operation. The same applies if the appliance shows dirt on the inside.

Troubleshooting

Dear Customer:

Our products are subjected to stringent quality controls. If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting our service department, check to see if you can eliminate the problem yourself.

WARNING!

Switch off and unplug the appliance before beginning troubleshooting. This will prevent the appliance from accidentally being switched on.

Problem Possible cause	Solution
Appliance does Plug not operate Appliance	is not plugged in Plug in is not switched on Switch on applianceNo electricity at wall socket Use other wall socketPower cord is damaged Call service hotline
No oscillation Oscillation	ion is not switched on Switch on oscillationMotor or gear unit is defective Call service hotline
Appliance is Foreign unusually loud	particles may be stuck Remove foreign particlesSpring on the blade hub is missing	Put on spring

NOTICE!

If you were not able to eliminate a problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

Service hotline

Service hotline

49 (0) 1805 325474

18 cents / minute

from the wire-line network of the Deutsche Telekom.

Before calling, make sure to have the following information:

Appliance/model designation including 7-digit article number, e.g. 69 44 009 and date of manufacture, e.g. 2015-11

(This information can be found on the rating plate of the appliance.)

or the 7-digit replacement part number.

Disposal

Symbol of a waste bin with no text or labels

When the cooling fan has reached the end of its service life, especially in the event of malfunctions, render the appliance unserviceable by first unplugging and then cutting the power cord.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

Unserviceable electrical and electronic appliances and batteries contain hazardous substances, which were previously necessary for the proper functioning and safety of the appliances.

Never dispose of unserviceable appliances or batteries with the household refuse!

In household refuse, or if handled incorrectly, these substances are hazardous to human health and the environment.

Unserviceable electrical and electronic appliances and batteries often contain valuable materials.

Dispose of batteries separately!

Make use of your local recycling facilities for recycling of electrical and electronic appliances and batteries.

This appliance fulfills the requirements of the 2012/19/EU WEEE Directive

We offer a warranty under the following conditions for this appliance:

1. Your reseller's residential address / company address shall be located in the EU or the appliance shall be purchased from an authorized reseller in Germany.
2. We guarantee to ensure that you may send the appliance to us free of charge and to repair the faults which have been reported within 24 months due to material or assembly errors that occur within 24 months (12 months for industrial and professional uses).

Proper use of the appliance is a pre-requisite for fulfilling the warranty obligation. The warranty period begins with the date of sale.

1. Parts included in natural wear parts (drive belt, batteries, brushes, filters) are not covered under warranty.
2. Warranty claims shall be void in case of intervention or repair by persons who are not authorized us. In addition, aftermarket spare parts or accessories shall not be installed.
3. Warranty service consists of repair or replacement of defective parts. On-site repairs may only be requested for fixed large appliances. In order to document warranty claims, it is necessary to present the invoice or voucher with the date of purchase, stemp and signature from the dealer.
4. If the repair operation fails and the fault or defect can not be remedied after service, the appliance shall be replaced with an equivalent appliance. If a repair or replacement is not possible, you are entitled the right to return the appliance and to demand a refund of the sales value of the appliance. A fee may be requested for the period of use in case of a request for an exchange or refund of the sales value.
5. Warranty services do not cause an extension of the warranty period or start of a new warranty period. The warranty period for the parts installed inside the appliance ends with the end of the total warranty period of the appliance.
6. Contractual or statutory clauses for repair of faults remain in effect regardless of warranty terms.

Applies as of July 1st, 2017
