USER MANUAL premium VC 46 S FAKIR

Black outdoor fan with mesh grille and a black handle, standing on a stand (no text or symbols visible)

Bedienungsanleitung

DE Stand-Ventilator

(Seite 1 - 20)

User manual

EN Pedestal fan

(Page 21 - 40)

Inhaltsverzeichnis

Allgemeines

Simple line drawing of an open box with a black upward arrow on the lid (no text or symbols)

Hinweis!

Diagram of a mechanical device with a lever and base, showing motion arrows (no text or symbols)

3)

Simple line drawing of a vertical pole with a base and top, no text or symbols present.

4)

Line drawing of a mechanical device with a cylindrical shaft and mounting base (no text or symbols)

5)

Diagram of a mechanical or optical system with concentric circular components and directional arrows (no text or symbols)

6)

Technical line drawing of a multi-blade fan with internal blades and a separate circular component (no text or symbols)

7)

3D wireframe model of a fan with visible blades and central hub, no text or symbols present

8)

Technical line drawing of a mechanical component with a curved top and base, plus a small dropper (no text or symbols)

9)

Diagram of a desktop fan with a stand and power cord, showing no text or symbols

Line drawing of a desktop microphone with labeled parts A and B, showing wiring and a cable (no text or symbols beyond labels)

Symbol of a waste bin with crossed lines indicating no waste, no text or labels present

Black outdoor fan with mesh grille and a black handle, standing on a stand (no text or symbols visible)

EN User manual

Pedestal fan

Table of Contents

General

General 23

Information on the manual 23

Liability 23

Notices in the user manual 23

Safety Warnings

CE Declaration of Conformity 24

Intended Use 24

Using against instructions 24

WARNING! Children 25

Attention! Electrical current 27

Transferring 28

In case of failure 28

Overview

Scope of delivery 29

Technical information / Energy data 30

Assembly

Unpacking 31

Assembly 31

Operation

On / Off 33

Speed 33

Oscillation 33

Timer 33

Remote control 33

Cleaning and Maintenance

Cleaning 34

Troubleshooting 35

Recycling 37

Warranty 38

Notes 39

General

EN

Information on the manual

Thank you for choosing a Fakir cooling fan. It was designed and constructed for many years of trouble-free operation.

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damage resulting from failure to comply with the operating instructions.

We cannot assume any liability for damage resulting from use other than as intended, or from incorrect operation or unauthorized repairs or maintenance.

Notices in the user manual

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

CAUTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Specifies tips and other useful information in the user manual.

EN

Safety Warnings

CE Declaration of Conformity

This appliance fulfils the requirements of the Product Safety Law -ProdSG-, as well as the EU Directives 2014/30/EU "Electromagnetic Compatibility", 2014/35/EU "Low-Voltage Directive", 2001/95/EG "General product safety", 2011/65/EU "RoHS Directive", 2009/125/EG "Eco-design Directive" and This appliance bears the CE-Mark on the rating plate. Fakir reserves the right to change the design and equipment.

Intended Use

This cooling fan may only be used for its intended purpose – ventilating homes or offices. The cooling fan is not suitable for commercial use. Any other use is considered unauthorized and is prohibited Use the appliance with original Fakir accessories only. Any other use is considered unauthorized and is prohibited.

Using against instructions

Using the appliance against the instructions specified above may cause damage to the appliance or personal injuries.

WARNING! Children

• This appliance may be used only by children from the age of 8 years and over, persons with limited physical, sensory or mental capacities or by persons lacking in experience, if they will be supervised, or they have been properly instructed with regard to safe use of the appliance and they are aware of the possible resulting risks.
  • Children should not play with this appliance.
• Cleaning and maintenance shall not be carried out by children without supervision.
• Keep plastic packaging foils away from children - danger of suffocation!

WARNING! Children

• Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.
- This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.
• Children shall be supervised to ensure that they do not play with the appliance.
- Suffocation risk due to packaging foils. This appliance shall not be used for play.

EN

Safety Warnings

• Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.
• Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.
• The appliance shall not be used without supervision.

WARNING! Danger from overheating!

Always keep the openings on the appliance free.

WARNING! Damage to appliance due to rain and dirt may occur!

Never use or store the appliance outdoors.

Attention! Electrical current

• Incorrect voltage may cause damage to the appliance. Operate the appliance-only if the voltage specified on the rating plate corresponds to the voltage in your household.
• The outlet used shall be secured with a fuse switch of 16A.
• Use extension cords designed for the power input of the appliance only.

WARNING! Risk of electrocution!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat-sources.
• If the power cord of this appliance is damaged, it shall be replaced by thema manufacturer or the manufacturer's customer service department or a personwith similar qualifications to prevent any hazards.
• Do not put the appliance in operation if you detect any visible damage on thehousing, if the power cord is defective or if you suspect a defect (e.g. after afall).
• Do not use any damaged power cords

WARNING! In case of danger!

In case of danger or an accident, unplug the appliance immediately.

EN

Safety Warnings

Transferring

Pack the appliance with its original package or with similar packaging materials with proper filling to prevent damage to the appliance.

In case of failure

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. Risk of electric shock.

Before contacting our Hotline, check to see if you can eliminate the problem yourself.

Note!

Please contact our Hotline first, if you cannot trouble-shoot a problem by yourself or in case of an intentional product return.

Hotline

01805 325474

18 Cents / minute

Applies for Telecom land lines in Germany.

Always keep the serial number of the product and appliance/model name at hand before calling.

You may find these information on the type label of the appliance.

WARNING!

Repairs and maintenance shall be carried out only by trained specialists (e.g. an authorized Fakir service center). Use genuine Fakir replacement parts for these procedures. Appliances that are repaired by unauthorized persons or that are not maintained properly pose a risk for the user.

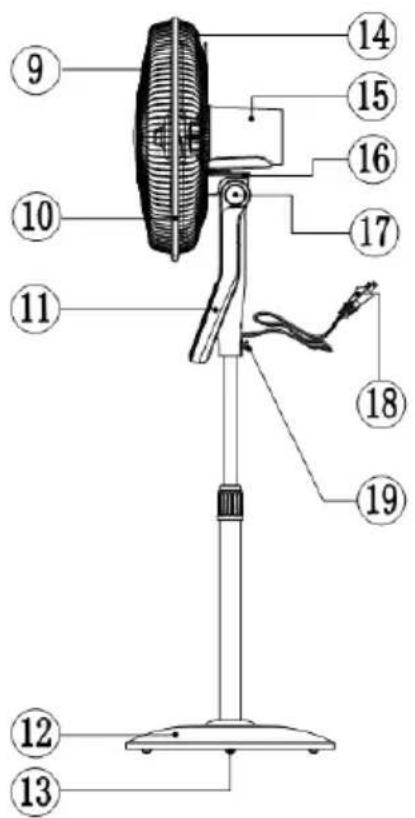

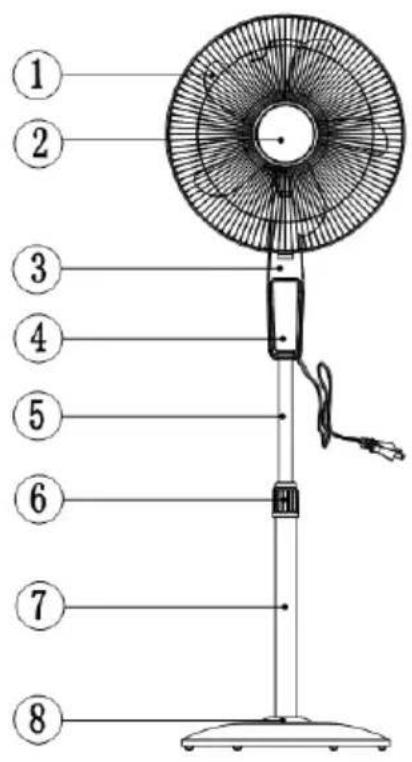

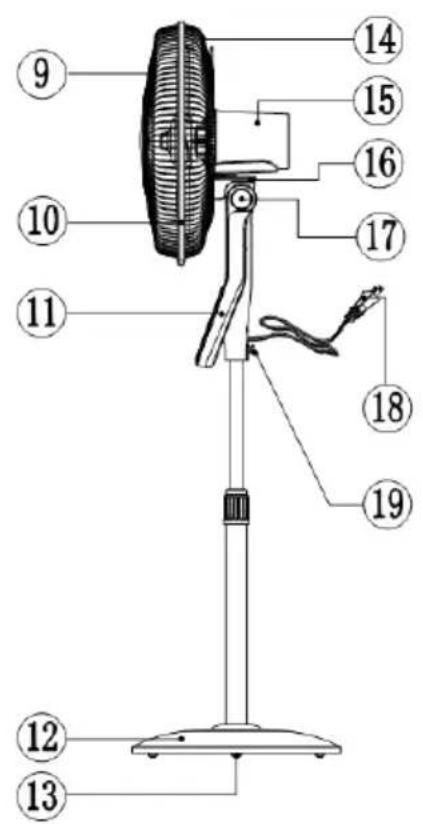

Scope of delivery

1. Blade
2. Front guard cover
3. Front case
4. Touch panel control
5. Adjustable pod
6. Rod fixing ring nut
7. Pillar
8. Base ring
9. Front guard

10. Grille hoop

11. Back cover

12. Base
13. Balance weight
14. Rear guard
15. Rear motor cover
16. Flexed rack
17. Side cover
18. Power cord

19. Floor fixing screw

20. Remote control (no illustration)

Technical information

premium | VC 46 S

Article number 69 63 009

Colour

black

Voltage

220 V / 50 Hz

Maximum power consumption 60 W

Grille diameter 450 mm

Diameter of blades 390 mm

Speeds

3

Oscillates up to approx. 90^ (horizontal)

Measurement W x D approx. 110-150 x 41 x 45 cm

Weight 6,5 kg

Remote control batteries CR 2025 / 3 V

Information for fans according the requirement of Commission Regulation (EU) No 206/2012 implementing Directive 2009/125/Ec in order to establishing eco design requirements for room air conditioners and comfort fans.

Model premium | VC 46 S A	Article-no. 69 63 009 black
Discription Symbol Value	Unit
Maximum fan flow rate	F	50,4	m^3/min
Fan power input	P	55,5	W
Service value	SV	0,91	(m^3/min)/W
Standby power consumption	PSB	0,20	W
Seasonal electricity consumption	Q	17,98	kWh/a
Fan sound power level	LWA	63	dB(A)
Maximum air velocity	c	2,7	meters/sec
Contact: Fakir Hausgeräte GmbH Industriestr. 6 71665 Vaihingen / Enz +49 (0) 7042/912-0 E-Mail: [e-mail]	According IEC 60879

Assembly

EN

Unpacking

Unpack the appliance and check the contents for completeness (see „scope of delivery“).

If you notice any transportation damage, please contact your dealer immediately.

Simple line drawing of an open box with a black upward arrow on the lid (no text or symbols)

Note!

Keep the packaging material for storage or transfer of the appliance (e.g. changing household, service operations).

Warning!

Never use a faulty appliance.

Assembly

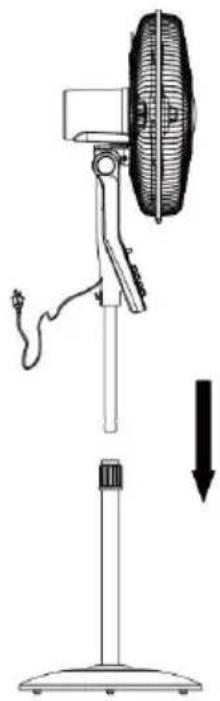

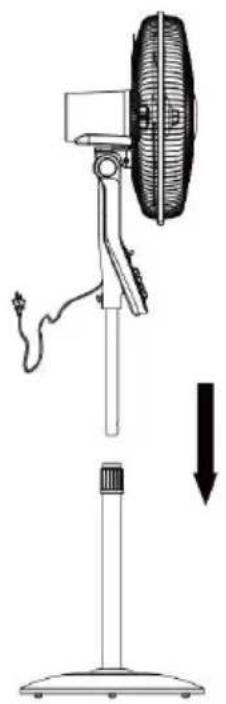

• Take out the pillar from the packing, then loosen the rod fixing ring nut and L screw in counterclockwise direction.
• Install the base ring onto the pillar and then tighten the rod fixing ring nut on the top of the pillar.
- Fix the base onto the balance weight firmly, then place the iron ring under the weight and fasten the pillar, base, balance weight and iron ring with the L screw.
- The completed base should be placed on stable and even floor.

2)

Diagram of a mechanical device with downward arrows indicating motion or force, no text or symbols present

3)

Simple line drawing of a vertical pole with a base and top, no text or symbols present.

4)

Simple line drawing of a cylindrical device with a shaft and circular housing (no text or symbols)

5)

Diagram of a mechanical component with rotating shaft and housing, showing internal structure without any text or symbols

6)

Technical line drawing of a multi-blade fan with internal blades and a rotating shaft (no text or symbols)

7)

Illustration of a multi-free fan with visible blades and central hub (no text or symbols)

8)

Technical line drawing of a mechanical component with a curved top and base, no visible text or symbols

9)

Diagram of a desktop fan with a vertical pole and base, showing motion direction (no text or symbols)

Diagram of a desktop microphone with labeled parts A and B, showing wiring and a speaker (no text or symbols beyond labels)

• Loosen the rear guard lock in counterclockwise direction
• Install the rear guard onto the motor front and tighten the rear guard lock in clockwise direction. Make sure the rear guard handle is located at 12 o'clock position.
  • Install the blade onto the motor shaft and then fasten the blade screw cap in counterclockwise direction.
• Fit in the front guard coupled with the rear guard and ensure that the locking point of the grille hoop remains at 6 o'clock position.
• Ensure the edges of the front guard and rear guard have been fitted in the grille hoop and fasten the locking with a screwdriver.
  • Install the upper fan onto the adjustable rod and fasten the floor fixing screw (A). The installation is completed.

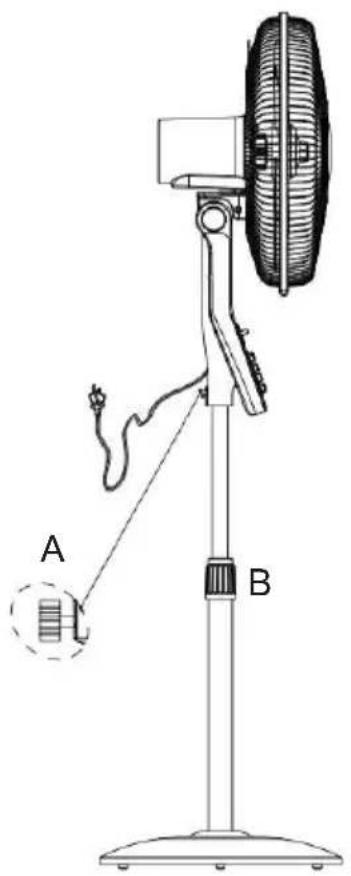

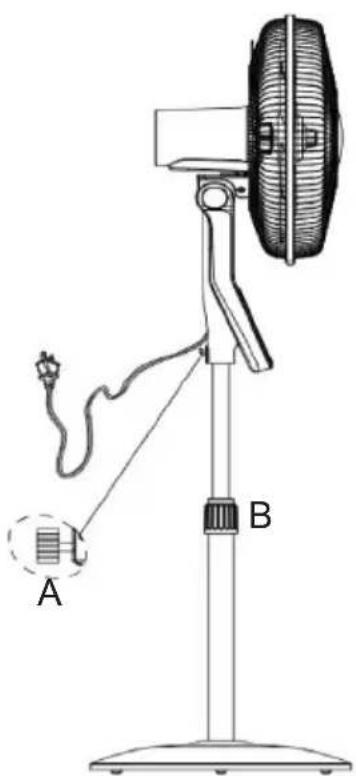

• To adjust the height you may loosen the rod fixing ring nut (B) and adjust the upper fan to your desired height level and tighten the rod fixing ring again.

CAUTION!!

Do not place the appliance directly next to any heat sources and avoid exposure to direct sunlight. Heat may cause damage to the cooling fan.

On / off

The fan works in a low mode when you press the ON/OFF key once. All the functions are closed when press the key again, the corresponding indicator light is switched on or off simultaneously.

Speed selection

The symbols on the buttons are showing the different wind level status.

Button 1: Low wind speed
Button 2: Medium wind speed
Button 3: High wind speed

Mode

Press the "Mode" button until the rquired mode is set. The mode symbol will light blue.

In the natural mode (tree symbol) you may additionally choose between the three wind level status.

Oscillation

Press the "Swing" button to activate the oscillation.

Timer

Press the "Timer" button to activate timer sequence from 0.5 hrs to 7.5 hrs. Each time this button is pressed, the timer goes up by 0.5 hrs, 1h, 2 hrs and 4 hrs increments up to 7.5 hrs. For each function, the corresponding indicator light will be switched on or off.

Remote control All functions can also be operated via the remote control. Due to the magnetic contact the remote control can be attached directly to the telescopic tube.

EN

Cleaning and Maintenance

Cleaning

WARNING!

Switch off and unplug the appliance before cleaning. This will prevent the appliance from accidentally being switched on.

CAUTION!

Do not use cleaning solutions, abrasive cleaners or alcohol. This would damage the housing.

Make sure the fan is switched off when you are ready to clean. To dismount follow the reverse process in the installation section.

Clean the blades and grilles with a moist cloth and dry thoroughly before reassembling.

Dust accumulations inside the appliance can also be removed with a vacuum cleaner or by blowing with compressed air. Protect from dust during storage.

Appliances that have not been in use for an extended period of time must be checked by a trained technician before being put back in operation. The same applies if the appliance shows dirt on the inside.

Troubleshooting

Dear Customer,

our products are subjected to stringent quality controls.

If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting our Customer Services, check to see if you can eliminate the problem yourself.

Warning!

Turn off the appliance and unplug it before troubleshooting after cooling period. Thus, you may prevent unintentional operation of the appliance.

Information!

Please contact our Hotline first, if you cannot troubleshoot a problem by yourself or in case of an intentional product return.

Hotline

01805 325474

18 Cent / minute

Applies for Telecom land lines in Germany.

Before calling, always have

the 7-digit product number with appliance/model name,

e.g. 69 63 009 and the date of production, e.g. 2018-05,

(you may find these information on the type label of the appliance.) or the 7-digit spare part number at hand.

Attention!

Repairs and maintenance shall be carried out only by trained specialists (e.g. an authorized Fakir service center). Use genuine Fakir replacement parts for these purposes. Appliances that are repaired by unauthorized persons or that are not maintained properly pose a risk for the user.

Problem Probable Cause	Remedy
Appliance does not operate	Plug is not inserted or the appliance is not switched on.	Insert the plug into a mains socket and switch on the appliance.Call service hotline.
	There is no power in the socket.	Test the appliance at another socket which you are sure carries current.
	Power cord is damaged.	Have the power cord replaced by Fakir Customer Services.
No oscillation Oscillation is	not switched on.Motor or gear unit is defective.	Switch on oscillationCall service hotline.
Appliance is unusually loud	Foreign particles may be stuck	Remove foreign particles.

Recycling

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

When the cooling fan has reached the end of its service life, especially in the event of malfunctions, render the appliance unserviceable by first unplugging and then cutting the power cord.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

Unserviceable electrical and electronic appliances and batteries contain hazardous substances, which were previously necessary for the proper functioning and safety of the appliances.

Never dispose of unserviceable appliances or batteries with the household refuse!

In household refuse, or if handled incorrectly, these substances are hazardous to human health and the environment.

Unserviceable electrical and electronic appliances and batteries often contain valuable materials.

Dispose of batteries separately!

Make use of your local recycling facilities for recycling of electrical and electronic appliances and batteries.

This appliance fulfills the requirements of the 2012/19/EU – WEEE Directive

We offer a warranty under the following conditions for this appliance:

1. Your reseller's residential address / company address shall be located in the EU or the appliance shall be purchased from an authorized reseller in Germany.
2. We guarantee to ensure that you may send the appliance to us free of charge and to repair the faults which have been reported within 24 months due to material or assembly errors that occur within 24 months (12 months for industrial and professional uses).
   Proper use of the appliance is a pre-requisite for fulfilling the warranty obligation. The warranty period begins with the date of sale.
3. Parts included in natural wear parts (drive belt, batteries, brushes, filters) are not covered under warranty.
4. Warranty claims shall be void in case of intervention or repair by persons who are not authorized us. In addition, aftermarket spare parts or accessories shall not be installed.
5. Warranty service consists of repair or replacement of defective parts. On-site repairs may only be requested for fixed large appliances. In order to document warranty claims, it is necessary to present the invoice or voucher with the date of purchase, stemp and signature from the dealer.
6. If the repair operation fails and the fault or defect can not be remedied after service, the appliance shall be replaced with an equivalent appliance. If a repair or replacement is not possible, you are entitled the right to return the appliance and to demand a refund of the sales value of the appliance. A fee may be requested for the period of use in case of a request for an exchange or refund of the sales value.
7. Warranty services do not cause an extension of the warranty period or start of a new warranty period. The warranty period for the parts installed inside the appliance ends with the end of the total warranty period of the appliance.
8. Contractual or statutory clauses for repair of faults remain in effect regardless of warranty terms.

Applies as of July 1st, 2017

Rights to make changes are reserved.

Subject to revision

69 63 994 - 9811 en
